Detailed Description

Holds event message meta data.

You can attach various types of objects (vehicle, person, face, etc.) to an event by setting a pointer to the object in extMsg.

Similarly, you can attach a custom object to an event by setting a pointer to the object in extMsg. A custom object must be handled by the metadata parsing module accordingly.

Definition at line 391 of file sources/includes/nvdsmeta_schema.h.

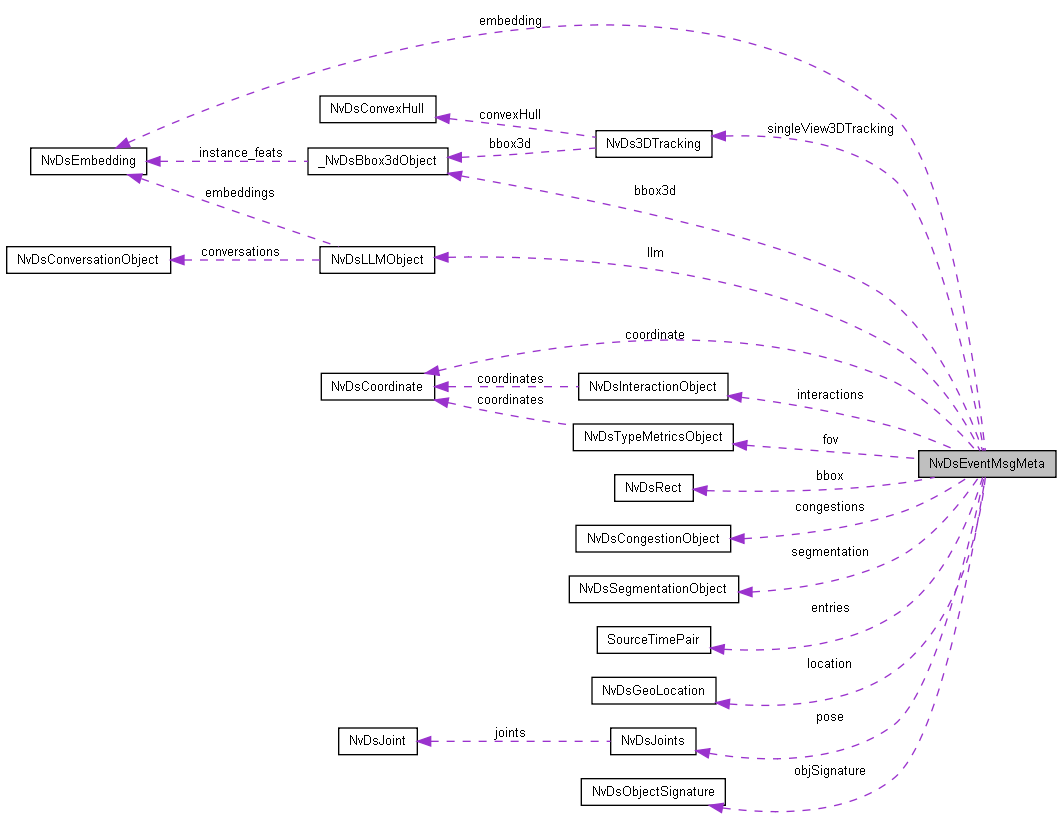

Collaboration diagram for NvDsEventMsgMeta:

[legend]

Data Fields
NvDsEventType	type
	Holds the event's type. More...

NvDsObjectType	objType
	Holds the object's type. More...

NvDsRect	bbox
	Holds the object's bounding box. More...

NvDsGeoLocation	location
	Holds the object's geolocation. More...

NvDsCoordinate	coordinate
	Holds the object's coordinates. More...

NvDsObjectSignature	objSignature
	Holds the object's signature. More...

gint	objClassId
	Holds the object's class ID. More...

gint	sensorId
	Holds the ID of the sensor that generated the event. More...

gint	moduleId
	Holds the ID of the analytics module that generated the event. More...

gint	placeId
	Holds the ID of the place related to the object. More...

gint	componentId
	Holds the ID of the component (plugin) that generated this event. More...

gint	frameId
	Holds the video frame ID of this event. More...

gdouble	confidence
	Holds the confidence level of the inference. More...

guint64	trackingId
	Holds the object's tracking ID. More...

gchar *	ts
	Holds a pointer to the generated event's timestamp. More...

gchar *	objectId
	Holds a pointer to the detected or inferred object's ID. More...

gchar *	sensorStr
	Holds a pointer to a string containing the sensor's identity. More...

SourceTimePair	entries [MAX_ENTRIES]
	Holds a pointer to a string containing other attributes associated with the object. More...

int	count

NvDsBbox3dObject *	bbox3d

NvDsLLMObject *	llm

gint	num_interactions

NvDsInteractionObject *	interactions

gint	num_congestions

NvDsCongestionObject *	congestions

gint	num_fov

NvDsTypeMetricsObject *	fov

NvDsSegmentationObject *	segmentation

gchar *	otherAttrs

gchar *	videoPath
	Holds a pointer to the name of the video file. More...

gpointer	extMsg
	Holds a pointer to event message meta data. More...

guint	extMsgSize
	Holds the size of the custom object at extMsg. More...

NvDsJoints	pose
	Holds the object's pose information. More...

NvDsEmbedding	embedding
	Holds the object's embedding information. More...

bool	has3DTracking
	Holds the flag for whether single view 3D tracking metadata is available. More...

NvDs3DTracking	singleView3DTracking
	Holds the single view 3D tracking metadata if available. More...

Field Documentation

◆ bbox

NvDsRect NvDsEventMsgMeta::bbox

Holds the object's bounding box.

Definition at line 397 of file sources/includes/nvdsmeta_schema.h.

◆ bbox3d

NvDsBbox3dObject * NvDsEventMsgMeta::bbox3d

Definition at line 431 of file sources/includes/nvdsmeta_schema.h.

◆ componentId

gint NvDsEventMsgMeta::componentId

Holds the ID of the component (plugin) that generated this event.

Definition at line 413 of file sources/includes/nvdsmeta_schema.h.

◆ confidence

gdouble NvDsEventMsgMeta::confidence

Holds the confidence level of the inference.

Definition at line 417 of file sources/includes/nvdsmeta_schema.h.

◆ congestions

NvDsCongestionObject * NvDsEventMsgMeta::congestions

Definition at line 436 of file sources/includes/nvdsmeta_schema.h.

◆ coordinate

NvDsCoordinate NvDsEventMsgMeta::coordinate

Holds the object's coordinates.

Definition at line 401 of file sources/includes/nvdsmeta_schema.h.

◆ count

int NvDsEventMsgMeta::count

Definition at line 430 of file sources/includes/nvdsmeta_schema.h.

◆ embedding

NvDsEmbedding NvDsEventMsgMeta::embedding

Holds the object's embedding information.

Definition at line 453 of file sources/includes/nvdsmeta_schema.h.

◆ entries

SourceTimePair NvDsEventMsgMeta::entries

Holds a pointer to a string containing other attributes associated with the object.

Definition at line 429 of file sources/includes/nvdsmeta_schema.h.

◆ extMsg

gpointer NvDsEventMsgMeta::extMsg

Holds a pointer to event message meta data.

This can be used to hold data that can't be accommodated in the existing fields, or an associated object (representing a vehicle, person, face, etc.).

Definition at line 447 of file sources/includes/nvdsmeta_schema.h.
