Detailed Description

GuardDataFilter is the safe access entry for abiDataFilter.

Applications can use it to make C-based APIs safer. it would manage abiRefDataFilter automatically. with that, App user do not need to refCopy_i or destroy abiRefDataFilter manually.

For example: abiRefDataFilter* rawRef = creator(); GuardDataFilter guardFilter(rawRef, true); // take the ownership of rawRef guardFilter.setUserData(userdata, [](void*){ ...free... }); guardFilter.setErrorCallback([](ErrCode c, const char* msg){ stderr << msg; }); ErrCode c = guardFilter.start(config, path); DS_ASSERT(isGood(c)); c = guardFilter.start(config, path); // invoke abiDataFilter::start_i(...) GuardDataMap inputData = ...; // prepare input data // invoke abiDataFilter::process_i(...) c = guardFilter.process(inputData, [](ErrCode c, const abiRefDataMap* d){ GuardDataMap outputData(<em>d); // output data processing std::cout << "output data processing starts" << std::endl; }, [](ErrCode c, const abiRefDataMap d){ GuardDataMap doneData(*d); std::cout << "input data consumed" << std::endl; }); DS_ASSERT(isGood(c)); //... wait for all data processed before stop c = guardFilter.flush(); c = guardFilter.stop(); // invoke abiDataFilter::stop_i(...) guardFilter.reset(); // destroy abiRefDataFilter, when all reference // destroyed, abiDataFilter would be freed.

Definition at line 59 of file sources/includes/ds3d/common/hpp/datafilter.hpp.

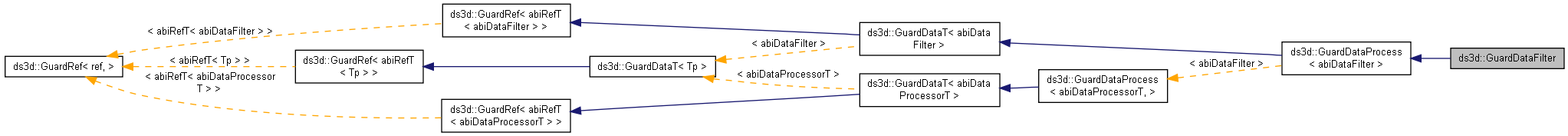

Inheritance diagram for ds3d::GuardDataFilter:

[legend]

Collaboration diagram for ds3d::GuardDataFilter:

[legend]

Public Types
using	abiRefType = abiRefT< abiDataFilter >

using	abiRefType = abiRefT< abiDataFilter >

Public Member Functions
template<typename... Args>
	GuardDataFilter (Args &&... args)

	~GuardDataFilter ()=default

ErrCode	process (GuardDataMap datamap, abiOnDataCB::CppFunc outputDataCB, abiOnDataCB::CppFunc inputConsumedCB)

template<typename... Args>
	GuardDataFilter (Args &&... args)

	~GuardDataFilter ()=default

ErrCode	process (GuardDataMap datamap, abiOnDataCB::CppFunc outputDataCB, abiOnDataCB::CppFunc inputConsumedCB)

void	setUserData (void *data, DelF delF)

void	setUserData (void *data, DelF delF)

virtual void *	getUserData () const

virtual void *	getUserData () const

void	setErrorCallback (abiErrorCB::CppFunc errCb)

void	setErrorCallback (abiErrorCB::CppFunc errCb)

ErrCode	start (const std::string &content, const std::string &path="")

ErrCode	start (const std::string &content, const std::string &path="")

ErrCode	flush ()

ErrCode	flush ()

ErrCode	stop ()

ErrCode	stop ()

State	state () const

State	state () const

std::string	getCaps (CapsPort port)

std::string	getCaps (CapsPort port)

std::string	getOutputCaps ()

std::string	getOutputCaps ()

std::string	getInputCaps ()

std::string	getInputCaps ()

GuardTy	cast ()

GuardTy	cast ()

abiDataFilter *	ptr () const

abiDataFilter *	ptr () const

abiDataFilter *	operator-> () const

abiDataFilter *	operator-> () const

	operator bool () const

	operator bool () const

	operator ShrdPtr< abiDataFilter > ()

	operator ShrdPtr< abiDataFilter > ()

abiRefT< abiDataFilter > *	release ()

abiRefT< abiDataFilter > *	release ()

void	reset (abiRefT< abiDataFilter > *abiref=nullptr)

void	reset (abiRefT< abiDataFilter > *abiref=nullptr)

abiRefT< abiDataFilter > *	abiRef () const

abiRefT< abiDataFilter > *	abiRef () const
