Detailed Description

Maintains a representation of a span in a format that can be processed by a recorder.

This class is thread-compatible.

Definition at line 44 of file includes/opentelemetry/sdk/trace/recordable.h.

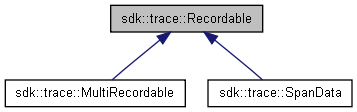

Inheritance diagram for sdk::trace::Recordable:

Public Member Functions
virtual	~Recordable ()=default

virtual void	SetIdentity (const opentelemetry::trace::SpanContext &span_context, opentelemetry::trace::SpanId parent_span_id) noexcept=0
	Set the span context and parent span id. More...

virtual void	SetAttribute (nostd::string_view key, const opentelemetry::common::AttributeValue &value) noexcept=0
	Set an attribute of a span. More...

virtual void	AddEvent (nostd::string_view name, opentelemetry::common::SystemTimestamp timestamp, const opentelemetry::common::KeyValueIterable &attributes) noexcept=0
	Add an event to a span. More...

void	AddEvent (nostd::string_view name)
	Add an event to a span with default timestamp and attributes. More...

void	AddEvent (nostd::string_view name, opentelemetry::common::SystemTimestamp timestamp)
	Add an event to a span with default (empty) attributes. More...

void	AddEvent (nostd::string_view name, const opentelemetry::common::KeyValueIterable &attributes) noexcept
	Add an event to a span. More...

virtual void	AddLink (const opentelemetry::trace::SpanContext &span_context, const opentelemetry::common::KeyValueIterable &attributes) noexcept=0
	Add a link to a span. More...

void	AddLink (opentelemetry::trace::SpanContext span_context)
	Add a link to a span with default (empty) attributes. More...

virtual void	SetStatus (opentelemetry::trace::StatusCode code, nostd::string_view description) noexcept=0
	Set the status of the span. More...

virtual void	SetName (nostd::string_view name) noexcept=0
	Set the name of the span. More...

virtual void	SetTraceFlags (opentelemetry::trace::TraceFlags) noexcept
	Set the trace flags of the span. More...

virtual void	SetSpanKind (opentelemetry::trace::SpanKind span_kind) noexcept=0
	Set the spankind of the span. More...

virtual void	SetResource (const opentelemetry::sdk::resource::Resource &resource) noexcept=0
	Set Resource of the span. More...

virtual void	SetStartTime (opentelemetry::common::SystemTimestamp start_time) noexcept=0
	Set the start time of the span. More...

virtual void	SetDuration (std::chrono::nanoseconds duration) noexcept=0
	Set the duration of the span. More...

virtual	operator SpanData * () const
	Get the SpanData object for this Recordable. More...

virtual void	SetInstrumentationScope (const InstrumentationScope &instrumentation_scope) noexcept=0
	Set the instrumentation scope of the span. More...

void	SetInstrumentationLibrary (const InstrumentationScope &instrumentation_scope) noexcept

virtual	~Recordable ()=default

virtual void	SetIdentity (const opentelemetry::trace::SpanContext &span_context, opentelemetry::trace::SpanId parent_span_id) noexcept=0
	Set the span context and parent span id. More...

virtual void	SetAttribute (nostd::string_view key, const opentelemetry::common::AttributeValue &value) noexcept=0
	Set an attribute of a span. More...

virtual void	AddEvent (nostd::string_view name, opentelemetry::common::SystemTimestamp timestamp, const opentelemetry::common::KeyValueIterable &attributes) noexcept=0
	Add an event to a span. More...

void	AddEvent (nostd::string_view name)
	Add an event to a span with default timestamp and attributes. More...

void	AddEvent (nostd::string_view name, opentelemetry::common::SystemTimestamp timestamp)
	Add an event to a span with default (empty) attributes. More...

void	AddEvent (nostd::string_view name, const opentelemetry::common::KeyValueIterable &attributes) noexcept
	Add an event to a span. More...

virtual void	AddLink (const opentelemetry::trace::SpanContext &span_context, const opentelemetry::common::KeyValueIterable &attributes) noexcept=0
	Add a link to a span. More...

void	AddLink (opentelemetry::trace::SpanContext span_context)
	Add a link to a span with default (empty) attributes. More...

virtual void	SetStatus (opentelemetry::trace::StatusCode code, nostd::string_view description) noexcept=0
	Set the status of the span. More...

virtual void	SetName (nostd::string_view name) noexcept=0
	Set the name of the span. More...

virtual void	SetTraceFlags (opentelemetry::trace::TraceFlags) noexcept
	Set the trace flags of the span. More...

virtual void	SetSpanKind (opentelemetry::trace::SpanKind span_kind) noexcept=0
	Set the spankind of the span. More...

virtual void	SetResource (const opentelemetry::sdk::resource::Resource &resource) noexcept=0
	Set Resource of the span. More...

virtual void	SetStartTime (opentelemetry::common::SystemTimestamp start_time) noexcept=0
	Set the start time of the span. More...

virtual void	SetDuration (std::chrono::nanoseconds duration) noexcept=0
	Set the duration of the span. More...

virtual	operator SpanData * () const
	Get the SpanData object for this Recordable. More...

virtual void	SetInstrumentationScope (const InstrumentationScope &instrumentation_scope) noexcept=0
	Set the instrumentation scope of the span. More...

void	SetInstrumentationLibrary (const InstrumentationScope &instrumentation_scope) noexcept

Constructor & Destructor Documentation

◆ ~Recordable() [1/2]

virtual sdk::trace::Recordable::~Recordable ( )

virtualdefault

◆ ~Recordable() [2/2]

virtual sdk::trace::Recordable::~Recordable ( )

virtualdefault

Member Function Documentation

◆ AddEvent() [1/8]

void sdk::trace::Recordable::AddEvent ( nostd::string_view name )

inline

Add an event to a span with default timestamp and attributes.

Parameters

name	the name of the event

Definition at line 79 of file includes/opentelemetry/sdk/trace/recordable.h.

References sdk::GetEmptyAttributes().

◆ AddEvent() [2/8]

void sdk::trace::Recordable::AddEvent ( nostd::string_view name )

inline

Add an event to a span with default timestamp and attributes.

Parameters

name	the name of the event

Definition at line 79 of file 9.2/includes/opentelemetry/sdk/trace/recordable.h.

References sdk::GetEmptyAttributes().

◆ AddEvent() [3/8]

void sdk::trace::Recordable::AddEvent	(	nostd::string_view	name,
		const opentelemetry::common::KeyValueIterable &	attributes
	)

inlinenoexcept

Add an event to a span.

Parameters

name	the name of the event
attributes	the attributes associated with the event

Definition at line 100 of file includes/opentelemetry/sdk/trace/recordable.h.

◆ AddEvent() [4/8]

void sdk::trace::Recordable::AddEvent	(	nostd::string_view	name,
		const opentelemetry::common::KeyValueIterable &	attributes
	)

inlinenoexcept

Add an event to a span.

Parameters

name	the name of the event
attributes	the attributes associated with the event

Definition at line 100 of file 9.2/includes/opentelemetry/sdk/trace/recordable.h.

◆ AddEvent() [5/8]

void sdk::trace::Recordable::AddEvent	(	nostd::string_view	name,
		opentelemetry::common::SystemTimestamp	timestamp
	)

inline

Add an event to a span with default (empty) attributes.

Parameters

name	the name of the event
timestamp	the timestamp of the event

Definition at line 90 of file includes/opentelemetry/sdk/trace/recordable.h.

References sdk::GetEmptyAttributes().

◆ AddEvent() [6/8]

void sdk::trace::Recordable::AddEvent	(	nostd::string_view	name,
		opentelemetry::common::SystemTimestamp	timestamp
	)

inline

Add an event to a span with default (empty) attributes.

Parameters

name	the name of the event
timestamp	the timestamp of the event

Definition at line 90 of file 9.2/includes/opentelemetry/sdk/trace/recordable.h.

References sdk::GetEmptyAttributes().

◆ AddEvent() [7/8]

virtual void sdk::trace::Recordable::AddEvent	(	nostd::string_view	name,
		opentelemetry::common::SystemTimestamp	timestamp,
		const opentelemetry::common::KeyValueIterable &	attributes
	)

pure virtualnoexcept

Add an event to a span.

Parameters

name	the name of the event
timestamp	the timestamp of the event
attributes	the attributes associated with the event

Implemented in sdk::trace::SpanData, sdk::trace::SpanData, sdk::trace::MultiRecordable, and sdk::trace::MultiRecordable.

◆ AddEvent() [8/8]

virtual void sdk::trace::Recordable::AddEvent	(	nostd::string_view	name,
		opentelemetry::common::SystemTimestamp	timestamp,
		const opentelemetry::common::KeyValueIterable &	attributes
	)

pure virtualnoexcept

Add an event to a span.

Parameters

name	the name of the event
timestamp	the timestamp of the event
attributes	the attributes associated with the event

Implemented in sdk::trace::SpanData, sdk::trace::SpanData, sdk::trace::MultiRecordable, and sdk::trace::MultiRecordable.

◆ AddLink() [1/4]

virtual void sdk::trace::Recordable::AddLink	(	const opentelemetry::trace::SpanContext &	span_context,
		const opentelemetry::common::KeyValueIterable &	attributes
	)

pure virtualnoexcept

Add a link to a span.

Parameters

span_context	the span context of the linked span
attributes	the attributes associated with the link

Implemented in sdk::trace::SpanData, sdk::trace::SpanData, sdk::trace::MultiRecordable, and sdk::trace::MultiRecordable.

◆ AddLink() [2/4]

virtual void sdk::trace::Recordable::AddLink	(	const opentelemetry::trace::SpanContext &	span_context,
		const opentelemetry::common::KeyValueIterable &	attributes
	)

pure virtualnoexcept

Add a link to a span.

Parameters

span_context	the span context of the linked span
attributes	the attributes associated with the link

Implemented in sdk::trace::SpanData, sdk::trace::SpanData, sdk::trace::MultiRecordable, and sdk::trace::MultiRecordable.

◆ AddLink() [3/4]

void sdk::trace::Recordable::AddLink ( opentelemetry::trace::SpanContext span_context )

inline

Add a link to a span with default (empty) attributes.

Parameters

span_context the span context of the linked span

Definition at line 119 of file includes/opentelemetry/sdk/trace/recordable.h.

References sdk::GetEmptyAttributes().

◆ AddLink() [4/4]

void sdk::trace::Recordable::AddLink ( opentelemetry::trace::SpanContext span_context )

inline

Add a link to a span with default (empty) attributes.

Parameters

span_context the span context of the linked span

Definition at line 119 of file 9.2/includes/opentelemetry/sdk/trace/recordable.h.

References sdk::GetEmptyAttributes().

◆ operator SpanData *() [1/2]

virtual sdk::trace::Recordable::operator SpanData * ( ) const

inlineexplicitvirtual

Get the SpanData object for this Recordable.

Returns: SpanData*

Definition at line 173 of file includes/opentelemetry/sdk/trace/recordable.h.

◆ operator SpanData *() [2/2]

virtual sdk::trace::Recordable::operator SpanData * ( ) const

inlineexplicitvirtual

Get the SpanData object for this Recordable.

Returns: SpanData*

Definition at line 173 of file 9.2/includes/opentelemetry/sdk/trace/recordable.h.

◆ SetAttribute() [1/2]

virtual void sdk::trace::Recordable::SetAttribute	(	nostd::string_view	key,
		const opentelemetry::common::AttributeValue &	value
	)

pure virtualnoexcept

Set an attribute of a span.

Parameters

key	the name of the attribute
value	the attribute value

Implemented in sdk::trace::SpanData, sdk::trace::SpanData, sdk::trace::MultiRecordable, and sdk::trace::MultiRecordable.

◆ SetAttribute() [2/2]

virtual void sdk::trace::Recordable::SetAttribute	(	nostd::string_view	key,
		const opentelemetry::common::AttributeValue &	value
	)

pure virtualnoexcept

Set an attribute of a span.

Parameters

key	the name of the attribute
value	the attribute value

Implemented in sdk::trace::SpanData, sdk::trace::SpanData, sdk::trace::MultiRecordable, and sdk::trace::MultiRecordable.

◆ SetDuration() [1/2]

virtual void sdk::trace::Recordable::SetDuration ( std::chrono::nanoseconds duration )

pure virtualnoexcept

Set the duration of the span.

Parameters

duration the duration to set

Implemented in sdk::trace::SpanData, sdk::trace::SpanData, sdk::trace::MultiRecordable, and sdk::trace::MultiRecordable.

◆ SetDuration() [2/2]

virtual void sdk::trace::Recordable::SetDuration ( std::chrono::nanoseconds duration )

pure virtualnoexcept

Set the duration of the span.

Parameters

duration the duration to set

Implemented in sdk::trace::SpanData, sdk::trace::SpanData, sdk::trace::MultiRecordable, and sdk::trace::MultiRecordable.

◆ SetIdentity() [1/2]

virtual void sdk::trace::Recordable::SetIdentity	(	const opentelemetry::trace::SpanContext &	span_context,
		opentelemetry::trace::SpanId	parent_span_id
	)

pure virtualnoexcept

Set the span context and parent span id.

Parameters

span_context	the span context to set
parent_span_id	the parent span id to set

Implemented in sdk::trace::SpanData, sdk::trace::SpanData, sdk::trace::MultiRecordable, and sdk::trace::MultiRecordable.

◆ SetIdentity() [2/2]

virtual void sdk::trace::Recordable::SetIdentity	(	const opentelemetry::trace::SpanContext &	span_context,
		opentelemetry::trace::SpanId	parent_span_id
	)

pure virtualnoexcept

Set the span context and parent span id.

Parameters

span_context	the span context to set
parent_span_id	the parent span id to set

Implemented in sdk::trace::SpanData, sdk::trace::SpanData, sdk::trace::MultiRecordable, and sdk::trace::MultiRecordable.

◆ SetInstrumentationLibrary() [1/2]

void sdk::trace::Recordable::SetInstrumentationLibrary ( const InstrumentationScope & instrumentation_scope )

inlinenoexcept

Definition at line 183 of file 9.2/includes/opentelemetry/sdk/trace/recordable.h.

◆ SetInstrumentationLibrary() [2/2]

void sdk::trace::Recordable::SetInstrumentationLibrary ( const InstrumentationScope & instrumentation_scope )

inlinenoexcept

Definition at line 183 of file includes/opentelemetry/sdk/trace/recordable.h.

◆ SetInstrumentationScope() [1/2]

virtual void sdk::trace::Recordable::SetInstrumentationScope ( const InstrumentationScope & instrumentation_scope )

pure virtualnoexcept

Set the instrumentation scope of the span.

Parameters

instrumentation_scope the instrumentation scope to set

Implemented in sdk::trace::SpanData, sdk::trace::SpanData, sdk::trace::MultiRecordable, and sdk::trace::MultiRecordable.

◆ SetInstrumentationScope() [2/2]

virtual void sdk::trace::Recordable::SetInstrumentationScope ( const InstrumentationScope & instrumentation_scope )

pure virtualnoexcept

Set the instrumentation scope of the span.

Parameters

instrumentation_scope the instrumentation scope to set

Implemented in sdk::trace::SpanData, sdk::trace::SpanData, sdk::trace::MultiRecordable, and sdk::trace::MultiRecordable.

◆ SetName() [1/2]

virtual void sdk::trace::Recordable::SetName ( nostd::string_view name )

pure virtualnoexcept

Set the name of the span.

Parameters

name	the name to set

Implemented in sdk::trace::SpanData, sdk::trace::SpanData, sdk::trace::MultiRecordable, and sdk::trace::MultiRecordable.

◆ SetName() [2/2]

virtual void sdk::trace::Recordable::SetName ( nostd::string_view name )

pure virtualnoexcept

Set the name of the span.

Parameters

name	the name to set

Implemented in sdk::trace::SpanData, sdk::trace::SpanData, sdk::trace::MultiRecordable, and sdk::trace::MultiRecordable.

◆ SetResource() [1/2]

virtual void sdk::trace::Recordable::SetResource ( const opentelemetry::sdk::resource::Resource & resource )

pure virtualnoexcept

Set Resource of the span.

Parameters

resource the resource to set

Implemented in sdk::trace::SpanData, sdk::trace::SpanData, sdk::trace::MultiRecordable, and sdk::trace::MultiRecordable.

◆ SetResource() [2/2]

virtual void sdk::trace::Recordable::SetResource ( const opentelemetry::sdk::resource::Resource & resource )

pure virtualnoexcept

Set Resource of the span.

Parameters

resource the resource to set

Implemented in sdk::trace::SpanData, sdk::trace::SpanData, sdk::trace::MultiRecordable, and sdk::trace::MultiRecordable.

◆ SetSpanKind() [1/2]

virtual void sdk::trace::Recordable::SetSpanKind ( opentelemetry::trace::SpanKind span_kind )

pure virtualnoexcept

Set the spankind of the span.

Parameters

span_kind the spankind to set

Implemented in sdk::trace::SpanData, sdk::trace::SpanData, sdk::trace::MultiRecordable, and sdk::trace::MultiRecordable.

◆ SetSpanKind() [2/2]

virtual void sdk::trace::Recordable::SetSpanKind ( opentelemetry::trace::SpanKind span_kind )

pure virtualnoexcept

Set the spankind of the span.

Parameters

span_kind the spankind to set

Implemented in sdk::trace::SpanData, sdk::trace::SpanData, sdk::trace::MultiRecordable, and sdk::trace::MultiRecordable.

◆ SetStartTime() [1/2]

virtual void sdk::trace::Recordable::SetStartTime ( opentelemetry::common::SystemTimestamp start_time )

pure virtualnoexcept

Set the start time of the span.

Parameters

start_time the start time to set

Implemented in sdk::trace::SpanData, sdk::trace::SpanData, sdk::trace::MultiRecordable, and sdk::trace::MultiRecordable.

◆ SetStartTime() [2/2]

virtual void sdk::trace::Recordable::SetStartTime ( opentelemetry::common::SystemTimestamp start_time )

pure virtualnoexcept

Set the start time of the span.

Parameters

start_time the start time to set

Implemented in sdk::trace::SpanData, sdk::trace::SpanData, sdk::trace::MultiRecordable, and sdk::trace::MultiRecordable.

◆ SetStatus() [1/2]

virtual void sdk::trace::Recordable::SetStatus	(	opentelemetry::trace::StatusCode	code,
		nostd::string_view	description
	)

pure virtualnoexcept

Set the status of the span.

Parameters

code	the status code
description	a description of the status

Implemented in sdk::trace::SpanData, sdk::trace::SpanData, sdk::trace::MultiRecordable, and sdk::trace::MultiRecordable.

◆ SetStatus() [2/2]

virtual void sdk::trace::Recordable::SetStatus	(	opentelemetry::trace::StatusCode	code,
		nostd::string_view	description
	)

pure virtualnoexcept

Set the status of the span.

Parameters

code	the status code
description	a description of the status

Implemented in sdk::trace::SpanData, sdk::trace::SpanData, sdk::trace::MultiRecordable, and sdk::trace::MultiRecordable.

◆ SetTraceFlags() [1/2]

virtual void sdk::trace::Recordable::SetTraceFlags ( opentelemetry::trace::TraceFlags )

inlinevirtualnoexcept

Set the trace flags of the span.

Reimplemented in sdk::trace::SpanData, sdk::trace::SpanData, sdk::trace::MultiRecordable, and sdk::trace::MultiRecordable.

Definition at line 141 of file includes/opentelemetry/sdk/trace/recordable.h.

◆ SetTraceFlags() [2/2]

virtual void sdk::trace::Recordable::SetTraceFlags ( opentelemetry::trace::TraceFlags )

inlinevirtualnoexcept

Set the trace flags of the span.

Reimplemented in sdk::trace::SpanData, sdk::trace::SpanData, sdk::trace::MultiRecordable, and sdk::trace::MultiRecordable.

Definition at line 141 of file 9.2/includes/opentelemetry/sdk/trace/recordable.h.

The documentation for this class was generated from the following file:

includes/opentelemetry/sdk/trace/recordable.h


NVIDIA DeepStream SDK API Reference	9.2 Release

NVIDIA DeepStream SDK API Reference

9.2 Release

Detailed Description

Public Member Functions

Constructor & Destructor Documentation

◆ ~Recordable() [1/2]

◆ ~Recordable() [2/2]

Member Function Documentation

◆ AddEvent() [1/8]

◆ AddEvent() [2/8]

◆ AddEvent() [3/8]

◆ AddEvent() [4/8]

◆ AddEvent() [5/8]

◆ AddEvent() [6/8]

◆ AddEvent() [7/8]

◆ AddEvent() [8/8]

◆ AddLink() [1/4]

◆ AddLink() [2/4]

◆ AddLink() [3/4]

◆ AddLink() [4/4]

◆ operator SpanData *() [1/2]

◆ operator SpanData *() [2/2]

◆ SetAttribute() [1/2]

◆ SetAttribute() [2/2]

◆ SetDuration() [1/2]

◆ SetDuration() [2/2]

◆ SetIdentity() [1/2]

◆ SetIdentity() [2/2]

◆ SetInstrumentationLibrary() [1/2]

◆ SetInstrumentationLibrary() [2/2]

◆ SetInstrumentationScope() [1/2]

◆ SetInstrumentationScope() [2/2]

◆ SetName() [1/2]

◆ SetName() [2/2]

◆ SetResource() [1/2]

◆ SetResource() [2/2]

◆ SetSpanKind() [1/2]

◆ SetSpanKind() [2/2]

◆ SetStartTime() [1/2]

◆ SetStartTime() [2/2]

◆ SetStatus() [1/2]

◆ SetStatus() [2/2]

◆ SetTraceFlags() [1/2]

◆ SetTraceFlags() [2/2]
