NVLink Switch Planning and Design#

NVLink switches are critical components in GB200 deployments that enable high-speed, low-latency communication between GPUs within a rack. Proper planning and design of the NVLink switch infrastructure is essential for optimal performance and reliable operation of your AI workloads.

This section covers the comprehensive planning and design considerations for NVLink switches in your GB200 deployment, including hardware requirements, network connectivity specifications, IP addressing schemes, and integration workflows. You’ll learn how to validate your hardware configuration, configure network connectivity, and verify proper switch operation through the Base Command Manager (BCM) integration process.

The topics covered include:

Hardware inventory verification and network connectivity requirements
IP addressing and logical connectivity planning
NVLink switch design patterns and physical connectivity
Integration workflows with BCM verification processes
Configuration validation and Zero Touch Provisioning (ZTP) procedures

By following the guidance in this section, you’ll ensure that your NVLink switches are properly planned, configured, and integrated into your overall GB200 cluster infrastructure.

Confirm Accurate Hardware Models and Quantities#

Kubernetes Admin|User nodes server (3x)
NVLink Switches (non-scaleout) (x9 per rack)
Transceivers (optical) and cables (DAC / AOC)
Fiber and Copper cables

Network and Connectivity Requirements#

This section covers the network and connectivity requirements for the NVLink Switch.

Kubernetes Admin and User nodes to BTOR switch connectivity#

The following are the key network and connectivity requirements to consider when planning the Kubernetes Admin and User nodes to BTOR switch connectivity:

Transceiver type, compatibility and HW order status
Electrical signaling/encoding (NRZ vs PAM4)
Speed/Bandwidth
IP Addressing
Logical Connectivity (Access and Bonded).

NVLink Switch to OOB Switch connectivity#

For the NVLink Switch to OOB Switch connectivity, the following are the key network and connectivity requirements to consider:

Copper connections
Speed/Bandwidth
IP Addressing
Logical Connectivity (Access)

Routable IP Address Allocation#

For the Routable IP Address Allocation, the following are the key network and connectivity requirements to consider:

Kubernetes Admin and User nodes server will have IP addresses allocated from Inband and OOB (ComE0) subnets.
NVSwitches will have IP addresses allocated from OOB (ComE0) subnets.
Kubernetes Admin|User nodes and NVLink Switch Connectivity - To provision and manage NVLink Switch/NVLink.
Use Default Partition

NVLink Switch Design#

This section describes the NVLink Switch design and connectivity.

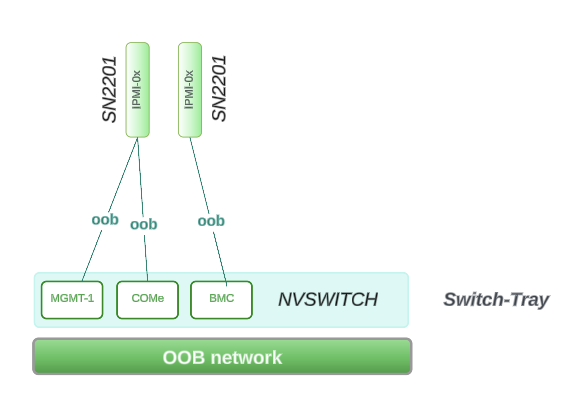

Physical Connectivity

Reference Design - Connectivity

ComE1: 1G connects to within Rack Switch: SN2201 on RU 45
ComE2: 1G connects to within Rack Switch: SN2201 on RU 45

BMC: 1G connects to within Rack Switch: SN2201 on RU 44

Network Allocation Breakout

ComE1, ComE2, BMC are part of the same larger OOB subnet which covers 4 x GB200 racks

NVLink Switch Integration with BCM Verification#

The following image describes the workflow of the NVLink Switch Integration with BCM verification:

NVLink Switch Integration Workflow — Figure 17 NVLink Switch Integration with BCM Verification#

NVLink Switch Tray Check and Configuration#

Note

If the NVLink Switch is running a version earlier than 25.02.2134, the custom script and cm-lite-daemon will not be installed. However, once the switch is upgraded to a newer version through ZTP, it will recognize the custom script option and install the cm-lite-daemon. This process will take approximately 2 to 4 minutes longer than a standard ZTP.

To check the NVLink Switch configuration, follow the steps below:

Confirm OOB power control of the NVLink Switches using a power status check in BCM, like what was done for a GB200 compute tray.
Verify that an NVLink Switch can be reached using SSH from the head node through the admin user. The password may have been initially set during the bcm-netautogen process. A typical password is admin.
```
ssh admin@<rack location>-NVSW-01
```
Set the password to match what has been put into BCM for the NVLink Switch entry under accesssettings.
Verify that the NVLink Switch parameter settings are correct.

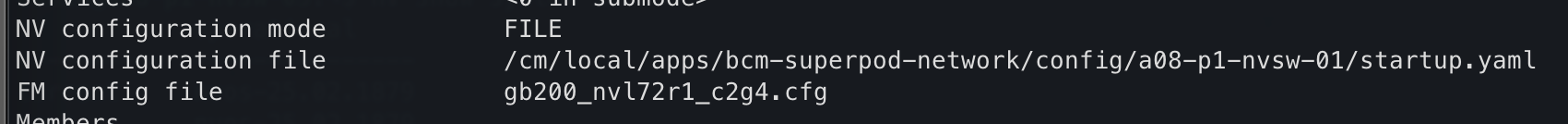

Figure 18 NVLink Switch Parameter Settings#
Then check the ZTP settings: cmsh > device > use <nvswitch> ztpsettings

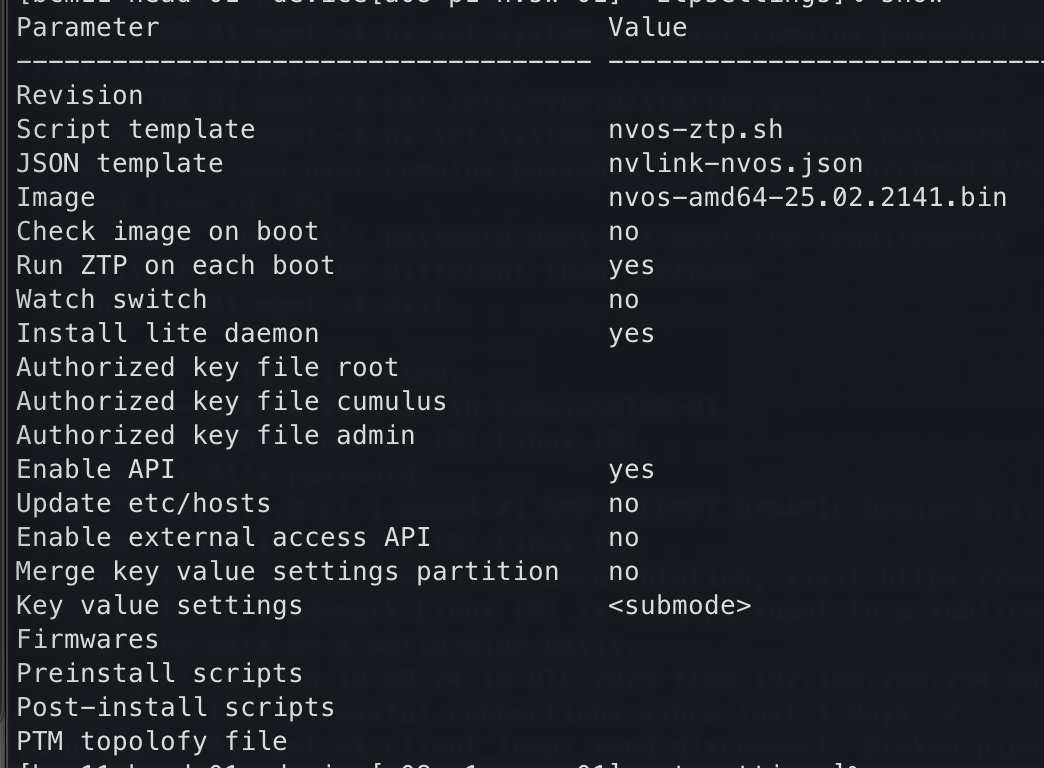

Figure 19 NVLink Switch ZTP Settings#

To verify the settings of the NVLink Switch Configuration:

If the NVLink Switch comes pre-installed with NVOS from the factory and the factory password has already been reset, NVOS Zero Touch Provisioning (ZTP) will be disabled. NVOS-ZTP script will be executed once the device is reachable.
Reset NVSwitch System to factory reset:
```
nv action reset system factory-default force
```
NVSwitch will reboot automatic (takes ~2.3mins)
Wait for the switch to come up automatically.
On the backend, the following things will happen:
The nvlink-nvos.json file is pulled and then the system:
- Validate the format and create folders defined in the section /var/lib/ztp/sections.
Each section is iterated through section by section and the following actions performed:
- Verify Network Connectivity
- Upgrade NVOS Image
- Adjust Security Settings by setting password hardening to disabled.
- Apply generated startup.yaml and patch configuration
- Execute nvos-ztp.sh script to install cm-lite-daemon

  This action will initiate the following actions:
  - Pulls packages from BCM
  - Register certs with BCM
  - Enables the service
Once all the NVLink Switches are up within the rack, the system begins the (auto) leader selection process
Out of the 9, select 1 nvswitch and apply fm_config and then enable the cluster.

NVLink Switch Workflow Diagram:#

NVSWITCH - FIRMWARE Upgrade process is separate, not part of ZTP
