Datasets#

Data Preparation for Speaker Diarization Training (End-to-End Diarization)#

Overview#

Speaker diarization training requires a manifest file in JSON-lines format. Each line describes one training segment and points to an audio file together with its corresponding RTTM ground-truth labels. The same manifest format is used for both training and inference.

Use <NeMo_git_root>/scripts/speaker_tasks/pathfiles_to_diarize_manifest.py to generate a manifest from lists of audio and RTTM file paths:

python <NeMo_git_root>/scripts/speaker_tasks/pathfiles_to_diarize_manifest.py \
  --add_duration \
  --paths2audio_files="/path/to/audio_file_path_list.txt" \
  --paths2rttm_files="/path/to/rttm_file_list.txt" \
  --manifest_filepath="/path/to/train_manifest.json"

All three arguments are required. Audio and RTTM files are matched by their base filename (e.g., abcd01.wav pairs with abcd01.rttm).

Note

All provided files (audio, RTTM, text) must share the same base name, and each base name must be unique across the dataset.

  • Example audio_file_path_list.txt:

/path/to/abcd01.wav
/path/to/abcd02.wav

  • Example rttm_file_path_list.txt:

/path/to/abcd01.rttm
/path/to/abcd02.rttm

The RTTM (Rich Transcription Time Marked) format provides per-speaker speech activity timestamps. Each line follows this structure:

SPEAKER TS3012d.Mix-Headset 1 32.679 0.671 <NA> <NA> MTD046ID <NA> <NA>

The generated train_manifest.json will contain one JSON line per segment:

{"audio_filepath": "/path/to/abcd01.wav", "offset": 0, "duration": 90, "label": "infer", "text": "-", "num_speakers": 2, "rttm_filepath": "/path/to/rttm/abcd01.rttm"}

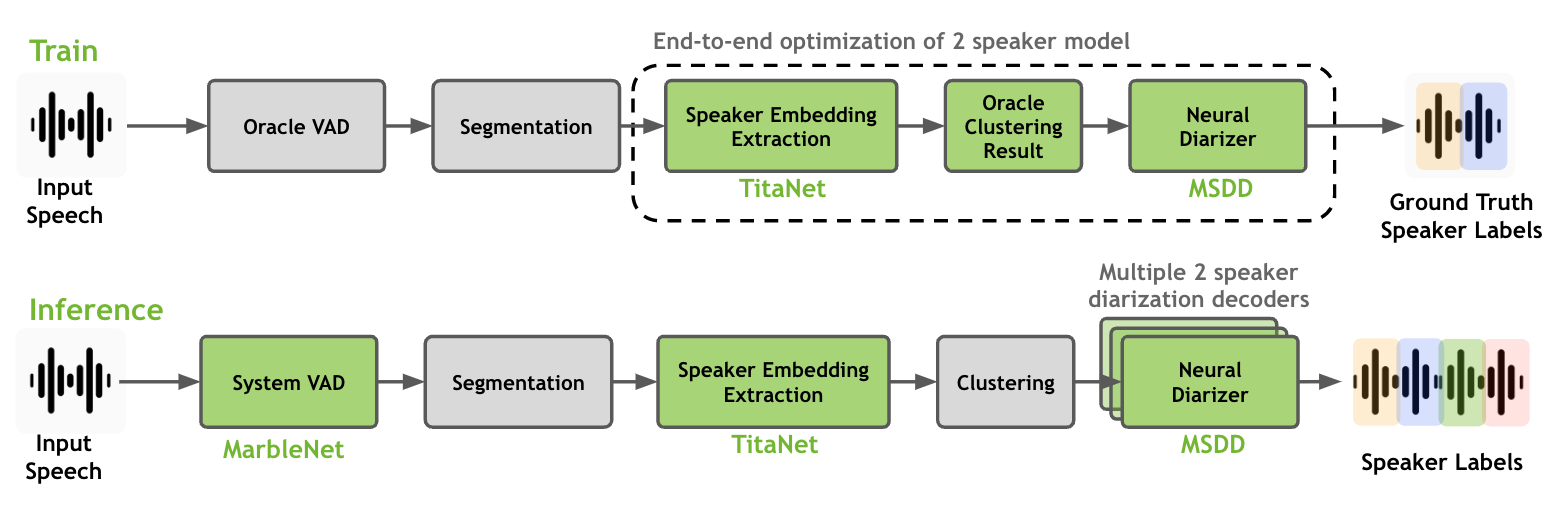

For end-to-end speaker diarization training, this manifest format is sufficient. For cascaded speaker diarization training, the manifest should be further processed to generate pairwise two-speaker session files.

Working with Long-Form Audio#

Long audio recordings do not need to be physically split into shorter files. The NeMo diarization dataloader reads only the segment specified by the offset and duration fields in each manifest entry. The corresponding RTTM file is also windowed to the same time range automatically — there is no need to create separate RTTM files for each segment.

To segment a long recording, create multiple manifest entries that reference the same audio and RTTM files but with different offset and duration values. Each entry must carry a unique uniq_id so that the dataloader can distinguish segments originating from the same source file. A recommended convention is <base_name>#<index>#<offset>#<duration>.

Below is an example where a 45-minute recording (EN2001a.Mix-Headset.wav) is divided into 90-second windows. The full session contains 4 speakers, but this particular segment has only 3 active speakers:

{"uniq_id": "EN2001a.Mix-Headset#116#932.92#90.0", "offset": 932.92, "duration": 90, "num_speakers": 3, "audio_filepath": "/path/to/wav/EN2001a.Mix-Headset.wav", "rttm_filepath": "/path/to/rttm/EN2001a.Mix-Headset.rttm"}

Handling num_speakers and Partial Speaker Presence#

A training segment may contain only a subset of the speakers present in the full recording. The num_speakers field should reflect the number of speakers active in that specific segment, not the total across the entire session.

In practice, num_speakers is optional — the dataloader can infer the speaker count automatically from the RTTM labels within the segment’s time window (see the DiarizationLabelDataset class in <NeMo_git_root>/nemo/collections/asr/data/audio_to_diar_label.py).

Speaker-Count Coverage in Training Data#

The model will not generalize to speaker counts it has never encountered during training. If the target scenario involves up to N speakers, the training set should include segments with every speaker count from 1 through N. When natural data is scarce for higher speaker counts, consider:

  • Oversampling segments that contain more speakers.

  • Augmenting with simulated multi-speaker mixtures (e.g., from LibriSpeech).

  • Scaling data volume with speaker count — for example, 100 hours for 1-speaker segments, 200 hours for 2-speaker, 300 hours for 3-speaker, and so on.

Matching the speaker-count distribution between training and inference is critical for good diarization performance.

Data Preparation for Diarization Inference: for Both End-to-end and Cascaded Systems#

As in dataset preparation for diarization trainiing, diarization inference is based on Hydra configurations which are fulfilled by .yaml files. See NeMo Speaker Diarization Configuration Files for setting up the input Hydra configuration file for speaker diarization inference. Input data should be provided in line delimited JSON format as below:

{"audio_filepath": "/path/to/abcd.wav", "offset": 0, "duration": null, "label": "infer", "text": "-", "num_speakers": null, "rttm_filepath": "/path/to/rttm/abcd.rttm", "uem_filepath": "/path/to/uem/abcd.uem"}

In each line of the input manifest file, audio_filepath item is mandatory while the rest of the items are optional and can be passed for desired diarization setting. We refer to this file as a manifest file. This manifest file can be created by using the script in <NeMo_git_root>/scripts/speaker_tasks/pathfiles_to_diarize_manifest.py. The following example shows how to run pathfiles_to_diarize_manifest.py by providing path list files.

python pathfiles_to_diarize_manifest.py --paths2audio_files /path/to/audio_file_path_list.txt \
                                        --paths2txt_files /path/to/transcript_file_path_list.txt \
                                        --paths2rttm_files /path/to/rttm_file_path_list.txt \
                                        --paths2uem_files /path/to/uem_file_path_list.txt \
                                        --paths2ctm_files /path/to/ctm_file_path_list.txt \
                                        --manifest_filepath /path/to/manifest_output/input_manifest.json

The --paths2audio_files and --manifest_filepath are required arguments. Note that we need to maintain consistency on unique filenames for every field (key) by only changing the filename extensions. For example, if there is an audio file named abcd.wav, the rttm file should be named as abcd.rttm and the transcription file should be named as abcd.txt.

  • Example audio file path list audio_file_path_list.txt

/path/to/abcd01.wav
/path/to/abcd02.wav

  • Example RTTM file path list rttm_file_path_list.txt

/path/to/abcd01.rttm
/path/to/abcd02.rttm

The path list files containing the absolute paths to these WAV, RTTM, TXT, CTM and UEM files should be provided as in the above example. pathsfiles_to_diarize_manifest.py script will match each file using the unique filename (e.g. abcd). Finally, the absolute path of the created manifest file should be provided through Hydra configuration as shown below:

diarizer.manifest_filepath="path/to/manifest/input_manifest.json"

The following are descriptions about each field in an input manifest JSON file.

Note

We expect all the provided files (e.g. audio, rttm, text) to have the same base name and the name should be unique (uniq-id).

audio_filepath (Required):

a string containing absolute path to the audio file.

num_speakers (Optional):

If the number of speakers is known, provide the integer number or assign null if not known.

rttm_filepath (Optional):

To evaluate a diarization system with known rttm files, one needs to provide Rich Transcription Time Marked (RTTM) files as ground truth label files. If RTTM files are provided, the diarization evaluation will be initiated. Here is one line from a RTTM file as an example:

SPEAKER TS3012d.Mix-Headset 1 331.573 0.671 <NA> <NA> MTD046ID <NA> <NA>

text (Optional):

Ground truth transcription for diarization with ASR inference. Provide the ground truth transcription of the given audio file in string format

{"text": "this is an example transcript"}

uem_filepath (Optional):

The UEM file is used for specifying the scoring regions to be evaluated in the given audio file. UEMfile follows the following convention: <uniq-id> <channel ID> <start time> <end time>. <channel ID> is set to 1.

Example lines of UEM file:

TS3012d.Mix-Headset 1 12.31 108.98
TS3012d.Mix-Headset 1 214.00 857.09

ctm_filepath (Optional):

The CTM file is used for the evaluation of word-level diarization results and word-timestamp alignment. The CTM file follows this convention: <session name> <channel ID> <start time> <duration> <word> <confidence> <type of token> <speaker>. Note that the <speaker> should exactly match speaker IDs in RTTM. Since confidence is not required for evaluating diarization results, we assign <confidence> the value NA. If the type of token is words, we assign <type of token> as lex.

Example lines of CTM file:

TS3012d.Mix-Headset 1 12.879 0.32 okay NA lex MTD046ID
TS3012d.Mix-Headset 1 13.203 0.24 yeah NA lex MTD046ID
