Stage 0: Pretraining#

This stage trains the base Nemotron 3 Super model using Megatron-Bridge.

Nemotron 3 Super is a hybrid Mamba-Transformer-MoE model with multi-token prediction (MTP) and LatentMoE, combining state-space models for efficiency, attention for global context, LatentMoE for hardware-aware sparse scaling, and MTP for improved training signal and inference acceleration.

Training Methodology#

Training Framework: Pretraining is implemented using Megatron-Bridge’s pretrain() entry point. See Training Entry Points for implementation details.

Model Architecture#

Nemotron 3 Super extends the hybrid Mamba-Transformer MoE design from Nemotron 3 Nano to 120.6B total parameters with a constrained active budget of 12.7B parameters (12.1B excluding embeddings) per forward pass. The architecture is defined by three core pillars:

Architecture Dimensions#

Configuration

Value

Total Layers

88

Model Dimension

4096

Q-Heads

32

KV-Heads

2

Head Dimension

128

Mamba State Dimension

128

Mamba Groups

8

Mamba Heads

128

Mamba Head Dimension

64

Expert Hidden Dimension

2688

Shared Expert Intermediate Size

5376

Total Experts per Layer

512

Top-k (Activated Experts)

22

MoE Latent Size

1024

MTP Layers (shared weight)

2

LatentMoE: Hardware-Aware Expert Design#

Nemotron 3 Super is the first model to scale sparsely using LatentMoE rather than standard MoE layers. In LatentMoE, input tokens are projected from the hidden dimension \(d\) into a smaller latent dimension \(\ell\) (1024) for routing and expert computation, reducing routed parameter loads and all-to-all traffic by a factor of \(d/\ell\).

These savings are used to increase both the total number of experts (to 512) and the top-k active experts per token (to 22), improving model accuracy at approximately constant inference cost. All non-routed computations—including the routing gate, shared expert computation, and non-expert layers—remain in the full hidden dimension \(d\).

Key design principles:

  • Reducing hidden dimension \(d\) for routed computation relieves memory bandwidth and communication bottlenecks

  • Increasing both total experts \(N\) and active experts \(K\) improves quality by exponentially expanding the space of expert combinations

  • Shared experts provide additional knowledge sharing across tokens

The MoE blocks employ squared ReLU activations, a sigmoid router with expert biasing, and aux-loss-free load balancing (update rate \(10^{-3}\)) paired with standard load balancing loss (coefficient \(10^{-4}\)).

Multi-Token Prediction (MTP)#

MTP optimizes the model to predict multiple future tokens at each position, improving both training quality and inference efficiency:

  • Quality improvement: Encourages representations that capture multi-step dependencies and longer-range structure

  • Inference acceleration: MTP heads function as a native speculative decoding engine, generating candidate continuations verified by the main model in a single forward pass

Shared-weight design for robust autoregressive drafting: Unlike standard MTP with \(N\) independent heads, Nemotron 3 Super shares parameters across MTP heads during training. This yields a unified prediction head that can be applied recursively at inference to generate longer drafts with stable acceptance behavior. The model achieves the highest overall average acceptance length (3.45 on SPEED-Bench) across all domains compared to DeepSeek-R1 (2.70) and is competitive with Qwen3-Next (3.33).

Hybrid Interleaving Pattern#

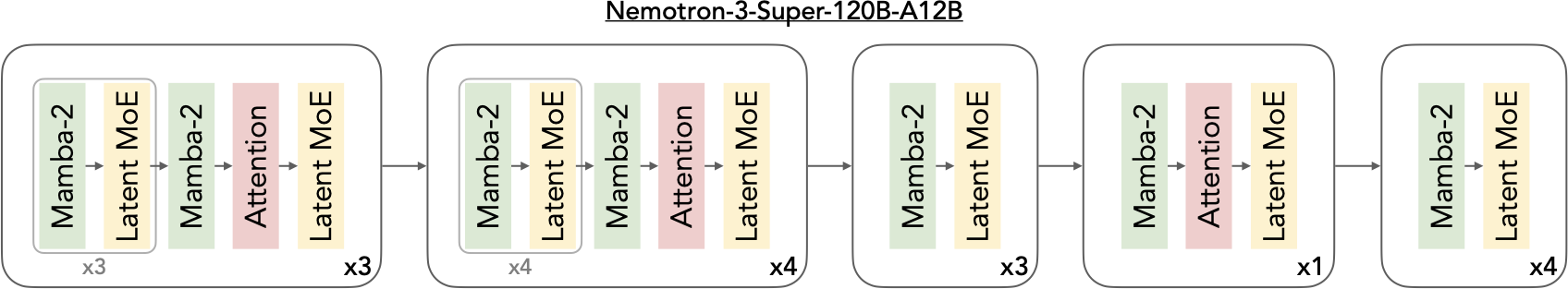

Nemotron 3 Super architecture pattern

The 88-layer stack follows a periodic interleaving pattern where MoE layers are paired with Mamba-2 blocks. A limited number of self-attention layers are strategically inserted as global “anchors” to enable full-token interaction and long-range information routing. The attention layers employ Grouped-Query Attention (GQA) with 32 query heads and 2 KV heads. Consistent with the Nemotron family, the model omits positional embeddings, dropout, and bias terms in linear layers, uses RMSNorm for normalization, and maintains un-tied embedding and output weights.

This synergy enables up to 6.4x higher inference throughput compared to similarly-sized Transformer MoEs (e.g., GPT-OSS-120B) under 8K input / 16K output workloads.

For implementation details, see Megatron-Bridge Nemotron 3 Super.

Pretraining Data#

New Synthetic Datasets#

Several new datasets were added for Super3, released as Nemotron-Pretraining-Specialized-v1.1:

Dataset

Description

Scale

Synthetic Code Concepts

Python problems and solutions generated using concept taxonomy from HumanEval

~15M problem-solution pairs

Synthetic Algorithmic

Algorithmic Python problems with edge cases and unit tests

~0.2B tokens

Synthetic Economics

Economics MCQs across microeconomics, macroeconomics, econometrics

TBD

Synthetic Formal Logic

Formal logic problems: natural language ↔ predicate logic, truth tables

TBD

Synthetic MCQ

MMLU-style MCQs bootstrapped from MMLU auxiliary training set using Qwen3-235B for question generation and DeepSeek-V3 for solution generation with majority voting

~3.5M samples (~1.6B tokens)

Data Mixture and Ordering#

The pretraining corpus spans 16 high-level categories including web crawl data (5 quality tiers following Nemotron-CC taxonomy), math, Wikipedia, code, Nemotron-CC-Code, academic text, Crawl++ (OpenWebText, BigScience, Reddit), multilingual data, finepdfs, and synthetic SFT-style datasets. Reasoning-focused datasets are incorporated into pretraining following prior findings on their effectiveness.

Two-phase curriculum:

Phase

Internal Scale

Focus

Proportion

Phase 1

20T (80%)

Data diversity — broad coverage and generalization

Higher weight on crawl data

Phase 2

5T (20%)

High-quality sources — refined model performance

Higher weight on Wikipedia, curated sources

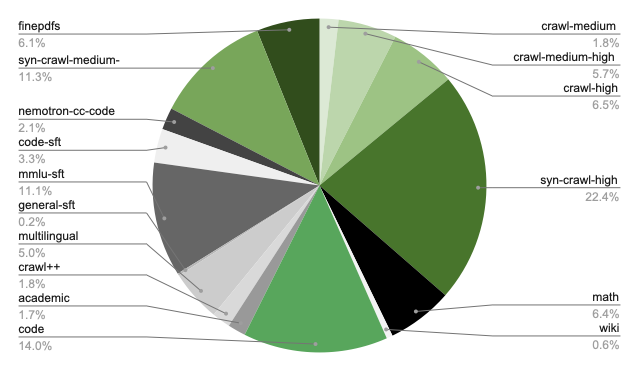

Phase 1 blend distribution (click to expand)

Phase 1 pretrain data blend

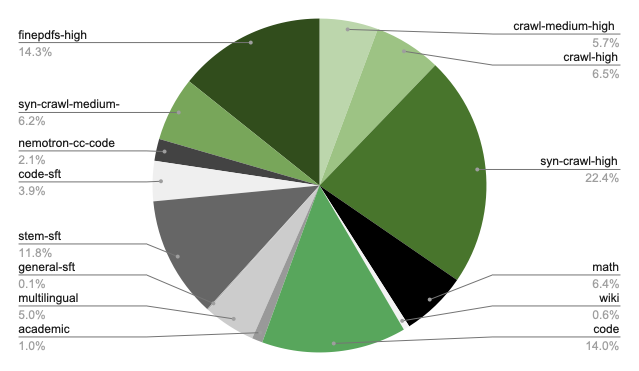

Phase 2 blend distribution (click to expand)

Phase 2 pretrain data blend

Open-source data coverage: The released datasets cover an estimated 8–10T tokens (~40–50% of the internal 25T blend). Missing categories include code (~14% of blend), nemotron-cc-code (~2%), crawl++ (~2%), and academic text (~2%). Users should supplement with their own data for these categories and adjust train_iters accordingly.

Hyperparameters#

Parameter

Value

Total Training Tokens

25 trillion

Batch Size

3,072 sequences (~25.17M tokens/batch)

Sequence Length

8,192 tokens

Peak Learning Rate

4.5e-4

Minimum Learning Rate

4.5e-6

Optimizer

AdamW (beta1=0.9, beta2=0.95)

Weight Decay

0.1

LR Schedule

WSD (Warmup-Stable-Decay)

LR Warmup

200B tokens

LR Decay

minus-sqrt schedule over final 5T tokens

MTP Loss Scaling

0.3

Precision

BF16 mixed (NVFP4 mixed for B200)

NVFP4 Pretraining#

Nemotron 3 Super was trained with NVFP4 precision on B200 GPUs for the entire 25T token horizon, demonstrating stable and accurate low-precision pretraining at scale.

Layer Type

Format

Rationale

All Linear Layers (default)

NVFP4

—

Final 15% of Network

BF16

Training stability at scale

Latent Projections

BF16

Negligible step-time impact

MTP Layers

BF16

Preserves MTP capabilities

QKV & Attention Projections

BF16

Maintains fidelity of attention layers

Mamba Output Projection

MXFP8

Mitigates underflows observed at smaller scales

Embedding Layers

BF16

—

Testing showed that switching all tensors to MXFP8 before LR annealing improved the loss trajectory but yielded no gains in downstream task accuracy, confirming the NVFP4 recipe achieves accuracy parity throughout the full token horizon.

Checkpoint Merging#

During the stable phase of the WSD learning rate schedule, individual checkpoints exhibit noisy benchmark performance. Following recent work on weight-space merging, checkpoint merging (weighted averaging over a sliding window of recent checkpoints) produces stronger readouts of model quality without requiring dedicated learning rate decay runs.

Metric

Value

Improvement

2–4 points on 12-benchmark average during stable LR phase

FLOP Savings

~16% of total pretraining budget (eliminates ~4T tokens of decay-run compute)

Merge Schedule

minus-sqrt decay emulation

Checkpoint Interval

Every 2,000 iterations (~50B tokens)

Merge Windows Evaluated

125B, 250B, 500B tokens

The final base model checkpoint selected for downstream alignment was a 500B merge.

Long-Context Extension#

A long-context phase (LC-Phase) at the end of pretraining extends the model to 1M token context:

Parameter

Value

Context Length

1,048,576 (1M) tokens

Learning Rate

4.5e-6 (constant)

Global Batch Size

16

Context Parallelism

64-way

Tensor Parallelism

2-way

Expert Parallelism

64-way

Hardware

GB200 GPUs

Note: The long-context phase uses different parallelism settings (TP=2, CP=64, EP=64) than the main pretraining phase (TP=4, EP=8).

| Phase 1 | 34B tokens on 1M context | | Phase 2 | 17B tokens alternating 1M and 4K sequences (mitigates math benchmark impact) |

Data blend: 20% document QA data (reused from Nemotron 2 & 3 Nano), 80% downscaled Phase 2 data.

Base Model Evaluations#

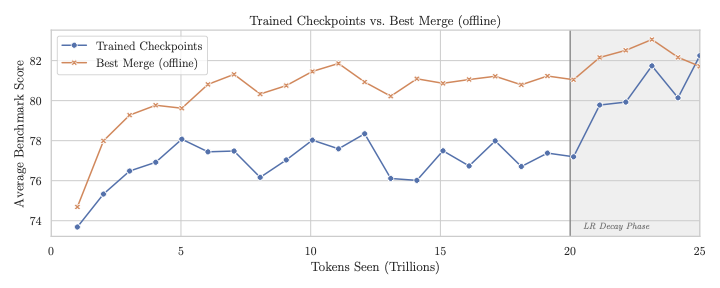

Average benchmark score during pretraining

Task

N-Super-3 Base

Ling-flash Base-2.0

GLM-4.5 Air-Base

General

MMLU

85.89

81.0

81.0

MMLU-Pro 5-shot

74.65

62.1

58.2

AGIEval English CoT

77.45

61.7

59.4

Math

GSM8K CoT

91.05

90.4

82.6

MATH

84.68

62.4

49.6

MATH Level 5

70.00

39.8

26.3

AIME 2024 pass@32

53.33

30.0

20.0

Code

HumanEval+ avg@32

79.40

70.1

76.3

MBPP+ avg@32

77.60

77.3

77.5

Commonsense

ARC Challenge

95.65

94.8

93.9

HellaSwag

88.99

84.5

87.7

OpenBookQA

50.20

47.0

47.8

PIQA

85.31

—

84.0

WinoGrande

78.69

77.4

83.2

Multilingual Base Model Evaluations#

Task

N-Super-3 Base

Ling-flash Base-2.0

GLM-4.5 Air-Base

Global-MMLU-Lite

German

87.50

75.8

78.0

Spanish

88.50

78.0

81.3

French

85.75

76.8

79.3

Italian

87.75

78.3

79.3

Japanese

84.25

68.3

77.5

Korean

83.00

66.0

75.8

Portuguese

86.25

79.3

82.8

Chinese

84.00

76.0

77.8

Average

85.88

74.81

79.00

Multilingual Math (MGSM)

Spanish

90.40

—

85.6

German

89.60

—

80.8

French

86.40

—

80.8

Chinese

82.00

—

78.4

Japanese

81.20

—

68.8

Russian

89.60

—

83.6

Average

86.53

—

79.67

Recipe Execution#

Quick Start#

Pretraining follows a 4-phase curriculum:

// 1. Prepare data for each phase
$ uv run nemotron super3 data prep pretrain -c phase1 --run YOUR-CLUSTER
$ uv run nemotron super3 data prep pretrain -c phase2 --run YOUR-CLUSTER
$ uv run nemotron super3 data prep pretrain -c long_context --run YOUR-CLUSTER

// 2. Run pretraining phases sequentially
$ uv run nemotron super3 pretrain -c phase1 --run YOUR-CLUSTER        # 20T tokens, diversity blend
$ uv run nemotron super3 pretrain -c phase2 --run YOUR-CLUSTER        # 5T tokens, quality blend
$ uv run nemotron super3 pretrain -c long_context_1m --run YOUR-CLUSTER   # 34B tokens, 1M context
$ uv run nemotron super3 pretrain -c long_context_mixed --run YOUR-CLUSTER # 17B tokens, 1M/4K alternating

Each phase resumes from the previous phase’s checkpoint automatically.

Note: The --run YOUR-CLUSTER flag submits jobs via NeMo-Run. See Execution through NeMo-Run for setup.

Direct Script Execution (Megatron-Bridge)#

For direct execution outside this CLI, use the scripts in the Megatron-Bridge repository:

# Clone the repository and checkout the super-v3 branch
git clone https://github.com/NVIDIA-NeMo/Megatron-Bridge.git
cd Megatron-Bridge
git checkout super-v3

# Run pretraining with real data (inside container on compute node)
torchrun --nproc-per-node=8 examples/models/nemotron_3/pretrain_nemotron_3_super.py \
    --per-split-data-args-path=/path/to/blend.json \
    logger.wandb_project=your_project \
    logger.wandb_entity=nvidia \
    checkpoint.save=/path/to/checkpoints \
    checkpoint.load=/path/to/checkpoints

# Run pretraining with mock data (for testing)
torchrun --nproc-per-node=8 examples/models/nemotron_3/pretrain_nemotron_3_super.py \
    train.global_batch_size=128 \
    train.train_iters=100 \
    scheduler.lr_warmup_iters=10 \
    model.hybrid_override_pattern="MEME*ME" \
    model.num_layers=7

See the Megatron-Bridge Nemotron 3 Super documentation for detailed configuration options.

Configuration#

Training configs:

File

Phase

Tokens

Key differences

config/phase1.yaml

Phase 1

20T

Diversity blend, WSD warmup + stable LR

config/phase2.yaml

Phase 2

5T

Quality blend, WSD minus_sqrt decay

config/long_context_1m.yaml

LC Stage 1

34B

seq_len=1M, GBS=16, CP=64, constant LR

config/long_context_mixed.yaml

LC Stage 2

17B

Alternating 1M/4K sequences

config/default.yaml

(alias)

—

Points to phase1

config/tiny.yaml

(test)

—

Quick testing configuration

Data prep configs:

File

Purpose

config/data_prep/phase1.yaml

Phase 1 data blend (29 datasets, ~13.06B rows)

config/data_prep/phase2.yaml

Phase 2 data blend (27 datasets, ~10.53B rows)

config/data_prep/long_context.yaml

LC blend (80% phase2 + 20% doc QA)

Training#

CLI Command#

uv run nemotron super3 pretrain [options] [overrides...]

Option

Description

--run <profile>

Attached—submits and waits, streaming logs (NeMo-Run)

--batch <profile>

Detached—submits and exits immediately (NeMo-Run)

--dry-run

Preview execution plan

key=value

Override config values (NeMo-Run)

Override Examples#

# More training iterations
uv run nemotron super3 pretrain train.train_iters=5000

# Larger batch size
uv run nemotron super3 pretrain train.global_batch_size=64

# Different checkpoint location
uv run nemotron super3 pretrain checkpoint.save=/path/to/checkpoints

Artifact Lineage#

        %%{init: {'theme': 'base', 'themeVariables': { 'primaryBorderColor': '#333333', 'lineColor': '#333333', 'primaryTextColor': '#333333'}}}%%
flowchart TB
    raw["Raw Text Data"] --> dp1["data_prep phase1"]
    raw --> dp2["data_prep phase2"]
    raw --> dplc["data_prep long_context"]
    dp1 --> p1["Phase 1<br/>20T tokens<br/>diversity blend"]
    dp2 --> p2["Phase 2<br/>5T tokens<br/>quality blend"]
    dplc --> lc1["LC Stage 1<br/>34B tokens<br/>1M context"]
    dplc --> lc2["LC Stage 2<br/>17B tokens<br/>1M/4K alternating"]
    p1 -->|checkpoint| p2
    p2 -->|checkpoint| lc1
    lc1 -->|checkpoint| lc2
    lc2 --> model["Base Model"]
    model --> next["Stage 1: SFT"]

    style raw fill:#e1f5fe,stroke:#2196f3
    style p1 fill:#e1f5fe,stroke:#2196f3
    style p2 fill:#e1f5fe,stroke:#2196f3
    style lc1 fill:#fff3e0,stroke:#ff9800
    style lc2 fill:#fff3e0,stroke:#ff9800
    style model fill:#e1f5fe,stroke:#2196f3
    style next fill:#f3e5f5,stroke:#9c27b0

Infrastructure#

This stage uses the following components from the NVIDIA AI Stack:

Component

Role

Documentation

Megatron-Core

Distributed training primitives (TP, PP, DP, EP, CP, SP)

GitHub

Megatron-Bridge

Model definitions, training loop, checkpoint management

Docs

Transformer Engine

NVFP4 GEMM kernels (cuBLAS backend)

GitHub

Parallelism Configuration#

Parallelism

Default

Config Key

Tensor (TP)

4

model.tensor_model_parallel_size

Pipeline (PP)

1

model.pipeline_model_parallel_size

Expert (EP)

8

model.expert_model_parallel_size

Expert Tensor (ETP)

1

model.expert_tensor_parallel_size

Context (CP)

1

model.context_parallel_size

Sequence (SP)

Yes

model.sequence_parallel

Data (DP)

Auto

Computed from world size

Minimum resources: 4 nodes with 8 GPUs each (32 GPUs total).

Container#

nvcr.io/nvidia/nemo:26.02.nemotron_3_super

Next Steps#

After pretraining completes, proceed to Stage 1: SFT for instruction tuning.

Reference#
