📄 Intelligent Document Processing (IDP) with Nemotron RAG#

Build a production-grade Intelligent Document Processing (IDP) pipeline that transforms complex enterprise documents—containing dense text, charts, and tables—into a queryable knowledge base using NVIDIA Nemotron models.

📋 Overview#

Standard text extraction often fails on complex enterprise documents due to “Linearization Loss”—the loss of structural context. This example demonstrates how to solve this using NVIDIA NeMo Retriever and multimodal Nemotron models.

The pipeline handles:

  1. Complex Layouts: Preserves structure in financial reports and manuals.

  2. Visual Data: Extracts and understands trends in charts (e.g., bar graphs).

  3. Dense Tables: Maintains row/column alignment for accurate financial lookups.

📦 Models Used#

Component

Model

Function

Deployment

Extraction

NeMo Retriever Library (nv-ingest)

A library for advanced document parsing

Self-hosted (Library Mode)

Embedding

nvidia/llama-nemotron-embed-vl-1b-v2

Multimodal Embedding (Text + Images)

Local Inference (Hugging Face)

Reranking

nvidia/llama-nemotron-rerank-vl-1b-v2

Visual Cross-Encoder Reranking

Local Inference (Hugging Face)

Reasoning

nvidia/llama-3.3-nemotron-super-49b

Citation-Backed Answer Generation

NVIDIA NIM / API

🌟 Key Features#

  • Multimodal RAG: Retrieves and reasons over both text and visual elements (charts/graphs).

  • Intelligent Extraction: Uses YOLOX and Transformer-based models to detect and crop charts and parse tables into Markdown.

  • Visual Reranking: The reranker “sees” the retrieved chart images to verify relevance, improving accuracy over text-only search.

  • Hardware-Aware: Includes robust fallback mechanisms to run on varying GPU architectures (e.g., T4 vs. H100) by adjusting precision and attention implementations automatically.

  • Citation & Verification: Enforces strict citation of sources and internal fact-checking (reasoning traces) to reduce hallucinations.

🏗️ Pipeline Architecture#

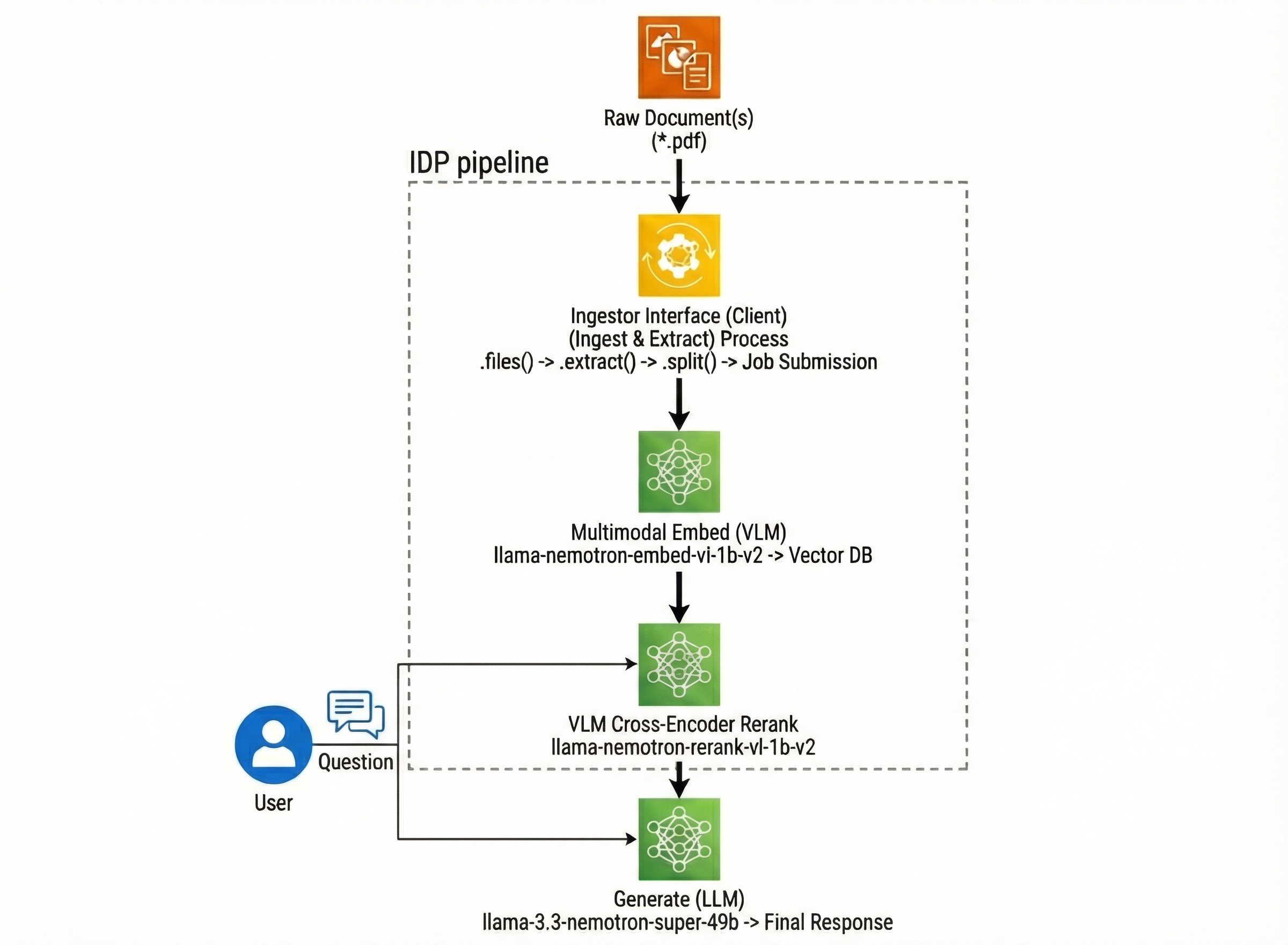

Pipeline Architecture

🔧 Requirements#

Hardware#

  • GPU: NVIDIA GPU recommended: H100 (Tested on H100 and T4).

    • Note: The notebook includes patches to support older GPUs (like T4) by disabling Flash Attention 2 where incompatible.

Software#

  • Python 3.12

  • NVIDIA API Key: Required for the Generation NIM (llama-3.3-nemotron-super-49b).

  • Dependencies: nv-ingest, pymilvus, pillow, transformer, etc.

🚀 Quick Start#

1. Set Up Environment#

Install the required libraries. Note that nv-ingest is used in Library Mode for this example, which runs locally without requiring a complex Docker setup.

uv pip install -r pyproject.toml

2. Configure API Key#

Export your NVIDIA API key to access the cloud-hosted generation models.

export NVIDIA_API_KEY="nvapi-..."

3. Run the Notebook#

Launch Jupyter and run the pipeline:

jupyter notebook intelligent_document_processing_pipeline.ipynb

📄 License#

This project uses NVIDIA open models. Each model is governed by its respective license:
