Interfaces

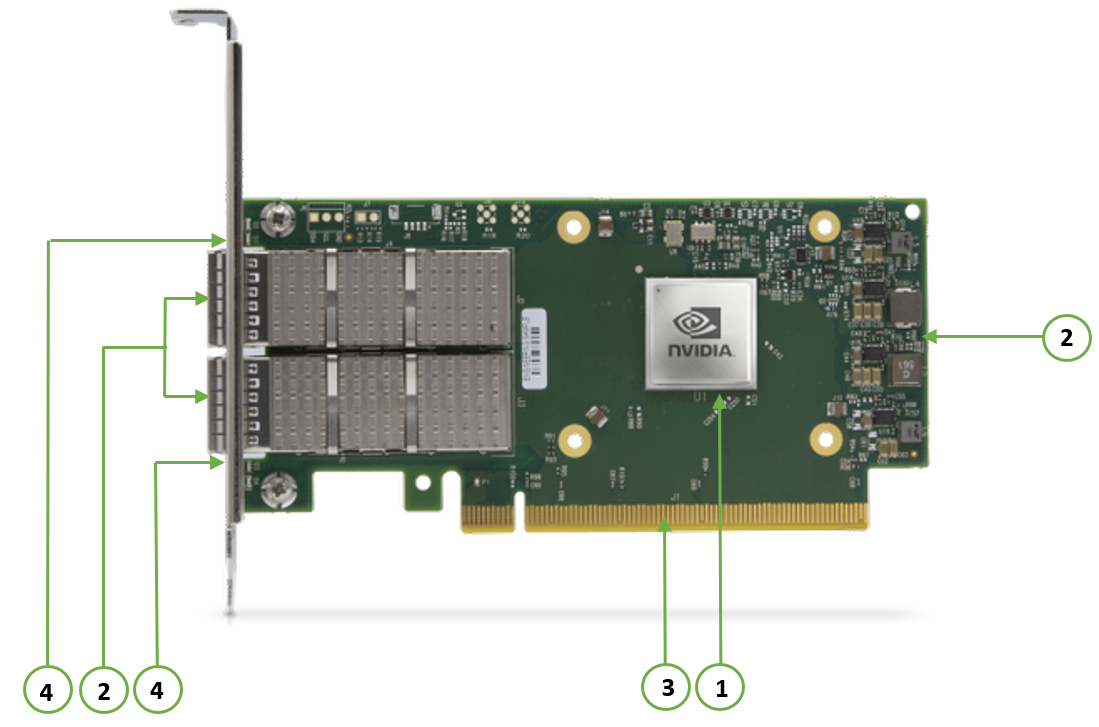

The below figures show the component side of the ConnectX-6 Dx adapter card. Each numbered interface that is referenced in the figures is described in the following table with a link to detailed information.

Note

The below figures are for illustration purposes only and might not reflect the current revision of the adapter card.


Callout

Item

Description

1

“ConnectX-6 Dx IC”

ConnectX-6 Dx IC on the board.

2

“Ethernet SFP28/SFP56/QSFP56 Interface”

Ethernet traffic is transmitted through the adapter's SFP28/SFP56/QSFP56 connectors. The networking connectors allow for the use of modules, optical and passive cable interconnect solutions.

3

"PCI Express Interface"

PCIe Gen 3.0/4.0 through an x8/x16 edge connector.

4

“Networking Ports LEDs Interface”

There are two I/O LEDs per port to indicate speed and link status.

“SMBus Interface”

Allows BMC connectivity using MCTP over SMBus or MCTP over PCIe protocols.

“Voltage Regulators”

Voltage supply pins that feed onboard regulators.

The ConnectX®-6 Dx EN family of adapter IC devices delivers two ports of 10/25/40/50/100Gb/s or a single-port of 200Gb/s Ethernet connectivity paired with best-in-class hardware capabilities that accelerate and secure cloud and data-center workloads.

Encryption

Note

Applies to Crypto OPNs only.

ConnectX-6 Dx brings security to every end-point, including:

  • Purpose-built inline acceleration engines that offload IPsec and TLS data-in-motion and XTS-AES data-at-rest cryptographic operations.

  • Stateful firewall solution acceleration, powered by Open vSwitch connection tracking and NVIDIA’s ASAP2 technology.

  • Embedded hardware root-of-trust and support for RSA-based secure firmware update and secure boot, providing guaranteed integrity of the network adapter.

Ethernet SFP28 / SFP56 / QSFP56 Interfaces

The network ports of the ConnectX-6 Dx adapter card are compliant with the IEEE 802.3 Ethernet standards listed in Features and Benefits. Ethernet traffic is transmitted through the SFP28 / SFP56 / QSFP56 connector on the adapter card.

Note

The adapter card includes special circuits to protect from ESD shocks to the card/server when plugging copper cables.


ConnectX-6 Dx adapter cards support PCI Express Gen 3.0/4.0 (1.1 and 2.0 compatible) through x8/16 edge connectors. The device can be either a master initiating the PCI Express bus operations, or a slave responding to PCI bus operations.
The following lists PCIe interface features:

  • PCIe Gen 4.0 and 3.0 compliant, 2.0 and 1.1 compatible

  • 2.5, 5.0, 8.0, or 16.0 GT/s link rate x8 or x16 lanes

  • Auto-negotiates to x16, x8, x4, x2, or x1

  • Support for MSI/MSI-X mechanisms

For the networking ports LEDs description, follow the below table depending on the OPN you have purchased.

OPN

LEDs Scheme

MCX621102A[C/N/E]-ADAT, MCX621202A(C/S)-ADAT

Scheme 1: One Bi-Color LED

MCX623102A[C/N]-ADAT, MCX623102A[C/N]-GDAT, MCX623102A[S/E/N/C]-GDAT

MCX623105A[N/E]-CDAT, MCX623106A[C/N/S/E]-CDAT, MCX623106P[C/N/E]-CDAT,

MCX623105A[C/N/S/E]-VDAT

Scheme 2: One Bi-Color LED and one Single Color LED

Scheme 1: One Bi-Color LED

There is one bicolor (Yellow and Green) I/O LED per port to indicate speed and link status.

Link Indications

State

Bi-Color LED (Yellow/Green)

Physical link speed

Beacon command for locating the adapter card

1Hz blinking Yellow

Error

4Hz blinking Yellow Indicates an error with the link. The error can be one of the following:

Error Type

Description

LED Behavior

I2C

I2C access to the networking ports fails

Blinks until error is fixed

Over-current

Over-current condition of the networking ports

Blinks until error is fixed

Physical Activity

The Green LED will blink.

Link Up

The Green LED will be solid.


Scheme 2: One Bi-Color LED and one Single Color LED

There are two I/O LEDs per port to indicate speed and link status. LED1 is a bicolor LED (Yellow and green) and LED2 is a single color LED (green).

Link Indications

State

Bi-Color LED (Yellow/Green)

Single Color LED (Green)

Beacon command for locating the adapter card

1Hz blinking Yellow

OFF

Error

4Hz blinking Yellow Indicates an error with the link. The error can be one of the following:

Error Type

Description

LED Behavior

I2C

I2C access to the networking ports fails

Blinks until error is fixed

Over-current

Over-current condition of the networking ports

Blinks until error is fixed

ON

Physical Activity

The Green LED will blink.

Blinking

Link Up

The Green LED will be solid.

ON

SMBus Interface

ConnectX-6 Dx technology maintains support for manageability through a BMC. ConnectX-6 Dx PCIe stand-up adapter can be connected to a BMC using MCTP over SMBus or MCTP over PCIe protocols as if it is a standard NVIDIA PCIe stand-up adapter. For configuring the adapter for the specific manageability solution in use by the server, please contact NVIDIA Support.

The voltage regulator power is derived from the PCI Express edge connector 12V supply pins. These voltage supply pins feed on-board regulators that provide the necessary power to the various components on the card.
