K8s on Bare Metal - Ethernet

This chapter describes Kubernetes solutions running on bare-metal hosts with NVIDIA’s Ethernet NIC family.

NVIDIA drivers should be installed as part of the operating system.

Install kubernetes Version 1.18, or newer. You may use the following references to Install Kubernetes with deployment tools:

• Bootstrapping clusters with kubeadm

• Installing Kubernetes with Kubespray

It is recommended to use Kubernetes Version 1.18 with the following features enabled. This will ensure the best NUMA alignment between the NIC PCI and the CPU, and better utilize SR-IOV performance:

• CPU Manager - With static CPU manager policy

• Topology Manager - With single NUMA node policy

Examples of how to configure CPU and topology managers can be found in the Kubernetes Performance Tuning section.

This chapter describes the setup and configuration procedures of legacy SR-IOV with SR-IOV Device Plugin and SR-IOV CNI.

Single Root IO Virtualization (SR-IOV) is a technology that allows a physical PCIe device to present itself multiple times through the PCIe bus. This technology enables multiple virtual instances of the device with separate resources. These virtual functions can then be provisioned separately. Each VF is an additional device connected to the Physical Function. It shares the same resources with the Physical Function, and its number of ports equals those of the Physical Function.

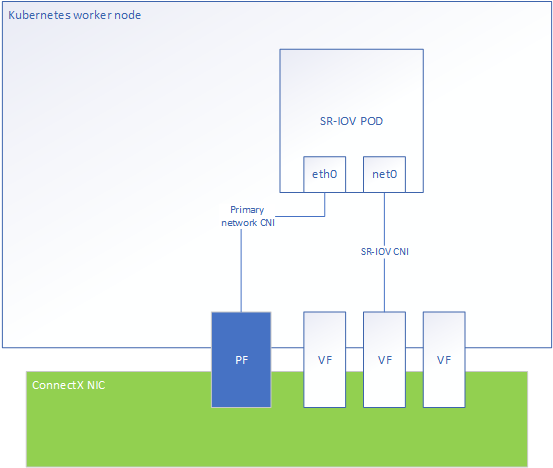

The following diagram represents the POD networking interfaces with Legacy SR-IOV as a secondary network.

Supported Network Interface Cards and Firmware

NVIDIA Networking supports the following Network Interface Cards and their corresponding firmware versions in Kubernetes:

Enabling SR-IOV Virtual Functions in Legacy Mode

SR-IOV Legacy mode supports standard network device and RDMA Over Converged Ethernet (RoCE)-enabled network device. To enable SR-IOV virtual functions in legacy mode, follow the instructions detailed in the following link:

https://github.com/k8snetworkplumbingwg/sriov-network-device-plugin/blob/master/docs/vf-setup.md#mellanox

RoCE Namespace Aware

Prior to Kernel Version 5.3.0, all RDMA devices were visible in all network namespaces. Kernel Version 5.3.0 or NVIDIA OFED Version 4.7 introduce network namespace isolation of RDMA devices. When the RDMA system is set to exclusive, this feature ensures that the RDMA device is bound to a particular net namespace and visible only to it. To learn how to enable RoCE Namespace Aware by using RDMA CNI, see here.

1. Set the RDMA system to "exclusive". This should be done on the host preparation stage:

   Copy

   Copied!




   $ rdma system set netns exclusive


2. Deploy the RDMA CNI:

   Copy

   Copied!




   $ kubectl apply -f https://raw.githubusercontent.com/Mellanox/rdma-cni/v1.0.0/deployment/rdma-cni-daemonset.yaml


3. Update the SR-IOV network CRD with RDMA CNI as a chained plugin:

   Copy

   Copied!




   apiVersion: "k8s.cni.cncf.io/v1"
   kind: NetworkAttachmentDefinition
   metadata:
     name: sriov-net
     annotations:
       k8s.v1.cni.cncf.io/resourceName: nvidia.com/mlnx_sriov_netdevice
   spec:
     config: '{
     "cniVersion": "0.3.1",
     "name": "sriov-network",
     "plugins": [
       {
         "type": "sriov",
         "ipam": {
           "type": "host-local",
           "subnet": "10.56.217.0/24",
           "routes": [
             {
               "dst": "0.0.0.0/0"
             }
           ],
           "gateway": "10.56.217.1"
         }
       },
       {
         "type": "rdma"
       }
     ]
   }


   Example of RoCE-enabled pod with SR-IOV resource:

   Copy

   Copied!




   apiVersion: v1
   kind: Pod
   metadata:
     name: testpod1
     annotations:
       k8s.v1.cni.cncf.io/networks: sriov-net
   spec:
     containers:
     - name: appcntr1
       image: <rdma image>
       imagePullPolicy: IfNotPresent
       securityContext:
         capabilities:
            add: ["IPC_LOCK"]
       command: [ "/bin/bash", "-c", "--" ]
       args: [ "while true; do sleep 300000; done;" ]
       resources:
         requests:
           nvidia.com/mlnx_sriov_netdevice: '1'
         limits:
           nvidia.com/mlnx_sriov_netdevice: '1'


   The <rdma image> should contain RDMA user space libraries - e.g rdma-core, which are compatible with the host kernel. Deploy the SR-IOV RoCE POD:

   Copy

   Copied!




   $ kubectl create -f  sriov-roce-pod.yaml


RoCE with Connection Manager (CM)

Some RDMA applications use RDMA CM to establish connections across the network. Due to kernel limitation, NVIDIA NICs require pre-allocate MACs for all VFs in the deployment, if an RDMA workload wishes to utilize RMDA CM to establish connection.

To do that, run:




$ ip link set <pf-netdev> vf <vf-index> mac <mac-address>
$ echo <vf-pci-address> > /sys/bus/pci/drivers/mlx5_core/unbind
$ echo <vf-pci-address> > /sys/bus/pci/drivers/mlx5_core/bind


This will populate the VF's node and port GUID required for RDMA CM to establish connection.

RoCE with GPUDirect

GPUDirect allows network adapters and storage drives to directly read and write to/from GPU memory, thereby eliminating unnecessary memory copies, decreasing CPU overheads and reducing latency. These actions result in significant performance improvements.

GPUDirect requires the following:

• MOFED 5.5-1.0.3.2 and above

• nvidia-peermem kernel module loaded by GPU Operator v1.9.0

• NVIDIA GPU and driver supporting GPUDirect e.g Quadro RTX 6000/8000 or Tesla T4/Tesla V100/Tesla A100

The RoCE POD should be deployed as described in Creating SR-IOV with RoCE POD.

DPDK

SR-IOV DPDK support is configured similarly to SR-IOV (legacy) configuration. This section describes the differences.

1. Create the sriov-dpdk-pod.yaml file:

   Collapse Source

   Copy

   Copied!




   apiVersion: v1
   kind: Pod
   metadata:
     name: testpod1
     annotations:
       k8s.v1.cni.cncf.io/networks: sriov-net
   spec:
     containers:
     - name: appcntr1
       image: <dpdk image>
       imagePullPolicy: IfNotPresent

       securityContext:

         capabilities:

            add: ["IPC_LOCK"]

        volumeMounts:

         - mountPath: /dev/hugepages

           name: hugepage

         resources:

           requests:

             memory: 1Gi

             hugepages-1Gi: 2Gi
       command: [ "/bin/bash", "-c", "--" ]
       args: [ "while true; do sleep 300000; done;" ]
       resources:
         requests:
           mellanox.com/mlnx_sriov_netdevice: '1'
         limits:
           mellanox.com/mlnx_sriov_netdevice: '1'

     volumes:

      - name: hugepage

        emptyDir:

          medium: HugePages


   The <dpdk image> should contain DPDK and RDMA user space libraries e.g - rdma-core, which are compatible with the host Kernel and with each other.

   • CRI-O Version 1.17 and above requires adding “NET_RAW” to the capabilities (for other runtimes, “NET_RAW is the default).

   • For DPDK to work with PA addresses with Linux >= 4.0 requires adding “SYS_ADMIN” to the capabilities.

   • DPDK applications that configure the device, such as MTU, MAC and link state, require adding “NET_ADMIN”.

2. Deploy the SR-IOV DPDK POD:

   Copy

   Copied!




   $ kubectl create -f sriov-dpdk-pod.yaml


OVS Offload

The ASAP2 solution combines the performance and efficiency of server/storage networking hardware with the flexibility of virtual switching software. ASAP2 offers up to 10 times better performance than non offloaded OVS solutions, delivering software-defined networks with the highest total infrastructure efficiency, deployment flexibility and operational simplicity. Starting from NVIDIA® ConnectX®-5 NICs, NVIDIA supports accelerated virtual switching in server NIC hardware through the ASAP2 feature. While accelerating the data plane, ASAP2 keeps the SDN control plane intact, thus staying completely transparent to applications, maintaining flexibility and ease of deployments.

OVN Kubernetes CNI with ConnectX

To enable OVN Kubernetes CNI with ConnectX, see OVN Kubernetes CNI with OVS offload.

Antrea

For Antrea CNI configuration instructions, see Antrea CNI with OVS Offload.

RoCE Shared Mode

RoCE shared mode allows RDMA devices to be shared between PODs on the same host. This configuration can work with macvlan or with ipvlan CNI.

Kubernetes Prerequisite

Install Kubernetes Version 1.16 or above. You may use the following references when Installing Kubernetes with deployment tools:

• Bootstrapping Clusters with Kubeadm

• Installing Kubernetes with Kubespray

Deploying the Shared Device Plugin

Create the rdma-shared.yaml configMap for the shared device plugin:




{
  "configList": [
    {
      "resourceName": "roce_shared_devices",
      "rdmaHcaMax": 1000,
      "selectors": {
        "vendors": ["15b3"],
        "deviceIDs": ["1017"]
      }
    }
  ]
}





$ kubectl create -f rdma-shared.yaml
$ kubectl create -f https://raw.githubusercontent.com/Mellanox/k8s-rdma-shared-dev-plugin/master/images/k8s-rdma-shared-dev-plugin-ds.yaml


For advanced macvlan CNI configuration instructions, see here.

Supported IPAM (IP Address Management) operations:

• host-local

• dhcp

• static

• whereabouts
