IB Router

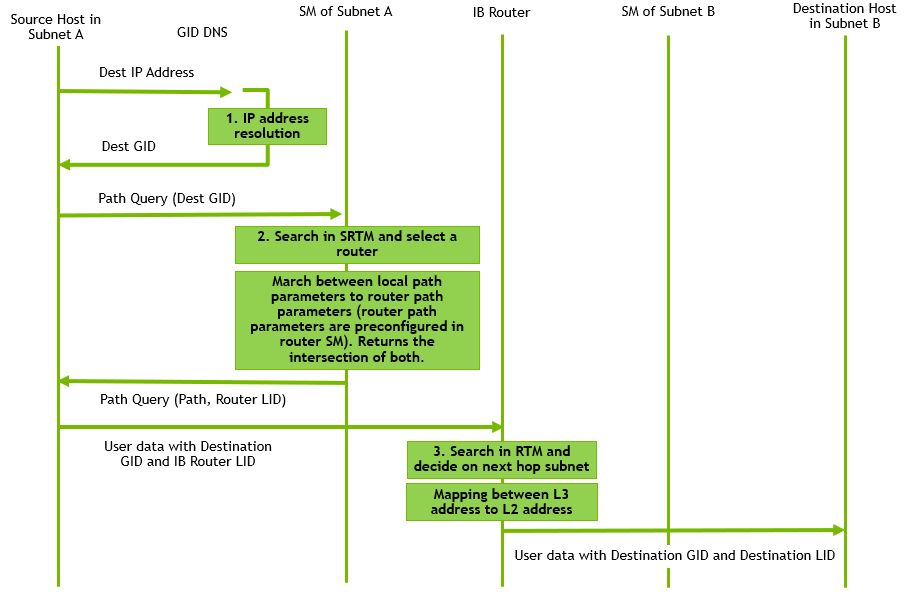

IB router provides the ability to send traffic between two or more IB subnets thereby potentially expanding the size of the network to over 40k end-ports, enabling separation and fault resilience between islands and IB subnets, and enabling connection to different topologies used by different subnets.

The forwarding between the InfiniBand subnets is performed using GRH (global route header) lookup.

IB router capabilities are supported only on QM9700 switch systems.

The IB router’s basic functionality includes:

Removal of current L2 LRH (local routing header)
Routing table lookup—using GID from GRH
Building new LRH according to the destination and the routing table

The DLID in the new LRH is built using simplified GID-to-LID mapping (where LID = 16 LSB bits of GID) thereby not requiring to send for ARP query/lookup.

For this to work, the SM allocates an alias GID for each host in the fabric where the alias GID = {subnet prefix[127:64], reserved[63:16], LID[15:0]}. Hosts should use alias GIDs in order to transmit traffic to peers on remote subnets.

Warning

For more information on IB router architecture and functionality, please refer to the community post IB Router Architecture and Functionality.

Warning

IB router requires HCA configuration such as SM, partition key, MPI, GID translation, and more. To learn more about these configurations, please refer to the following community posts:

Warning

The minimal UFM SM version for NDR multi-SWID functionality is 5.15 and above.

Configuring IB Router

Prerequisites

Check system capabilities to make sure IB L3 is supported. Run:

Copy
Copied!


            switch (config) # show system capabilities
IB: Supported, L2, L3, Adaptive Routing, Split Ready
Max SM nodes: 2048
IB Max licensed speed: NDR

Warning

Please notice the second line in the output.

Configure system profile to multi-switch with 2 SWIDs.
Copy

Copied!
```

            switch (config) # system profile ib num-of-swids 2 ib-router

```
Warning

Note that all interfaces are mapped to subnet infiniband-default.

Verify system profile configuration.

Copy
Copied!


            switch (config) # show system profile
Profile                : ib
Number of SWIDs        : 2
Adaptive Routing       : yes
Adaptive Routing Groups: 256
Split Ready            : no
IB Routing             : yes

Warning

Note the number of SWIDs configured and that IB Routing is set to “yes”.

Configuring IB Router

Map an interface to a SWID.

Copy
Copied!


            switch (config) # interface ib 1/1/1 switchport access subnet infiniband-default force
switch (config) # interface ib 1/1/2 switchport access subnet infiniband-1 force

Verify SWID configuration on the aforementioned interfaces.

Copy
Copied!


            switch (config) # show interfaces ib status
-----------------------------------------------------------------------------------------------------------------------------------
Interface      Description     IB Subnet            Speed           Current line rate   Logical port state   Physical port state
-----------------------------------------------------------------------------------------------------------------------------------
IB1/1/1                        infiniband-default   ndr             400.0 Gbps          Initialize           LinkUp
IB1/1/2                        infiniband-1         ndr             400.0 Gbps          Initialize           LinkUp
IB1/2/1                        infiniband-default   -               -                   Down                 Polling
IB1/2/2                        infiniband-default   -               -                   Down                 Polling
IB1/3/1                        infiniband-default   -               -                   Down                 Polling
IB1/3/2                        infiniband-default   -               -                   Down                 Polling
IB1/4/1                        infiniband-default   -               -                   Down                 Polling
IB1/4/2                        infiniband-default   -               -                   Down                 Polling
IB1/5/1                        infiniband-default   -               -                   Down                 Polling
..

Configure and enable InfiniBand router.

Copy
Copied!


            switch (config) # ib router
switch (config) # no ib router shutdown

Enable IB subnet interface.

Copy
Copied!


            switch (config) # no interface ib-subnet infiniband-default shutdown
switch (config) # no interface ib-subnet infiniband-1 shutdown

Verify configuration.

Copy
Copied!


            switch (config) # show ib router

Routing state: enabled
---------------------------------------
IB subnet               Routing enabled
---------------------------------------
infiniband-default      enabled
infiniband-1            enabled
switch (config) # show interfaces ib-subnet infiniband-default

infiniband-default state:
  GUID              : 90:0A:84:03:00:40:C9:C8
  Alias GID         : N/A
  LID               : 4
  Subnet prefix     : FE:C0:00:00:00:00:00:11
  Physical state    : LinkUp
  Logical state     : Active
  L3 interface state: Up

IP to GID Resolution

Go to the following Github: https://github.com/Mellanox/ip2gid
Clone the Git repository
Compile and run on each node in the fabric
Change the device MAC address of the IPoIB device to be based on the alias GID and not the GUID.
For example, # echo fec0:0000:0000:0003:0014:0500:0000:0001 > /sys/class/net/ib0/set_mac
where fe:c0:00:00:00:00:00:02:00:14:05:00:00:00:00:01 is the alias GID given by the SM to that node.
Add route using "ip route add" command to the relevant hosts.
# ifconfig ib0 12.0.3.1/24 --> set ip for ib0
# ip route add 12.0.1.0/24 via 12.3.0.250 --> adding route to hosts with 12.1.xxx.xxx IP
# ip route add 12.0.2.0/24 via 12.3.0.250 --> adding route to hosts with 12.2.xxx.xxx IP

Subnet Prefix Checking

The IB router expects the subnet prefix to be constructed according to some very specific rules. By default, the command which enables IB routers validates the subnet prefix prior to allowing the change.

The commands which affect subnet prefix checking are as follows:

ib sm <name> enable – starts SM on this node or any node in cluster
ib sm subnet-prefix <subnet-prefix> – configures the subnet prefix
ib sm rtr-aguid-enable <1 | 2> – enables support for alias GIDs as needed by IB routers

When any of these commands is run, while the other two have already been issued, the value of the subnet prefix is checked. If it is not valid, the current commit is rejected and the OpenSM state does not change.

To disable subnet prefix checking

Verify the status of subnet prefix override. Run:

Copy
Copied!


            switch (config) # show ib sm subnet-prefix-override
enable

If enabled, disable subnet-prefix-override. Run:

Copy
Copied!


            switch (config) # ib sm subnet-prefix-override

Verify configuration. Run:

Copy
Copied!


            switch (config) # show ib sm subnet-prefix-override
disable

IB Router Commands

ib router

	ib router no ib router Enables the set of commands that allow control of IB router functionality. The no form of the command disables IB router commands and removes all related configurations.
Syntax Description	N/A
Default	N/A
Configuration Mode	config
History	3.6.0500
Example	switch (config) # ib router
Related Commands	system profile
Notes

ib router shutdown

	ib router shutdown no ib router shutdown Disables IB router. The no form of the command enables IB router.
Syntax Description	N/A
Default	Disabled
Configuration Mode	config
History	3.6.0500
Example	switch (config) # no ib router shutdown
Related Commands
Notes	This command does not clear IB router configuration

interface ib-subnet

	interface ib-subnet <swid-name> no interface ib-subnet <swid-name> Creates routing on IB router subnet. The no form of the command removes routing on router interface.
Syntax Description	swid-name	Name of the SWID: infiniband-default, infiniband-1...infiniband-5
Default	N/A
Configuration Mode	config
History	3.6.0500
Example	switch (config) # interface ib-subnet infiniband-3
Related Commands	system profile
Notes	The maximum number of SWIDs depends on the number of SWIDs defined in the profile

interface ib-subnet shutdown

	interface ib-subnet <swid-name> shutdown no interface ib-subnet <swid-name> shutdown Disables routing on IB router subnet. The no form of the command enables routing on router interface.
Syntax Description	swid-name	Name of the SWID: infiniband-default, infiniband-1...infiniband-5
Syntax Description	shutdown	Admin down on router interface Admin up on router interface with no form of command
Default	Disabled
Configuration Mode	config
History	3.6.0500
Example	switch (config) # no interface ib-subnet infiniband-3 shutdown
Related Commands
Notes

show ib router

	show ib router Displays current IB router functionality.
Syntax Description	N/A
Default	N/A
Configuration Mode	Any command mode
History	3.6.0500
Example	switch (config) # show ib router Routing state: enabled IB Subnet Routing enabled infiniband-default enabled infiniband-1 disabled infiniband-2 enabled infiniband-3 enabled
Related Commands
Notes

show interfaces ib-subnet

	show interfaces ib-subnet [<swid-name>] [brief] Displays statistics of one or all IB subnets with enabled IB routing.
Syntax Description	swid-name	Name of the SWID: infiniband-default, infiniband-1...infiniband-5
Syntax Description	brief	Displays output in a table format
Default	Disabled
Configuration Mode	config
History	3.6.0500
Example	switch (config) # show interfaces ib-subnet infiniband-3 infiniband-3 state: GUID : F4:52:14:03:00:6E:F2:8B Alias GID : N/A LID : 10 Subnet prefix : FE:C0:00:00:00:00:00:08 Physical state : LinkUp Logical state : Active L3 interface state : Up
Related Commands
Notes
