IB Router

IB router provides the ability to send traffic between two or more IB subnets thereby potentially expanding the size of the network to over 40k end-ports, enabling separation and fault resilience between islands and IB subnets, and enabling connection to different topologies used by different subnets.

The forwarding between the InfiniBand subnets is performed using GRH (global route header) lookup.

IB router capabilities are supported only on QM9700 switch systems.

The IB router’s basic functionality includes:

  • Removal of current L2 LRH (local routing header)

  • Routing table lookup—using GID from GRH

  • Building new LRH according to the destination and the routing table

The DLID in the new LRH is built using simplified GID-to-LID mapping (where LID = 16 LSB bits of GID) thereby not requiring to send for ARP query/lookup.


Warning

For more information on IB router architecture and functionality, please refer to the community post IB Router Architecture and Functionality.

Warning

IB router requires HCA configuration such as SM, partition key, MPI, GID translation, and more. To learn more about these configurations, please refer to the following community posts:

Warning

The minimal UFM SM version for NDR multi-SWID functionality is 5.15 and above.

Prerequisites

  1. Check system capabilities to make sure IB L3 is supported. Run:

    Copy
    Copied!


    switch (config) # show system capabilities IB: Supported, L2, L3, Adaptive Routing, Split Ready Max SM nodes: 2048 IB Max licensed speed: NDR

    Warning

    Please notice the second line in the output.

  2. Configure system profile to multi-switch with 2 SWIDs.

    Copy
    Copied!


    switch (config) # system profile ib num-of-swids 2 ib-router

    Warning

    Note that all interfaces are mapped to subnet infiniband-default.

  3. Verify system profile configuration.

    Copy
    Copied!


    switch (config) # show system profile Profile : ib Number of SWIDs : 2 Adaptive Routing : yes Adaptive Routing Groups: 256 Split Ready : no IB Routing : yes

    Warning

    Note the number of SWIDs configured and that IB Routing is set to “yes”.

Configuring IB Router

  1. Map an interface to a SWID.

    Copy
    Copied!


    switch (config) # interface ib 1/1/1 switchport access subnet infiniband-default force switch (config) # interface ib 1/1/2 switchport access subnet infiniband-1 force

  2. Verify SWID configuration on the aforementioned interfaces.

    Copy
    Copied!


    switch (config) # show interfaces ib status ----------------------------------------------------------------------------------------------------------------------------------- Interface Description IB Subnet Speed Current line rate Logical port state Physical port state ----------------------------------------------------------------------------------------------------------------------------------- IB1/1/1 infiniband-default ndr 400.0 Gbps Initialize LinkUp IB1/1/2 infiniband-1 ndr 400.0 Gbps Initialize LinkUp IB1/2/1 infiniband-default - - Down Polling IB1/2/2 infiniband-default - - Down Polling IB1/3/1 infiniband-default - - Down Polling IB1/3/2 infiniband-default - - Down Polling IB1/4/1 infiniband-default - - Down Polling IB1/4/2 infiniband-default - - Down Polling IB1/5/1 infiniband-default - - Down Polling ..

  3. Configure and enable InfiniBand router.

    Copy
    Copied!


    switch (config) # ib router switch (config) # no ib router shutdown

  4. Enable IB subnet interface.

    Copy
    Copied!


    switch (config) # no interface ib-subnet infiniband-default shutdown switch (config) # no interface ib-subnet infiniband-1 shutdown

  5. Verify configuration.

    Copy
    Copied!


    switch (config) # show ib router   Routing state: enabled --------------------------------------- IB subnet Routing enabled --------------------------------------- infiniband-default enabled infiniband-1 enabled switch (config) # show interfaces ib-subnet infiniband-default    infiniband-default state: GUID : 90:0A:84:03:00:40:C9:C8 Alias GID : N/A LID : 4 Subnet prefix : FE:C0:00:00:00:00:00:11 Physical state : LinkUp Logical state : Active L3 interface state: Up

This section is only relevant when MLNX-OS subnet manager is running in InfiniBand fabrics.

Warning

Note: Subnet manager can’t be started on the switch with IB router functionality enabled.

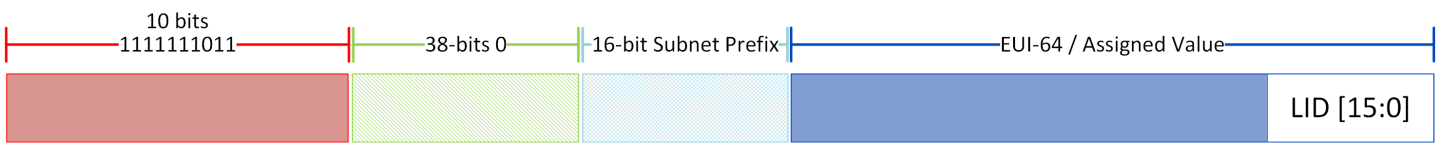

To allow InfiniBand routing, the subnet prefixes in all routable subnets must be in site-local format - fe:c0:00:00:00:00:00:xx:xx , e.g. fe:c0:00:00:00:00:00:00:01

By default, the command which defines the subnet prefix of the Infiniband subnet, validates the subnet prefix prior to allowing the change.

For correct IB management of the Infiniband fabric including IB routers, the recommended order of commands is as follows:

  • ib sm subnet-prefix <subnet-prefix> – configures the subnet prefix

  • ib sm rtr-aguid-enable <1 | 2> – enables support for Host alias GIDs needed for sending routable traffic.

  • ib sm <name> enable – start SM on this node or any node in cluster.

To disable subnet prefix checking

  1. Verify the status of subnet prefix override. Run:

    Copy
    Copied!


    switch (config) # show ib sm subnet-prefix-override enable

  2. If enabled, disable subnet-prefix-override. Run:

    Copy
    Copied!


    switch (config) # ib sm subnet-prefix-override

  3. Verify configuration. Run:

    Copy
    Copied!


    switch (config) # show ib sm subnet-prefix-override disable

ib router

ib router

no ib router

Enables the set of commands that allow control of IB router functionality.

The no form of the command disables IB router commands and removes all related configurations.

Syntax Description

N/A

Default

N/A

Configuration Mode

config

History

3.6.0500

Example

switch (config) # ib router

Related Commands

system profile

Notes


ib router shutdown

ib router shutdown

no ib router shutdown

Disables IB router.

The no form of the command enables IB router.

Syntax Description

N/A

Default

Disabled

Configuration Mode

config

History

3.6.0500

Example

switch (config) # no ib router shutdown

Related Commands

Notes

This command does not clear IB router configuration


interface ib-subnet

interface ib-subnet <swid-name>

no interface ib-subnet <swid-name>

Creates routing on IB router subnet.

The no form of the command removes routing on router interface.

Syntax Description

swid-name

Name of the SWID: infiniband-default, infiniband-1...infiniband-5

Default

N/A

Configuration Mode

config

History

3.6.0500

Example

switch (config) # interface ib-subnet infiniband-3

Related Commands

system profile

Notes

The maximum number of SWIDs depends on the number of SWIDs defined in the profile


interface ib-subnet shutdown

interface ib-subnet <swid-name> shutdown

no interface ib-subnet <swid-name> shutdown

Disables routing on IB router subnet.

The no form of the command enables routing on router interface.

Syntax Description

swid-name

Name of the SWID: infiniband-default, infiniband-1...infiniband-5

shutdown

Admin down on router interface

Admin up on router interface with no form of command

Default

Disabled

Configuration Mode

config

History

3.6.0500

Example

switch (config) # no interface ib-subnet infiniband-3 shutdown

Related Commands

Notes


show ib router

show ib router

Displays current IB router functionality.

Syntax Description

N/A

Default

N/A

Configuration Mode

Any command mode

History

3.6.0500

Example

switch (config) # show ib router

Routing state: enabled

IB Subnet Routing enabled

infiniband-default enabled

infiniband-1 disabled

infiniband-2 enabled

infiniband-3 enabled

Related Commands

Notes


show interfaces ib-subnet

show interfaces ib-subnet [<swid-name>] [brief]

Displays statistics of one or all IB subnets with enabled IB routing.

Syntax Description

swid-name

Name of the SWID: infiniband-default, infiniband-1...infiniband-5

brief

Displays output in a table format

Default

Disabled

Configuration Mode

config

History

3.6.0500

Example

switch (config) # show interfaces ib-subnet infiniband-3

infiniband-3 state:

GUID : F4:52:14:03:00:6E:F2:8B

Alias GID : N/A

LID : 10

Subnet prefix : FE:C0:00:00:00:00:00:08

Physical state : LinkUp

Logical state : Active

L3 interface state : Up

Related Commands

Notes
