Installation and Configuration

NVIDIA SN2410 Ethernet Switch Systems Quick Installation Guide

#

Illustration

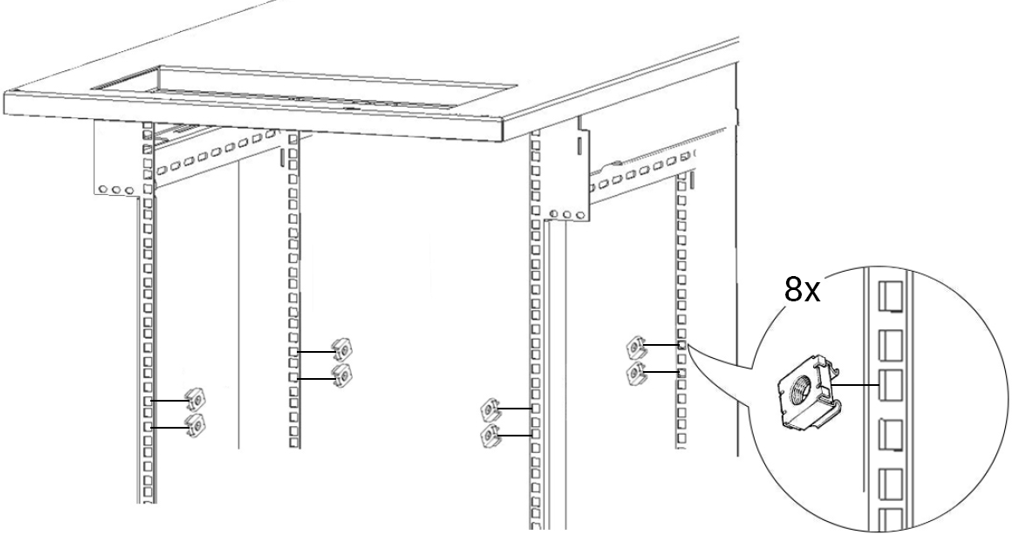

1


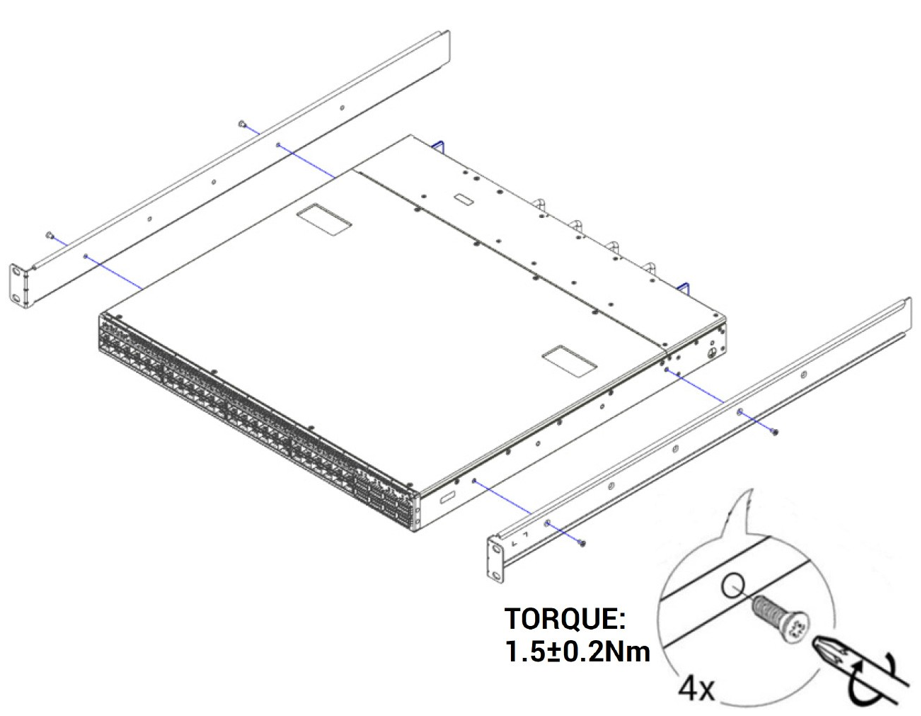

2


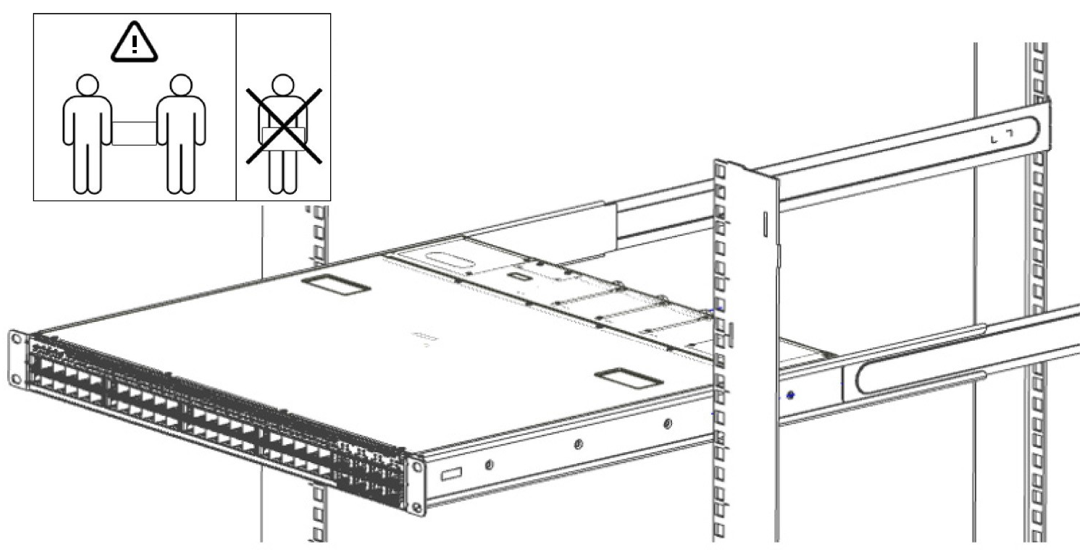

3

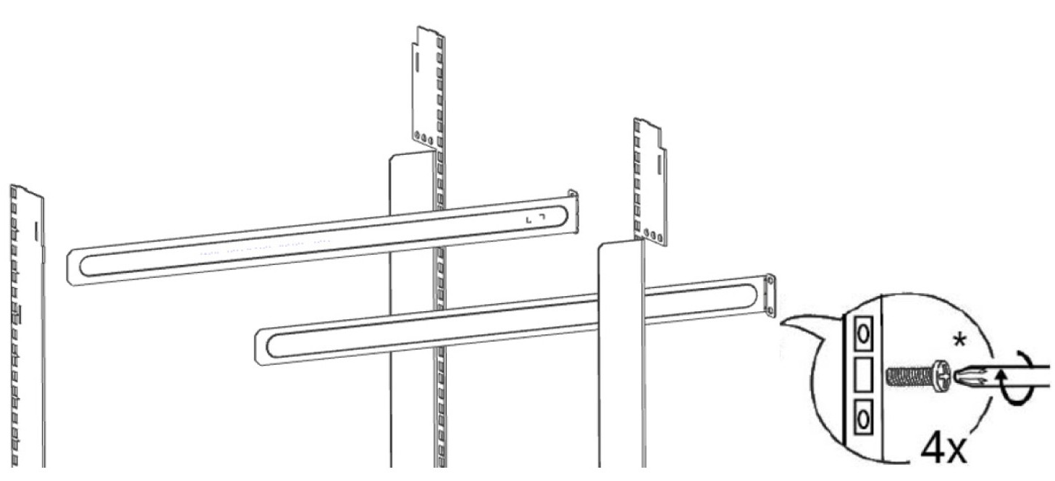

Do not tighten the screws yet.


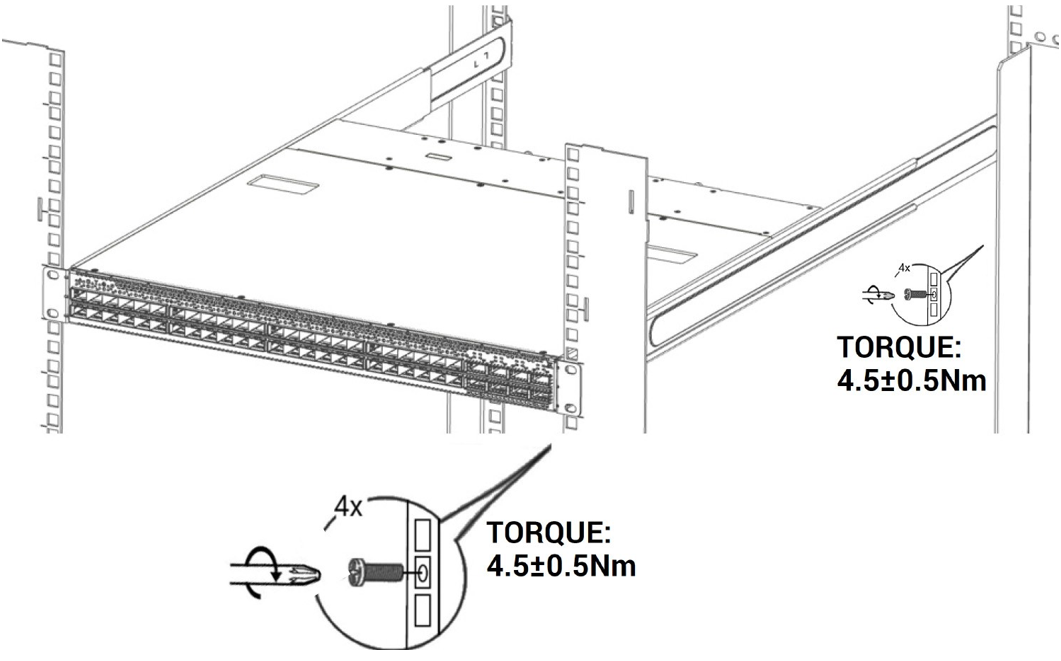

4


5


Connector (Front) Side

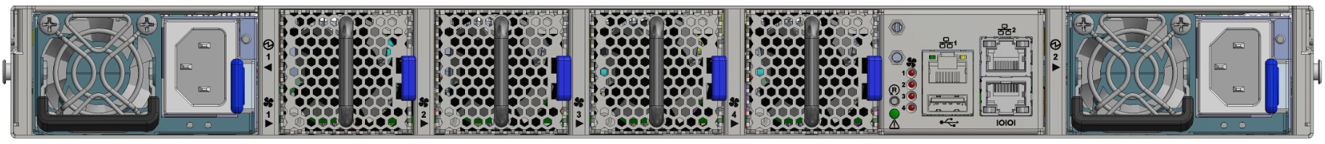

FRU (Rear) Side


* It may take up to five minutes to turn on the system. If the System Status LED shows amber after five minutes, unplug the system and contact your NVIDIA representative.

LED Assignments

Symbol

Description

Normal Status


System health

Green/Flashing


Fan health

Green


Power supply health

Green


Bad port detected

Off


Identifier LED

Off/Blue


Reset button

  1. Connect the host PC to the Console (RJ-45) port.

  2. Configure a serial terminal program.

    Parameter

    Settings

    Baud rate

    115200

    Data bits

    8

    Stop bits

    1

    Parity

    None

    Flow control

    None

  3. Login:

    OS

    Username

    Password

    Onyx (MLNX-OS)

    admin

    admin

    ONIEa

    -

    -

    Cumulus Linux

    cumulus

    CumulusLinux! (case sensitive)

    a. No login is required. Press Enter to activate the console.

  4. Initial configuration

    1. Onyx (MLNX-OS): Go through the configuration wizard. For further information, please refer to: https://docs.nvidia.com/networking/category/mlnxos.

    2. ONIE1: Please refer to the ONIE User Manual - https://docs.nvidia.com/networking/category/oniesw.

    3. Cumulus2: By default, the MGMT port will acquire the IP from DHCP. You can cross reference the MAC of the switch with your DHCP server (MAC can be found on switch label) or using "ifconfig eth0" (when using MGMT0). For further information, refer to: https://docs.cumulusnetworks.com/display/DOCS/Quick+Start+Guide

For full installation instructions, go to https://docs.nvidia.com/networking/category/switchen.

1 ONIE OS runs on top of SN2700/SX1710 switch systems only.

2 Cumulus OS runs on top of SN2700 switch system only.
