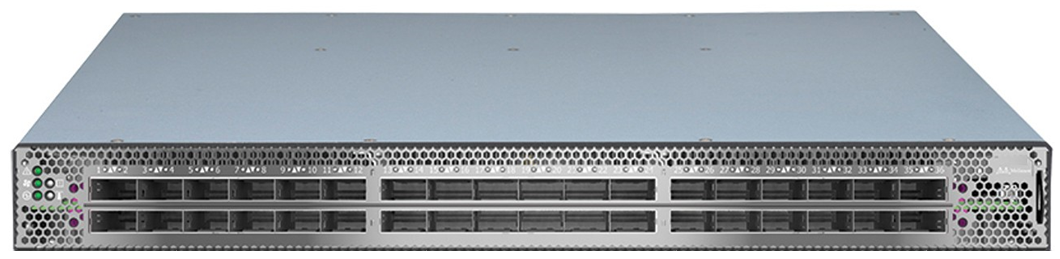

NVIDIA SN2700, SX1710 and SX1410 Switch Systems Quick Installation Guide
At least two people are required to safely mount the system in the
All servers and systems in the rack should be planned with the airflow All FRU components must have the same air flow direction. A mismatch in the air flow will affect the heat dissipation.
The part of the system to which you choose to attach the rails will determine the system’s adjustable side. The system’s part to which the brackets are attached will be adjacent to the
The FRU side is extractable. Mounting the rack brackets inverted to the FRU side will allow you to slide the FRUs, in and out.
1 x System
Rail Kit for short depth (17”-24” / 432-610mm) or standard depth (24”- 34” / 610-863mm) racks
x Power cables – Type C13-C14
1 x Harness RS232 2M cable – DB9 to RJ-451
X8 (of each)
X2 (of each)
