Puppet Agent

Puppet is a software that allows network administrators to automate repetitive tasks. NVIDIA Onyx includes a built-in agent for the open-source “Puppet” configuration change management system. The Puppet agent enables configuring switches in accordance with the standard “puppet-netdev-stdlib” type library and with the “Mellanox-netdev-stdlib-mlnxos” and “Mellanox-netdev-ospf-stdlib” type libraries provided to the Puppet community.For more information, please refer to the CLI commands, to the NetDev documentation and to Puppet modules GitHub page.

To set the puppet server:

  1. Define the Puppet server (the name has to be a DNS and not IP).

    Copy
    Copied!


    switch (config) # puppet-agent master-hostname <please_type_your_hostname_DNS_here>

  2. Enable the Puppet agent.

    Copy
    Copied!


    switch (config) # puppet-agent enable

  3. (Optional) Verify there are no errors in the Puppet agent log.

    Copy
    Copied!


    switch (config) # show puppet-agent log continuous

Warning

This is to be performed on the first run only.

Using CLI Commands

  1. Verify the certificate request.

    Copy
    Copied!


    # puppet cert list "<switch>"  (F4:B4:20:3B:2B:11:76:37:14:34:D0:D1:03:ED:3D:B5)

  2. Sign the certificate request if the cert_name parameter (e.g. switch1.domain) is in the list.

    Copy
    Copied!


    # puppet cert sign <full_domain_name>

  3. Verify the request is removed from the Puppet certification list.

    Copy
    Copied!


    # puppet cert list

Accepting Certificate Requests in Puppet Server Console

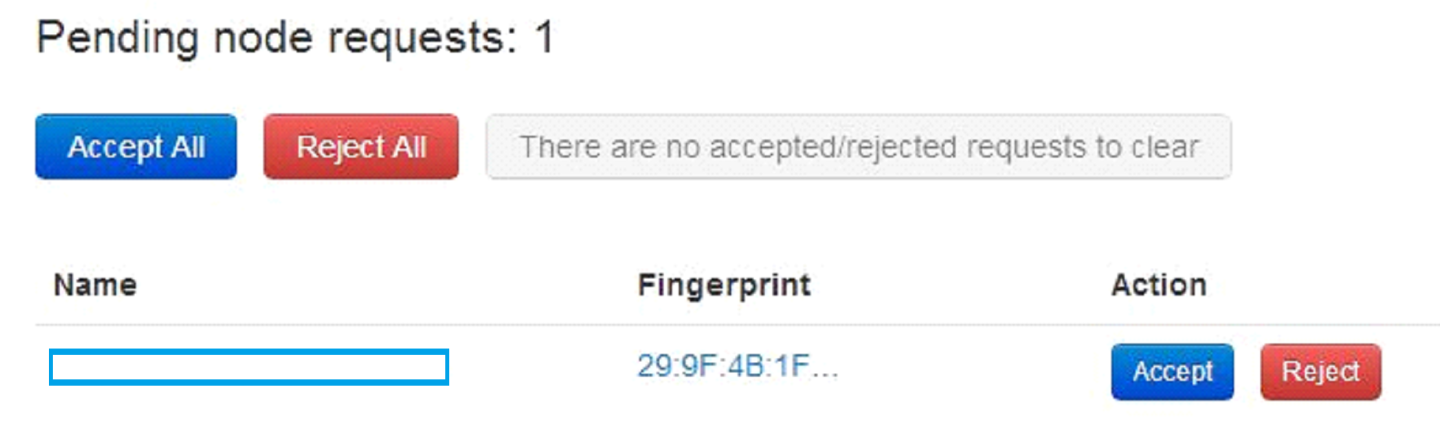

Go to the “nodes requests” page (the button is at the top right), and wait for a certificate request for the switch and then accept it.


For those types which have to be installed at the Puppet server prior to the first Puppet configuration run (before configuring resources on the switch), netdev-stdlib types and a package of providers is provided.

To install those modules, run the following commands in the Puppet server:

Copy
Copied!


# puppet module install netdevops-netdev_stdlib # puppet module install mellanox-netdev_ospf_stdlib # puppet module install mellanox-netdev_stdlib_mlnxos

Warning

If a module is already installed, please use the command “puppet module upgrade <module_name>” or “puppet module install <module_name> --force” instead of “puppet module install <module_name>” to reinstall the modules.

For more information please refer to the Network Automation Tools page community page.

  1. Assign configuration classes to a node.
    Configuration files can be written and changed in the puppet server machine in the directory “/etc/puppetlabs/puppet/manifests/” (or “/etc/puppet/manifests” in case of an open source puppet server).
    The file “/etc/puppetlabs/puppet/manifests/site.pp” is the main file for Puppet-classes-to-nodes association. To associate a configuration to a Puppet agent node, just append association lines as below:

    Copy
    Copied!


    import "netdev_vlan_example" import "netdev_l2_vlan_example" import "netdev_lag_example" node 'switch-6375dc.mtr.labs.mlnx'{   netdev_device { $hostname: }   include vlan_example # Asserts a class vlan_example in one of the files include l2_interface_example include lag_example   }

    Warning

    If you have a puppet console, you may assign classes of configuration in the following way:

    •Add the relevant classes (using the console add class button on the “nodes” page).

    •Assign the classes to the relevant nodes/groups in the puppet server console (in the console node/group page -> edit -> Classes).

  2. Update VLAN.
    Manifest example (located in “/etc/puppetlabs/puppet/manifests/netdev_vlan_example.pp”).

    Copy
    Copied!


    class vlan_example{   $vlans = { 'Vlan244' => {vlan_id => 244, ensure => present}, 'Vlan245' => {vlan_id => 245, ensure => present}, }   create_resources( netdev_vlan, $vlans ) }

  3. Update Layer 2 Interface.
    Manifest example (located in “/etc/puppetlabs/puppet/manifests/netdev_l2_interface_example.pp”).

    Copy
    Copied!


    class vlans_ensure_example{   $vlans = { 'Vlan347' => {vlan_id => 347, ensure => present}, 'Vlan348' => {vlan_id => 348, ensure => present}, 'Vlan349' => {vlan_id => 349, ensure => present}, }   create_resources( netdev_vlan, $vlans ) }   class l2_interface_example{   include vlans_ensure_example #class to Ensure VLANs before assigning   $l2_interfaces = { 'ethernet 1/3' => {ensure => absent, vlan_tagging => disable}, #default 'ethernet 1/4' => {ensure => present, vlan_tagging => enable, tagged_vlans => [Vlan348,Vlan347], untagged_vlan => Vlan349} #hybrid }   create_resources( netdev_l2_interface, $l2_interfaces ) }

  4. Update LAG.
    Manifest example (located in “/etc/puppetlabs/puppet/manifests/netdev_lag_example.pp”).

    Copy
    Copied!


    class lag_example{   $lags = { 'port-channel 101' => {ensure => present, links => ['ethernet 1/12', 'ethernet 1/13'], lacp => active}, 'port-channel 102' => {ensure => present, links => ['ethernet 1/6','ethernet 1/5'], lacp => disabled}, }   create_resources( netdev_lag, $lags ) }

    Warning

    You may add classes to ensure that all assigned links are with the same layer 1 and layer 2 configurations (similarly to the way we did in update l2_interface section with vlans_ensure_example class).

Ethernet and Port-Channel

Interface Capabilities

Field

Description

Values

Example

ensure

Sets the given values or restores the interface to default

absent, present

ensure => present

speed

Sets the speed of the interface.

auto*|10m|100m|1g|10g|40g|56g

speed => 1g

admin

Disables/enables interface admin state.

up, down

admin => up

mtu

Configures the maximum transmission unit frame size for the interface.

1518-9216

mtu => 1520

description

Sets the Ethernet and LAG description.

Text

description => “changed_by_puppet”

VLAN Capabilities

Field

Description

Values

Example

ensure

Creates or destroys the VLAN given as a resource ID

absent, present

ensure => present

vlan_id

The VLAN ID

1-4094 (integer)

vlan_id => 245

Layer 2 Ethernet Interface Capabilities

Field

Description

Values

Example

ensure

Sets the given values or restores the Layer 2 interface to default.

absent, present

ensure => present

vlan_tagging

VLAN tagging mode

enable,disable

vlan_tagging => enable

tagged_vlans

List of tagged (trunked) VLANs

2-4994 (range)

tagged_vlans => [Vlan348,Vlan347]

untagged_vlan

Untag (access) VLAN

<VLAN name>

untagged_vlan => Vlan349

LAG Capabilities

Field

Description

Values

Example

ensure

creates or destroys the port-channel given as a resource ID

absent, present

ensure => present

lacp

The LACP mode of the LAG

passive | active | on

lacp => on

links

List of ports assigned to the LAG

List of link names

links => ['ethernet 1/6','ethernet 1/5']

Layer 3 Interface Capabilities

Field

Description

Values

Example

ensure

Creates or destroys the interface VLAN specified in the resource ID.

present, absent

ensure => present

ipaddress

Sets IP address on the Layer 3 interface (requires netmask).

A valid IP address

ipaddress => ‘192.168.4.2’

netmask

Sets netmask for the IP address.

A valid netmask (of the form X.1X2.X3.X4), which creates a valid combination with the given IP address

netmask => ‘255.255.255.0’

method

Configures the method of the L3 interface (currently supports only static method).

static

method => static

OSPF Interface Capabilities

Field

Description

Values

Example

ensure

Creates or destroys the OSPF interface of the associated interface of the VLAN specified in the resource ID

present, absent

ensure => present

area_id

The associated area ID

Integer representing an IP

area_id => ‘7200’

Type

The network type

broadcast, point_to_point

type => ‘point_to_point’

OSPF Area Capabilities

Field

Description

Values

Example

ensure

Creates or destroys the OSPF area specified in the resource ID

present, absent

ensure => present

router_id

The OSPF area associated router ID (currently supports only default router)

default

router_id => 'default'

ospf_area_mode

The OSPF area mode

normal, stub, nssa

ospf_area_mode => 'stub'

subnets

A list of associated subnets

List of subnets

["192.168.4.0/24", "192.168.5.0/24"]

Router OSPF Capabilities

Field

Description

Values

Example

ensure

Enables/disables the router ID specified in the resource ID

present, absent

ensure => present

SNMP, LLDP, IP Routing, and Spanning Tree Capabilities

Field

Description

Values

Example

ensure

Enables/disables the protocol specified in the resource ID

present, absent

ensure => present

Fetched Image Capabilities

Field

Description

Values

Example

ensure

Enables/disables the protocol specified in the resource ID

present, absent

ensure => present

protocol

Specifies the protocol for fetch method

http, https, ftp, tftp, scp, sftp

protocol => scp

host

The host where the filename located

DNS/IP

host => my_DNS

user

The username for fetching the image

Username

user => my_username

password

The password for fetching the image

Password

password => my_pass

location

The location of the file name in the host file system

Directory full path

location => '/tmp'

force_delete

Remove all the images or only the ones which are not installed on any partition, before fetching

yes, no

force_delete => no

Installed Image Capabilities

Field

Description

Values

Example

ensure

Specifies if the image version given in as resource ID is ensured to be installed or not

present, absent

ensure => present

is_next_boot

Ensures that the installed image is the next boot partition

yes, no

is_next_boot => yes

configuration_write

Writes configurations to database.

yes, no

configuration_write => yes

force_reload

Reload if image is in other partition.

yes, no

force_reload => no

Resource Type

Puppet Type Name

Supported Resource IDS

Example

Network device

netdev_device

$hostname

netdev_device { $hostname: }

Layer 1 interface

netdev_interface

'ethernet <#ID>', 'port-channel <#id>'

netdev_interface{'ethernet 1/3': ensure => absent}

Layer 2 interface

netdev_l2_interface

'ethernet <#ID>', 'port-channel <#id>'

netdev_l2_interface{'ethernet 1/3': ensure => absent}

VLAN

netdev_vlan

VLAN name string

netdev_vlan {'Vlan244': vlan_id => 244, ensure => present }

LAG

netdev_lag

'port-channel <#id>'

netdev_lag {'port-channel 101': ensure => present }

Layer 3 interface

netdev_l3_interface

'vlan <#ID>'

netdev_l3_interface{ 'vlan 4': ipaddress => '192.168.4.2', netmask => '255.255.255.0'}

OSPF interface

netdev_ospf_interface

'vlan <#ID>'

netdev_ospf _interface{ 'vlan 4': ensure => present, area_id => '10' }

OSPF area

netdev_ospf_area

Valid area ID (representing an IP)

netdev_ospf _area{ '10': ensure => present, ospf_area_mode=>'stub'}

OSPF router

netdev_router_ospf

Currently only supports 'default'

netdev_router_ospf {'default': ensure => present }

Protocol

mlnx_protocol

ip_routing, lldp, snmp, spanning_tree

mlnx_protocol { 'ip_routing': ensure => present}

Fetched image

mlnx_fetched_img

The image file name

mlnx_fetched_image { 'onyx-X86_64-3.6.8008.img': ensure => present}

Installed image

mlnx_installed_img

The image version name

mlnx_installed_img { '3.3.4300': ensure => present}

This section presents common issues that may prevent the switch from connecting to the puppet server.

Switch and Server Clocks are not Synchronized

This can be fixed by using NTP to synchronize the clocks at the switch (using the command “ntp”) and at the server (e.g. using ”ntpdate”).

Outdated or Invalid SSL Certificates Either on the Switch or the Server

This can be fixed on the switch using the CLI command “puppet-agent clear-certificates” (requires “puppet-agent restart” to take effect).

On the server it can be fixed by running “puppet cert clean <switch_fqdn>” (FQDN is the Fully Qualified Domain Name which consists of a hostname and a domain suffix).

Communications Issue

Make sure it is possible to ping the puppet server hostname from the switch (using the command “ping”).

If the hostname is not reachable (e.g. no DNS server) it can be statically added to the switch local hosts lookup (using the command “ip host”).

Make sure that port 8140 is open (using the command “tracepath {<hostname> | <ip>}/8140”).

puppet-agent

puppet-agent

Enters puppet agent configuration mode.

Syntax Description

N/A

Default

N/A

Configuration Mode

config

History

3.3.4200

Example

switch (config) # puppet-agent
switch (config puppet-agent) #

Related Commands

Notes

puppet-agent enable

puppet-agent [vrf <vrf-name>] enable [force]
no puppet-agent [vrf <vrf-name>] enable

Enables PUPPET in VRF.
The no form of the command disables PUPPET in a specified VRF.

Syntax Description

vrf-name

VRF name

force

Enables PUPPETin the specified VRF and sets all relevan t PUPPET option to default

Default

PUPPET is enabled by default

Configuration Mode

config

History

3.9.2000

Example

switch (config) # puppet-agent vrf mgmt enable

Related Commands



Notes

If VRF management exists, PUPPET will be enabled on VRF management. If VRF management not does not exist, PUPPET will be enabled on VRF default.

master-hostname

master-hostname <hostname>
no master-hostname

Sets the puppet server hostname.
The no form of the command resets the parameter to its default.

Syntax Description

hostname

Puppet server hostname
Free string may be entered

Default

puppet

Configuration Mode

config puppet

History

3.3.4200

Example

switch (config puppet-agent) # master-hostname my_puppet_server_hostname

Related Commands

Notes

enable

enable
no enable

Enables the puppet server on the switch.
The no form of the command disables the puppet server.

Syntax Description

N/A

Default

Disabled

Configuration Mode

config puppet

History

3.3.4200

Example

switch (config puppet-agent) # enable

Related Commands

Notes

run-interval

run-interval <time>

Configures the time interval in which the puppet agent reports to the puppet server.

Syntax Description

time

Can be in seconds (“30” or “30s”), minutes (“30m”), hours (“6h”), days (“2d”), or years (“5y”)

Default

30m

Configuration Mode

config puppet

History

3.3.4302

Example

switch (config puppet-agent) # run-interval 40m

Related Commands

show puppet-agent

Notes

restart

puppet-agent restart

Restarts the puppet agent.

Syntax Description

time

Can be in seconds (“30” or “30s”), minutes (“30m”), hours (“6h”), days (“2d”), or years (“5y”)

Default

N/A

Configuration Mode

config puppet

History

3.3.4200

Example

switch (config puppet-agent) # restart

Related Commands

Notes

show puppet-agent

show puppet-agent

Displays Puppet agent status and configuration.

Syntax Description

N/A

Default

N/A

Configuration Mode

Any command mode

History

3.3.4200
3.3.4302—Updated example
3.7.0000—Updated example

3.9.2000—Updated example, adding "VRF name" field

Example



switch (config) # show puppet-agent

Puppet agent : enabled
VRF name: : mgmt
Puppet master hostname: puppet
Run interval : 30m

Related Commands

Notes

show puppet-agent log

show puppet-agent log [[not] [matching | continuous] <string> | files [[not] matching] <string>]

Displays the Puppet agent’s log file.

Syntax Description

continuous

Puppet agent log messages as they arrive

files

Displays archived Puppet agent log files

matching

Displays Puppet agent log that match a given string

not

Displays Puppet agent log that do not meet a certain string

string

Free string

Default

N/A

Configuration Mode

Any command mode

History

3.3.4200

Example

switch (config puppet-agent) # show puppet-agent log
Mon Nov 04 11:52:42 +0000 2013 Puppet (notice): Starting Puppet client version 3.2.3
Mon Nov 04 11:52:44 +0000 2013 Puppet (warning): Unable to fetch my node definition, but the agent run will continue:
Mon Nov 04 11:52:44 +0000 2013 Puppet (warning): Could not intern from pson: source '"#<Puppet::Node:0x7f' not in PSON!
Mon Nov 04 11:53:21 +0000 2013 /Netdev_vlan[Vlan104]/ensure (notice): created
Mon Nov 04 11:53:22 +0000 2013 /Netdev_vlan[Vlan101]/ensure (notice): created
Mon Nov 04 11:53:23 +0000 2013 /Netdev_vlan[Vlan102]/ensure (notice): created
Mon Nov 04 11:53:24 +0000 2013 /Netdev_vlan[Vlan103]/ensure (notice): created
Mon Nov 04 11:53:40 +0000 2013 /Netdev_l2_interface[ethernet 1/6]/untagged_vlan (notice): untagged_vlan changed 'default' to 'Vlan103'
Mon Nov 04 11:53:43 +0000 2013 /Netdev_l2_interface[ethernet 1/7]/untagged_vlan (notice): untagged_vlan changed 'default' to 'Vlan103'
Mon Nov 04 11:53:48 +0000 2013 /Netdev_vlan[Vlan100]/ensure (notice): created
Mon Nov 04 11:53:48 +0000 2013 /Netdev_l2_interface[ethernet 1/5]/vlan_tagging (notice): vlan_tagging changed 'enable' to 'disable'
Mon Nov 04 11:53:48 +0000 2013 /Netdev_l2_interface[ethernet 1/5]/tagged_vlans (notice): tagged_vlans changed '[]' to '[Vlan100,Vlan101,Vlan102]'
Mon Nov 04 11:53:51 +0000 2013 /Netdev_l2_interface[ethernet 1/1]/tagged_vlans (notice): tagged_vlans changed '[]' to '[Vlan101,Vlan104]'
Mon Nov 04 11:53:51 +0000 2013 /Netdev_l2_interface[ethernet 1/1]/untagged_vlan (notice): untagged_vlan changed 'default' to 'Vlan100'
Mon Nov 04 11:53:54 +0000 2013 /Netdev_l2_interface[ethernet 1/3]/tagged_vlans (notice): tagged_vlans changed '[]' to '[Vlan101,Vlan104]'
Mon Nov 04 11:53:54 +0000 2013 /Netdev_l2_interface[ethernet 1/3]/untagged_vlan (notice): untagged_vlan changed 'default' to 'Vlan100'
Mon Nov 04 11:53:58 +0000 2013 /Netdev_l2_interface[ethernet 1/4]/vlan_tagging (notice): vlan_tagging changed 'enable' to 'disable'
Mon Nov 04 11:53:58 +0000 2013 /Netdev_l2_interface[ethernet 1/4]/tagged_vlans (notice): tagged_vlans changed '[]' to '[Vlan100,Vlan101,Vlan102]'
Mon Nov 04 11:54:03 +0000 2013 /Netdev_l2_interface[ethernet 1/2]/tagged_vlans (notice): tagged_vlans changed '[]' to '[Vlan101,Vlan104]'
Mon Nov 04 11:54:03 +0000 2013 /Netdev_l2_interface[ethernet 1/2]/untagged_vlan (notice): untagged_vlan changed 'default' to 'Vlan100'
Mon Nov 04 11:54:06 +0000 2013 Puppet (notice): Finished catalog run in 47.90 seconds

Related Commands

Notes

© Copyright 2023, NVIDIA. Last updated on May 23, 2023.
