Port Mirroring

Port mirroring enables data plane monitoring functionality which allows the user to send an entire traffic stream for testing. Port mirroring sends a copy of packets of a port’s traffic stream, called “mirrored port”, into an analyzer port. Port mirroring is used for network monitoring. It can be used for intrusion detection, security breaches, latency analysis, capacity and performance matters, and protocol analysis.

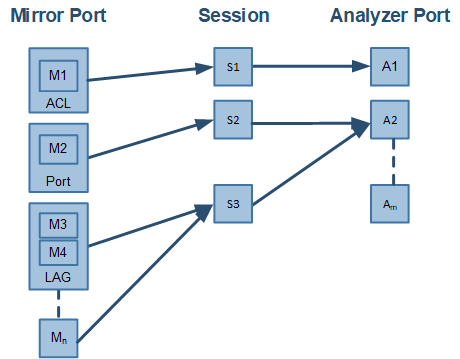

The following figure provides an overview of the mirroring functionality.

There is no limitation on the number of mirroring sources and more than a single source can be mapped to a single analyzer destination.

Port mirroring is performed by configuring mirroring sessions. A session is an association of a mirror port (or more) and an analyzer port.

A mirroring session is a monitoring configuration mode that has the following parameters:

Source Interface

The source interface (mirror port) refers to the interface from which the traffic is monitored. Port mirroring does not affect the switching of the original traffic. The traffic is simply duplicated and sent to the analyzer port. Traffic in any direction (either ingress, egress or both) can be mirrored.

There is no limitation on the number of the source interfaces mapped to a mirroring session.

LAG

The source interface can be a physical interface or a LAG.

Port mirroring can be configured on a LAG interface but not on a LAG member. When a port is added to a mirrored LAG it inherits the LAG’s mirror configuration. However, if port mirroring configuration is set on a port, that configuration must be removed prior to adding the port to a LAG interface.

When a port is removed from a LAG, the mirror property is switched off for that port.

Control Protocols

All control protocols captured on the mirror port are forwarded to the analyzer port in addition to their normal treatment. For example LACP, STP, and LLDP are forwarded to the analyzer port in addition to their normal treatment by the CPU.

Exceptions to the behavior above are the packets that are being handled by the MAC layer, such as pause frames.

Destination Interface

The destination interface is an analyzer port to which mirrored traffic is directed. The mirrored packets are duplicated, optionally modified, and sent to the analyzer port. Spectrum platforms support up to only 3 analyzer ports, where any mirror port can be mapped to any analyzer port and more than a single mirror port can be mapped to a single analyzer port.

Packets can be forwarded to any destination using the command "destination interface".

The analyzer port supports status and statistics as any other port.

LAG

The destination interface cannot be a member of LAG when the header format is local.

Control Protocols

The destination interface may also operate in part as a standard port, receiving and sending out non-mirrored traffic. When the header format is configured as a local port, ingress control protocol packets that are received by the local analyzer port get discarded.

Advanced MTU Considerations

The analyzer port, like its counterparts, is subject to MTU configuration. It does not send packets longer than configured.

When the analyzer port sends encapsulated traffic, the analyzer traffic has additional headers and therefore longer frame. The MTU must be configured to support the additional length, otherwise, the packet is truncated to the configured MTU.

The system on the receiving end of the analyzer port must be set to handle the egress traffic. If it is not, it might discard it and indicate this in its statistics (packet too long).

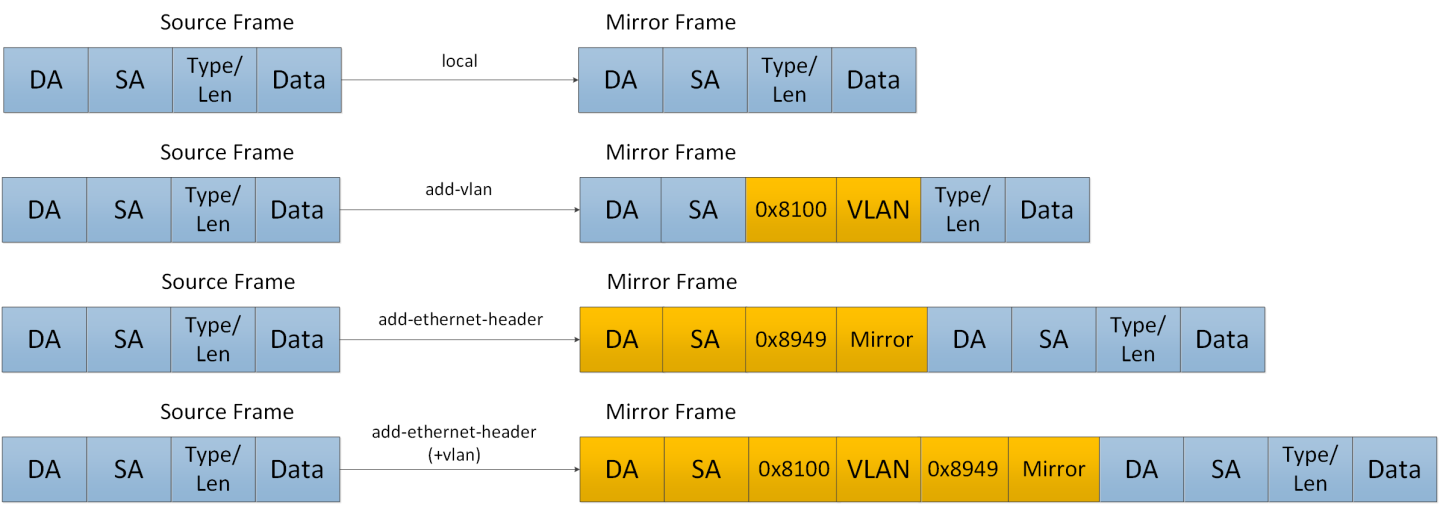

Header Format

Ingress traffic from the source interface can be manipulated in several ways depending on the network layout using the command header-format.

If the analyzer system is directly connected to the destination interface, then the only parameters that can be configured on the port are the MTU, speed and port based flow control. Priority flow control is not supported is this case. However, if the analyzer system is indirectly connected to the destination interface, there are two options for switching the mirrored data to the analyzer system:

• A VLAN tag may be added to the Ethernet header of the mirrored traffic

• An Ethernet header can be added with include a new destination address and VLAN tag

Congestion Control

The destination ports might receive pause frames that lead to congestion in the switch port. In addition, too much traffic directed to the analyzer port (for example 40GbE mirror port is directed into 10GbE analyzer port) might also lead to congestion.

In case of congestion:

• When best effort mode is enabled on the analyzer port, Spectrum drops excessive traffic headed to the analyzer port using tail drop mechanism, however, the regular data (mirrored data heading to its original port) does not suffer from a delay or drops due to the analyzer port congestion.

• When the best effort mode on the analyzer port is disabled, the Spectrum does not drop the excessive traffic. This might lead to buffer exhaustion and data path packet loss.

The default behavior in congestion situations is to drop any excessive frames that may clog the system.

Truncation

When enabled, the system can truncate the mirrored packets into smaller 64-byte packets (default) which is enough to capture the packets’ L2 and L3 headers.

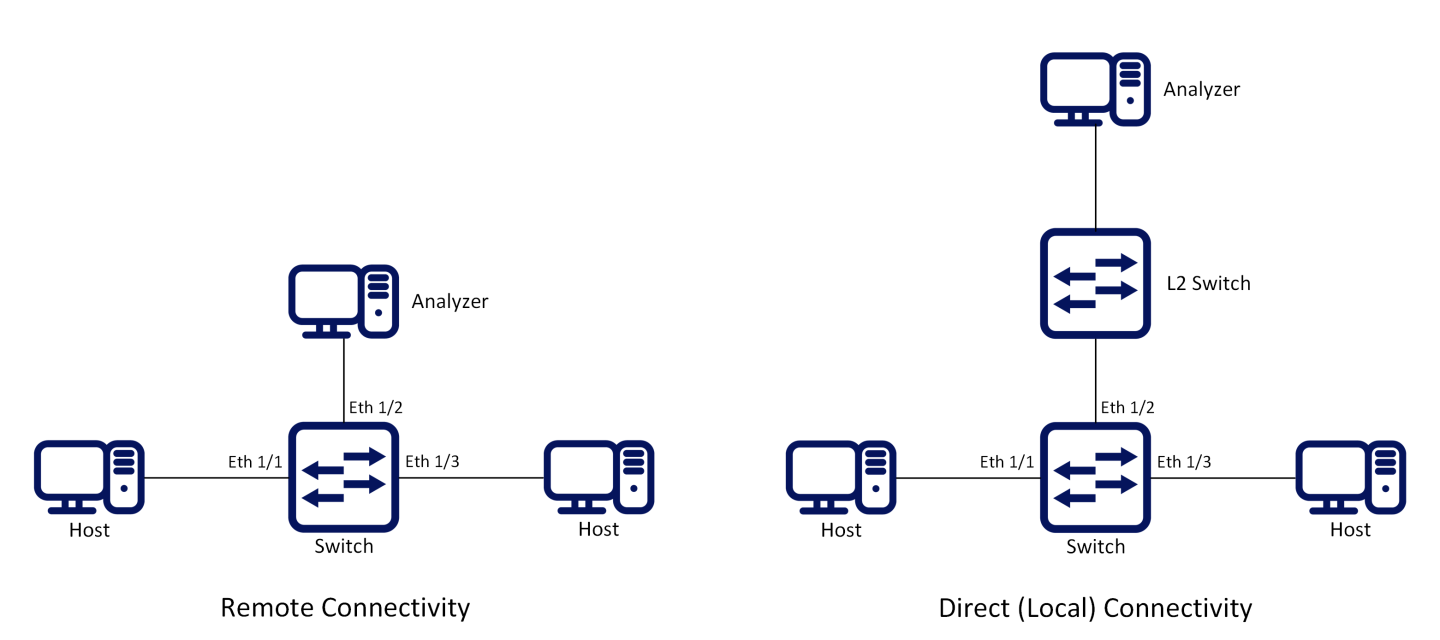

The following figure presents two network scenarios with direct and remote connectivity to the analyzer equipment. Direct connectivity is when the analyzer is connected to the analyzer port of the switch. In this case there is no need for adding an L2 header to the mirrored traffic. Remote connectivity is when the analyzer is indirectly connected to the analyzer port of the switch. In this situation, adding an L2 header may be necessary depending on the network’s setup.

To configure a mirroring session:

1. Create a session. Run:

   Copy

   Copied!




   switch (config) # monitor session 1


   Warning

   This command enters a monitor session configuration mode. Upon first implementation the command also creates the session.

2. Add source interface(s). Run:

   Copy

   Copied!




   switch (config monitor session 1) # add source interface ethernet 1/1 direction both


3. Add destination interface. Run:

   Copy

   Copied!




   switch (config monitor session 1) # destination interface ethernet 1/2


4. (Optional) Set header format. Run:

   Copy

   Copied!




   switch (config monitor session 1) # header-format add-ethernet-header destination-mac 00:0d:ec:f1:a9:c8 add-vlan 10 priority 5


   Warning

   For remote connectivity use the header formats “add-vlan” or “add-ethernet-header”. For local connectivity, use “local”.

5. (Optional) Truncate the mirrored traffic to 64-byte packets. Run:

   Copy

   Copied!




   switch (config monitor session 1) # truncate


6. (Optional) Set congestion control. Run:

   Copy

   Copied!




   switch (config monitor session 1) # congestion pause-excessive-frames


   Warning

   The default for this command is to drop excessive frames. The “pause-excessive-frames” parameter uses flow control to regulate the traffic from the source interfaces.

   Warning

   If the parameter “pause-excessive-frame” is selected, make sure that flow control is enabled on all source interfaces on the ingress direction of the monitoring session using the command “flowcontrol” in the interface configuration mode.

7. Enable the session. Run:

   Copy

   Copied!




   switch (config monitor session 1) # no shutdown


To verify the attributes of a specific mirroring session:




switch (config) # show monitor session 1
Session 1:
  Admin:  Enable
  Status: Up
  Truncate: Enable
  Destination interface: eth1/2
  Congestion type: pause-excessive-frames
  Header format: add-ethernet-header
  -switch priority: 5

Source interfaces
--------------------
Interface  Direction
--------------------
eth1/1     both


To verify the attributes of running mirroring sessions:




switch (config) # show monitor session summary
Flags: i ingress, e egress, b both

-------------------------------------------------------------
Session  Admin      Status  Mode       Destination  Source
-------------------------------------------------------------
1        Enable     Up      add-eth    eth1/2       eth1/1(b)
2        Disable    Down    add-vlan   eth1/2       eth1/8(i), po1(e)
3        Enable     Up      add-eth    eth1/5       eth1/18(e)
7        Disable    Down    local


For more information about this feature and its potential applications, please refer to the following community post:

• HowTo Configure Port Mirroring on NVIDIA Ethernet Switches

monitor session

switch (config)# monitor session 1
switch (config monitor session 1)#

destination interface

switch (config monitor session 1) # destination interface ethernet 1/2

shutdown

switch (config monitor session 1) # no shutdown

add source interface direction

switch (config monitor session 1) # add source interface ethernet 1/1 direction ingress

header-format

switch (config monitor session 1) # header-format add-ethernet-header destination-mac 00:0d:ec:f1:a9:c8 add-vlan 10 priority 5 switch-priority 2

truncate

switch (config monitor session 1) # truncate

congestion

switch (config monitor session 1) # congestion pause-excessive-frames

show monitor session

switch (config) # show monitor session 1
Session 1:
  Admin: Disable
  Status: Down
  Truncate: Disable
  Destination interface: N/A
  Congestion type: drop-excessive-frames
  Header format: local
  -switch priority: 0

Source interfaces
--------------------
Interface   Direction
--------------------
eth1/1      both

show monitor session summary

switch (config) # show monitor session summary
Flags: i ingress, e egress, b both

-------------------------------------------------------------
Session  Admin      Status  Mode      Destination  Source
-------------------------------------------------------------
1        Disable    Down    local     N/A          eth1/1(b)
2        Disable    Down    add-vlan  eth1/2       eth1/8(i)
