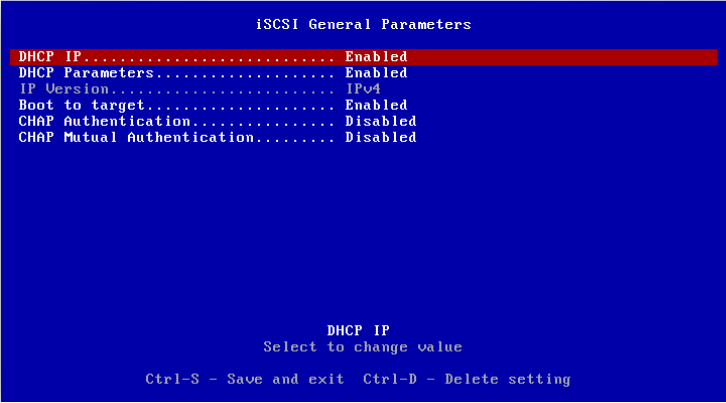

In the following menu, you can set the following options:
![worddavff16df3dd22d40450c284de7e42083a1.png](https://docscontent.nvidia.com/dims4/default/fac6a60/2147483647/strip/true/crop/726x403+0+0/resize/726x403!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F00000187-94ca-d3c2-a7af-9fdeb83f0000%2Fimages%2Fnetworking%2Fdownload%2Fattachments%2F99400811%2Fworddavff16df3dd22d40450c284de7e42083a1.png)
Location: | System setup/Port main configurations/iSCSI Configuration/iSCSI General Parameters |
Description: | When the DHCP IP is enabled, the initiator and target’s IP, netmask, gateway and DNS will be taken from DHCP instead of from the menu. |
Configurable: | Yes |
Location: | System setup/Port main configurations/iSCSI Configuration/iSCSI General Parameters |
Description: | When the DHCP IP and DHCP Parameters are enabled, all the initiator and target parameters are taken from DHCP instead of from the menu. |
Configurable: | Yes |
Location: | System setup/Port main configurations/iSCSI Configuration/iSCSI General Parameters |
Description: | Specifies whether IPv4 or IPv6 network addressing will be used for iSCSI initiator and targets |
Configurable: | No |
Location: | System setup/Port main configurations/iSCSI Configuration/iSCSI General Parameters |
Description: | Enables CHAP Authentication for iSCSI initiator. |
Configurable | Yes |
Location: | System setup/Port main configurations/iSCSI Configuration/iSCSI General Parameters |
Description: | Enables mutual CHAP authentication between the iSCSI initiator and target |
Configurable: | Yes |
Location: | System setup/Port main configurations/iSCSI Configuration/iSCSI General Parameters |
Description: | Controls booting to ISCSI target after connection. |
Configurable: | Yes |
Available options: | 1 - Enable 2 - Disable 3 - One time disabled |
