Observability#

NIM provides Prometheus metrics indicating request statistics. These metrics can be used to create dashboards with the Grafana dashboard. By default, these metrics are available at http://localhost:8000/metrics.

curl -X 'GET' 'http://0.0.0.0:8000/metrics'

The following table describes the available metrics.

Category

Metric

Metric Name

Description

Granularity

Frequency

KV Cache

Count

GPU Cache Usage

gpu_cache_usage_perc

GPU KV-cache usage. 1 means 100 percent usage

Per model

Per iteration

Running Count

num_requests_running

Number of requests currently running on GPU

Per model

Per iteration

Waiting Count

num_requests_waiting

Number of requests waiting to be processed

Per model

Per iteration

Max Request Count

num_request_max

Max number of concurrently running requests

Per model

Per iteration

Total Prompt Token Count

prompt_tokens_total

Number of prefill tokens processed

Per model

Per iteration

Total Generation Token Count

generation_tokens_total

Number of generation tokens processed

Per model

Per iteration

Latency

Time to First Token

time_to_first_token_seconds

Histogram of time to first token in seconds

Per model

Per request

Time per Output Token

time_per_output_token_seconds

Histogram of time per output token in seconds

Per model

Per request

End to End Request Latency

e2e_request_latency_seconds

Histogram of end to end request latency in seconds

Per model

Per request

Vision Encoder Latency

vision_encoder_latency_seconds

Histogram of vision encoder latency in seconds

Per model

Per request

Count

Prompt Token Count

request_prompt_tokens

Histogram of number of prefill tokens processed

Per model

Per request

Generation Token Count

request_generation_tokens

Histogram of number of generation tokens processed

Per model

Per request

Finished Request Count

request_finish_total

Number of finished requests, with label indicating finish reason

Per model

Per request

Successful Request Count

request_success_total

Number of successful requests

Per model

Per request

Successful Request Count

request_failure_total

Number of failed requests

Per model

Per request

Image Count

request_image_count

Histogram of the number of images per request

Per model

Per request


Image size

image_size_pixels

Histogram of image sizes in pixels

Per model

Per request

Prometheus#

To install Prometheus for scraping metrics from NIM, download the latest Prometheus version appropriate for your system.

wget https://github.com/prometheus/prometheus/releases/download/v2.52.0/prometheus-2.52.0.linux-amd64.tar.gz
tar -xvzf prometheus-2.52.0.linux-amd64.tar.gz
cd prometheus-2.52.0.linux-amd64/

Edit the Prometheus configuration file prometheus.yml to scrape from the NIM endpoint. Make sure the targets field point to localhost:8000.

# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
  # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
  - job_name: "prometheus"

    # metrics_path defaults to '/metrics'
    # scheme defaults to 'http'.

    static_configs:
      - targets: ["localhost:8000"]

Run the Prometheus server

./prometheus --config.file=./prometheus.yml

Open a browser and point it to http://localhost:9090/targets?search= to check that the NIM target was detected by the Prometheus server. You can also click on the NIM target url link to explore the generated metrics.

Grafana#

We can use Grafana for dashboarding NIM metrics. Install the latest Grafana version appropriate for your system.

wget https://dl.grafana.com/oss/release/grafana-11.0.0.linux-amd64.tar.gz
tar -zxvf grafana-11.0.0.linux-amd64.tar.gz
cd grafana-v11.0.0/

Run the Grafana server

./bin/grafana-server

To access the Grafana dashboard, point your browser to http://localhost:3000. You will need to log in using the defaults.

username: admin
password: admin

The first step is to configure the source from which Grafana can scrape metrics. Click on the “Data Source” button, select Prometheus, and specify the Prometheus URL localhost:9090. After saving the configuration, you should see a success message.

Now you are ready to create a dashboard with metrics from NIM. This Grafana tutorial provides step-by-step instructions on building a dashboard from scratch. Alternatively, you can jump start using this example dashboard.

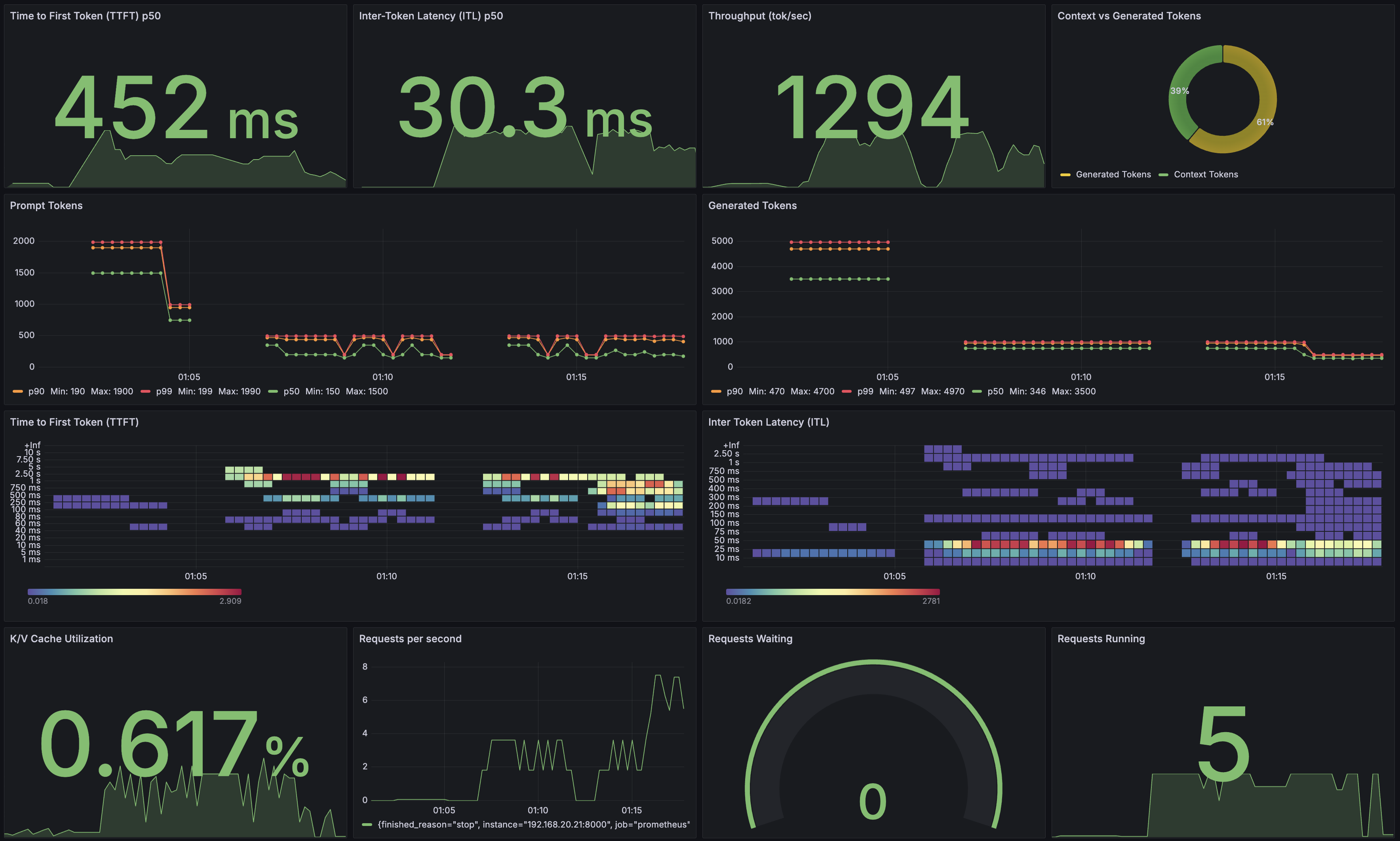

NIM Dashboard Example

Vision metrics#

Vision-related metrics (e.g., Vision Encoder Latency) are only available for the TRT-LLM backend (the vLLM backend only collects end-to-end metrics). Consider starting with this example dashboard instead if NIM runs TRT-LLM optimized engines.
