IParameterNode implementation designed to demonstrate loading parameters outside the standard nv-neural-model XML file format. More...

#include <StringMapParameterNode.h>

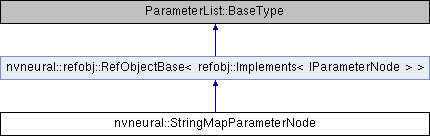

Inheritance diagram for nvneural::StringMapParameterNode:

Public Types
using	StringMap = std::map< std::string, std::string >
	Shorthand typedef for string->string maps.

Public Member Functions
NeuralResult	getDimension (const char pParameterName, TensorDimension pDimOut) const noexcept
	Retrieves a tensor dimension. More...

NeuralResult	getFloat (const char pParameterName, float pFloatOut) const noexcept
	Retrieves a floating-point value. More...

NeuralResult	getInteger (const char pParameterName, int32_t pIntOut) const noexcept
	Retrieves a signed integer value. More...

NeuralResult	getSize (const char pParameterName, size_t pSizeOut) const noexcept
	Retrieves an unsigned integer value that can represent the result of sizeof(). More...

NeuralResult	getString (const char pParameterName, const char *pStringOut) const noexcept
	Retrieves a UTF-8 string value. More...

NeuralResult	setDimension (const char *pParameterName, TensorDimension value) noexcept
	Saves a tensor dimension. More...

NeuralResult	setFloat (const char *pParameterName, float value) noexcept
	Saves a floating-point value. More...

NeuralResult	setInteger (const char *pParameterName, int32_t value) noexcept
	Saves an integer. More...

NeuralResult	setSize (const char *pParameterName, size_t value) noexcept
	Saves an unsigned integer that can represent the result of sizeof(). More...

NeuralResult	setString (const char pParameterName, const char pString) noexcept
	Saves a UTF-8 string value. More...

	StringMapParameterNode (const StringMap &stringMap)
	Creates a StringMapParameterNode from a map of <parameterName, parameterValue> pairs.

	StringMapParameterNode (StringMap &&stringMap)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Public Member Functions inherited from nvneural::refobj::RefObjectBase< refobj::Implements< IParameterNode > >
IRefObject::RefCount	addRef () const noexcept
	Increment the object's reference count. More...

const void *	queryInterface (IRefObject::TypeId interfaceId) const noexcept
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

void *	queryInterface (IRefObject::TypeId interfaceId) noexcept
	Retrieves a new object interface pointer. More...

	RefObjectBase ()
	Default constructor. Logs object creation.

IRefObject::RefCount	release () const noexcept
	Decrements the object's reference count and destroys the object if the reference count reaches zero. More...

Detailed Description

IParameterNode implementation designed to demonstrate loading parameters outside the standard nv-neural-model XML file format.

Used as a fallback during code generation.

This class is ABI-stable through the IParameterNode interface, but the constructor relies on C++ standard container types and should not be called with a StringMap from another loaded module.

Member Function Documentation

◆ getDimension()

NeuralResult StringMapParameterNode::getDimension	(	const char *	pParameterName,
		TensorDimension *	pDimOut
	)		const

noexcept

Retrieves a tensor dimension.

Tensor dimensions are stored as strings, and parsed using TensorDimensionToString as described in CoreHelpers.h. The IMAGE mode is used for parsing; use getString and parse manually if you require tensor ordering. Almost all persisted dimensions in existing networks are parsed using IMAGE mode; when porting Creo Neural code, this is probably what you need.

Parameters

pParameterName	Name of parameter to query
pDimOut	Pointer to a variable receiving the parameter value

◆ getFloat()

NeuralResult StringMapParameterNode::getFloat	(	const char *	pParameterName,
		float *	pFloatOut
	)		const

noexcept

Retrieves a floating-point value.

Parameters

pParameterName	Name of parameter to query
pFloatOut	Pointer to a variable receiving the parameter value.

◆ getInteger()

NeuralResult StringMapParameterNode::getInteger	(	const char *	pParameterName,
		int32_t *	pIntOut
	)		const

noexcept

Retrieves a signed integer value.

Parameters

pParameterName	Name of parameter to query
pIntOut	Pointer to a variable receiving the parameter value.

◆ getSize()

NeuralResult StringMapParameterNode::getSize	(	const char *	pParameterName,
		size_t *	pSizeOut
	)		const

noexcept

Retrieves an unsigned integer value that can represent the result of sizeof().

Parameters

pParameterName	Name of parameter to query
pSizeOut	Pointer to a variable receiving the parameter value.

◆ getString()

NeuralResult StringMapParameterNode::getString	(	const char *	pParameterName,
		const char **	pStringOut
	)		const

noexcept

Retrieves a UTF-8 string value.

Parameters

pParameterName	Name of parameter to query
pStringOut	Pointer to a variable receiving the parameter value.

◆ setDimension()

NeuralResult StringMapParameterNode::setDimension	(	const char *	pParameterName,
		TensorDimension	value
	)

noexcept

Saves a tensor dimension.

Parameters

pParameterName	Name of parameter to set
value	Value to save

◆ setFloat()

NeuralResult StringMapParameterNode::setFloat	(	const char *	pParameterName,
		float	value
	)

noexcept

Saves a floating-point value.

Parameters

pParameterName	Name of parameter to set
value	Value to save

◆ setInteger()

NeuralResult StringMapParameterNode::setInteger	(	const char *	pParameterName,
		int32_t	value
	)

noexcept

Saves an integer.

Parameters

pParameterName	Name of parameter to set
value	Value to save

◆ setSize()

NeuralResult StringMapParameterNode::setSize	(	const char *	pParameterName,
		size_t	value
	)

noexcept

Saves an unsigned integer that can represent the result of sizeof().

Parameters

pParameterName	Name of parameter to set
value	Value to save

◆ setString()

NeuralResult StringMapParameterNode::setString	(	const char *	pParameterName,
		const char *	pString
	)

noexcept

Saves a UTF-8 string value.

Parameters

pParameterName	Name of parameter to set
pString	Value to save

The documentation for this class was generated from the following files:

Host/Inc/StringMapParameterNode.h
Host/Src/StringMapParameterNode.cpp
