CUDA C++ Language Support

Nsight Visual Studio Code Edition can configure CUDA C++ language support (auto-completion, go to definition, find references, rename with a compilation database) for your workspace using either clangd or Microsoft’s C/C++ extension.

Overview

Getting CUDA C++ editing right can be non-trivial: the language provider needs CUDA include paths, the GPU architecture, and ideally a compilation database. Nsight VSCE guides this setup while keeping all project files user-owned.

A workspace folder is treated as a CUDA C++ workspace if it contains a .cu or .cuh file. For such workspaces, the extension selects or recommends an available language provider, or offers to install one. Setup runs automatically on activation, when workspace folders change, when installed extensions change, and when relevant settings change. It can also be run manually with the CUDA: Configure CUDA C++ Language Support command.

The extension writes configuration only when you have accepted setup: implicitly through a saved provider preference, or explicitly through a prompt or command. Pure auto-detection never writes to a project or its settings on its own. Automatic setup can be turned off per workspace with the nsight.cuda.languageSupport.autoConfigure setting.

Workspace folders on the file and vscode-remote schemes (local and Remote-SSH, WSL, containers) are configured. Virtual workspaces (for example, github.dev) are skipped.

Provider Selection

Two language providers are supported:

• clangd: the clangd extension (llvm-vs-code-extensions.vscode-clangd)

• cpptools: Microsoft’s C/C++ extension (ms-vscode.cpptools)

The nsight.cuda.languageSupport.provider setting controls the choice: auto (default), clangd, or cpptools.

With auto:

• If exactly one provider is installed, it is used.

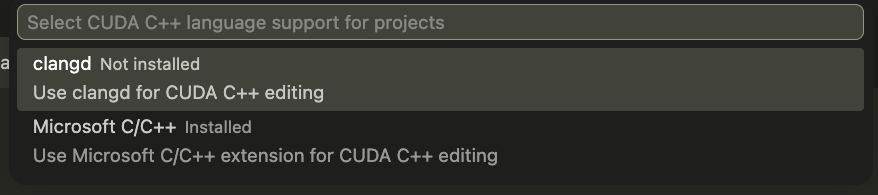

• If both are installed, the extension uses cpptools in Microsoft VS Code and clangd in other editors by default. Run CUDA: Configure CUDA C++ Language Support to choose a different provider for the workspace.

• If neither is installed, the extension recommends cpptools in Microsoft VS Code and clangd in other editors (such as VSCodium), and offers to install it.

With an explicit clangd or cpptools value, that provider is used if installed; otherwise the extension prompts to install it. To disable language setup for a workspace, set nsight.cuda.languageSupport.autoConfigure to false.

If both clangd and cpptools are installed and active at the same time, the clangd extension surfaces its own IntelliSense-conflict prompt; the extension does not modify cpptools’ C_Cpp.intelliSenseEngine setting.

If you dismiss a prompt, the extension does not keep prompting automatically for that workspace. Running CUDA: Configure CUDA C++ Language Support retries the setup. When the set of installed providers changes, setup runs again and previously dismissed prompts that are relevant again may reappear.

clangd Setup

For clangd, the extension generates a project-owned .clangd configuration file in the workspace root. Two modes are available:

• Full mode: uses compile_commands.json together with the CUDA .clangd template. The compilation database is searched for in the workspace root, the cmake.buildDirectory setting, and the build directory.

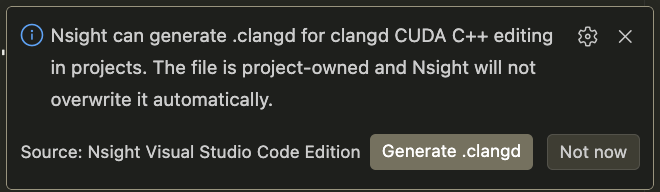

• Limited mode: uses the CUDA .clangd template without a compilation database (CompilationDatabase: None). If no compile_commands.json is found, the extension shows a one-time per-workspace prompt offering this mode, and writes .clangd only if you accept.

The generated .clangd resolves the following values:

• The CUDA Toolkit root and include directories, derived from nvcc. The extension searches for nvcc in CUDA_HOME, CUDA_PATH, PATH, /usr/local/cuda, and versioned /usr/local/cuda-* directories. When compile_commands.json exists, absolute nvcc paths found there are tried before ambient CUDA installations.

• The GPU architecture: the nsight.cuda.languageSupport.gpuArch setting if set (for example sm_90 or sm_90a; compute_90 and compute_90a are accepted and normalized to sm_* form), otherwise the highest architecture found across compile_commands.json entries, otherwise sm_80.

The generated configuration keeps CUDA include paths global, so host .cpp files can include CUDA runtime headers, but scopes CUDA language mode (-x cuda) to .cu and .cuh files. Projects that intentionally use CUDA syntax in other file types should edit the PathMatch rule in the project-owned .clangd.

The extension never overwrites an existing .clangd. If one already exists during automatic setup, it is left unchanged. Running CUDA: Generate .clangd when a .clangd already exists prompts you to generate a .clangd.nsight.example file for comparison; if the example file already exists, it is also left unchanged.

Microsoft C/C++ Extension Setup

For Microsoft’s C/C++ extension, the extension searches for compile_commands.json in the workspace root, the cmake.buildDirectory setting, and the build directory.

If found, it writes one workspace-folder setting without touching values you have already set:

• C_Cpp.default.compileCommands: the resolved compile_commands.json, if the workspace has not already set compile commands.

If no compile_commands.json is found, the extension makes no changes; cpptools’ own default IntelliSense applies.

The extension does not modify C_Cpp.intelliSenseEngine; if you have disabled cpptools IntelliSense, that choice is kept.

Commands and Settings

Commands (available from the Command Palette):

• CUDA: Configure CUDA C++ Language Support: runs provider selection and setup for the current workspace, including retrying previously dismissed prompts.

• CUDA: Generate .clangd: generates the .clangd configuration. If a .clangd file already exists, prompts you to generate a .clangd.nsight.example file for comparison (only if one does not already exist).

Settings:

• nsight.cuda.languageSupport.provider: auto (default), clangd, or cpptools.

• nsight.cuda.languageSupport.autoConfigure: enables or disables automatic language setup for the workspace.

• nsight.cuda.languageSupport.gpuArch: optional GPU architecture override used in the generated .clangd (clangd provider only), for example sm_90 or sm_90a. compute_90 and compute_90a are accepted aliases.

Troubleshooting

• The CUDA Toolkit is not found: install the CUDA Toolkit, or set CUDA_HOME or CUDA_PATH to its location, then rerun CUDA: Configure CUDA C++ Language Support. The extension reads these variables when generating .clangd; clangd itself reads the generated file.

• Completion works but CUDA headers are unresolved with clangd: the workspace likely has no compile_commands.json. Generate one (for CMake projects, set CMAKE_EXPORT_COMPILE_COMMANDS=ON), then update the project-owned .clangd or run CUDA: Generate .clangd and compare with the generated .clangd.nsight.example. Note: .clangd.nsight.example is only created if one does not already exist; delete it first to get a fresh copy.

• Wrong GPU architecture in diagnostics: set nsight.cuda.languageSupport.gpuArch (for example sm_90) and rerun the configure command. When a .clangd file already exists, apply the value from the regenerated .clangd.nsight.example to your .clangd. Note: .clangd.nsight.example is only created if one does not already exist; delete it first to get a fresh copy.

• No prompts appear: prompts are shown once per workspace and are not repeated after being dismissed. Run CUDA: Configure CUDA C++ Language Support to retry, and check that nsight.cuda.languageSupport.autoConfigure is enabled and nsight.cuda.languageSupport.provider is set to the intended value.

• Both clangd and cpptools are installed: when provider is auto, the extension silently picks the default (cpptools in VS Code, clangd elsewhere). To choose a provider, run CUDA: Configure CUDA C++ Language Support and set nsight.cuda.languageSupport.provider to clangd or cpptools, then rerun the configure command.
