Data Structures
struct	VPIPyramidData
	Stores the pyramid contents. More...

Macros
#define	VPI_MAX_PYRAMID_LEVEL_COUNT (10)
	Maximum number of pyramid levels.

Typedefs
typedef struct VPIPyramidImpl *	VPIPyramid

Functions
VPIStatus	vpiPyramidCreate (uint32_t width, uint32_t height, VPIImageType fmt, uint32_t numLevels, float scale, uint32_t flags, VPIPyramid *pyr)
	Create an empty image pyramid instance with the specified flags. More...

void	vpiPyramidDestroy (VPIPyramid pyr)
	Destroy an image pyramid instance as well as all resources it owns. More...

VPIStatus	vpiPyramidGetFlags (VPIPyramid pyr, uint32_t *flags)
	Returns the flags associated with the pyramid. More...

VPIStatus	vpiPyramidGetType (VPIPyramid pyr, VPIImageType *type)
	Returns the image type of the pyramid levels. More...

VPIStatus	vpiPyramidGetNumLevels (VPIPyramid pyr, uint32_t *numLevels)
	Get the image pyramid level count. More...

VPIStatus	vpiPyramidGetWidth (VPIPyramid pyr, uint32_t outSize, uint32_t *out)
	Get the image width in pixels (for all levels at once). More...

VPIStatus	vpiPyramidGetHeight (VPIPyramid pyr, uint32_t outSize, uint32_t *out)
	Get the height of all image levels. More...

VPIStatus	vpiPyramidLock (VPIPyramid pyr, VPILockMode lock, VPIPyramidData *out)
	Acquires the lock on a pyramid object and returns pointers to each level of the pyramid. More...

VPIStatus	vpiImageWrapPyramidLevel (VPIPyramid pyr, uint32_t level, VPIImage *img)
	Creates an image that wraps one pyramid level. More...

VPIStatus	vpiPyramidUnlock (VPIPyramid pyr)
	Releases the lock on a image pyramid object. More...

Pyramid flags
#define	VPI_PYRAMID_NO_PVA 0x01
	Pyramid can't be used by PVA backend.

#define	VPI_PYRAMID_NO_CPU 0x02
	Pyramid can't be used by CPU backend.

#define	VPI_PYRAMID_NO_CUDA 0x04
	Pyramid can't be used by CUDA backend.

Pyramid helper flags
#define	VPI_PYRAMID_ONLY_CUDA (VPI_PYRAMID_NO_PVA \| VPI_PYRAMID_NO_CPU)
	Pyramid can only be used by CUDA backend.

#define	VPI_PYRAMID_ONLY_CPU (VPI_PYRAMID_NO_PVA \| VPI_PYRAMID_NO_CUDA)
	Pyramid can only be used by CPU backend.

#define	VPI_PYRAMID_ONLY_PVA (VPI_PYRAMID_NO_CUDA \| VPI_PYRAMID_NO_CPU)
	Pyramid can only be used by PVA backend.

Detailed Description

An abstract representation of a 2D image pyramid.

Pixel formats match the ones supported by image container. The pyramid is not necessarily dyadic. The scale between levels is defined in the constructor.

2D image pyramid containers are created by calling vpiPyramidCreate to allocate and initialize an empty (zeroed) VPIPyramid object. The memory for the pyramid image data is allocated and managed by the backend implementation.

Parameters such as levels, scale, width, height and pixel format are immutable and specified at the construction time. The internal memory layout is also backend-specific. More importantly, efficient exchange of image pyramid data between different hardware blocks might force the implementation to allocate the memory in multiple memory pools (e.g. dGPU and system DRAM). In some scenarios (to optimize performance and memory use), it might be beneficial to constrain the internal allocation policy to support only a particular set of backends. This is implemented with VPI_PYRAMID_NO_PVA, VPI_PYRAMID_NO_CPU, VPI_PYRAMID_NO_CUDA set of flags which are passed during image pyramid construction. For example, an image pyramid allocated with VPI_PYRAMID_NO_CUDA flag set, will not be readable or writeable by any CUDA VPIStream instance.

The set of vpiPyramidLock / vpiPyramidUnlock calls allows the user to read from/write to the image data from the host. These functions are non-blocking and oblivious to the device command queue, so it's up to the user to make sure that all pending operations using this image pyramid as input or output are finished. Also, depending on the VPIStream type, lock/unlock operation might be time-consuming and, for example, involve copying data over PCIe bus for dGPUs.

Data Structure Documentation

◆ VPIPyramidData

struct VPIPyramidData

Stores the pyramid contents.

Every level is represented by an entire VPIImageData. There are numLevels levels, and they can be accessed from levels[0] to levels[numLevels-1].

Definition at line 123 of file Pyramid.h.

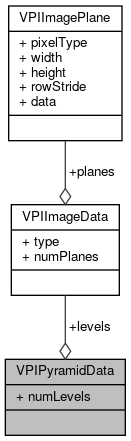

Collaboration diagram for VPIPyramidData:

Data Fields
VPIImageData	levels[VPI_MAX_PYRAMID_LEVEL_COUNT]	Contents of every pyramid level. Only the first numLevels levels has valid data.
int32_t	numLevels	Number of levels (i.e. height) of the pyramid.

Typedef Documentation

◆ VPIPyramid

typedef struct VPIPyramidImpl* VPIPyramid

#include <vpi/Types.h>

A handle to an image pyramid.

Definition at line 159 of file Types.h.

Function Documentation

◆ vpiImageWrapPyramidLevel()

VPIStatus vpiImageWrapPyramidLevel	(	VPIPyramid	pyr,
		uint32_t	level,
		VPIImage *	img
	)

#include <vpi/Pyramid.h>

Creates an image that wraps one pyramid level.

The created image doesn't own its contents. Destroying the pyramid while there are images wrapping its levels leads to undefined behavior. If image wraps the base pyramid level, locking the pyramid will also lock the image. Once the image isn't needed anymore, call vpiImageDestroy to free resources.

Parameters

pyr	[in] The pyramid whose level will be wrapped.
level	[in] Pyramid level to wrap.
img	[out] Pointer to an image handle that will hold the created image.

Returns: VPI_SUCCESS if image was created successfully, or any other VPIStatus error code in case of error.

◆ vpiPyramidCreate()

VPIStatus vpiPyramidCreate	(	uint32_t	width,
		uint32_t	height,
		VPIImageType	fmt,
		uint32_t	numLevels,
		float	scale,
		uint32_t	flags,
		VPIPyramid *	pyr
	)

#include <vpi/Pyramid.h>

Create an empty image pyramid instance with the specified flags.

Image data is zeroed.

Parameters

width	[in] width
height	[in] height
numLevels	[in] numLevels
scale	[in] scale
fmt	[in] image pixel format
flags	[in] flags
pyr	[out] pointer to image pyramid handle

Returns: an error code on failure else VPI_SUCCESS

◆ vpiPyramidDestroy()

void vpiPyramidDestroy ( VPIPyramid pyr )

#include <vpi/Pyramid.h>

Destroy an image pyramid instance as well as all resources it owns.

Parameters

pyr	[in] pyramid handle

◆ vpiPyramidGetFlags()

VPIStatus vpiPyramidGetFlags	(	VPIPyramid	pyr,
		uint32_t *	flags
	)

#include <vpi/Pyramid.h>

Returns the flags associated with the pyramid.

Parameters

pyr	[in] pyramid handle
flags	[out] pointer to where the flags will be written.

Returns: VPI_SUCCESS if function was able to return the flags, or any other VPIStatus code in case of error.

◆ vpiPyramidGetHeight()

VPIStatus vpiPyramidGetHeight	(	VPIPyramid	pyr,
		uint32_t	outSize,
		uint32_t *	out
	)

#include <vpi/Pyramid.h>

Get the height of all image levels.

Parameters

pyr	[in] an image pyramid handle
outSize	[in] size of the output array in elements
out	[out] a pointer to an array which will be filled heights of the image pyramid levels

Returns: an error code on failure else VPI_SUCCESS

◆ vpiPyramidGetNumLevels()

VPIStatus vpiPyramidGetNumLevels	(	VPIPyramid	pyr,
		uint32_t *	numLevels
	)

#include <vpi/Pyramid.h>

Get the image pyramid level count.

Parameters

pyr	[in] an image pyramid handle
numLevels	[out] a pointer to a variable which will be set to the number of levels of the image pyramid

Returns: an error code on failure else VPI_SUCCESS

◆ vpiPyramidGetType()

VPIStatus vpiPyramidGetType	(	VPIPyramid	pyr,
		VPIImageType *	type
	)

#include <vpi/Pyramid.h>

Returns the image type of the pyramid levels.

Parameters

pyr	[in] pyramid handle
type	[out] pointer to where the image type will be written.

Returns: VPI_SUCCESS if function was able to return the flags, or any other VPIStatus code in case of error.

◆ vpiPyramidGetWidth()

VPIStatus vpiPyramidGetWidth	(	VPIPyramid	pyr,
		uint32_t	outSize,
		uint32_t *	out
	)

#include <vpi/Pyramid.h>

Get the image width in pixels (for all levels at once).

Parameters

pyr	[in] an image pyramid handle
outSize	[in] size of the output array in elements
out	[out] a pointer to an array which will be filled widths of the image pyramid levels

Returns: an error code on failure else VPI_SUCCESS

◆ vpiPyramidLock()

VPIStatus vpiPyramidLock	(	VPIPyramid	pyr,
		VPILockMode	lock,
		VPIPyramidData *	out
	)

#include <vpi/Pyramid.h>

Acquires the lock on a pyramid object and returns pointers to each level of the pyramid.

Depending on the internal image representation, as well as the actual location in memory, this function might have a significant performance overhead (format conversion, layout conversion, device-to-host memory copy).

Parameters

pyr	[in] an image pyramid handle
lock	[in] lock mode
out	[out] a pointer to a structure that will receive the pyramid data to be accessed by host

Returns: an error code on failure else VPI_SUCCESS

◆ vpiPyramidUnlock()

VPIStatus vpiPyramidUnlock ( VPIPyramid pyr )

#include <vpi/Pyramid.h>

Releases the lock on a image pyramid object.

This function might have a significant performance overhead (format conversion, layout conversion, host-to-device memory copy).

Parameters

pyr	[in] an image pyramid handle

Returns: an error code on failure else VPI_SUCCESS
