#include <stdint.h>
Include dependency graph for Types.h:

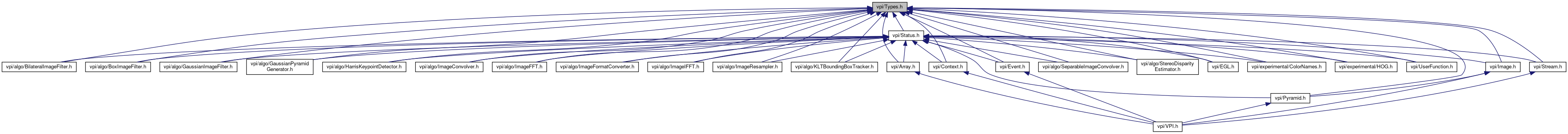

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | VPIParallelForConfig |
| struct | VPIKeypoint |
| Stores a keypoint coordinate. More... | |
| struct | VPIHomographyTransform2D |
| Stores a generic 2D homography transform. More... | |
| struct | VPIBoundingBox |
| Stores a generic 2D bounding box. More... | |
| struct | VPIKLTTrackedBoundingBox |
| Stores a bounding box that is being tracked by KLT Tracker. More... | |
Macros | |
Memory creation flags. | |
These flags can be used when creating images, pyramids or arrays. | |
| #define | VPI_BACKEND_DISABLE_PVA (0x01) |
| Memory won't be used in a PVA stream. | |
| #define | VPI_BACKEND_DISABLE_CPU (0x02) |
| Memory won't be used in a CPU stream. | |
| #define | VPI_BACKEND_DISABLE_CUDA (0x04) |
| Memory won't be used in a CUDA stream. | |
| #define | VPI_BACKEND_ONLY_PVA (VPI_BACKEND_DISABLE_CUDA | VPI_BACKEND_DISABLE_CPU) |
| Memory will only be used in a PVA stream. | |
| #define | VPI_BACKEND_ONLY_CPU (VPI_BACKEND_DISABLE_PVA | VPI_BACKEND_DISABLE_CUDA) |
| Memory will only be used in a CPU stream. | |
| #define | VPI_BACKEND_ONLY_CUDA (VPI_BACKEND_DISABLE_PVA | VPI_BACKEND_DISABLE_CPU) |
| Memory will only be used in a CUDA stream. | |
Typedefs | |
| typedef void(* | VPIParallelTask) (int taskId, int threadId, void *vpiData) |
| typedef void(* | VPIParallelForCallback) (VPIParallelTask task, int taskCount, void *vpiData, void *userData) |
| typedef void * | VPINativeThreadHandle |
| typedef struct VPIArrayImpl * | VPIArray |
| typedef struct VPIContextImpl * | VPIContext |
| typedef struct VPIEventImpl * | VPIEvent |
| typedef struct VPIStreamImpl * | VPIStream |
| typedef struct VPIImageImpl * | VPIImage |
| typedef struct VPIPyramidImpl * | VPIPyramid |
| typedef struct VPIPayloadImpl * | VPIPayload |
| A handle to an algorithm payload. | |
| typedef VPIStatus(* | VPIUserFunction) (void *) |
| Pointer to user function. More... | |
Detailed Description
Defines all types needed for programming with VPI.
Definition in file Types.h.
Data Structure Documentation
◆ VPIKeypoint
| struct VPIKeypoint |
◆ VPIHomographyTransform2D
| struct VPIHomographyTransform2D |
Stores a generic 2D homography transform.
When only scale and translation transformation is needed, these parameters must be arranged in the matrix as follows:
\[ \begin{bmatrix} s_x & 0 & p_x \\ 0 & s_y & p_y \\ 0 & 0 & 1 \end{bmatrix} \]
Scaling \((s_x,s_y)\) is relative to the center of the patch, position \((p_x,p_y)\) is relative to the top-left of the image.
In the general case, given an homogeneous 2D point \(P(x,y,1)\) and the matrix \(M^{3x3}\), the Euclidean 2D point \(O(x,y)\) is defined as
\begin{align} T &= M \cdot P \\ O &= (T_x/T_z, T_y/T_z) \end{align}
Collaboration diagram for VPIHomographyTransform2D:
| Data Fields | ||
|---|---|---|
| float | mat3[3][3] | 3x3 homogeneous matrix that defines the homography. |
◆ VPIBoundingBox
| struct VPIBoundingBox |
Stores a generic 2D bounding box.
Although this structure can store a 2D bounding box transformed by any homography, most of the time it stores an axis-aligned bounding box. To retrieve it, do the following:
Collaboration diagram for VPIBoundingBox:
| Data Fields | ||
|---|---|---|
| float | height | Bounding box height. |
| float | width | Bounding box width. |
| VPIHomographyTransform2D | xform | Defines the bounding box top left corner and its homography. |
◆ VPIKLTTrackedBoundingBox
| struct VPIKLTTrackedBoundingBox |
Stores a bounding box that is being tracked by KLT Tracker.

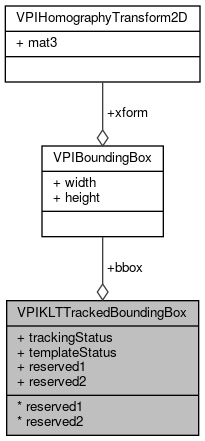

Collaboration diagram for VPIKLTTrackedBoundingBox:
| Data Fields | ||
|---|---|---|
| VPIBoundingBox | bbox | Bounding box being tracked. |
| uint8_t | reserved1 | Reserved for future use. |
| uint8_t | reserved2 | Reserved for future use. |
| uint8_t | templateStatus |
Status of the template related to this bounding box. Accepted values:
|
| uint8_t | trackingStatus |
Tracking status of this bounding box. Accepted values:
|
Typedef Documentation
◆ VPIStream
| typedef struct VPIStreamImpl* VPIStream |
◆ VPIUserFunction
| typedef VPIStatus(* VPIUserFunction) (void *) |
Enumeration Type Documentation
◆ VPIArrayType
| enum VPIArrayType |
Array element formats.
| Enumerator | |
|---|---|
| VPI_ARRAY_TYPE_INVALID | Signal type conversion errors. |
| VPI_ARRAY_TYPE_S8 | signed 8-bit. |
| VPI_ARRAY_TYPE_U8 | unsigned 8-bit. |
| VPI_ARRAY_TYPE_S16 | signed 16-bit. |
| VPI_ARRAY_TYPE_U16 | unsigned 16-bit. |
| VPI_ARRAY_TYPE_U32 | unsigned 32-bit. |
| VPI_ARRAY_TYPE_KEYPOINT | VPIKeypoint element. |
| VPI_ARRAY_TYPE_HOMOGRAPHY_TRANSFORM_2D | VPIHomographyTransform2D element. |
| VPI_ARRAY_TYPE_KLT_TRACKED_BOUNDING_BOX | VPIKLTTrackedBoundingBox element. |
◆ VPIBoundaryCond
| enum VPIBoundaryCond |
◆ VPIConversionPolicy
| enum VPIConversionPolicy |
Policy used when converting between image types.
◆ VPIDeviceType
| enum VPIDeviceType |
◆ VPIImageType
| enum VPIImageType |
Image formats.
An image type represents one or more planar channels, each one having a particular VPIPixelType. In these image types, each channel is assigned a color component for algorithms that need it. The luma (Y) image types can also be used for generic, single-channel elements.
◆ VPIInterpolationType
| enum VPIInterpolationType |
Interpolation types supported by several algorithms.
| Enumerator | |
|---|---|
| VPI_INTERP_NEAREST | Nearest neighbor interpolation. \[ P(x,y) = \mathit{in}[\lfloor x+0.5 \rfloor, \lfloor y+0.5 \rfloor] \] |
| VPI_INTERP_LINEAR_PRECISE | Precise linear interpolation. Interpolation weights are defined as: \begin{align*} w_0(t)& \triangleq t-\lfloor t \rfloor \\ w_1(t)& \triangleq 1 - w_0(t) \\ \end{align*} Bilinear-interpolated value is given by the formula below: \[ P(x,y) = \sum_{p=0}^1 \sum_{q=0}^1 \mathit{in}[\lfloor x \rfloor+p, \lfloor y \rfloor+q]w_p(x)w_q(y) \] |
| VPI_INTERP_LINEAR_FAST | Fast linear interpolation. Takes advantage of CUDA's backend hardware interpolator and take only 1 linear sample per pixel instead of 4, yielding better performance. There's a slight decrease in precision due to \(\alpha_x\) and \(\alpha_y\) being stored in 9-bit fixed point format (8 bits of fractional value), which amounts to ~1% maximum relative error. It uses a technique presented here. For other backends, it works exactly like VPI_INTERP_LINEAR_PRECISE. |
| VPI_INTERP_LINEAR | Alias to fast linear interpolation. It is to be used when user doesn't care if interpolator is fast or not. |
| VPI_INTERP_CATMULL_ROM_PRECISE | Catmull-Rom cubic interpolation. Catmull-Rom interpolation weights with \(A=-0.5\) are defined as follows: \begin{eqnarray*} w_0(t) &\triangleq& A(t+1)^3 &-& 5A(t+1)^2 &+& 8A(t+1) &-& 4A \\ w_1(t) &\triangleq& (A+2)t^3 &-& (A+3)t^2 &\nonumber& &+& 1 \\ w_2(t) &\triangleq& (A+2)(1-t)^3 &-& (A+3)(1-t)^2 &\nonumber& &+& 1 \\ w_3(t) &\triangleq& \rlap{1 - w_0(t) - w_1(t) - w_2(t) } \end{eqnarray*} Bicubic-interpolated value is given by the formula below: \[ P(x,y) = \sum_{p=-1}^2 \sum_{q=-1}^2 \mathit{in}[\lfloor x \rfloor+p, \lfloor y \rfloor+q]w_p(x)w_q(y) \] |
| VPI_INTERP_CATMULL_ROM_FAST | Fast Catmull-Rom cubic interpolation. Takes advantage of CUDA's backend hardware interpolator and take 9 linear samples per pixel instead of 16, yielding better performance. There's a slight decrease in precision due to linear weights being stored in hardware in 9-bit fixed point format (8 bits of fractional value). It uses a variation of the technique presented here. The paper assumes that \(w_1/(w_0+w_1), w_3/(w_2+w_3) \in [0,1]\), which doesn't hold for Catmull-Rom interpolator, but for \(w_2/(w_1+w_2)\) it does. So, in the 1D case, 3 texture fetches are performed: one linear fetch corresponding to \(w_1T_0 + w_2T_1\), and two more regular fetches for \(w_0T_{-1}\) and \(w_3T_2\). These 3 fetches in 1D correspond to 9 fetches in 2D. For other backends, it works exactly like VPI_INTERP_CATMULL_ROM_PRECISE. |
| VPI_INTERP_CATMULL_ROM | Alias to fast Catmull-Rom cubic interpolator. It is to be used when user doesn't care if interpolator is fast or not. |
◆ VPILockMode
| enum VPILockMode |
Defines the lock modes used by memory lock functions.
◆ VPIPixelType
| enum VPIPixelType |
Pixel formats.
Represents the geometry of pixels in a image channel.
◆ VPIStatus
| enum VPIStatus |
Error codes.
When an error is generated, a descriptive error message is printed in stderr.
