Perspective Image Warp

Overview

The Perspective Image Warp sample application takes an input video and outputs a video where for each frame, a different perspective warp is applied. The result is a perspective bouncy effect. Sample application could be modified to get the input from a camera and apply the effect in real-time.

This sample shows the following:

• Creating and destroying a VPI stream.
• Wrapping an OpenCV image to be used by VPI.
• Wrapping a VPI-managed image into an OpenCV's cv::Mat.
• Use OpenCV to fetch frames from a video file.
• Use OpenCV save frames into a video file.
• Create pipeline that does Image Format Converter to convert from/to NV12 format and run Perspective Image Warp.
• Create a perspective transform matrix with origin on the center of input frame.

Instructions

The usage is:

./vpi_sample_10_perspwarp <backend> <input video> <output video>

where

• backend: currently only pva, as other backends don't have an implementation available. It defines the backend that will perform the processing.
• input video: video file to the effect applied on; it accepts .mp4, .avi and possibly others, depending on OpenCV's support.
• output video: file to write the resulting video. It'll use the same codec and fps as input video.

VPI samples installer includes some sample videos that can be used as input. They are found in /opt/nvidia/vpi-0.3/samples/assets/ directory.

Here's one invocation example:

./vpi_sample_10_perspwarp pva ../assets/noisy.mp4 persp_effect.mp4

Results

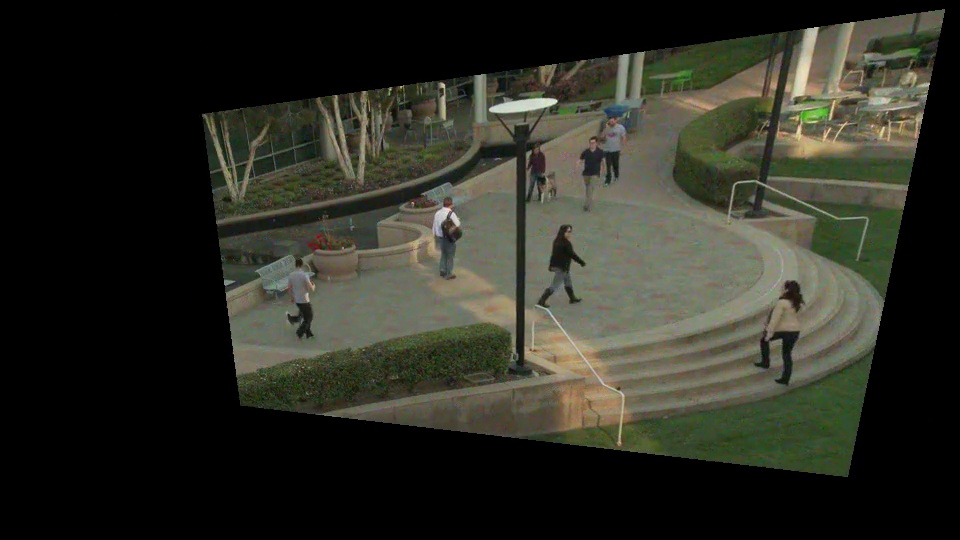

Input video	Perspective effect

Source code

For convenience, here's the code that is also installed in the samples directory.

/*
* Copyright (c) 2020, NVIDIA CORPORATION. All rights reserved.
*
* Redistribution and use in source and binary forms, with or without
* modification, are permitted provided that the following conditions
* are met:
*  * Redistributions of source code must retain the above copyright
*    notice, this list of conditions and the following disclaimer.
*  * Redistributions in binary form must reproduce the above copyright
*    notice, this list of conditions and the following disclaimer in the
*    documentation and/or other materials provided with the distribution.
*  * Neither the name of NVIDIA CORPORATION nor the names of its
*    contributors may be used to endorse or promote products derived
*    from this software without specific prior written permission.
*
* THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS ``AS IS'' AND ANY
* EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
* IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
* PURPOSE ARE DISCLAIMED.  IN NO EVENT SHALL THE COPYRIGHT OWNER OR
* CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
* EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
* PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
* PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY
* OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
* (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
* OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
*/

#include <opencv2/core/version.hpp>
#if CV_MAJOR_VERSION >= 3
#    include <opencv2/imgcodecs.hpp>
#    include <opencv2/videoio.hpp>
#else
#    include <opencv2/highgui/highgui.hpp>
#endif

#include <opencv2/imgproc/imgproc.hpp>

#include <vpi/Context.h>
#include <vpi/Event.h>
#include <vpi/Image.h>
#include <vpi/Stream.h>
#include <vpi/algo/ImageFormatConverter.h>
#include <vpi/algo/PerspectiveImageWarp.h>

#include <algorithm>
#include <cstring> // for memset
#include <fstream>
#include <iostream>
#include <random>

#define CHECK_STATUS(STMT)                                      \
    do                                                          \
    {                                                           \
        VPIStatus status = (STMT);                              \
        if (status != VPI_SUCCESS)                              \
        {                                                       \
            throw std::runtime_error(vpiStatusGetName(status)); \
        }                                                       \
    } while (0);

static void MatrixMultiply(VPIPerspectiveTransform &r, const VPIPerspectiveTransform &a,
                           const VPIPerspectiveTransform &b)
{
    for (int i = 0; i < 3; ++i)
    {
        for (int j = 0; j < 3; ++j)
        {
            r[i][j] = a[i][0] * b[0][j];
            for (int k = 1; k < 3; ++k)
            {
                r[i][j] += a[i][k] * b[k][j];
            }
        }
    }
}

// Utility function to wrap a cv::Mat into a VPIImage
static VPIImage ToVPIImage(const cv::Mat &frame)
{
    VPIImageData imgData;
    memset(&imgData, 0, sizeof(imgData));

    switch (frame.type())
    {
    case CV_8U:
        imgData.type = VPI_IMAGE_TYPE_U8;
        break;
    case CV_8UC3:
        imgData.type = VPI_IMAGE_TYPE_BGR8;
        break;
    case CV_8UC4:
        imgData.type = VPI_IMAGE_TYPE_BGRA8;
        break;
    default:
        throw std::runtime_error("Frame type not supported");
    }

    // First fill VPIImageData with the, well, image data...
    imgData.numPlanes           = 1;
    imgData.planes[0].width     = frame.cols;
    imgData.planes[0].height    = frame.rows;
    imgData.planes[0].rowStride = frame.step[0];
    imgData.planes[0].data      = frame.data;

    // Now create a VPIImage that wraps it.
    VPIImage img;
    CHECK_STATUS(vpiImageWrapHostMem(&imgData, 0, &img));
    return img;
};

// Utility function to wrap a VPIImageData into a cv::Mat
static cv::Mat ToCV(const VPIImageData &imgData)
{
    cv::Mat out;

    switch (imgData.type)
    {
    case VPI_IMAGE_TYPE_BGR8:
        out = cv::Mat(imgData.planes[0].height, imgData.planes[0].width, CV_8UC3, imgData.planes[0].data,
                      imgData.planes[0].rowStride);
        break;

    case VPI_IMAGE_TYPE_BGRA8:
        out = cv::Mat(imgData.planes[0].height, imgData.planes[0].width, CV_8UC4, imgData.planes[0].data,
                      imgData.planes[0].rowStride);
        break;

    case VPI_IMAGE_TYPE_U8:
        out = cv::Mat(imgData.planes[0].height, imgData.planes[0].width, CV_8UC1, imgData.planes[0].data,
                      imgData.planes[0].rowStride);
        break;

    default:
        throw std::runtime_error("Frame type not supported");
    }

    return out;
}

int main(int argc, char *argv[])
{
    // We'll create all our objects under this context, so that
    // we don't have to track what objects to destroy. Just destroying
    // the context will destroy all objects.
    VPIContext ctx = nullptr;

    int retval = 0;

    try
    {
        if (argc != 4)
        {
            throw std::runtime_error(std::string("Usage: ") + argv[0] + " <cpu|pva|cuda> <input_video> <output>");
        }

        std::string strDevType     = argv[1];
        std::string strInputVideo  = argv[2];
        std::string strOutputVideo = argv[3];

        // Load the input video
        cv::VideoCapture invid;
        if (!invid.open(strInputVideo))
        {
            throw std::runtime_error("Can't open '" + strInputVideo + "'");
        }

        // Create our context.
        CHECK_STATUS(vpiContextCreate(0, &ctx));

        // Activate it. From now on all created objects will be owned by it.
        CHECK_STATUS(vpiContextSetCurrent(ctx));

        // Now process the device type
        VPIDeviceType devType;

        if (strDevType == "cpu")
        {
            devType = VPI_DEVICE_TYPE_CPU;
        }
        else if (strDevType == "cuda")
        {
            devType = VPI_DEVICE_TYPE_CUDA;
        }
        else if (strDevType == "pva")
        {
            devType = VPI_DEVICE_TYPE_PVA;
        }
        else
        {
            throw std::runtime_error("Backend '" + strDevType +
                                     "' not recognized, it must be either cpu, cuda or pva.");
        }

        // Create the stream for the given backend.
        VPIStream streamWarp;
        CHECK_STATUS(vpiStreamCreate(devType, &streamWarp));

        VPIStream streamConv;
        if (devType == VPI_DEVICE_TYPE_PVA)
        {
            // PVA backend doesn't have currently Image Format Converter algorithm. We'll use CUDA
            // backend to do that.
            CHECK_STATUS(vpiStreamCreate(VPI_DEVICE_TYPE_CUDA, &streamConv));
        }
        else
        {
            // On other cases, we can use the same stream to do format conversion.
            streamConv = streamWarp;
        }

        int w = invid.get(cv::CAP_PROP_FRAME_WIDTH);
        int h = invid.get(cv::CAP_PROP_FRAME_HEIGHT);

        cv::VideoWriter outVideo(strOutputVideo, invid.get(cv::CAP_PROP_FOURCC), invid.get(cv::CAP_PROP_FPS),
                                 cv::Size(w, h));

        VPIImage imgInput, imgOutput;
        CHECK_STATUS(vpiImageCreate(w, h, VPI_IMAGE_TYPE_NV12, 0, &imgInput));
        CHECK_STATUS(vpiImageCreate(w, h, VPI_IMAGE_TYPE_NV12, 0, &imgOutput));

        // Create a Perspective Image Warp payload.
        VPIPayload warp;
        CHECK_STATUS(vpiCreatePerspectiveImageWarp(streamWarp, &warp));

        // Create events for stream synchronization (if needed)
        VPIEvent ev1, ev2;
        CHECK_STATUS(vpiEventCreate(VPI_EVENT_DISABLE_TIMESTAMP, &ev1));
        CHECK_STATUS(vpiEventCreate(VPI_EVENT_DISABLE_TIMESTAMP, &ev2));

        VPIPerspectiveTransform xform;
        memset(&xform, 0, sizeof(xform));

        int curFrame = 1;
        cv::Mat cvFrame;
        while (invid.read(cvFrame))
        {
            printf("Frame: %d\n", curFrame++);

            VPIImage frameBGR = ToVPIImage(cvFrame);

            // First convert it to NV12
            CHECK_STATUS(vpiSubmitImageFormatConverter(streamConv, frameBGR, imgInput, VPI_CONVERSION_CAST, 1, 0));

            // If format convertion is using a different stream than warping,
            if (streamConv != streamWarp)
            {
                // make sure warping starts only after format conversion is finished.
                CHECK_STATUS(vpiEventRecord(ev1, streamConv));
                CHECK_STATUS(vpiStreamWaitFor(streamWarp, ev1));
            }

            // move image's center to origin of coordinate system
            VPIPerspectiveTransform t1 = {{1, 0, -w / 2.0f}, {0, 1, -h / 2.0f}, {0, 0, 1}};

            // Apply some time-dependent perspective transform
            float v1                  = sin(curFrame / 30.0 * 2 * M_PI / 2) * 0.0005f;
            float v2                  = cos(curFrame / 30.0 * 2 * M_PI / 3) * 0.0005f;
            VPIPerspectiveTransform P = {{0.66, 0, 0}, {0, 0.66, 0}, {v1, v2, 1}};

            // move image's center back to where it was.
            VPIPerspectiveTransform t2 = {{1, 0, w / 2.0f}, {0, 1, h / 2.0f}, {0, 0, 1}};

            // Apply the transforms defined above.
            VPIPerspectiveTransform tmp;
            MatrixMultiply(tmp, P, t1);
            MatrixMultiply(xform, t2, tmp);

            // Do perspective warp
            CHECK_STATUS(vpiSubmitPerspectiveImageWarp(warp, imgInput, xform, imgOutput, VPI_INTERP_LINEAR,
                                                       VPI_BOUNDARY_COND_ZERO, 0));

            if (streamConv != streamWarp)
            {
                // make sure format conversion starts only after warping is finished.
                CHECK_STATUS(vpiEventRecord(ev2, streamWarp));
                CHECK_STATUS(vpiStreamWaitFor(streamConv, ev2));
            }
            // Convert output back to BGR
            CHECK_STATUS(vpiSubmitImageFormatConverter(streamConv, imgOutput, frameBGR, VPI_CONVERSION_CAST, 1, 0));
            CHECK_STATUS(vpiStreamSync(streamConv));

            // Now add it to the output video stream
            VPIImageData imgdata;
            CHECK_STATUS(vpiImageLock(frameBGR, VPI_LOCK_READ, &imgdata));
            outVideo << ToCV(imgdata);
            CHECK_STATUS(vpiImageUnlock(frameBGR));

            // Not needed anymore
            vpiImageDestroy(frameBGR);
        }
    }
    catch (std::exception &e)
    {
        std::cerr << e.what() << std::endl;
        retval = 1;
    }

    // Clean up
    vpiContextDestroy(ctx);

    return retval;
}
