Perspective Warp

Overview

The Perspective Warp sample application takes an input video and outputs a video where for each frame, a different perspective warp is applied. The result is a perspective bouncy effect. Sample application could be modified to get the input from a camera and apply the effect in real-time.

This sample shows the following:

• Creating and destroying a VPI stream.
• Wrapping an OpenCV image to be used by VPI.
• Wrapping a VPI-managed image into an OpenCV's cv::Mat.
• Use OpenCV to fetch frames from a video file.
• Use OpenCV save frames into a video file.
• Create pipeline that does Convert Image Format to convert from/to NV12 format and run Perspective Warp.
• Create a perspective transform matrix with origin on the center of input frame.

Instructions

The usage is:

./vpi_sample_10_perspwarp <backend> <input video> <output video>

where

• backend: currently only pva, as other backends don't have an implementation available. It defines the backend that will perform the processing.
• input video: video file to the effect applied on; it accepts .mp4, .avi and possibly others, depending on OpenCV's support.
• output video: file to write the resulting video. It'll use the same codec and fps as input video.

VPI samples installer includes some sample videos that can be used as input. They are found in /opt/nvidia/vpi-0.4/samples/assets/ directory.

Here's one invocation example:

./vpi_sample_10_perspwarp pva ../assets/noisy.mp4 persp_effect.mp4

Results

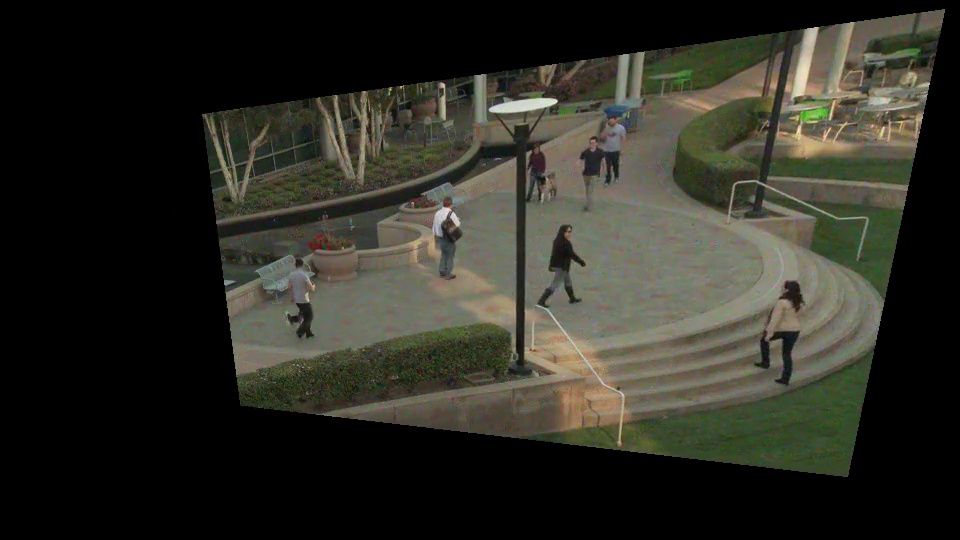

Input video	Perspective effect

Source code

For convenience, here's the code that is also installed in the samples directory.

/*
* Copyright (c) 2020, NVIDIA CORPORATION. All rights reserved.
*
* Redistribution and use in source and binary forms, with or without
* modification, are permitted provided that the following conditions
* are met:
*  * Redistributions of source code must retain the above copyright
*    notice, this list of conditions and the following disclaimer.
*  * Redistributions in binary form must reproduce the above copyright
*    notice, this list of conditions and the following disclaimer in the
*    documentation and/or other materials provided with the distribution.
*  * Neither the name of NVIDIA CORPORATION nor the names of its
*    contributors may be used to endorse or promote products derived
*    from this software without specific prior written permission.
*
* THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS ``AS IS'' AND ANY
* EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
* IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
* PURPOSE ARE DISCLAIMED.  IN NO EVENT SHALL THE COPYRIGHT OWNER OR
* CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
* EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
* PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
* PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY
* OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
* (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
* OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
*/

#include <opencv2/core/version.hpp>
#if CV_MAJOR_VERSION >= 3
#    include <opencv2/imgcodecs.hpp>
#    include <opencv2/videoio.hpp>
#else
#    include <opencv2/highgui/highgui.hpp>
#endif

#include <opencv2/imgproc/imgproc.hpp>

#include <vpi/Context.h>
#include <vpi/Image.h>
#include <vpi/Status.h>
#include <vpi/Stream.h>
#include <vpi/algo/ConvertImageFormat.h>
#include <vpi/algo/PerspectiveWarp.h>

#include <algorithm>
#include <cstring> // for memset
#include <fstream>
#include <iostream>
#include <random>
#include <sstream>

#define CHECK_STATUS(STMT)                                    \
    do                                                        \
    {                                                         \
        VPIStatus status = (STMT);                            \
        if (status != VPI_SUCCESS)                            \
        {                                                     \
            char buffer[VPI_MAX_STATUS_MESSAGE_LENGTH];       \
            vpiGetLastStatusMessage(buffer, sizeof(buffer));  \
            std::ostringstream ss;                            \
            ss << vpiStatusGetName(status) << ": " << buffer; \
            throw std::runtime_error(ss.str());               \
        }                                                     \
    } while (0);

static void MatrixMultiply(VPIPerspectiveTransform &r, const VPIPerspectiveTransform &a,
                           const VPIPerspectiveTransform &b)
{
    for (int i = 0; i < 3; ++i)
    {
        for (int j = 0; j < 3; ++j)
        {
            r[i][j] = a[i][0] * b[0][j];
            for (int k = 1; k < 3; ++k)
            {
                r[i][j] += a[i][k] * b[k][j];
            }
        }
    }
}

// Utility function to wrap a cv::Mat into a VPIImage
static VPIImage ToVPIImage(VPIImage image, const cv::Mat &frame)
{
    VPIImageData imgData;
    memset(&imgData, 0, sizeof(imgData));

    switch (frame.type())
    {
    case CV_8U:
        imgData.type = VPI_IMAGE_FORMAT_U8;
        break;
    case CV_8UC3:
        imgData.type = VPI_IMAGE_FORMAT_BGR8;
        break;
    case CV_8UC4:
        imgData.type = VPI_IMAGE_FORMAT_BGRA8;
        break;
    default:
        throw std::runtime_error("Frame type not supported");
    }

    // First fill VPIImageData with the, well, image data...
    imgData.numPlanes            = 1;
    imgData.planes[0].width      = frame.cols;
    imgData.planes[0].height     = frame.rows;
    imgData.planes[0].pitchBytes = frame.step[0];
    imgData.planes[0].data       = frame.data;

    if (image == nullptr)
    {
        // Now create a VPIImage that wraps it.
        CHECK_STATUS(vpiImageCreateHostMemWrapper(&imgData, 0, &image));
    }
    else
    {
        // image is already created, we only have to update the wrapped memory,
        // this is done without allocating memory.
        CHECK_STATUS(vpiImageSetWrappedHostMem(image, &imgData));
    }
    return image;
};

// Utility function to wrap a VPIImageData into a cv::Mat
static cv::Mat ToCV(const VPIImageData &imgData)
{
    cv::Mat out;

    switch (imgData.type)
    {
    case VPI_IMAGE_FORMAT_BGR8:
        out = cv::Mat(imgData.planes[0].height, imgData.planes[0].width, CV_8UC3, imgData.planes[0].data,
                      imgData.planes[0].pitchBytes);
        break;

    case VPI_IMAGE_FORMAT_BGRA8:
        out = cv::Mat(imgData.planes[0].height, imgData.planes[0].width, CV_8UC4, imgData.planes[0].data,
                      imgData.planes[0].pitchBytes);
        break;

    case VPI_IMAGE_FORMAT_U8:
        out = cv::Mat(imgData.planes[0].height, imgData.planes[0].width, CV_8UC1, imgData.planes[0].data,
                      imgData.planes[0].pitchBytes);
        break;

    default:
        throw std::runtime_error("Frame type not supported");
    }

    return out;
}

int main(int argc, char *argv[])
{
    // We'll create all our objects under this context, so that
    // we don't have to track what objects to destroy. Just destroying
    // the context will destroy all objects.
    VPIContext ctx = nullptr;

    int retval = 0;

    try
    {
        if (argc != 4)
        {
            throw std::runtime_error(std::string("Usage: ") + argv[0] + " <cpu|vic|cuda> <input_video> <output>");
        }

        std::string strBackend     = argv[1];
        std::string strInputVideo  = argv[2];
        std::string strOutputVideo = argv[3];

        // Load the input video
        cv::VideoCapture invid;
        if (!invid.open(strInputVideo))
        {
            throw std::runtime_error("Can't open '" + strInputVideo + "'");
        }

        // Create our context.
        CHECK_STATUS(vpiContextCreate(0, &ctx));

        // Activate it. From now on all created objects will be owned by it.
        CHECK_STATUS(vpiContextSetCurrent(ctx));

        // Now parse the backend
        VPIBackend backend;

        if (strBackend == "cpu")
        {
            backend = VPI_BACKEND_CPU;
        }
        else if (strBackend == "cuda")
        {
            backend = VPI_BACKEND_CUDA;
        }
        else if (strBackend == "vic")
        {
            backend = VPI_BACKEND_VIC;
        }
        else
        {
            throw std::runtime_error("Backend '" + strBackend +
                                     "' not recognized, it must be either cpu, cuda or vic.");
        }

        // Create the stream for the given backend. We'll be using CUDA for image format conversion.
        VPIStream stream;
        CHECK_STATUS(vpiStreamCreate(backend | VPI_BACKEND_CUDA, &stream));

#if CV_MAJOR_VERSION >= 3
        int w      = invid.get(cv::CAP_PROP_FRAME_WIDTH);
        int h      = invid.get(cv::CAP_PROP_FRAME_HEIGHT);
        int fourcc = invid.get(cv::CAP_PROP_FOURCC);
        double fps = invid.get(cv::CAP_PROP_FPS);
#else
        int w      = invid.get(CV_CAP_PROP_FRAME_WIDTH);
        int h      = invid.get(CV_CAP_PROP_FRAME_HEIGHT);
        int fourcc = invid.get(CV_CAP_PROP_FOURCC);
        double fps = invid.get(CV_CAP_PROP_FPS);
#endif

        cv::VideoWriter outVideo(strOutputVideo, fourcc, fps, cv::Size(w, h));

        VPIImage imgInput, imgOutput;
        CHECK_STATUS(vpiImageCreate(w, h, VPI_IMAGE_FORMAT_NV12, 0, &imgInput));
        CHECK_STATUS(vpiImageCreate(w, h, VPI_IMAGE_FORMAT_NV12, 0, &imgOutput));

        // Create a Perspective Warp payload.
        VPIPayload warp;
        CHECK_STATUS(vpiCreatePerspectiveWarp(backend, &warp));

        VPIPerspectiveTransform xform;
        memset(&xform, 0, sizeof(xform));

        VPIImage frameBGR = nullptr;

        int curFrame = 1;
        cv::Mat cvFrame;
        while (invid.read(cvFrame))
        {
            printf("Frame: %d\n", curFrame++);

            frameBGR = ToVPIImage(frameBGR, cvFrame);

            // First convert it to NV12 using CUDA
            CHECK_STATUS(
                vpiSubmitConvertImageFormat(stream, VPI_BACKEND_CUDA, frameBGR, imgInput, VPI_CONVERSION_CAST, 1, 0));

            // move image's center to origin of coordinate system
            VPIPerspectiveTransform t1 = {{1, 0, -w / 2.0f}, {0, 1, -h / 2.0f}, {0, 0, 1}};

            // Apply some time-dependent perspective transform
            float v1                  = sin(curFrame / 30.0 * 2 * M_PI / 2) * 0.0005f;
            float v2                  = cos(curFrame / 30.0 * 2 * M_PI / 3) * 0.0005f;
            VPIPerspectiveTransform P = {{0.66, 0, 0}, {0, 0.66, 0}, {v1, v2, 1}};

            // move image's center back to where it was.
            VPIPerspectiveTransform t2 = {{1, 0, w / 2.0f}, {0, 1, h / 2.0f}, {0, 0, 1}};

            // Apply the transforms defined above.
            VPIPerspectiveTransform tmp;
            MatrixMultiply(tmp, P, t1);
            MatrixMultiply(xform, t2, tmp);

            // Do perspective warp using the backend passed in the command line.
            CHECK_STATUS(vpiSubmitPerspectiveWarp(stream, warp, imgInput, xform, imgOutput, VPI_INTERP_LINEAR,
                                                  VPI_BOUNDARY_COND_ZERO, 0));

            // Convert output back to BGR using CUDA
            CHECK_STATUS(
                vpiSubmitConvertImageFormat(stream, VPI_BACKEND_CUDA, imgOutput, frameBGR, VPI_CONVERSION_CAST, 1, 0));
            CHECK_STATUS(vpiStreamSync(stream));

            // Now add it to the output video stream
            VPIImageData imgdata;
            CHECK_STATUS(vpiImageLock(frameBGR, VPI_LOCK_READ, &imgdata));
            outVideo << ToCV(imgdata);
            CHECK_STATUS(vpiImageUnlock(frameBGR));
        }
    }
    catch (std::exception &e)
    {
        std::cerr << e.what() << std::endl;
        retval = 1;
    }

    // Clean up
    vpiContextDestroy(ctx);

    return retval;
}
