Defines types and functions to handle image formats. More...

#include "ColorSpec.h"
#include "DataLayout.h"
#include "PixelType.h"
#include <assert.h>

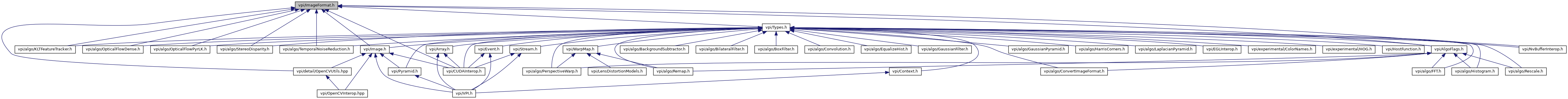

Include dependency graph for ImageFormat.h:

This graph shows which files directly or indirectly include this file:

#define	VPI_MAKE_YCbCr_IMAGE_FORMAT_ABBREV(colorSpec, chromaSubsamp, memLayout, dataType, swizzle, numPlanes, packing0, packing1, ...)
	Creates a user-defined YCbCr color image format constant using abbreviated parameters. More...

#define	VPI_MAKE_YCbCr_IMAGE_FORMAT(colorModel, colorSpec, chromaSubsamp, memLayout, dataType, swizzle, numPlanes, packing0, packing1, ...)
	Creates a user-defined YCbCr color image format constant. More...

#define	VPI_MAKE_COLOR_IMAGE_FORMAT_ABBREV(colorModel, colorSpec, memLayout, dataType, swizzle, numPlanes, packing0, packing1, ...)
	Creates a user-defined color image format constant using abbreviated parameters. More...

#define	VPI_MAKE_COLOR_IMAGE_FORMAT(colorModel, colorSpec, memLayout, dataType, swizzle, numPlanes, packing0, packing1, ...)
	Creates a user-defined color image format constant. More...

#define	VPI_MAKE_NONCOLOR_IMAGE_FORMAT_ABBREV(memLayout, dataType, swizzle, numPlanes, packing0, packing1, ...)
	Creates a user-defined non-color image format constant using abbreviated parameters. More...

#define	VPI_MAKE_NONCOLOR_IMAGE_FORMAT(memLayout, dataType, swizzle, numPlanes, packing0, packing1, ...)
	Creates a user-defined non-color image format constant. More...

#define	VPI_MAKE_RAW_IMAGE_FORMAT_ABBREV(rawPattern, memLayout, dataType, numPlanes, swizzle, packing)
	Creates a user-defined raw (Bayer pattern) image format constant using abbreviated parameters. More...

#define	VPI_MAKE_RAW_IMAGE_FORMAT(rawPattern, memLayout, dataType, numPlanes, swizzle, packing)
	Creates a user-defined raw (Bayer pattern) image format constant. More...

enum	VPIImageFormat
	Pre-defined image formats. More...

VPIImageFormat	vpiMakeYCbCrImageFormat (VPIColorSpec colorSpec, VPIChromaSubsampling chromaSub, VPIMemLayout memLayout, VPIDataType dataType, VPISwizzle swizzle, VPIPacking packing0, VPIPacking packing1, VPIPacking packing2, VPIPacking packing3)
	Creates a user-defined YCbCr color image format. More...

VPIImageFormat	vpiMakeColorImageFormat (VPIColorModel colorModel, VPIColorSpec colorSpec, VPIMemLayout memLayout, VPIDataType dataType, VPISwizzle swizzle, VPIPacking packing0, VPIPacking packing1, VPIPacking packing2, VPIPacking packing3)
	Creates a user-defined color image format. More...

VPIImageFormat	vpiMakeNonColorImageFormat (VPIMemLayout memLayout, VPIDataType dataType, VPISwizzle swizzle, VPIPacking packing0, VPIPacking packing1, VPIPacking packing2, VPIPacking packing3)
	Creates a user-defined non-color image format. More...

VPIImageFormat	vpiMakeRawImageFormat (VPIRawPattern rawPattern, VPIMemLayout memLayout, VPIDataType dataType, VPISwizzle swizzle, VPIPacking packing0, VPIPacking packing1, VPIPacking packing2, VPIPacking packing3)
	Creates a user-defined raw image format. More...

VPIImageFormat	vpiMakeImageFormatFromFourCC (uint32_t fourcc, VPIColorSpec colorSpec, VPIMemLayout memLayout)
	Creates a image format from a FourCC code. More...

uint32_t	vpiImageFormatGetFourCC (VPIImageFormat fmt)
	Returns the FourCC code corresponding to an image format. More...

VPIPacking	vpiImageFormatGetPlanePacking (VPIImageFormat fmt, int plane)
	Get the packing for a given plane of an image format. More...

VPIImageFormat	vpiImageFormatSetSwizzleAndPacking (VPIImageFormat fmt, VPISwizzle swizzle, VPIPacking packing0, VPIPacking packing1, VPIPacking packing2, VPIPacking packing3)
	Replaces the swizzle and packing of an existing image format. More...

int	vpiImageFormatGetPlaneBitsPerPixel (VPIImageFormat fmt, int plane)
	Get the image format's plane bits per pixel count. More...

VPIImageFormat	vpiImageFormatSetDataType (VPIImageFormat fmt, VPIDataType dataType)
	Set the image format's data type. More...

VPIDataType	vpiImageFormatGetDataType (VPIImageFormat fmt)
	Get the image format's data type. More...

VPISwizzle	vpiImageFormatGetSwizzle (VPIImageFormat fmt)
	Get the image format's channel swizzle operation. More...

VPISwizzle	vpiImageFormatGetPlaneSwizzle (VPIImageFormat fmt, int plane)
	Get the swizzle operation of the given image format's plane. More...

VPIImageFormat	vpiImageFormatSetMemLayout (VPIImageFormat fmt, VPIMemLayout memLayout)
	Set the image format's memory layout. More...

VPIMemLayout	vpiImageFormatGetMemLayout (VPIImageFormat fmt)
	Get the image format's memory layout. More...

VPIImageFormat	vpiImageFormatSetColorSpec (VPIImageFormat fmt, VPIColorSpec colorSpec)
	Set the image format's color standard. More...

VPIColorSpec	vpiImageFormatGetColorSpec (VPIImageFormat fmt)
	Get the image format's color standard. More...

VPIColorModel	vpiImageFormatGetColorModel (VPIImageFormat fmt)
	Get the image format's color model. More...

VPIImageFormat	vpiImageFormatSetChromaSubsampling (VPIImageFormat fmt, VPIChromaSubsampling css)
	Set the image format's chroma subsampling type. More...

VPIChromaSubsampling	vpiImageFormatGetChromaSubsampling (VPIImageFormat fmt)
	Get the image format's chroma subsampling type. More...

int	vpiImageFormatGetPlaneChannelCount (VPIImageFormat fmt, int plane)
	Get the number of channels in a plane of an image format. More...

int	vpiImageFormatGetPlaneCount (VPIImageFormat fmt)
	Get the number of planes of an image format. More...

int	vpiImageFormatGetChannelCount (VPIImageFormat fmt)
	Get the total number of channels of an image format. More...

void	vpiImageFormatGetBitsPerChannel (VPIImageFormat fmt, int32_t *bits)
	Get the image format's bit size for each channel. More...

VPIPixelType	vpiImageFormatGetPlanePixelType (VPIImageFormat fmt, int plane)
	Get the pixel type of image format's plane. More...

VPIImageFormat	vpiImageFormatGetPlaneFormat (VPIImageFormat fmt, int plane)
	Get the plane format of an image format. More...

VPIImageFormat	vpiMakeImageFormatFromPlanes (VPIImageFormat plane0, VPIImageFormat plane1, VPIImageFormat plane2, VPIImageFormat plane3)
	Constructs an image format given the format of each plane. More...

const char *	vpiImageFormatGetName (VPIImageFormat fmt)
	Returns a string representation of the image format. More...

VPIRawPattern	vpiImageFormatGetRawPattern (VPIImageFormat fmt)
	Returns the raw color pattern of the image format. More...

VPIImageFormat	vpiImageFormatSetRawPattern (VPIImageFormat fmt, VPIRawPattern rawPattern)
	Sets the raw color pattern of the image format. More...

int	vpiImageFormatHasSameDataLayout (VPIImageFormat a, VPIImageFormat b)
	Returns whether the image formats have the same data layout. More...

Detailed Description

Defines types and functions to handle image formats.

Definition in file ImageFormat.h.

Macro Definition Documentation

◆ VPI_MAKE_COLOR_IMAGE_FORMAT

#define VPI_MAKE_COLOR_IMAGE_FORMAT	(	colorModel,
		colorSpec,
		memLayout,
		dataType,
		swizzle,
		numPlanes,
		packing0,
		packing1,
		...
	)

Creates a user-defined color image format constant.

Example to create a RGB planar ITU-R BT.709 full-range with SMPTE240M encoding, block-linear format.

VPIImageFormat fmt = VPI_MAKE_COLOR_IMAGE_FORMAT(VPI_COLOR_MODEL_RGB, VPI_MAKE_COLOR_SPEC_ABBREV(BT601, SMPTE240M, FULL),
                                                 VPI_MEM_LAYOUT_BL, VPI_DATA_TYPE_UNSIGNED, VPI_SWIZZLE_XYZ0,
                                                 2, VPI_PACKING_X8, VPI_PACKING_X8, VPI_PACKING_Y8);

If the color model is VPI_COLOR_MODEL_YCbCr, it's assumed that the chroma subsampling is 4:4:4, i.e, VPI_CSS_444.

Fourth plane (packing3) must have at most 64bpp.

Parameters

[in]	colorModel	VPIColorModel to be used.
[in]	colorSpec	VPIColorSpec to be used.
[in]	memLayout	VPIMemLayout to be used.
[in]	dataType	VPIDataType to be used.
[in]	swizzle	VPISwizzle operation to be performed on the channels.
[in]	numPlanes	Number of planes this format has.
[in]	packing0,packing1,...	Format packing of each plane.

Returns: The user-defined image format.

Definition at line 399 of file ImageFormat.h.

◆ VPI_MAKE_COLOR_IMAGE_FORMAT_ABBREV

#define VPI_MAKE_COLOR_IMAGE_FORMAT_ABBREV	(	colorModel,
		colorSpec,
		memLayout,
		dataType,
		swizzle,
		numPlanes,
		packing0,
		packing1,
		...
	)

Creates a user-defined color image format constant using abbreviated parameters.

This macro allows passing abbreviated format parameters (without the parameter type prefix). Example to create a RGB planar ITU-R BT.709 studio-range block-linear format.

VPIImageFormat fmt = VPI_MAKE_COLOR_IMAGE_FORMAT_ABBREV(RGB, BT709, BL, UNSIGNED, XYZ0, 3, X8, X8, Y8);

VPI_MAKE_COLOR_IMAGE_FORMAT_ABBREV

#define VPI_MAKE_COLOR_IMAGE_FORMAT_ABBREV(colorModel, colorSpec, memLayout, dataType, swizzle, numPlanes, packing0, packing1,...)

Creates a user-defined color image format constant using abbreviated parameters.

Definition: ImageFormat.h:368

If the color model is VPI_COLOR_MODEL_YCbCr, it's assumed that the chroma subsampling is 4:4:4, i.e, VPI_CSS_444.

Fourth plane (packing3) must have at most 64bpp.

Parameters

[in]	colorModel	VPIColorModel to be used, without the VPI_COLOR_MODEL_ prefix.
[in]	colorSpec	VPIColorSpec to be used, without the VPI_COLOR_SPEC_ prefix.
[in]	memLayout	VPIMemLayout to be used, without the VPI_MEM_LAYOUT_ prefix.
[in]	dataType	VPIDataType to be used, without the VPI_DATA_TYPE_ prefix.
[in]	swizzle	VPISwizzle operation to be performed on the channels, without the VPI_SWIZZLE_ prefix.
[in]	numPlanes	Number of planes this format has.
[in]	packing0,packing1,...	Format packing of each plane, without the VPI_PACKING_ prefix.

Returns: The user-defined image format.

Definition at line 368 of file ImageFormat.h.

◆ VPI_MAKE_NONCOLOR_IMAGE_FORMAT

#define VPI_MAKE_NONCOLOR_IMAGE_FORMAT	(	memLayout,
		dataType,
		swizzle,
		numPlanes,
		packing0,
		packing1,
		...
	)

Creates a user-defined non-color image format constant.

Example to create 3-plane float block-linear image, 1st: 8-bit, 2nd: 16-bit, 3rd: 32-bit

VPIImageFormat fmt = VPI_MAKE_NONCOLOR_IMAGE_FORMAT(VPI_MEM_LAYOUT_BL, VPI_DATA_TYPE_UNSIGNED,

3, VPI_PACKING_X8, VPI_PACKING_X16, VPI_PACKING_X32);

VPI_MAKE_NONCOLOR_IMAGE_FORMAT

#define VPI_MAKE_NONCOLOR_IMAGE_FORMAT(memLayout, dataType, swizzle, numPlanes, packing0, packing1,...)

Creates a user-defined non-color image format constant.

Definition: ImageFormat.h:448

VPI_PACKING_X32

@ VPI_PACKING_X32

One 32-bit channel.

Definition: DataLayout.h:171

VPI_PACKING_X16

@ VPI_PACKING_X16

One 16-bit channel.

Definition: DataLayout.h:143

Fourth plane (packing3) must have at most 64bpp.

Parameters

[in]	memLayout	VPIMemLayout to be used.
[in]	dataType	VPIDataType to be used.
[in]	swizzle	VPISwizzle operation to be performed on the channels.
[in]	numPlanes	Number of planes this format has.
[in]	packing0,packing1,...	Format packing of each plane.

Returns: The user-defined image format.

Definition at line 448 of file ImageFormat.h.

◆ VPI_MAKE_NONCOLOR_IMAGE_FORMAT_ABBREV

#define VPI_MAKE_NONCOLOR_IMAGE_FORMAT_ABBREV	(	memLayout,
		dataType,
		swizzle,
		numPlanes,
		packing0,
		packing1,
		...
	)

Creates a user-defined non-color image format constant using abbreviated parameters.

This macro allows passing abbreviated format parameters (without the parameter type prefix). Example to create 3-plane float block-linear image, 1st: 8-bit, 2nd: 16-bit, 3rd: 32-bit

VPIImageFormat fmt = VPI_MAKE_NONCOLOR_IMAGE_FORMAT_ABBREV(BL, UNSIGNED, 3, X8, X16, X32);

VPI_MAKE_NONCOLOR_IMAGE_FORMAT_ABBREV

#define VPI_MAKE_NONCOLOR_IMAGE_FORMAT_ABBREV(memLayout, dataType, swizzle, numPlanes, packing0, packing1,...)

Creates a user-defined non-color image format constant using abbreviated parameters.

Definition: ImageFormat.h:424

Fourth plane (packing3) must have at most 64bpp.

Parameters

[in]	memLayout	VPIMemLayout to be used, without the VPI_MEM_LAYOUT_ prefix.
[in]	dataType	VPIDataType to be used, without the VPI_DATA_TYPE_ prefix.
[in]	swizzle	VPISwizzle operation to be performed on the channels.
[in]	numPlanes	Number of planes this format has.
[in]	packing0,packing1,...	Format packing of each plane, without the VPI_PACKING_ prefix.

Returns: The user-defined image format.

Definition at line 424 of file ImageFormat.h.

◆ VPI_MAKE_RAW_IMAGE_FORMAT

#define VPI_MAKE_RAW_IMAGE_FORMAT	(	rawPattern,
		memLayout,
		dataType,
		numPlanes,
		swizzle,
		packing
	)

Creates a user-defined raw (Bayer pattern) image format constant.

Example to create a RGGB Bayer pattern format:

VPIImageFormat fmt = VPI_MAKE_RAW_IMAGE_FORMAT(VPI_RAW_BAYER_RGGB, VPI_MEM_LAYOUT_BL, VPI_DATA_TYPE_UNSIGNED, VPI_SWIZZLE_X000, 1, VPI_PACKING_X8);

VPI_MAKE_RAW_IMAGE_FORMAT

#define VPI_MAKE_RAW_IMAGE_FORMAT(rawPattern, memLayout, dataType, numPlanes, swizzle, packing)

Creates a user-defined raw (Bayer pattern) image format constant.

Definition: ImageFormat.h:497

VPI_RAW_BAYER_RGGB

@ VPI_RAW_BAYER_RGGB

Bayer format with X channel mapped to samples as follows:

Definition: ColorSpec.h:308

VPI_SWIZZLE_X000

@ VPI_SWIZZLE_X000

Definition: DataLayout.h:303

Fourth plane (packing3) must have at most 64bpp.

Parameters

[in]	rawPattern	VPIRawPattern to be used.
[in]	memLayout	VPIMemLayout to be used.
[in]	dataType	VPIDataType to be used.
[in]	swizzle	VPISwizzle operation to be performed on the channels.
[in]	numPlanes	Number of planes this format has.
[in]	packing	Format packing of image plane.

Returns: The user-defined image format.

Definition at line 497 of file ImageFormat.h.

◆ VPI_MAKE_RAW_IMAGE_FORMAT_ABBREV

#define VPI_MAKE_RAW_IMAGE_FORMAT_ABBREV	(	rawPattern,
		memLayout,
		dataType,
		numPlanes,
		swizzle,
		packing
	)

Creates a user-defined raw (Bayer pattern) image format constant using abbreviated parameters.

This macro allows passing abbreviated format parameters (without the parameter type prefix). Example to create a RGGB Bayer pattern format:

VPIImageFormat fmt = VPI_MAKE_RAW_IMAGE_FORMAT_ABBREV(BAYER_RGGB, BL, UNSIGNED, X000, 1, X8);

VPI_MAKE_RAW_IMAGE_FORMAT_ABBREV

#define VPI_MAKE_RAW_IMAGE_FORMAT_ABBREV(rawPattern, memLayout, dataType, numPlanes, swizzle, packing)

Creates a user-defined raw (Bayer pattern) image format constant using abbreviated parameters.

Definition: ImageFormat.h:473

Fourth plane (packing3) must have at most 64bpp.

Parameters

[in]	rawPattern	VPIRawPattern to be used, without the VPI_RAW_ prefix.
[in]	memLayout	VPIMemLayout to be used, without the VPI_MEM_LAYOUT_ prefix.
[in]	dataType	VPIDataType to be used, without the VPI_DATA_TYPE_ prefix.
[in]	swizzle	VPISwizzle operation to be performed on the channels, without the VPI_SWIZZLE_ prefix.
[in]	numPlanes	Number of planes this format has.
[in]	packing	Format packing of image plane plane, without the VPI_PACKING_ prefix.

Returns: The user-defined image format.

Definition at line 473 of file ImageFormat.h.

◆ VPI_MAKE_YCbCr_IMAGE_FORMAT

#define VPI_MAKE_YCbCr_IMAGE_FORMAT	(	colorModel,
		colorSpec,
		chromaSubsamp,
		memLayout,
		dataType,
		swizzle,
		numPlanes,
		packing0,
		packing1,
		...
	)

Creates a user-defined YCbCr color image format constant.

Example to create a YUV422R ITU-R BT.709 full-range with SMPTE240M transfer function, block-linear format.

VPIImageFormat fmt = VPI_MAKE_YCbCr_IMAGE_FORMAT(VPI_MAKE_COLOR_SPEC_ABBREV(BT601, SMPTE240M, FULL),
                                                 VPI_CSS_422R, VPI_BLOCK_LINEAR, VPI_DATA_TYPE_UNSIGNED, VPI_SWIZZLE_XYZ0,
                                                 2, VPI_PACKING_X8, VPI_PACKING_X8_Y8);

Fourth plane (packing3) must have at most 64bpp.

Parameters

[in]	colorModel	VPIColorModel to be used.
[in]	colorSpec	VPIColorSpec to be used.
[in]	chromaSubsamp	VPIChromaSubsampling to be used.
[in]	memLayout	VPIMemLayout to be used.
[in]	dataType	VPIDataType to be used.
[in]	swizzle	VPISwizzle operation to be performed on the channels.
[in]	numPlanes	Number of planes this format has.
[in]	packing0,packing1,...	Format packing of each plane.

Returns: The user-defined image format.

Definition at line 338 of file ImageFormat.h.

◆ VPI_MAKE_YCbCr_IMAGE_FORMAT_ABBREV

#define VPI_MAKE_YCbCr_IMAGE_FORMAT_ABBREV	(	colorSpec,
		chromaSubsamp,
		memLayout,
		dataType,
		swizzle,
		numPlanes,
		packing0,
		packing1,
		...
	)

Creates a user-defined YCbCr color image format constant using abbreviated parameters.

This macro allows passing abbreviated format parameters (without the parameter type prefix). Example to create a YUV422 ITU-R BT.709 studio-range block-linear format.

VPIImageFormat fmt = VPI_MAKE_YCbCr_IMAGE_FORMAT_ABBREV(BT709, 422, BL, UNSIGNED, XYZ0, 2, X8, X8_Y8);

VPI_MAKE_YCbCr_IMAGE_FORMAT_ABBREV

#define VPI_MAKE_YCbCr_IMAGE_FORMAT_ABBREV(colorSpec, chromaSubsamp, memLayout, dataType, swizzle, numPlanes, packing0, packing1,...)

Creates a user-defined YCbCr color image format constant using abbreviated parameters.

Definition: ImageFormat.h:309

Fourth plane, packing3, must have at most 64bpp.

Parameters

[in]	colorSpec	VPIColorSpec to be used, without the VPI_COLOR_SPEC_ prefix.
[in]	chromaSubsamp	VPIChromaSubsampling to be used, without the VPI_CSS_ prefix.
[in]	memLayout	VPIMemLayout to be used, without the VPI_MEM_LAYOUT_ prefix.
[in]	dataType	VPIDataType to be used, without the VPI_DATA_TYPE_ prefix.
[in]	swizzle	VPISwizzle operation to be performed on the channels, without the VPI_SWIZZLE_ prefix.
[in]	numPlanes	Number of planes this format has.
[in]	packing0,packing1,...	Format packing of each plane, without the VPI_PACKING_ prefix.

Returns: The user-defined image format.

Definition at line 309 of file ImageFormat.h.

Function Documentation

◆ vpiImageFormatGetBitsPerChannel()

void vpiImageFormatGetBitsPerChannel	(	VPIImageFormat	fmt,
		int32_t *	bits
	)

Get the image format's bit size for each channel.

Parameters

[in]	fmt	Image format to be queried.
[out]	bits	Pointer to an int32_t array with 4 elements where output will be stored. If it's NULL, the function is a no-op.

◆ vpiImageFormatGetChannelCount()

int vpiImageFormatGetChannelCount ( VPIImageFormat fmt )

Get the total number of channels of an image format.

Parameters

[in] fmt Image format to be queried.

Returns: The sum of all channel counts in all planes.

◆ vpiImageFormatGetChromaSubsampling()

VPIChromaSubsampling vpiImageFormatGetChromaSubsampling ( VPIImageFormat fmt )

Get the image format's chroma subsampling type.

Parameters

[in] fmt Image format to be queried.

Returns: The image format's chroma subsampling type. It returns VPI_CSS_NONE if format's color model isn't VPI_COLOR_MODEL_YCbCr

◆ vpiImageFormatGetColorModel()

VPIColorModel vpiImageFormatGetColorModel ( VPIImageFormat fmt )

Get the image format's color model.

Parameters

[in] fmt Image format to be queried.

Returns: The image format's color model.

◆ vpiImageFormatGetColorSpec()

VPIColorSpec vpiImageFormatGetColorSpec ( VPIImageFormat fmt )

Get the image format's color standard.

Parameters

[in] fmt Image format to be queried.

Returns: The image format's color standard, or VPI_COLOR_SPEC_UNDEFINED if it's not applicable, i.e., format model isn't RGB, YCbCr, HSV or HSL.

◆ vpiImageFormatGetDataType()

VPIDataType vpiImageFormatGetDataType ( VPIImageFormat fmt )

Get the image format's data type.

Parameters

[in] fmt Image format to be queried.

Returns: The image format's data type.

◆ vpiImageFormatGetFourCC()

uint32_t vpiImageFormatGetFourCC ( VPIImageFormat fmt )

Returns the FourCC code corresponding to an image format.

Parameters

[in] fmt Image format to be queried.

Returns: The FourCC code corresponding to the image format.

◆ vpiImageFormatGetMemLayout()

VPIMemLayout vpiImageFormatGetMemLayout ( VPIImageFormat fmt )

Get the image format's memory layout.

Parameters

[in] fmt Image format to be queried.

Returns: The image format's memory layout.

◆ vpiImageFormatGetName()

const char* vpiImageFormatGetName ( VPIImageFormat fmt )

Returns a string representation of the image format.

Parameters

[in] fmt Image format whose name is to be returned.

Returns: The string representation of the image format. Returned string is valid until next call of this function from the same calling thread.

◆ vpiImageFormatGetPlaneBitsPerPixel()

int vpiImageFormatGetPlaneBitsPerPixel	(	VPIImageFormat	fmt,
		int	plane
	)

Get the image format's plane bits per pixel count.

Parameters

[in]	fmt	Image format to be queried.
[in]	plane	Which plane is to be queried. Valid values range from 0 (first plane) to 3 (fourth plane).

Returns: The number of bits per pixel the given format plane has.

◆ vpiImageFormatGetPlaneChannelCount()

int vpiImageFormatGetPlaneChannelCount	(	VPIImageFormat	fmt,
		int	plane
	)

Get the number of channels in a plane of an image format.

Parameters

[in]	fmt	Image format to be queried.
[in]	plane	Plane to be queried. Valid values range from 0 (first) to 3 (fourth and last) plane.

Returns: Number of channels in the given plane.

◆ vpiImageFormatGetPlaneCount()

int vpiImageFormatGetPlaneCount ( VPIImageFormat fmt )

Get the number of planes of an image format.

Parameters

[in] fmt Image format to be queried.

Returns: Number of planes defined by the given image format.

◆ vpiImageFormatGetPlaneFormat()

VPIImageFormat vpiImageFormatGetPlaneFormat	(	VPIImageFormat	fmt,
		int	plane
	)

Get the plane format of an image format.

Parameters

[in]	fmt	Image format to be queried.
[in]	plane	Plane to be queried. Valid values range from 0 (first) to 3 (fourth and last) plane.

Returns: The image format of the given plane.

◆ vpiImageFormatGetPlanePacking()

VPIPacking vpiImageFormatGetPlanePacking	(	VPIImageFormat	fmt,
		int	plane
	)

Get the packing for a given plane of an image format.

Parameters

[in]	fmt	Image format to be queried.
[in]	plane	Which plane whose packing must be returned. Valid values range from 0 (first plane) to 3 (fourth plane).

Returns: The plane's format packing, or VPI_PACKING_0 if the format doesn't have the given plane.

◆ vpiImageFormatGetPlanePixelType()

VPIPixelType vpiImageFormatGetPlanePixelType	(	VPIImageFormat	fmt,
		int	plane
	)

Get the pixel type of image format's plane.

Parameters

[in]	fmt	Image format to be queried.
[in]	plane	Plane to be queried. Valid values range from 0 (first) to 3 (fourth and last) plane.

Returns: The pixel type of the given plane.

◆ vpiImageFormatGetPlaneSwizzle()

VPISwizzle vpiImageFormatGetPlaneSwizzle	(	VPIImageFormat	fmt,
		int	plane
	)

Get the swizzle operation of the given image format's plane.

Parameters

[in]	fmt	Image format to be queried.
[in]	plane	Plane to be queried. Valid values range from 0 (first) to 3 (fourth and last) plane.

Returns: The channel swizzle operation performed in the given plane.

◆ vpiImageFormatGetRawPattern()

VPIRawPattern vpiImageFormatGetRawPattern ( VPIImageFormat fmt )

Returns the raw color pattern of the image format.

Parameters

[in] fmt Image format to be queried.

Returns: If image format's color model is VPI_COLOR_MODEL_RAW, the corresponding raw pattern will be returned, or else VPI_RAW_INVALID.

◆ vpiImageFormatGetSwizzle()

VPISwizzle vpiImageFormatGetSwizzle ( VPIImageFormat fmt )

Get the image format's channel swizzle operation.

Parameters

[in] fmt Image format to be queried.

Returns: The image format's swizzle operation.

◆ vpiImageFormatHasSameDataLayout()

int vpiImageFormatHasSameDataLayout	(	VPIImageFormat	a,
		VPIImageFormat	b
	)

Returns whether the image formats have the same data layout.

Data layout referts to how pixels are laid out in memory. It doesn't take into account the format's color information.

The following characteristics are taken into account:

memory layout (block linear, pitch linear, ...)
data type (signed, unsigned, float, ...)
Swizzle (except for 1/0 in 4th channel)
number of planes
packings (X8_Y8, X16, ...)
chroma subsampling (4:4:4, 4:2:0, ...)

Parameters

[in] a,b Image formats to be compared.

Return values

1	If both image formats compares equal with respect to how pixels are laid out in memory.
0	If both image formats compares differently.

◆ vpiImageFormatSetChromaSubsampling()

VPIImageFormat vpiImageFormatSetChromaSubsampling	(	VPIImageFormat	fmt,
		VPIChromaSubsampling	css
	)

Set the image format's chroma subsampling type.

It's only applicable with YCbCr color model.

Parameters

[in]	fmt	Image format have its chroma subsampling type replaced.
[in]	css	The new chroma subsampling type.

Returns: The new image format based on input's, but with the user-provided chroma subsampling type. Returns VPI_CSS_NONE if model isn't VPI_COLOR_MODEL_YCbCr.

◆ vpiImageFormatSetColorSpec()

VPIImageFormat vpiImageFormatSetColorSpec	(	VPIImageFormat	fmt,
		VPIColorSpec	colorSpec
	)

Set the image format's color standard.

Only valid for color models that represent image coding systems, such as RGB, Y'CrCb, HSV, etc. For other color models, it'll return VPI_IMAGE_FORMAT_INVALID.

Parameters

[in]	fmt	Image format have its color spec replaced.
[in]	colorSpec	The new color standard.

Returns: The new image format based on input's, but with the user-provided color spec, or VPI_IMAGE_FORMAT_INVALID if color standard isn't applicable to format's color model.

◆ vpiImageFormatSetDataType()

VPIImageFormat vpiImageFormatSetDataType	(	VPIImageFormat	fmt,
		VPIDataType	dataType
	)

Set the image format's data type.

Parameters

[in]	fmt	Image format have its data type replaced.
[in]	dataType	The new data type.

Returns: The new image format based on input's, but with the user-provided data type.

◆ vpiImageFormatSetMemLayout()

VPIImageFormat vpiImageFormatSetMemLayout	(	VPIImageFormat	fmt,
		VPIMemLayout	memLayout
	)

Set the image format's memory layout.

Parameters

[in]	fmt	Image format have its memory layout replaced.
[in]	memLayout	The new memory layout.

Returns: The new image format based on input's, but with the user-provided memory layout.

◆ vpiImageFormatSetRawPattern()

VPIImageFormat vpiImageFormatSetRawPattern	(	VPIImageFormat	fmt,
		VPIRawPattern	rawPattern
	)

Sets the raw color pattern of the image format.

Parameters

[in]	fmt	Image format to be updated.
[in]	rawPattern	The new raw pattern.

Returns: If image format's color model is VPI_COLOR_MODEL_RAW, the new image format with the updated raw pattern will be returned, or else VPI_IMAGE_FORMAT_INVALID.

◆ vpiImageFormatSetSwizzleAndPacking()

VPIImageFormat vpiImageFormatSetSwizzleAndPacking	(	VPIImageFormat	fmt,
		VPISwizzle	swizzle,
		VPIPacking	packing0,
		VPIPacking	packing1,
		VPIPacking	packing2,
		VPIPacking	packing3
	)

Replaces the swizzle and packing of an existing image format.

If replacing the fourth (plane==3) packing, the packing's bits per pixel must be at most 64.

The number of channels represented by the swizzle must be equal to the sum of the number of channels represented by the packings. For instance, XYZ1,X8,X8Y8 is a valid combination with 3 channels. XYZW,X8,X8Y8 isn't as swizzle has 4 channels, and X8,X8Y8 represents in total 3 channels.

Parameters

[in]	fmt	Image format to have its packing replaced.
[in]	swizzle	The new swizzle. Pass VPI_SWIZZLE_INVALID if swizzle must not be updated.
[in]	packing0,packing1,packing2,packing3	New packing. Pass VPI_PACKING_INVALID if the packing for a particular plane must not be updated.

Returns: Updated image format, or VPI_IMAGE_FORMAT_INVALID if operation is invalid.

◆ vpiMakeColorImageFormat()

VPIImageFormat vpiMakeColorImageFormat	(	VPIColorModel	colorModel,
		VPIColorSpec	colorSpec,
		VPIMemLayout	memLayout,
		VPIDataType	dataType,
		VPISwizzle	swizzle,
		VPIPacking	packing0,
		VPIPacking	packing1,
		VPIPacking	packing2,
		VPIPacking	packing3
	)

Creates a user-defined color image format.

When the pre-defined image formats aren't enough, user-defined image formats can be created.

Warning: It's not guaranteed that algorithms will work correctly with use-defined image formats. It's recommended to check if the results are correct prior deploying the solution in a production environment.

If the color model is VPI_COLOR_MODEL_YCbCr, it's assumed that the chroma subsampling is 4:4:4, i.e, VPI_CSS_444.

Fourth plane (packing3) must have at most 64bpp.

Parameters

[in]	colorModel	VPIColorModel to be used.
[in]	colorSpec	VPIColorSpec to be used.
[in]	memLayout	VPIMemLayout to be used.
[in]	dataType	VPIDataType to be used.
[in]	swizzle	VPISwizzle operation to be performed on the channels.
[in]	packing0,packing1,packing2,packing3	Format packing of each plane. When remaining planes aren't needed, pass VPI_PACKING_0 for them.

Returns: The user-defined image format.

◆ vpiMakeImageFormatFromFourCC()

VPIImageFormat vpiMakeImageFormatFromFourCC	(	uint32_t	fourcc,
		VPIColorSpec	colorSpec,
		VPIMemLayout	memLayout
	)

Creates a image format from a FourCC code.

See https://www.fourcc.org for more information about FourCC.

Parameters

[in]	fourcc	FourCC code.
[in]	colorSpec	VPIColorSpec to be used.
[in]	memLayout	VPIMemLayout to be used.

Returns: The image format corresponding to the FourCC code.

◆ vpiMakeImageFormatFromPlanes()

VPIImageFormat vpiMakeImageFormatFromPlanes	(	VPIImageFormat	plane0,
		VPIImageFormat	plane1,
		VPIImageFormat	plane2,
		VPIImageFormat	plane3
	)

Constructs an image format given the format of each plane.

Parameters

[in] plane0,plane1,plane2,plane3 Image format of each plane. When plane doesn't exist, pass VPI_IMAGE_FORMAT_INVALID.

Returns: The image format whose planes has the given formats.

◆ vpiMakeNonColorImageFormat()

VPIImageFormat vpiMakeNonColorImageFormat	(	VPIMemLayout	memLayout,
		VPIDataType	dataType,
		VPISwizzle	swizzle,
		VPIPacking	packing0,
		VPIPacking	packing1,
		VPIPacking	packing2,
		VPIPacking	packing3
	)

Creates a user-defined non-color image format.

When the pre-defined non-color image formats aren't enough, it is possible to define new ones.

Warning: It's not guaranteed that algorithms will work correctly with use-defined image formats. It's recommended to check if the results are correct prior deploying the solution in a production environment.

Fourth plane (packing3) must have at most 64bpp.

Parameters

[in]	memLayout	VPIMemLayout to be used.
[in]	dataType	VPIDataType to be used.
[in]	swizzle	VPISwizzle operation to be performed on the channels.
[in]	packing0,packing1,packing2,packing3	Format packing of each plane. When remaining planes aren't needed, pass VPI_PACKING_0 for them.

Returns: The user-defined image format.

◆ vpiMakeRawImageFormat()

VPIImageFormat vpiMakeRawImageFormat	(	VPIRawPattern	rawPattern,
		VPIMemLayout	memLayout,
		VPIDataType	dataType,
		VPISwizzle	swizzle,
		VPIPacking	packing0,
		VPIPacking	packing1,
		VPIPacking	packing2,
		VPIPacking	packing3
	)

Creates a user-defined raw image format.

When the pre-defined raw image formats aren't enough, it is possible to define new ones.

Warning: It's not guaranteed that algorithms will work correctly with use-defined image formats. It's recommended to check if the results are correct prior deploying the solution in a production environment.

Fourth plane (packing3) must have at most 64bpp.

Parameters

[in]	rawPattern	VPIRawPattern to be used.
[in]	memLayout	VPIMemLayout to be used.
[in]	dataType	VPIDataType to be used.
[in]	swizzle	VPISwizzle operation to be performed on the channels.
[in]	packing0,packing1,packing2,packing3	Format packing of each plane. When remaining planes aren't needed, pass VPI_PACKING_0 for them.

Returns: The user-defined image format.

◆ vpiMakeYCbCrImageFormat()

VPIImageFormat vpiMakeYCbCrImageFormat	(	VPIColorSpec	colorSpec,
		VPIChromaSubsampling	chromaSub,
		VPIMemLayout	memLayout,
		VPIDataType	dataType,
		VPISwizzle	swizzle,
		VPIPacking	packing0,
		VPIPacking	packing1,
		VPIPacking	packing2,
		VPIPacking	packing3
	)

Creates a user-defined YCbCr color image format.

When the pre-defined image formats aren't enough, user-defined image formats can be created.

Warning: It's not guaranteed that algorithms will work correctly with use-defined image formats. It's recommended to check if the results are correct prior deploying the solution in a production environment.

Fourth plane (packing3) must have at most 64bpp.

Parameters

[in]	colorSpec	VPIColorSpec to be used.
[in]	chromaSub	VPIChromaSubsampling to be used.
[in]	memLayout	VPIMemLayout to be used.
[in]	dataType	VPIDataType to be used.
[in]	swizzle	VPISwizzle operation to be performed on the channels.
[in]	packing0,packing1,packing2,packing3	Format packing of each plane. When remaining planes aren't needed, pass VPI_PACKING_0 for them.

Returns: The user-defined image format.

VPI - Vision Programming Interface

1.1 Release

Detailed Description

Macro Definition Documentation

◆ VPI_MAKE_COLOR_IMAGE_FORMAT

◆ VPI_MAKE_COLOR_IMAGE_FORMAT_ABBREV

◆ VPI_MAKE_NONCOLOR_IMAGE_FORMAT

◆ VPI_MAKE_NONCOLOR_IMAGE_FORMAT_ABBREV

◆ VPI_MAKE_RAW_IMAGE_FORMAT

◆ VPI_MAKE_RAW_IMAGE_FORMAT_ABBREV

◆ VPI_MAKE_YCbCr_IMAGE_FORMAT

◆ VPI_MAKE_YCbCr_IMAGE_FORMAT_ABBREV

Function Documentation

◆ vpiImageFormatGetBitsPerChannel()

◆ vpiImageFormatGetChannelCount()

◆ vpiImageFormatGetChromaSubsampling()

◆ vpiImageFormatGetColorModel()

◆ vpiImageFormatGetColorSpec()

◆ vpiImageFormatGetDataType()

◆ vpiImageFormatGetFourCC()

◆ vpiImageFormatGetMemLayout()

◆ vpiImageFormatGetName()

◆ vpiImageFormatGetPlaneBitsPerPixel()

◆ vpiImageFormatGetPlaneChannelCount()

◆ vpiImageFormatGetPlaneCount()

◆ vpiImageFormatGetPlaneFormat()

◆ vpiImageFormatGetPlanePacking()

◆ vpiImageFormatGetPlanePixelType()

◆ vpiImageFormatGetPlaneSwizzle()

◆ vpiImageFormatGetRawPattern()

◆ vpiImageFormatGetSwizzle()

◆ vpiImageFormatHasSameDataLayout()

◆ vpiImageFormatSetChromaSubsampling()

◆ vpiImageFormatSetColorSpec()

◆ vpiImageFormatSetDataType()

◆ vpiImageFormatSetMemLayout()

◆ vpiImageFormatSetRawPattern()

◆ vpiImageFormatSetSwizzleAndPacking()

◆ vpiMakeColorImageFormat()

◆ vpiMakeImageFormatFromFourCC()

◆ vpiMakeImageFormatFromPlanes()

◆ vpiMakeNonColorImageFormat()

◆ vpiMakeRawImageFormat()

◆ vpiMakeYCbCrImageFormat()
