RIC Platform
The Northeastern University (NEU) WIoT team supporting the Northeastern 8-node NVIDIA ARC deployment is working toward E2E integration of an O-RAN E2 interface with the ARC stack, leveraging the O-RAN OSC RIC, OpenRAN Gym framework.

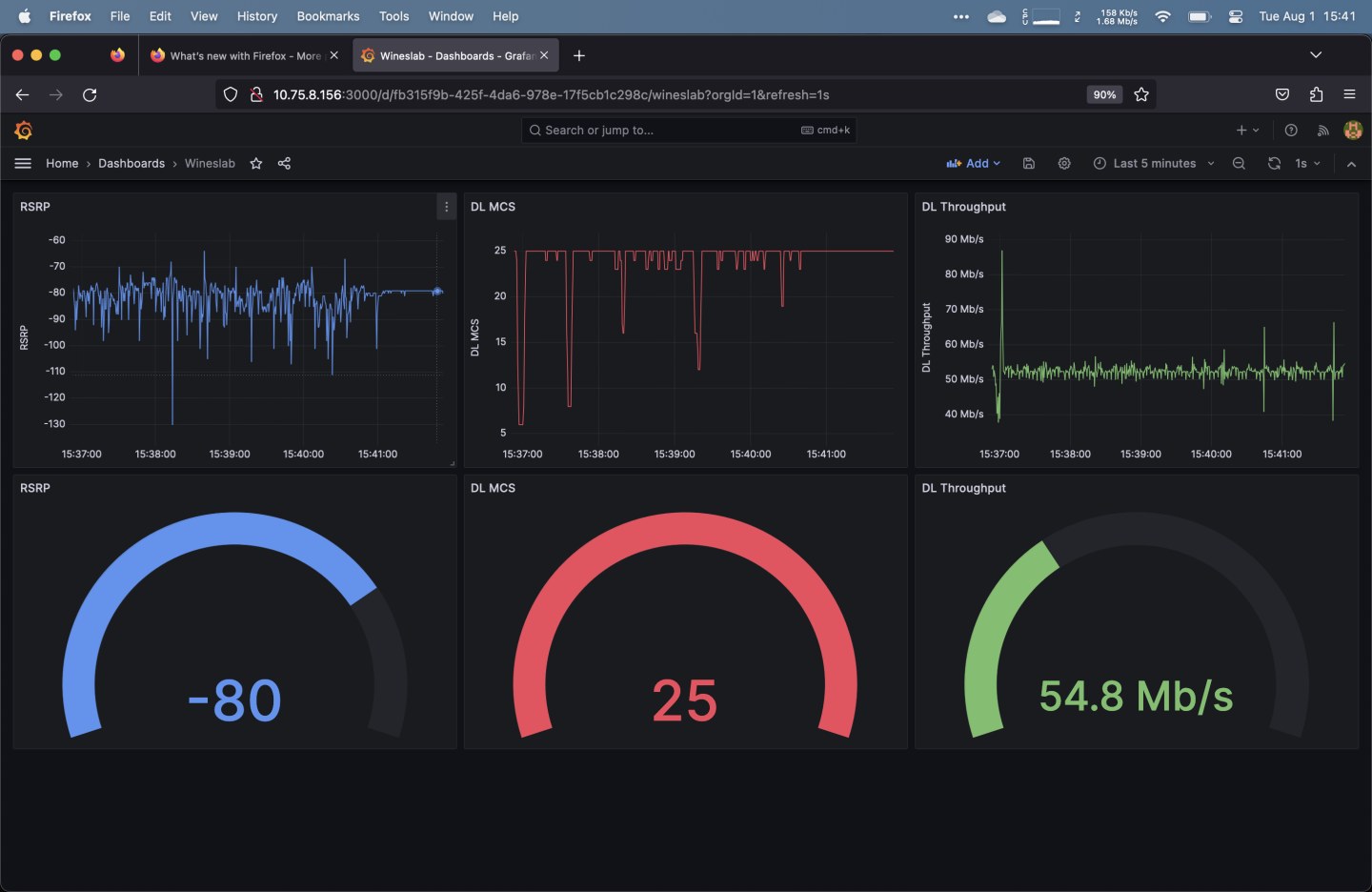

This enables the streaming of relevant key performance metrics (KPMs) and the enforcement of control actions to reflect decisions taken by the xApps on a Near-Real-Time (Near-RT) RAN Intelligent Controller (RIC). An initial demonstration in July 2023 has showcased a data-collection xApp running on an O-RAN Software Community (OSC) RIC, deployed in a fully automated OpenShift cluster. The xApp is connected to an InfluxDB database to store the telemetry and present it on a Grafana dashboard. We are currently working toward enabling near-RT control on the same infrastructure.
![neu-kpm-dashboard.png](https://docscontent.nvidia.com/dims4/default/2f22ba8/2147483647/strip/true/crop/2940x1912+0+0/resize/1440x936!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fsphinx%2F0000018b-8188-dab5-abab-c7f8c8930000%2Faerial%2Faerial-research-cloud%2Farchive%2F23.1.a0.5%2F_images%2Fneu-kpm-dashboard.png)
Relevant Links Near Realtime RAN Intelligent Controller (RIC) - RIC Platform
O-RAN OSC RIC https://wiki.o-ran-sc.org/pages/viewpage.action?pageId=1179659
OpenRAN Gym https://openrangym.com
Reference to Distributed Applications (dApps) workflow for Real-Time Inference and Control in O-RAN https://ieeexplore.ieee.org/document/9846950
