Installation Guide

Integrating and deploying Aerial Research and Innovation platform(ARIA) network for Advanced 5G and 6G

Integrating and deploying Aerial Innovation Platform for Advanced 5G and 6G research can be described in the following steps:

  • Chapter 1: Procure all the required hardware based on the published BOM in this document

  • Chapter 2: Configure the network hardware

  • Chapter 3: Install the software to match the published release manifest

  • Chapter 4: Validate the setup by successfully running bi-directional UDP traffic as described

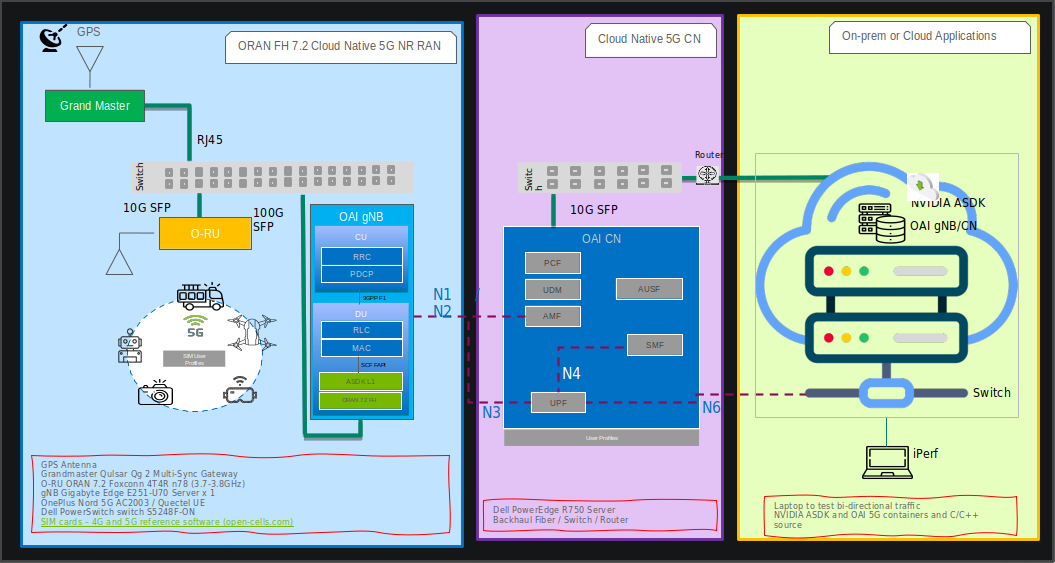

The rest of this document provides the step-by-step description to enable early research testbed staging, integrating, configuration and validate network go-live with IP traffic

Procure all the hardware listed in the BOM below.

5G Infrastructure Blueprint HW BOM

Note

Unless specific solution architecture based on use case differs, all components required in unit of 1

Aerial gNB Gigabyte Edge E251-U70 Server x 1 with CPU Intel Xeon Gold 6240R, 2.4GHz, 24C48T, Memory 96GB DDR4, Storage 480GB LiteOn SSD x1. GPU GA100 x1, NIC x1 MLX CX6-DX MCX623106AE-CDAT)
CN Dell PowerEdge R750 Server
FrountHaul(FH) Switch Dell PowerSwitch S5248F-ON
Fibrolan Falcon RX
GrandMaster(GM) QULSAR Qg 2 Multi-Sync Gateway
O-RUs supported

5G Infra Component

HW Manifest

ORU Configuration Freq Band
Foxconn RPQN-7801E 4T4R 3.7GHz - 3.8GHz (indoors)
UEs supported
UE Configuration
Handset OnePlus Nord 5G AC2003 EU/UK Model SU-MIMO 2DL, 1UL
Handset Oppo Reno 5G SU-MIMO 2DL, 1UL
Quectel RM500Q-GL UE SU-MIMO 2DL, 1UL
Cables Dell C2G 1m LC-LC 50/125 Duplex Multimode OM4 Fiber Cable - Aqua - 3ft – Optical patch cable
NVIDIA MCP1600-C001E30N DAC Cable Ethernet 100GbE QSFP28 1m
Beyondtech 5m (16ft) LC UPC to LC UPC Duplex OM3 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable
CableCreation 3ft Cat5/Cat6 Ethernet Cables
PDUs Tripp Lite 1.4kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (8 5-15R), 5-15P, 12ft Cord, 1U Rack-Mount, TAA
Transceivers Finisar SFP-to-RJ45 Transceiver
Intel Ethernet SFP+SR Optics
Dell SFP28-25G-SR Transceiver
Ethernet Switch Netgear ProSafe Plus JGS524E Rackmount
iPerf Laptop Connected to the switch (10G ethernet)

Refer to the tutorials for help with these installation steps.

Configuration Steps

  1. Setup the GrandMaster

  2. Setup the switch

  3. Setup PTP

  4. Setup Foxconn O-RU

Chapter 2.1 Setup the Qulsar GrandMaster

Step 1.

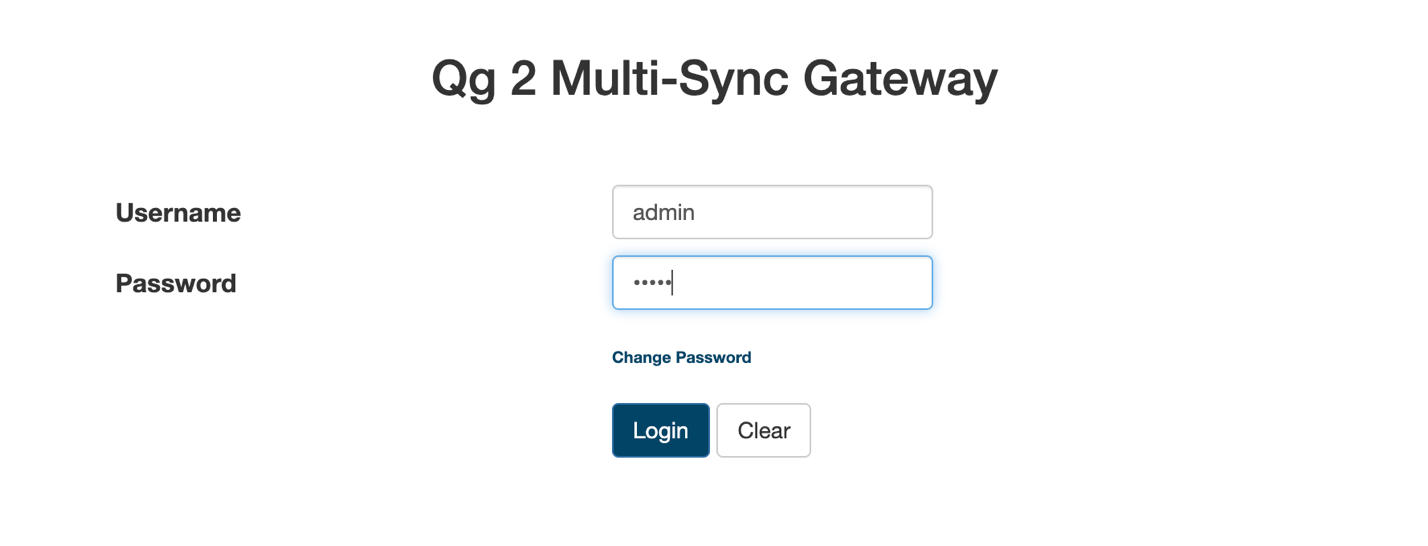

Follow the user guide to setup the MGMT connection



Step 2.

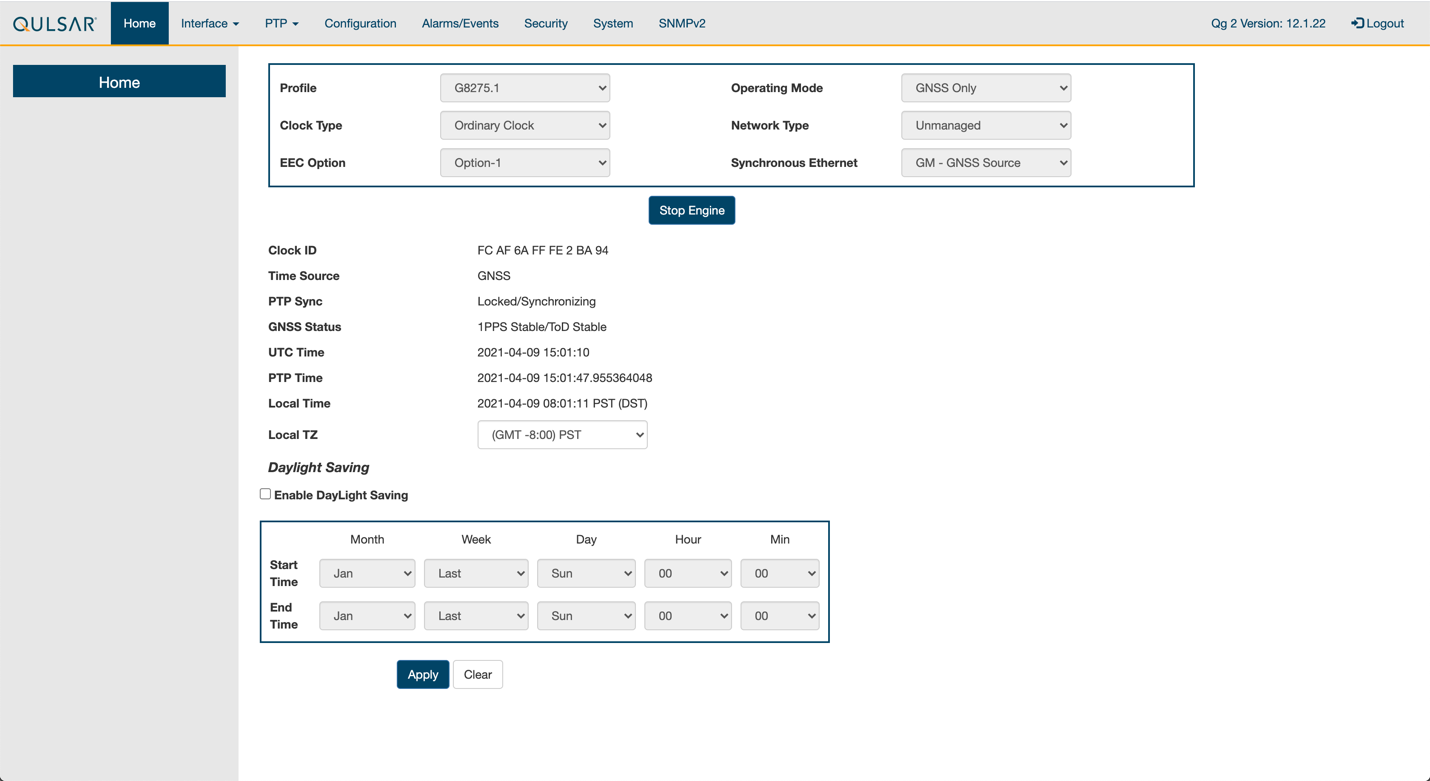

Set the operating mode to GNSS Only, and other fields as such, then run Start Engine



Step 3.

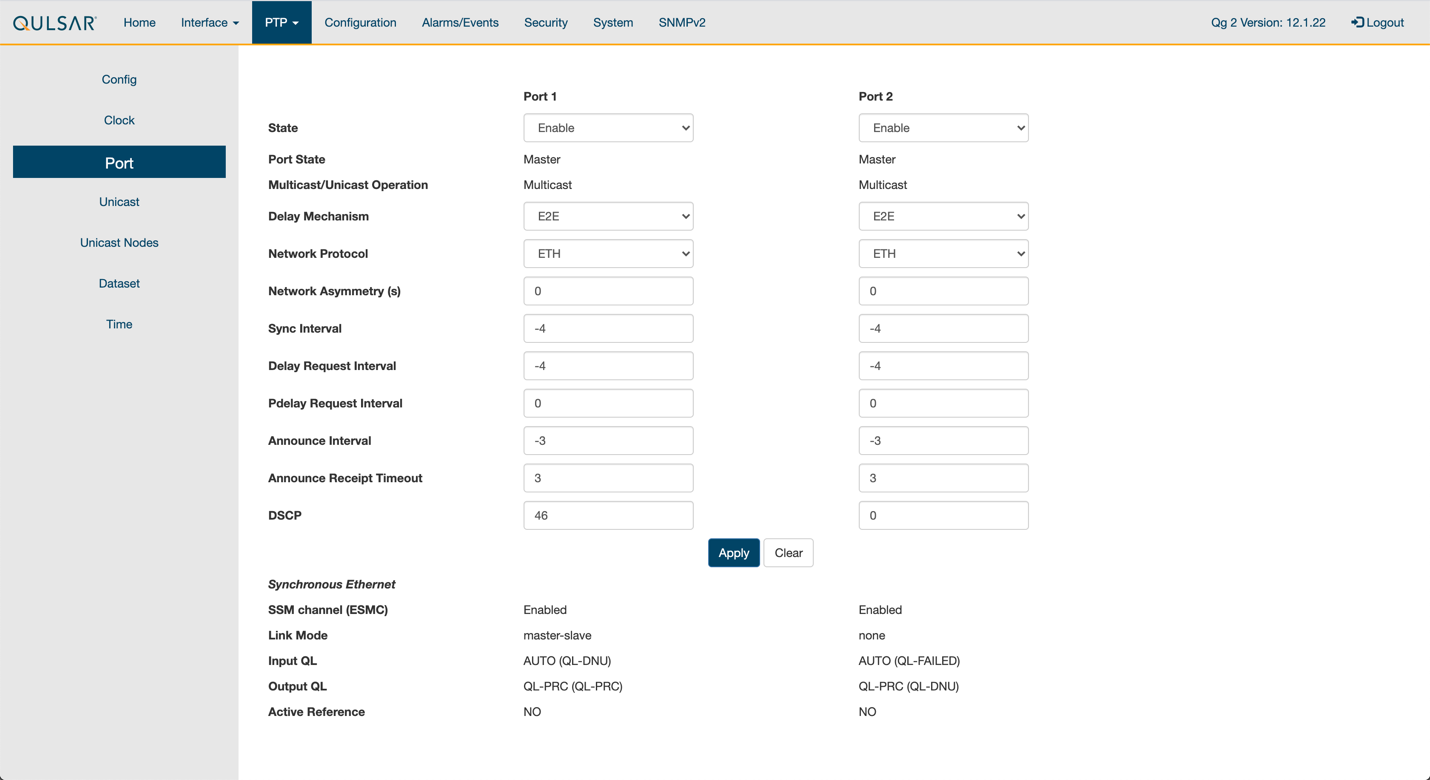

Enable the ports on the GrandMaster with the 8275.1 Profile configurations



Step 4.

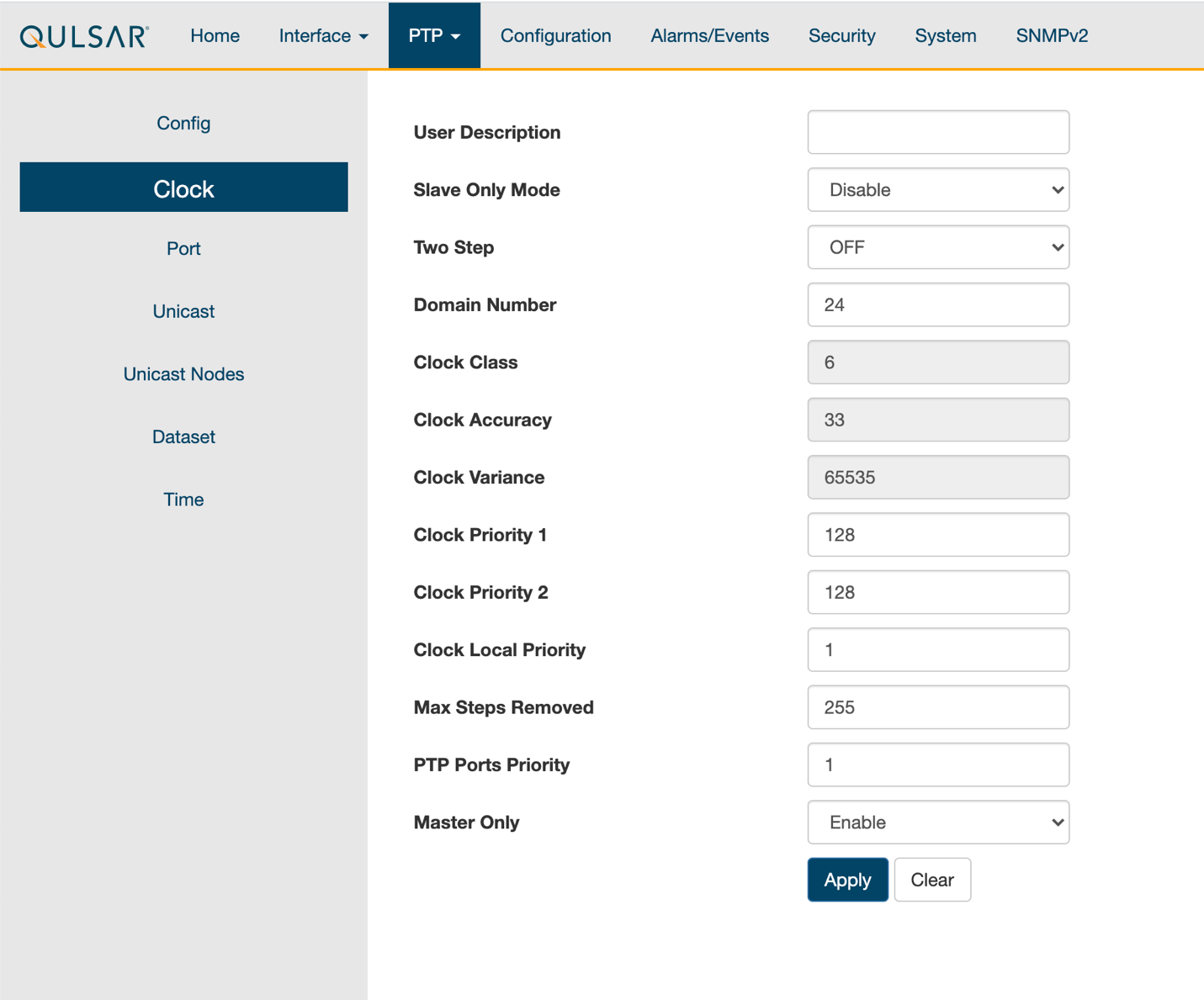

Configure the clock configs as such:



Step 5.

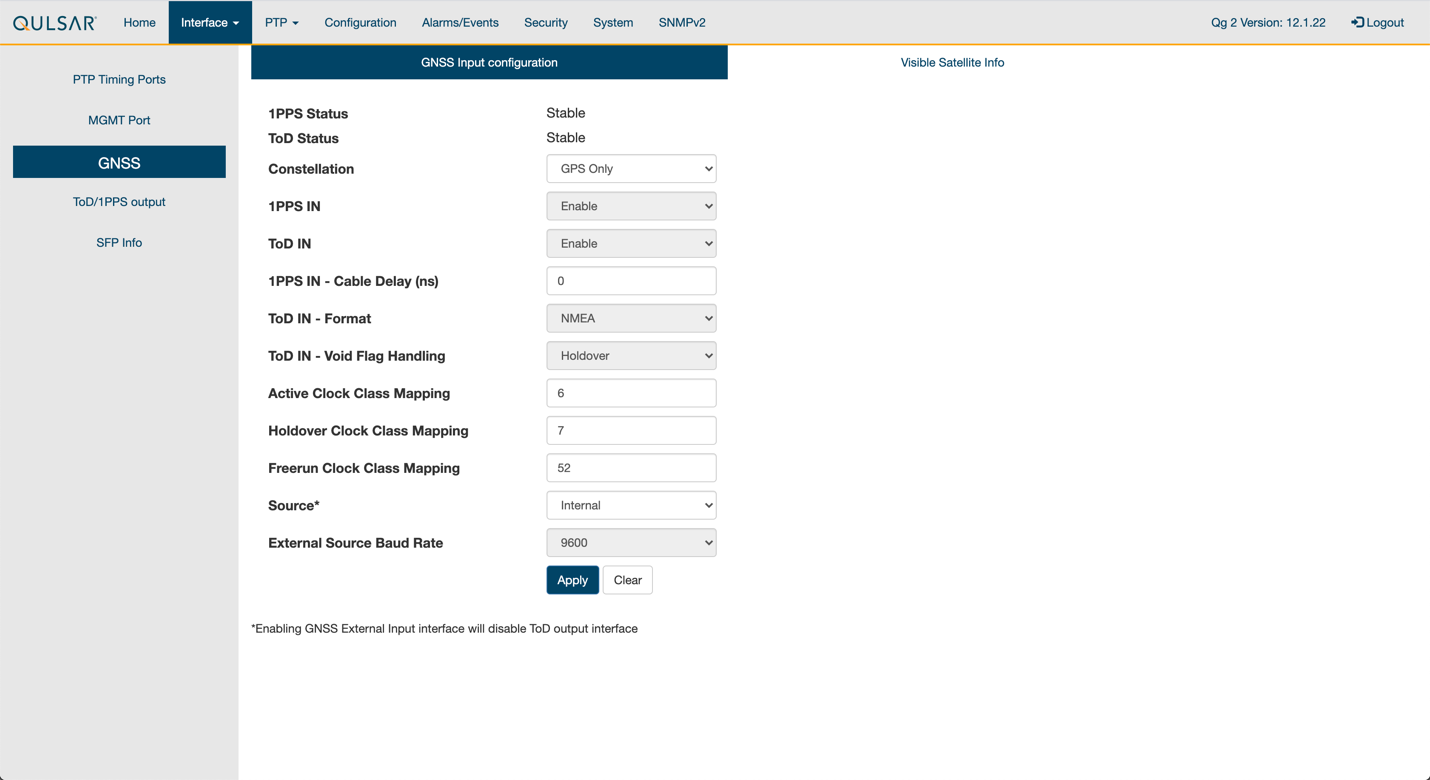

GPS configuration values were unchanged from the default settings of QG2



Step 6.

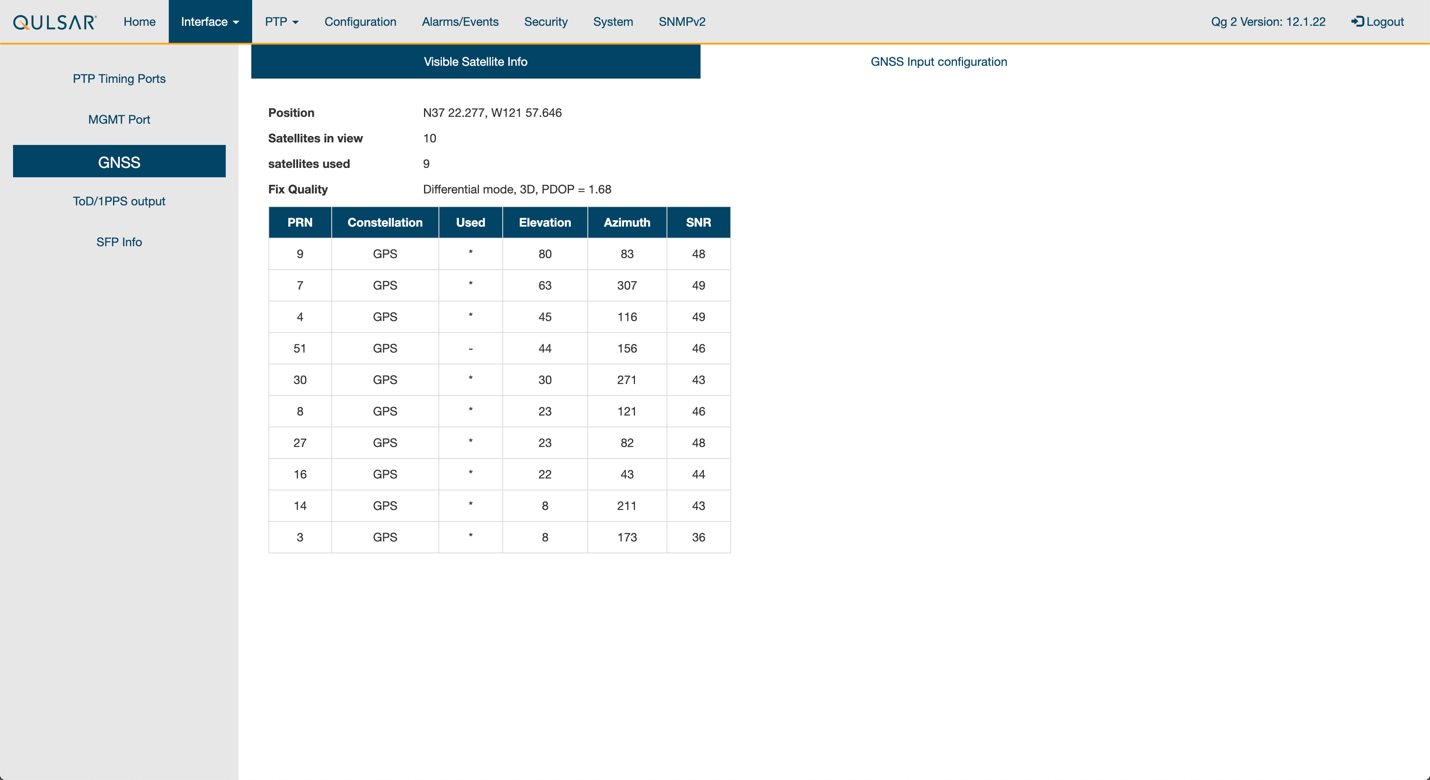

Verify that the GPS Signal reaches the GrandMaster:


Chapter 2.2 Switch setup

Chapter 2.2.1 Dell Switch

In the following example the RUs are on ports 1 and 7, the GrandMaster is on port 5, the CN is on ports 11 and 12, and the gNB ports are connected to ports 49 and 51 all on vlan 2.

Set up MGMT access to the switch

Enable PTP on the switch:

Copy
Copied!


OS10# configure terminal OS10(config)# ptp clock boundary profile g8275.1 ptp domain 24 ptp system-time enable !

Configure the GrandMaster port:

Copy
Copied!


OS10(config)# interface ethernet 1/1/5:1 no shutdown no switchport ip address 169.254.2.1/24 flowcontrol receive off ptp delay-req-min-interval -4 ptp enable ptp sync-interval -4 ptp transport layer2 !

Configure the other ports (repeat as necessary):

Copy
Copied!


OS10(config)# interface ethernet1/1/1:1 no shutdown switchport mode trunk switchport trunk allowed vlan 2 mtu 8192 flowcontrol receive off ptp enable ptp transport layer2 !

Check the PTP status:

Copy
Copied!


OS10# show ptp | no-more PTP Clock : Boundary Clock Identity : b0:4f:13:ff:ff:46:63:5f GrandMaster Clock Identity : fc:af:6a:ff:fe:02:bc:8d Clock Mode : One-step Clock Quality Class : 135 Accuracy : <=100ns Offset Log Scaled Variance : 65535 Domain : 24 Priority1 : 128 Priority2 : 128 Profile : G8275-1(Local-Priority:-128) Steps Removed : 1 Mean Path Delay(ns) : 637 Offset From Master(ns) : 1 Number of Ports : 8 ---------------------------------------------------------------------------- Interface State Port Identity ---------------------------------------------------------------------------- Ethernet1/1/1:1 Master b0:4f:13:ff:ff:46:63:5f:1 Ethernet1/1/3:1 Master b0:4f:13:ff:ff:46:63:5f:3 Ethernet1/1/5:1 Slave b0:4f:13:ff:ff:46:63:5f:5 Ethernet1/1/7:1 Master b0:4f:13:ff:ff:46:63:5f:8 Ethernet1/1/11 Master b0:4f:13:ff:ff:46:63:5f:4 Ethernet1/1/49 Master b0:4f:13:ff:ff:46:63:5f:9 Ethernet1/1/51 Master b0:4f:13:ff:ff:46:63:5f:10 Ethernet1/1/54 Master b0:4f:13:ff:ff:46:63:5f:2 ---------------------------------------------------------------------------- Number of slave ports :1 Number of master ports :7


Chapter 2.2.2 Fibrolan Falcon RX Setup

Although the Fibrolan switch has not be qualified in NVIDIA lab, OAI labs incorporate the following configuration and switch for interoperability


To get started follow the Fibrolan Getting Started Guide.

In our setup the Qulsar GrandMaster is connected to port 4, the Aerial SDK to port 17, and the Foxconn RU to port 16 (C/U plane) and port 15 (S/M plane). You can ignore all other ports in the figures[A][B] below.

VLAN setup

In the following we assume that the VLAN tag for both the control plane and the user plane of the O-RAN CU plane is 2. VLAN 80 is used for everything else.


Figure A - Vlan Setup

Open the configuration page of the Fibrolan switch, go to configuration -> VLANs. Port 4 (the Qulsar GrandMaster) needs to be configured in Access mode using and setting the port VLAN to 80.


Figure B - Vlan Setup

Use the same configuration for port 15 (RU S/M plane).

Ports 16 and 17 need to be configured in Trunk mode, port VLAN 80, Untag Port VLAN, Allowed VLANs 80,2

DHCP setup

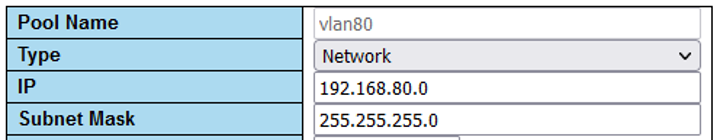

The RU M-plane requires to setup a DHCP server. Go to Configuration -> DHCP -> server -> pool and create a new DHCP server with the following settings



PTP setup

For the PTP setup, first follow the Fibrolan “PTP Boundary Clock Configuration” guide with the following specific settings: • Device Type “Ord-Bound” • Profile “G8275.1” • Clock domain 24 • VLAN 80 Also make sure you enable the used ports (4,15,16,17 in our case)

We also recommend to use “hybrid mode” as sync mode.

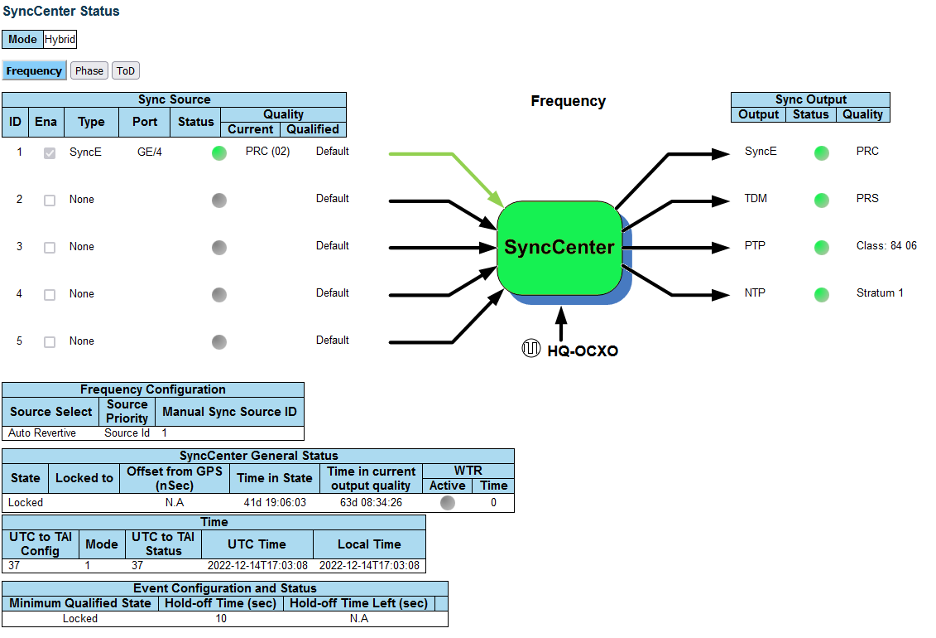

If everything is configured correctly, the Sync Center should be green


Chapter 2.3 PTP Setup

Step 1.

Enter these commands to configure PTP4L assuming the ens6f0 NIC interface and CPU core 20 are used for PTP:

Copy
Copied!


cat <<EOF | sudo tee /etc/ptp.conf [global] priority1 128 priority2 128 domainNumber 24 tx_timestamp_timeout 30 dscp_event 46 dscp_general 46 logging_level 6 verbose 1 use_syslog 0 logMinDelayReqInterval 1 [ens6f0] logAnnounceInterval -3 announceReceiptTimeout 3 logSyncInterval -4 logMinDelayReqInterval -4 delay_mechanism E2E network_transport L2 EOF cat <<EOF | sudo tee /lib/systemd/system/ptp4l.service [Unit] Description=Precision Time Protocol (PTP) service Documentation=man:ptp4l [Service] Restart=always RestartSec=5s Type=simple ExecStart=taskset -c 20 /usr/sbin/ptp4l -f /etc/ptp.conf [Install] WantedBy=multi-user.target EOF $ sudo systemctl daemon-reload $ sudo systemctl restart ptp4l.service $ sudo systemctl enable ptp4l.service


Step 2.

One server will become the master clock, as shown below:

Copy
Copied!


$ sudo systemctl status ptp4l.service • ptp4l.service - Precision Time Protocol (PTP) service Loaded: loaded (/lib/systemd/system/ptp4l.service; enabled; vendor preset: enabled) Active: active (running) since Thu 2022-02-03 22:41:35 UTC; 4min 47s ago Docs: man:ptp4l Main PID: 1112 (ptp4l) Tasks: 1 (limit: 94582) Memory: 904.0K CGroup: /system.slice/ptp4l.service └─1112 /usr/sbin/ptp4l -f /etc/ptp.conf Feb 03 22:41:44 dc6-devkit-18 taskset[1112]: ptp4l[135.371]: selected local clock b8cef6.fffe.33fdee as best master Feb 03 22:41:44 dc6-devkit-18 taskset[1112]: ptp4l[135.371]: assuming the grand master role Feb 03 22:41:44 dc6-devkit-18 taskset[1112]: ptp4l[135.745]: selected local clock b8cef6.fffe.33fdee as best master Feb 03 22:41:44 dc6-devkit-18 taskset[1112]: ptp4l[135.745]: assuming the grand master role Feb 03 22:41:44 dc6-devkit-18 taskset[1112]: ptp4l[135.780]: port 1: link up Feb 03 22:41:44 dc6-devkit-18 taskset[1112]: ptp4l[135.804]: port 1: FAULTY to LISTENING on INIT_COMPLETE Feb 03 22:41:44 dc6-devkit-18 taskset[1112]: ptp4l[135.855]: port 1: new foreign master b8cef6.fffe.33fe16-1 Feb 03 22:41:44 dc6-devkit-18 taskset[1112]: ptp4l[136.105]: selected best master clock b8cef6.fffe.33fe16 Feb 03 22:41:44 dc6-devkit-18 taskset[1112]: ptp4l[136.105]: assuming the grand master role Feb 03 22:41:44 dc6-devkit-18 taskset[1112]: ptp4l[136.105]: port 1: LISTENING to GRAND_MASTER on RS_GRAND_MASTER


Step 3.

The other will become the secondary, follower clock, as shown below:

Copy
Copied!


$ sudo systemctl status ptp4l.service • ptp4l.service - Precision Time Protocol (PTP) service Loaded: loaded (/lib/systemd/system/ptp4l.service; enabled; vendor preset: enabled) Active: active (running) since Thu 2022-02-03 22:41:12 UTC; 5min ago Docs: man:ptp4l Main PID: 1112 (ptp4l) Tasks: 1 (limit: 94582) Memory: 812.0K CGroup: /system.slice/ptp4l.service └─1112 /usr/sbin/ptp4l -f /etc/ptp.conf Feb 03 22:46:30 dc6-aerial-devkit-17 taskset[1112]: ptp4l[444.474]: rms 5 max 11 freq +2450 +/- 8 delay 259 +/- 1 Feb 03 22:46:31 dc6-aerial-devkit-17 taskset[1112]: ptp4l[445.475]: rms 5 max 12 freq +2447 +/- 9 delay 260 +/- 1 Feb 03 22:46:32 dc6-aerial-devkit-17 taskset[1112]: ptp4l[446.475]: rms 6 max 13 freq +2461 +/- 7 delay 258 +/- 0 Feb 03 22:46:33 dc6-aerial-devkit-17 taskset[1112]: ptp4l[447.475]: rms 5 max 10 freq +2457 +/- 9 delay 260 +/- 0 Feb 03 22:46:34 dc6-aerial-devkit-17 taskset[1112]: ptp4l[448.475]: rms 3 max 6 freq +2454 +/- 4 delay 261 +/- 1 Feb 03 22:46:35 dc6-aerial-devkit-17 taskset[1112]: ptp4l[449.475]: rms 4 max 7 freq +2458 +/- 6 delay 259 +/- 0 Feb 03 22:46:36 dc6-aerial-devkit-17 taskset[1112]: ptp4l[450.475]: rms 4 max 6 freq +2454 +/- 6 delay 259 +/- 1 Feb 03 22:46:37 dc6-aerial-devkit-17 taskset[1112]: ptp4l[451.475]: rms 4 max 8 freq +2452 +/- 6 delay 258 +/- 0 Feb 03 22:46:38 dc6-aerial-devkit-17 taskset[1112]: ptp4l[452.475]: rms 3 max 7 freq +2454 +/- 6 delay 258 +/- 0 Feb 03 22:46:39 dc6-aerial-devkit-17 taskset[1112]: ptp4l[453.475]: rms 6 max 14 freq +2460 +/- 9 delay 258 +/- 1


Step 4.

Enter the commands to turn off NTP:

Copy
Copied!


$ sudo timedatectl set-ntp false $ timedatectl Local time: Thu 2022-02-03 22:30:58 UTC Universal time: Thu 2022-02-03 22:30:58 UTC RTC time: Thu 2022-02-03 22:30:58 Time zone: Etc/UTC (UTC, +0000) System clock synchronized: no NTP service: inactive RTC in local TZ: no


Step 5.

Run PHC2SYS as service:

Copy
Copied!


# If more than one instance is already running, kill the existing # PHC2SYS sessions. # check that the service is active and has low rms value (<30): $ sudo systemctl status phc2sys.service • phc2sys.service - Synchronize system clock or PTP hardware clock (PHC) Loaded: loaded (/lib/systemd/system/phc2sys.service; disabled; vendor preset: enabled) Active: inactive (dead) Docs: man:phc2sys # If the service is already running, then you don't need to change # anything: $ sudo systemctl status phc2sys.service • phc2sys.service - Synchronize system clock or PTP hardware clock (PHC) Loaded: loaded (/lib/systemd/system/phc2sys.service; disabled; vendor preset: enabled) Active: active (running) since Fri 2021-04-30 14:28:57 UTC; 17s ago Docs: man:phc2sys Main PID: 1180983 (sh) Tasks: 2 (limit: 94582) Memory: 2.2M CGroup: /system.slice/phc2sys.service ├─1180983 /bin/sh -c /usr/sbin/phc2sys -s /dev/ptp$(ethtool -T $(lshw -c network -businfo | grep b5:00.0 | awk '{print $2}') | grep PTP | awk '{print $4}') -c CLOCK_REALTIME -n 24 -O 0 -R 256 -u 256 └─1181087 /usr/sbin/phc2sys -s /dev/ptp2 -c CLOCK_REALTIME -n 24 -O 0 -R 256 -u 256 Apr 30 14:29:05 aerial-devkit-16 phc2sys[1181087]: [53625.834] CLOCK_REALTIME rms 10 max 24 freq +35384 +/- 42 delay 1769 +/- 11 Apr 30 14:29:06 aerial-devkit-16 phc2sys[1181087]: [53626.850] CLOCK_REALTIME rms 9 max 26 freq +35355 +/- 41 delay 1774 +/- 9 Apr 30 14:29:07 aerial-devkit-16 phc2sys[1181087]: [53627.866] CLOCK_REALTIME rms 8 max 23 freq +35378 +/- 23 delay 1778 +/- 7 Apr 30 14:29:08 aerial-devkit-16 phc2sys[1181087]: [53628.881] CLOCK_REALTIME rms 9 max 22 freq +35358 +/- 26 delay 1761 +/- 13 Apr 30 14:29:09 aerial-devkit-16 phc2sys[1181087]: [53629.897] CLOCK_REALTIME rms 8 max 20 freq +35372 +/- 14 delay 1760 +/- 12 Apr 30 14:29:10 aerial-devkit-16 phc2sys[1181087]: [53630.913] CLOCK_REALTIME rms 9 max 25 freq +35374 +/- 15 delay 1764 +/- 12 Apr 30 14:29:11 aerial-devkit-16 phc2sys[1181087]: [53631.929] CLOCK_REALTIME rms 9 max 21 freq +35371 +/- 21 delay 1759 +/- 8 Apr 30 14:29:12 aerial-devkit-16 phc2sys[1181087]: [53632.945] CLOCK_REALTIME rms 9 max 23 freq +35364 +/- 22 delay 1760 +/- 9 Apr 30 14:29:13 aerial-devkit-16 phc2sys[1181087]: [53633.961] CLOCK_REALTIME rms 9 max 23 freq +35373 +/- 16 delay 1756 +/- 9 Apr 30 14:29:14 aerial-devkit-16 phc2sys[1181087]: [53634.976] CLOCK_REALTIME rms 10 max 24 freq +35354 +/- 33 delay 1757 +/- 9 # Command used can be found in /lib/systemd/system/phc2sys.service # Update the ExecStart line to the following, assuming ens6f0 interface is used. $ sudo nano /lib/systemd/system/phc2sys.service [Unit] Description=Synchronize system clock or PTP hardware clock (PHC) Documentation=man:phc2sys After=ntpdate.service Requires=ptp4l.service After=ptp4l.service [Service] Restart=always RestartSec=5s Type=simple ExecStart=/bin/sh -c "/usr/sbin/phc2sys -s /dev/ptp$(ethtool -T ens6f0 | grep PTP | awk '{print $4}')-c CLOCK_REALTIME -n 24 -O 0 -R 256 -u 256" [Install] WantedBy=multi-user.target # Once that file is changed, run the following: $ sudo systemctl daemon-reload $ sudo systemctl restart phc2sys.service # Set to start automatically on reboot $ sudo systemctl enable phc2sys.service $ sudo systemctl status phc2sys.service • phc2sys.service - Synchronize system clock or PTP hardware clock (PHC) Loaded: loaded (/lib/systemd/system/phc2sys.service; disabled; vendor preset: enabled) Active: active (running) since Fri 2021-04-30 14:28:57 UTC; 17s ago Docs: man:phc2sys Main PID: 1180983 (sh) Tasks: 2 (limit: 94582) Memory: 2.2M CGroup: /system.slice/phc2sys.service ├─1180983 /bin/sh -c /usr/sbin/phc2sys -s /dev/ptp$(ethtool -T $(lshw -c network -businfo | grep b5:00.0 | awk '{print $2}') | grep PTP | awk '{print $4}') -c CLOCK_REALTIME -n 24 -O 0 -R 256 -u 256 └─1181087 /usr/sbin/phc2sys -s /dev/ptp2 -c CLOCK_REALTIME -n 24 -O 0 -R 256 -u 256 Apr 30 14:29:05 aerial-devkit-16 phc2sys[1181087]: [53625.834] CLOCK_REALTIME rms 10 max 24 freq +35384 +/- 42 delay 1769 +/- 11 Apr 30 14:29:06 aerial-devkit-16 phc2sys[1181087]: [53626.850] CLOCK_REALTIME rms 9 max 26 freq +35355 +/- 41 delay 1774 +/- 9 Apr 30 14:29:07 aerial-devkit-16 phc2sys[1181087]: [53627.866] CLOCK_REALTIME rms 8 max 23 freq +35378 +/- 23 delay 1778 +/- 7 Apr 30 14:29:08 aerial-devkit-16 phc2sys[1181087]: [53628.881] CLOCK_REALTIME rms 9 max 22 freq +35358 +/- 26 delay 1761 +/- 13 Apr 30 14:29:09 aerial-devkit-16 phc2sys[1181087]: [53629.897] CLOCK_REALTIME rms 8 max 20 freq +35372 +/- 14 delay 1760 +/- 12 Apr 30 14:29:10 aerial-devkit-16 phc2sys[1181087]: [53630.913] CLOCK_REALTIME rms 9 max 25 freq +35374 +/- 15 delay 1764 +/- 12 Apr 30 14:29:11 aerial-devkit-16 phc2sys[1181087]: [53631.929] CLOCK_REALTIME rms 9 max 21 freq +35371 +/- 21 delay 1759 +/- 8 Apr 30 14:29:12 aerial-devkit-16 phc2sys[1181087]: [53632.945] CLOCK_REALTIME rms 9 max 23 freq +35364 +/- 22 delay 1760 +/- 9 Apr 30 14:29:13 aerial-devkit-16 phc2sys[1181087]: [53633.961] CLOCK_REALTIME rms 9 max 23 freq +35373 +/- 16 delay 1756 +/- 9 Apr 30 14:29:14 aerial-devkit-16 phc2sys[1181087]: [53634.976] CLOCK_REALTIME rms 10 max 24 freq +35354 +/- 33 delay 1757 +/- 9


Step 6.

Verify whether the system clock is synchronized:

Copy
Copied!


$ timedatectl Local time: Thu 2022-02-03 22:30:58 UTC Universal time: Thu 2022-02-03 22:30:58 UTC RTC time: Thu 2022-02-03 22:30:58 Time zone: Etc/UTC (UTC, +0000) System clock synchronized: yes NTP service: inactive RTC in local TZ: no

Chapter 2.4 Set up the Foxconn ORU


Foxconn RPQN-7801E

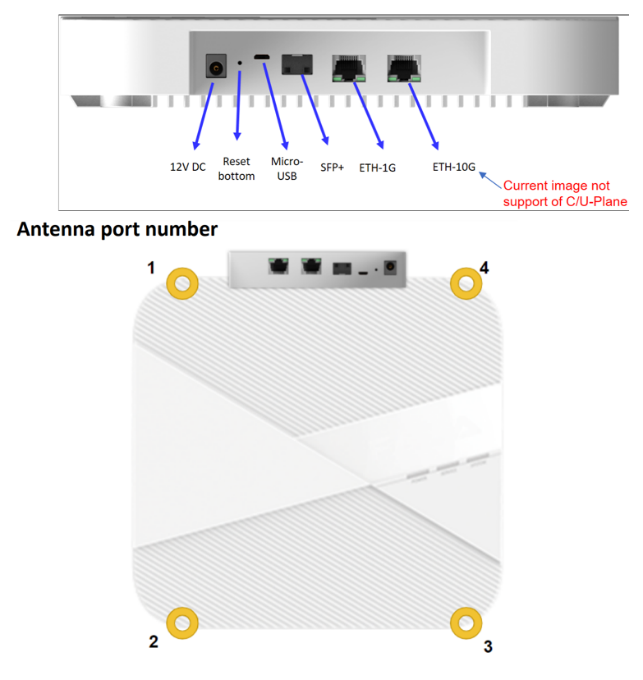

Connections and Settings

Connections:
  • 10SFP: C/U plane (will support S/M plane after FW upgrade)
  • 1G RJ45: S/M plane
  • 10G RJ45: POE only
  • Micro-USB: USB to serial for debugging (115200, 8, 1, none, flow control off)

GrandMaster settings (Qulsar):

  • PTP timing port: Disable VLAN
  • Two steps: OFF
  • Domain number: 24 <- need to config on O-RU
  • IPv4, Unicast, etc.

/home/root/sdcard/RRHconfig_xran.xml:

  • RRH_PTPV2_GRAND_MASTER_IP = 20.0.0.8
  • RRH_PTPV2_SUB_DOMAIN_NUM = 24
  • C/U plane VLAN tag
  • RRH_LO_FREQUENCY_KHZ = 3750000

M-Plane Setup

VLAN setup for the M-Plane connection

Add this to the bottom of /etc/profile and comment out the line with .``/set_qse.sh`` if there is one.

The interface should be set to eth0 for firmware version 1 and qse-eth for firmware version ≥ 2

Copy
Copied!


interface=eth0 vlanid=2 ipLastOctet=20 ip link add link ${interface} name ${interface}.$vlanid type vlan id $vlanid ip addr flush dev ${interface} ip addr add 169.254.0.0/24 dev ${interface} ip addr add 169.254.1.${ipLastOctet}/24 dev ${interface}.$vlanid ip link set up ${interface}.$vlanid # Reboot the RU and check the network configuration: # ./reboot.sh # ip r 169.254.1.0/24 dev qse-eth.2 src 169.254.1.20 Configure VLAN and IP address on the gNB server

Note:

  1. Add these instructions to server startup script ‘/etc/rc.local’ so they are automatically run on reboot

  2. You should configure this on the fronthaul port

  3. Make sure you use different/unique ip address from the example below

Copy
Copied!


sudo ip link add link enp181s0f0 name enp181s0f0.2type vlan id2 sudo ip addr add 169.254.1.103/24dev enp181s0f0.2 sudo ip link set up enp181s0f0.2

FW update

Currently to support OAM and M plan over 1G eth port, FW v1_5_15q_524 is required

To upgrade to OAM version, run below in order:

  1. Download the install_eng_v1_5_15q.524.run and install_oam_v1_5_15q.524.run from Mantis.

  2. Copy the executables to O-RU using below command:

    Copy
    Copied!


    scp -oCiphers=aes128-ctr install_eng_v1_5_15q_524.run root@169.254.1.11:/home/root/test/ scp -oCiphers=aes128-ctr install_oam_v1_5_15q_524.run root@169.254.1.11:/home/root/test/

  3. Execute install_eng_v1_5_15q.524.run under /home/root/test first and waiting for rebooting.

  4. Execute install_oam_v1_5_15q.524.run under /home/root/test first and waiting for rebooting.

  5. With above steps, the RU firmware will be upgraded to v1.5.15q.524 and had the OAM packages installed. Run below to check the version:

    Copy
    Copied!


    root@arria10:~# cat /home/root/test/version.txt branch: master version: e93d38e64f83160bf0be31858efedd627dcc8723 tag: v1.5.15q.524

To upgrade FW from v2_2_4q_524 to v2_4_6q_524, run below in order:

  1. Download sw_v2_4_6q_524.zip from Mantis: https://mantis.cnsbg.foxconn.com/faca/view.php?id=488#c4188, unzip it to get install_eng_v2_4_6q_524.run and install_oam_v2_4_6q_524.run

  2. Copy the executables to O-RU using below command(password: e/4g;4uh/6x.6):

    Copy
    Copied!


    scp -P 830 -oCiphers=aes128-ctr install_eng_v2_4_6q_524.run root@169.254.1.11:/home/root/test/ scp -P 830 -oCiphers=aes128-ctr install_oam_v2_4_6q_524.run root@169.254.1.11:/home/root/test/

  3. Execute install_eng_v2_4_6q_524.run under /home/root/test and waiting for rebooting.

  4. Execute install_oam_v2_4_6q_524.run under /home/root/test and waiting for rebooting.

  5. With above steps, the RU firmware will be upgraded to v2.4.6q.524 and had the OAM packages installed. Run below to check the version:

    Copy
    Copied!


    root@ae-oru-2:~/test# cat version.txt branch: 327-set_trx_switch_to_tx_when_dpd_init_and_reset version: 91af8c69eeebe1b61bcd9426898dcb87fda5a574 tag: v2.4.6q.524-oam

To upgrade FW from v2_4_6q_524 to v2_6_9q_524, run below in order:

  1. Download install_eng_v2_6_9q_524.run and install_oam_v2_6_9q_524.run from Mantis: https://mantis.cnsbg.foxconn.com/faca/view.php?id=488#c4610

  2. Copy the executables to O-RU using below command(password: e/4g;4uh/6x.6):

    Copy
    Copied!


    scp -P 830 -oCiphers=aes128-ctr install_eng_v2_6_9q_524.run root@169.254.1.11:/home/root/test/ scp -P 830 -oCiphers=aes128-ctr install_oam_v2_6_9q_524.run root@169.254.1.11:/home/root/test/

  3. Execute ./install_eng_v2_6_9q_524.run under /home/root/test and waiting for rebooting.

  1. Execute ./install_oam_v2_6_9q_524.run under /home/root/test and waiting for rebooting.

  2. With above steps, the RU firmware will be upgraded to v2.6.9q.524 and had the OAM packages installed. Run below to check the version:

Copy
Copied!


root@ae-oru-2:~/test# cat version.txt branch: 328-change_default_clock_out_to_10mhz version: 60635d6be38bd0480968c344d5ecc3aec1a29fe1 tag: v2.6.9q.524-oam


Update O-RU config in non-OAM mode

Update configurations in /home/root/sdcard/RRHconfig_xran.xml

Copy
Copied!


| root@arria10:~/test# diff ../sdcard/RRHconfig\_xran.xml ../sdcard/RRHconfig\_xran.xml.bak | --- ../sdcard/RRHconfig\_xran.xml | +++ ../sdcard/RRHconfig\_xran.xml.bak | @@ -18,11 +18,11 @@ | <!-- RRH\_CMPR\_HDR\_PRESENT: Indicate the UdCompHdr/reserved field is present or not, 0:no present; 1:present --> | -RRH\_CMPR\_HDR\_PRESENT = 0 | +RRH\_CMPR\_HDR\_PRESENT = 1 | <!-- RRH\_MSGS\_IN\_A\_SYM: Number of messages in a symbol time, (1 or 2) --> | -RRH\_MSGS\_IN\_A\_SYM = 1 | +RRH\_MSGS\_IN\_A\_SYM = 2 | <!-- RRH\_CMPR\_TYPE: Indicate compress type. 1st for PDSCH/PUSCH, 2nd for PRACH. 0: No Cmpr; 1:block-floating; 2:u-law --> | -RRH\_CMPR\_TYPE = 1, 1 | +RRH\_CMPR\_TYPE = 0, 0 | <!-- RRH\_CMPR\_BIT\_LENGTH: Indicate the bit length after compression. 1st for PDSCH/PUSCH, 2nd for PRACH. --> | -RRH\_CMPR\_BIT\_LENGTH = 9, 9 | +RRH\_CMPR\_BIT\_LENGTH = 16, 16 | <!-- RRH\_UL\_INIT\_SYM\_ID: Initial symbol ID in UL message --> | RRH\_UL\_INIT\_SYM\_ID = 0 | <!-- RRH\_TX\_TRUNC\_BITS: The extra truncation in fractional part of IFFT output → | Note: You can add RRH\_DISABLE\_USING\_CAL\_TABLES = YES to the first line of RRHconfig\_xran.xml if you want to disable O-RU TX power calibration

Reboot O-RU

Copy
Copied!


cd /home/root/test/ ./reboot

Run below to enable the config

Copy
Copied!


cd /home/root/test/ ./init_rrh_config_enable_cuplane


Update network config on DU (aerial-ae-devkit-01):

Check the 10G interface connection of DU over the switch

To figure out what is actually connected, go into switch and run below, and then correlate the network device name on aerial-ae-devkit-01 with that MAC address on port 1/1/49. Answer ens6f0

Copy
Copied!


OS10# show mac address-table Codes: pv <vlan-id> - private vlan where the mac is originally learnt VlanId Mac Address Type Interface 2 6c:ad:ad:00:01:fa dynamic ethernet1/1/2:1 2 6c:ad:ad:00:02:02 dynamic ethernet1/1/1:1 2 b8:ce:f6:95:5f:6c dynamic ethernet1/1/49


Steup the DU 10G interface

At this point, we need to teardown the 1G interface and config the 10G interface on DU:

Note: Add these instructions to system startup script ‘/etc/rc.local’ so that we don’t have to manually run them when there is a reboot

Copy
Copied!


| sudo ip link add link ens6f0 name ens6f0.2 type vlan id 2 | sudo ip addr add 169.254.1.101/24 dev ens6f0.2 | sudo ip link set up ens6f0.2

Check the 10G M-Plane connection

Ping with the 10G interface to O-RU from DU should be working by now:
Copy
Copied!


| aerial@aerial-ae-devkit-01:~$ ping 169.254.1.11 | PING 169.254.1.11 (169.254.1.11) 56(84) bytes of data. | 64 bytes from 169.254.1.11: icmp\_seq=1 ttl=64 time=0.165 ms | 64 bytes from 169.254.1.11: icmp\_seq=2 ttl=64 time=0.160 ms | 64 bytes from 169.254.1.11: icmp\_seq=3 ttl=64 time=0.148 ms


Connect O-RU by yangcli from aerial-ae-devkit-01:

yangcli-pro server=169.254.1.11 –ncport=830

  1. user: root

  2. option : 1

  3. password: e/4g;4uh/6x.6

S Plane Setup

Update PTP related configurations

For S Plane over 10G, update below in /home/root/sdcard/RRHconfig_xran.xml

Copy
Copied!


| <!-- --> | <!-- PTPV2 Related --> | <!-- --> | <!-- RRH\_PTPV2\_GRAND\_MASTER\_MODE: 0: Unicast over 1G, 1:Multicast over 1G; 2: Unicast over 10G; 3: Multicast over 10G --> | RRH\_PTPV2\_GRAND\_MASTER\_MODE = 3 | <!-- RRH\_PTPV2\_JITTER\_LEVEL: The estimated jitter of PTP time packets. 0:direct connection to GM/BC, 1:light, 2:medium, 3:heavy --> | RRH\_PTPV2\_JITTER\_LEVEL = 0 | <!-- RRH\_PTPV2\_VLAN\_ID: VLAN ID of PTPv2. 0/1: No VLAN of PTPv2; [2~4092]: valid VLAN of PTPv2; >4092: Invalid and no VLAN will be applied --> | RRH\_PTPV2\_VLAN\_ID = 0 | <!-- RRH\_PTPV2\_GRAND\_MASTER\_IP: IP address of grand-master --> | RRH\_PTPV2\_GRAND\_MASTER\_IP = 192.167.27.150 | <!-- RRH\_PTPV2\_SUB\_DOMAIN\_NUM: The sub-domain number --> | RRH\_PTPV2\_SUB\_DOMAIN\_NUM = 24

Check the O-RU PTP status

In the Serial console, we will NOT see below log if ptp is NOT synced(will have to wait for 2min~ before it’s ready):

We can also check ptp service log file: /var/log/rrh_timing_service.log

Debug in non-OAM mode:

Switch to non-OAM mode, update config, reboot and enable C/U plane

Copy
Copied!


+---------------------------------------------------------------+ | cd /home/root/test && ./set\_oam\_mode -d | | | | vi /home/root/sdcard/RRHconfig\_xran.xml | | | | cd /home/root/test/ && ./reboot | | | | cd /home/root/test/ && ./init\_rrh\_config\_enable\_cuplane | +---------------------------------------------------------------+

Below are the configurations we are setting in non-OAM node and the configuration file is /home/root/sdcard/RRHconfig_xran.xml

Copy
Copied!


+---------------------------------------------+ | 5c5 | | | | < RRH\_DST\_MAC\_ADDR = b8:ce:f6:95:5f:6c | | | | **---** | | | | > RRH\_DST\_MAC\_ADDR = 00:11:22:33:44:66 | | | | 7c7 | | | | < RRH\_SRC\_MAC\_ADDR = 6C:AD:AD:00:02:02 | | | | **---** | | | | > RRH\_SRC\_MAC\_ADDR = aa:bb:cc:dd:ee:ff | | | | 15c15 | | | | < RRH\_TRX\_EN\_BIT\_MASK = 0x03 | | | | **---** | | | | > RRH\_TRX\_EN\_BIT\_MASK = 0x0f | | | | 17c17 | | | | < RRH\_RF\_EN\_BIT\_MASK = 0x03 | | | | **---** | | | | > RRH\_RF\_EN\_BIT\_MASK = 0x0f | | | | 19c19 | | | | < RRH\_CMPR\_HDR\_PRESENT = \ **0** | | | | **---** | | | | > RRH\_CMPR\_HDR\_PRESENT = \ **1** | | | | 23c23 | | | | < RRH\_CMPR\_TYPE = 1, \ **1** | | | | **---** | | | | > RRH\_CMPR\_TYPE = 0, \ **0** | | | | 25c25 | | | | < RRH\_CMPR\_BIT\_LENGTH = 9, \ **9** | | | | **---** | | | | > RRH\_CMPR\_BIT\_LENGTH = 16, \ **16** | | | | 35c35 | | | | < RRH\_C\_PLANE\_VLAN\_TAG = 0x0002 | | | | **---** | | | | > RRH\_C\_PLANE\_VLAN\_TAG = 0xe001 | | | | 37c37 | | | | < RRH\_U\_PLANE\_VLAN\_TAG = 0x0002 | | | | **---** | | | | > RRH\_U\_PLANE\_VLAN\_TAG = 0xe002 | | | | 43c43 | | | | < RRH\_LO\_FREQUENCY\_KHZ = \ **3750000** | | | | **---** | | | | > RRH\_LO\_FREQUENCY\_KHZ = \ **3749700** | +---------------------------------------------+

For parameters that are not supported in OAM mode, need to set them in RRHconfig_xran_default.xml beforehand:

Copy
Copied!


ssh -p 830 \ root@169.254.1.12 vi /home/root/sdcard/RRHconfig\_xran\_default.xml

Below parameters are not supported in OAM mode at the moment:

Copy
Copied!


+---------------------------------------+ | 15c15 | | | | < RRH\_TRX\_EN\_BIT\_MASK = 0x03 | | | | **---** | | | | > RRH\_TRX\_EN\_BIT\_MASK = 0x0f | | | | 17c17 | | | | < RRH\_RF\_EN\_BIT\_MASK = 0x03 | | | | **---** | | | | > RRH\_RF\_EN\_BIT\_MASK = 0x0f | | | | 19c19 | | | | < RRH\_CMPR\_HDR\_PRESENT = \ **0** | | | | **---** | | | | > RRH\_CMPR\_HDR\_PRESENT = \ **1** | +---------------------------------------+

Reference O-RU configuration file

Reference RRHconfig_xran.xml

Copy
Copied!


+----------------------------------------------------------------------------------------------------------------------------------------------------------+ | <!-- --> | | | | <!-- Common --> | | | | <!-- --> | | | | <!-- RRH\_DST\_MAC\_ADDR: Destination MAC address, fill with 6 bytes and separate each others by colon --> | | | | RRH\_DST\_MAC\_ADDR = 00:11:22:33:44:66 | | | | <!-- RRH\_SRC\_MAC\_ADDR: Source MAC address, fill with 6 bytes and separate each others by colon --> | | | | RRH\_SRC\_MAC\_ADDR = 6c:ad:ad:00:01:5c | | | | <!-- RRH\_RU\_PORT\_ID: RRH RU PORT ID, fill with 4 bytes and separate each others by common and space --> | | | | RRH\_RU\_PORT\_ID = 0, 1, 2, \ **3** | | | | <!-- RRH\_EN\_SPC: Enable SPC or not, 0:OFF, 1:ON --> | | | | RRH\_EN\_SPC = \ **1** | | | | <!-- RRH\_RRH\_LTE\_OR\_NR: Indicate the spec of xRAN, 0:LTE, 1:NR --> | | | | RRH\_RRH\_LTE\_OR\_NR = \ **1** | | | | <!-- RRH\_TRX\_EN\_BIT\_MASK: Bit-mask of 4 TRx, bit 0: TRx0, bit1: TRx1, bit2: TRx2, bit3: TRx3 --> | | | | RRH\_TRX\_EN\_BIT\_MASK = 0x03 | | | | <!-- RRH\_RF\_EN\_BIT\_MASK: Bit-mask of 4 PA/LNA, bit0: PA0/LNA0, bit1: PA1/LNA1, bit2: PA2/LNA2, bit3: PA3/LNA3 --> | | | | RRH\_RF\_EN\_BIT\_MASK = 0x03 | | | | <!-- RRH\_CMPR\_HDR\_PRESENT: Indicate the UdCompHdr/reserved field is present or not, 0:no present; 1:present --> | | | | RRH\_CMPR\_HDR\_PRESENT = \ **0** | | | | <!-- RRH\_MSGS\_IN\_A\_SYM: Number of messages in a symbol time, (1 or 2) --> | | | | RRH\_MSGS\_IN\_A\_SYM = \ **1** | | | | <!-- RRH\_CMPR\_TYPE: Indicate compress type. 1st for PDSCH/PUSCH, 2nd for PRACH. 0: No Cmpr; 1:block-floating; 2:u-law --> | | | | RRH\_CMPR\_TYPE = 1, \ **1** | | | | <!-- RRH\_CMPR\_BIT\_LENGTH: Indicate the bit length after compression. 1st for PDSCH/PUSCH, 2nd for PRACH. --> | | | | RRH\_CMPR\_BIT\_LENGTH = 9, \ **9** | | | | <!-- RRH\_UL\_INIT\_SYM\_ID: Initial symbol ID in UL message --> | | | | RRH\_UL\_INIT\_SYM\_ID = \ **0** | | | | <!-- RRH\_TX\_TRUNC\_BITS: The extra truncation in fractional part of IFFT output --> | | | | RRH\_TX\_TRUNC\_BITS = \ **4** | | | | <!-- RRH\_RX\_TRUNC\_BITS: The extra truncation in fractional part of FFT output --> | | | | RRH\_RX\_TRUNC\_BITS = \ **4** | | | | <!-- RRH\_MAX\_PRB: Maximum PRBs --> | | | | RRH\_MAX\_PRB = \ **273** | | | | <!-- RRH\_C\_PLANE\_VLAN\_TAG: C-plane V-LAN tag express by hex number --> | | | | RRH\_C\_PLANE\_VLAN\_TAG = 0x0002 | | | | <!-- RRH\_U\_PLANE\_VLAN\_TAG: U-plane V-LAN tag express by hex number --> | | | | RRH\_U\_PLANE\_VLAN\_TAG = 0x0002 | | | | <!-- RRH\_SLOT\_TICKS\_IN\_SEC: Number of slot tick in a second (2000 slots for u=1) --> | | | | RRH\_SLOT\_TICKS\_IN\_SEC = \ **2000** | | | | <!-- RRH\_SLOT\_PERIOD\_IN\_SAMPLE: Slot period in 122.88MHz (61440 for u=1) --> | | | | RRH\_SLOT\_PERIOD\_IN\_SAMPLE = \ **61440** | | | | <!-- RRH\_LO\_FREQUENCY\_KHZ: Tx and Rx PLL LO Frequency in kHz(internal or external LO) --> | | | | RRH\_LO\_FREQUENCY\_KHZ = \ **3750000** | | | | <!-- RRH\_TX\_ATTENUATION: Tx attenuation value with 1-digit fraction for each layer (>10dB. NOTE: The attenuation value must be larget than 10dB) --> | | | | RRH\_TX\_ATTENUATION = 30.0, 30.0, 30.0, 30.0 | | | | <!-- RRH\_RX\_ATTENUATION: Rx attenuation value with 1-digit fraction for each layer (<30dB) --> | | | | RRH\_RX\_ATTENUATION = 20.0, 20.0, 20.0, 20.0 | | | | <!-- RRH\_BB\_GENERAL\_CTRL: General control words for Baseband --> | | | | <!-- Bit[0] of 1st word: Enable the filtering of MAC address --> | | | | <!-- Bit[1] of 1st word: Enable the UL slot tick packets per port --> | | | | <!-- Others: Reserved --> | | | | RRH\_BB\_GENERAL\_CTRL = 0x0, 0x0, 0x0, 0x0 | | | | <!-- RRH\_RF\_GENERAL\_CTRL: General control words for RF --> | | | | <!-- Bit[0] of 4th word: 1=for N77, 0=else --> | | | | RRH\_RF\_GENERAL\_CTRL = 0x0, 0x0, 0x0, 0x0 | | | | <!-- --> | | | | <!-- PTPV2 Related --> | | | | <!-- --> | | | | <!-- RRH\_PTPV2\_GRAND\_MASTER\_MODE: 0: Unicast, 1:Multicast --> | | | | RRH\_PTPV2\_GRAND\_MASTER\_MODE = \ **1** | | | | <!-- RRH\_PTPV2\_OBSERVATION\_TIME: 0: Stop xRAN immediately when OOL; >0: Stop xRAN after specific seconds when OOL --> | | | | RRH\_PTPV2\_OBSERVATION\_TIME = \ **10000** | | | | <!-- RRH\_PTPV2\_GRAND\_MASTER\_IP: IP address of grand-master --> | | | | RRH\_PTPV2\_GRAND\_MASTER\_IP = 192.168.3.150 | | | | <!-- RRH\_PTPV2\_SUB\_DOMAIN\_NUM: The sub-domain number --> | | | | RRH\_PTPV2\_SUB\_DOMAIN\_NUM = \ **24** | +----------------------------------------------------------------------------------------------------------------------------------------------------------+

This section describes how to setup the Aerial private 5G network which consists of:

  • Aerial SDK L1

  • Remaining components of OAI gNB

  • OAI Core Network

  • User Equipment (UE)

  • Edge Server Applications(e.g. iPerf)


These instructions assume that the core network and gNB can be deployed on the same host server.

Software Release Manifest

Component Version
Aerial SDK (ASDK) PHY 22.2.2
OAI gNB 2022.w50
OAI CN 1.4.0

Setup Aerial SDK L1

Please follow the step by step installation guide for cuBB located at NVIDIA Developer Zone - Aerial SDK https://developer.nvidia.com/docs/gputelecom/aerial-sdk/text/cubb_install/index.html

cuBB Installation Guide: From System Requirements to Troubleshooting**()

Since cuBB 22.2.2 release, the test vectors are not included in the SDK. The developer needs to generate the TV files first before running cuPHY examples or cuBB end-to-end test.

Using Aerial Python mcore Module

No Matlab license required to generate TV files using Aerial Python mcore module. The cuBB Container already has aerial_mcore installed. To generate the TV files, run the following commands inside the Aerial container.

Note

The TV generation may take few hours on the devkit with current isocpus parameter setting in kernel command line. Please also ensure the host has sufficient space to contain 111GB of TV files.

Copy
Copied!


cd ${cuBB_SDK}/5GModel/aerial_mcore/examples source ../scripts/setup.sh export REGRESSION_MODE=1 time python3 ./example_5GModel_regression.py allChannels echo $? ls -alF GPU_test_input/ du -h GPU_test_input/

Example output is shown below. The “real” time takes less than one hour on a 24 cores x86 host. The “echo $?” shows the exit code of the process, which should be 0. A non-zero exit code indicates a failure.

Copy
Copied!


Channel Compliance_Test Error Test_Vector Error Performance_Test Fail ------------------------------------------------------------------------------ SSB 37 0 42 0 0 0 PDCCH 71 0 80 0 0 0 PDSCH 274 0 286 0 0 0 CSIRS 86 0 87 0 0 0 DLMIX 0 0 1049 0 0 0 PRACH 60 0 60 0 48 0 PUCCH 469 0 469 0 96 0 PUSCH 388 0 398 0 41 0 SRS 125 0 125 0 0 0 ULMIX 0 0 576 0 0 0 BFW 58 0 58 0 0 0 ------------------------------------------------------------------------------ Total 1568 0 3230 0 185 0 Total time for runRegression is 2147 seconds Parallel pool using the 'local' profile is shutting down. real 36m51.931s user 585m1.704s sys 10m28.322s

To Generate the launch pattern for each test case using cubb_scripts:

Copy
Copied!


cd $cuBB_SDK cd cubb_scripts python3 auto_lp.py -i ../5GModel/aerial_mcore/examples/GPU_test_input -t launch_pattern_nrSim.yaml

Then Copy the launch pattern and TV files to testVectors repo.

Copy
Copied!


cd $cuBB_SDK cp ./5GModel/aerial_mcore/examples/GPU_test_input/TVnr_* ./testVectors/. cp ./5GModel/aerial_mcore/examples/GPU_test_input/launch_pattern* ./testVectors/multi-cell/.


Using Matlab

To generate TV files using Matlab, run the following command in Matlab:

Copy
Copied!


cd('nr_matlab'); startup; [nTC, errCnt] = runRegression({'TestVector'}, {'allChannels'}, 'compact', [0, 1] );

All the cuPHY TVs are generated and stored under nr_matlab/GPU_test_input.

Generate the launch pattern for each test case using cubb_scripts:

Copy
Copied!


cd $cuBB_SDK cd cubb_scripts python3 auto_lp.py -i ../5GModel/nr_matlab/GPU_test_input -t launch_pattern_nrSim.yaml

Copy the launch pattern and TV files to testVectors repo.

Copy
Copied!


cd $cuBB_SDK cp ./5GModel/nr_matlab/GPU_test_input/TVnr_* ./testVectors/. cp ./5GModel/nr_matlab/GPU_test_input/launch_pattern* ./testVectors/multi-cell/.

PTP slave setup Please refer to installation instructions at Installing Tools — Aerial SDK 22-2.2 documentation (nvidia.com)

Setup OAI gNB

Install Ubuntu on both servers

  1. https://releases.ubuntu.com/20.04.4/ubuntu-20.04.4-desktop-amd64.iso

  2. Run the following:

    Copy
    Copied!


    sudo apt update sudo apt dist-upgrade sudo apt autoremove

Prepare gNB docker images

Build gNB docker image

Check out the OpenAirInterface5G repository

Copy
Copied!


git clone https://gitlab.eurecom.fr/rssilva/openairinterface5g.git cd openairinterface5g git checkout FAPI-Improvements

Build the docker image

Copy
Copied!


docker build . -f docker/Dockerfile.aerial.ubuntu20


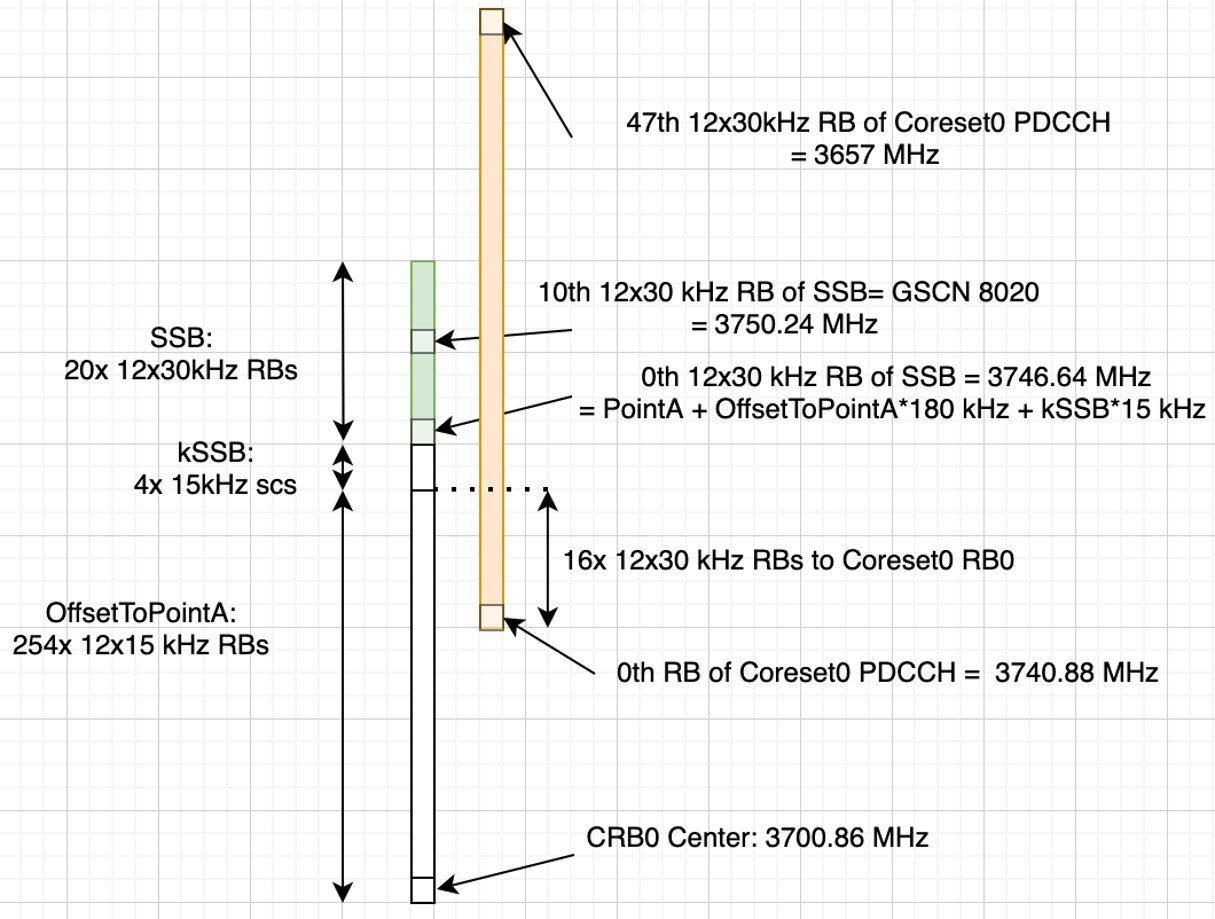

gNB configuration file

vnf.sa.band78.fr1.273PRB.Aerial.conf

What parameters need to be changed by the user?

TBD - docker-compose yaml file and an entrypoint script for the docker container(targeted in next release)

Setup OAI CN5G

Do this iptables setup below every time after a system reboot. It is also possible to make this permanent in Ubuntu system configuration.

Copy
Copied!


On CN5G server, configure it to allow the traffic coming in by adding this rule to iptables: # On CN5G, upon startup: sudo sysctl net.ipv4.conf.all.forwarding=1 sudo iptables -P FORWARD ACCEPT

Install the core network by following these steps:

**https://gitlab.eurecom.fr/oai/openairinterface5g/-/blob/develop/doc/NR_SA_CN5G_gNB_USRP_COTS_UE_Tutorial.md**

The user configurable configuration files are:

  • ~/oai-cn5g-fed/docker-compose/docker-compose-basic-nrf.yaml

  • ~/oai-cn5g-fed/docker-compose/database/oai_db.sql

Configuring OAI gNB and CN5G

For the purpose of understanding which address is what in the example configuration setting and commands below, we will assume the gNB and CN5G servers have these interface names and IP addresses.

CN5G Server

Copy
Copied!


eno1: 10.31.66.x = SSH management port for terminal eno2: 169.254.200.6 = BH connection on SFP switch for gNB-CN5G traffic

gNB Server

Copy
Copied!


eno1: 10.31.66.x = SSH management port for terminal ens6f0: b8:ce:f6:4e:75:40 = FH MAC address ens6f0.2: 169.254.1.105 = FH IP address ens6f1: 169.254.200.5 = BH connection SFP switch for gNB-CN5G traffic

gNB to set static route

On the gNB server, add this static route for a path to the CN5G server. Please apply this route each time after the server power-on.

Copy
Copied!


Syntax: sudo ip route add 192.168.70.128/26 via <CN5G IP> dev <gNB interface for CN5G> Example: sudo ip route add 192.168.70.128/26 via 169.254.200.6 dev ens6f1

gNB to set the CN5G server to uses for AMF

Edit gNB configuration file: targets/PROJECTS/GENERIC-NR-5GC/CONF/vnf.sa.band78.fr1.273PRB.Aerial.conf

Below is an example with lab-specific network parameters. Your IP address and interface names may differ.

Copy
Copied!


GNB_INTERFACE_NAME_FOR_NG_AMF = "ens6f1"; # gNB side interface name of the SFP port toward CN (was eno1) GNB_IPV4_ADDRESS_FOR_NG_AMF = "169.254.200.5"; # gNB side IP address of interface above (was 172.21.16.130) GNB_INTERFACE_NAME_FOR_NGU = "ens6f1"; # gNB side interface name of the SFP port toward CN (was eno1) GNB_IPV4_ADDRESS_FOR_NGU = "169.254.200.5"; # Same IP as GNB_IPV4_ADDRESS_FOR_NG_AMF above (was 172.21.16.130)

Remove SD parameter from gNB configuration file

In the same gNB configuration file, if this line “sd = 0x1” exist, please delete this line when using the latest CN5G.

Copy
Copied!


plmn_list = ({ mcc = 001; mnc = 01; mnc_length = 2; snssaiList = ( { sst = 1; sd = 0x1; // 0 false, else true } ); });


Running CN5G

To start CN5G

Copy
Copied!


cd ~/oai-cn5g-fed/docker-compose python3 core-network.py --type start-basic --scenario 1

Or alternatively:

Copy
Copied!


docker-compose up -d


To Stop CN5G

Copy
Copied!


cd ~/oai-cn5g-fed/docker-compose python3 core-network.py --type stop-basic --scenario 1

Or alternatively:

Copy
Copied!


docker-compose down


To monitor CN5G logs while running

Copy
Copied!


docker logs oai-amf -f


To capture PCAPs

Copy
Copied!


docker exec -it oai-amf /bin/bash apt update && apt install tcpdump -y tcpdump -i any -w /tmp/amf.pcap

Then we can copy the pcap out from the container

Copy
Copied!


docker cp oai-amf:/tmp/amf.pcap .

Example Screenshot of Starting CN5G

Copy
Copied!


aerial@:~/oai-cn5g-fed/docker-compose$ python3 core-network.py --type start-basic --scenario 1 [2022-11-16 01:17:22,058] root:DEBUG: Starting 5gcn components... Please wait.... [2022-11-16 01:17:22,058] root:DEBUG: docker-compose -f docker-compose-basic-nrf.yaml up -d Creating network "demo-oai-public-net" with driver "bridge" Pulling mysql (mysql:5.7)... Creating oai-nrf ... done Creating mysql ... done Creating oai-udr ... done Creating oai-udm ... done Creating oai-ausf ... done Creating oai-amf ... done Creating oai-smf ... done Creating oai-spgwu ... done Creating oai-ext-dn ... done 5.7: Pulling from library/mysql Digest: sha256:0e3435e72c493aec752d8274379b1eac4d634f47a7781a7a92b8636fa1dc94c1 Status: Downloaded newer image for mysql:5.7 [2022-11-16 01:17:35,693] root:DEBUG: OAI 5G Core network started, checking the health status of the containers... takes few secs.... [2022-11-16 01:17:35,693] root:DEBUG: docker-compose -f docker-compose-basic-nrf.yaml ps -a [2022-11-16 01:17:48,674] root:DEBUG: All components are healthy, please see below for more details.... Name Command State Ports ----------------------------------------------------------------------------------------- mysql docker-entrypoint.sh mysqld Up (healthy) 3306/tcp, 33060/tcp oai-amf /bin/bash /openair-amf/bin ... Up (healthy) 38412/sctp, 80/tcp, 9090/tcp oai-ausf /bin/bash /openair-ausf/bi ... Up (healthy) 80/tcp oai-ext-dn /bin/bash -c ip route add ... Up (healthy) oai-nrf /bin/bash /openair-nrf/bin ... Up (healthy) 80/tcp, 9090/tcp oai-smf /bin/bash /openair-smf/bin ... Up (healthy) 80/tcp, 8080/tcp, 8805/udp oai-spgwu /bin/bash /openair-spgwu-t ... Up (healthy) 2152/udp, 8805/udp oai-udm /bin/bash /openair-udm/bin ... Up (healthy) 80/tcp oai-udr /bin/bash /openair-udr/bin ... Up (healthy) 80/tcp [2022-11-16 01:17:48,674] root:DEBUG: Checking if the containers are configured.... [2022-11-16 01:17:48,674] root:DEBUG: Checking if AMF, SMF and UPF registered with nrf core network.... [2022-11-16 01:17:48,674] root:DEBUG: curl -s -X GET http://192.168.70.130/nnrf-nfm/v1/nf-instances?nf-type="AMF" | grep -o "192.168.70.132" 192.168.70.132 [2022-11-16 01:17:48,692] root:DEBUG: curl -s -X GET http://192.168.70.130/nnrf-nfm/v1/nf-instances?nf-type="SMF" | grep -o "192.168.70.133" 192.168.70.133 [2022-11-16 01:17:48,708] root:DEBUG: curl -s -X GET http://192.168.70.130/nnrf-nfm/v1/nf-instances?nf-type="UPF" | grep -o "192.168.70.134" 192.168.70.134 [2022-11-16 01:17:48,718] root:DEBUG: Checking if AUSF, UDM and UDR registered with nrf core network.... [2022-11-16 01:17:48,718] root:DEBUG: curl -s -X GET http://192.168.70.130/nnrf-nfm/v1/nf-instances?nf-type="AUSF" | grep -o "192.168.70.138" 192.168.70.138 [2022-11-16 01:17:48,733] root:DEBUG: curl -s -X GET http://192.168.70.130/nnrf-nfm/v1/nf-instances?nf-type="UDM" | grep -o "192.168.70.137" 192.168.70.137 [2022-11-16 01:17:48,747] root:DEBUG: curl -s -X GET http://192.168.70.130/nnrf-nfm/v1/nf-instances?nf-type="UDR" | grep -o "192.168.70.136" 192.168.70.136 [2022-11-16 01:17:48,758] root:DEBUG: AUSF, UDM, UDR, AMF, SMF and UPF are registered to NRF.... [2022-11-16 01:17:48,758] root:DEBUG: Checking if SMF is able to connect with UPF.... [2022-11-16 01:17:48,829] root:DEBUG: UPF did answer to N4 Association request from SMF.... [2022-11-16 01:17:48,866] root:DEBUG: SMF receiving heathbeats from UPF.... [2022-11-16 01:17:48,867] root:DEBUG: OAI 5G Core network is configured and healthy.... aerial@:~/oai-cn5g-fed/docker-compose$ docker ps CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES c6a7eca08187 trf-gen-cn5g:latest "/bin/bash -c ' ip r…" About a minute ago Up About a minute (healthy) oai-ext-dn 5fa931ffb5f1 oai-spgwu-tiny:develop "/bin/bash /openair-…" About a minute ago Up About a minute (healthy) 2152/udp, 8805/udp oai-spgwu 70b48ac70b63 oai-smf:develop "/bin/bash /openair-…" About a minute ago Up About a minute (healthy) 80/tcp, 8080/tcp, 8805/udp oai-smf f18566936f62 oai-amf:develop "/bin/bash /openair-…" About a minute ago Up About a minute (healthy) 80/tcp, 9090/tcp, 38412/sctp oai-amf a75c40af3268 oai-ausf:develop "/bin/bash /openair-…" About a minute ago Up About a minute (healthy) 80/tcp oai-ausf a3d796819591 oai-udm:develop "/bin/bash /openair-…" About a minute ago Up About a minute (healthy) 80/tcp oai-udm 5442e9a1a2d8 oai-udr:develop "/bin/bash /openair-…" About a minute ago Up About a minute (healthy) 80/tcp oai-udr 7bfb07becff3 mysql:5.7 "docker-entrypoint.s…" About a minute ago Up About a minute (healthy) 3306/tcp, 33060/tcp mysql ea55f52bfcc6 oai-nrf:develop "/bin/bash /openair-…" About a minute ago Up About a minute (healthy) 80/tcp, 9090/tcp oai-nrf


Step 1: Add the SIM User Profile

Modify:

  • oai_db.sql (with plain text editor)

    There are currently 3 UEs pre-configured here, just search for: 001010000000001 and you will find them, add/edit as needed.

  • docker-compose-basic-nrf.yaml

    MCC, MNC, OPERATOR_KEY (you need to change them in several places)

  • On gNB server, change the MCC and MNC in the gNB config file ./targets/PROJECTS/GENERIC-NR-5GC/CONF/vnf.sa.band78.fr1.273PRB.Aerial.conf

Copy
Copied!


plmn_list = ({ - mcc = 208; - mnc = 98; + mcc = 001; + mnc = 01; mnc_length = 2;


Step 2: Setup the UE and SIM Card

For reference, please use the following

*SIM cards – 4G and 5G reference software (open-cells.com)*

Program SIM Card with Open Cells Project application “uicc-v2.6” https://open-cells.com/d5138782a8739209ec5760865b1e53b0/uicc-v2.6.tgz

Use the ADM code specific to the SIM card. If wrong ADM is used for 8 times, the SIM card will be permanently locked.

Copy
Copied!


sudo ./program_uicc --adm 12345678 --imsi 001010000000001 --isdn 00000001 --acc 0001 --key fec86ba6eb707ed08905757b1bb44b8f --opc C42449363BBAD02B66D16BC975D77CC1 -spn "OpenAirInterface" --authenticate Existing values in USIM ICCID: 89860061100000000191 WARNING: iccid luhn encoding of last digit not done USIM IMSI: 208920100001191 USIM MSISDN: 00000191 USIM Service Provider Name: OpenCells191 Setting new values Reading UICC values after uploading new values ICCID: 89860061100000000191 WARNING: iccid luhn encoding of last digit not done USIM IMSI: 001010000000001 USIM MSISDN: 00000001 USIM Service Provider Name: OpenAirInterface Succeeded to authentify with SQN: 64 set HSS SQN value as: 96

CUE Configuration Setup

Install the “Magic IPERF” application on the UE:

  1. To test with CUE, a test SIM card with Milenage support is required. The following has to be provisioned on the SIM and it has to match the Core Network settings: mcc, mnc, IMSI, Ki, OPc

  2. The APN on the CUE should be configured according to Core Network settings.

  3. Start the DNS (Core network should assign mobile IP address and DNS. If DNS is not assigned, set DNS with other Android app.)

Step 3. Running End-to-End OTA

This section describes how to run end to end traffic from UE to the edge core network.

Start OAI CN5G Core Network

Start CN5G Network
Copy
Copied!


sudo sysctl net.ipv4.conf.all.forwarding=1 sudo iptables -P FORWARD ACCEPT cd ~/oai-cn5g-fed/docker-compose python3 core-network.py --type start-basic --scenario 1


Start CN5G Edge Application

After the CN5G is started, we can use oai-ext-dn container to run IPERF

Copy
Copied!


docker exec -it oai-ext-dn /bin/bash

Start NVIDIA Aerial cuBB on the gNB

Copy
Copied!


# Run on host: start a docker terminal docker exec -it cuBB /bin/bash # Run in docker container export CUDA_DEVICE_MAX_CONNECTIONS=16 $cuBB_SDK/build/cuPHY-CP/cuphycontroller/examples/cuphycontroller P5G # Wait until see console log ====> PhyDriver initialized! 16:29:35.913840 C [NVIPC:DEBUG] ipc_debug_open: pcap enabled: fapi_type=1 fapi_tb_loc=1 16:29:36.141657 C [NVIPC:SHM] shm_ipc_open: forward_enable=0 fw_max_msg_buf_count=0 fw_max_data_buf_count=0 16:29:36.153808 C [CTL.SCF] cuPHYController configured for 1 cells 16:29:36.153816 C [CTL.SCF] ====> cuPHYController initialized, L1 is ready!


Start OAI gNB L2 Stack on the gNB

Start up the OAI container:

Copy
Copied!


docker run -dP --privileged --ipc container:c_aerial_aerial \ --gpus all --network host --shm-size=4096m -it \ -v /lib/modules:/lib/modules \ -v /dev/hugepages:/dev/hugepages \ -v /usr/src:/usr/src \ -v ~/openairinterface5g:/opt/oai/ \ -v ~/share:/opt/nvidia/cuBB/share \ --cpuset-cpus=6-13\ --name i_oai_aerial c_oai_aerial:latest

Then start the OAI nr-softmodem, enter the the container to run the using the configuration file mounted from the host

Copy
Copied!


docker exec -it i_oai_aerial bash # cd to the openairinterface directory source oaienv cd cmake_targets/ran_build/build/ ./nr-softmodem -O ../../../targets/PROJECTS/GENERIC-NR-5GC/CONF/vnf.sa.band78.fr1.273PRB.Aerial.conf --nfapi aerial --sa

To stop the container:

Copy
Copied!


docker stop i_oai_aerial docker rm i_oai_aerial


CUE Connecting to 5G Network

Take the CUE out of Airplane mode to start the UE attaching to the network.

Observe 5G Connect Status

See Preamble log in cuphycontroller console output.

Check Core Network log or CUE log to see whether NAS authentication and PDU session succeed.

Running E2E IPERF Traffic

Start ping, iperf or other network app tests after PDU session connected successfully.

One can install and run “Magic IPerf” Android application on the CUE for this purpose.

IPERF Downlink Test

UE Side:

Copy
Copied!


iperf -s -u -i 1 -B 12.1.1.2

CN5G Side:

Copy
Copied!


docker exec -it oai-ext-dn iperf -u -t 360 -i 1 -fk -B 192.168.70.135 -b 4M -c 12.1.1.2


IPERF Uplink Test

CN5G Side:

Copy
Copied!


docker exec -it oai-ext-dn iperf -s -u -i 1 -B 192.168.70.135

UE Side:

Copy
Copied!


iperf -u -t 360 -i 1 -fk -b 20M -c 192.168.70.135 -B 12.1.1.2

© Copyright 2022, NVIDIA.. Last updated on Oct 25, 2023.
