Fault Management#

Logging#

Aerial follows the best practices of Kubernetes (https://kubernetes.io/docs/concepts/cluster-administration/logging/) for implementing logging.

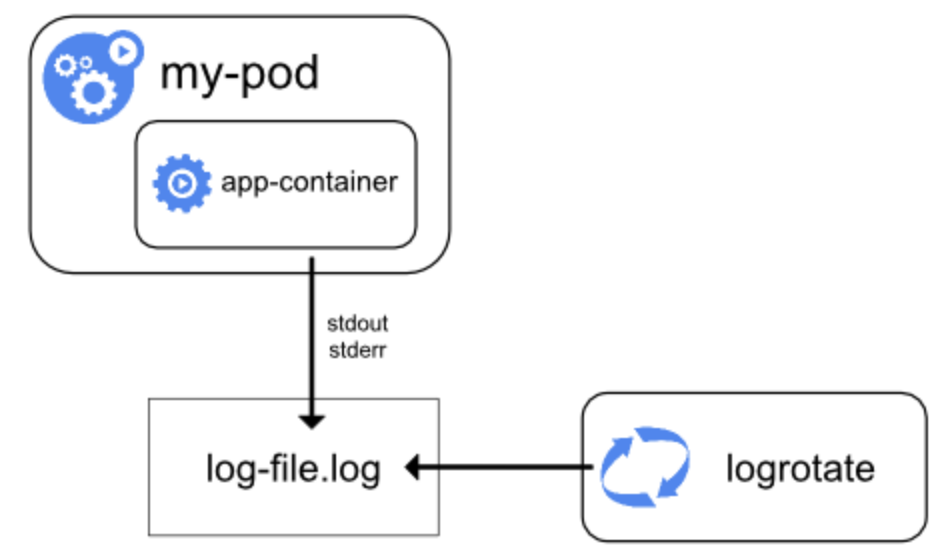

The cuphycontroller application outputs log messages, where the log level is less than or equal to the warning level, directly to stdout using the logging at the node level pattern:

../../../_images/image11.png

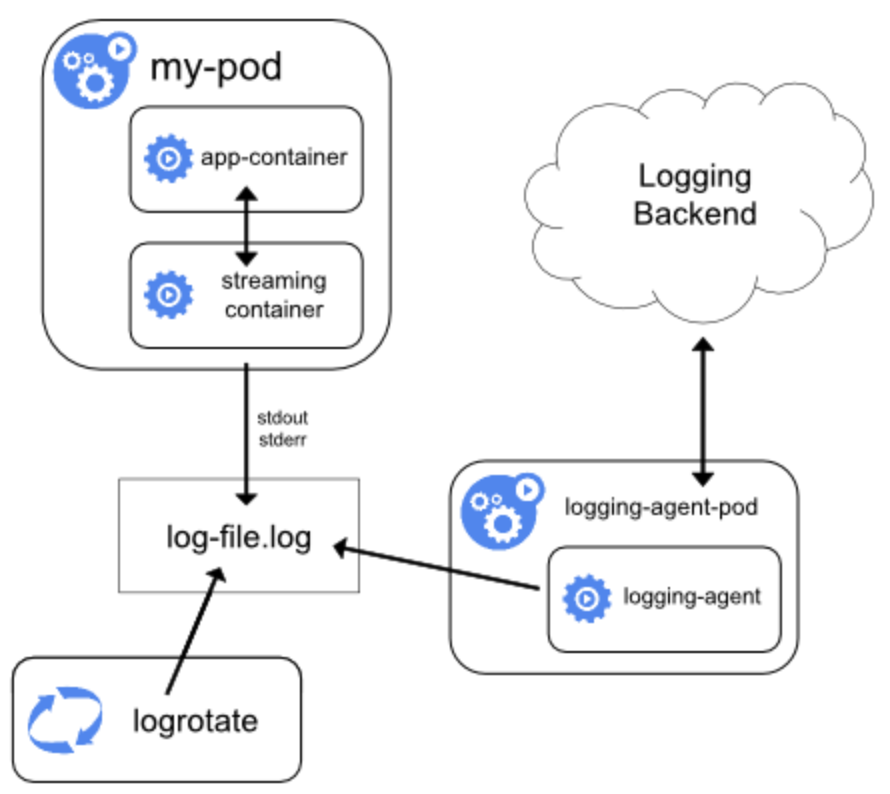

For high performance logs, Aerial uses background threads to offload the I/O bottleneck from the real-time threads. Log messages, where level is less than or equal to the nvlog.shm_log_level cuphycontroller YAML configuration parameter, are processed in background threads. The logger outputs can be retrieved using the streaming sidecar pattern with logs written directly to the local disk:

../../../_images/image12.png

nvlog message format#

Each nvlog message is a string of the form “[Tag Name] Msg” prefixed with the following space-separated fields:

  • Timestamp

  • Log level

  • Thread Name

  • Log event code string

The fields are further described herein:

Timestamp is HH:MM:SS.us, for example, 20:58:09.036299

Log level is:

  • FAT - Fatal

  • ERR - Error

  • CON - Console

  • WRN - Warning

  • INF - Info

  • DBG - Debug

  • VER - Verbose

Thread Name is the name of the thread that has generated the log message.

Log event code string is a string that indicates the category of event that has occurred. This field only presents in FAT or ERR level logs.

An example of CON to VER level nvlog message is:

12:34:45.849421 CON msg_processing 0 [SCF.PHY] on_config_request: cell_id=3 numTLVs=68 state=0

Here is an example of an nvlog message at FAT or ERR level with Event Code AERIAL_CUPHY_EVENT:

11:41:09.567600 ERR 104402 0 [AERIAL_CUPHY_EVENT] [CUPHY] Number of batches for batched copy is 20, but current max. specified is 20.

nvlog tags#

Aerial implements the per tag logging, log level can be separately configured for each tag. Below are the tags for nvlog itself. See full list of tags in nvlog_config.yaml.

nvlog tags:

  • 10: “NVLOG” # nvlog

  • 11: “NVLOG.TEST”

  • 12: “NVLOG.ITAG”

  • 13: “NVLOG.STAG”

  • 14: “NVLOG.STAT”

  • 15: “NVLOG.OBSERVER”

  • 16: “NVLOG.CPP”

  • 17: “NVLOG.SHM”

  • 18: “NVLOG.UTILS”

  • 19: “NVLOG.C”

  • 20: “NVLOG.EXIT_HANDLER”

Event codes#

The following is the list of event codes (see aerial_event_code.h). The event strings match the event code names, minus the AERIAL_.

| AERIAL_SUCCESS             = 0,
| AERIAL_INVALID_PARAM_EVENT = 1,
| AERIAL_INTERNAL_EVENT      = 2,
| AERIAL_CUDA_API_EVENT      = 3,
| AERIAL_DPDK_API_EVENT      = 4,
| AERIAL_THREAD_API_EVENT    = 5,
| AERIAL_CLOCK_API_EVENT     = 6,
| AERIAL_NVIPC_API_EVENT     = 7,
| AERIAL_ORAN_FH_EVENT       = 8,
| AERIAL_CUPHYDRV_API_EVENT  = 9,
| AERIAL_INPUT_OUTPUT_EVENT  = 10,
| AERIAL_MEMORY_EVENT        = 11,
| AERIAL_YAML_PARSER_EVENT   = 12,
| AERIAL_NVLOG_EVENT         = 13,
| AERIAL_CONFIG_EVENT        = 14,
| AERIAL_FAPI_EVENT          = 15,
| AERIAL_NO_SUPPORT_EVENT    = 16,
| AERIAL_SYSTEM_API_EVENT    = 17,
| AERIAL_L2ADAPTER_EVENT     = 18,
| AERIAL_RU_EMULATOR_EVENT   = 19,
| AERIAL_CUDA_KERNEL_EVENT   = 20,
| AERIAL_CUPHY_API_EVENT     = 21,
| AERIAL_DOCA_API_EVENT      = 22,
| AERIAL_CUPHY_EVENT         = 23,
| AERIAL_CUPHYOAM_EVENT      = 24,
| AERIAL_CUMAC_EVENT         = 25,
| AERIAL_TEST_CUMAC_EVENT    = 26,
| AERIAL_TESTBENCH_EVENT     = 27,
| AERIAL_CUMAC_CP_EVENT      = 28,
| AERIAL_TEST_MAC_EVENT      = 29,
| AERIAL_PYAERIAL_EVENT      = 30,
| AERIAL_PTP_ERROR_EVENT     = 31,
