GKE (Google Kubernetes Engine)#

Overview#

Added in version 3.1.

Google Kubernetes Engine (GKE) provides a managed environment for deploying, managing, and scaling your containerized applications using Google infrastructure. NVIDIA AI Enterprise, the end-to-end software of the NVIDIA AI platform, is supported to run on GKE. The GKE environment consists of multiple machines (specifically, Compute Engine instances) grouped together to form a cluster. This guide provides details for deploying and running NVIDIA AI Enterprise on GKE clusters with NVIDIA GPU Accelerated nodes.

Note

The NVIDIA Terraform Modules offer an easy way to deploy Managed Kubernetes clusters that can be supported by NVIDIA AI Enterprise when used with supported OS and GPU Operator versions.

Prerequisites#

  • NVIDIA AI Enterprise License via BYOL or a Private Offer

  • Install Helm

  • Install the Google Cloud CLI

    Note

    NVIDIA recommends installing the Google Cloud CLI via download of the linux google-cloud-cli-xxx.x.x-linux-x86_64.tar.gz file. If a different OS distribution is being utilized, please continue to follow Google’s instructions for your desired OS.

    _images/cloud-gke-01.png
  • Google Cloud account with Google Kubernetes Engine Admin Role and Kubernetes Engine Cluster Admin Role for more information please refer to Google’s IAM Policies

  • Ubuntu Nodes

Create a GKE Cluster#

Run the below comannds to install the GKE components.

1./google-cloud-sdk/bin/gcloud components install beta
2./google-cloud-sdk/bin/gcloud components install kubectl
3./google-cloud-sdk/bin/gcloud components update

Run the below command to create a GKE cluster.

1./google-cloud-sdk/bin/gcloud beta container --project <Google-Project-ID> clusters create <GKE-Cluster-Name> --zone us-west1-a --release-channel "regular" --machine-type "n1-standard-4" --accelerator "type=nvidia-tesla-t4,count=1" --image-type "UBUNTU_CONTAINERD" --disk-type "pd-standard" --disk-size "1000" --no-enable-intra-node-visibility --metadata disable-legacy-endpoints=true --max-pods-per-node "110" --num-nodes "1" --logging=SYSTEM,WORKLOAD --monitoring=SYSTEM --enable-ip-alias --no-enable-intra-node-visibility --default-max-pods-per-node "110" --no-enable-master-authorized-networks --tags=nvidia-ingress-all

Note

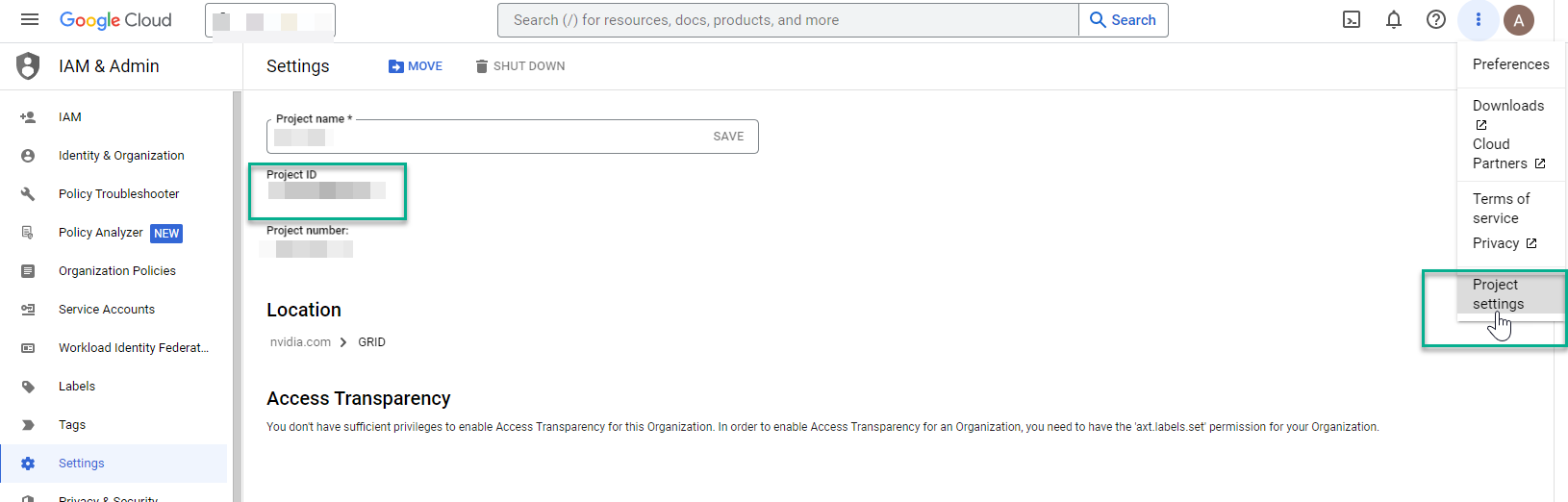

  1. <Google-Project-ID>: You will find the Project ID within the Google console dashboard Settings and update accordingly.

    _images/cloud-gke-02.png
  2. If the network name is not “default” then get the network information from the console and append the below value with the appropriate network and subnetwork name.

1--network "<Google Kubernetes Network Name>" --subnetwork "<Google Kubernetes SubNetwork Name>"
2
3Example:
4
5--network "projects/<GKE-Project-ID>/global/networks/<GKE-Network-Name>" --subnetwork "projects/<GKE-Project-ID>/regions/us-west1/subnetworks/<GKE-Network-Name>"

Run the below command to get the kubeconfig credentials to the local system.

1$ export USE_GKE_GCLOUD_AUTH_PLUGIN=True
2
3./google-cloud-sdk/bin/gcloud container clusters get-credentials <GKE-Cluster-Name> --zone us-west1-a

Run the below command to verify the node information

kubectl get nodes -o wide

Example output result

1NAME                                                STATUS   ROLES    AGE     VERSION   INTERNAL-IP      EXTERNAL-IP    OS-IMAGE             KERNEL-VERSION    CONTAINER-RUNTIME
2gke-<GKE-Cluster-Name>-default-pool-db9e3df9-r0jf   Ready    <none>   5m15s   v1.25.6   192.168.50.108   13.57.187.63   Ubuntu 20.04.6 LTS   5.15.0-1033-gke   containerd://1.6.12

Create a Resources to Install the GPU Operator on GKE#

Create a resource quota file with the below command.

 1cat <<EOF | tee resourcequota.yaml
 2apiVersion: v1
 3kind: ResourceQuota
 4metadata:
 5name: gpu-operator-quota
 6namespace: gpu-operator
 7spec:
 8hard:
 9    pods: 100
10scopeSelector:
11    matchExpressions:
12    - operator: In
13    scopeName: PriorityClass
14    values:
15    - system-node-critical
16    - system-cluster-critical
17EOF

Run the below commands to create a namespace and resource quota to the namespace on GKE cluster.

1./google-cloud-sdk/bin/kubectl create ns gpu-operator
2
3./google-cloud-sdk/bin/kubectl apply -f resourcequota.yaml
4
5./google-cloud-sdk/bin/kubectl get ResourceQuota -n gpu-operator

Example output result:

1NAME                  AGE   REQUEST                                                                                                                              LIMIT
2gke-resource-quotas   24s   count/ingresses.extensions: 0/100, count/ingresses.networking.k8s.io: 0/100, count/jobs.batch: 0/5k, pods: 0/1500, services: 0/500
3gpu-operator-quota    21s   pods: 0/100

For more information, please refer to GKE’s quotas and limits overview

Verify the default Pod Security Policies on GKE with below command.

./google-cloud-sdk/bin/kubectl get psp

Example Output result:

1Warning: policy/v1beta1 PodSecurityPolicy is deprecated in v1.21+, unavailable in v1.25+
2NAME                    PRIV    CAPS   SELINUX    RUNASUSER   FSGROUP    SUPGROUP   READONLYROOTFS   VOLUMES
3gce.gke-metrics-agent   false          RunAsAny   RunAsAny    RunAsAny   RunAsAny   false            hostPath,secret,configMap

Deploy GPU Operator#

Now that the cluster and appropriate resources are created, the NVIDIA GPU Operator can be installed

First we will access our NGC API Key.

Log into your NGC account and generate a new API Key or locate your existing API key. Please refer to the Accessing NGC section of the Appendix.

Generate an API key for accessing the catalog

Next you must generate an API Key that will give you access to the NGC Catalog.

Navigate to the user account icon in the top right corner and select Setup.

_images/cloud-03.png _images/cloud-04.png

Select Get API key to open the Setup > API Key page.

Select Generate API Key to generate your API key.

Select Confirm to generate the key, and copy it from the bottom of the page. NGC does not save your key, so store it in a secure place.

_images/cloud-05.png

Note

Generating a new API Key invalidates the previously generated key.

Add the Helm repo and update with the below commands.

1helm repo add nvidia https://helm.ngc.nvidia.com/nvaie --username='$oauthtoken' --password=<YOUR API KEY>
2helm repo update

Create a NGC Secret with your NGC API key on “gpu-operator” namespace as per below.

1./google-cloud-sdk/bin/kubectl create secret docker-registry ngc-secret  \
2--docker-server=nvcr.io/nvaie --docker-username=\$oauthtoken \
3--docker-password=<NGC-API-KEY> \
4--docker-email=<NGC-email> -n gpu-operator

Create an empty gridd.conf file, then create a configmap with NVIDIA vGPU Licence token file as per below

./google-cloud-sdk/bin/kubectl create configmap licensing-config   -n gpu-operator --from-file=./client_configuration_token.tok --from-file=./gridd.conf

Note

The configmap will look for the file client_configuration_token.tok, if your token is in a different form such as client_configuration_token_date_xx_xx.tok, then please run the below command:

mv client_configuration_token_date_xx_xx.tok client_configuration_token.tok

Install the GPU Operator from NGC Catalog with License token and driver repository.

helm install gpu-operator nvidia/gpu-operator-3-0 --version 22.9.1  --set driver.repository=nvcr.io/nvaie,driver.licensingConfig.configMapName=licensing-config,psp.enabled=true --namespace gpu-operator

Important

Ensure that you have the correct role as either a Kubernetes Engine Admin or Kubernetes Engine Cluster Admin in order to install the GPU Operator. Please refer to Create IAM policies if you lack the required permissions.

Once installed, please wait at least 5 minutes and verify that all the pods are either running or completed as per below.

 1./google-cloud-sdk/bin/kubectl get pods -n gpu-operator
 2NAME                                                          READY   STATUS      RESTARTS   AGE
 3gpu-feature-discovery-fzgv9                                   1/1     Running     0          6m1s
 4gpu-operator-69f476f875-w4hwr                                 1/1     Running     0          6m29s
 5gpu-operator-node-feature-discovery-master-84c7c7c6cf-hxlk4   1/1     Running     0          6m29s
 6gpu-operator-node-feature-discovery-worker-86bbx              1/1     Running     0          6m29s
 7nvidia-container-toolkit-daemonset-c7k5p                      1/1     Running     0          6m
 8nvidia-cuda-validator-qjcsf                                   0/1     Completed   0          59s
 9nvidia-dcgm-exporter-9tggn                                    1/1     Running     0          6m
10nvidia-device-plugin-daemonset-tpx9z                          1/1     Running     0          6m
11nvidia-device-plugin-validator-gz85d                          0/1     Completed   0          44s
12nvidia-driver-daemonset-jwzx8                                 1/1     Running     0          6m9s
13nvidia-operator-validator-qj57n                               1/1     Running     0          6m

Verify the GPU Operator Installation#

Verify the NVIDIA GPU Driver loaded with below command.

./google-cloud-sdk/bin/kubectl exec -it nvidia-driver-daemonset-jwzx8 -n gpu-operator -- nvidia-smi
 1Defaulted container "nvidia-driver-ctr" out of: nvidia-driver-ctr, k8s-driver-manager (init)
 2Tue Feb 14 22:24:31 2023
 3+-----------------------------------------------------------------------------+
 4| NVIDIA-SMI 520.60.13    Driver Version: 520.60.13    CUDA Version: 12.0     |
 5|-------------------------------+----------------------+----------------------+
 6| GPU  Name        Persistence-M| Bus-Id        Disp.A | Volatile Uncorr. ECC |
 7| Fan  Temp  Perf  Pwr:Usage/Cap|         Memory-Usage | GPU-Util  Compute M. |
 8|                               |                      |               MIG M. |
 9|===============================+======================+======================|
10|   0  Tesla T4            On   | 00000000:00:04.0 Off |                    0 |
11| N/A   51C    P8    17W /  70W |      0MiB / 15360MiB |      0%      Default |
12|                               |                      |                  N/A |
13+-------------------------------+----------------------+----------------------+
14
15+-----------------------------------------------------------------------------+
16| Processes:                                                                  |
17|  GPU   GI   CI        PID   Type   Process name                  GPU Memory |
18|        ID   ID                                                   Usage      |
19|=============================================================================|
20|  No running processes found                                                 |
21+-----------------------------------------------------------------------------+

Note

nvidia-driver-daemonset-xxxxx will be different within your own environment for the above command to verify the NVIDIA vGPU Driver.

Verify the NVIDIA vGPU license information with below command

./google-cloud-sdk/bin/kubectl exec -it nvidia-driver-daemonset-jwzx8 -n gpu-operator-resources -- nvidia-smi -q

Run Sample NVIDIA AI Enterprise Container#

Create a docker-regirty secret. This will be used in a custom yaml to pull containers from the NGC Catalog.

1./google-cloud-sdk/bin/kubectl create secret docker-registry regcred --docker-server=nvcr.io/nvaie --docker-username=\$oauthtoken --docker-password=<YOUR_NGC_KEY> --docker-email=<your_email_id> -n default

Create a custom yaml file to deploy an NVIDIA AI Enterprise Container and run sample training code.

nano pytoch-mnist.yaml

Paste the below contents into the file and save

 1---
 2apiVersion: apps/v1
 3kind: Deployment
 4metadata:
 5  name: pytorch-mnist
 6  labels:
 7    app: pytorch-mnist
 8spec:
 9  replicas: 1
10  selector:
11    matchLabels:
12      app: pytorch-mnist
13template:
14    metadata:
15      labels:
16        app: pytorch-mnist
17    spec:
18      containers:
19        - name: pytorch-container
20          image: nvcr.io/nvaie/pytorch-2-0:22.02-nvaie-2.0-py3
21          command:
22            - python
23          args:
24            - /workspace/examples/upstream/mnist/main.py
25          resources:
26            requests:
27              nvidia.com/gpu: 1
28            limits:
29              nvidia.com/gpu: 1
30      imagePullSecrets:
31        - name: regcred

Check the status of the pod.

1./google-cloud-sdk/bin/kubectl get pods

View the output of the sample mnist training job.

1./google-cloud-sdk/bin/kubectl logs -l app=pytorch-mnist

The output will look similar to this.

 1~$ ./google-cloud-sdk/bin/kubectl logs -l app=pytorch-mnist
 2Train Epoch: 7 [55680/60000 (93%)]      Loss: 0.040756
 3Train Epoch: 7 [56320/60000 (94%)]      Loss: 0.028230
 4Train Epoch: 7 [56960/60000 (95%)]      Loss: 0.019917
 5Train Epoch: 7 [57600/60000 (96%)]      Loss: 0.005957
 6Train Epoch: 7 [58240/60000 (97%)]      Loss: 0.003768
 7Train Epoch: 7 [58880/60000 (98%)]      Loss: 0.277371
 8Train Epoch: 7 [59520/60000 (99%)]      Loss: 0.115487
 9
10
11Test set: Average loss: 0.0270, Accuracy: 9913/10000 (99%)

Delete the GKE Cluster#

Run the below command to delete the GKE cluster

./google-cloud-sdk/bin/gcloud  beta container clusters delete <cluster-name>  --zone <zone-name>
