Quick Start Guide#

Prerequisites#

HGX system with 8 GPUs and 4 switches assigned to the single tenant
python >= 3.9
git installed
Nvidia GPU driver installed
Nvidia Switch driver installed
Nvidia Fabric Manager installed

Installation/Dependencies#

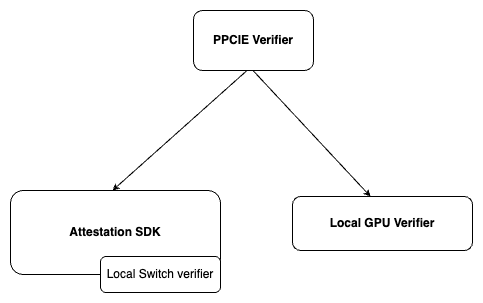

PPCIE Verifier has the following dependencies:

  • nv-attestation-sdk (Attestation SDK)

  • nv-local-gpu-verifier (Local GPU Verifier)

  • nv-switch-verifier (Local Switch Verifier) Note: nv-switch-verifier (Local Switch Verifier) This is a module inside attestation-sdk and does not require separate installation

Installation Instructions:

Please elevate to Root User Privileges before installing the packages: (Note: This is necessary to set the GPU ready state)

     sudo -i

Method 1: Using installer script

    1. git clone https://github.com/NVIDIA/nvtrust
    2. cd nvtrust/guest_tools/ppcie-verifier/install
    3. source ppcie-installer.sh  (This would install the required dependencies)

Method 2: Using PyPI (Requires python virtual environment creation)

    1. python3 -m venv venv
    2. source venv/bin/activate
    3. pip3 install nv-ppcie-verifier (This would automatically install nv-attestation-sdk, nv-local-gpu-verifier and nv-switch-verifier)

Usage#

python3 -m ppcie.verifier.verification --gpu-attestation-mode=LOCAL --switch-attestation-mode=LOCAL (Example arguments provided)

Options#

Option

Description

Value Options

--gpu-attestation-mode

Type of GPU Attestation

LOCAL, REMOTE

--switch-attestation-mode

Type of nvSwitch Attestation

LOCAL, REMOTE

--log

Configure log level

DEBUG, INFO, WARNING, ERROR, TRACE, CRITICAL

--allow-hold-cert

Enable attestation when OCSP status of certificate is cert hold

N/A

--rim-url RIM_SERVICE_URL

The URL to be used for fetching driver and VBIOS RIM files (e.g., https://rim.nvidia.com/rims/)

--ocsp-url OCSP_SERVICE_URL

The URL to be used for checking the revocation status of a certificate (e.g., https://ocsp.ndis.nvidia.com/)

--ocsp-nonce-disabled

Flag which indicates whether to include a nonce when calling OCSP. Only applicable for local GPU attestation. False by default

--service-key

Service key which is used to auth remote service calls to attestation services. None by default. Note: No valid service keys have been created by admins yet - using any key will result in attestation failure.

--claims-version

Specify the claims version to retrieve version-specific attestation claims (e.g., 2.0). Please refer to the Claims Guide for the claims. If the claims version is not set, it defaults to 2.0.

“2.0” or “3.0”
