2. Usage

2.1. CUPTI Compatibility and Requirements

CUPTI, the CUDA Profiling Tools Interface, ensures seamless profiling compatibility for CUDA applications across various GPU architectures and CUDA driver versions. As part of the CUDA Toolkit, CUPTI adheres to CUDA Toolkit compatibility requirements with CUDA drivers, which includes support for Backward, Forward and Enhanced compatibilities. For instance, a profiling tool based on an older version of CUPTI can still operate with a more recent CUDA driver.

It’s essential to refer to the CUDA Toolkit and Compatible Driver Versions table to determine the minimum CUDA driver version required for each release of CUPTI corresponding to a CUDA Toolkit release. Attempting to use CUPTI calls with an incompatible CUDA driver version will result in a CUPTI_ERROR_NOT_INITIALIZED error code.

2.2. CUPTI Initialization

CUPTI initialization occurs lazily the first time you invoke any CUPTI function. For the Activity, and Callback APIs there are no requirements on when this initialization must occur (i.e. you can invoke the first CUPTI function at any point). See the CUPTI Activity API section for more information on CUPTI initialization requirements for the activity API.

It is recommended that CUPTI clients call the subscription API, cuptiSubscribe(), before starting the profiling session. This means the API should be invoked prior to any other CUPTI calls. If another CUPTI client is already subscribed, cuptiSubscribe() will return the error code CUPTI_ERROR_MULTIPLE_SUBSCRIBERS_NOT_SUPPORTED. In this case, the CUPTI client should terminate further CUPTI calls and handle the error appropriately. This ensures that only one CUPTI client is active at a time, preventing interference with each other’s profiling state. The cuptiSubscribe_v2() API version offers improved handling, allowing for easier identification of the previous subscriber if the current subscription fails.

2.3. CUPTI Activity API

The CUPTI Activity API allows you to asynchronously collect a trace of an application’s CPU and GPU CUDA activity. This API is provided in the header file cupti_activity.h. The following terminology is used by the activity API.

Activity Record

CPU and GPU activity is reported in C data structures called activity records. There is a different C structure type for each activity kind (e.g. CUpti_ActivityAPI). Records are generically referred to using the CUpti_Activity type. This type contains only a field that indicates the kind of the activity record. Using this kind, the object can be cast from the generic CUpti_Activity type to the specific type representing the activity. See the printActivity function in the activity_trace_async sample for an example.

Activity Buffer

An activity buffer is used to transfer one or more activity records from CUPTI to the client. CUPTI fills activity buffers with activity records as the corresponding activities occur on the CPU and GPU. But CUPTI doesn’t guarantee any ordering of the activities in the activity buffer as activity records for few activity kinds are added lazily. The CUPTI client is responsible for providing empty activity buffers as necessary to ensure that no records are dropped.

An asynchronous buffering API is implemented by cuptiActivityRegisterCallbacks and cuptiActivityFlushAll.

It is not required that the activity API be initialized before CUDA initialization. All related activities occurring after initializing the activity API are collected. You can force initialization of the activity API by enabling one or more activity kinds using cuptiActivityEnable or cuptiActivityEnableContext, as shown in the initTrace function of the activity_trace_async sample. Some activity kinds cannot be directly enabled, see the API documentation for CUpti_ActivityKind for details. The functions cuptiActivityEnable and cuptiActivityEnableContext will return CUPTI_ERROR_NOT_COMPATIBLE if the requested activity kind cannot be enabled.

The activity buffer API uses callbacks to request and return buffers of activity records. To use the asynchronous buffering API, you must first register two callbacks using cuptiActivityRegisterCallbacks. One of these callbacks will be invoked whenever CUPTI needs an empty activity buffer. The other callback is used to deliver a buffer containing one or more activity records to the client. To minimize profiling overhead the client should return as quickly as possible from these callbacks. Client can pre-allocate a pool of activity buffers and return an empty buffer from the pool when requested by CUPTI. Activity buffer size should be chosen carefully, smaller buffers can result in frequent requests by CUPTI and bigger buffers can delay the automatic delivery of completed activity buffers. For typical workloads, it’s suggested to choose a size between 1 and 10 MB.

By default, CUPTI requests activity buffers separately for each thread that generates activity records. The per-thread activity buffer request strategy is especially beneficial for multi-threaded applications, as it avoids contention when multiple threads are generating activities concurrently and improve the runtime performance of the application. This can slightly increase the memory footprint. Alternatively, the client can configure CUPTI to request activity buffers at the application level. In this mode, a single shared set of buffers is used across all threads in the application. This can help reduce memory usage, though it may introduce contention when multiple threads are generating activities concurrently.

The functions cuptiActivityGetAttribute and cuptiActivitySetAttribute can be used to read and write attributes that control how the buffering API behaves. See the API documentation for more information.

Flushing of the activity buffers

CUPTI is expected to deliver the activity buffer automatically as soon as it gets full and all the activity records in it are completed. For performance reasons, CUPTI calls the underlying methods based on certain heuristics, thus it can cause delay in the delivery of the buffer. However client can make a request to deliver the activity buffer/s at any time, and this can be achieved using the APIs cuptiActivityFlushAll and cuptiActivityFlushPeriod. Behavior of these APIs is as follows:

• For on-demand flush using the API cuptiActivityFlushAll with the flag set as 0, CUPTI returns all the activity buffers which have all the activity records completed, buffers need not to be full though. It doesn’t return buffers which have one or more incomplete records. This flush can be done at a regular interval in a separate thread.

• For on-demand forced flush using the API cuptiActivityFlushAll with the flag set as CUPTI_ACTIVITY_FLAG_FLUSH_FORCED, CUPTI returns all the activity buffers including the ones which have one or more incomplete activity records. It’s suggested to do the forced flush before the termination of the profiling session to allow remaining buffers to be delivered.

• For periodic flush using the API cuptiActivityFlushPeriod, CUPTI returns only those activity buffers which are full and have all the activity records completed. It’s allowed to use the API cuptiActivityFlushAll to flush the buffers on-demand, even when client sets the periodic flush.

Note that activity record is considered as completed if it has all the information filled up including the timestamps (if any).

The activity_trace_async sample shows how to use the activity buffer API to collect a trace of CPU and GPU activity for a simple application.

CUPTI Threads

CUPTI creates a worker thread to minimize the perturbance for the application created threads. CUPTI offloads certain operations from the application threads to the worker thread, this incldues synchronization of profiling resources between host and device, delivery of the activity buffers to the client using the buffer completed callback registered in the API cuptiActivityRegisterCallbacks etc. To minimize the overhead, CUPTI wakes up the worker thread based on certain heuristics. API cuptiActivityFlushPeriod introduced in CUDA 11.1 can be used to control the flush period of the worker thread. This setting overrides the CUPTI heuristics. It’s allowed to use the API cuptiActivityFlushAll to flush the data on-demand, even when client sets the periodic flush.

Further, CUPTI creates separate threads when certain activity kinds are enabled. For example, CUPTI creates one thread each for activity kinds CUPTI_ACTIVITY_KIND_UNIFIED_MEMORY_COUNTER and CUPTI_ACTIVITY_KIND_ENVIRONMENT to collect the information from the backend.

2.3.1. NVLink

NVIDIA NVLink is a high-bandwidth, energy-efficient interconnect that enables fast communication between the CPU and GPU, and between GPUs. CUPTI provides NVLink topology information and NVLink transmit/receive throughput metrics.

The activity record CUpti_ActivityNVLink4, enabled using activity kind CUPTI_ACTIVITY_KIND_NVLink, outputs NVLink topology information in terms of logical NVLinks. A logical NVLink is connected between 2 devices, the device can be of type NPU (NVLink Processing Unit), which can be CPU or GPU. Each device can support up to 18 NVLinks, hence one logical link can comprise of 1 to 18 physical NVLinks. The field physicalNvLinkCount gives the number of physical links in this logical link. The fields portDev0 and portDev1 give information about the slot in which physical NVLinks are connected for a logical link. This port is the same as the instance of NVLink metrics profiled from a device. Therefore, port and instance information should be used to correlate the per-instance metric values with the physical NVLinks, and in turn to the topology. The field flag gives the properties of a logical link, whether the link has access to system memory or peer device memory, and has capabilities to do system memory or peer memory atomics. The field bandwidth gives the bandwidth of the logical link in kilobytes/sec.

CUPTI provides some metrics for each physical link. Metrics are provided for data transmitted/received, transmit/receive throughput, and header versus user data overhead for each physical NVLink. These metrics are also provided per packet type (read/write/ atomics/response) to get more detailed insight in the NVLink traffic.

The nvlink_bandwidth sample shows how to use these APIs to collect NVLink metrics and topology, as well as how to correlate metrics with the topology.

2.3.2. OpenACC

CUPTI supports collecting information for OpenACC applications using the OpenACC tools interface implementation of the PGI runtime. OpenACC profiling is available only on Linux x86_64, IBM POWER and Arm server platform (arm64 SBSA) platforms. This feature also requires PGI runtime version 19.1 or higher.

The activity records CUpti_ActivityOpenAccData, CUpti_ActivityOpenAccLaunch, and CUpti_ActivityOpenAccOther are created, representing the three groups of callback events specified in the OpenACC tools interface. CUPTI_ACTIVITY_KIND_OPENACC_DATA, CUPTI_ACTIVITY_KIND_OPENACC_LAUNCH, and CUPTI_ACTIVITY_KIND_OPENACC_OTHER can be enabled to collect the respective activity records.

Due to the restrictions of the OpenACC tools interface, CUPTI cannot record OpenACC records from within the client application. Instead, a shared library that exports the acc_register_library function defined in the OpenACC tools interface specification must be implemented. Parameters passed into this function from the OpenACC runtime can be used to initialize the CUPTI OpenACC measurement using cuptiOpenACCInitialize. Before starting the client application, the environment variable ACC_PROFLIB must be set to point to this shared library.

cuptiOpenACCInitialize is defined in cupti_openacc.h, which is included by cupti_activity.h. Since the CUPTI OpenACC header is only available on supported platforms, CUPTI clients must define CUPTI_OPENACC_SUPPORT when compiling.

The openacc_trace sample shows how to use CUPTI APIs for OpenACC data collection.

2.3.3. CUDA Graphs

CUPTI can collect trace of CUDA Graphs applications without breaking driver performance optimizations. CUPTI has added fields graphId and graphNodeId in the kernel, memcpy and memset activity records to denote the unique ID of the graph and the graph node respectively of the GPU activity. CUPTI issues callbacks for graph operations like graph and graph node creation/destruction/cloning and also for executable graph creation/destruction. The cuda_graphs_trace sample shows how to collect GPU trace and API trace for CUDA Graphs and how to correlate a graph node launch to the node creation API by using CUPTI callbacks for graph operations.

2.3.4. External Correlation

CUPTI supports correlation of CUDA API activity records with external APIs. Such APIs include OpenACC, OpenMP, and MPI. This associates CUPTI correlation IDs with IDs provided by the external API. Both IDs are stored in a new activity record of type CUpti_ActivityExternalCorrelation.

CUPTI maintains a stack of external correlation IDs per CPU thread and per CUpti_ExternalCorrelationKind. Clients must use cuptiActivityPushExternalCorrelationId to push an external ID of a specific kind to this stack and cuptiActivityPopExternalCorrelationId to remove the latest ID. If a CUDA API activity record is generated while any CUpti_ExternalCorrelationKind-stack on the same CPU thread is non-empty, one CUpti_ActivityExternalCorrelation record per CUpti_ExternalCorrelationKind-stack is inserted into the activity buffer before the respective CUDA API activity record. The CUPTI client is responsible for tracking passed external API correlation IDs, in order to eventually associate external API calls with CUDA API calls. Along with the activity kind CUPTI_ACTIVITY_KIND_EXTERNAL_CORRELATION, it is necessary to enable the CUDA API activity kinds i.e. CUPTI_ACTIVITY_KIND_RUNTIME and CUPTI_ACTIVITY_KIND_DRIVER to generate external correlation activity records.

If both CUPTI_ACTIVITY_KIND_EXTERNAL_CORRELATION and any of CUPTI_ACTIVITY_KIND_OPENACC_* activity kinds are enabled, CUPTI will generate external correlation activity records for OpenACC with externalKindCUPTI_EXTERNAL_CORRELATION_KIND_OPENACC.

The cupti_external_correlation sample shows how to use CUPTI APIs for external correlation.

2.3.5. Dynamic Attach and Detach

CUPTI provides mechanisms for attaching to or detaching from a running process to support on-demand profiling. CUPTI can be attached by calling any CUPTI API as CUPTI supports lazy initialization. To detach CUPTI, call the API cuptiFinalize() which destroys and cleans up all the resources associated with CUPTI in the current process. After CUPTI detaches from the process, the process will keep on running with no CUPTI attached to it. Any subsequent CUPTI API call will reinitialize the CUPTI. You can attach and detach CUPTI any number of times. For safe operation of the API, it is recommended that API cuptiFinalize() is invoked from the exit call site of any of the CUDA Driver or Runtime API. Otherwise, CUPTI client needs to make sure that CUDA synchronization and CUPTI activity buffer flush is done before calling the API cuptiFinalize(). To understand the need for calling the API cuptiFinalize() from specific point/s in the code flow, consider multiple application threads performing various CUDA activities. While one thread is in the middle of the cuptiFinalize(), it is quite possible that other threads continue to call into the CUPTI and try to access the state of various objects (device, context, thread state etc) maintained by CUPTI, which might be rendered invalid as part of the cuptiFinalize(), thus resulting in the crash. We have to block the other threads until CUPTI teardown is completed via cuptiFinalize(). API exit call site is one such location where we can ensure that the work submitted by all the threads has been completed and we can safely teardown CUPTI. cuptiFinalize() is a heavy operation as it does context synchronization for all active CUDA contexts and blocks all the application threads until CUPTI teardown is completed. Sample code showing the usage of the API cuptiFinalize() in the cupti callback handler code:

void CUPTIAPI
cuptiCallbackHandler(void *userdata, CUpti_CallbackDomain domain,
    CUpti_CallbackId cbid, void *cbdata)
{
    const CUpti_CallbackData *cbInfo = (CUpti_CallbackData *)cbdata;

    // Take this code path when CUPTI detach is requested
    if (detachCupti) {
        switch(domain)
        {
        case CUPTI_CB_DOMAIN_RUNTIME_API:
        case CUPTI_CB_DOMAIN_DRIVER_API:
            if (cbInfo->callbackSite == CUPTI_API_EXIT) {
                // call the CUPTI detach API
                cuptiFinalize();
            }
            break;
        default:
            break;
        }
    }
}

Full code can be found in the sample cupti_finalize.

2.3.6. Device Memory Allocation Source Tracking

CUDA applications utilize various shared libraries such as cuBLAS, cuFFT, cuDNN etc, each serving distinct purposes. These libraries can be integrated either statically at compile time or loaded dynamically during runtime. In the case of dynamic loading, CUPTI enables precise attribution of memory allocations to their respective shared libraries. This can be achieved by calling the cuptiActivityEnableAllocationSource() API. The filepath of the responsible shared object is assigned in the source field in the activity record CUpti_ActivityMemory4 which is enabled using the activity kind CUPTI_ACTIVITY_KIND_MEMORY2. This functionality is currently exclusive to Linux x86_64 platform. However, if the library is statically linked, the source is identified as the main application executable rather than the library.

2.4. CUPTI Callback API

The CUPTI Callback API allows you to register a callback into your own code. Your callback will be invoked when the application being profiled calls a CUDA runtime or driver function, or when certain events occur in the CUDA driver. This API is provided in the header file cupti_callbacks.h. The following terminology is used by the callback API.

Callback Domain

Callbacks are grouped into domains to make it easier to associate your callback functions with groups of related CUDA functions or events. There are currently four callback domains, as defined by CUpti_CallbackDomain: a domain for CUDA runtime functions, a domain for CUDA driver functions, a domain for CUDA resource tracking, and a domain for CUDA synchronization notification.

Callback ID

Each callback is given a unique ID within the corresponding callback domain so that you can identify it within your callback function. The CUDA driver API IDs are defined in cupti_driver_cbid.h and the CUDA runtime API IDs are defined in cupti_runtime_cbid.h. Both of these headers are included for you when you include cupti.h. The CUDA resource callback IDs are defined by CUpti_CallbackIdResource, and the CUDA synchronization callback IDs are defined by CUpti_CallbackIdSync.

Callback Function

Your callback function must be of type CUpti_CallbackFunc. This function type has two arguments that specify the callback domain and ID so that you know why the callback is occurring. The type also has a cbdata argument that is used to pass data specific to the callback.

Subscriber

A subscriber is used to associate each of your callback functions with one or more CUDA API functions. There can be at most one subscriber initialized with cuptiSubscribe() at any time. Before initializing a new subscriber, the existing subscriber must be finalized with cuptiUnsubscribe().

Each callback domain is described in detail below. Unless explicitly stated, it is not supported to call any CUDA runtime or driver API from within a callback function. Doing so may cause the application to hang.

2.4.1. Driver and Runtime API Callbacks

Using the callback API with the CUPTI_CB_DOMAIN_DRIVER_API or CUPTI_CB_DOMAIN_RUNTIME_API domains, you can associate a callback function with one or more CUDA API functions. When those CUDA functions are invoked in the application, your callback function is invoked as well. For these domains, the cbdata argument to your callback function will be of the type CUpti_CallbackData.

It is legal to call cudaThreadSynchronize(), cudaDeviceSynchronize(), cudaStreamSynchronize(), cuCtxSynchronize(), and cuStreamSynchronize() from within a driver or runtime API callback function.

The following code shows a typical sequence used to associate a callback function with one or more CUDA API functions. To simplify the presentation, error checking code has been removed.

CUpti_SubscriberHandle subscriber;
MyDataStruct *my_data = ...;
...
cuptiSubscribe(&subscriber,
               (CUpti_CallbackFunc)my_callback , my_data);
cuptiEnableDomain(1, subscriber,
                  CUPTI_CB_DOMAIN_RUNTIME_API);

First, cuptiSubscribe is used to initialize a subscriber with the my_callback callback function. Next, cuptiEnableDomain is used to associate that callback with all the CUDA runtime API functions. Using this code sequence will cause my_callback to be called twice each time any of the CUDA runtime API functions are invoked, once on entry to the CUDA function and once just before exit from the CUDA function. CUPTI callback API functions cuptiEnableCallback and cuptiEnableAllDomains can also be used to associate CUDA API functions with a callback (see reference below for more information).

The following code shows a typical callback function.

void CUPTIAPI
my_callback(void *userdata, CUpti_CallbackDomain domain,
            CUpti_CallbackId cbid, const void *cbdata)
{
  const CUpti_CallbackData *cbInfo = (CUpti_CallbackData *)cbdata;
  MyDataStruct *my_data = (MyDataStruct *)userdata;

  if ((domain == CUPTI_CB_DOMAIN_RUNTIME_API) &&
      (cbid == CUPTI_RUNTIME_TRACE_CBID_cudaMemcpy_v3020))  {
    if (cbInfo->callbackSite == CUPTI_API_ENTER) {
        cudaMemcpy_v3020_params *funcParams =
             (cudaMemcpy_v3020_params *)(cbInfo->
                 functionParams);

        size_t count = funcParams->count;
        enum cudaMemcpyKind kind = funcParams->kind;
        ...
      }
  ...

In your callback function, you use the CUpti_CallbackDomain and CUpti_CallbackID parameters to determine which CUDA API function invocation is causing this callback. In the example above, we are checking for the CUDA runtime cudaMemcpy function. The cbdata parameter holds a structure of useful information that can be used within the callback. In this case, we use the callbackSite member of the structure to detect that the callback is occurring on entry to cudaMemcpy, and we use the functionParams member to access the parameters that were passed to cudaMemcpy. To access the parameters, we first cast functionParams to a structure type corresponding to the cudaMemcpy function. These parameter structures are contained in generated_cuda_runtime_api_meta.h, generated_cuda_meta.h, and a number of other files. When possible, these files are included for you by cupti.h.

The callback_event and callback_timestamp samples described on the samples page both show how to use the callback API for the driver and runtime API domains.

2.4.2. Resource Callbacks

Using the callback API with the CUPTI_CB_DOMAIN_RESOURCE domain, you can associate a callback function with some CUDA resource creation and destruction events. For example, when a CUDA context is created, your callback function will be invoked with a callback ID equal to CUPTI_CBID_RESOURCE_CONTEXT_CREATED. For this domain, the cbdata argument to your callback function will be of the type CUpti_ResourceData.

Note that APIs cuptiActivityFlush and cuptiActivityFlushAll will result in deadlock when called from stream destroy starting callback identified using callback ID CUPTI_CBID_RESOURCE_STREAM_DESTROY_STARTING.

2.4.3. Synchronization Callbacks

Using the callback API with the CUPTI_CB_DOMAIN_SYNCHRONIZE domain, you can associate a callback function with CUDA context and stream synchronizations. For example, when a CUDA context is synchronized, your callback function will be invoked with a callback ID equal to CUPTI_CBID_SYNCHRONIZE_CONTEXT_SYNCHRONIZED. For this domain, the cbdata argument to your callback function will be of the type CUpti_SynchronizeData.

2.4.4. State Callbacks

Any fatal error encountered by an explicit CUPTI API call is returned by the API itself, whereas errors encountered by CUPTI in the background is returned to the user only during the next explicit CUPTI API call. Using the callback API with the CUPTI_CB_DOMAIN_STATE domain, you can associate a callback function with errors in CUPTI, and receive the reported error instantaneously. For example, when a CUPTI runs into a fatal error, your callback function will be invoked with a callback ID equal to CUPTI_CBID_STATE_FATAL_ERROR. For this domain, the cbdata argument to your callback function will be of the type CUpti_StateData.

As part of CUpti_StateData, you can receive the error code of the failure, along with an appropriate error message with possible causes or appropriate links to documentation. The example usage of these callbacks can be found in the CUPTI trace samples.

2.5. NVIDIA Tools Extension (NVTX) Support

CUPTI provides both callback and activity record support for NVTX (NVIDIA Tools Extension) APIs, including extended payload decoding introduced in NVTX v3.2.

2.5.1. NVTX Activity Records

To collect CUPTI activity records for NVTX events, you must enable the appropriate activity kinds using the CUPTI Activity API cuptiActivityEnable:

CUptiResult res = cuptiActivityEnable(CUPTI_ACTIVITY_KIND_MARKER);
CUptiResult res = cuptiActivityEnable(CUPTI_ACTIVITY_KIND_MARKER_DATA);

Note: CUPTI_ACTIVITY_KIND_MARKER must be enabled before enabling CUPTI_ACTIVITY_KIND_MARKER_DATA. Without MARKER, no MARKER_DATA records will be emitted.

2.5.2. NVTX Callbacks

You can associate a callback function with NVTX API calls using the CUPTI_CB_DOMAIN_NVTX domain. When an NVTX function is invoked, CUPTI triggers your registered callback.

First, cuptiSubscribe is used to initialize a subscriber with the NvtxCallbacks callback function. Next, cuptiEnableDomain is used to associate that callback with all the NVTX functions. Using this code sequence will cause NvtxCallbacks to be called once each time any of the NVTX functions are invoked

2.5.2.1. Typical callback registration

CUpti_SubscriberHandle subscriber;
MyDataStruct *my_data = ...;

cuptiSubscribe(&subscriber, (CUpti_CallbackFunc)NvtxCallbacks, my_data);
cuptiEnableDomain(1, subscriber, CUPTI_CB_DOMAIN_NVTX);

Alternatively, use the CUPTI Callback API cuptiEnableCallback for fine-grained control.

2.5.2.2. Callback function example

void CUPTIAPI
NvtxCallbacks(void *userdata, CUpti_CallbackDomain domain,
              CUpti_CallbackId cbid, const void *cbdata)
{
    const CUpti_NvtxData *nvtxInfo = (const CUpti_NvtxData *)cbdata;
    if ((domain == CUPTI_CB_DOMAIN_NVTX) &&
        (cbid == CUPTI_CBID_NVTX_nvtxRangeStartEx))
    {
        nvtxRangeStartEx_params *params =
            (nvtxRangeStartEx_params *)nvtxInfo->functionParams;
        nvtxRangeId_t *id =
            (nvtxRangeId_t *)nvtxInfo->functionReturnValue;
        ...
    }
}

Use functionParams to access input arguments and functionReturnValue for output.

2.5.3. Initialization to Receive NVTX Callbacks or Activity Records

2.5.3.1. For your CUPTI-based profiling library

The environment must be configured to inject the library at runtime:

setenv("NVTX_INJECTION32_PATH", "/path/to/32-bit/version/of/cupti/based/profiling/library", 1);
setenv("NVTX_INJECTION64_PATH", "/path/to/64-bit/version/of/cupti/based/profiling/library", 1);

Export the following injection functions:

/* Extern the CUPTI NVTX initialization APIs. The APIs are thread-safe */
extern "C" CUptiResult CUPTIAPI cuptiNvtxInitialize(void *pfnGetExportTable);
extern "C" CUptiResult CUPTIAPI cuptiNvtxInitialize2(void *pfnGetExportTable);

Ensure these functions are defined in your profiling library to initialize NVTX support when the library is loaded:

extern "C" int InitializeInjectionNvtx(void* p)
{
    return (cuptiNvtxInitialize(p) == CUPTI_SUCCESS) ? 1 : 0;
}

extern "C" int InitializeInjectionNvtx2(void* p)
{
    return (cuptiNvtxInitialize2(p) == CUPTI_SUCCESS) ? 1 : 0;
}

2.5.3.2. For application that have embedded CUPTI APIs

The environment variables must be set to CUPTI library itself:

setenv("NVTX_INJECTION32_PATH", "/path/to/cupti/library/libcupti.so", 1);
setenv("NVTX_INJECTION64_PATH", "/path/to/cupti/library/libcupti.so", 1);

NOTE: User does not need to export cuptiNvtxInitialize or cuptiNvtxInitialize2 functions in this case.

2.5.3.3. NVTX Versions

• NVTX v1/v2: Initialization is done once per process.

• NVTX v3: Each dynamic library with NVTX v3 initializes separately on its first NVTX call.

2.5.4. CUPTI NVTX Extended Payload Support

CUPTI provides utilities to parse and decode extended payloads emitted by NVTX v3.2 APIs. Refer nvToolsExtPayload.h for the NVTX extended payload API documentation.

2.5.4.1. New CUPTI APIs Introduced

• cuptiNvtxExtensionInitialize

• cuptiActivityGetNvtxExtPayloadAttr

• cuptiActivityGetNvtxExtPayloadEntryTypeInfo

2.5.4.2. CUPTI initialization for NVTX extended payload parsing

The workflow is similar to above section Initialization to Receive NVTX Callbacks or Activity Records. Export the following injection function:

/* Extern the CUPTI NVTX Extenstion initialization APIs. The API is thread-safe */
extern "C" CUptiResult CUPTIAPI cuptiNvtxExtensionInitialize(nvtxExtModuleInfo_t *moduleInfo);

Ensure this function is defined in your profiling library to initialize NVTX extension support when the library is loaded:

extern "C" int InitializeInjectionNvtxExtension(void* p)
{
    return (cuptiNvtxExtensionInitialize(p) == CUPTI_SUCCESS) ? 1 : 0;
}

NOTE: User does not need to export cuptiNvtxExtensionInitialize function in the case where CUPTI APIs are embedded in the application.

Export these CUPTI APIs to parse NVTX extended payloads:

extern "C" CUptiResult CUPTIAPI cuptiActivityGetNvtxExtPayloadAttr(
    uint32_t cuptiDomainId, uint64_t schemaId, CUpti_NvtxExtPayloadAttr *pPayloadAttributes);

extern "C" const nvtxPayloadEntryTypeInfo_t * CUPTIAPI cuptiActivityGetNvtxExtPayloadEntryTypeInfo();

2.5.4.3. Supported Features

• Payload schema registration via nvtxPayloadSchemaRegister

• Enum type registration via nvtxPayloadEnumRegister

• Payload schema type NVTX_PAYLOAD_SCHEMA_TYPE_STATIC

• Payload schema type NVTX_PAYLOAD_SCHEMA_TYPE_DYNAMIC

  • NOTE: If the dynamic schema is nested schema, it is not supported.

• Payload schema entry type is an array:

  • Fixed-size arrays i.e. entry types with flag NVTX_PAYLOAD_ENTRY_FLAG_ARRAY_FIXED_SIZE

  • Length-indexed arrays i.e. entry types with flag NVTX_PAYLOAD_ENTRY_FLAG_ARRAY_LENGTH_INDEX

  • Zero-terminated arrays i.e. entry types with flag NVTX_PAYLOAD_ENTRY_FLAG_ARRAY_ZERO_TERMINATED

• NCCL library support:

  • NVTX payloads used in the NCCL library are supported.

2.5.4.4. Limitations

• NVTX callbacks for NVTX APIs nvtxPayloadSchemaRegister and nvtxPayloadEnumRegister are not supported.

• Payload entries that are registered strings are not supported:

  • Entry type is NVTX_PAYLOAD_ENTRY_TYPE_NVTX_REGISTERED_STRING_HANDLE

• Payload semantics are not supported:

  • nvtxSemanticsHeader_t is used to define semantics for payloads.

• Payload schema types not supported:

  • NVTX_PAYLOAD_SCHEMA_TYPE_UNION

  • NVTX_PAYLOAD_SCHEMA_TYPE_UNION_WITH_INTERNAL_SELECTOR

• Payload entries that are deep copy are not supported:

  • Entry types with flag NVTX_PAYLOAD_SCHEMA_FLAG_DEEP_COPY

• New payload-based NVTX APIs are not supported:

  • nvtxRangePushPayload

  • nvtxRangePopPayload

  • nvtxRangeStartPayload

  • nvtxRangeEndPayload

  • nvtxMarkPayload

2.5.4.5. Helper files

• Location: $CUPTI_DIR/samples/common/nvtx/

• nvtx_payload_parser.[cpp|h]: Decodes CUPTI-collected NVTX extended payloads.

• nvtx_payload_attributes.[cpp|h]: Schema and attribute descriptor logic.

Look for the comment below to locate where the decoded data appears:

// NOTE: PLACEHOLDER FOR GETTING PAYLOAD DATA FOR AN ENTRY IN THE SCHEMA

Refer samples cupti_nvtx and cupti_nvtx_ext_payload for practical examples of using NVTX with CUPTI. CuptiParseNvtxPayload() is used to decode NVTX extended payloads from CUPTI activity records in cupti_nvtx_ext_payload sample.

2.6. CUPTI Profiler Host API

CUPTI has introduced a new set of profiler host APIs cuptiProfilerHost* in the CUDA 12.6 release. These APIs can be used to perform various host-side tasks necessary for collecting profiling data through either PM Sampling APIs or the new Range Profiler APIs. These APIs are provided in the header file cupti_profiler_host.h.

These new APIs replace the old Perfworks APIs and are more high-level compared to the previous NVPW Raw Metric and Metric Evaluator APIs. They maintain key functionality while abstracting away low-level details, offering a more streamlined and efficient way to gather performance metrics.

In CUPTI Profiling there are three types of host operations, these are enumeration, configuration and evaluation.

2.6.1. Enumeration

A metric is a quantifiable measurement used to assess the performance and efficiency of a CUDA kernel. Metrics can provide insights into various computational characteristics such as execution time, instruction throughput, or cache efficiency.

When profiling a kernel, metrics are predefined to capture particular performance data. After the profiling is complete, the values associated with these metrics allow developers to analyze the kernel’s behavior, identify performance bottlenecks, and make informed optimizations.

For example, common metrics during kernel profiling might include:

• Execution Time: The duration the kernel takes to complete.

• Memory Bandwidth: The amount of data transferred between units.

• Instruction Throughput: The number of instructions executed per second.

• Cache Hit Rate: The percentage of memory accesses that are served by the cache.

Metrics provide a detailed, quantitative view of the kernel’s performance, making them essential for performance tuning and optimization.

CUPTI has introduced several APIs for querying the supported metrics for various chips and retrieving properties of those metrics, such as the metric type and a description of what each metric represents.

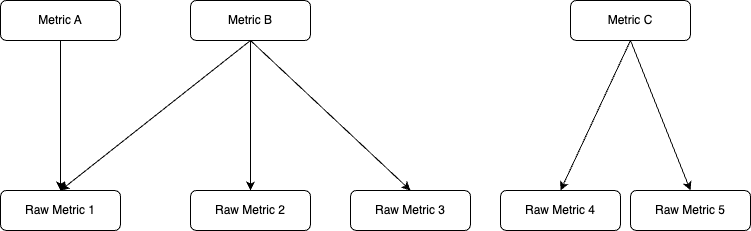

Each metric can be treated as a function of single or multiple raw metrics (also referred as raw counters). CUPTI will schedule (refer configuration) and profile the associated raw metrics and store it in a counter data image (refer evaluation).

• Metric Types:

  All the supported metrics in CUPTI can be categorized into 3 groups that are counters, ratio and throughput metrics. For profiling a metric user needs to add a rollup or a submetric or sometimes both based on metric type one wants to collect profiling data. A counter metric type needs to have a rollup but having a submetric is optional. For ratio metric type rollups are not supported so only a submetric will be added as a suffix for a valid profiling metric. For throughput metrics both rollups and submetrics are needed.

  • CUPTI supports four types of rollups that are sum, avg, min and max.

    Rollup Table

    Rollup Type	Metric details
    .sum	The sum of counter values across all unit instances.
    .avg	The average of counter values across all unit instances.
    .min	The minimum of counter values across all unit instances.
    .max	The maximum of counter values across all unit instances.

  • For counter metric types, refer to the below table for a list of optional sub metrics that can be added to the base metric for profiling.

    Submetrics supported for counter metrics

    Submetrics	Description
    .peak_sustained	The peak sustained rate.
    .peak_sustained_active	The peak sustained rate during unit active cycles.
    .peak_sustained_active.per_second	The peak sustained rate during unit active cycles, per second.
    .peak_sustained_elapsed	The peak sustained rate during unit elapsed cycles.
    .peak_sustained_active.per_second	The peak sustained rate during unit elapsed cycles, per second.
    .per_second	The number of operations per second.
    .per_cycle_active	The number of operations per unit active cycle.
    .per_cycle_elapsed	The number of operations per unit elapsed cycle.
    .pct_of_peak_sustained_active	% of peak sustained rate achieved during unit active cycles.
    .pct_of_peak_sustained_elapsed	% of peak sustained rate achieved during unit elapsed cycles.

    For example, smsp__warps_launched.sum.per_second

    • Base metric: smsp__warps_launched

    • Rollup: .sum

    • Submetric: .per_second

  • Ratio metric only supports below three sub-metrics.

    Submetrics supported for ratio metrics

    Submetrics	Description
    .pct	The value expressed as a percentage.
    .ratio	The value expressed as a ratio.
    .max_rate	The ratio’s maximum value.

    For example, smsp__average_inst_executed_per_warp.max_rate

    • Base metric: smsp__average_inst_executed_per_warp

    • Rollup: NOT ALLOWED

    • Submetric: .max_rate

  • For throughput metric, users need to add one of the rollups with below submetrics.

    Submetrics supported for throughput metrics

    Submetrics	Description
    .pct_of_peak_sustained_active	% of peak sustained rate achieved during unit active cycles.
    .pct_of_peak_sustained_elapsed	% of peak sustained rate achieved during unit elapsed cycles.

    For example, sm__throughput.sum.pct_of_peak_sustained_active

    • Base metric: sm__throughput

    • Rollup: .sum

    • Submetric: .pct_of_peak_sustained_active

    Note

    For decoding the metric name, the user can refer to the Metrics Decoder section in kernel profiling guide mentioned in Nsight compute documentation.

• APIs:

  • The cuptiProfilerHostGetBaseMetrics() API for listing base metrics for a metric type (counter, throughput and ratio).

  • The cuptiProfilerHostGetSubMetrics() API for listing the submetric for a metric.

  • The cuptiProfilerHostGetMetricProperties() API for querying the details about a metric like associated hardware unit, metric type and a short description about the metric.

• Code Samples:

  // Initialize profiler host

  CUptiResult GetSupportedBaseMetrics(std::vector<std::string>& metricsList)
  {
     for (size_t metricTypeIndex = 0; metricTypeIndex < CUPTI_METRIC_TYPE__COUNT; ++metricTypeIndex)
     {
        CUpti_Profiler_Host_GetBaseMetrics_Params getBaseMetricsParams {CUpti_Profiler_Host_GetBaseMetrics_Params_STRUCT_SIZE};
        getBaseMetricsParams.pHostObject = m_pHostObject;
        getBaseMetricsParams.metricType = (CUpti_MetricType)metricTypeIndex;
        cuptiProfilerHostGetBaseMetrics(&getBaseMetricsParams);

        for (size_t metricIndex = 0; metricIndex < getBaseMetricsParams.numMetrics; ++metricIndex) {
           metricsList.push_back(getBaseMetricsParams.ppMetricNames[metricIndex]);
        }
      }
      return CUPTI_SUCCESS;
   }

  CUptiResult GetMetricProperties(const std::string& metricName, CUpti_MetricType& metricType, std::string& metricDescription)
  {
     CUpti_Profiler_Host_GetMetricProperties_Params getMetricPropertiesParams {CUpti_Profiler_Host_GetMetricProperties_Params_STRUCT_SIZE};
     getMetricPropertiesParams.pHostObject = m_pHostObject;
     getMetricPropertiesParams.pMetricName = metricName.c_str();
     cuptiProfilerHostGetMetricProperties(&getMetricPropertiesParams);
     metricType = getMetricPropertiesParams.metricType;
     metricDescription = getMetricPropertiesParams.pDescription;
     return CUPTI_SUCCESS;
  }

  CUptiResult GetSubMetrics(const std::string& metricName, std::vector<std::string>& subMetricsList)
  {
      CUpti_MetricType metricType;
      std::string metricDescription;
      GetMetricProperties(metricName, metricType, metricDescription);

      CUpti_Profiler_Host_GetSubMetrics_Params getSubMetricsParams {CUpti_Profiler_Host_GetSubMetrics_Params_STRUCT_SIZE};
      getSubMetricsParams.pHostObject = m_pHostObject;
      getSubMetricsParams.pMetricName = metricName.c_str();
      getSubMetricsParams.metricType = metricType;
      cuptiProfilerHostGetSubMetrics(&getSubMetricsParams);

      for (size_t subMetricIndex = 0;subMetricIndex < getSubMetricsParams.numOfSubmetrics; ++subMetricIndex) {
          subMetricsList.push_back(getSubMetricsParams.ppSubMetrics[subMetricIndex]);
      }
      return CUPTI_SUCCESS;
  }

  // Deinitialize profiler host


  Sample cupti_metric_properties shows how to query number of passes required to collect a set of counters.

2.6.2. Configuration

After users have selected the metrics to be profiled, they must create a configuration image before starting the profiling session. This image contains the scheduling details for the specified metrics, including how many passes are required to collect the profiling data and which metrics will be collected during each pass. Users can store the config image offline and can reuse it for profiling the same list of metrics and for the same chip.

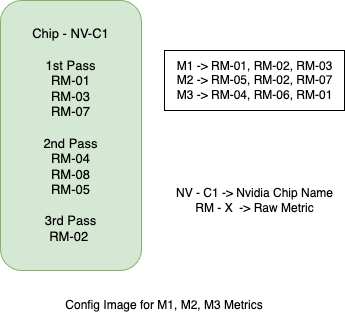

Below image shows a very high level overview of config image content. As we can see the config image has scheduling information for 3 metrics (M1, M2, M3) when collected together, it takes 3 passes. Each metric has defined raw metrics (RM-X) which are scheduled to collect in respective passes.

Note

For PM sampling the config image should be able to schedule the metric for collecting profiling data in single pass, else CUPTI will report CUPTI_ERROR_NOT_SUPPORTED error.

• APIs:

  • cuptiProfilerHostConfigAddMetrics(): Add a list of metrics which will be scheduled for profiling in the config image.

  • cuptiProfilerHostGetConfigImageSize(): Once the metrics list is added, the user can call this API for getting how much memory will be allocated for storing the config image information.

  • cuptiProfilerHostGetConfigImage(): The config image will be stored in the user allocated buffer.

• Code Samples:

  // Initialize profiler host

  CUpti_Profiler_Host_ConfigAddMetrics_Params configAddMetricsParams {CUpti_Profiler_Host_ConfigAddMetrics_Params_STRUCT_SIZE};
  configAddMetricsParams.pHostObject = profilerHostObjectPtr;
  configAddMetricsParams.ppMetricNames = metricNames.data();
  configAddMetricsParams.numMetrics = metricNames.size();
  cuptiProfilerHostConfigAddMetrics(&configAddMetricsParams);

  CUpti_Profiler_Host_GetConfigImageSize_Params getConfigImageSizeParams {CUpti_Profiler_Host_GetConfigImageSize_Params_STRUCT_SIZE};
  getConfigImageSizeParams.pHostObject = profilerHostObjectPtr;
  cuptiProfilerHostGetConfigImageSize(&getConfigImageSizeParams);

  configImage.resize(getConfigImageSizeParams.configImageSize, 0);
  CUpti_Profiler_Host_GetConfigImage_Params initializeConfigImageParams {CUpti_Profiler_Host_GetConfigImage_Params_STRUCT_SIZE};
  initializeConfigImageParams.pHostObject = profilerHostObjectPtr;
  initializeConfigImageParams.pConfigImage = configImage.data();
  initializeConfigImageParams.configImageSize = configImage.size();
  cuptiProfilerHostGetConfigImage(&initializeConfigImageParams);

  // Deinitialize profiler host


NVLINK (nvl*), C2C, and PCIe metrics are collected at the device level, while all other metrics are collected at the context level. Device-level metrics cannot be collected alongside context-level metrics. For device-level metrics, you need to pass an empty counter availability image when setting up CUPTI profiler host APIs, which is required before creating the config image. We aim to address this workaround in a future release.

2.6.3. Evaluation

After collecting the profiling data, users must call the decode API for each profiling type (Range Profiling or PM Sampling) to decode the data stored in a hardware buffer into a user-allocated host buffer, known as the CounterData Image. This CounterData Image contains the profiling data for the queried metrics in an internal format, and users need to call the evaluation APIs to extract the data in a human-readable format.

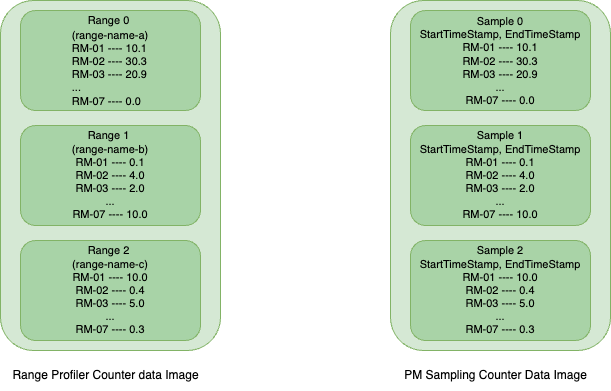

As shown in the above image which represents a very high level overview of how data is stored in a counter data image. For Range Profiling, each range is identified by a unique range name, whereas in PM Sampling, each sample is distinguished by its start and end timestamps.

• APIs:

  • cuptiRangeProfilerGetCounterDataInfo(): In Range profiling, this API reports how many ranges have been profiled and stored in the counter data.

  • cuptiRangeProfilerCounterDataGetRangeInfo(): User can use this API for querying the range name for a particular range index in the counter data.

  • cuptiProfilerHostEvaluateToGpuValues(): Reports the profiling data for a list of metrics for a range index or sample index.

• Code Samples:

  // Initialize profiler host

  CUpti_RangeProfiler_GetCounterDataInfo_Params getCounterDataInfoParams {CUpti_RangeProfiler_GetCounterDataInfo_Params_STRUCT_SIZE};
  getCounterDataInfoParams.pCounterDataImage = counterData;
  getCounterDataInfoParams.counterDataImageSize = counterDataSize;
  cuptiRangeProfilerGetCounterDataInfo(&getCounterDataInfoParams);
  size_t numOfRanges = getCounterDataInfoParams.numTotalRanges;

  metricNameValueMap.resize(metricNames.size());
  for (size_t rangeIndex = 0; rangeIndex < numOfRanges; ++rangeIndex)
  {
      CUpti_RangeProfiler_CounterData_GetRangeInfo_Params  getRangeInfoParams {CUpti_RangeProfiler_CounterData_GetRangeInfo_Params_STRUCT_SIZE};
      getRangeInfoParams.pCounterDataImage = counterData;
      getRangeInfoParams.counterDataImageSize = counterDataSize;
      getRangeInfoParams.rangeIndex = rangeIndex;
      getRangeInfoParams.rangeDelimiter = "/";
      cuptiRangeProfilerCounterDataGetRangeInfo(&getRangeInfoParams);

      std::vector<double> metricValues(metricNames.size());
      CUpti_Profiler_Host_EvaluateToGpuValues_Params evalauateToGpuValuesParams {CUpti_Profiler_Host_EvaluateToGpuValues_Params_STRUCT_SIZE};
      evalauateToGpuValuesParams.pHostObject = profilerHostObjectPtr;
      evalauateToGpuValuesParams.pCounterDataImage = counterData;
      evalauateToGpuValuesParams.counterDataImageSize = counterDataSize;
      evalauateToGpuValuesParams.ppMetricNames = metricNames.data();
      evalauateToGpuValuesParams.numMetrics = metricNames.size();
      evalauateToGpuValuesParams.rangeIndex = rangeIndex;
      evalauateToGpuValuesParams.pMetricValues = metricValues.data();
      cuptiProfilerHostEvaluateToGpuValues(&evalauateToGpuValuesParams);
  }

  // Deinitialize profiler host


2.7. CUPTI Range Profiling API

Beginning with CUDA 12.6 Update 2, CUPTI has launched a new suite of high-level profiling APIs known as cuptiRangeProfiler*. These APIs are similar to the previous cuptiProfiler* APIs, enabling users to collect profiling data for metrics at the CUDA context level. This uniformity in API calls ensures alignment with other profiling components within CUPTI. Users can designate specific ranges within their applications to gather profiling data on the GPU. These APIs are provided in the header file cupti_range_profiler.h.

The new APIs are compatible with Turing and newer GPU architectures (compute capability 7.5 and above) and require handling only two image types: the config image, which contains scheduling information for metrics, and the counter data image, where profiling data is stored after being decoded from the GPU. This method resembles the earlier profiler APIs and PM sampling APIs, involving both Host operations (enumeration, configuration, and evaluation) and Target operations (data collection).

2.7.1. Usage

For Host tasks such as enumeration, configuration, and evaluation, please see the CUPTI Host API Usage section.

• Collecting Profiling Data (collection):

  Once you have the configuration image set up with all essential scheduling details, you can employ the range profiler APIs to gather profiling data. It is important to become familiar with the specific concepts related to range profiling before using these APIs.

  • Range Modes:

    CUPTI offers two range modes to determine the definition of a profiler range:

    • Auto Range:

      In this mode, each kernel launch is treated as an individual range. CUPTI assigns numeric values starting from 0 to these ranges while evaluating the collected data. Being defined around the boundary of a kernel, this mode includes a context synchronization at the end of each kernel launch, making operations synchronous. This can lead to problems like hang state, if there are dependencies between two kernel launches.

    • User Range:

      In this mode, users can explicitly define ranges using Push/Pop APIs, allowing ranges to span multiple kernel launches. As a result, kernels can be launched asynchronously in this mode.

  • Replay Modes:

    A metric includes various raw counters, which CUPTI gathers to generate the final metric value. Due to hardware limitations, some metrics need multiple replays. Replay mode is crucial for profiling multi-pass metric collections. For single-pass metrics, no replays are required; hence, replay modes can be disregarded.

    • Kernel Replay:

      In this mode, a kernel is executed multiple times to gather complete profiling data, with CUPTI managing save/restore operations and launching the kernel several times. This replay mode is only supported in Auto Range Mode.

    • User Replay:

      Users must save and restore the context state prior to replaying the range. This mode supports both Auto and User range modes. CUPTI has checkpoint APIs for managing save and restore of context data at a given time.

    • Application Replay:

      Suitable for devices with limited memory, users relaunch the application using the same configuration image and intermediate counter data file to gather profiling data. This mode supports both Auto and User range modes.

    Note

    The application needs to have a deterministic runtime workload, else profiling data will be not correct.

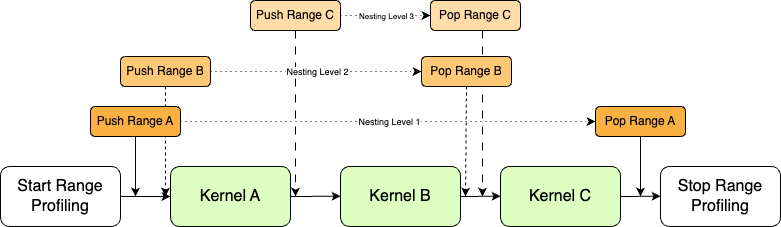

  • Nested Ranges:

    CUPTI allows nested Push/Pop range API calls, useful for detailed profiling. For example, Range A could encompass kernels A, B, and C, while Range B includes B and C, and Range C only includes C. Each range has an associated nesting level like for RangeA which is at base level is assigned to level 1 and nesting level for Range B and C are 2 and 3 respectively.



    The Nested range is only allowed in User range mode and as the nesting level increases the number of replay required for collecting the profiling data for nested ranges also increases. In CUpti_RangeProfiler_SetConfig_Params struct numNestingLevels and minNestingLevel are specific to nested ranges where minNestingLevel will set the base level for the profiling session. The numNestingLevels parameters sets how many levels to be profiled starting from the base level in a profiling session; if set to 2 then only ranges in nesting level 1 and 2 will be profiled.

2.7.2. API usage

• Enable Range Profiling:

  Before starting range profiling, enable it using cuptiRangeProfilerEnable() for a CUDA context. This creates a CUpti_RangeProfiler_Object, which stores intermediate data and identifies other profiler APIs for the context.

• Create Counter Data Image:

  Users need to allocate a CPU buffer for storing the decoded profiling data collected in the GPU. The buffer has to be in a specific format for storing the data and for this CUPTI exposes a set of APIs for getting the size of buffer required for storing the profiling data and once the buffer is allocated, CUPTI Initializes the data to default values.

  • cuptiRangeProfilerGetCounterDataSize(): For getting the size of buffer required based on metrics and number of ranges to be profiled in the application.

  • cuptiRangeProfilerCounterDataImageInitialize(): This API initializes the buffer allocated by the user. This can also be used to reset the counter data image.

• Set configuration:

  Use cuptiRangeProfilerSetConfig() API to customize the profiling configuration. Users must provide both the configuration and counter data images, along with parameters like range mode, replay mode, and the number of ranges per pass.

• Start Range Profiling:

  After setting the configuration, call cuptiRangeProfilerStart() API to define the profiling session’s boundary. Kernels outside this boundary will not be profiled.

• Push Range:

  For User range mode, call cuptiRangeProfilerPushRange() API to define the start of a range. Kernels launched between Push/Pop API calls will be profiled.

• Pop Range:

  Use cuptiRangeProfilerPopRange() API to mark the end of a range. Ensure the number of Pop range API calls matches the number of Push range calls to avoid errors.

  Note

  CUPTI allows nested Push/Pop API calls for nested range profiling. Refer Nested Range Profiling.

• Stop Range Profiling:

  The cuptiRangeProfilerStop() API sets the end of the boundary for range profiling. Along with that it also reports if all the passes for collecting profiling data for requested metrics are completed or not. If not then users need to replay the application or the Start/Stop boundary until all the passes are completed. For Kernel Replay mode, CUPTI internally replay the kernel so the allPassSubmitted parameter will always be 1. For application replay mode, it reports the current passIndex and targetNestingLevel which users need to set in the cuptiRangeProfilerSetConfig() API when the next replay is done.

• Decode Range Profiling data:

  Profiling data stored in the GPU buffer must be decoded using cuptiRangeProfilerDecodeData() API. This API adds a CUDA context synchronization before decoding.

  Note

  If the number of ranges profiled in a pass is greater than the maximum limit of ranges can be stored in the counter data image then the ranges will be dropped and will be reported in the cuptiRangeProfilerDecodeData() API.

• Disable Range Profiling:

  Users need to call the cuptiRangeProfilerDisable() API for destroying all the resources allocated by CUPTI for range profiling.

2.7.3. Sample code

CUPTI ships a sample i.e. range_profiling, which showcases the API usage. The sample has two files range_profiling.h and range_profiling.cu. For early prototypes users can simply take the range_profiling.h header file which has all the wrapper functions for host and target operations, and use it in their application for collecting profiling data.

// Enable Range profiler
pRangeProfilerTarget->EnableRangeProfiler();

// Create CounterData Image
std::vector<uint8_t> counterDataImage;
pRangeProfilerTarget->CreateCounterDataImage(args.metrics, counterDataImage);

// Set range profiler configuration
pRangeProfilerTarget->SetConfig(CUPTI_AutoRange, CUPTI_KernelReplay, configImage,counterDataImage);

do
{
     // Start Range Profiling
     pRangeProfilerTarget->StartRangeProfiler();
     {
         // Push Range (Level 1)
         pRangeProfilerTarget->PushRange("VectorAdd");

         // Launch CUDA workload
         vectorLaunchWorkLoad.LaunchKernel();
         {

             // Push Range (Level 2)
             pRangeProfilerTarget->PushRange("Nested VectorAdd");

             vectorLaunchWorkLoad.LaunchKernel();

             // Pop Range (Level 2)
             pRangeProfilerTarget->PopRange();
         }

         // Pop Range (Level 1)
         pRangeProfilerTarget->PopRange();
     }

     vectorLaunchWorkLoad.LaunchKernel();

     // Stop Range Profiling
     pRangeProfilerTarget->StopRangeProfiler();
}
while (!pRangeProfilerTarget->IsAllPassSubmitted());

// Get Profiler Data
pRangeProfilerTarget->DecodeCounterData();

// Evaluate the results
size_t numRanges = 0;
pCuptiProfilerHost->GetNumOfRanges(counterDataImage, numRanges);
for (size_t rangeIndex = 0; rangeIndex < numRanges; ++rangeIndex) {
     pCuptiProfilerHost->EvaluateCounterData(rangeIndex, args.metrics, counterDataImage);
}

pCuptiProfilerHost->PrintProfilerRanges();

// Clean up
pRangeProfilerTarget->DisableRangeProfiler();

2.8. CUPTI PC Sampling API

CUPTI supports periodic sampling of the warp program counter and warp scheduler state. At a fixed interval of cycles, the sampler in each streaming multiprocessor (SM) selects an active warp and records both its program counter and the warp scheduler state. The sampler selects a random active warp, while the scheduler may select a different warp to issue in the same cycle. The collected metrics can be correlated with the executed instructions, but they lack time resolution.

Metrics can be collected in continuous mode, which does not interrupt kernel execution and incurs minimal runtime overhead.

These APIs are provided in the header file cupti_pcsampling.h. Additionally, a utility library is provided in the header file cupti_pcsampling_util.h which has APIs for correlating GPU assembly to CUDA-C source code and for reading and writing the PC sampling data to files.

The PC sampling APIs are available on Turing and later GPU architectures (compute capability 7.5 and above).

Overview of Features:

• Two sampling modes – Continuous (concurrent kernels) or Serialized (one kernel at a time)​.

• Option to collect specific stall reasons.​

• Ability to collect GPU PC sampling data for entire application duration or for specific CPU code ranges (defined by start and stop APIs).​

• API to flush GPU PC sampling data.​

• APIs to support Offline and Runtime correlation of GPU PC samples to CUDA C source lines and GPU assembly instructions​.

Samples are provided to demonstrate how to write the injection library to collect the PC sampling information, and how to parse the generated files using the utility APIs to print the stall reasons counter values and associate those with the GPU assembly instructions and CUDA-C source code. Refer to the samples pc_sampling_continuous, pc_sampling_utility and pc_sampling_start_stop.

2.8.1. Configuration Attributes

The following table lists the PC sampling configuration attributes which can be set using the cuptiPCSamplingSetConfigurationAttribute() API.

Table 6. PC Sampling Configuration Attributes

Configuration Attribute	Description	Default Value	Comparison of PC Sampling APIs with CUPTI PC Sampling Activity APIs	Guideline to Tune Configuration Option
Collection mode	PC Sampling collection mode - Continuous or Kernel Serialized	Continuous	Continuous mode is new. Kernel Serialized mode is equivalent to the kernel level functionality provided by the CUPTI PC sampling Activity APIs.
Sampling period	Sampling period for PC Sampling. Valid values for the sampling periods are between 5 to 31 both inclusive. This will set the sampling period to (2^samplingPeriod) cycles. e.g. for sampling period = 5 to 31, cycles = 32, 64, 128,…, 2^31	CUPTI defined value is based on number of SMs	Dropped current support for 5 levels(MIN, LOW, MID, HIGH, MAX) for sampling period. The new “sampling period” is equivalent to the “samplingPeriod2” field in CUpti_ActivityPCSamplingConfig.	Low sampling period means a high sampling frequency which can result in dropping of samples. Very high sampling period can cause low sampling frequency and no sample generation.
Stall reason	Stall reasons to collect Input is a pointer to an array of the stall reason indexes to collect.	All stall reasons will be collected	With the CUPTI PC sampling Activity APIs there is no option to select which stall reasons to collect. Also the list of supported stall reasons has changed.
Scratch buffer size	Size of SW buffer for raw PC counter data downloaded from HW buffer. Approximately it takes 16 Bytes (and some fixed size memory) to accommodate one PC with one stall reason e.g. 1 PC with 1 stall reason = 32 Bytes 1 PC with 2 stall reason = 48 Bytes 1 PC with 4 stall reason = 96 Bytes	1 MB (which can accommodate approximately 5500 PCs with all stall reasons)	New	Clients can choose scratch buffer size as per memory budget. Very small scratch buffer size can cause runtime overhead as more iterations would be required to accommodate and process more PC samples
Hardware buffer size	Size of HW buffer in bytes. If sampling period is too less, HW buffer can overflow and drop PC data	512 MB	New	Device accessible buffer for samples. Less hardware buffer size with low sampling periods, can cause overflow and dropping of PC data. High hardware buffer size can impact application execution due to lower amount of device memory being available
Enable start/stop control	Control over PC Sampling data collection range. 1 - Allows user to start and stop PC Sampling using APIs	0 (disabled)	New

2.8.2. Stall Reasons Mapping Table

The table below lists the stall reasons mapping from PC Sampling Activity APIs to PC Sampling APIs. Note: Stall reasons with suffix _not_issued represents latency samples. These samples indicate that no instruction was issued in that cycle from the warp scheduler from where the warp was sampled.

Table 7. Stall Reasons Mapping Table from PC Sampling Activity APIs to PC Sampling APIs

PC Sampling Activity API Stall Reasons (common prefix: CUPTI_ACTIVITY_PC_SAMPLING_STALL_)	PC Sampling API Stall Reasons (common prefix: smsp__pcsamp_warps_issue_stalled_)
NONE	selected selected_not_issued
INST_FETCH	branch_resolving branch_resolving_not_issued no_instructions no_instructions_not_issued
EXEC_DEPENDENCY	short_scoreboard short_scoreboard_not_issued wait wait_not_issued
MEMORY_DEPENDENCY	long_scoreboard long_scoreboard_not_issued
TEXTURE	tex_throttle tex_throttle_not_issued
SYNC	barrier barrier_not_issued membar membar_not_issued
CONSTANT_MEMORY_DEPENDENCY	imc_miss imc_miss_not_issued
PIPE_BUSY	mio_throttle mio_throttle_not_issued math_pipe_throttle math_pipe_throttle_not_issued
MEMORY_THROTTLE	drain drain_not_issued lg_throttle lg_throttle_not_issued
NOT_SELECTED	not_selected not_selected_not_issued
OTHER	misc misc_not_issued dispatch_stall dispatch_stall_not_issued
SLEEPING	sleeping sleeping_not_issued

For PC Sampling APIs, total (smsp__pcsamp_sample_count) and dropped (smsp__pcsamp_samples_data_dropped) sample counts are collected by default.

2.8.3. Data Structure Mapping Table

The table below lists the data structure mapping from PC Sampling Activity APIs to PC Sampling APIs.

Table 8. Data structure Mapping Table from PC Sampling Activity APIs to PC Sampling APIs

PC Sampling Activity API structures	PC Sampling API structures
CUpti_ActivityPCSamplingConfig	CUpti_PCSamplingConfigurationInfo
CUpti_ActivityPCSamplingStallReason	CUpti_PCSamplingStallReason Refer Stall Reasons Mapping Table
CUpti_ActivityPCSampling3	CUpti_PCSamplingPCData
CUpti_ActivityPCSamplingRecordInfo	CUpti_PCSamplingData

2.8.4. Data flushing

CUPTI clients can periodically flush GPU PC sampling data using the API cuptiPCSamplingGetData(). Besides periodic flushing of GPU PC sampling data, CUPTI clients need to also flush the GPU PC sampling data at the following points to maintain the uniqueness of PCs:

• For continuous collection mode CUPTI_PC_SAMPLING_COLLECTION_MODE_CONTINUOUS - after each module load-unload-load sequence.

• For serialized collection mode CUPTI_PC_SAMPLING_COLLECTION_MODE_KERNEL_SERIALIZED - after completion of each kernel.

• For range profiling using the configuration option CUPTI_PC_SAMPLING_CONFIGURATION_ATTR_TYPE_ENABLE_START_STOP_CONTROL - at the end of the range i.e. after cuptiPCSamplingStop() API.

If application is profiled in the continuous collection mode with range profiling disabled, and there is no module unload, CUPTI clients can collect data in two ways:

• By using cuptiPCSamplingGetData() API periodically.

• By using cuptiPCSamplingDisable() on application exit and reading GPU PC sampling data from sampling data buffer passed during configuration.

Note

In case, cuptiPCSamplingGetData() API is not called periodically, the sampling data buffer passed during configuration should be big enough to hold the data for all the PCs.

Note

Field remainingNumPcs of the struct CUpti_PCSamplingData helps in identifying the number of PC records available with CUPTI. User can adjust the periodic flush interval based on it. Further user need to ensure that all remaining records can be accommodated in the sampling data buffer passed during configuration before disabling the PC sampling.

2.8.5. SASS Source Correlation

Building SASS source correlation for a PC can be split into two parts:

• Correlation of a PC to a SASS instruction - PC to SASS correlation is done during PC sampling at run time and the SASS data is available in the PC record. Fields cubinCrc, pcOffset and functionName in the PC record help in correlation of a PC with a SASS instruction. You can extract cubins from the application executable or library using the cuobjdump utility by executing the command cuobjdump -xelf all exe/lib. The cuobjump utility version should match with the CUDA Toolkit version used to build the CUDA application executable or library files. You can find the cubinCrc for extracted cubins using the cuptiGetCubinCrc() API. With the help of cubinCrc you can find out the cubin to which a PC belongs. The cubin can be disassembled using the nvdisasm utility that comes with the CUDA toolkit.

• Correlation of a SASS instruction to a CUDA source line - Correlation of GPU PC samples to CUDA C source lines can be done offline as well as at runtime with the help of the cuptiGetSassToSourceCorrelation() API.

JIT compiled cubins - In case of JIT compiled cubins, it is not possible to extract the cubin from the executable or library. For this case one can subscribe to one of the CUPTI_CBID_RESOURCE_MODULE_LOADED or CUPTI_CBID_RESOURCE_MODULE_UNLOAD_STARTING or CUPTI_CBID_RESOURCE_MODULE_PROFILED callbacks. It returns a CUpti_ModuleResourceData structure having the CUDA binary. This binary can be stored in a file and can be used for offline CUDA C source correlation.

2.8.6. API Usage

Here is a pseudo code which shows how to collect the PC sampling data for specific CPU code ranges:

void Collection()
{
    // Select collection mode
    CUpti_PCSamplingConfigurationInfoParams pcSamplingConfigurationInfoParams = {};

    CUpti_PCSamplingConfigurationInfo collectionMode = {};
    collectionMode.attributeData.collectionModeData.collectionMode = CUPTI_PC_SAMPLING_COLLECTION_MODE_CONTINUOUS;

    pcSamplingConfigurationInfoParams.numAttributes = 1;
    pcSamplingConfigurationInfoParams.pPCSamplingConfigurationInfo = &collectionMode;
    cuptiPCSamplingSetConfigurationAttribute(&pcSamplingConfigurationInfoParams);

    // Select stall reasons to collect
    {
        // Get number of supported stall reasons
        cuptiPCSamplingGetNumStallReasons();
        // Get number of supported stall reason names and corresponding indexes
        cuptiPCSamplingGetStallReasons();
        // Set selected stall reasons
        cuptiPCSamplingSetConfigurationAttribute();
    }

    // Select code range using start/stop APIs
    // Opt-in for start and stop PC Sampling using APIs cuptiPCSamplingStart and cuptiPCSamplingStop
    CUpti_PCSamplingConfigurationInfo enableStartStop = {};
    enableStartStop.attributeType = CUPTI_PC_SAMPLING_CONFIGURATION_ATTR_TYPE_ENABLE_START_STOP_CONTROL;
    enableStartStop.attributeData.enableStartStopControlData.enableStartStopControl = true;

    pcSamplingConfigurationInfoParams.numAttributes = 1;
    pcSamplingConfigurationInfoParams.pPCSamplingConfigurationInfo = &enableStartStop;
    cuptiPCSamplingSetConfigurationAttribute(&pcSamplingConfigurationInfoParams);

    // Enable PC Sampling
    cuptiPCSamplingEnable();

    kernelA <<<blocks, threads, 0, s0>>>(...);                  // KernelA is not sampled

    // Start PC sampling collection
    cuptiPCSamplingStart();
    {
        // KernelB and KernelC might run concurrently since 'continuous' sampling collection mode is selected
        kernelB <<<blocks, threads, 0, s0>>>(...);              // KernelB is sampled
        kernelC <<<blocks, threads, 0, s1>>>(...);              // KernelC is sampled
    }
    // Stop PC sampling collection
    cuptiPCSamplingStop();
    // Flush PC sampling data
    cuptiPCSamplingGetData();

    kernelD <<<blocks, threads, 0, s0>>>(...);                  // KernelD is not sampled

    // Start PC sampling collection
    cuptiPCSamplingStart();
    {
        kernelE <<<blocks, threads, 0, s0>>>(...);              // KernelE is sampled
    }
    // Stop PC sampling collection
    cuptiPCSamplingStop();
    // Flush PC sampling data
    cuptiPCSamplingGetData();

    // Disable PC Sampling
    cuptiPCSamplingDisable();
}

2.8.7. Limitations

Known limitations and issues:

• PC Sampling APIs don’t support simultaneous sampling of multiple CUDA contexts on a GPU. However, simultaneous sampling of single CUDA context per GPU is supported. Before enabling and configuring the PC sampling on a different CUDA context on the same GPU, PC sampling needs to be disabled on the other context.

2.9. CUPTI SASS Metric API

The SASS metric APIs support collecting metric data at SASS assembly instruction level. These support a larger set of SASS instruction level metrics compared to the CUPTI Activity APIs. The set of sass metrics supported for each GPU architecture can be queried. These APIs are supported on Turing and later GPU architectures, i.e. devices with compute capability 7.5 and higher. These APIs are provided in the header file cupti_sass_metrics.h.

These APIs support SASS instruction to CUDA C source line correlation in offline mode. Hence the runtime overhead during data collection is lower.

2.9.1. API usage

• Enumerate metrics: Use the API cuptiSassMetricsGetNumOfMetrics() for the number of metrics supported by the chip. Then allocate the buffer of type CUpti_SassMetrics_MetricDetails and pass it to the API cuptiSassMetricsGetMetrics() where CUPTI will list out all the SASS metrics and put it in the user-allocated buffer.

• Create config image: For all the selected SASS metrics, create a list of CUpti_SassMetrics_Config structures. For creating the config buffer for a metric we need the metric id and the output granularity for the metric. The metric id can be queried by using the API cuptiSassMetricsGetProperties(). The output granularity tells at what level data will be collected. CUPTI supports collection at three levels -

  • CUPTI_SASS_METRICS_OUTPUT_GRANULARITY_GPU (at GPU level),

  • CUPTI_SASS_METRICS_OUTPUT_GRANULARITY_SM (at Streaming Multiprocessor level, the metric instance count will be the number of SMs present in the chip),

  • CUPTI_SASS_METRICS_OUTPUT_GRANULARITY_SMSP (SM sub-partition level, the number of instances will be the sum of all the SMSP present in the chip i.e num of SMs * num of sub-partitions in each SM)

• Set config for the CUDA device: API cuptiSassMetricsSetConfig() should be used for setting the config on the device for SASS metrics collection. This API takes the device index and list of CUpti_SassMetrics_Config structs as input parameters. Then set the config for the device on which the kernel is running else CUPTI will report a CUPTI_ERROR_INVALID_OPERATION error.

• Enable SASS metric profiling: After setting the config for the CUDA device one needs to enable SASS patching for the context on which the kernel will be launched using the API cuptSassMetricsEnable(). CUPTI provides control over when the kernel will be patched. For Lazy patching mode, CUPTI will only patch the kernel at the first launch instance and then unpatch the kernel when the API cuptiSassMetricsDisable is called. Otherwise, CUPTI will patch all the kernels in the module for the context, regardless of whether kernels would be launched in the enable/disable range. Set the enableLazyPatching flag to enable the lazy patching mode for profiling. Lazy patching is suitable for applications that have a large number of kernels in the module and a small set of kernels are launched.

• Flush SASS metric profiling data: Once kernel execution is completed, metric data is stored in an internal format. One needs to query the size of the buffer to store the metrics data. API cuptiSassMetricsGetDataProperties() can be used to query the number of patched instructions and the number of hardware instances. Then allocate the buffer based on retrieved data, where CUPTI will flush the profiled metric data. For flushing the data, call the API cuptiSassMetricsFlushData().

• Disable SASS metric profiling: Once the profiling of the kernel is done, call the API cuptiSassMetricsDisable() for resetting the patched kernel and remove all the profiled metric data which has been collected for the kernels. One thing to note is that CUPTI will remove all the metric data which has been collected for kernels launched since the API cuptiSassMetricsFlushData() call. So it is the user’s responsibility to call flush data API for retrieving all the metric data. Calling API cuptiSassMetricsFlushData() after cuptiSassMetricsDisable() will report the error CUPTI_ERROR_INVALID_OPERATION.

• Unset configuration for the CUDA device: CUPTI maintains internal state for each CUDA device for which SASS metric collection is enabled. API cuptiSassMetricsUnsetConfig() should be called to clean-up the state. This API should be called for each device for which SASS metric collection has been configured.

2.9.2. Sample code

CUPTI sample sass_metric has two core functions – function ListSupportedMetrics() shows how to enumerate all metrics supported by the chip and function CollectSassMetrics() show how to collect SASS metrics. Code snippet for enumerating SASS metrics (refer the ListSupportedMetrics() function in the CUPTI sass_metric sample):

CUpti_Device_GetChipName_Params getChipParams{ CUpti_Device_GetChipName_Params_STRUCT_SIZE };
cuptiDeviceGetChipName(&getChipParams);

CUpti_SassMetrics_GetNumOfMetrics_Params getNumOfMetricParams;
getNumOfMetricParams.pChipName = getChipParams.pChipName;
cuptiSassMetricsGetNumOfMetrics(&getNumOfMetricParams);

std::vector<CUpti_SassMetrics_MetricDetails> supportedMetrics(getNumOfMetricParams.numOfMetrics);
CUpti_SassMetrics_GetMetrics_Params getMetricsParams {CUpti_SassMetrics_GetMetrics_Params_STRUCT_SIZE};
getMetricsParams.pChipName = getChipParams.pChipName;
getMetricsParams.pMetricsList = supportedMetrics.data();
getMetricsParams.numOfMetrics = supportedMetrics.size();
cuptiSassMetricsGetMetrics(&getMetricsParams);
for (size_t i = 0; i < supportedMetrics.size(); ++i)
{
    std::cout << "Metric Name: " << supportedMetrics[i].pMetricName
            << ", MetricID: " << supportedMetrics[i].metricId
            << ", Metric Description: " << supportedMetrics[i].pMetricDescription << "\n";
}

Code snippet for collecting SASS metrics (refer the CollectSassMetrics() function in the CUPTI sass_metric sample):

cuptiSassMetricsSetConfig();

// Enable SASS Patching
sassMetricsEnableParams.enableLazyPatching = 1;
cuptiSassMetricsEnable();

// As lazy patching has been enabled, VectorAdd will be patched here at the first launch instance
VectorAdd<<<gridSize, blockSize>>>();

cuptiSassMetricsGetDataProperties();

if (getDataPropParams.numOfInstances != 0 && getDataPropParams.numOfPatchedInstructionRecords != 0)
{
    // allocate memory for getting patched data.

    flushDataParams.numOfInstances = getDataPropParams.numOfInstances;
    flushDataParams.numOfPatchedInstructionRecords = getDataPropParams.numOfPatchedInstructionRecords;
    flushDataParams.pMetricsData =
            (CUpti_SassMetrics_Data*)malloc(getDataPropParams.numOfPatchedInstructionRecords * sizeof(CUpti_SassMetrics_Data));

    for (size_t recordIndex = 0;
         recordIndex < getDataPropParams.numOfPatchedInstructionRecords;
         ++recordIndex)
    {
        flushDataParams.pMetricsData[recordIndex].pInstanceValues =
            (CUpti_SassMetrics_InstanceValue*) malloc(getDataPropParams.numOfInstances * sizeof(CUpti_SassMetrics_InstanceValue));
    }

    cuptiSassMetricsFlushData();
    // Store the data for post-processing the data (e.g. SASS to source correlation)
    // Cleanup memory
}

// As this is the first VectorSub launch, the patching will be done here.
VectorSub<<<gridSize, blockSize>>>();

// As cuptiSassMetricsFlushData() API is not called, VectorSub SASS metric data will be discarded.
// All the kernels which were patched earlier will be reset to its original state.
cuptiSassMetricsDisable();

// VectorMultiply function will not get patched as it is called outside the enable/disable range.
VectorMultiply<<<gridSize, blockSize>>>();

cuptiSassMetricsUnsetConfig();

2.10. CUPTI PM Sampling API

In the CUDA 12.6 release, CUPTI introduced new PM sampling APIs which are included in the header file cupti_pmsampling.h for collecting a set of metrics by sampling the GPU’s performance monitors (PM) periodically at fixed intervals. Each sample is composed of metric values and the GPU timestamp when it was collected in nanoseconds.

These APIs are supported on Turing and later GPU architectures, i.e. devices with compute capability 7.5 and higher.

PM sampling follows a similar approach to range profiling, where the process is divided into 2 types of operations i.e. host (enumeration, configuration, evaluation) and target(collection).

2.10.1. API usage

• Enumerate metrics (enumeration):

  CUPTI released a new set of host APIs with cuptiProfilerHost prefix, where users need to create a profiler host object for all the host operations. For PM sampling specific host operation, users need to set the profilerType to CUPTI_PROFILER_TYPE_PM_SAMPLING in the CUpti_Profiler_Host_Initialize_Params object.

  CUPTI has following host APIs for enumerating metrics and it properties:

  • cuptiProfilerHostGetBaseMetrics() for listing base metrics for a metric type (counter, throughput and ratio).

  • cuptiProfilerHostGetSubMetrics() for listing the submetric for a metric.

  • cuptiProfilerHostGetMetricProperties() for querying the details about a metric like associated hardware unit, metric type and a short description about the metric.

    CUPTI lists some of the useful metrics in the PM Sampling Metric Table which can be used for initial metric selection which list out various GPU and its component attributes like SM active cycles, GPC and SYS clock frequency and many more.

• Create config image (configuration):

  Similar to range profiler, for collecting PM sampling data users need to create a config image blob which will have scheduling information for metrics which were selected for collection. As configuration is a host operation similar to enumeration, users need to initialize the profiler host object before calling any of the configuration APIs.

  For creating a config image, CUPTI exposes new profiler host APIs like cuptiProfilerHostConfigAddMetrics() API where users will pass the list of metrics as input and then call cuptiProfilerHostGetConfigImageSize() API for getting the size of config image which user need to allocate and finally call the cuptiProfilerHostGetConfigImage() API where users can pass the allocated buffer for storing the scheduling information in the config image.

  CUPTI also adds another optional API i.e. cuptiProfilerHostGetNumOfPasses() for checking the number of passes required for collecting the sampling data for a given config image.

  Note

  Config images which need more than one pass for collecting sampling data are not supported.

• Collecting Sampling Data (collection):

  This operation instructs CUPTI to begin collecting sampling data on a CUDA device at specific intervals or cycles, determined by the trigger type specified in the cuptiPmSamplingSetConfig() API.

  Collection phase can be divided into 6 subparts:

  • Enable PM Sampling:

    This is the entry point of the PM sampling process where the user passes the device index on which sampling data will be collected. Use the cuptiPmSamplingEnable() API to create a CUpti_PmSampling_Object object. This stores all the intermediate data and act as an identifier for other target APIs.

  • Set configuration:

    CUPTI has cuptiPmSamplingSetConfig() API for customizing configuration to the PM sampling process like hardware buffer size where the raw sampling data will be stored, sampling interval specifies the frequency at which sampling triggers will collect the sampling data. This will vary depending on the trigger mode set in the config API. Along with these parameters users need to pass the config image which has the scheduling information, which has been created earlier in the configuration phase.

    The maximum sampling frequency without buffer overflow events depends on GPU (SM count), GPU load intensity, and overall system load. The bigger the chip and the higher the load, the lower the maximum frequency. If you need higher frequency, you can increase it until you get the overflow event which can be queried while decoding the pm sampling data using cuptiPmSamplingDecodeData() API.

    CUPTI supports two trigger modes, GPU_SYSCLK_INTERVAL which is based on sys clock frequency and the sample intervals are in terms of clock cycles. And the 2nd one is GPU_TIME_INTERVAL which has fixed frequency and the intervals are in terms of nanoseconds.

    Note

    The GPU_TIME_INTERVAL trigger is not supported in Turing and GA100 chips.

  • Start PM Sampling:

    After enabling and setting up the configuration for the PM sampling, users need to call the cuptiPmSamplingStart() API which signals CUPTI to start the collection, the raw sampling data will be stored in the hardware buffer.

  • Stop PM Sampling:

    Users need to call the cuptiPmSamplingStop() API for stopping the collection of sampling data.

  • Decode PM Sampling data:

    While collection phase all the raw sampling data will be stored in the hardware buffer. CUPTI exposes cuptiPmSamplingDecodeData() API which decodes the raw data and stores it in a counter data image which users need to pass into the API as input. For creating the counter data image refer to this.

    It is users responsibility to call this decode API for freeing up the hardware buffer for allowing new raw data to get stored in the hardware buffer. This API also outputs some attributes like hardware buffer overflow status, decode stop reasons like end of all the raw data or if the counter data image passed is full. So for long running workload users can call this decode API between the Start and Stop API. The ideal way would be calling it in a separate thread. Refer pm_sampling public sample which shows the decode operation running in parallel with the collection.

  • Disable PM Sampling:

    For destroying all the resources allocated for PM sampling and ending the PM sampling users can call the cuptiPmSamplingDisable() API.

  • Create Counter data image:

    For storing the decoded data and using it in the evaluation phase users need to allocate a buffer which CUPTI refer as counter data image. Creating a counter data image is a target operation and should be done after enabling the PM sampling and before calling the decode API call. For creating the counter buffer image, first users need to call cuptiPmSamplingGetCounterDataSize() API for getting the size of buffer needed for allocation. Once users allocate the buffer the buffer needs to be in counter data format where the samples will be stored so to initialize the buffer users have to call cuptiPmSamplingCounterDataImageInitialize() API. This same API can also be used to reset the counter buffer image.

• Evaluating Counter Data (evaluation):

  Once the raw data is decoded to counter buffer image, users need to use profiler host APIs for evaluating the counter data for getting sample data in readable format. Users can query the number of completed samples in the counter data using the cuptiPmSamplingGetCounterDataInfo() API. For PM sampling each sample is defined by its start and end time stamps. For getting sample info like start and end timestamps CUPTI has cuptiPmSamplingCounterDataGetSampleInfo() API. The timestamps reported are CPU based time stamps. Then to get the collected metrics values for the sample, cuptiProfilerHostEvaluateToGpuValues() API is used.

2.10.2. Sample code

CUPTI sample pm_sampling has two core functions – function PmSamplingQueryMetrics() shows how to enumerate all metrics supported by the chip and function PmSamplingCollection() show how to collect PM sampling data for a list of metrics while launching CUDA workloads. Code snippet for enumerating supported PM sampling metrics (refer the PmSamplingQueryMetrics() function in the CUPTI pm_sampling sample):

CUpti_Device_GetChipName_Params getChipParams{ CUpti_Device_GetChipName_Params_STRUCT_SIZE };
cuptiDeviceGetChipName(&getChipParams);

CUpti_Profiler_Host_Initialize_Params hostInitializeParams = {CUpti_Profiler_Host_Initialize_Params_STRUCT_SIZE};
hostInitializeParams.profilerType = CUPTI_PROFILER_TYPE_PM_SAMPLING;
hostInitializeParams.pChipName = m_chipName.c_str();
hostInitializeParams.pCounterAvailabilityImage = counterAvailibilityImage.data();
cuptiProfilerHostInitialize(&hostInitializeParams);
m_pHostObject = hostInitializeParams.pHostObject;

for (size_t metricTypeIndex = 0; metricTypeIndex < CUPTI_METRIC_TYPE__COUNT; ++metricTypeIndex)
{
    CUpti_Profiler_Host_GetBaseMetrics_Params getBaseMetricsParams {CUpti_Profiler_Host_GetBaseMetrics_Params_STRUCT_SIZE};
    getBaseMetricsParams.pHostObject = m_pHostObject;
    getBaseMetricsParams.metricType = (CUpti_MetricType)metricTypeIndex;
    cuptiProfilerHostGetBaseMetrics(&getBaseMetricsParams);

    for (size_t metricIndex = 0; metricIndex < getBaseMetricsParams.numMetrics; ++metricIndex) {
        metricsList.push_back(getBaseMetricsParams.ppMetricNames[metricIndex]);
    }
}

CUpti_Profiler_Host_Deinitialize_Params deinitializeParams = {CUpti_Profiler_Host_Deinitialize_Params_STRUCT_SIZE};
deinitializeParams.pHostObject = m_pHostObject;
cuptiProfilerHostDeinitialize(&deinitializeParams);

Code snippet for collecting PM sampling data (refer the PmSamplingCollection() function in the CUPTI pm_sampling sample):

void PmSamplingCollection()
{
    // 1. Create config image
    std::vector<uint8_t> configImage;
    CreateConfigImage(configImage, metrics);

    // 2. Enable PM sampling and set config for the PM sampling data collection.
    EnablePmSampling(deviceIndex);
    SetConfig(configImage, hardwareBufferSize, samplingInterval);

    // 3. Create counter data image
    std::vector<uint8_t> counterDataImage;
    CreateCounterDataImage(maxSamples, metrics, counterDataImage);

    VectorLaunchWorkLoad vectorWorkLoad;
    vectorWorkLoad.SetUp();

    // 4. Start the PM sampling and launch the CUDA workload
    StartPmSampling();

    // 5. Launch the kernel NUM_OF_ITERATIONS times
    const size_t NUM_OF_ITERATIONS = 100000;
    for (size_t ii = 0; ii < NUM_OF_ITERATIONS; ++ii)
    {
        vectorWorkLoad.LaunchKernel();
    }
    cudaDeviceSynchronize();

    // 6. Stop the PM sampling and join the decode thread
    StopPmSampling();

    // 7. Decode PM Sampling Data
    DecodeCounterData(counterDataImage);

    // 8. Print the sample ranges for the collected metrics
    PrintSampleRanges(counterDataImage);

    // 9. Disable PM Sampling
    DisablePmSampling();
}

// PrintSampleRanges function
void PrintSampleRanges(std::vector<uint8_t> counterDataImage)
{
    CUpti_PmSampling_GetCounterDataInfo_Params counterDataInfo {CUpti_PmSampling_GetCounterDataInfo_Params_STRUCT_SIZE};
    counterDataInfo.pCounterDataImage = counterDataImage.data();
    counterDataInfo.counterDataImageSize = counterDataImage.size();
    cuptiPmSamplingGetCounterDataInfo(&counterDataInfo);

    for (size_t sampleIndex = 0; sampleIndex < counterDataInfo.numCompletedSamples; ++sampleIndex)
    {
        pmSamplingHost.EvaluateCounterData(sampleIndex, metricsList, counterDataImage);
    }

    // For reusing the counter data image, reset the counter data image
    ResetCounterDataImage(counterDataImage);
}

2.10.3. Metrics Table

PM sampling supports the collection of a wide variety of metrics. The table below lists some useful metrics that provide insights into the utilization of different units in the GPU.

Table 9. PM Sampling Metrics Table

Metric Name	Metric details
gpc__cycles_elapsed.avg.per_second	GPC Clock Frequency: The average GPC clock frequency in hertz.
sys__cycles_elapsed.avg.per_second	SYS Clock Frequency: The average SYS clock frequency in hertz. The GPU front end (command processor), copy engines, and the performance monitor run at the SYS clock. On Turing and NVIDIA GA100 GPUs the sampling frequency is based upon a period of SYS clocks (not time) so samples per second will vary with SYS clock. On NVIDIA GA10x GPUs the sampling frequency is based upon a fixed frequency clock. The maximum frequency scales linearly with the SYS clock.
gr__cycles_active.sum.pct_of_peak_sustained_elapsed	GR Active: The percentage of cycles the compute engine is active. The compute engine is active if there is any work in the compute pipe.
gr__dispatch_count.avg.pct_of_peak_sustained_elapsed	Dispatch Started: The ratio of compute grid launches (dispatches) to the compute pipe to the maximum sustained rate of the compute pipe.
tpc__warps_inactive_sm_active_realtime.avg.pct_of_peak_sustained_elapsed	Active SM Unused Warp Slots: The ratio of inactive warp slots on the SMs to the maximum number of warps per SM as a percentage. This is an indication of how many more warps may fit on the SMs if occupancy is not limited by a resource such as max warps of a shader type, shared memory, registers per thread, or thread blocks per SM.
tpc__warps_inactive_sm_idle_realtime.avg.pct_of_peak_sustained_elapsed	Idle SM Unused Warp Slots: The ratio of inactive warps slots due to idle SMs to the the maximum number of warps per SM as a percentage. This is an indicator that the current workload on the SM is not sufficient to put work on all SMs. This can be due to either CPU starving the GPU, current work is too small to saturate the GPU or current work is trailing off but blocking next work.
sm__cycles_active.avg.pct_of_peak_sustained_elapsed	SMs Active: The ratio of cycles SMs had at least 1 warp in flight (allocated on SM) to the number of cycles as a percentage. A value of 0 indicates all SMs were idle (no warps in flight). A value of 50% can indicate some gradient between all SMs active 50% of the sample period or 50% of SMs active 100% of the sample period.
sm__inst_executed_realtime.avg.pct_of_peak_sustained_elapsed	SM Issue: The ratio of cycles that SM sub-partitions (warp schedulers) issued an instruction to the number of cycles in the sample period as a percentage.
sm__pipe_tensor_cycles_active_realtime.avg.pct_of_peak_sustained_elapsed	Tensor Active: The ratio of cycles the SM tensor pipes were active issuing tensor instructions to the number of cycles in the sample period as a percentage. This metric is not available on Turing GPUs for periodic sampling.
sm__pipe_shared_cycles_active_realtime.avg.pct_of_peak_sustained_elapsed	Tensor Active / FP16 Active: The ratio of cycles the SM tensor pipes or FP16x2 pipes were active issuing tensor instructions to the number of cycles in the sample period as a percentage. This metric is only available for Turing GPUs for periodic sampling.
dramc__read_throughput.avg.pct_of_peak_sustained_elapsed	DRAM Read Bandwidth: The ratio of cycles the DRAM interface was active reading data to the elapsed cycles in the same period as a percentage.
dramc__write_throughput.avg.pct_of_peak_sustained_elapsed	DRAM Write Bandwidth: The ratio of cycles the DRAM interface was active writing data to the elapsed cycles in the same period as a percentage.
pcie__read_bytes.avg.pct_of_peak_sustained_elapsed	PCIe Read Throughput: The ratio of bytes received on the PCIe interface to the maximum number of bytes receivable in the sample period as a percentage. The theoretical value is calculated based upon the PCIe generation and number of lanes.
pcie__write_bytes.avg.pct_of_peak_sustained_elapsed	PCIe Write Throughput: The ratio of bytes transmitted on the PCIe interface to the maximum number of bytes receivable in the sample period as a percentage. The theoretical value is calculated based upon the PCIe generation and number of lanes.
nvlrx__bytes.avg.pct_of_peak_sustained_elapsed	NVLink bytes received: The ratio of bytes received on the NVLink interface to the maximum number of bytes receivable in the sample period as a percentage.
nvltx__bytes.avg.pct_of_peak_sustained_elapsed	NVLink bytes transmitted: The ratio of bytes transmitted on the NVLink interface to the maximum number of bytes transmittable in the sample period as a percentage.
pcie__rx_requests_aperture_bar1_op_read.sum pcie__rx_requests_aperture_bar1_op_write.sum	PCIe Read/Write Requests to BAR1: BAR1 is a PCI Express (PCIe) interface used to allow the CPU or other devices to directly access GPU memory. The GPU normally transfers memory with its copy engines, which would not show up as BAR1 activity. The GPU drivers on the CPU do a small amount of BAR1 accesses, but heavier traffic is typically coming from other technologies.

2.11. CUPTI Checkpoint API

Starting with CUDA 11.5, CUPTI ships with a new library to assist tool developers who wish to replay kernels under direct control, such as tools using the profiling API User Replay mode. This new Checkpoint library provides support for automatically saving and restoring device state for many common uses.

A device checkpoint is a managed copy of device functional state - including values in memory, along with some (but not all) other user visible state of the device. When a checkpoint is saved, this state is saved to internal buffers, preferentially using free device, then host, and finally filesystem space to save the data. The user tool maintains a handle to a checkpoint, and is able to restore the checkpoint with a single call, restoring the state so a kernel may be re-executed and expect to have the same device state as when the checkpoint was saved.

Once saved, a checkpoint may be restored any time including after multiple kernels have been launched, though currently there are limitations on which user calls (CUDA or driver API calls) have been validated to work between a Save and Restore. It currently is known safe to launch multiple kernels on a context and to do memcpy calls before restoring a checkpoint. Future versions of CUPTI will extend this to support additional API calls between a Save and Restore.

Checkpoints may be saved during injected kernel launch callbacks or directly coded into a target application.

Certain APIs are known to not work with the version of the Checkpoint API shipped with CUPTI 11.5, including Stream Capture mode.

2.11.1. Usage

There is one header for the library, cupti_checkpoint.h, which needs to be included, and libcheckpoint needs to be linked in to the application or injection library. Though the checkpoint library doesn’t depend on cupti, the error codes returned by the API are shared with cupti, so linking libcupti in is needed in order to translate the return codes to string representations.

The Checkpoint API follows a similar design to other CUPTI APIs. API behavior is controlled through a structure, CUpti_Checkpoint, which is initialized by a tool or application, then passed to cuptiCheckpointSave. If the call is successful, the structure saves a handle to a checkpoint. At this point, the application may make a series of calls which modify device state (kernels which update memory, memcopies, etc), and when the device state should be restored, the tool can use the same structure in calls to cuptiCheckpointRestore, and finally a call to cuptiCheckpointFree to release the resources used by the checkpoint object.

Multiple checkpoints may be saved at the same time. If multiple checkpoints exist, they operate entirely independently - each checkpoint consumes the full resources needed to restore the device state at the point it was saved. Order of operations between multiple checkpoints is not enforced by the API - while a common use for multiple checkpoints may be a nested pattern, it is also possible to interleave checkpoint operations.

Between a cuptiCheckpointSave and cuptiCheckpointRestore, any number of standard kernel launches (or equivalent API calls such as cuLaunchKernel) or memcpy calls may be made. Additionally, any host (cpu) side calls may be made that do not affect device state. It is possible that other CUDA or driver API calls may be made, but have not been validated with the 11.5 release.

Several options exist in the CUpti_Checkpoint structure. They must be set prior to the initial cuptiCheckpointSave using that structure. Any further changes to the structure are ignored until after a call to cuptiCheckpointFree, at which point the structure can be re-configured and re-used.

Important per-checkpoint options:

• structSize - must be set to the value of CUpti_Checkpoint_STRUCT_SIZE

• ctx - if NULL, the checkpoint will be of the default CUDA context, otherwise, specifies which context

• reserveDeviceMB - Restrict a checkpoint save from using at least this much device memory

• reserveHostMB - Restrict a checkpoint save from using at least this much host memory

• allowOverwrite - It is normally an error to call Save using an existing checkpoint handle (one which has not been Freed). When set, this option allows the Save operation to be called multiple times on a handle. Note that when using this option, the CUpti_Checkpoint options are not re-read on any subsequent Save. To read new options, the handle must be passed to cuptiCheckpointFree prior to the cuptiCheckpointSave call.

• optimizations - Bitmask of options for checkpoint behavior

  • CUPTI_CHECKPOINT_OPT_TRANSFER - Normally when restoring a checkpoint, all existing device memory at the time of the save is restored. This optimization adds a test to see whether a block of memory has changed before restoring it and caches the results for subsequent calls to Restore. Use of this option requires that all Restore calls be done at the same point in an application for a given checkpoint. As the optimization may be computationally expensive, it is most useful when there is a significant amount of data that can be skipped and there will be several calls to Restore the checkpoint.

2.11.2. Restrictions

Checkpoints API calls may not be made during a stream capture. They also may not be inserted into a graph. Beyond kernel launches (cuLaunchKernel, standard kernel<<<>>> launches, etc) and memcpy calls, the remaining CUDA and driver API calls have not been validated within a CheckpointSave and Restore region. Any other CUDA or driver API calls (example - device malloc or free) may work, or may cause undetermined behavior. Additional APIs will be validated to work with the Checkpoint API in future releases.

The Checkpoint API does not have visibility into which API calls have been made between cuptiCheckpointSave and cuptiCheckpointRestore calls, and may not be able to correctly detect error cases if unsupported calls have been made. In this case it is possible that device state may only be partially restored by cuptiCheckpointRestore, which may cause functionally incorrect behavior in subsequent device calls.

The Checkpoint API only restores functionally visible device state, not performance critical state. Some performance characteristics, such as state of the caches, will not be saved by a checkpoint, and saving or restoring a checkpoint may change the occupancy and alter performance for subsequent device calls.

The Checkpoint API makes no attempt to restore host (non-device) state, beyond freeing the resources it internally uses during a call to cuptiCheckpointFree.

The Checkpoint API by default uses device memory, host memory, and finally the filesystem to back up the device state. It is possible that addition of a cuptiCheckpointSave causes a later device allocation to fail due to the increased device memory usage. (Similarly, host memory is also used, and may be affected by a checkpoint). To allow the user to guarantee a certain amount of device or host memory remains available for later use, reserveDeviceMB and reserveHostMB fields in the CUpti_Checkpoint struct may be set. Use of these fields will guarantee that the device or host memory will leave that much memory free during a cuptiCheckpointSave call, but may cause the Checkpoint API call performance to degrade due to increased use of slower storage spaces.

2.11.3. Examples

The Checkpoint API does not require any other CUPTI calls. A simple use case could be to compare the output of three different implementations of a kernel. Pseudocode for this could look like:

CUpti_Checkpoint cp = { CUpti_Checkpoint_STRUCT_SIZE };

int kernel = 0;
do
{
  if (kernel == 0)
    cuptiCheckpointSave(&cp);
  else
    cuptiCheckpointRestore(&cp);

  if (kernel == 0)
    kernel_1<<<>>>(...);
  else if (kernel == 1)
    kernel_2<<<>>>(...);
  else if (kernel == 2)
    kernel_3<<<>>>(...);
} while (kernel++ < 3);

cuptiCheckpointFree(&cp);

In this example, even if any of the kernels modify their own input data, the subsequent passes through the loop will still run correctly - the modified input data would be restored by each call to cuptiCheckpointRestore before the next kernel runs. This is particularly useful when a programmer does not know the exact state of the device prior to a kernel call - the Checkpoint API ensures that all needed data is saved and restored, which would not otherwise be practical or perhaps even possible in some complex cases.

Another possible use case could be for fuzzing - randomly modifying input to a kernel, and ensuring it performs as expected. Instead of manually restoring device state to a known good point, the Checkpoint API and initialize a good state, and the fuzzer can modify only what is needed.

CUpti_Checkpoint cp = { CUpti_Checkpoint_STRUCT_SIZE };

int i = 0;
do
{
  if (i == 0)
    cuptiCheckpointSave(&cp);
  else
    cuptiCheckpointRestore(&cp);

  setup_test<<<>>>(i, ...);

  kernel<<<>>>(...);

  validate_result<<<>>>(i, ...);
} while (i++ < num_tests);

cuptiCheckpointFree(&cp);

The Checkpoint API is particularly useful in User Replay mode of the CUPTI profiling API. This mode replays only the parts of the application within a performance region, unlike Kernel Replay and Application Replay modes. In User Replay mode, kernels may need to be launched multiple times to gather all requested metrics, which can be complicated if they modify their input data or the internal context state. Without the Checkpoint API, tool developers must manually restore modified input data and context state, as it is difficult for tools to automatically determine what needs to be restored.

In Kernel Replay mode, CUPTI handles the save and restore of context data internally around a kernel. However, in User Replay mode, users must manage the save-restore process regardless of the range mode enabled. Application Replay mode does not require this as the entire application runs multiple times. The Checkpoint API ensures that input data and context state are restored with each pass, facilitating accurate profiling data collection in multi-pass metric configurations.

// Enable range profiler
// ...

// Set range profiler configuration (User Replay Mode)
CUpti_RangeProfiler_SetConfig_Params setConfigParams = {};
setConfigParams.replayMode = CUPTI_UserReplay;
// ... Other setConfigParams
cuptiRangeProfilerSetConfig(&setConfigParams)

// Create Checkpoint for a cuda context
CUpti_Checkpoint cp = { CUpti_Checkpoint_STRUCT_SIZE };
cp.ctx = cuContext;
cuptiCheckpointSave(&cp);

bool allPassSubmitted = false;
do
{
    cuptiRangeProfilerStart(&startRangeProfiler);
    LaunchA<<<...>>>();
    LaunchB<<<...>>>();
    LaunchC<<<...>>>();
    cuptiRangeProfilerStop(&stopRangeProfiler);
    allPassSubmitted = stopRangeProfiler.isAllPassSubmitted;

    // Restore Checkpoint if not all passes are submitted
    if (!allPassSubmitted) {
        cuptiCheckpointRestore(&cp);
    }
}
while (!allPassSubmitted);

// Free Checkpoint
cuptiCheckpointFree(&cp);

// Get Profiler Data and print results
// ...

In this example, the Profiler range will span all concurrently running kernels, which may modify their own input data - each pass through the loop will restore the initial values.

2.12. CUPTI Profiling API

In the CUDA 10.0, a new set of metric APIs were added for devices with compute capability 7.0 and higher. These APIs are provided in the header file cupti_profiler_target.h. These APIs provide low and deterministic profiling overhead on the target system. These are supported on all CUDA supported platforms except Android, and are not supported under MPS (Multi-Process Service), Confidential Compute, or SLI configured systems. In order to determine whether a device is compatible with this API, a new function cuptiProfilerDeviceSupported is introduced in CUDA 11.5 which exposes overall Profiling API support and specific requirements for a given device. Profiling API must be initialized by calling cuptiProfilerInitialize before testing device support.

This section covers performance profiling Host and Target APIs for CUDA. Broadly profiling APIs are divided into following four sections:

• Enumeration (Host)

• Configuration (Host)

• Collection (Target)

• Evaluation (Host)

Host APIs provide a metric interface for enumeration, configuration and evaluation that doesn’t require a compute(GPU) device, and can also run in an offline mode. In the samples section under extensions, profiler host utility covers the usage of host APIs. Target APIs are used for data collection of the metrics and requires a compute (GPU) device. Refer to samples auto_rangeProfiling and userrange_profiling for usage of profiling APIs.

These APIs adhere to a uniform metric naming convention using the format unit__(subunit?)_(pipestage?)_quantity_qualifiers.

Note

In the CUDA 12.6 release, CUPTI introduced a new set of target API CUPTI Range Profiling API and the host API CUPTI Profiler Host API. For profiling, it is strongly recommended that users utilize these new host and target APIs. The CUPTI Profiling API is deprecated in the CUDA 13.0 release and will not support any future GPU architectures after Blackwell. Note that not all APIs from the header cupti_profiler_target.h are deprecated; a few supported APIs are used by other profiling features like Range Profiling and PM Sampling.

2.12.1. Multi Pass Collection

NVIDIA GPU hardware has a limited number of counter registers and cannot collect all possible counters concurrently. There are also limitations on which counters can be collected together in a single pass. This is resolved by replaying the exact same set of GPU workloads multiple times, where each replay is termed a pass. On each pass, a different subset of requested counters are collected. Once all passes are collected, the data is available for evaluation. Certain metrics have many counters as inputs; adding a single metric may require many passes to collect. CUPTI APIs support multi pass collection through different collection attributes.

2.12.2. Range Profiling

Each profiling session runs a series of replay passes, where each pass contains a sequence of ranges. Every metric enabled in the session’s configuration is collected separately per unique range-stack in the pass. CUPTI supports auto and user defined ranges.

2.12.2.1. Auto Range

In a session with auto range mode, ranges are defined around each kernel automatically with a unique name assigned to each range, while profiling is enabled. This mode is useful for tight metric collection around each kernel. A user can choose one of the supported replay modes, pseudo code for each is described below:

Kernel Replay

The replay logic (multiple pass, if needed) is done by CUPTI implicitly (opaque to the user), and usage of CUPTI replay API’s cuptiProfilerBeginPass and cuptiProfilerEndPass will be a no-op in this mode. This mode is useful for collecting metrics around a kernel in tight control. Each kernel launch is synchronized to segregate its metrics into a separate range, and a CPU-GPU sync is made to ensure the profiled data is collected from GPU. Counter Collection can be enabled and disabled with cuptiProfilerEnableProfiling and cuptiProfilerDisableProfiling. Refer to the sample autorange_profiling

/* Assume Inputs(counterDataImagePrefix and configImage) from configuration phase at host */
void Collection(std::vector<uint8_t>& counterDataImagePrefix, std::vector<uint8_t>& configImage)
{
    CUpti_Profiler_Initialize_Params profilerInitializeParams = { CUpti_Profiler_Initialize_Params_STRUCT_SIZE };
    cuptiProfilerInitialize(&profilerInitializeParams);

    std::vector<uint8_t> counterDataImages;
    std::vector<uint8_t> counterDataScratchBuffer;
    CreateCounterDataImage(counterDataImages, counterDataScratchBuffer, counterDataImagePrefix);

    CUpti_Profiler_BeginSession_Params beginSessionParams = { CUpti_Profiler_BeginSession_Params_STRUCT_SIZE };
    CUpti_ProfilerRange profilerRange = CUPTI_AutoRange;
    CUpti_ProfilerReplayMode profilerReplayMode = CUPTI_KernelReplay;

    beginSessionParams.ctx = NULL;
    beginSessionParams.counterDataImageSize = counterDataImage.size();
    beginSessionParams.pCounterDataImage = &counterDataImage[0];
    beginSessionParams.counterDataScratchBufferSize = counterDataScratchBuffer.size();
    beginSessionParams.pCounterDataScratchBuffer = &counterDataScratchBuffer[0];
    beginSessionParams.range = profilerRange;
    beginSessionParams.replayMode = profilerReplayMode;
    beginSessionParams.maxRangesPerPass = num_ranges;
    beginSessionParams.maxLaunchesPerPass = num_ranges;

    cuptiProfilerBeginSession(&beginSessionParams));

    CUpti_Profiler_SetConfig_Params setConfigParams = { CUpti_Profiler_SetConfig_Params_STRUCT_SIZE };
    setConfigParams.pConfig = &configImage[0];
    setConfigParams.configSize = configImage.size();

    cuptiProfilerSetConfig(&setConfigParams));

    kernelA <<<grid, tids >>>(...);                  // KernelA not profiled

    CUpti_Profiler_EnableProfiling_Params enableProfilingParams = { CUpti_Profiler_EnableProfiling_Params_STRUCT_SIZE };
    cuptiProfilerEnableProfiling(&enableProfilingParams);
    {

        kernelB <<<grid, tids >>>(...);              // KernelB profiled and captured in an unique range.
        kernelC <<<grid, tids >>>(...);              // KernelC profiled and captured in an unique range.
        kernelD <<<grid, tids >>>(...);              // KernelD profiled and captured in an unique range.
    }

    CUpti_Profiler_DisableProfiling_Params disableProfilingParams = { CUpti_Profiler_DisableProfiling_Params_STRUCT_SIZE };
    cuptiProfilerDisableProfiling(&disableProfilingParams);

    kernelE <<<grid, tids >>>(...);                  // KernelE not profiled

    CUpti_Profiler_UnsetConfig_Params unsetConfigParams = { CUpti_Profiler_UnsetConfig_Params_STRUCT_SIZE };
    cuptiProfilerUnsetConfig(&unsetConfigParams);

    CUpti_Profiler_EndSession_Params endSessionParams = { CUpti_Profiler_EndSession_Params_STRUCT_SIZE };
    cuptiProfilerEndSession(&endSessionParams);
}

User Replay

The replay (multiple passes, if needed) is done by the user using the replay API’s cuptiProfilerBeginPass and cuptiProfilerEndPass. It is user responsibility to flush the counter data cuptiProfilerFlushCounterData before ending the session to ensure collection of metric data in CPU. Counter collection can be enabled and disabled with cuptiProfilerEnableProfiling/ cuptiProfilerDisableProfiling. Refer to the sample autorange_profiling

/* Assume Inputs(counterDataImagePrefix and configImage) from configuration phase at host */

void Collection(std::vector<uint8_t>& counterDataImagePrefix, std::vector<uint8_t>& configImage)
{
    CUpti_Profiler_Initialize_Params profilerInitializeParams = {CUpti_Profiler_Initialize_Params_STRUCT_SIZE};
    cuptiProfilerInitialize(&profilerInitializeParams);

    std::vector<uint8_t> counterDataImages;
    std::vector<uint8_t> counterDataScratchBuffer;
    CreateCounterDataImage(counterDataImages, counterDataScratchBuffer, counterDataImagePrefix);

    CUpti_Profiler_BeginSession_Params beginSessionParams = {CUpti_Profiler_BeginSession_Params_STRUCT_SIZE};
    CUpti_ProfilerRange profilerRange = CUPTI_AutoRange;
    CUpti_ProfilerReplayMode profilerReplayMode = CUPTI_UserReplay;

    beginSessionParams.ctx = NULL;
    beginSessionParams.counterDataImageSize = counterDataImage.size();
    beginSessionParams.pCounterDataImage = &counterDataImage[0];
    beginSessionParams.counterDataScratchBufferSize = counterDataScratchBuffer.size();
    beginSessionParams.pCounterDataScratchBuffer = &counterDataScratchBuffer[0];
    beginSessionParams.range = profilerRange;
    beginSessionParams.replayMode = profilerReplayMode;
    beginSessionParams.maxRangesPerPass = num_ranges;
    beginSessionParams.maxLaunchesPerPass = num_ranges;

    cuptiProfilerBeginSession(&beginSessionParams));

    CUpti_Profiler_SetConfig_Params setConfigParams = {CUpti_Profiler_SetConfig_Params_STRUCT_SIZE};
    setConfigParams.pConfig = &configImage[0];
    setConfigParams.configSize = configImage.size();

    cuptiProfilerSetConfig(&setConfigParams));

    CUpti_Profiler_FlushCounterData_Params cuptiFlushCounterDataParams =        {CUpti_Profiler_FlushCounterData_Params_STRUCT_SIZE};

    CUpti_Profiler_EnableProfiling_Params enableProfilingParams =       {CUpti_Profiler_EnableProfiling_Params_STRUCT_SIZE};

    CUpti_Profiler_DisableProfiling_Params disableProfilingParams =         {CUpti_Profiler_DisableProfiling_Params_STRUCT_SIZE};


    kernelA<<<grid, tids>>>(...);                  // KernelA neither profiled, nor replayed

    CUpti_Profiler_BeginPass_Params beginPassParams = {CUpti_Profiler_BeginPass_Params_STRUCT_SIZE};
    CUpti_Profiler_EndPass_Params endPassParams = {CUpti_Profiler_EndPass_Params_STRUCT_SIZE};

    cuptiProfilerBeginPass(&beginPassParams);
    {
        kernelB<<<grid, tids>>>(...);              // KernelB replayed but not profiled

        cuptiProfilerEnableProfiling(&enableProfilingParams);

        kernelC<<<grid, tids>>>(...);              // KernelC profiled and captured in an unique range.
        kernelD<<<grid, tids>>>(...);              // KernelD profiled and captured in an unique range.

        cuptiProfilerDisableProfiling(&disableProfilingParams);
    }
    cuptiProfilerEndPass(&endPassParams);

    cuptiProfilerFlushCounterData(&cuptiFlushCounterDataParams);

    kernelE<<<grid, tids>>>(...);                  // KernelE not profiled

    CUpti_Profiler_UnsetConfig_Params unsetConfigParams = {CUpti_Profiler_UnsetConfig_Params_STRUCT_SIZE};
    cuptiProfilerUnsetConfig(&unsetConfigParams);

    CUpti_Profiler_EndSession_Params endSessionParams = {CUpti_Profiler_EndSession_Params_STRUCT_SIZE};
    cuptiProfilerEndSession(&endSessionParams);
}

Application Replay

This replay mode is same as user replay, instead of in process replay, you can replay the whole process again. You will need to update the pass index while setting the config cuptiProfilerSetConfig and reload the intermediate counterDataImage on each pass.

2.12.2.2. User Range

In a session with user range mode, ranges are defined by you, cuptiProfilerPushRange and cuptiProfilerPopRange. Kernel launches are concurrent within a range. This mode is useful for metric data collection around a specific section of code, instead of per-kernel metric collection. Kernel replay is not supported in user range mode. You own the responsibility of replay using cuptiProfilerBeginPass and cuptiProfilerEndPass.

User Replay

The replay (multiple passes, if needed) is done by the user using the replay API’s cuptiProfilerBeginPass and cuptiProfilerEndPass. It is your responsibility to flush the counter data using cuptiProfilerFlushCounterData before ending the session. Counter collection can be enabled/disabled with cuptiProfilerEnableProfiling and cuptiProfilerDisableProfiling. Refer to the sample userrange_profiling

/* Assume Inputs(counterDataImagePrefix and configImage) from configuration phase at host */

void Collection(std::vector<uint8_t>& counterDataImagePrefix, std::vector<uint8_t>& configImage)
{
    CUpti_Profiler_Initialize_Params profilerInitializeParams = {CUpti_Profiler_Initialize_Params_STRUCT_SIZE};
    cuptiProfilerInitialize(&profilerInitializeParams);

    std::vector<uint8_t> counterDataImages;
    std::vector<uint8_t> counterDataScratchBuffer;
    CreateCounterDataImage(counterDataImages, counterDataScratchBuffer, counterDataImagePrefix);

    CUpti_Profiler_BeginSession_Params beginSessionParams = {CUpti_Profiler_BeginSession_Params_STRUCT_SIZE};
    CUpti_ProfilerRange profilerRange = CUPTI_UserRange;
    CUpti_ProfilerReplayMode profilerReplayMode = CUPTI_UserReplay;

    beginSessionParams.ctx = NULL;
    beginSessionParams.counterDataImageSize = counterDataImage.size();
    beginSessionParams.pCounterDataImage = &counterDataImage[0];
    beginSessionParams.counterDataScratchBufferSize = counterDataScratchBuffer.size();
    beginSessionParams.pCounterDataScratchBuffer = &counterDataScratchBuffer[0];
    beginSessionParams.range = profilerRange;
    beginSessionParams.replayMode = profilerReplayMode;
    beginSessionParams.maxRangesPerPass = num_ranges;
    beginSessionParams.maxLaunchesPerPass = num_ranges;

    cuptiProfilerBeginSession(&beginSessionParams));

    CUpti_Profiler_SetConfig_Params setConfigParams = {CUpti_Profiler_SetConfig_Params_STRUCT_SIZE};
    setConfigParams.pConfig = &configImage[0];
    setConfigParams.configSize = configImage.size();

    cuptiProfilerSetConfig(&setConfigParams));

    CUpti_Profiler_FlushCounterData_Params cuptiFlushCounterDataParams = {CUpti_Profiler_FlushCounterData_Params_STRUCT_SIZE};

    kernelA<<<grid, tids>>>(...);                  // KernelA neither profiled, nor replayed

    CUpti_Profiler_BeginPass_Params beginPassParams = {CUpti_Profiler_BeginPass_Params_STRUCT_SIZE};
    CUpti_Profiler_EndPass_Params endPassParams = {CUpti_Profiler_EndPass_Params_STRUCT_SIZE};

    cuptiProfilerBeginPass(&beginPassParams);
    {
        kernelB<<<grid, tids>>>(...);              // KernelB replayed but not profiled

        CUpti_Profiler_PushRange_Params enableProfilingParams = {CUpti_Profiler_PushRange_Params_STRUCT_SIZE};
        pushRangeParams.pRangeName = "RangeA";
        cuptiProfilerPushRange(&pushRangeParams);

        kernelC<<<grid, tids>>>(...);
        kernelD<<<grid, tids>>>(...);

        cuptiProfilerPopRange(&popRangeParams);     // Kernel C and Kernel D are captured in rangeA without any serialization introduced by profiler
    }
    cuptiProfilerEndPass(&endPassParams);
    cuptiProfilerFlushCounterData(&cuptiFlushCounterDataParams);

    kernelE<<<grid, tids>>>(...);                  // KernelE not Profiled

    CUpti_Profiler_UnsetConfig_Params unsetConfigParams = {CUpti_Profiler_UnsetConfig_Params_STRUCT_SIZE};
    cuptiProfilerUnsetConfig(&unsetConfigParams);

    CUpti_Profiler_EndSession_Params endSessionParams = {CUpti_Profiler_EndSession_Params_STRUCT_SIZE};
    cuptiProfilerEndSession(&endSessionParams);
}

Application Replay

This replay mode is same as user replay, instead of in process replay, you can replay the whole process again. You will need to update the pass index while setting the config using the cuptiProfilerSetConfig API, and reload the intermediate counterDataImage on each pass.

2.12.3. CUPTI Profiler Definitions

Definitions of glossary used in this section.

Counter:

The number of occurrences of a specific event on the device.

Configuration Image:

A Blob to configure the session for counters to be collected.

CounterData Image:

A Blob which contains the values of collected counters

CounterData Prefix:

A metadata header for CounterData Image

Device:

A physical NVIDIA GPU.

Event:

An event is a countable activity, action, or occurrence on device.

Metric:

A high-level value derived from counter values.

Pass:

A repeatable set of operations, with consistently labeled ranges.

Range:

A labeled region of execution

Replay:

Performing the repeatable set of operation.

Session:

A profiling session where GPU resources needed for profiling are allocated. The profiler is in armed state at session boundaries, and power management may be disabled at session boundaries. Outside of a session, the GPU will return to its normal operating state.

2.12.4. Limitations

Here is the list of features which are not available with the Profiling API:

• The Profiling API offers the closest equivalent metrics for most events and metrics previously supported by the now-dropped event and metric APIs. However, there are some events and metrics for which there is no equivalent metrics in the Profiling API. Tables Metrics Mapping Table and Events Mapping Table can be referred to find the equivalent Perfworks metrics for compute capability 7.0.

• Per-instance metrics i.e. users can’t collect metrics for each instance of the hardware units like SM, FB etc separately. However, the Profiling API offers sub-metrics that allow users to calculate the average, sum, minimum, or maximum across all instances of a hardware unit.

2.13. Perfworks Metric API

Introduction:

The Perfworks Metric API supports the enumeration, configuration and evaluation of metrics. The binary outputs of the configuration phase are inputs to the Range API of the CUPTI Profiling API. The output of range profiling is the CounterData, which is passed to the Derived Metrics Evaluation APIs. These APIs are provided in the header file nvperf_host.h.

GPU Metrics are generally presented as counts, ratios and percentages. The underlying values collected from hardware are raw counters, but those details are hidden behind derived metric formulas.

The Metric APIs are split into two layers: Derived Metrics and Raw Metrics. Derived Metrics contains the list of named metrics and performs evaluation to numeric results, serving a similar purpose as the previous CUPTI Metric API. Most user interaction will be with derived metrics. Raw Metrics contains the list of raw counters and generates configuration file images.

Metric Enumeration

Metric Enumeration is the process of listing available counters and metrics.

Metrics are grouped into three types i.e. counters, ratios and throughput. Except ratios metric type each metrics have four type of sub-metrics also known as rollup metrics i.e. sum, avg, min, max.

For enumerating supported metrics for a chip, we need to calculate the scratch buffer needed for host operation and to initialize the Metric Evaluator.

• Call NVPW_CUDA_MetricsEvaluator_CalculateScratchBufferSize for calculating scratch buffer size required for allocating memory for host operations.

• Call NVPW_CUDA_MetricsEvaluator_Initialize for initializing the Metrics Evaluator which creates a NVPW_MetricsEvaluator object.

The outline for enumerating supported counter metrics for a chip:

• Call NVPW_MetricsEvaluator_GetMetricNames for NVPW_METRIC_TYPE_COUNTER metric type for listing all the counter metrics supported.

• Call NVPW_MetricsEvaluator_GetSupportedSubmetrics to list all the sub-metric supported for NVPW_METRIC_TYPE_COUNTER metric type.

• Call NVPW_MetricsEvaluator_GetCounterProperties to give description of the counter and the collection hardware unit.

Similarly, for enumerating ratio and throughput metrics we need to pass NVPW_METRIC_TYPE_RATIO and NVPW_METRIC_TYPE_THROUGHPUT as metric types to NVPW_MetricsEvaluator_GetMetricNames and NVPW_MetricsEvaluator_GetSupportedSubmetrics.

For more details about the metric properties call NVPW_MetricsEvaluator_GetRatioMetricProperties and NVPW_MetricsEvaluator_GetThroughputMetricProperties respectively.

Configuration Workflow

Configuration is the process of specifying the metrics that will be collected and how those metrics should be collected. The inputs for this phase are the metric names and metric collection properties. The output for this phase is a ConfigImage and a CounterDataPrefix Image.

Refer to file Metric.cpp used by the userrange_profiling sample.

The outline for configuring metrics:

• As input, take a list of metric names.

• Before creating ConfigImage or CounterDataPrefixImage, we need a list of NVPA_RawMetricRequest for the metrics listed for collection.

  • We need to calculate the scratch buffer size required for the host operation and to initialize the Metric Evaluator like in the Enumeration phase.

  • For each metric, Call NVPW_MetricsEvaluator_ConvertMetricNameToMetricEvalRequest for creating a NVPW_MetricEvalRequest.

  • Call NVPW_MetricsEvaluator_GetMetricRawDependencies which takes the NVPW_MetricsEvaluator and NVPW_MetricEvalRequest as input, for getting raw dependencies for given metrics.

• Create an NVPA_RawMetricRequest with keepInstances=true and isolated=true

• Pass the NVPA_RawMetricRequest to NVPW_RawMetricsConfig_AddMetrics for the ConfigImage.

• Pass the NVPA_RawMetricRequest to NVPW_CounterDataBuilder_AddMetrics for the CounterDataPrefix.

• Generate binary configuration “images” (file format in memory):

  • ConfigImage from NVPW_RawMetricsConfig_GetConfigImage

  • CounterDataPrefix from NVPW_CounterDataBuilder_GetCounterDataPrefix

Metric Evaluation

Metric Evaluation is the process of forming metrics from the counters stored in the CounterData image.

Refer to file Eval.cpp used by the userrange_profiling sample.

The outline for configuring metrics:

• As input, take the same list of metric names as used during configuration.

• As input, take a CounterDataImage collected on a target device.

• We need to calculate the scratch buffer size required for the host operation and to initialize the Metric Evaluator like in the Enumeration phase.

• Query the number of ranges collected via NVPW_CounterData_GetNumRanges.

• For each metric:

  • Call NVPW_MetricsEvaluator_ConvertMetricNameToMetricEvalRequest for creating NVPW_MetricEvalRequest

  • For each range:

    • Call NVPW_Profiler_CounterData_GetRangeDescriptions to retrieve the range’s description, originally set by cuptiProfilerPushRange.

    • Call NVPW_MetricsEvaluator_SetDeviceAttributes to set the current range for evaluation on the NVPW_MetricEvalRequest.

    • Call NVPW_MetricsEvaluator_EvaluateToGpuValues to query an array of numeric values corresponding to each input metric.

2.13.1. Derived metrics

Metrics Overview

The PerfWorks API comes with an advanced metrics calculation system, designed to help you determine what happened (counters and metrics), and how close the program reached to peak GPU performance (throughputs as a percentage). Every counter has associated peak rates in the database, to allow computing its throughput as a percentage.

Throughput metrics return the maximum percentage value of their constituent counters. Constituents can be programmatically queried via NVPW_MetricsEvaluator_GetMetricNames with NVPW_METRIC_TYPE_THROUGHPUT as metric types. These constituents have been carefully selected to represent the sections of the GPU pipeline that govern peak performance. While all counters can be converted to a %-of-peak, not all counters are suitable for peak-performance analysis; examples of unsuitable counters include qualified subsets of activity, and workload residency counters. Using throughput metrics ensures meaningful and actionable analysis.

Two types of peak rates are available for every counter: burst and sustained. Burst rate is the maximum rate reportable in a single clock cycle. Sustained rate is the maximum rate achievable over an infinitely long measurement period, for “typical” operations. For many counters, burst == sustained. Since the burst rate cannot be exceeded, percentages of burst rate will always be less than 100%. Percentages of sustained rate can occasionally exceed 100% in edge cases. Burst metrics are only supported with MetricsContext APIs and these will be deprecated in a future CUDA release. These metrics are not supported with NVPW_MetricsEvaluator APIs.

Metrics Entities

The Metrics layer has 3 major types of entities:

• Metrics : these are calculated quantities, with the following static properties:

  • Description string.

  • Dimensional Units : a list of (‘name’, exponent) in the style of dimensional analysis. Example string representation: pixels / gpc_clk.

  • Raw Metric dependencies : the list of raw metrics that must be collected, in order to evaluate the metric.

  • Every metric has the following sub-metrics built in.

    .peak_sustained	the peak sustained rate
    .peak_sustained_active	the peak sustained rate during unit active cycles
    .peak_sustained_active.per_second	the peak sustained rate during unit active cycles, per second *
    .peak_sustained_elapsed	the peak sustained rate during unit elapsed cycles
    .peak_sustained_elapsed.per_second	the peak sustained rate during unit elapsed cycles, per second *
    .peak_sustained_region	the peak sustained rate over a user-specified “range”
    .peak_sustained_region.per_second	the peak sustained rate over a user-specified “range”, per second *
    .peak_sustained_frame	the peak sustained rate over a user-specified “frame”
    .peak_sustained_frame.per_second	the peak sustained rate over a user-specified “frame”, per second *
    .per_cycle_active	the number of operations per unit active cycle
    .per_cycle_elapsed	the number of operations per unit elapsed cycle
    .per_cycle_in_region	the number of operations per user-specified “range” cycle
    .per_cycle_in_frame	the number of operations per user-specified “frame” cycle
    .per_second	the number of operations per second
    .pct_of_peak_sustained_active	% of peak sustained rate achieved during unit active cycles
    .pct_of_peak_sustained_elapsed	% of peak sustained rate achieved during unit elapsed cycles
    .pct_of_peak_sustained_region	% of peak sustained rate achieved over a user-specified “range” time
    .pct_of_peak_sustained_frame	% of peak sustained rate achieved over a user-specified “frame” time

    * sub-metrics added in CUPTI 11.3.

• Counters may be either a raw counter from the GPU, or a calculated counter value. Every counter has four sub-metrics under it, which are also called roll-ups:

  .sum	The sum of counter values across all unit instances.
  .avg	The average counter value across all unit instances.
  .min	The minimum counter value across all unit instances.
  .max	The maximum counter value across all unit instances.

• Ratios have three sub-metrics under it:

  .pct	The value expressed as a percentage.
  .ratio	The value expressed as a ratio.
  .max_rate	The ratio’s maximum value.

• Throughputs indicate how close a portion of the GPU reached to peak rate. Every throughput has the following sub-metrics:

  .pct_of_peak_sustained_active	% of peak sustained rate achieved during unit active cycles
  .pct_of_peak_sustained_elapsed	% of peak sustained rate achieved during unit elapsed cycles
  .pct_of_peak_sustained_region	% of peak sustained rate achieved over a user-specified “range” time
  .pct_of_peak_sustained_frame	% of peak sustained rate achieved over a user-specified “frame” time

At the configuration step, you must specify metric names. Counters, ratios, and throughputs are not directly schedulable.

Note: Burst metrics are only supported with MetricsContext APIs.

From CUPTI 11.3 onwards, due to not being useful for performance optimization following counter sub-metrics are not present in MetricEvaluator APIs and are only supported with MetricsContext APIs:

.peak_burst	the peak burst rate
.pct_of_peak_burst_active	% of peak burst rate achieved during unit active cycles
.pct_of_peak_burst_elapsed	% of peak burst rate achieved during unit elapsed cycles
.pct_of_peak_burst_region	% of peak burst rate achieved over a user-specified “range”
.pct_of_peak_burst_frame	% of peak burst rate achieved over a user-specified “frame”

From CUPTI 11.3 onwards, due to not being useful for performance optimization following throughput sub-metrics are not present in MetricEvaluator APIs and are only supported with MetricsContext APIs:

.pct_of_peak_burst_active	% of peak burst rate achieved during unit active cycles
.pct_of_peak_burst_elapsed	% of peak burst rate achieved during unit elapsed cycles
.pct_of_peak_burst_region	% of peak burst rate achieved over a user-specified “range” time
.pct_of_peak_burst_frame	% of peak burst rate achieved over a user-specified “frame” time

Metrics Examples

## non-metric names -- *not* directly evaluable
sm__inst_executed                   # counter
smsp__average_warp_latency          # ratio
sm__throughput                      # throughput

## a counter's four roll-ups as sub-metrics -- all evaluable
sm__inst_executed.sum               # metric
sm__inst_executed.avg               # metric
sm__inst_executed.min               # metric
sm__inst_executed.max               # metric

## all names below are metrics -- all evaluable
l1tex__data_bank_conflicts_pipe_lsu.sum
l1tex__data_bank_conflicts_pipe_lsu.sum.peak_burst
l1tex__data_bank_conflicts_pipe_lsu.sum.peak_sustained
l1tex__data_bank_conflicts_pipe_lsu.sum.per_cycle_active
l1tex__data_bank_conflicts_pipe_lsu.sum.per_cycle_elapsed
l1tex__data_bank_conflicts_pipe_lsu.sum.per_cycle_in_region
l1tex__data_bank_conflicts_pipe_lsu.sum.per_cycle_in_frame
l1tex__data_bank_conflicts_pipe_lsu.sum.per_second
l1tex__data_bank_conflicts_pipe_lsu.sum.pct_of_peak_sustained_active
l1tex__data_bank_conflicts_pipe_lsu.sum.pct_of_peak_sustained_elapsed
l1tex__data_bank_conflicts_pipe_lsu.sum.pct_of_peak_sustained_region
l1tex__data_bank_conflicts_pipe_lsu.sum.pct_of_peak_sustained_frame

Metrics Naming Conventions

Counters and metrics _generally_ obey the naming scheme:

• Unit-Level Counter : unit__(subunit?)_(pipestage?)_quantity_(qualifiers?)

• Interface Counter : unit__(subunit?)_(pipestage?)_(interface)_quantity_(qualifiers?)

• Unit Metric : (counter_name).(rollup_metric)

• Sub-Metric : (counter_name).(rollup_metric).(submetric)

where

• unit: A logical of physical unit of the GPU

• subunit: The subunit within the unit where the counter was measured. Sometimes this is a pipeline mode instead.

• pipestage: The pipeline stage within the subunit where the counter was measured.

• quantity: What is being measured. Generally matches the “dimensional units”.

• qualifiers: Any additional predicates or filters applied to the counter. Often, an unqualified counter can be broken down into several qualified sub-components.

• interface: Of the form sender2receiver, where sender is the source-unit and receiver is the destination-unit.

• rollup_metric: One of sum,avg,min,max.

• submetric: refer to section Metric Entities

Components are not always present. Most top-level counters have no qualifiers. Subunit and pipestage may be absent where irrelevant, or there may be many subunit specifiers for detailed counters.

Cycle Metrics

Counters using the term cycles in the name report the number of cycles in the unit’s clock domain. Unit-level cycle metrics include:

• unit__cycles_elapsed : The number of cycles within a range. The cycles’ DimUnits are specific to the unit’s clock domain.

• unit__cycles_active : The number of cycles where the unit was processing data.

• unit__cycles_stalled : The number of cycles where the unit was unable to process new data because its output interface was blocked.

• unit__cycles_idle : The number of cycles where the unit was idle.

Interface-level cycle counters are often (not always) available in the following variations:

• unit__(interface)_active : Cycles where data was transferred from source-unit to destination-unit.

• unit__(interface)_stalled : Cycles where the source-unit had data, but the destination-unit was unable to accept data.

2.13.2. Raw Metrics

The raw metrics layer contains a list of low-level GPU counters, and the “scheduling” logic needed to program the hardware. The binary output files (ConfigImage and CounterDataPrefix) can be generated offline, stored on disk, and used on any compatible GPU. They do not need to be generated on a machine where a GPU is available.

Refer to Metrics Configuration to see where Raw Metrics fit into the overall data flow of the profiler.

2.13.3. Metrics Mapping Table

The table below lists the CUPTI metrics for devices with compute capability 7.0. For each CUPTI metric the closest equivalent Perfworks metric or formula is given. If no equivalent Perfworks metric is available the column is left blank. Note that there can be some difference in the metric values between the CUPTI metric and the Perfworks metrics.

Perfworks metrics starting with sm__ are collected per-SM. Metrics starting with smsp__ are collected per-SM subpartition. However, all corresponding CUPTI metrics are collected per-SM, only.

Table 4. Metrics Mapping Table from CUPTI to Perfworks for Compute Capability 7.0

CUPTI Metric	Perfworks Metric or Formula
achieved_occupancy	sm__warps_active.avg.pct_of_peak_sustained_active
atomic_transactions	l1tex__t_set_accesses_pipe_lsu_mem_global_op_atom.sum + l1tex__t_set_accesses_pipe_lsu_mem_global_op_red.sum
atomic_transactions_per_request	(l1tex__t_sectors_pipe_lsu_mem_global_op_atom.sum + l1tex__t_sectors_pipe_lsu_mem_global_op_red.sum) / (l1tex__t_requests_pipe_lsu_mem_global_op_atom.sum + l1tex__t_requests_pipe_lsu_mem_global_op_red.sum)
branch_efficiency	smsp__sass_average_branch_targets_threads_uniform.pct
cf_executed	smsp__inst_executed_pipe_cbu.sum + smsp__inst_executed_pipe_adu.sum
cf_fu_utilization
cf_issued
double_precision_fu_utilization	smsp__inst_executed_pipe_fp64.avg.pct_of_peak_sustained_active
dram_read_bytes	dram__bytes_read.sum
dram_read_throughput	dram__bytes_read.sum.per_second
dram_read_transactions	dram__sectors_read.sum
dram_utilization	dram__throughput.avg.pct_of_peak_sustained_elapsed
dram_write_bytes	dram__bytes_write.sum
dram_write_throughput	dram__bytes_write.sum.per_second
dram_write_transactions	dram__sectors_write.sum
eligible_warps_per_cycle	smsp__warps_eligible.sum.per_cycle_active
flop_count_dp	smsp__sass_thread_inst_executed_op_dadd_pred_on.sum + smsp__sass_thread_inst_executed_op_dmul_pred_on.sum + smsp__sass_thread_inst_executed_op_dfma_pred_on.sum * 2
flop_count_dp_add	smsp__sass_thread_inst_executed_op_dadd_pred_on.sum
flop_count_dp_fma	smsp__sass_thread_inst_executed_op_dfma_pred_on.sum
flop_count_dp_mul	smsp__sass_thread_inst_executed_op_dmul_pred_on.sum
flop_count_hp	smsp__sass_thread_inst_executed_op_hadd_pred_on.sum + smsp__sass_thread_inst_executed_op_hmul_pred_on.sum + smsp__sass_thread_inst_executed_op_hfma_pred_on.sum * 2
flop_count_hp_add	smsp__sass_thread_inst_executed_op_hadd_pred_on.sum
flop_count_hp_fma	smsp__sass_thread_inst_executed_op_hfma_pred_on.sum
flop_count_hp_mul	smsp__sass_thread_inst_executed_op_hmul_pred_on.sum
flop_count_sp	smsp__sass_thread_inst_executed_op_fadd_pred_on.sum + smsp__sass_thread_inst_executed_op_fmul_pred_on.sum + smsp__sass_thread_inst_executed_op_ffma_pred_on.sum * 2
flop_count_sp_add	smsp__sass_thread_inst_executed_op_fadd_pred_on.sum
flop_count_sp_fma	smsp__sass_thread_inst_executed_op_ffma_pred_on.sum
flop_count_sp_mul	smsp__sass_thread_inst_executed_op_fmul_pred_on.sum
flop_count_sp_special
flop_dp_efficiency	smsp__sass_thread_inst_executed_ops_dadd_dmul_dfma_pred_on.avg.pct_of_peak_sustained_elapsed
flop_hp_efficiency	smsp__sass_thread_inst_executed_ops_hadd_hmul_hfma_pred_on.avg.pct_of_peak_sustained_elapsed
flop_sp_efficiency	smsp__sass_thread_inst_executed_ops_fadd_fmul_ffma_pred_on.avg.pct_of_peak_sustained_elapsed
gld_efficiency	smsp__sass_average_data_bytes_per_sector_mem_global_op_ld.pct
gld_requested_throughput
gld_throughput	l1tex__t_bytes_pipe_lsu_mem_global_op_ld.sum.per_second
gld_transactions	l1tex__t_sectors_pipe_lsu_mem_global_op_ld.sum
gld_transactions_per_request	l1tex__average_t_sectors_per_request_pipe_lsu_mem_global_op_ld.ratio
global_atomic_requests	l1tex__t_requests_pipe_lsu_mem_global_op_atom.sum
global_hit_rate	l1tex__t_sectors_pipe_lsu_mem_global_op_{op}_lookup_hit.sum / l1tex__t_sectors_pipe_lsu_mem_global_op_{op}.sum
global_load_requests	l1tex__t_requests_pipe_lsu_mem_global_op_ld.sum
global_reduction_requests	l1tex__t_requests_pipe_lsu_mem_global_op_red.sum
global_store_requests	l1tex__t_requests_pipe_lsu_mem_global_op_st.sum
gst_efficiency	smsp__sass_average_data_bytes_per_sector_mem_global_op_st.pct
gst_requested_throughput
gst_throughput	l1tex__t_bytes_pipe_lsu_mem_global_op_st.sum.per_second
gst_transactions	l1tex__t_bytes_pipe_lsu_mem_global_op_st.sum
gst_transactions_per_request	l1tex__average_t_sectors_per_request_pipe_lsu_mem_global_op_st.ratio
half_precision_fu_utilization	smsp__inst_executed_pipe_fp16.avg.pct_of_peak_sustained_active
inst_bit_convert	smsp__sass_thread_inst_executed_op_conversion_pred_on.sum
inst_compute_ld_st	smsp__sass_thread_inst_executed_op_memory_pred_on.sum
inst_control	smsp__sass_thread_inst_executed_op_control_pred_on.sum
inst_executed	smsp__inst_executed.sum
inst_executed_global_atomics	smsp__sass_inst_executed_op_global_atom.sum
inst_executed_global_loads	smsp__inst_executed_op_global_ld.sum
inst_executed_global_reductions	smsp__inst_executed_op_global_red.sum
inst_executed_global_stores	smsp__inst_executed_op_global_st.sum
inst_executed_local_loads	smsp__inst_executed_op_local_ld.sum
inst_executed_local_stores	smsp__inst_executed_op_local_st.sum
inst_executed_shared_atomics	smsp__inst_executed_op_shared_atom.sum + smsp__inst_executed_op_shared_atom_dot_alu.sum + smsp__inst_executed_op_shared_atom_dot_cas.sum
inst_executed_shared_loads	smsp__inst_executed_op_shared_ld.sum
inst_executed_shared_stores	smsp__inst_executed_op_shared_st.sum
inst_executed_surface_atomics	smsp__inst_executed_op_surface_atom.sum
inst_executed_surface_loads	smsp__inst_executed_op_surface_ld.sum + smsp__inst_executed_op_shared_atom_dot_alu.sum + smsp__inst_executed_op_shared_atom_dot_cas.sum
inst_executed_surface_reductions	smsp__inst_executed_op_surface_red.sum
inst_executed_surface_stores	smsp__inst_executed_op_surface_st.sum
inst_executed_tex_ops	smsp__inst_executed_op_texture.sum
inst_fp_16	smsp__sass_thread_inst_executed_op_fp16_pred_on.sum
inst_fp_32	smsp__sass_thread_inst_executed_op_fp32_pred_on.sum
inst_fp_64	smsp__sass_thread_inst_executed_op_fp64_pred_on.sum
inst_integer	smsp__sass_thread_inst_executed_op_integer_pred_on.sum
inst_inter_thread_communication	smsp__sass_thread_inst_executed_op_inter_thread_communication_pred_on.sum
inst_issued	smsp__inst_issued.sum
inst_misc	smsp__sass_thread_inst_executed_op_misc_pred_on.sum
inst_per_warp	smsp__average_inst_executed_per_warp.ratio
inst_replay_overhead
ipc	smsp__inst_executed.avg.per_cycle_active
issue_slot_utilization	smsp__issue_active.avg.pct_of_peak_sustained_active
issue_slots	smsp__inst_issued.sum
issued_ipc	smsp__inst_issued.avg.per_cycle_active
l2_atomic_throughput	lts__t_sectors_srcunit_l1_op_atom.sum.per_second
l2_atomic_transactions	lts__t_sectors_srcunit_l1_op_atom.sum
l2_global_atomic_store_bytes	lts__t_bytes_equiv_l1sectormiss_pipe_lsu_mem_global_op_atom.sum
l2_global_load_bytes	lts__t_bytes_equiv_l1sectormiss_pipe_lsu_mem_global_op_ld.sum
l2_local_global_store_bytes	lts__t_bytes_equiv_l1sectormiss_pipe_lsu_mem_local_op_st.sum + lts__t_bytes_equiv_l1sectormiss_pipe_lsu_mem_global_op_st.sum
l2_local_load_bytes	lts__t_bytes_equiv_l1sectormiss_pipe_lsu_mem_local_op_ld.sum
l2_read_throughput	lts__t_sectors_op_read.sum.per_second
l2_read_transactions	lts__t_sectors_op_read.sum
l2_surface_load_bytes	lts__t_bytes_equiv_l1sectormiss_pipe_tex_mem_surface_op_ld.sum
l2_surface_store_bytes	lts__t_bytes_equiv_l1sectormiss_pipe_tex_mem_surface_op_st.sum
l2_tex_hit_rate	lts__t_sector_hit_rate.pct
l2_tex_read_hit_rate	lts__t_sector_op_read_hit_rate.pct
l2_tex_read_throughput	lts__t_sectors_srcunit_tex_op_read.sum.per_second
l2_tex_read_transactions	lts__t_sectors_srcunit_tex_op_read.sum
l2_tex_write_hit_rate	lts__t_sector_op_write_hit_rate.pct
l2_tex_write_throughput	lts__t_sectors_srcunit_tex_op_read.sum.per_second
l2_tex_write_transactions	lts__t_sectors_srcunit_tex_op_read.sum
l2_utilization	lts__t_sectors.avg.pct_of_peak_sustained_elapsed
l2_write_throughput	lts__t_sectors_op_write.sum.per_second
l2_write_transactions	lts__t_sectors_op_write.sum
ldst_executed
ldst_fu_utilization	smsp__inst_executed_pipe_lsu.avg.pct_of_peak_sustained_active
ldst_issued
local_hit_rate
local_load_requests	l1tex__t_requests_pipe_lsu_mem_local_op_ld.sum
local_load_throughput	l1tex__t_bytes_pipe_lsu_mem_local_op_ld.sum.per_second
local_load_transactions	l1tex__t_sectors_pipe_lsu_mem_local_op_ld.sum
local_load_transactions_per_request	l1tex__average_t_sectors_per_request_pipe_lsu_mem_local_op_ld.ratio
local_memory_overhead
local_store_requests	l1tex__t_requests_pipe_lsu_mem_local_op_st.sum
local_store_throughput	l1tex__t_sectors_pipe_lsu_mem_local_op_st.sum.per_second
local_store_transactions	l1tex__t_sectors_pipe_lsu_mem_local_op_st.sum
local_store_transactions_per_request	l1tex__average_t_sectors_per_request_pipe_lsu_mem_local_op_st.ratio
nvlink_data_receive_efficiency
nvlink_data_transmission_efficiency
nvlink_overhead_data_received
nvlink_overhead_data_transmitted
nvlink_receive_throughput
nvlink_total_data_received
nvlink_total_data_transmitted
nvlink_total_nratom_data_transmitted
nvlink_total_ratom_data_transmitted
nvlink_total_response_data_received
nvlink_total_write_data_transmitted
nvlink_transmit_throughput
nvlink_user_data_received
nvlink_user_data_transmitted
nvlink_user_nratom_data_transmitted
nvlink_user_ratom_data_transmitted
nvlink_user_response_data_received
nvlink_user_write_data_transmitted
pcie_total_data_received	pcie__read_bytes.sum
pcie_total_data_transmitted	pcie__write_bytes.sum
shared_efficiency	smsp__sass_average_data_bytes_per_wavefront_mem_shared.pct
shared_load_throughput	l1tex__data_pipe_lsu_wavefronts_mem_shared_op_ld.sum.per_second
shared_load_transactions	l1tex__data_pipe_lsu_wavefronts_mem_shared_op_ld.sum
shared_load_transactions_per_request
shared_store_throughput	l1tex__data_pipe_lsu_wavefronts_mem_shared_op_st.sum.per_second
shared_store_transactions	l1tex__data_pipe_lsu_wavefronts_mem_shared_op_st.sum
shared_store_transactions_per_request
shared_utilization	l1tex__data_pipe_lsu_wavefronts_mem_shared.avg.pct_of_peak_sustained_elapsed
single_precision_fu_utilization	smsp__pipe_fma_cycles_active.avg.pct_of_peak_sustained_active
sm_efficiency	smsp__cycles_active.avg.pct_of_peak_sustained_elapsed
sm_tex_utilization	l1tex__texin_sm2tex_req_cycles_active.avg.pct_of_peak_sustained_elapsed
special_fu_utilization	smsp__inst_executed_pipe_xu.avg.pct_of_peak_sustained_active
stall_constant_memory_dependency	smsp__warp_issue_stalled_imc_miss_per_warp_active.pct
stall_exec_dependency	smsp__warp_issue_stalled_short_scoreboard_per_warp_active.pct + smsp__warp_issue_stalled_wait_per_warp_active.pct
stall_inst_fetch	smsp__warp_issue_stalled_no_instruction_per_warp_active.pct
stall_memory_dependency	smsp__warp_issue_stalled_long_scoreboard_per_warp_active.pct
stall_memory_throttle	smsp__warp_issue_stalled_drain_per_warp_active.pct + smsp__warp_issue_stalled_lg_throttle_per_warp_active.pct
stall_not_selected	smsp__warp_issue_stalled_not_selected_per_warp_active.pct
stall_other	smsp__warp_issue_stalled_misc_per_warp_active.pct + smsp__warp_issue_stalled_dispatch_stall_per_warp_active.pct
stall_pipe_busy	smsp__warp_issue_stalled_mio_throttle_per_warp_active.pct + smsp__warp_issue_stalled_math_pipe_throttle_per_warp_active.pct
stall_sleeping	smsp__warp_issue_stalled_sleeping_per_warp_active.pct
stall_sync	smsp__warp_issue_stalled_membar_per_warp_active.pct + smsp__warp_issue_stalled_barrier_per_warp_active.pct
stall_texture	smsp__warp_issue_stalled_tex_throttle_per_warp_active.pct
surface_atomic_requests	l1tex__t_requests_pipe_tex_mem_surface_op_atom.sum
surface_load_requests	l1tex__t_requests_pipe_tex_mem_surface_op_ld.sum
surface_reduction_requests	l1tex__t_requests_pipe_tex_mem_surface_op_red.sum
surface_store_requests	l1tex__t_requests_pipe_tex_mem_surface_op_st.sum
sysmem_read_bytes	lts__t_sectors_aperture_sysmem_op_read* 32
sysmem_read_throughput	lts__t_sectors_aperture_sysmem_op_read.sum.per_second
sysmem_read_transactions	lts__t_sectors_aperture_sysmem_op_read.sum
sysmem_read_utilization
sysmem_utilization
sysmem_write_bytes	lts__t_sectors_aperture_sysmem_op_write * 32
sysmem_write_throughput	lts__t_sectors_aperture_sysmem_op_write.sum.per_second
sysmem_write_transactions	lts__t_sectors_aperture_sysmem_op_write.sum
sysmem_write_utilization
tensor_precision_fu_utilization	sm__pipe_tensor_cycles_active.avg.pct_of_peak_sustained_active
tex_cache_hit_rate	l1tex__t_sector_hit_rate.pct
tex_cache_throughput
tex_cache_transactions	l1tex__lsu_writeback_active.avg.pct_of_peak_sustained_active + l1tex__tex_writeback_active.avg.pct_of_peak_sustained_active
tex_fu_utilization	smsp__inst_executed_pipe_tex.avg.pct_of_peak_sustained_active
tex_sm_tex_utilization	l1tex__f_tex2sm_cycles_active.avg.pct_of_peak_sustained_elapsed
tex_sm_utilization	sm__mio2rf_writeback_active.avg.pct_of_peak_sustained_elapsed
tex_utilization
texture_load_requests	l1tex__t_requests_pipe_tex_mem_texture.sum
warp_execution_efficiency	smsp__thread_inst_executed_per_inst_executed.ratio
warp_nonpred_execution_efficiency	smsp__thread_inst_executed_per_inst_executed.pct

2.13.4. Events Mapping Table

The table below lists the CUPTI events for devices with compute capability 7.0. For each CUPTI event the closest equivalent Perfworks metric or formula is given. If no equivalent Perfworks metric is available the column is left blank. Note that there can be some difference in the values between the CUPTI event and the Perfworks metrics.

Perfworks metrics starting with sm__ are collected per-SM. Metrics starting with smsp__ are collected per-SM subpartition. However, all corresponding CUPTI events are collected per-SM, only.

Table 5. Events Mapping Table from CUPTI events to Perfworks metrics for Compute Capability 7.0

CUPTI Event	Perfworks Metric or Formula
active_cycles	sm__cycles_active.sum
active_cycles_pm	sm__cycles_active.sum
active_cycles_sys	sys__cycles_active.sum
active_warps	sm__warps_active.sum
active_warps_pm	sm__warps_active.sum
atom_count	smsp__inst_executed_op_generic_atom_dot_alu.sum
elapsed_cycles_pm	sm__cycles_elapsed.sum
elapsed_cycles_sm	sm__cycles_elapsed.sum
elapsed_cycles_sys	sys__cycles_elapsed.sum
fb_subp0_read_sectors	dram__sectors_read.sum
fb_subp1_read_sectors	dram__sectors_read.sum
fb_subp0_write_sectors	dram__sectors_write.sum
fb_subp1_write_sectors	dram__sectors_write.sum
global_atom_cas	smsp__inst_executed_op_generic_atom_dot_cas.sum
gred_count	smsp__inst_executed_op_global_red.sum
inst_executed	sm__inst_executed.sum
inst_executed_fma_pipe_s0	smsp__inst_executed_pipe_fma.sum
inst_executed_fma_pipe_s1	smsp__inst_executed_pipe_fma.sum
inst_executed_fma_pipe_s2	smsp__inst_executed_pipe_fma.sum
inst_executed_fma_pipe_s3	smsp__inst_executed_pipe_fma.sum
inst_executed_fp16_pipe_s0	smsp__inst_executed_pipe_fp16.sum
inst_executed_fp16_pipe_s1	smsp__inst_executed_pipe_fp16.sum
inst_executed_fp16_pipe_s2	smsp__inst_executed_pipe_fp16.sum
inst_executed_fp16_pipe_s3	smsp__inst_executed_pipe_fp16.sum
inst_executed_fp64_pipe_s0	smsp__inst_executed_pipe_fp64.sum
inst_executed_fp64_pipe_s1	smsp__inst_executed_pipe_fp64.sum
inst_executed_fp64_pipe_s2	smsp__inst_executed_pipe_fp64.sum
inst_executed_fp64_pipe_s3	smsp__inst_executed_pipe_fp64.sum
inst_issued1	sm__inst_issued.sum
l2_subp0_read_sector_misses	lts__t_sectors_op_read_lookup_miss.sum
l2_subp1_read_sector_misses	lts__t_sectors_op_read_lookup_miss.sum
l2_subp0_read_sysmem_sector_queries	lts__t_sectors_aperture_sysmem_op_read.sum
l2_subp1_read_sysmem_sector_queries	lts__t_sectors_aperture_sysmem_op_read.sum
l2_subp0_read_tex_hit_sectors	lts__t_sectors_srcunit_tex_op_read_lookup_hit.sum
l2_subp1_read_tex_hit_sectors	lts__t_sectors_srcunit_tex_op_read_lookup_hit.sum
l2_subp0_read_tex_sector_queries	lts__t_sectors_srcunit_tex_op_read.sum
l2_subp1_read_tex_sector_queries	lts__t_sectors_srcunit_tex_op_read.sum
l2_subp0_total_read_sector_queries	lts__t_sectors_op_read.sum + lts__t_sectors_op_atom.sum + lts__t_sectors_op_red.sum
l2_subp1_total_read_sector_queries	lts__t_sectors_op_read.sum + lts__t_sectors_op_atom.sum + lts__t_sectors_op_red.sum
l2_subp0_total_write_sector_queries	lts__t_sectors_op_write.sum + lts__t_sectors_op_atom.sum + lts__t_sectors_op_red.sum
l2_subp1_total_write_sector_queries	lts__t_sectors_op_write.sum + lts__t_sectors_op_atom.sum + lts__t_sectors_op_red.sum
l2_subp0_write_sector_misses	lts__t_sectors_op_write_lookup_miss.sum
l2_subp1_write_sector_misses	lts__t_sectors_op_write_lookup_miss.sum
l2_subp0_write_sysmem_sector_queries	lts__t_sectors_aperture_sysmem_op_write.sum
l2_subp1_write_sysmem_sector_queries	lts__t_sectors_aperture_sysmem_op_write.sum
l2_subp0_write_tex_hit_sectors	lts__t_sectors_srcunit_tex_op_write_lookup_hit.sum
l2_subp1_write_tex_hit_sectors	lts__t_sectors_srcunit_tex_op_write_lookup_hit.sum
l2_subp0_write_tex_sector_queries	lts__t_sectors_srcunit_tex_op_write.sum
l2_subp1_write_tex_sector_queries	lts__t_sectors_srcunit_tex_op_write.sum
not_predicated_off_thread_inst_executed	smsp__thread_inst_executed_pred_on.sum
pcie_rx_active_pulse
pcie_tx_active_pulse
prof_trigger_00
prof_trigger_01
prof_trigger_02
prof_trigger_03
prof_trigger_04
prof_trigger_05
prof_trigger_06
prof_trigger_07
inst_issued0	smsp__issue_inst0.sum
sm_cta_launched	sm__ctas_launched.sum
shared_load	smsp__inst_executed_op_shared_ld.sum
shared_store	smsp__inst_executed_op_shared_st.sum
generic_load	smsp__inst_executed_op_generic_ld.sum
generic_store	smsp__inst_executed_op_generic_st.sum
global_load	smsp__inst_executed_op_global_ld.sum
global_store	smsp__inst_executed_op_global_st.sum
local_load	smsp__inst_executed_op_local_ld.sum
local_store	smsp__inst_executed_op_local_st.sum
shared_atom	smsp__inst_executed_op_shared_atom.sum
shared_atom_cas	smsp__inst_executed_op_shared_atom_dot_cas.sum
shared_ld_bank_conflict	l1tex__data_bank_conflicts_pipe_lsu_mem_shared_op_ld.sum
shared_st_bank_conflict	l1tex__data_bank_conflicts_pipe_lsu_mem_shared_op_st.sum
shared_ld_transactions	l1tex__data_pipe_lsu_wavefronts_mem_shared_op_ld.sum
shared_st_transactions	l1tex__data_pipe_lsu_wavefronts_mem_shared_op_st.sum
tensor_pipe_active_cycles_s0	smsp__pipe_tensor_cycles_active.sum
tensor_pipe_active_cycles_s1	smsp__pipe_tensor_cycles_active.sum
tensor_pipe_active_cycles_s2	smsp__pipe_tensor_cycles_active.sum
tensor_pipe_active_cycles_s3	smsp__pipe_tensor_cycles_active.sum
thread_inst_executed	smsp__thread_inst_executed.sum
warps_launched	smsp__warps_launched.sum

2.14. Evolution of the profiling APIs

Over time, the collection of GPU performance metrics has evolved through various sets of profiling APIs. Initially, the CUPTI Event API and CUPTI Metric API were used, but these were not supported on Turing and later GPU architectures. These APIs are dropped in the CUDA 13.0 release.

With the CUDA 10.0 release, the CUPTI Profiling API for target APIs and the Perfworks Metric API for host APIs were introduced to provide low and deterministic profiling overhead. The Perfworks API is low-level and subject to interface-level changes. These APIs are supported from Turing to Blackwell GPU architectures but will not support future GPU architectures. The CUPTI Profiling API and the Perfworks Metric API are deprecated in the CUDA 13.0 release.

As CUPTI has evolved, there was a need to introduce a new set of profiling APIs to simplify usage, shield users from low-level concepts, and ease adaptation to changes in the Perfworks Metric API. Consequently, CUPTI added a new set of host APIs around the Perfworks Metric API in the CUDA 12.6 GA release. These host APIs are provided in the header cupti_profiler_host.h and are referred to as the CUPTI Profiler Host API. Complementing this, a new set of target APIs was added in CUDA 12.6 Update 2 to simplify profiling for new users and align the call structure with other profiling APIs for faster learning and better adaptability. These target APIs are provided in the header cupti_range_profiler.h and are referred to as the CUPTI Range Profiling API. For range profiling, it is strongly recommended that users utilize the new host and target APIs introduced in CUDA 12.6. The introduction of the new CUPTI Range Profiling API was necessary to address the limitations of the existing Profiling APIs and to provide a more user-friendly and adaptable profiling experience. The CUPTI Profiling API is deprecated in the CUDA 13.0 release. Therefore, transitioning to the new host and target APIs will ensure continued support, compatibility with the latest hardware, and access to enhanced profiling capabilities.

GPU architectures supported by different CUPTI APIs are listed at the table. It is important to note that one cannot mix the usage of different sets of profiling APIs.

2.15. CUPTI overhead

CUPTI incurs overhead when used for tracing or profiling of the CUDA application. Overhead can vary significantly from one application to another. It largely depends on the density of the CUDA activities in the application; lesser the CUDA activities, less the CUPTI overhead. In general overhead of tracing i.e. activity APIs is much lesser than the metrics profiling APIs.

2.15.1. Tracing Overhead

One of the goal of the tracing APIs is to provide a non-invasive collection of the timing information of the CUDA activities. Tracing is a low-overhead mechanism for collecting fine-grained runtime information.

2.15.1.1. Execution overhead

Consider below points which can affect the execution overhead of the application:

• Enable only the activities and callbacks which are of interest.

• Return from the callbacks as early as possible. Callbacks are issued from the host, these can block the work submission on the GPU if not returned early since CUPTI and thus the CUDA driver can’t make the forward progress on the host thread which issues the callback.

• APIs cuptiActivityEnableDriverApi and cuptiActivityEnableRuntimeApi can be used to limit the tracing of CUDA APIs that are of interest.

• For CUDA Graphs, if node level visibility is not desired, switching to the graph-level tracing from node-level tracing can help in reducing the collection overhead significantly. Use activity kind CUPTI_ACTIVITY_KIND_GRAPH_TRACE to enable graph-level tracing.

• For activity buffer requested callback, the client should return the buffer as quickly as possible as this callback is issued from the application thread. Client can pre-allocate a pool of activity buffers and return an empty buffer from the pool when requested by CUPTI.

• CUPTI initializes the new activity buffer with zero values using the memset call before using it. This operation can be skipped if user provides the zero value buffer and sets the attribute CUPTI_ACTIVITY_ATTR_ZEROED_OUT_ACTIVITY_BUFFER of the enum CUpti_ActivityAttribute.

• Client can request CUPTI to maintain the activity buffers at the thread level instead of global buffers. This can be achieved by setting the option CUPTI_ACTIVITY_ATTR_PER_THREAD_ACTIVITY_BUFFER of the enum CUpti_ActivityAttribute. This can help in reducing the collection overhead for applications which launch CUDA activities from multiple host threads. Starting from CUDA 13.0, this option is enabled by default.

• Reduce the frequency of buffer flushing as it can be an expensive operation. This can be achieved by setting a high flush period using the API cuptiActivityFlushPeriod to avoid internal flushing done by CUPTI and by reducing the frequency of the API cuptiActivityFlushAll. This approach might result in increased memory footprint on host and device.

• For device buffers, CUPTI allocates a new buffer when it runs out of the buffers from the pool, and this happens in the main application thread, which might result in stalls in the critical path. This can be avoided by either pre-allocating more device buffers or increasing the size of the device buffer using the attributes CUPTI_ACTIVITY_ATTR_DEVICE_BUFFER_POOL_LIMIT and CUPTI_ACTIVITY_ATTR_DEVICE_BUFFER_SIZE respectively from the enum CUpti_ActivityAttribute.

• Serial kernel trace enabled using the activity kind CUPTI_ACTIVITY_KIND_KERNEL can significantly change the overall performance characteristics of the application because all kernel executions are serialized on the GPU. For applications which use only a single CUDA stream and therefore cannot have concurrent kernel execution, this mode can be useful as it usually (not always) incurs less profiling overhead compared to the concurrent kernel mode.

• Concurrent kernel trace enabled using the activity kind CUPTI_ACTIVITY_KIND_CONCURRENT_KERNEL doesn’t affect the concurrency of the kernels in the application. In this mode, CUPTI instruments the kernel code to collect the timing information. A single instrumentation code is generated at the time of loading the CUDA module and applied to each kernel during the kernel execution. Instrumentation code generation overhead is attributed as CUPTI_ACTIVITY_OVERHEAD_CUPTI_INSTRUMENTATION in the activity record CUpti_ActivityOverhead2.

• Due to the code instrumentation, concurrent kernel mode can add significant runtime overhead if used on kernels that execute a large number of blocks and that have short execution duration.

2.15.1.2. Memory overhead

CUPTI allocates device and pinned system memory for storing the tracing information:

• Static memory allocation: CUPTI allocates 3 buffers of 3 MB each in the pinned system memory for each CUDA context by default during the context creation phase. This is used for storing the concurrent kernel, serial kernel, memcopy and memset tracing information and these buffers are sufficient for storing information for about 300K such activities. The number of buffers is controlled using the attribute CUPTI_ACTIVITY_ATTR_DEVICE_BUFFER_PRE_ALLOCATE_VALUE and the size of the buffer is determined by the attribute CUPTI_ACTIVITY_ATTR_DEVICE_BUFFER_SIZE. User can change the buffer size at any time during the profiling session, but this setting takes effect only for new buffer allocations. It is recommended to adjust the buffer size before the creation of any CUDA context to make sure that all the pre-allocated buffers are of the adjusted size.

• Dynamic memory allocation: Once profiling buffers to store the tracing information are exhausted, CUPTI allocates another buffer of the same size. Note that memory footprint will not always scale with the kernel, memcopy, memset count because CUPTI reuses the buffer after processing all the records in the buffer. For applications with a high density of these activities CUPTI may allocate more buffers.

All of the CUPTI allocated memory associated with a context is freed when the context is destroyed. Memory allocation overhead is attributed as CUPTI_ACTIVITY_OVERHEAD_CUPTI_RESOURCE in the activity record CUpti_ActivityOverhead2. If there are no CUDA contexts created then CUPTI will not allocate corresponding buffers.

CUPTI allocates memory to store unique kernel names, NVTX ranges, CUDA module cubin:

• Kernel trace: For kernel tracing enabled using the activity kind CUPTI_ACTIVITY_KIND_KERNEL or CUPTI_ACTIVITY_KIND_CONCURRENT_KERNEL CUPTI allocates memory to store the kernel name in the records. It is recommended to not free the memory allocated for the kernel name in the kernel activity record as the kernel name memory space might be common across all kernel records having the same kernel name.

• NVTX ranges: For NVTX enabled using the activity kind CUPTI_ACTIVITY_KIND_MARKER CUPTI allocates memory to store the range name in the records. It is recommended to not free the memory allocated for the NVTX range name in the marker activity record as the NVTX range name memory space will be common across all NVTX range records having the same name.

• CUDA module cubin: CUPTI caches copies of cubin images at the time of loading CUDA modules. This is done only for the profiling features that need it are enabled. All of the CUPTI allocated memory associated with the cubin image of the module is freed when the module is unloaded.

• Device Activity: For device activity tracing enabled using the activity kind CUPTI_ACTIVITY_KIND_DEVICE CUPTI allocates memory to store the device name in the records. It is recommended to free the memory allocated for the name field after reading each CUpti_ActivityDevice5 record.

2.15.2. Profiling Overhead

Metrics collection using CUPTI incurs runtime overhead. This overhead depends on the number and type of metrics selected. Since each metric is computed from one or more counter, metric overhead depends on the number and type of underlying counters. The overhead includes time spent in configuration of counters and reading of counter values.

Factors affecting the execution overhead under profiling are:

• Overhead is less for hardware provided metrics. Metrics which don’t have string “sass” in the name fall in this category.

• Software instrumented metrics are expensive as CUPTI needs to instrument the kernel to collect these. Further these metrics cannot be combined with any other metric in the same pass as otherwise instrumented code will also contribute to the metric value. Metrics which have string “sass” in the name fall in this category.

• In the serial mode, profiling may significantly change the overall performance characteristics of the application because all kernel executions are serialized on the GPU. This is done to enable tight metric collection around each kernel. The auto range mode serializes all kernel executions on the GPU. On the other hand, kernel concurrency can be maintained by using the user range mode.

• When all the requested metrics cannot be collected in the single pass due to hardware or software limitations, one needs to replay the exact same set of GPU workloads multiple times. This can be achieved at the kernel granularity by replaying kernel multiple times or by launching the entire application multiple times. CUPTI provides support for kernel replay only. Application replay can be done by the CUPTI client.

• When kernel replay is used the overhead to save and restore kernel state for each replay pass depends on the amount of device memory used by the kernel. Application replay is expected to perform better than kernel replay for the case when the size of device memory used by the kernel is high.

2.16. Reproducibility

Some CUPTI APIs are not guaranteed to return perfectly reproducible results between runs. Numerous factors introduce measurable run-to-run variation in software and hardware performance. There are several suggestions for users who want more reproducible results.

2.16.1. Fixed Clock Rate

Many metrics are directly affected by GPU SM and memory clock frequencies. By default, the GPU keeps clock rates low until work is launched, but clock rates do not boost to full speed immediately, so initial work launched after an idle period may run at low clock speed. Additionally, the target clock rates may vary based on power, thermal, and other factors. Complex interactions between different part of the system mean that these dynamic clock rates may not be reproducible between runs.

To reduce the effect of dynamic clock rates, it is possible to set a fixed clock rate. The GPU will no longer opportunistically boost clock rates above this rate, but it will eliminate the variability after GPU idle and effects of power and thermal variation. Several different methods exist to fix the SM or memory clock rates. The simplest may be nvidia-smi, but see this NVIDIA blog entry for more suggestions.

2.16.2. Serialization

Work may be submitted to the GPU which can run asynchronously and concurrently. This improves performance by using more of the GPU resources at once, but complicates profiling in two ways - first, kernels running concurrently can impact each other through contention for shared resources. Measurements of these shared resources will include the impact of any concurrently kernels, and it may not be possible to determine the particular impact of any given kernel. Second, by contending for resources with other kernels that are running without precisely guaranteed timing, the timing for a given kernel may be impacted in irreproducible ways.

When CUPTI_ACTIVITY_KIND_CONCURRENT_KERNEL is used to measure kernel timing, kernels are allowed to run concurrently on device. CUPTI_ACTIVITY_KIND_KERNEL may be used instead to measure serialized kernel timing. This will eliminate GPU concurrency within this process, and should provide better run-to-run reproducibility, but the timing may not be as realistic in this mode - kernels will not have to contend for shared resources, which can impact their performance.

2.16.3. Other Issues

Beyond variable clock rates and concurrent kernel execution, several other factors can affect application and kernel performance.

The driver normally does not stay loaded when not in use. It takes some time to load and initialize the driver, which may affect performance in noticeable and somewhat irreproducible ways. It is possible to keep the driver persistently loaded which will eliminate this initialization overhead. nvidia-persistenced is one tool to configure this; it can also be configured through nvidia-smi.

2.17. Logging Using NVLOG

This section describes how to enable and control logging in your CUPTI-based tool using the NVLOG system.

Quick Start

Follow these simple steps to get NVLOG output from your tool:

1. Create a Configuration File

   Create a file named nvlog.config and add the following content:

   # Enable all info/warn/error/fatal logs for Cupti_Public
   + 100iI 100wW 100eE 100fF  Cupti_Public

   # Set log output file
   $ cupti-nvlog.txt

   # Also print logs to console
   UseStdout

   # Force log flushing for real-time debugging (optional)
   ForceFlush

   # Recommended log format
   Format $sevc$time| ${name:0} | $proc:${tid:8} | ${file:0}:${line:0} [${sfunc:0}]: $text


2. Set the Environment Variable

   NVLOG looks for the configuration using the NVLOG_CONFIG_FILE environment variable.

   • On Linux, run:

     export NVLOG_CONFIG_FILE=/path/to/nvlog.config


   • On Windows, run:

     set NVLOG_CONFIG_FILE=C:\path\to\nvlog.config


3. Run Your CUPTI Tool

   Once configured, your tool will begin logging to both the terminal and the cupti-nvlog.txt file.

Advanced Configuration

• To reduce verbosity and only show warnings and higher:

  + 0iI 100wW 100eE 100fF Cupti_Public


• For deterministic log output (useful for comparisons between runs):

  Format | $sev:$level | $file($line) | $sfunc | $text


Troubleshooting

• If no logs appear, verify:

  • The environment variable is correctly set.

  • The logger domain is Cupti_Public.

  • Your config file has no syntax errors.

2.18. Samples

The CUPTI installation includes several samples that demonstrate the use of the CUPTI APIs. These samples are located under <CUDA_TOOLKIT_DIR>/extras/CUPTI/samples when CUPTI is installed using the CUDA Toolkit.

These samples can be referred to for the usage of different APIs supported by CUPTI. Note that a sample might not be supported on all GPU architectures. Please refer to the section GPU Support for the GPU architectures supported by different CUPTI APIs used in the samples.

The samples include:

Activity API

activity_trace_async

This sample shows how to collect a trace of CPU and GPU activity using the new asynchronous activity buffer APIs.

callback_timestamp

This sample shows how to use the callback API to record a trace of API start and stop times.

cuda_graphs_trace

This sample shows how to collect the trace of CUDA graphs and correlate the graph node launch to the node creation API using CUPTI callbacks.

cuda_memory_trace

This sample shows how to collect the trace of CUDA memory operations. The sample also traces CUDA memory operations done via default memory pool.

cupti_correlation

This sample shows how to do the correlation between CUDA APIs and corresponding GPU activities.

cupti_external_correlation

This sample shows how to do the correlation of CUDA API activity records with external APIs.

cupti_finalize

This sample shows how to use API cuptiFinalize() to dynamically detach and attach CUPTI.

cupti_nvtx

This sample shows how to receive NVTX callbacks and collect NVTX records in CUPTI.

cupti_nvtx_ext_payload

This sample shows how to collect NVTX records and parse/decode NVTX extended payloads from CUPTI activity records.

cupti_trace_injection

This sample shows how to build an injection library using the CUPTI activity and callback APIs. It can be used to trace CUDA APIs and GPU activities for any CUDA application. It does not require the CUDA application to be modified.

nvlink_bandwidth

This sample shows how to collect NVLink topology and NVLink throughput metrics in continuous mode.

openacc_trace

This sample shows how to use CUPTI APIs for OpenACC data collection.

Host Profiling API

cupti_metric_properties

This sample shows how to query various properties of metrics using the Host Profiling APIs. The sample shows collection method (hardware or software) and number of passes required to collect a list of metrics.

Range Profiling API

callback_profiling

This sample shows how to use callback and range profiling APIs to collect the metrics during the execution of a kernel. It shows how to use different phases of profiling i.e. enumeration, configuration, collection and evaluation in the appropriate callbacks.

concurrent_profiling

This sample shows how to use the range profiling API to record metrics from concurrent kernels launched in two different ways - using multiple streams on a single device, and using multiple threads with multiple devices.

profiling_injection

This sample for Linux systems shows how to build an injection library which can automatically enable range profiling API using Auto Ranges with Kernel Replay mode. It can attach to an application which was not instrumented using CUPTI and profile any kernel launches.

range_profiling

This sample shows how to use range profiling APIs to collect metrics using different range modes - auto and user, and replay modes - kernel and user.

PC Sampling API

pc_sampling_continuous

This injection sample shows how to collect PC Sampling profiling information using the PC Sampling APIs. A perl script libpc_sampling_continuous.pl is provided to run the CUDA application with different PC sampling options. Use the command ./libpc_sampling_continuous.pl –help to list all the options. The CUDA application code does not need to be modified. Refer the README.txt file shipped with the sample for instructions to build and use the injection library.

pc_sampling_start_stop

This sample shows how to collect PC Sampling profiling information for kernels within a range using the PC Sampling start/stop APIs.

pc_sampling_utility

This utility takes the pc sampling data file generated by the pc_sampling_continuous injection library as input. It prints the stall reason counter values at the GPU assembly instruction level. It also does GPU assembly to CUDA-C source correlation and shows the CUDA-C source file name and line number. Refer the README.txt file shipped with the sample for instructions to build and run the utility.

PM Sampling API

pm_sampling

This sample shows the usage of the PM sampling APIs for collecting sampling data for a list of metrics for kernels launched within a range using the PM sampling start/stop APIs.

SASS Metric API

sass_metric

This sample shows how to use the SASS metric API to enumerate metrics supported by a device and how to collect metrics at the source level using SASS patching.

Profiling API

extensions

This includes utilities used in some of the samples.

autorange_profiling

This sample shows how to use profiling APIs to collect metrics in autorange mode.

nested_range_profiling

This sample shows how to profile nested ranges using the Profiling APIs.

userrange_profiling

This sample shows how to use profiling APIs to collect metrics in user specified range mode.

Checkpoint API

checkpoint_kernels

This sample shows how to use the Checkpoint API to restore device memory, allowing a kernel to be replayed, even if it modifies its input data.
