Installing the NVIDIA GPU Operator

Note

If you are installing the NVIDIA GPU Operator on OpenShift <4.9.9 ensure you have enabled a Cluster-wide entitlement. For more information see broken driver toolkit.

With the Node Feature Discovery Operator installed you can continue with the final step and install the NVIDIA GPU Operator.

As a cluster administrator, you can install the NVIDIA GPU Operator using the OpenShift Container Platform CLI or the web console.

Installing the NVIDIA GPU Operator by using the web console

  1. In the OpenShift Container Platform web console from the side menu, navigate to Operators > OperatorHub and select All Projects.

  2. In Operators > OperatorHub, search for the NVIDIA GPU Operator. For additional information see the Red Hat OpenShift Container Platform documentation.

  3. Select the NVIDIA GPU Operator, click Install. In the subsequent screen click Install.

Note

Here, you can select the namespace where you want to deploy the GPU Operator. The suggested namespace to use is the nvidia-gpu-operator. You can choose any existing namespace or create a new namespace under Select a Namespace.

If you install in any other namespace other than nvidia-gpu-operator, the GPU Operator will not automatically enable namespace monitoring, and metrics and alerts will not be collected by Prometheus. If only trusted operators are installed in this namespace, you can manually enable namespace monitoring with this command:

$ oc label ns/$NAMESPACE_NAME openshift.io/cluster-monitoring=true

Proceed to Create the cluster policy for the NVIDIA GPU Operator.

Installing the NVIDIA GPU Operator using the CLI

As a cluster administrator, you can install the NVIDIA GPU Operator using the OpenShift CLI (oc).

  1. Create a namespace for the NVIDIA GPU Operator.

    1. Create the following Namespace custom resource (CR) that defines the nvidia-gpu-operator namespace, and then save the YAML in the nvidia-gpu-operator.yaml file:

      apiVersion: v1
kind: Namespace
metadata:
  name: nvidia-gpu-operator

      Note

      The suggested namespace to use is the nvidia-gpu-operator. You can choose any existing namespace or create a new namespace name. If you install in any other namespace other than nvidia-gpu-operator, the GPU Operator will not automatically enable namespace monitoring, and metrics and alerts will not be collected by Prometheus.

      If only trusted operators are installed in this namespace, you can manually enable namespace monitoring with this command:

      $ oc label ns/$NAMESPACE_NAME openshift.io/cluster-monitoring=true

    2. Create the namespace by running the following command:

      $ oc create -f nvidia-gpu-operator.yaml

      namespace/nvidia-gpu-operator created

  2. Install the NVIDIA GPU Operator in the namespace you created in the previous step by creating the following objects:

    1. Create the following OperatorGroup CR and save the YAML in the nvidia-gpu-operatorgroup.yaml file:

      apiVersion: operators.coreos.com/v1
kind: OperatorGroup
metadata:
  name: nvidia-gpu-operator-group
  namespace: nvidia-gpu-operator
spec:
 targetNamespaces:
 - nvidia-gpu-operator

    2. Create the OperatorGroup CR by running the following command:

      $ oc create -f nvidia-gpu-operatorgroup.yaml

      operatorgroup.operators.coreos.com/nvidia-gpu-operator-group created

  3. Run the following command to get the channel value required for step number 5.

    $ oc get packagemanifest gpu-operator-certified -n openshift-marketplace -o jsonpath='{.status.defaultChannel}'

    Example output

    v22.9

  4. Run the following commands to get the startingCSV value required for step number 5.

    $ CHANNEL=v22.9

    $ oc get packagemanifests/gpu-operator-certified -n openshift-marketplace -ojson | jq -r '.status.channels[] | select(.name == "'$CHANNEL'") | .currentCSV'

    Example output

    gpu-operator-certified.v22.9.0

  5. Create the following Subscription CR and save the YAML in the nvidia-gpu-sub.yaml file:

    apiVersion: operators.coreos.com/v1alpha1
kind: Subscription
metadata:
  name: gpu-operator-certified
  namespace: nvidia-gpu-operator
spec:
  channel: "v22.9"
  installPlanApproval: Manual
  name: gpu-operator-certified
  source: certified-operators
  sourceNamespace: openshift-marketplace
  startingCSV: "gpu-operator-certified.v22.9.0"

    Note

    Update the channel and startingCSV fields with the information returned in step 3 and 4.

  6. Create the subscription object by running the following command:

    $ oc create -f nvidia-gpu-sub.yaml

    subscription.operators.coreos.com/gpu-operator-certified created

  7. Optional: Log in to web console and navigate to the Operators > Installed Operators page. In the Project: nvidia-gpu-operator the following is displayed:

    _images/gpu-operator-certified-cli-install.png

  8. Verify an install plan has been created:

    $ oc get installplan -n nvidia-gpu-operator

    Example output

    NAME            CSV                              APPROVAL   APPROVED
install-wwhfj   gpu-operator-certified.v22.9.0   Manual     false

  9. Approve the install plan using the CLI commands:

    $ INSTALL_PLAN=$(oc get installplan -n nvidia-gpu-operator -oname)

    $ oc patch $INSTALL_PLAN -n nvidia-gpu-operator --type merge --patch '{"spec":{"approved":true }}'

    Example output

    installplan.operators.coreos.com/install-wwhfj patched

  10. Alternatively click Upgrade available and approve the plan using the web console:

    _images/gpu-operator-certified-cli-install.png

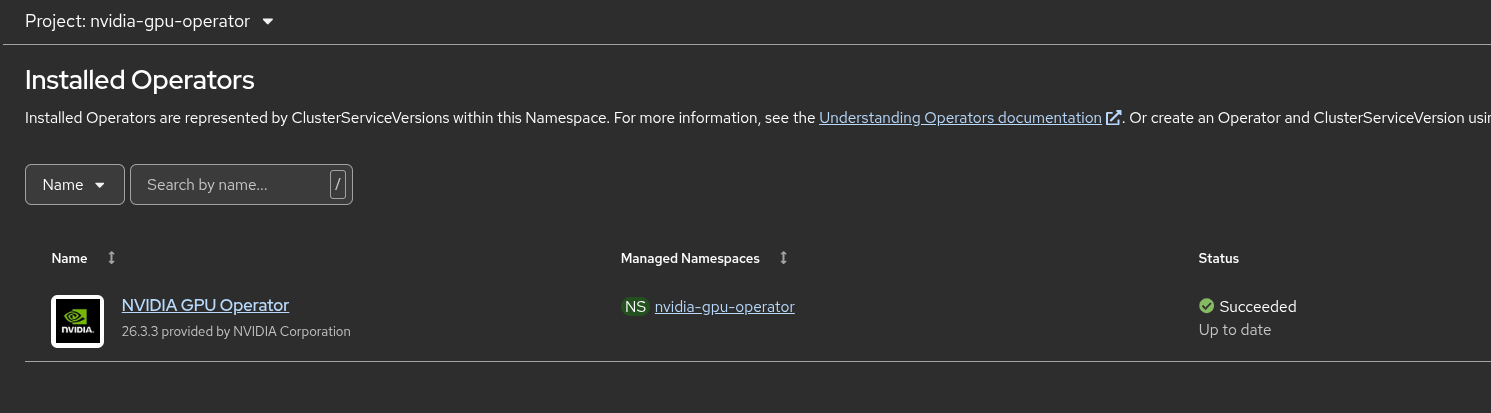

  11. Optional: Verify the successful install in the web console. The display changes to:

    _images/cluster_policy_suceed.png

Create the ClusterPolicy instance

When you install the NVIDIA GPU Operator in the OpenShift Container Platform, a custom resource definition for a ClusterPolicy is created. The ClusterPolicy configures the GPU stack, configuring the image names and repository, pod restrictions/credentials and so on.

Note

If you create a ClusterPolicy that contains an empty specification, such as spec{}, the ClusterPolicy fails to deploy.

As a cluster administrator, you can create a ClusterPolicy using the OpenShift Container Platform CLI or the web console. Also, these steps differ when using NVIDIA vGPU. Please refer to appropriate sections below.

Create the cluster policy using the web console

  1. In the OpenShift Container Platform web console, from the side menu, select Operators > Installed Operators, and click NVIDIA GPU Operator.

  2. Select the ClusterPolicy tab, then click Create ClusterPolicy. The platform assigns the default name gpu-cluster-policy.

    Note

    You can use this screen to customize the ClusterPolicy however the default are sufficient to get the GPU configured and running.

  3. Click Create.

    At this point, the GPU Operator proceeds and installs all the required components to set up the NVIDIA GPUs in the OpenShift 4 cluster. Wait at least 10-20 minutes before digging deeper into any form of troubleshooting because this may take a period of time to finish.

  4. The status of the newly deployed ClusterPolicy gpu-cluster-policy for the NVIDIA GPU Operator changes to State:ready when the installation succeeds.

_images/cluster-policy-state-ready.png

Create the cluster policy using the CLI

  1. Create the ClusterPolicy:

    $ oc get csv -n nvidia-gpu-operator gpu-operator-certified.v22.9.0 -ojsonpath={.metadata.annotations.alm-examples} | jq .[0] > clusterpolicy.json

    $ oc apply -f clusterpolicy.json

    clusterpolicy.nvidia.com/gpu-cluster-policy created

Create the ClusterPolicy instance with NVIDIA vGPU

Pre-requisites

  • Please refer to Using NVIDIA vGPU section for pre-requisite steps for using NVIDIA vGPU on RedHat OpenShift.

Create the cluster policy using the web console

  1. In the OpenShift Container Platform web console, from the side menu, select Operators > Installed Operators, and click NVIDIA GPU Operator.

  2. Select the ClusterPolicy tab, then click Create ClusterPolicy. The platform assigns the default name gpu-cluster-policy.

  3. Provide name of the licensing ConfigMap under Driver section, this should be created during pre-requsite steps above for NVIDIA vGPU. Refer to below screenshots for example and modify values accordingly.

_images/cluster_policy_vgpu_1.png

  1. Specify repository path, image name and NVIDIA vGPU driver version bundled under Driver section. If the registry is not public, please specify the imagePullSecret created during pre-requisite step under Driver advanced configurations section.

_images/cluster_policy_vgpu_2.png

  1. Click Create.

    At this point, the GPU Operator proceeds and installs all the required components to set up the NVIDIA GPUs in the OpenShift 4 cluster. Wait at least 10-20 minutes before digging deeper into any form of troubleshooting because this may take a period of time to finish.

  2. The status of the newly deployed ClusterPolicy gpu-cluster-policy for the NVIDIA GPU Operator changes to State:ready when the installation succeeds.

_images/cluster-policy-state-ready.png

Create the cluster policy using the CLI

  1. Create the ClusterPolicy:

    $ oc get csv -n nvidia-gpu-operator gpu-operator-certified.v22.9.0 -ojsonpath={.metadata.annotations.alm-examples} | jq .[0] > clusterpolicy.json

    Modify clusterpolicy.json file to specify driver.licensingConfig, driver.repository, driver.image, driver.version and driver.imagePullSecrets created during pre-requiste steps. Below snippet is shown as an example, please change values accordingly.

    "driver": {
     "repository": "<repository-path>"
     "image": "driver",
     "imagePullSecrets": [],
     "licensingConfig": {
       "configMapName": "licensing-config",
       "nlsEnabled": true
     }
     "version": "470.82.01"
}

    $ oc apply -f clusterpolicy.json

    clusterpolicy.nvidia.com/gpu-cluster-policy created

Verify the successful installation of the NVIDIA GPU Operator

Verify the successful installation of the NVIDIA GPU Operator as shown here:

  1. Run the following command to view these new pods and daemonsets:

    $ oc get pods,daemonset -n nvidia-gpu-operator

    NAME                                                      READY   STATUS      RESTARTS   AGE
pod/gpu-feature-discovery-c2rfm                           1/1     Running     0          6m28s
pod/gpu-operator-84b7f5bcb9-vqds7                         1/1     Running     0          39m
pod/nvidia-container-toolkit-daemonset-pgcrf              1/1     Running     0          6m28s
pod/nvidia-cuda-validator-p8gv2                           0/1     Completed   0          99s
pod/nvidia-dcgm-exporter-kv6k8                            1/1     Running     0          6m28s
pod/nvidia-dcgm-tpsps                                     1/1     Running     0          6m28s
pod/nvidia-device-plugin-daemonset-gbn55                  1/1     Running     0          6m28s
pod/nvidia-device-plugin-validator-z7ltr                  0/1     Completed   0          82s
pod/nvidia-driver-daemonset-410.84.202203290245-0-xxgdv   2/2     Running     0          6m28s
pod/nvidia-node-status-exporter-snmsm                     1/1     Running     0          6m28s
pod/nvidia-operator-validator-6pfk6                       1/1     Running     0          6m28s

NAME                                                           DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR                                                                                                         AGE
daemonset.apps/gpu-feature-discovery                           1         1         1       1            1           nvidia.com/gpu.deploy.gpu-feature-discovery=true                                                                      6m28s
daemonset.apps/nvidia-container-toolkit-daemonset              1         1         1       1            1           nvidia.com/gpu.deploy.container-toolkit=true                                                                          6m28s
daemonset.apps/nvidia-dcgm                                     1         1         1       1            1           nvidia.com/gpu.deploy.dcgm=true                                                                                       6m28s
daemonset.apps/nvidia-dcgm-exporter                            1         1         1       1            1           nvidia.com/gpu.deploy.dcgm-exporter=true                                                                              6m28s
daemonset.apps/nvidia-device-plugin-daemonset                  1         1         1       1            1           nvidia.com/gpu.deploy.device-plugin=true                                                                              6m28s
daemonset.apps/nvidia-driver-daemonset-410.84.202203290245-0   1         1         1       1            1           feature.node.kubernetes.io/system-os_release.OSTREE_VERSION=410.84.202203290245-0,nvidia.com/gpu.deploy.driver=true   6m28s
daemonset.apps/nvidia-mig-manager                              0         0         0       0            0           nvidia.com/gpu.deploy.mig-manager=true                                                                                6m28s
daemonset.apps/nvidia-node-status-exporter                     1         1         1       1            1           nvidia.com/gpu.deploy.node-status-exporter=true                                                                       6m29s
daemonset.apps/nvidia-operator-validator                       1         1         1       1            1           nvidia.com/gpu.deploy.operator-validator=true                                                                         6m28s

    The nvidia-driver-daemonset pod runs on each worker node that contains a supported NVIDIA GPU.

    Note

    When the Driver Toolkit is active, the DaemonSet is named nvidia-driver-daemonset-<RHCOS-version>. Where RHCOS-version equals <OCP XY>.<RHEL XY>.<related date YYYYMMDDHHSS-0. The pods of the DaemonSet are named nvidia-driver-daemonset-<RHCOS-version>-<UUID>.

Cluster monitoring

The GPU Operator generates GPU performance metrics (DCGM-export), status metrics (node-status-exporter) and node-status alerts. For OpenShift Prometheus to collect these metrics, the namespace hosting the GPU Operator must have the label openshift.io/cluster-monitoring=true.

When the GPU Operator is installed in the suggested nvidia-gpu-operator namespace, the GPU Operator automatically enables monitoring if the openshift.io/cluster-monitoring label is not defined. If the label is defined, the GPU Operator will not change its value.

Disable cluster monitoring in the nvidia-gpu-operator namespace by setting openshift.io/cluster-monitoring=false as shown:

$ oc label ns/nvidia-gpu-operator openshift.io/cluster-monitoring=false

If the GPU Operator is not installed in the suggested namespace, the GPU Operator will not automatically enable monitoring. Set the label manually as shown:

$ oc label ns/$NAMESPACE openshift.io/cluster-monitoring=true

Note

Only do this if trusted operators are installed in this namespace.

Logging

The nvidia-driver-daemonset pod has two containers.

  1. Run the following to examine the logs associated with the nvidia-driver-ctr:

    Note

    This log shows the main container waiting for the driver binary, and loading it in memory.

    $ oc logs -f nvidia-driver-daemonset-410.84.202203290245-0-xxgdv -n nvidia-gpu-operator -c nvidia-driver-ctr

  2. Run the following to examine the logs associated with the openshift-driver-toolkit-ctr:

    Note

    This log shows the driver being built.

    $ oc logs -f nvidia-driver-daemonset-410.84.202203290245-0-xxgdv -n nvidia-gpu-operator -c openshift-driver-toolkit-ctr

Running a sample GPU Application

Run a simple CUDA VectorAdd sample, which adds two vectors together to ensure the GPUs have bootstrapped correctly.

  1. Run the following:

    $ cat << EOF | oc create -f -

apiVersion: v1
kind: Pod
metadata:
  name: cuda-vectoradd
spec:
 restartPolicy: OnFailure
 containers:
 - name: cuda-vectoradd
   image: "nvcr.io/nvidia/k8s/cuda-sample:vectoradd-cuda12.5.0-ubi8"
   resources:
     limits:
       nvidia.com/gpu: 1
EOF

    pod/cuda-vectoradd created

  2. Check the logs of the container:

    $ oc logs cuda-vectoradd

    [Vector addition of 50000 elements]
Copy input data from the host memory to the CUDA device
CUDA kernel launch with 196 blocks of 256 threads
Copy output data from the CUDA device to the host memory
Test PASSED
Done

Getting information about the GPU

The nvidia-smi shows memory usage, GPU utilization, and the temperature of the GPU. Test the GPU access by running the popular nvidia-smi command within the pod.

To view GPU utilization, run nvidia-smi from a pod in the GPU Operator daemonset.

  1. Change to the nvidia-gpu-operator project:

    $ oc project nvidia-gpu-operator

  2. Run the following command to view these new pods:

    $ oc get pod -owide -lopenshift.driver-toolkit=true

    NAME                                                  READY   STATUS    RESTARTS   AGE   IP            NODE                           NOMINATED NODE   READINESS GATES
nvidia-driver-daemonset-410.84.202203290245-0-xxgdv   2/2     Running   0          23m   10.130.2.18   ip-10-0-143-147.ec2.internal   <none>           <none>

    Note

    With the Pod and node name, run the nvidia-smi on the correct node.

  3. Run the nvidia-smi command within the pod:

    $ oc exec -it nvidia-driver-daemonset-410.84.202203290245-0-xxgdv -- nvidia-smi

    Defaulted container "nvidia-driver-ctr" out of: nvidia-driver-ctr, openshift-driver-toolkit-ctr, k8s-driver-manager (init)
Mon Apr 11 15:02:23 2022
+-----------------------------------------------------------------------------+
| NVIDIA-SMI 510.47.03    Driver Version: 510.47.03    CUDA Version: 11.6     |
|-------------------------------+----------------------+----------------------+
| GPU  Name        Persistence-M| Bus-Id        Disp.A | Volatile Uncorr. ECC |
| Fan  Temp  Perf  Pwr:Usage/Cap|         Memory-Usage | GPU-Util  Compute M. |
|                               |                      |               MIG M. |
|===============================+======================+======================|
|   0  Tesla T4            On   | 00000000:00:1E.0 Off |                    0 |
| N/A   33C    P8    15W /  70W |      0MiB / 15360MiB |      0%      Default |
|                               |                      |                  N/A |
+-------------------------------+----------------------+----------------------+

+-----------------------------------------------------------------------------+
| Processes:                                                                  |
|  GPU   GI   CI        PID   Type   Process name                  GPU Memory |
|        ID   ID                                                   Usage      |
|=============================================================================|
|  No running processes found                                                 |
+-----------------------------------------------------------------------------+

    Two tables are generated. The first table reflects the information about all available GPUs (the example shows one GPU). The second table provides details on the processes using the GPUs.

    For more information describing the contents of the tables see the man page for nvidia-smi.
