Parallel External Source¶
In this tutorial we will show you how to enable parallel mode in external_source
operator, allowing the source
to be executed concurrently by Python worker processes. Doing so can reduce the execution time of each iteration by allowing source to run in the background, unblocking the main Python thread. Not every usage of external_source
can be parallelized straight away - the source
argument is subject to a set of restrictions and there is additional configuration required.
Accepted source
¶
Depending on a batch
parameter, the source
provided to parallel External Source is expected to either return batches or single samples. In the sample mode, DALI takes care of combining samples in batches and has more opportunities to parallelize computation of the input data. Therefore, the sample mode is a preferred way to run parallel External Source. Parallel External Source in the sample mode places following requirements on the source parameter:
source
must be a callable: function or object.source
callback must accept one argument: nvidia.dali.types.SampleInfo - indicating the index of requested sample.Data returned by the callback must be a CPU array (or tuple/list of them).
Following paragraphs will explain the reasoning behind those requirements and show examples of using the parallel External Source.
Principle of Operation¶
Before every iteration, DALI External Source operator queries its source
parameter for new data to pass it further for processing in the pipeline. The time necessary to obtain data from source
by calling it (when the source
is callable) or calling next(source)
(in case of iterabe) can be significant and it can impact the time to process an iteration - especially as it’s a blocking operation in the main Python thread.
Setting parallel=True
for an external_source
node indicates to the pipeline to run the source
in Python worker processes started by DALI. The worker processes are bound to pipeline and shared by all parallel external sources in that pipeline. Each of those workers keeps a copy of the source
callback/object. The workers are separate processes, so keep in mind that they do not share any global state, only a copy of what was specified before starting them.
source
callback by invoking it with SampleInfo object containing requested sample’s index.In the batch mode, DALI cannot request a particular sample to be returned, thus the benefits of parallelization are limited compared to the sample mode. If the source
is a callable that accepts BatchInfo, a few batches can be prefetched in parallel. In case of iterables, the only benefit is running the iterable in a separate process.
Because the parallel sample mode can provide the biggest speed up, we present how to adapt iterable source to run in parallel sample mode.
Example Pipeline and source
¶
Let’s take the simplified example from ExternalSource Operator tutorial. We will convert it to a callable object as a next step.
[1]:
import numpy as np
from nvidia.dali import pipeline_def
import nvidia.dali.fn as fn
import nvidia.dali.types as types
batch_size = 4
class ExternalInputIterator:
def __init__(self, batch_size):
self.images_dir = "../../data/images/"
self.batch_size = batch_size
with open(self.images_dir + "file_list.txt", 'r') as f:
file_label = [line.rstrip().split(' ') for line in f if line != '']
self.files, self.labels = zip(*file_label)
def __iter__(self):
self.i = 0
# Only full batches
self.n = (len(self.files) // self.batch_size) * self.batch_size
return self
def __next__(self):
if self.i >= self.n:
raise StopIteration()
encoded_imgs, labels = [], []
for _ in range(self.batch_size):
jpeg_filename = self.files[self.i]
label = self.labels[self.i]
with open(self.images_dir + jpeg_filename, 'rb') as f:
encoded_imgs.append(np.frombuffer(f.read(), dtype=np.uint8))
labels.append(np.int32([label]))
self.i += 1
return encoded_imgs, labels
Adjusting to Callable Object¶
We need to make two adjustments here:
Convert it to per-sample mode
Instead of returning the data sequentially in
__next__
, implement__call__
that is able to return a specific sample.
We can keep the __init__
that initializes the object. We no longer need __iter__
.
Now, instead of the iterator keeping track of which sample (or batch) to return next, that information comes from DALI via the sample_info
parameter - the member variables describing the index of sample are specified in the SampleInfo type documentation.
Epochs¶
Additionally, we precompute the numbers of full batches in the epoch. This way we will drop last, partial batch - alternatively, we could support padding the batch, but it is out of the scope of this tutorial. External Source in parallel mode does not support partial batches.
It is recommended that all copies of the ``source`` callback raise the ``StopIteration`` for the same ``iteration`` (and all sample indices for batch requested in that iteration).
This is why we computed the number of full batches and raise the StopIteration
for any greater or equal iteration index.
After StopIteration
was raised, we can call pipeline.reset()
to reset the SampleInfo - DALI will start counting from the sample index and iteration index 0.
[2]:
class ExternalInputCallable:
def __init__(self, batch_size):
self.images_dir = "../../data/images/"
self.batch_size = batch_size
with open(self.images_dir + "file_list.txt", 'r') as f:
file_label = [line.rstrip().split(' ') for line in f if line != '']
self.files, self.labels = zip(*file_label)
self.full_iterations = len(self.files) // batch_size
def __call__(self, sample_info):
sample_idx = sample_info.idx_in_epoch
if sample_info.iteration >= self.full_iterations:
# Indicate end of the epoch
raise StopIteration()
jpeg_filename = self.files[sample_idx]
label = np.int32([self.labels[sample_idx]])
with open(self.images_dir + jpeg_filename, 'rb') as f:
encoded_img = np.frombuffer(f.read(), dtype=np.uint8)
return encoded_img, label
The callable object is used only as an example. If you wish, you can use stateless function like:
[3]:
def my_callback(sample_info):
return np.full((5, 5), sample_info.idx_in_epoch)
Pipeline Definition¶
Now we can define two pipelines - for now not using parallel mode - to see that both methods give us the same results. Take a note that we set batch=False
in the second example.
[4]:
@pipeline_def(batch_size=batch_size, num_threads=2, device_id=0)
def iterable_pipeline():
jpegs, labels = fn.external_source(source=ExternalInputIterator(batch_size), num_outputs=2,
dtype=[types.UINT8, types.INT32])
decode = fn.decoders.image(jpegs, device="mixed")
return decode, labels
@pipeline_def(batch_size=batch_size, num_threads=2, device_id=0)
def callable_pipeline():
jpegs, labels = fn.external_source(source=ExternalInputCallable(batch_size), num_outputs=2, batch=False,
dtype=[types.UINT8, types.INT32])
decode = fn.decoders.image(jpegs, device="mixed")
return decode, labels
Testing the Pipelines¶
Let’s introduce some helper code to display the results.
[5]:
import matplotlib.pyplot as plt
import matplotlib.gridspec as gridspec
import math
def display(outputs, count, columns=2, captions=None, cpu=False):
rows = int(math.ceil(len(outputs) / columns))
fig = plt.figure()
fig.set_size_inches(16, 6 * rows)
gs = gridspec.GridSpec(rows, columns)
row = 0
col = 0
for i in range(count):
plt.subplot(gs[i])
plt.axis("off")
if captions is not None:
plt.title(captions[i])
plt.imshow(outputs.at(i) if cpu else outputs.as_cpu().at(i))
And now we can build and run the pipelines.
[6]:
iter_pipe = iterable_pipeline()
iter_pipe.build()
iter_out = iter_pipe.run()
call_pipe = callable_pipeline()
call_pipe.build()
call_out = call_pipe.run()

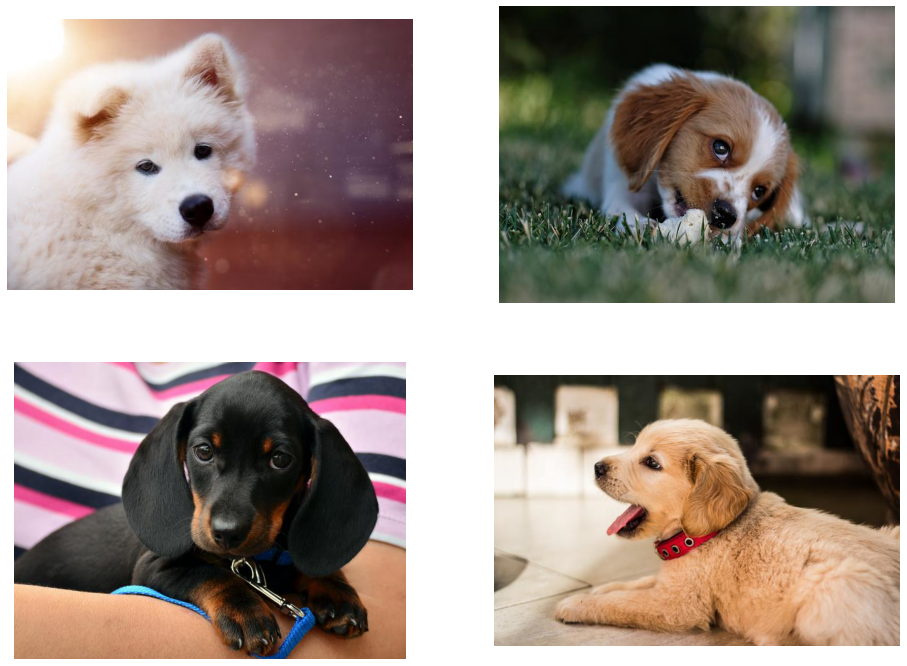

[7]:
display(iter_out[0], batch_size)
[8]:
display(call_out[0], batch_size)
Going Parallel¶
Now that we have a pipeline with a callable source
that is compatible with the parallel external_source
requirements, we can adjust our pipeline. We need to modify our callable_pipeline
, by setting parallel=True
for the external_source
operator.
There are two additional parameters that we can set for the pipeline to control the behaviour of Python worker processes:
py_num_workers
- sets the number of the workers - by default it’s 1, but we will use more, to achieve better parallelism when calculating batches.py_start_method
- controls how the worker processes are started.
Starting Python Workers¶
Parallel External Source uses Python multiprocessing library to control the worker processes. Two methods of starting the workers are supported in DALI: 'fork'
and 'spawn'
. Details on the start methods are here. DALI does not support 'forkserver'
method, as the startup of workers is done once, at the beginning of the processing, and
using this method would not yield any additonal benefits over the two other methods.
In general, the source
callback should adhere to the multiprocessing programming guidelines to avoid unwanted behaviour or errors.
Fork¶
The first one, 'fork'
, creates a fork of the current Python interpreter, meaning that the new process is identical and all the objects existing in the original one are avialable in the new one as well. There is a limitaion however, that the process that acquired CUDA context (usually done by any interaction with CUDA code like creating a framework CUDA tensors, calling build()
on DALI pipeline, etc) cannot be forked.
To alleviate this problem, there is a Pipeline method called start_py_workers()
which can be used to start the worker processes before we need to interact with CUDA.
The typical approach would be to do the following before interacting with CUDA:
Define all DALI pipelines (do not use build())
Collect all DALI pipeline objects.
Run
start_py_workers()
on every pipeline object.
After those steps, the pipelines can be built and CUDA can be accessed.
In this tutorial we have already used DALI to run the operations on GPU, so the current Jupyter Notebook Kernel instance already acquired a CUDA context.
The example of using start_py_workers()
can be seen in separate tutorial Parallel External Source - Fork, where we wait with acquiring a CUDA context.
Spawn¶
The 'spawn'
method starts a new Python interpreter process and shares the necessery state by serializing and deserializing it. Thus, the source
callable needs to be picklable to work with this method.
When 'spawn'
is used, make sure that the main module can be safely imported by guarding the entry point with if __name__ == '__main__'
as described in multiprocessing programming guidelines.
'spawn'
does not interfere with CUDA context, and there is no need to call the start_py_workers()
separately - it’s done inside the build()
step. As this tutorial notebook has already acquired a CUDA context, we will use this method to run our pipeline.
Unfortunatelly, there is again a limitation with Jupyter Notebook - the callable must come from the Python module that is visible to the new process. As a workaround, we will write the definition of ExternalInputCallable
to a helper file and import it again, so it will come from a named module and be easily picklable.
Such workarounds are not required in regular Python code.
If you are using Python 3.8 or newer you can alternatively define your callback as a function without the need to export it to another file. You can read more on that method in Spawn and Serialization of Functions section.
[9]:
external_input_callable_def = """
import numpy as np
class ExternalInputCallable:
def __init__(self, batch_size):
self.images_dir = "../../data/images/"
self.batch_size = batch_size
with open(self.images_dir + "file_list.txt", 'r') as f:
file_label = [line.rstrip().split(' ') for line in f if line != '']
self.files, self.labels = zip(*file_label)
self.full_iterations = len(self.files) // batch_size
def __call__(self, sample_info):
sample_idx = sample_info.idx_in_epoch
if sample_info.iteration >= self.full_iterations:
# Indicate end of the epoch
raise StopIteration()
jpeg_filename = self.files[sample_idx]
label = np.int32([self.labels[sample_idx]])
with open(self.images_dir + jpeg_filename, 'rb') as f:
encoded_img = np.frombuffer(f.read(), dtype=np.uint8)
return encoded_img, label
"""
with open("external_input_tmp_module.py", 'w') as f:
f.write(external_input_callable_def)
import external_input_tmp_module
Running the Pipeline with Spawned Python Workers¶
Now, we can adjust the pipeline definition to run in parallel by adding parallel=True
to external_source
and passing the parameters py_num_workers
and py_start_method
to the pipeline. Remember to also use the newly imported source
definition.
[10]:
@pipeline_def(batch_size=batch_size, num_threads=2, device_id=0, py_num_workers=4, py_start_method='spawn')
def parallel_pipeline():
jpegs, labels = fn.external_source(source=external_input_tmp_module.ExternalInputCallable(batch_size),
num_outputs=2, batch=False,
parallel=True, dtype=[types.UINT8, types.INT32])
decode = fn.decoders.image(jpegs, device="mixed")
return decode, labels
[11]:
if __name__ == '__main__':
parallel_pipe = parallel_pipeline()
parallel_pipe.build()
[12]:
if __name__ == '__main__':
parallel_out = parallel_pipe.run()
display(parallel_out[0], batch_size)
# let Python know that the pipeline will no longer be needed, so that
# the worker processes and resources can be closed and freed.
del parallel_pipe
Serialization of Functions¶
By default, local functions and lambdas are not picklable. If you are running Python 3.8 or newer, DALI will pickle such callbacks using a custom pickler that extends default pickle behavior.
Additionally, in order to work around the import issues in Jupyter notebook, you can mark a globally defined function to be serialized by value rather than by reference (the default behavior in Python).
If your version of Python is older than 3.8, refer to Customizing Serialization section for different ideas on how to serialize lambdas and local functions.
First, let’s mimic ExternalInputCallable
behavior using nested functions/closure.
[13]:
def create_callback(batch_size):
images_dir = "../../data/images/"
with open(images_dir + "file_list.txt", 'r') as f:
file_label = [line.rstrip().split(' ') for line in f if line != '']
files, labels = zip(*file_label)
full_iterations = len(files) // batch_size
def callback(sample_info):
sample_idx = sample_info.idx_in_epoch
if sample_info.iteration >= full_iterations:
# Indicate end of the epoch
raise StopIteration
jpeg_filename = files[sample_idx]
label = np.int32([labels[sample_idx]])
with open(images_dir + jpeg_filename, 'rb') as f:
encoded_img = np.frombuffer(f.read(), dtype=np.uint8)
return encoded_img, label
return callback
Note how the outer function prepares the common configuration, the way __init__
method does in ExternalInputCallable
, and that the inner callback corresponds to __call__
method.
[14]:
@pipeline_def(batch_size=batch_size, num_threads=2, device_id=0, py_num_workers=4, py_start_method='spawn')
def parallel_pipeline_with_closure():
jpegs, labels = fn.external_source(source=create_callback(batch_size),
num_outputs=2, batch=False, parallel=True,
dtype=[types.UINT8, types.INT32])
decode = fn.decoders.image(jpegs, device="mixed")
return decode, labels
[15]:
import sys
ver = sys.version_info
if ver.major < 3 or (ver.major == 3 and ver.minor < 8):
print("This example works only in Python 3.8 or newer")
else:
if __name__ == '__main__':
parallel_pipe_with_closure = parallel_pipeline_with_closure()
parallel_pipe_with_closure.build()
parallel_out_with_closure = parallel_pipe_with_closure.run()

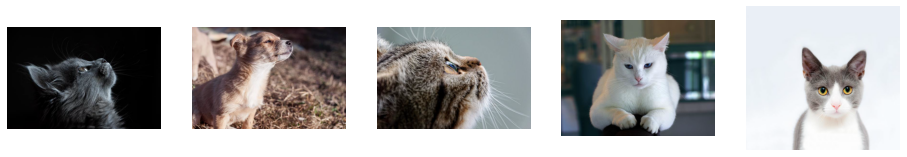

display(parallel_out_with_closure[0], batch_size)
# let Python know that the pipeline will no longer be needed, so that
# the worker processes and resources can be closed and freed.
del parallel_pipe_with_closure
pickle_by_value¶
When working with a Jupyter notebook, you may want to simply create your common configuration globally and create a callback that uses it, instead of writing nested functions. To make this approach work, you need to use a pickling method which serializes the entire function instead of the default one, which only stores the name and the defining module of the function.
[16]:
import nvidia.dali.pickling as dali_pickle
images_dir = "../../data/images/"
with open(images_dir + "file_list.txt", 'r') as f:
file_label = [line.rstrip().split(' ') for line in f if line != '']
files, labels = zip(*file_label)
full_iterations = len(files) // batch_size
@dali_pickle.pickle_by_value
def global_callback(sample_info):
sample_idx = sample_info.idx_in_epoch
if sample_info.iteration >= full_iterations:
# Indicate end of the epoch
raise StopIteration
jpeg_filename = files[sample_idx]
label = np.int32([labels[sample_idx]])
with open(images_dir + jpeg_filename, 'rb') as f:
encoded_img = np.frombuffer(f.read(), dtype=np.uint8)
return encoded_img, label
Note that the only thing required to make the above example work is @dali_pickle.pickle_by_value
decorator.
[17]:
@pipeline_def(batch_size=batch_size, num_threads=2, device_id=0, py_num_workers=4, py_start_method='spawn')
def parallel_pipeline_global_cb():
jpegs, labels = fn.external_source(source=global_callback, num_outputs=2, batch=False,
parallel=True, dtype=[types.UINT8, types.INT32])
decode = fn.decoders.image(jpegs, device="mixed")
return decode, labels
[18]:
import sys
ver = sys.version_info
if ver.major < 3 or (ver.major == 3 and ver.minor < 8):
print("This example works only in Python 3.8 or newer")
else:
if __name__ == '__main__':
parallel_pipe_global_cb = parallel_pipeline_global_cb()
parallel_pipe_global_cb.build()
parallel_out_global_cb = parallel_pipe_global_cb.run()

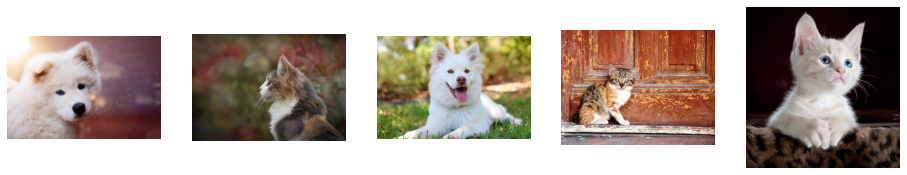

display(parallel_out_global_cb[0], batch_size)
# let Python know that the pipeline will no longer be needed, so that
# the worker processes and resources can be closed and freed.
del parallel_pipe_global_cb
Customizing Serialization¶
Under the hood, DALI uses the standard pickling mechanisms for callbacks. If you need to customize the way your callbacks are pickled, consider implementing them as callable objects (ExternalInputCallable
is an example of a class whose instances are callable). You can control serialization of custom class by manually crafting __getstate__
and __setstate__
or __reduce__
methods (you can find out more on this method in pickle
documenation). Alternatively, you can register custom reducer for your class via dispatch_tables
mechanism.
If needed, you can make DALI serialize any type of callbacks with external package such as dill
or cloudpickle
. To make that happen, simply pass the desired module as py_callback_pickler
parameter of the pipeline. You may especially wish to do so when running Python version older than 3.8, to make lambas and local functions work with parallel ExternalSource
.
Valid value for py_callback_pickler
is either a module/object implementing dumps
and loads
methods or a tuple where the first item is the module/object and the next two optional parameters are extra kwargs to be passed when calling dumps and loads respectively. The provided methods and kwargs must themselves be picklable with standard pickle.dumps
.
Let’s try the example with a closure again
[19]:
def create_callback(batch_size):
images_dir = "../../data/images/"
with open(images_dir + "file_list.txt", 'r') as f:
file_label = [line.rstrip().split(' ') for line in f if line != '']
files, labels = zip(*file_label)
full_iterations = len(files) // batch_size
def callback(sample_info):
sample_idx = sample_info.idx_in_epoch
if sample_info.iteration >= full_iterations:
# Indicate end of the epoch
raise StopIteration
jpeg_filename = files[sample_idx]
label = np.int32([labels[sample_idx]])
with open(images_dir + jpeg_filename, 'rb') as f:
encoded_img = np.frombuffer(f.read(), dtype=np.uint8)
return encoded_img, label
return callback
[20]:
try:
import dill
except:
print("This example requires dill package")
else:
@pipeline_def(batch_size=batch_size, num_threads=2, device_id=0, py_num_workers=4,
py_start_method='spawn', py_callback_pickler=(dill, {'recurse': True}))
def parallel_pipeline_with_dill():
jpegs, labels = fn.external_source(source=create_callback(batch_size), num_outputs=2, batch=False,
parallel=True, dtype=[types.UINT8, types.INT32])
decode = fn.decoders.image(jpegs, device="mixed")
return decode, labels
This time, we’ll use dill to serialize the callback. We pass the additional recurse=True
parameter to dill.dumps
call, so that dill will try to trace what global objects are referred inside the serialized callbacks and need to be serialized along.
[21]:
try:
import dill
except:
print("This example requires dill package")
else:
if __name__ == '__main__':
parallel_pipe_with_dill = parallel_pipeline_with_dill()
parallel_pipe_with_dill.build()
parallel_out_with_dill = parallel_pipe_with_dill.run()

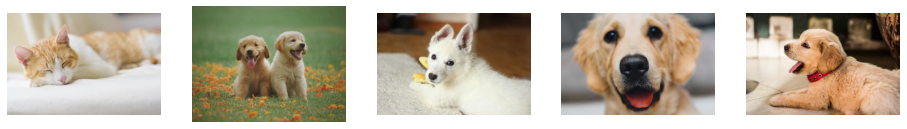

display(parallel_out_with_dill[0], batch_size)
Serialization and heavy setup¶
Often, the callable object used as a source
performs some setup when constructed (for example composes a list of files that the workers will read in parallel). If the py_start_method
is set to spawn
, the constructed object will be serialized (by defualt with Python’s pickle
module). However, for particularly large setups (when members of the callable object reach hundreds of MBs in size), the serialization may become slow or impossible due to serialization’s memory footprint. In
such cases, some parts of the setup should be deferred until the callable object is deserialized in the worker processes.
Let us see that on a (slightly artificial) example of a callable that holds a large list of filenames and allocates a large numpy array to be used as a buffer. The example assumes that pickle
is used as a serialization method and relies on standard pickle mechanisms to customize the serialization.
[22]:
class ExternalInputCallable:
def __init__(self, start=0, end=128 * 1024 * 1024):
self.start = start
self.end = end
# Normally, the setup would take place here, but we defer it
self.buffer = None
self.files = None
def __getstate__(self):
# This will be run in the main process to serialize the callable
return self.__dict__.copy()
def __setstate__(self, state):
self.__dict__.update(state)
# Deferred setup is done in each of the worker processes
self.buffer = np.arange(self.start, self.end, dtype=np.int32).reshape((-1, 1024, 1024))
self.files = [f"filename_{i}" for i in range(self.start, self.end)]
def __call__(self, sample_info):
if sample_info.idx_in_epoch >= self.end - self.start:
raise StopIteration
file_idx = int(self.files[sample_info.idx_in_epoch].split("_")[1])
sample_from_buffer = self.buffer[sample_info.idx_in_epoch]
return np.array(file_idx, dtype=np.int32), sample_from_buffer
@pipeline_def(batch_size=8, num_threads=2, device_id=0, py_num_workers=4, py_start_method='spawn')
def parallel_pipeline():
idx, sample = fn.external_source(source=ExternalInputCallable(), num_outputs=2, batch=False,
parallel=True, dtype=[types.INT32, types.INT32])
return idx, sample
Shuffling and sharding¶
So far, the pipelines presented in this tutorial returned the dataset in the exact same order in every epoch. In the following sections we will modify the source
callback so that the dataset is shuffled in between epochs. Additionally, we will make the callback aware of shards.
Shuffling dataset between epochs¶
To shuffle your dataset, you can permutate indices. When the source
is called with SampleInfo instance, the source
callback can use some permutation
function to return permutation(sample_info.idx_in_epoch)
-th sample instead of the sample_info.idx_in_epoch
-th one.
Remember that you are dealing with multiple copies of the source
callback. Every copy should shuffle the data in the same way, otherwise you risk mixing your dataset and returning the same sample multiple times in the same epoch.
To shuffle the dataset between epochs, you can use sample_info.epoch_idx
and parametrize the permutation
with the epoch_idx
.
This is how the ExternalInputCallable
example could be adapted to take care of shuffling the data between epochs.
[23]:
class ExternalInputCallable:
def __init__(self, batch_size):
self.images_dir = "../../data/images/"
self.batch_size = batch_size
with open(self.images_dir + "file_list.txt", 'r') as f:
file_label = [line.rstrip().split(' ') for line in f if line != '']
self.files, self.labels = zip(*file_label)
# If the dataset size is not divisible by the batch size, the last incomplete batch
# will be omitted. Alternatively, you may pad the dataset by repeating the last sample in
# `self.files` and `self.labels` to make the dataset size divisible by the `batch_size`.
self.full_iterations = len(self.files) // batch_size
self.perm = None # permutation of indices
self.last_seen_epoch = None # so that we don't have to recompute the `self.perm` for every sample
def __call__(self, sample_info):
if sample_info.iteration >= self.full_iterations:
# Indicate end of the epoch
raise StopIteration
if self.last_seen_epoch != sample_info.epoch_idx:
self.last_seen_epoch = sample_info.epoch_idx
self.perm = np.random.default_rng(seed=42 + sample_info.epoch_idx).permutation(len(self.files))
sample_idx = self.perm[sample_info.idx_in_epoch]
jpeg_filename = self.files[sample_idx]
label = np.int32([self.labels[sample_idx]])
with open(self.images_dir + jpeg_filename, 'rb') as f:
encoded_img = np.frombuffer(f.read(), dtype=np.uint8)
return encoded_img, label
Sharding¶
Now, let us add shard_id
and num_shards
parameters to the callabale, so that it can work on its non-overlapping subset of the dataset in any given epoch. Note how all the shards use the same permutation in the same epoch.
[24]:
class ExternalInputCallable:
def __init__(self, batch_size, shard_id=0, num_shards=1):
self.images_dir = "../../data/images/"
self.batch_size = batch_size
with open(self.images_dir + "file_list.txt", 'r') as f:
file_label = [line.rstrip().split(' ') for line in f if line != '']
self.files, self.labels = zip(*file_label)
self.shard_id = shard_id
self.num_shards = num_shards
# If the dataset size is not divisibvle by number of shards, the trailing samples will
# be omitted.
self.shard_size = len(self.files) // num_shards
self.shard_offset = self.shard_size * shard_id
# If the shard size is not divisible by the batch size, the last incomplete batch
# will be omitted.
self.full_iterations = self.shard_size // batch_size
self.perm = None # permutation of indices
self.last_seen_epoch = None # so that we don't have to recompute the `self.perm` for every sample
def __call__(self, sample_info):
if sample_info.iteration >= self.full_iterations:
# Indicate end of the epoch
raise StopIteration
if self.last_seen_epoch != sample_info.epoch_idx:
self.last_seen_epoch = sample_info.epoch_idx
self.perm = np.random.default_rng(seed=42 + sample_info.epoch_idx).permutation(len(self.files))
sample_idx = self.perm[sample_info.idx_in_epoch + self.shard_offset]
jpeg_filename = self.files[sample_idx]
label = np.int32([self.labels[sample_idx]])
with open(self.images_dir + jpeg_filename, 'rb') as f:
encoded_img = np.frombuffer(f.read(), dtype=np.uint8)
return encoded_img, label
We could also express the callable object in the form of nested functions.
[25]:
@dali_pickle.pickle_by_value
def create_callback(batch_size, shard_id=0, num_shards=1):
images_dir = "../../data/images/"
with open(images_dir + "file_list.txt", 'r') as f:
file_label = [line.rstrip().split(' ') for line in f if line != '']
files, labels = zip(*file_label)
dataset_size = len(files)
shard_size = dataset_size // num_shards
shard_offset = shard_size * shard_id
full_iterations = shard_size // batch_size
perm = None # permutation of indices
last_seen_epoch = None # so that we don't have to recompute the `perm` for every sample
def callback(sample_info):
nonlocal perm, last_seen_epoch
if sample_info.iteration >= full_iterations:
# Indicate end of the epoch
raise StopIteration
if last_seen_epoch != sample_info.epoch_idx:
last_seen_epoch = sample_info.epoch_idx
perm = np.random.default_rng(seed=42 + sample_info.epoch_idx).permutation(dataset_size)
sample_idx = perm[sample_info.idx_in_epoch + shard_offset]
jpeg_filename = files[sample_idx]
label = np.int32([labels[sample_idx]])
with open(images_dir + jpeg_filename, 'rb') as f:
encoded_img = np.frombuffer(f.read(), dtype=np.uint8)
return encoded_img, label
return callback
Let us use the above callback to split the initial dataset of 21 images between two pipelines, each pipeline processing non-overlapping subset of 10 images in any given epoch.
Here, we decided on dropping the trailing samples if the dataset size is not divisible by the number of shards or the batch size. Note that due to shuffling of the data between the epochs, different samples will be omitted in different epochs. Nonetheless, you may decide to pad the dataset and shards by repeating some samples, so that every sample is used in every epoch.
[26]:
batch_size = 5
@pipeline_def(batch_size=batch_size, num_threads=2, device_id=0,
py_num_workers=4, py_start_method='spawn')
def shuffling_sharding_pipepline(shard_id, num_shards):
jpegs, labels = fn.external_source(
source=create_callback(batch_size, shard_id, num_shards),
num_outputs=2, batch=False, parallel=True, dtype=[types.UINT8, types.INT32])
decode = fn.decoders.image(jpegs, device="mixed")
return decode, labels
[27]:
import sys
ver = sys.version_info
if ver.major < 3 or (ver.major == 3 and ver.minor < 8):
print("This example works only in Python 3.8 or newer")
else:
if __name__ == '__main__':
pipe_1 = shuffling_sharding_pipepline(shard_id=0, num_shards=2)
pipe_1.build()
for _ in range(2):
images, labels = pipe_1.run()
display(images, batch_size, columns = batch_size)
try:
pipe_1.run()
except StopIteration:
pass
else:
raise Exception("Expected only 10 images in the epoch")
# let Python know that the pipeline will no longer be needed, so that
# the worker processes and resources can be closed and freed.
del pipe_1
[28]:
import sys
ver = sys.version_info
if ver.major < 3 or (ver.major == 3 and ver.minor < 8):
print("This example works only in Python 3.8 or newer")
else:
if __name__ == '__main__':
pipe_2 = shuffling_sharding_pipepline(shard_id=1, num_shards=2)
pipe_2.build()
for _ in range(2):
images, labels = pipe_2.run()
display(images, batch_size, columns = batch_size)
try:
pipe_2.run()
except StopIteration:
pass
else:
raise Exception("Expected only 10 images in the epoch")
# let Python know that the pipeline will no longer be needed, so that
# the worker processes and resources can be closed and freed.
del pipe_2
Parallel external source in containers¶
Parallel external source uses OS shared memory to pass samples from the workers to the main process. Because of the buffering within the pipeline, DALI may need to allocate enough memory to store a few iterations at once. Therefore, parallel external source may require significant amount of shared memory. However, some environments limit the /dev/shm
size.
For instance, when running DALI with Docker, you may need to pass --shm-size
parameter when calling docker run or, if you cannot pass extra parameter, modify the size of /dev/shm
manually in the running container.
