NVIDIA DGX SuperPOD and BasePOD with DGX B200 Systems Deployment Guide with NVIDIA Mission Control 2.0#
Introduction#
This document provides the steps for deploying NVIDIA DGX SuperPOD and BasePOD with DGX B200 systems and NVIDIA Mission Control . NVIDIA Mission Control.
NVIDIA Mission Control 2.0 for DGX B200 includes Base Command Manager (BCM) 11.25.08 and NVIDIA Run:ai functionality as part of an integrated software delivery for configuration, validation, and cluster operations. This release introduces integrated B200 DGXOS and automated B200 setup through the bcm-pod-setup utility for faster provisioning. Run:ai and Slurm are deployed via the BCM wizard, enabling topology-aware, HPC-style GPU workload scheduling across SuperPOD and BasePOD environments.
For more details, visit NVIDIA mission control page
For release updates, visit Nvidia mission control 2.0 release announcement page
Note
Direct upgrade from NMC 1.1 to 2.0 is NOT supported for DGX B200 systems. A full redeployment is required for any upgrade.
Hardware Overview#
The following reference architectures detail the hardware and software requirements for the SuperPOD and BasePoD.
NVIDIA DGX SuperPOD Reference Architecture
NVIDIA DGX BasePOD Reference Architecture
DGX B200 Ports and connectivity options#
This section covers the DGX system network ports and an overview of the networks used by DGX B200 System Network Ports.
Figure 1 shows the physical layout of the back of the DGX B200 system.
Figure 1 Physical layout of the back of the DGX B200 system#
Figure 2 shows how the DGX B200 network ports are used in this deployment guide.
Figure 2 Physical layout of the back of the DGX B200 system#
DGX B200 network ports used in this deployment guide
The following ports are selected for DGX BasePOD networking:
Eight ports in four OSFP connections are used for the InfiniBand compute fabric
Each pair of dual-port NVIDIA BlueField-3 HCAs (NIC mode) provide parallel pathways to the storage and management fabrics.
Optional One port of dual-port BlueField-3 HCAs (IB mode) provides access to IB storage fabrics.
BMC network access is provided through the out-of-band network
The networking ports and their mapping are described in detail in the Network Ports section of the NVIDIA DGX B200 System User Guide.
Ethernet Management (North South) Network configuration#
The configuration of the Ethernet Management or North-South network can be performed either manually or automatically, depending on the deployment’s scale. The subsequent sections provide instructions for both approaches.
North/South Ethernet Network - Automated Deployment#
BCM can automate network switch provisioning and fabric configuration using bcm-netautogen. For large-scale deployments, contact your NVIDIA PTAM for NVIS engagement and assistance.
Manual Network Configuration#
Manual deployment is suggested for smaller deployments like BasePOD.
SN4600C – North South Management ethernet switches#
The SN4600c fabric provides connectivity for inband management and provisioning of the nodes. The key configuration requirements are:
MLAG between the two SN4600C switches
L3 SVI/VRRP for all the pod ethernet networks.
Each headnode / K8s node / DGX is dual homed to the SN4600C switches via bond interface
External connectivity to customer network, using customer specified routing arrangements, like BGP or static or other dynamic routing protocols
Link to IPMI Network for BCM to access node BMCs, either direct or indirect via customer network.
SN4600C-1 reference configuration#
# Basic management configuration
nv set system hostname 4600C-1
#
# Create SVIs for Internal/Management Network with VRRP as FHRP
nv set bridge domain br_default vlan 102
nv set interface vlan102 type svi
nv set interface vlan102 ip vrr mac-address 00:00:5E:00:01:01
nv set interface vlan102 ip vrr address 10.150.124.1/24
nv set interface vlan102 ip address 10.150.124.2/24
nv set interface vlan102 ip vrr state up
# Repeat the same for other SVI interfaces
# Configure MLAG
# Define inter-chassis peerlink etherchannel/bond
nv set interface peerlink bond member swp63,swp64
nv set interface peerlink type peerlink
#
# Loopback for BGP/MLAG backup routing
nv set interface lo ip address 10.160.254.22
#
# Configure Peerlink L3 parameters
nv set interface peerlink.4094 base-interface peerlink
nv set interface peerlink.4094 type sub
nv set interface peerlink.4094 vlan 4094
nv set mlag backup 10.160.254.23
nv set mlag enable on
nv set mlag mac-address 44:38:39:ff:00:02
nv set mlag peer-ip linklocal
# MAG Primary
nv set mlag priority 2048
# Example port configuration for head nodes (BCM, Kube)
# BCM Head Nodes
nv set interface bond1 bond member swp1
nv set interface bond1 description "BCM Headnode 1"
nv set interface bond1 bond mlag id 1
nv set interface bond1 bridge domain br_default access 102
nv set interface bond1 bond mlag enable on
nv set interface bond1 bond lacp-bypass on
# Repeat for other management/workloads/compute nodes
#
# Uplink to the customer network.
# Example configuration with BGP unnumbered
nv set router bgp autonomous-system 4200004001
nv set router bgp enable on
nv set router bgp router-id 10.160.254.22
nv set vrf default router bgp address-family ipv4-unicast enable on
nv set vrf default router bgp address-family ipv4-unicast redistribute connected enable on
nv set vrf default router bgp enable on
# Uplinks via swp50
nv set vrf default router bgp neighbor swp50 type unnumbered
# Peering to MLAG peer switch
nv set vrf default router bgp neighbor peerlink.4094 remote-as internal
nv set vrf default router bgp neighbor peerlink.4094 type unnumbered
SN4600C-2 reference configuration - Same as SN4600C-1, with the following changes#
# Basic management configuration
nv set system hostname 4600C-2
#
# Create SVIs for Internal/Management Network with VRRP as FHRP
nv set bridge domain br_default vlan 102
nv set interface vlan102 type svi
nv set interface vlan102 ip vrr mac-address 00:00:5E:00:01:01
nv set interface vlan102 ip vrr address 10.150.124.1/24
nv set interface vlan102 ip address 10.150.124.3/24
nv set interface vlan102 ip vrr state up
# follow the same for other SVIs
#
# Configure MLAG
# Define inter-chassis peerlink etherchannel/bond
#
# Loopback for BGP/MLAG backup routing
nv set interface lo ip address 10.160.254.23
#
# Configure Peerlink L3 parameters
nv set mlag backup 10.160.254.22
nv set mlag mac-address 44:38:39:ff:00:02
# MLAG Secondary
nv set mlag priority 4096
#
# Example port configuration for head nodes (BCM, Kube)
# same as 4600-1
#
# Uplink to the customer network.
# Same as 4600-1
You can verify the MLAG status using the following command
root@mgmt-net-leaf-1:mgmt:/home/cumulus# clagctl
The peer is alive
Our Priority, ID, and Role: 2048 9c:05:91:dd:cc:28 primary
Peer Priority, ID, and Role: 2048 9c:05:91:f1:73:28 secondary
Peer Interface and IP: peerlink.4094 fe80::9e05:91ff:fef1:7328 (linklocal)
Backup IP: 10.160.254.23 vrf mgmt (inactive)
System MAC: 44:38:39:ff:0a:00
CLAG Interfaces
Our Interface Peer Interface CLAG Id Conflicts Proto-Down Reason
---------------- ---------------- ------- -------------------- -----------------
bond1 - 1 - -
bond10 - 10 - -
bond11 - 11 - -
bond12 - 12 - -
bond13 - 13 - -
bond14 - 14 - -
For troubleshooting, you can use the consistency check command. Here is an example output from a working MLAG pair.
cumulus@mgmt-net-leaf-2:mgmt:~$ nv show mlag consistency-checker global
Parameter LocalValue PeerValue Conflict Summary
---------------------- ------------------------- ------------------------- -------- -------
anycast-ip - - -
bridge-priority 32768 32768 -
bridge-stp-mode rstp rstp -
bridge-stp-state on on -
bridge-type vlan-aware vlan-aware -
clag-pkg-version 1.6.0-cl5.11.0u2 1.6.0-cl5.11.0u2 -
clag-protocol-version 1.7.0 1.7.0 -
peer-ip fe80::9e05:91ff:fedd:cc28 fe80::9e05:91ff:fedd:cc28 -
peerlink-bridge-member Yes Yes -
peerlink-mtu 9216 9216 -
peerlink-native-vlan 1 1 -
peerlink-vlans 1, 100->102 1, 100->102 -
redirect2-enable yes yes -
system-mac 44:38:39:ff:0a:00 44:38:39:ff:0a:00 -
SN2201 – IPMI Switch for Out-of-Band Management#
All the BMCs are in the same subnet, configure all switch ports connected to the BMCs to be under the same VLAN.This IPMI network should be accessible from the Management Ethernet to allow the BCM headnodes to control the BMCs. In this example, the IPMI network is routed via the Management Ethernet SN4600C switches. It is recommended to add an additional uplink to the customer’s OOB network.
Example Configuration for the SN2201 switch.
nv set system hostname IPMI-SW
#<Basic management configuration>
#
# Set the VLAN for BMC ports. Adjust according to the customer specification
nv set bridge domain br_default vlan 101
#
# Enable the BMC Ports to the Access VLAN
#
nv set interface swp1-48 bridge domain br_default
nv set bridge domain br_default untagged 1
nv set interface swp1-48
nv set interface swp1-48 link state up
nv set interface swp1-48 description "BMC Ports"
nv set interface swp1-48 bridge domain br_default access 101
#
# Uplink to customer OOB/PIMI Network
# In this example the uplink is a layer 2 trunk with etherchannel/bond.
# Adjust according to the customer specification for Uplink
nv set interface swp49-50 link state up
nv set interface bond1 bond member swp49,swp50
nv set interface bond1 bridge domain br_default untagged 1
nv set interface bond1 bridge domain br_default vlan all
Refer to the appendix for complete switch configuration.
Once the SN2201 switches have been successfully configured, verify that all devices out of band management interfaces are reachable from the network. (i.e. make sure you can access the BMC/iLO/iDRAC of all nodes).
Reference: Cumulus Network configuration Guide.
You can also use NVIDIA Air to simulate and model the network.
InfiniBand Compute Fabric#
The InfiniBand compute fabric offers two deployment options: a standalone configuration where the Subnet Manager operates on the switches, or a centrally managed Subnet Manager utilizing UFM which is the recommended option for scaled deployments. The following sections provide instructions for these deployment choices.
Manual InfiniBand Compute Fabric Configuration#
To initially configure the QM9700 switches in the Compute or Storage switch stacks, console serial port connectivity is essential. This can be established either remotely through a serial concentrator or by a physical connection to the switch’s serial port. After confirming connectivity, power on all Compute and Storage switches.
QM9700 – OSFP IB Switches#
We recommend configuring the InfiniBand switches with subnet manager HA enabled. Example configuration
QM-9700-1
ib sm
ib sm virt enable
ib smnode 9700-1 create
ib smnode 9700-1 enable
ib smnode 9700-1 sm-priority 15
ib ha infiniband-default ip <HA VIP> <mask>
QM-9700-2
ib sm virt enable
ib smnode 9700-1 create
ib smnode 9700-1 enable
ib smnode 9700-1 sm-priority 15
Verify IB SM HA status using the following command
QM9700-1[infiniband-default: master] # show ib smnodes
HA state of switch infiniband-default:
IB Subnet HA name: infiniband-default
HA IP address : 10.185.230.247/22
Active HA nodes : 2
HA node local information:
Name : 9700-2 (active)
SM-HA state: standby
SM Running : stopped
SM Enabled : disabled
SM Priority: 0
IP : 10.185.230.243
HA node local information:
Name : 9700-1 (active) <--- (local node)
SM-HA state: master
SM Running : running
SM Enabled : enabled - master
SM Priority: 15
IP : 10.185.231.43
Refer to the appendix for complete switch configuration.
Reference: Nvidia QM9700 InfiniBand Switch user manual
InfiniBand/Ethernet Storage Fabric Specific Configurations#
A DGX SuperPOD/BasePOD typically also includes dedicated storage, but the configuration is outside the scope of this document. Contact the vendor of the storage solution being used for instructions on configuring the high-performance storage portions of a SuperPOD/DGX BasePOD.
InfiniBand UFM Deployment#
Large scale deployments of IB/Compute Fabric with UFM require NVIS engagement, please contact your NVIDIA PTAM for further assistance.
Reference: UFM Guides
Base Command Manager Headnodes Installation#
Download the Base Command Manager (BCM) ISO#

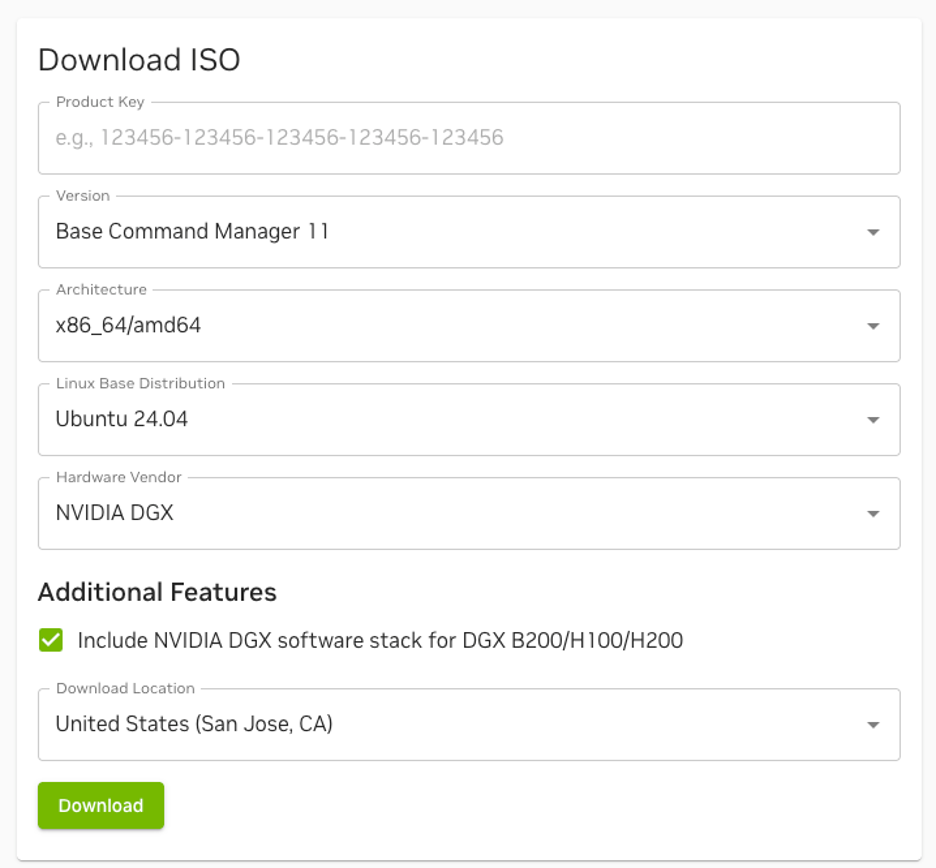

Download the latest BCM 11.x ISO image from the BCM website with the following options.
DGX B200 BIOS Config and Network Interface Boot Order#
The DGX B200 appliance Bios typically ships from the factory configured to PXE boot using the two primary in-band interfaces. For detailed steps on modifying the boot order to utilize these interfaces for PXE booting, consult the DGX B200 System User Guide.
Control Nodes BIOS, OOB/BMC configuration#
Before installing BCM, configure the BIOS boot sequence and out-of-band management interface (such as BMC, IPMI) for all cluster nodes. Once configured, verify that all out-of-band management interfaces are reachable within the cluster network and that the BMC/iLO/iDRAC UI can be accessed.
On the control nodes, configure the interfaces connected to the management network to operate in Ethernet Mode (instead of IB). Additionally, enable PXE boot for all control nodes except the primary and secondary head nodes.
Example: Configuring BIOS and Network Interface Boot order on Dell appliance with iDRAC9:#

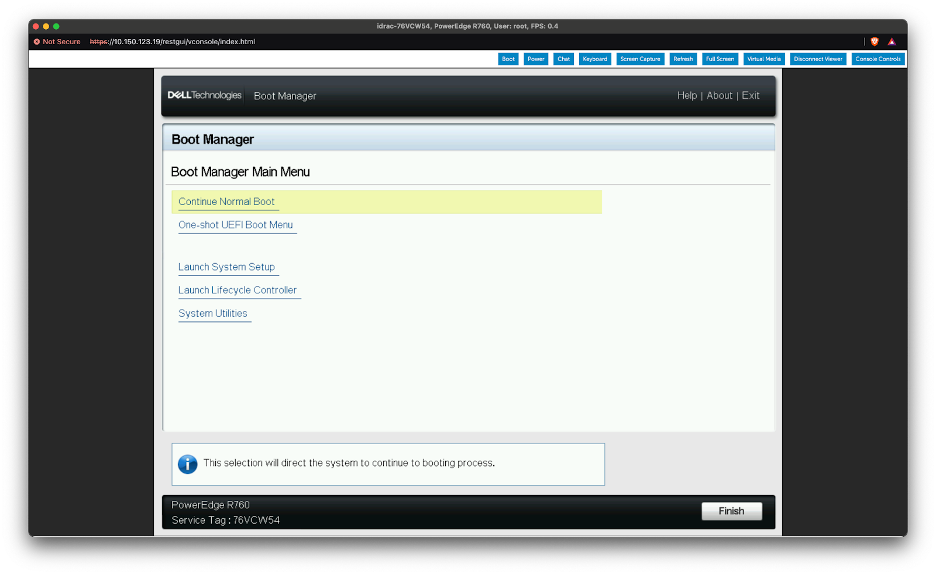

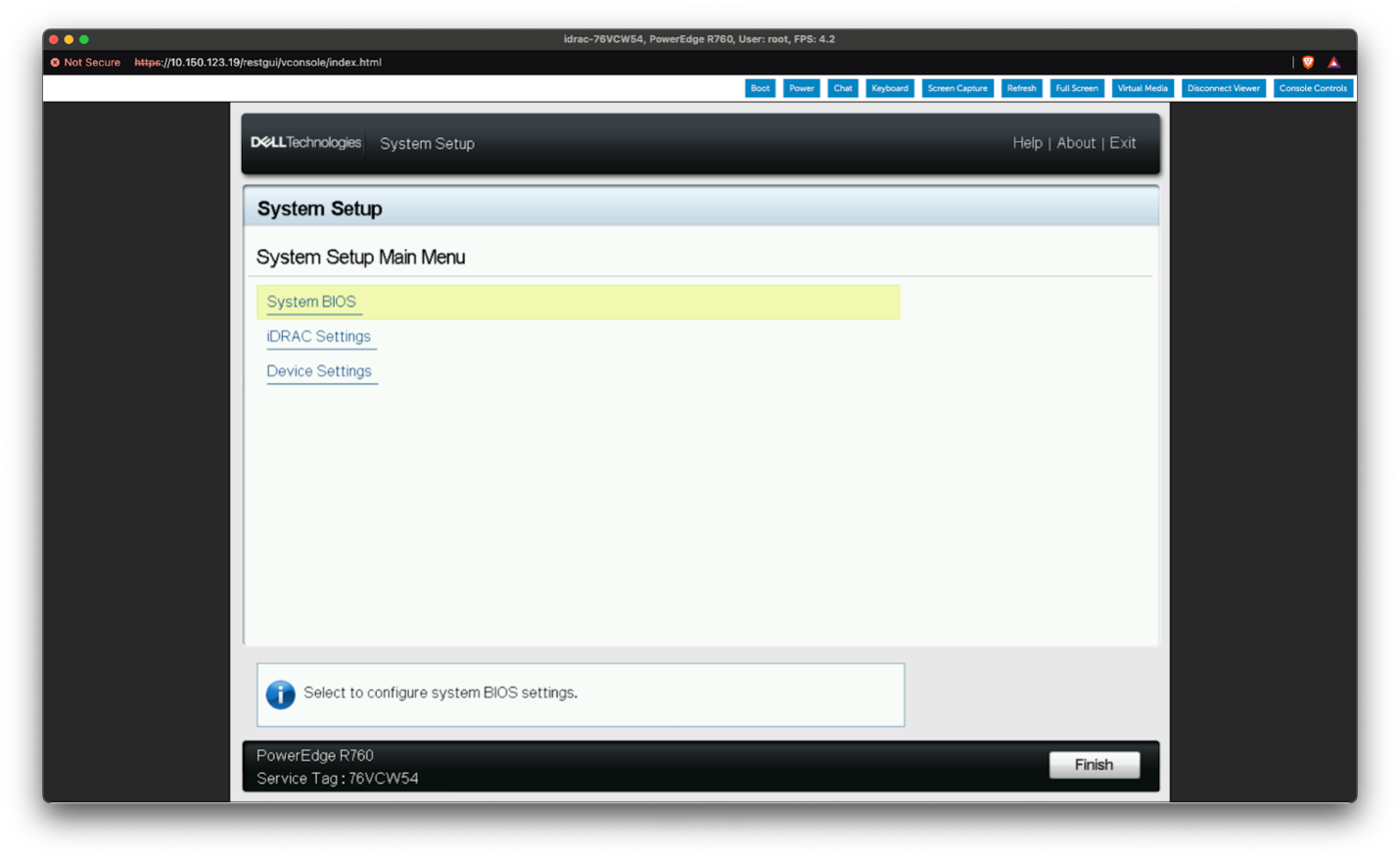

Power up the appliance and Interrupt the boot cycle to enter the Boot Manager and select “Launch System Setup”.

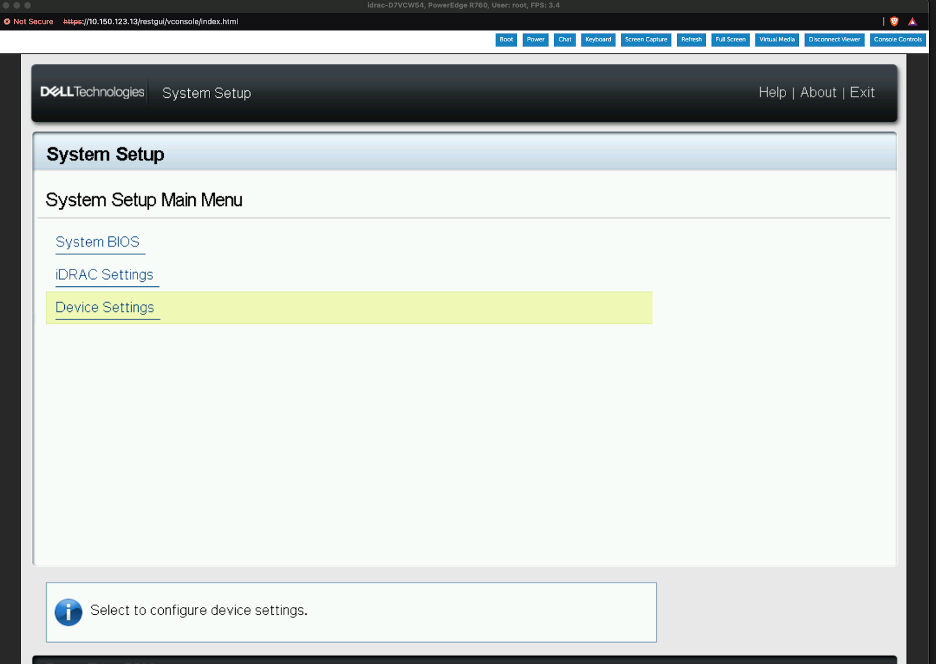

Select “Device Settings”.

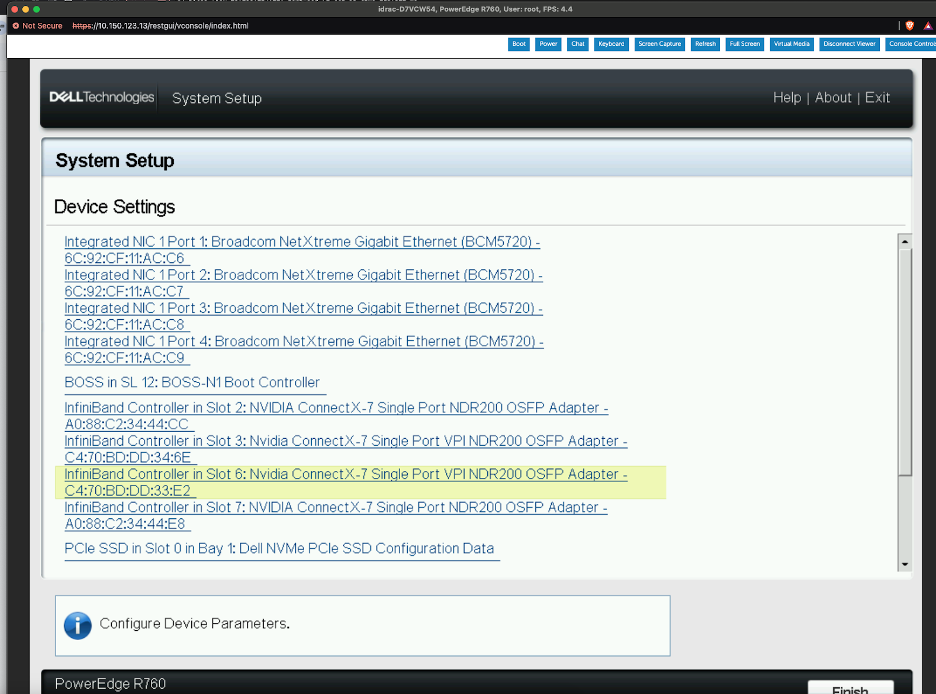

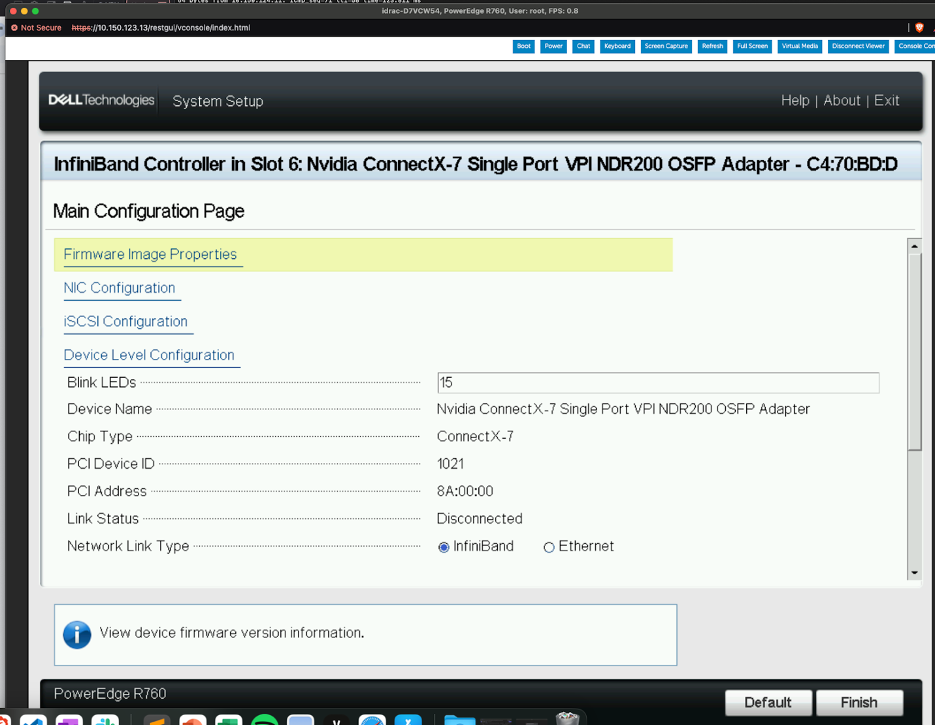

Select the Card that needs the mode changed from Infiniband (IB Mode) to Ethernet (ETH Mode).

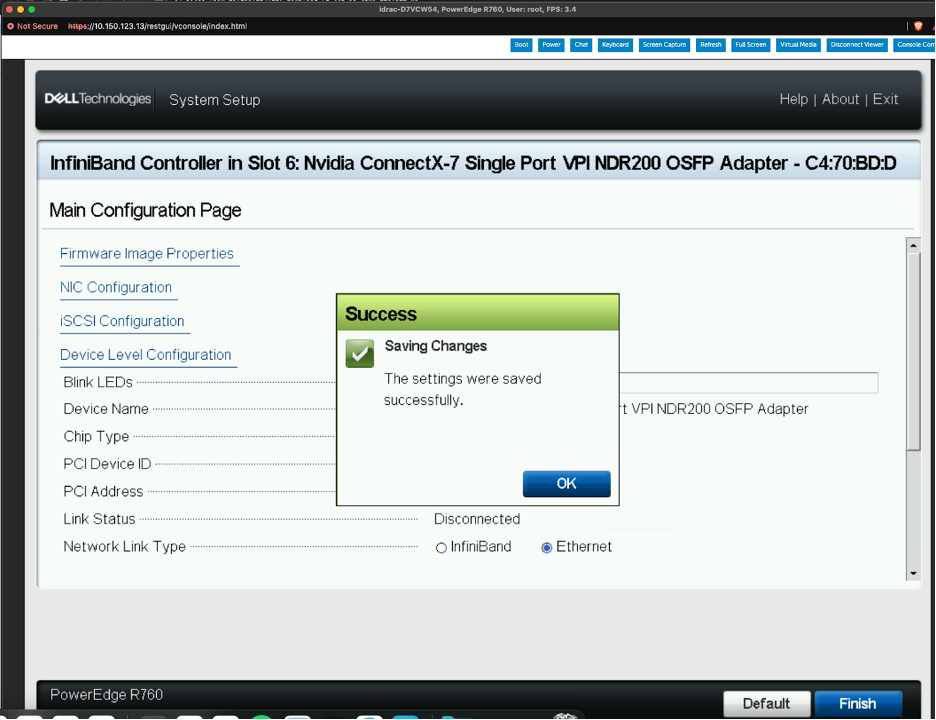

Change the “Network Link Type” from “Infiniband” to “Ethernet” and select “Finish”.
On the confirmation message, click OK.
After confirming the CX card ports are in the correct mode, proceed to enabling PXE boot.
Return to the “System Setup” screen and select “System BIOS”.

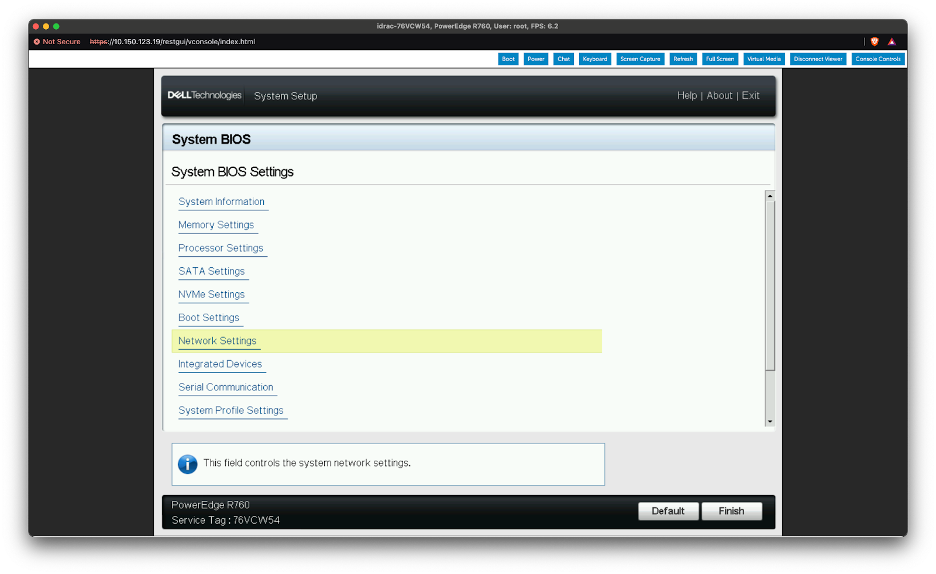

Select ”Network Settings”.

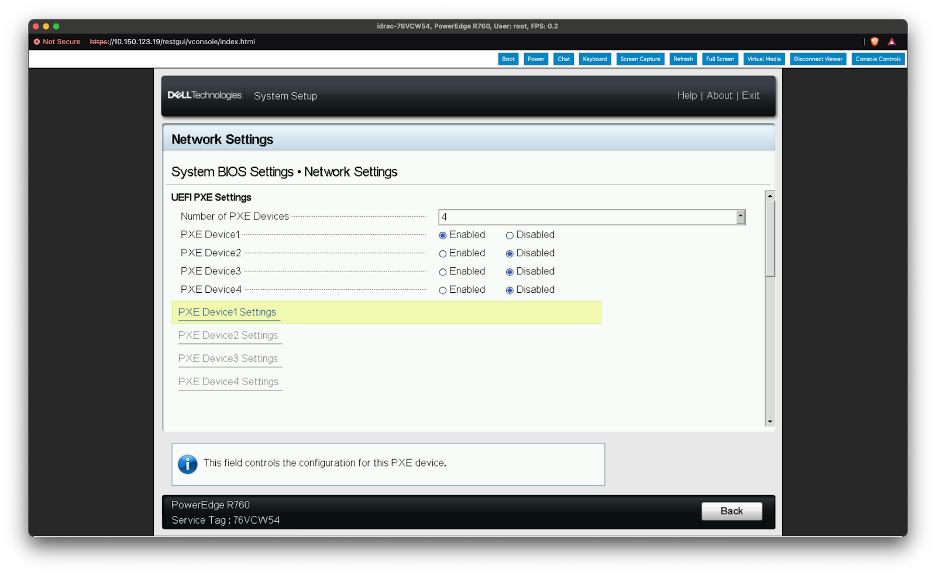

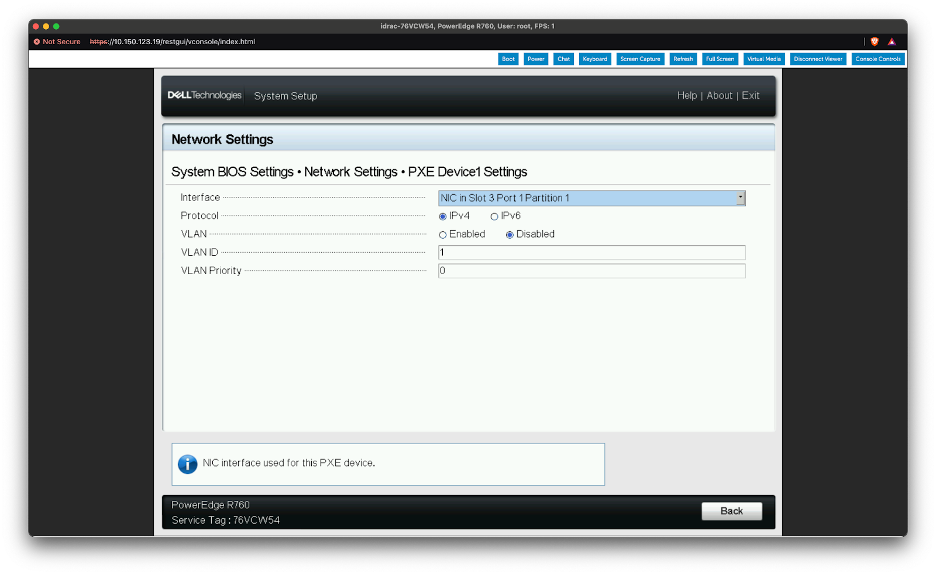

Enable PXE Boot for the two primary inband network interfaces.

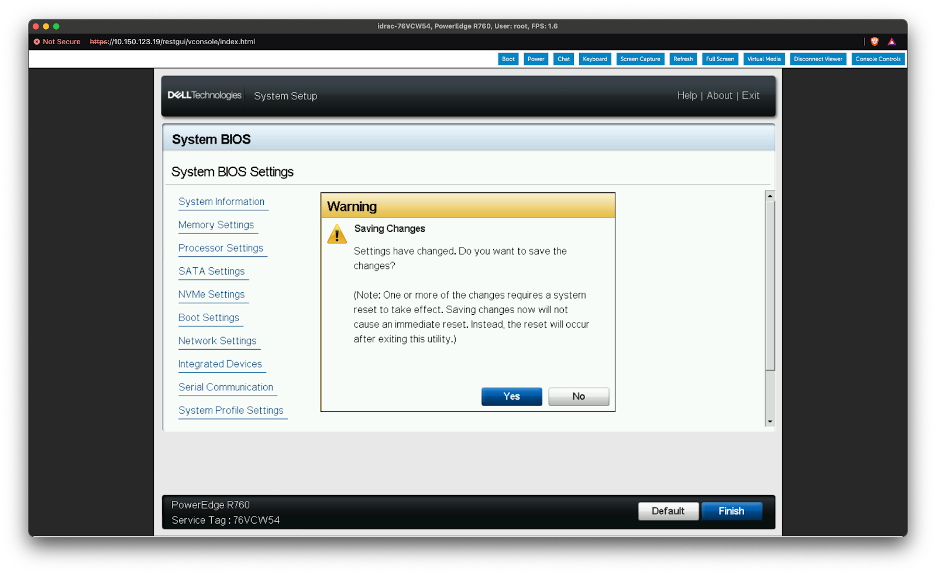

To confirm the changes, click “Back” to return to the “System BIOS” screen. A “Warning - Save Changes” prompt will appear; select “Yes.” Then, click “Finish” to go back to the System Setup Main Menu.

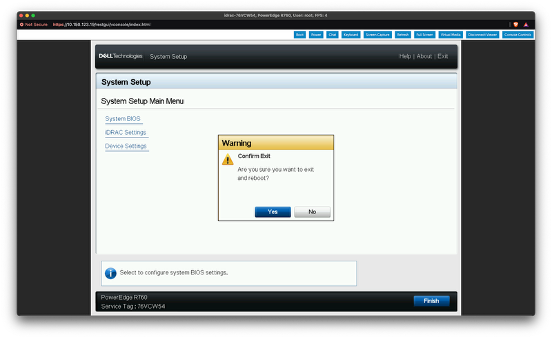

Select “Finish”, and on the “Warning - Confirm Exit” prompt select “Yes” to confirm the appliance reboot.
Ensure the PXE-enabled NICs are configured as the primary boot device.
Other Branded appliances#
These settings are usually configured through the system’s BIOS or the appliance’s Out-of-Band management interface; refer to the vendor’s BMC/BIOS manual for specific instructions. Alternatively, you can adjust the port mode (Ethernet to IB) by temporarily booting the appliance into a Linux environment and utilizing the NVIDIA Firmware Tools.
Note
When using NVIDIA Firmware Tools, the device path in the example commands must be updated to reflect the correct interface. Do not execute the provided examples “as is” on a production system. Refer to the NVIDIA Firmware Tools documentation for detailed instructions on proper usage.
mstconfig -d 04:00.0 set LINK_TYPE_P1=2
RAID/Storage Configuration#
If available, configure the hardware RAID controller and disks to minimum RAID level 1 using the appliance’s BMC or BIOS. The procedure varies depending on the appliance vendor and RAID controller. Refer to the specific vendor documentation for the configuration procedure.
BCM Installation#
Headnode preparation#

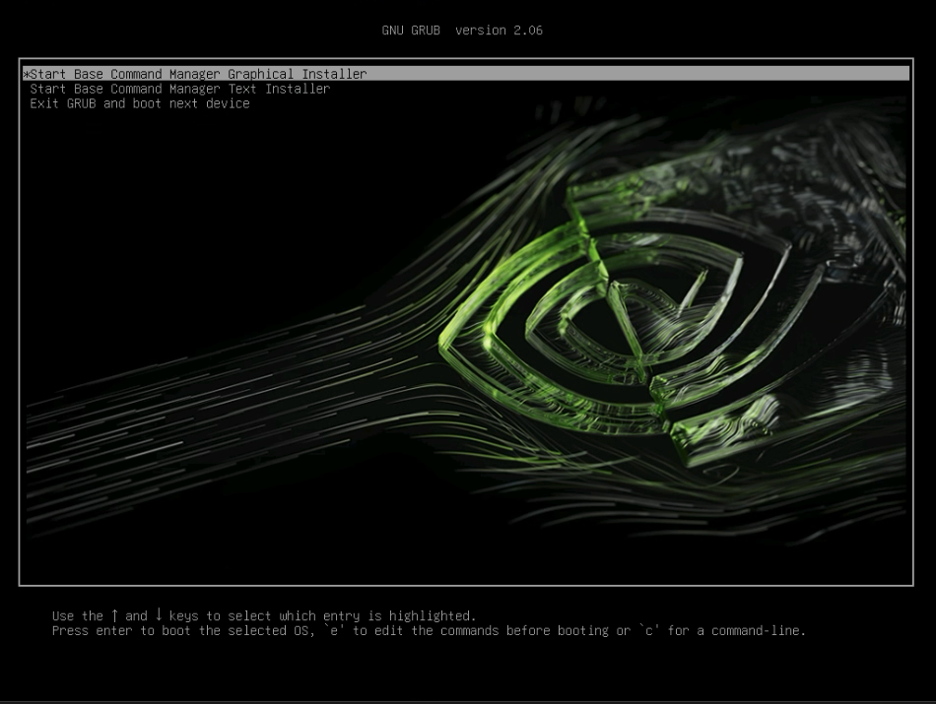

Boot the headnode from the BCM installer ISO, which can be connected via USB, CD-ROM, or Virtual KVM. The specific steps for this process will differ based on the headnode appliance vendor.
Example BCM install with Dell appliances/iDRAC9#

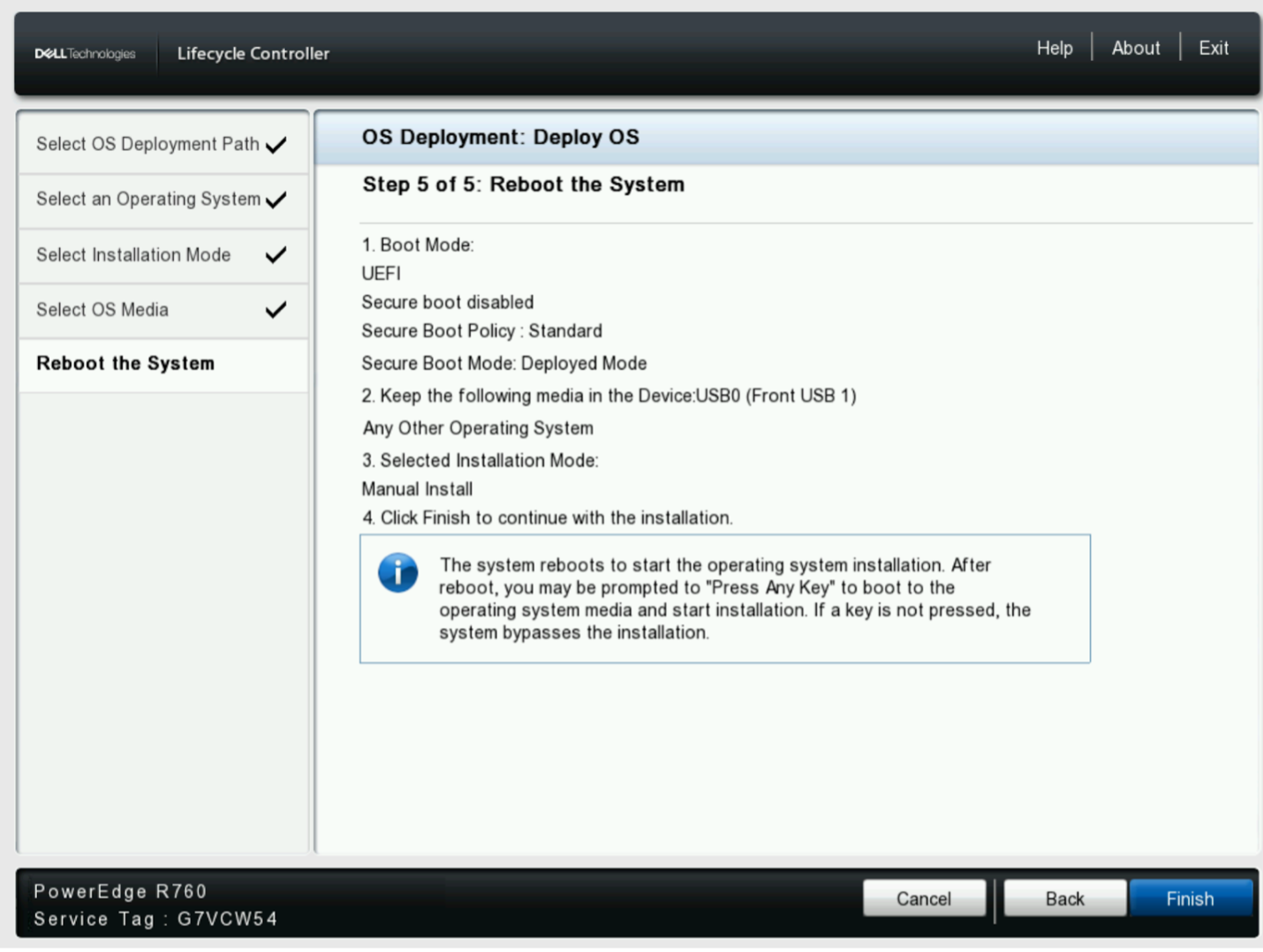

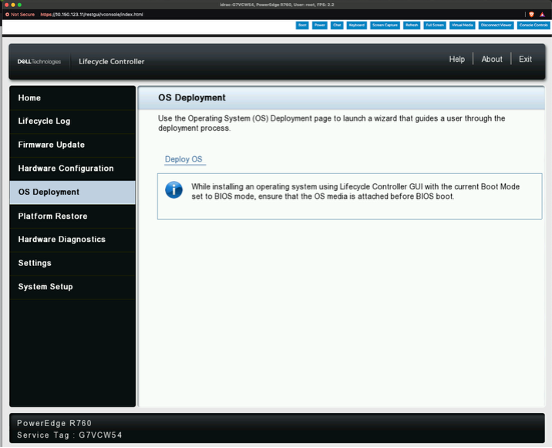

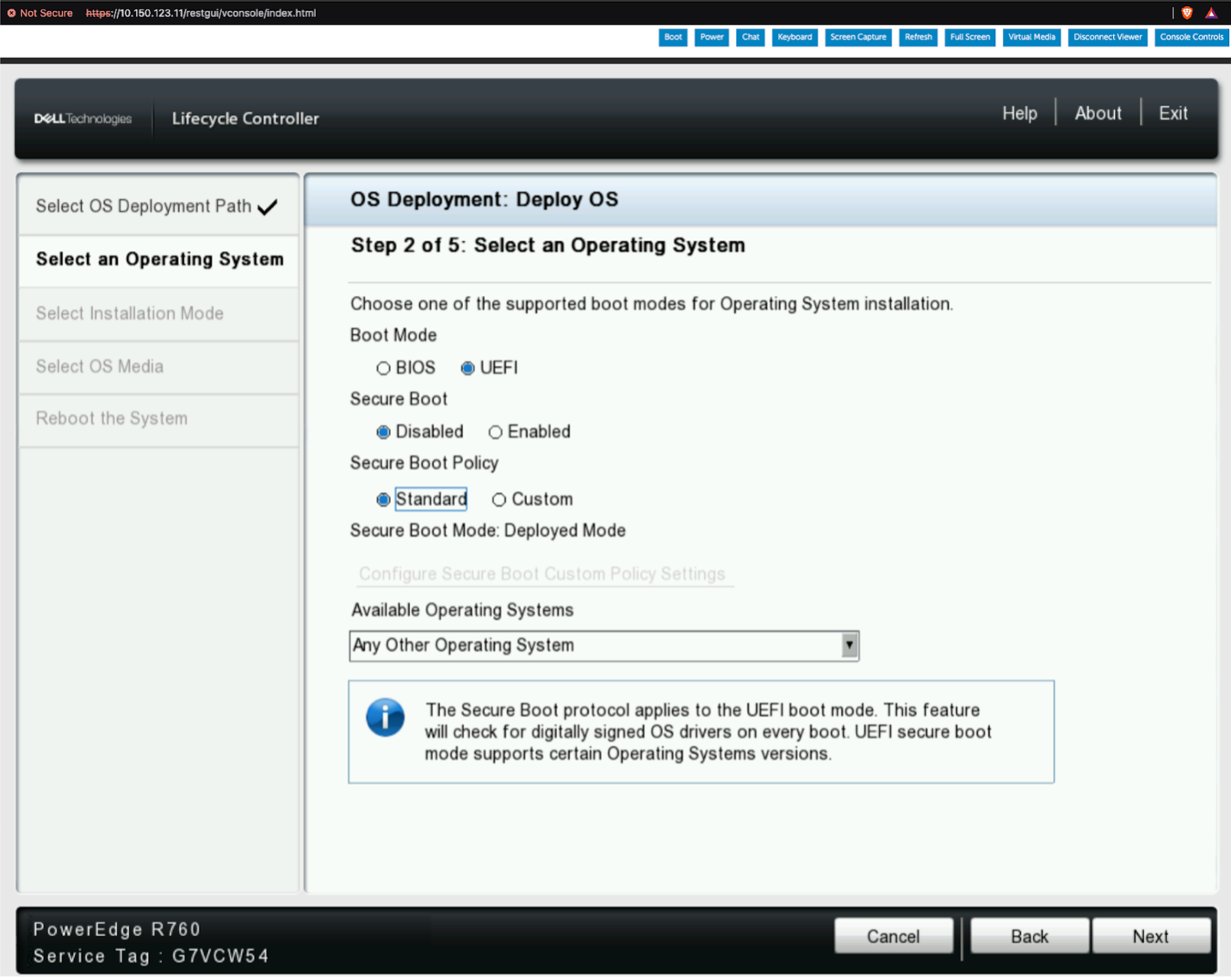

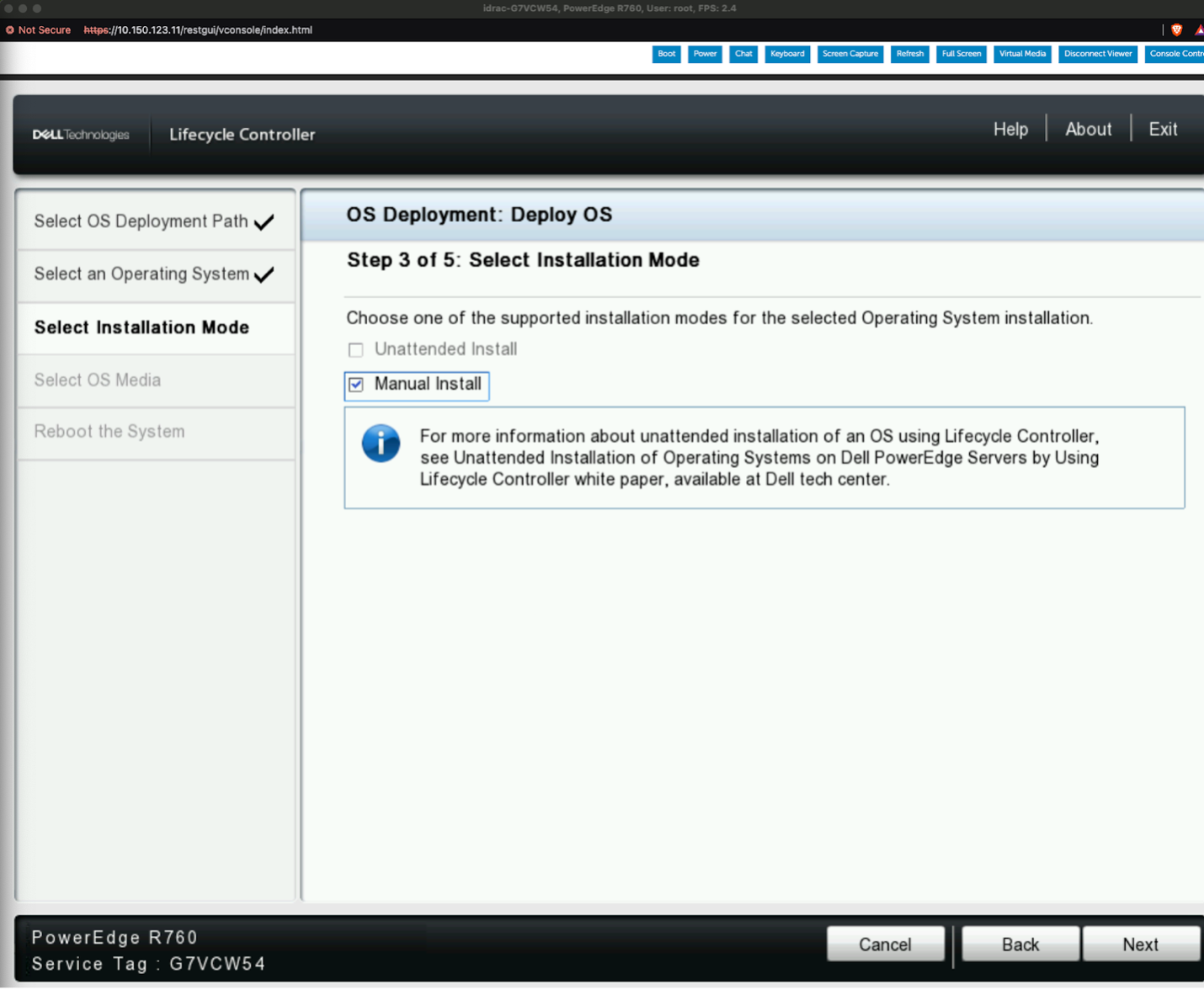

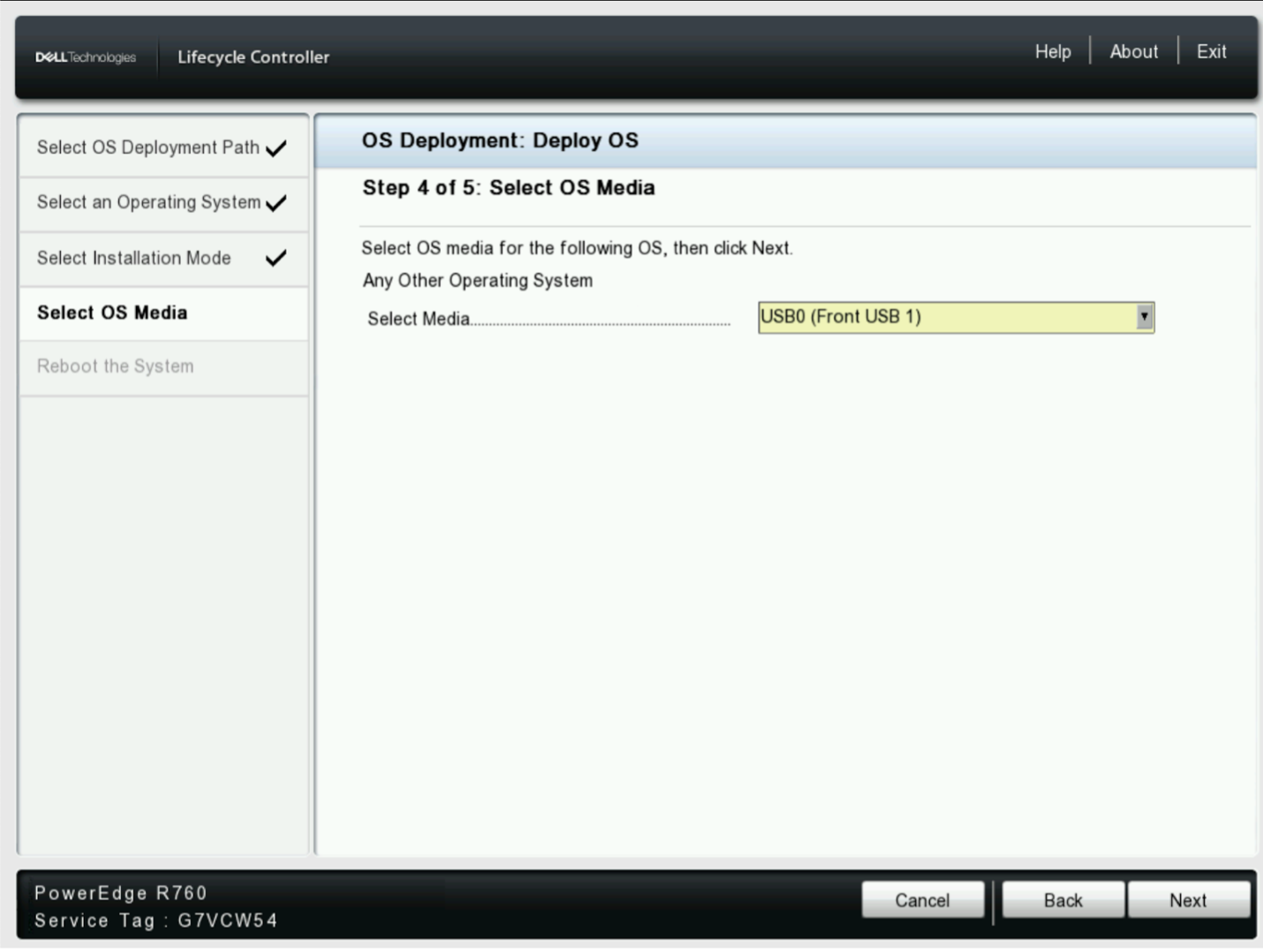

Boot the appliance into the Lifecycle Controller and select “OS Deployment” on the left side of the screen and then click “Deploy OS”.

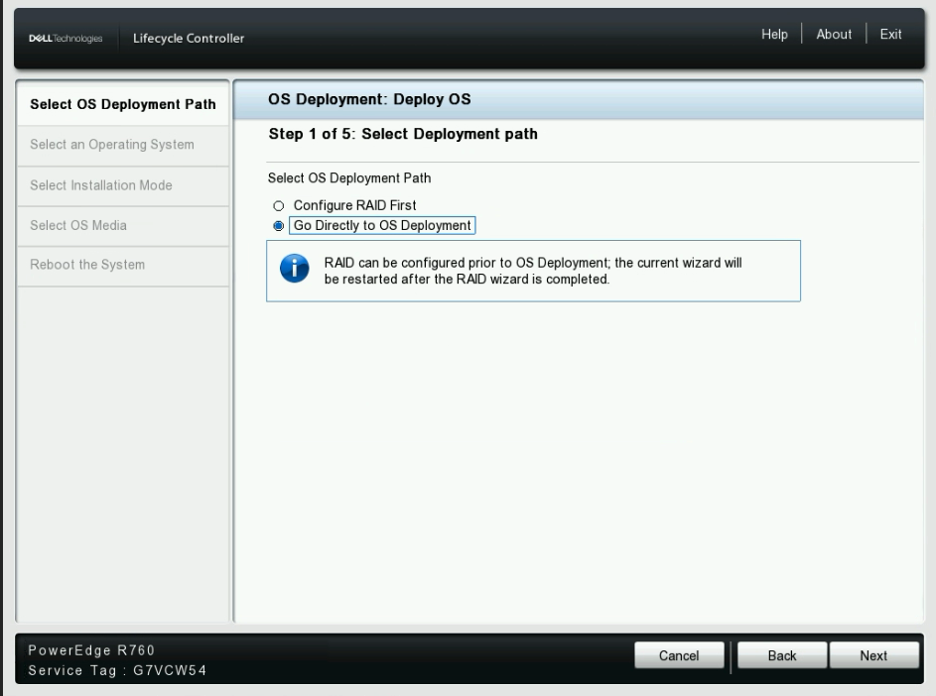

Select “Go Directly to OS Deployment” then click “Next”.
Set the Boot Mode to UEFI. Ensure Secure Boot is Disabled, the Secure Boot Policy is Standard, and “Any Other Operating System” is selected for the Available Operating System. Then, click “Next” to continue.
Select the option for “Manual Install” and click “Next”.
Proceed to choose the appropriate Media containing the BCM10 Installation ISO and then select “Next”.
Confirm the selected options and select “Finish”.
The appliance will proceed to boot as normal.
Other Appliances#
Attach the BCM10 installation media to the designated headnode appliance. Power on the appliance and proceed to boot from the BCM10 installation media.
Booting the Base Command Manager Graphical Installer#
The BCM installer GUI will launch once the installation media has successfully loaded.

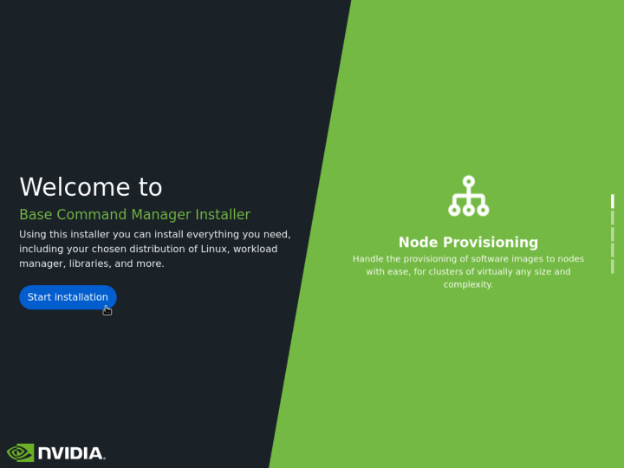

On the Base Command Manager Installer Splash Screen select “Start Installation”.

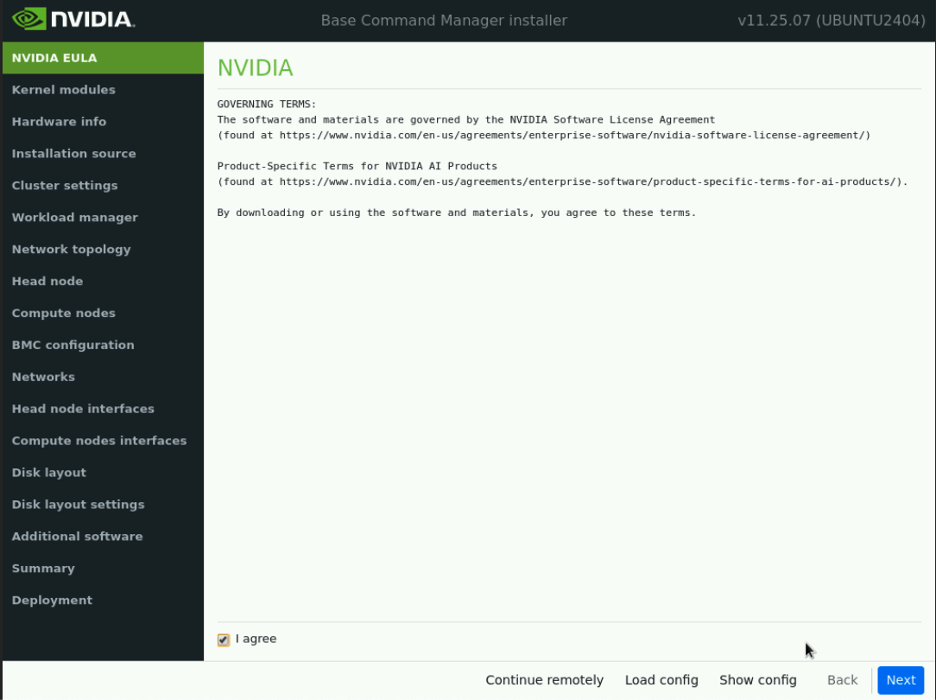

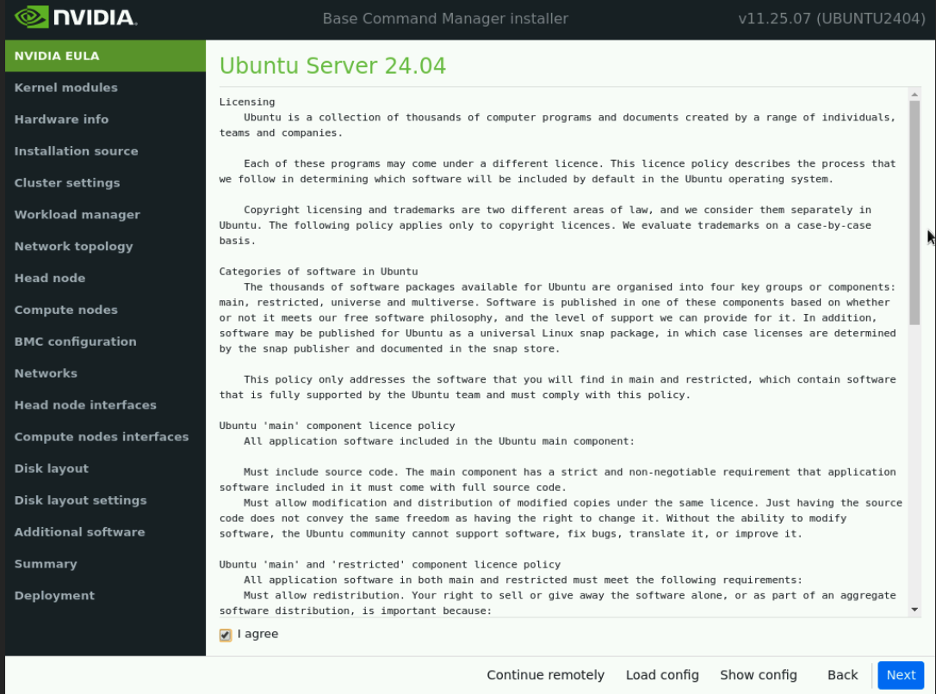

If you agree to the governing terms, select “I Agree” and then “Next.”
If you agree to the software licensing agreement, select “I Agree” and then “Next”.

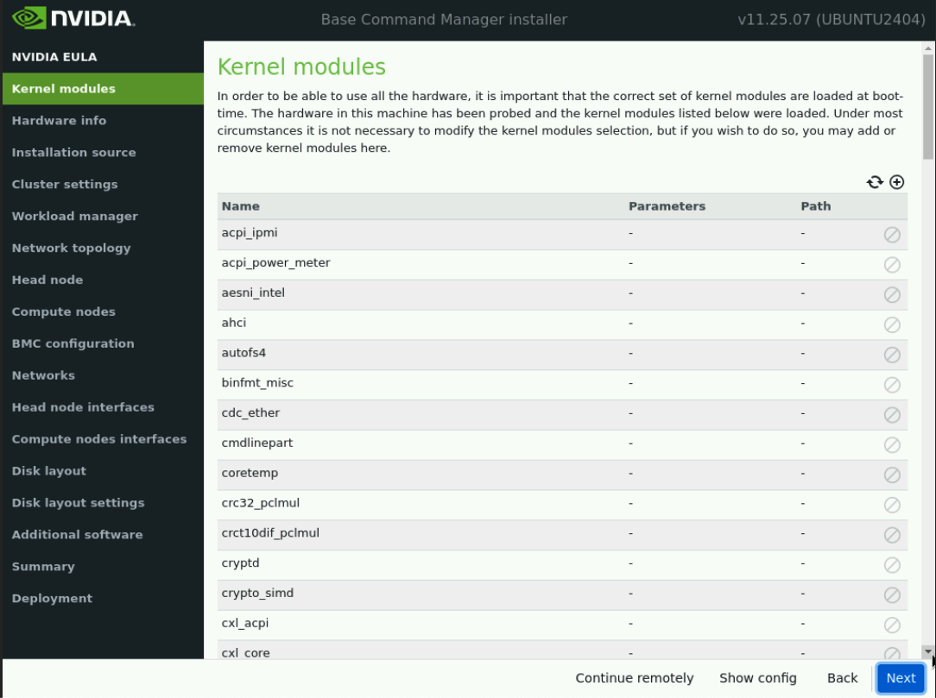

On the “Kernel Modules” page select “Next”.

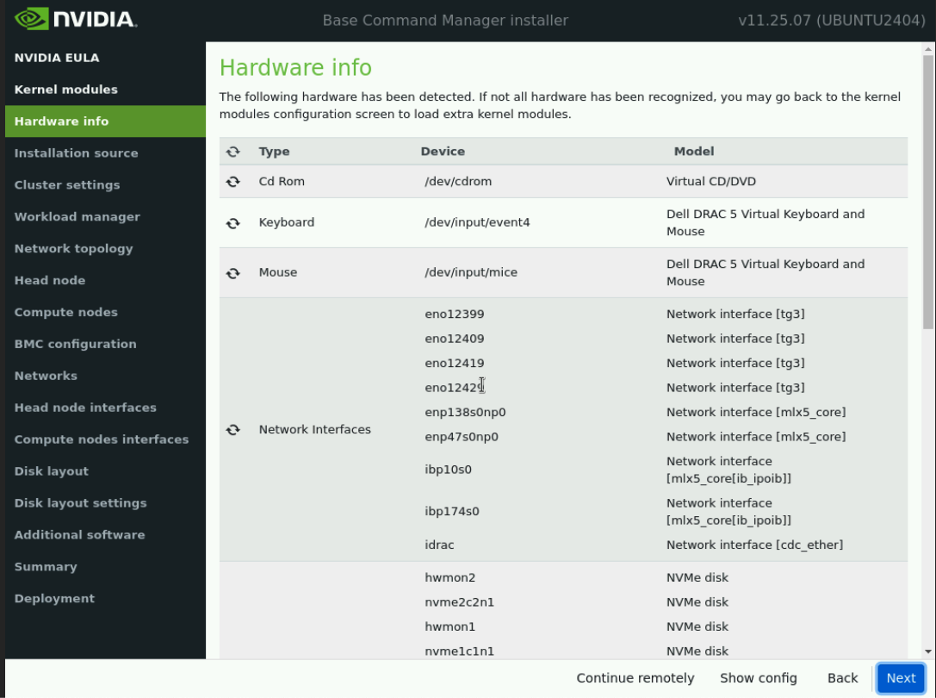

First, verify that the interface names for the two CX-7 OSFP interfaces (e.g., enp138s0np0 and enp47s0np0), configured in Ethernet Mode, match the site survey. These names are crucial for subsequent installation and Cluster Bring Up steps. Once documented, proceed by clicking “Next.”

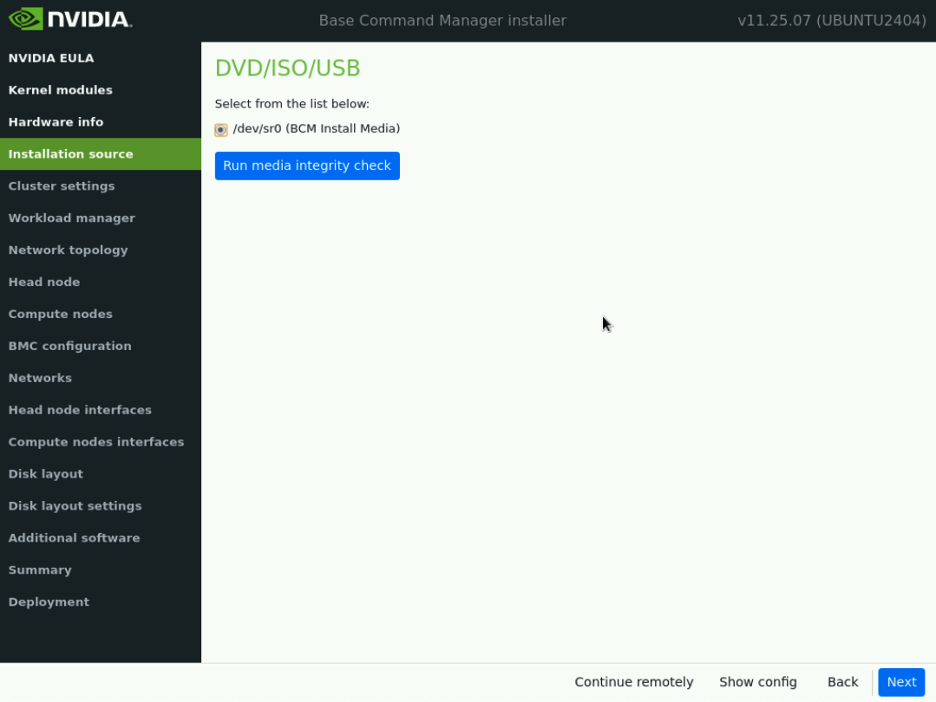

Select the appropriate install media source:

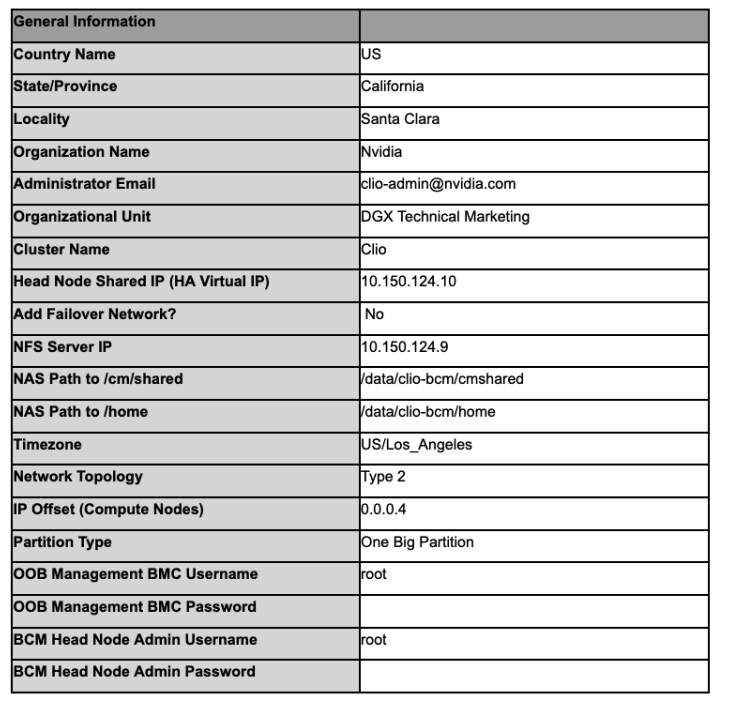

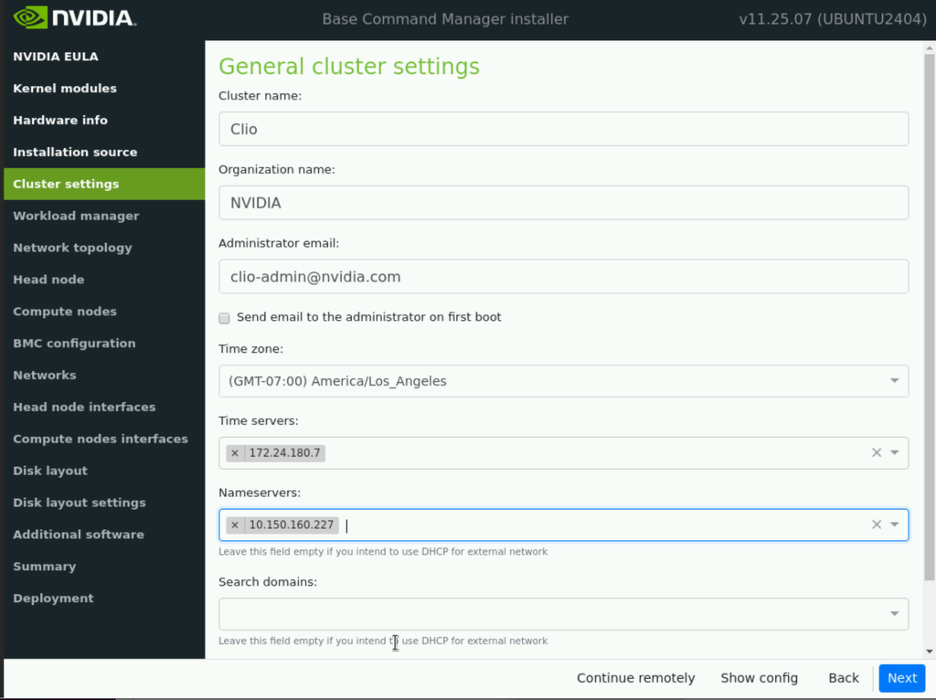

Populate the “Cluster settings” page with the requested details from the site survey.

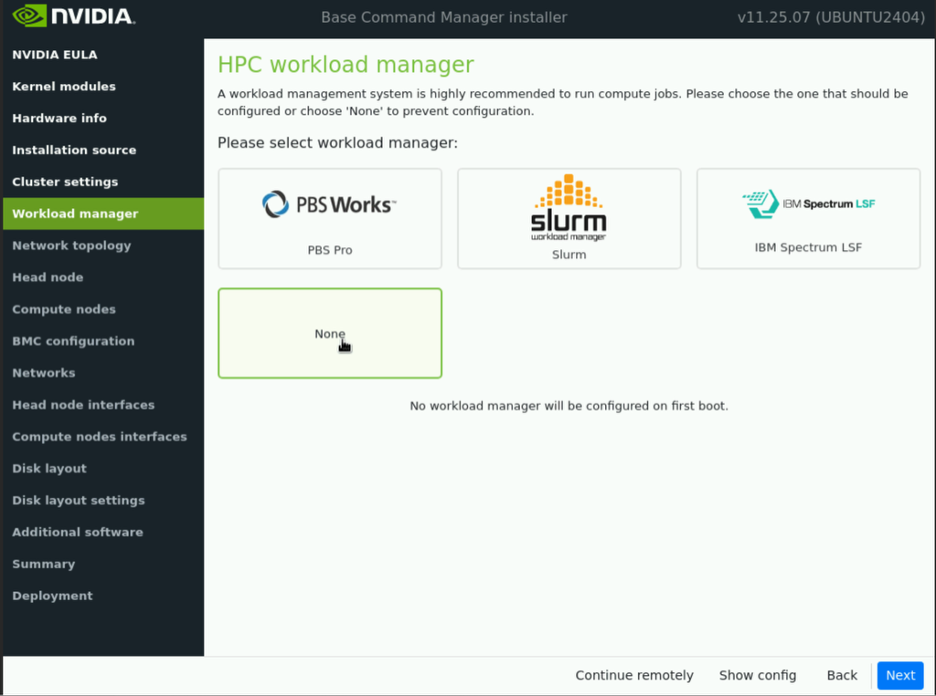

Select “None” as the HPC workload manager, then click “Next”.

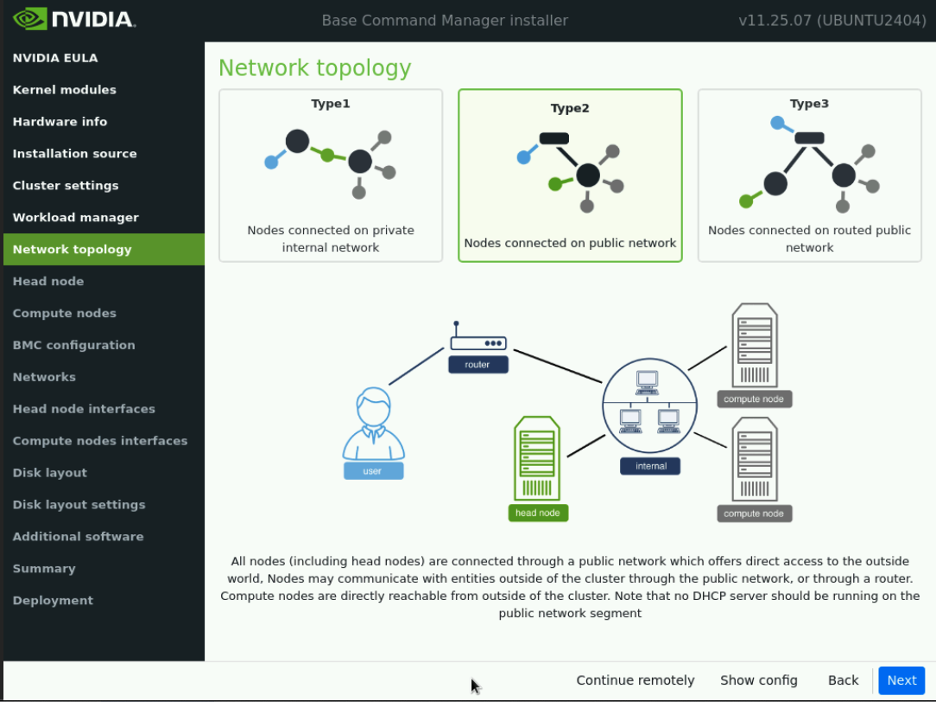

Select “Type2” as the Network Topology, then click “Next”.
In this deployment example we are using a type 2 network. More information on the different types of networks can be found in the BCM Installation Manual On the Head node settings page populate all requested values.

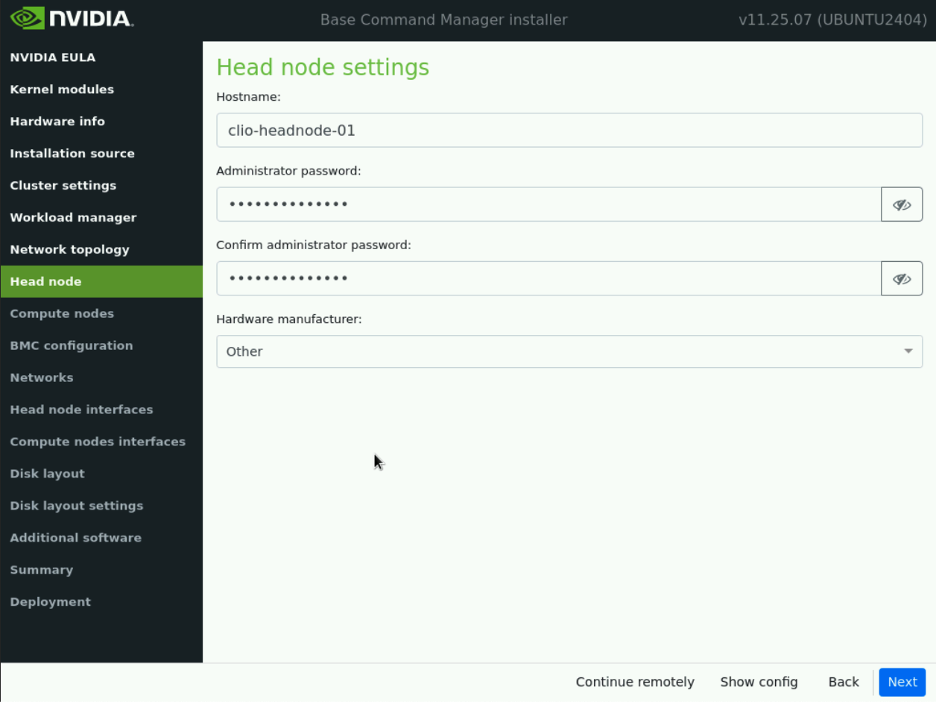

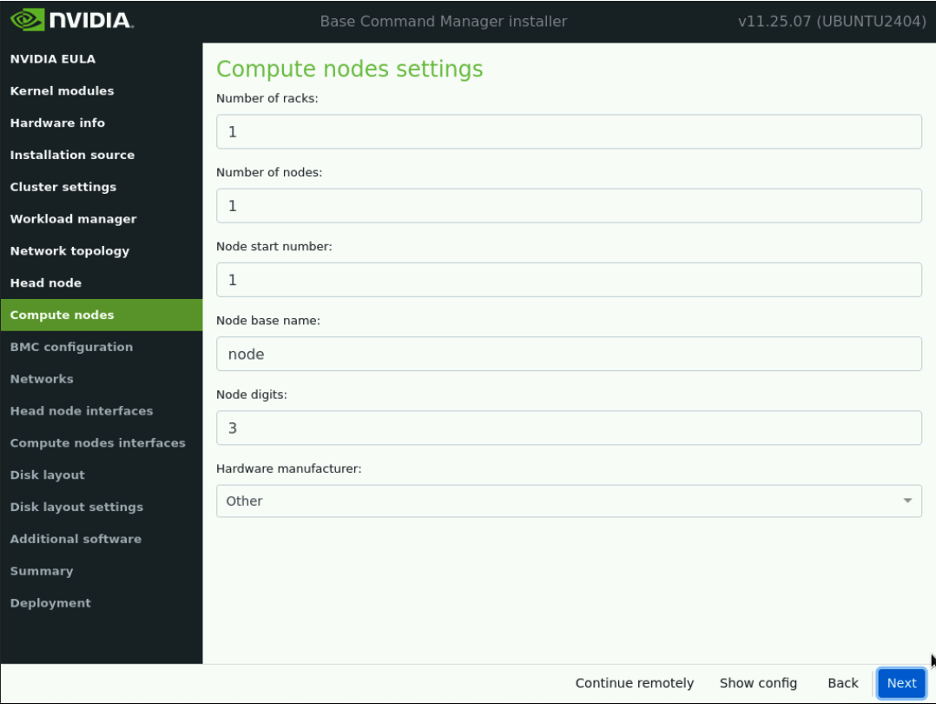

On the Compute Nodes page, accept the default values and click “Next.”

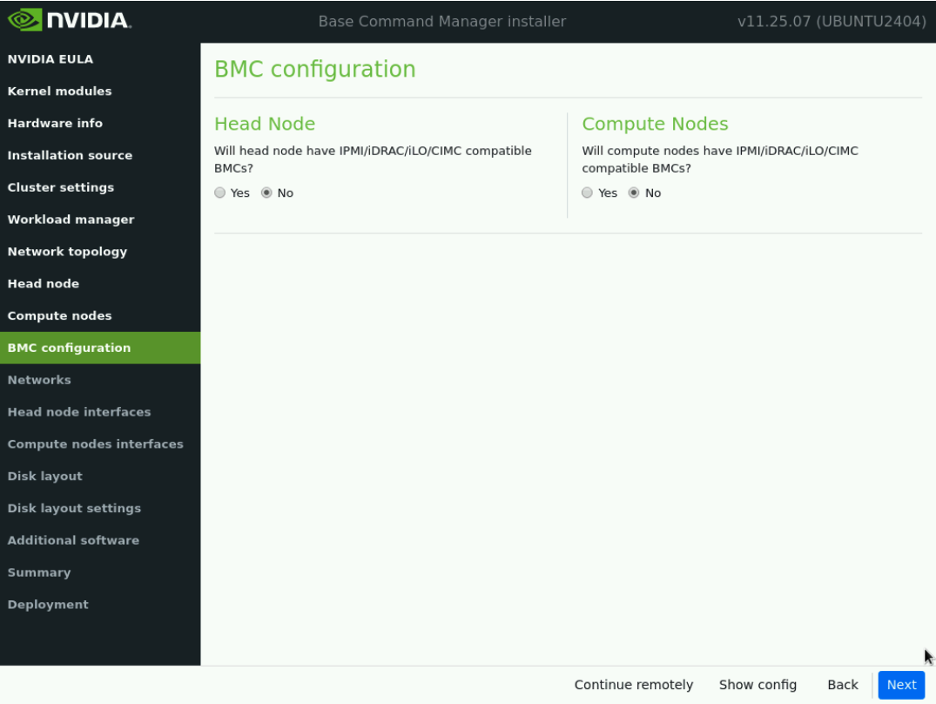

Under BMC configuration select “No” for both Head Node & Compute Nodes, then select “Next”.

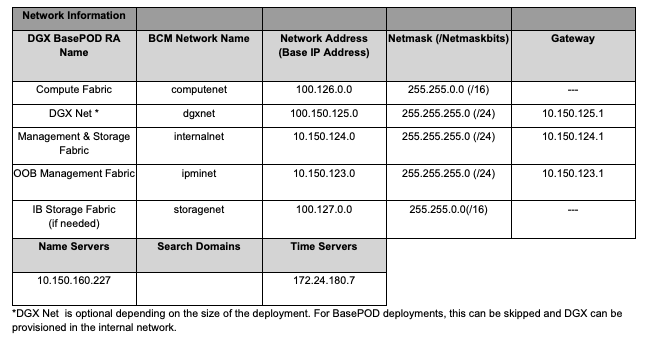

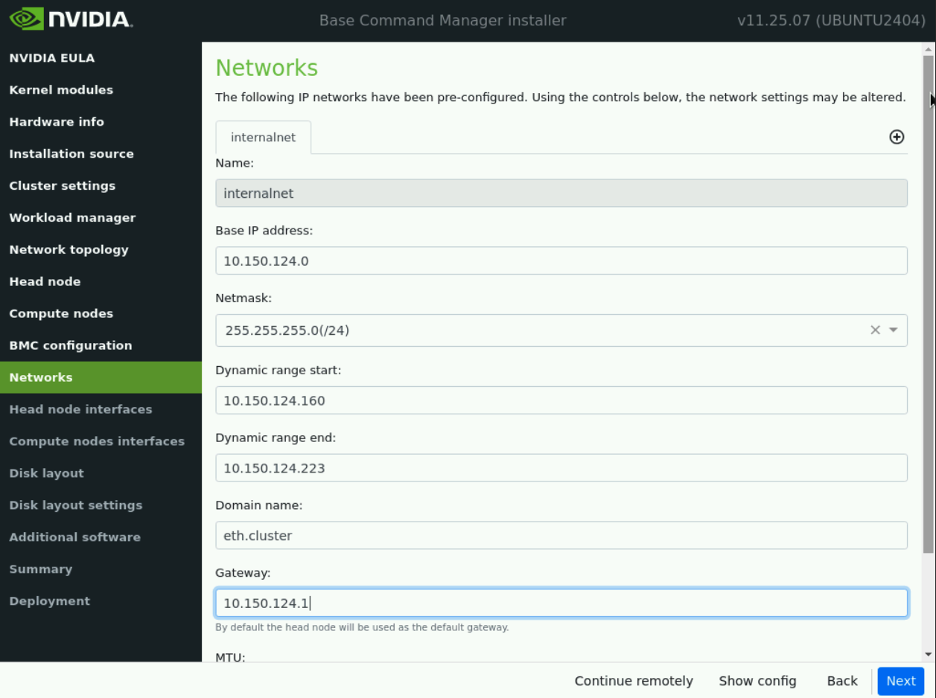

Proceed to populate the Networks page as per site survey.
Note
Only populate Internalnet, the other networks used in the DGX cluster will be defined during Cluster Bring Up.

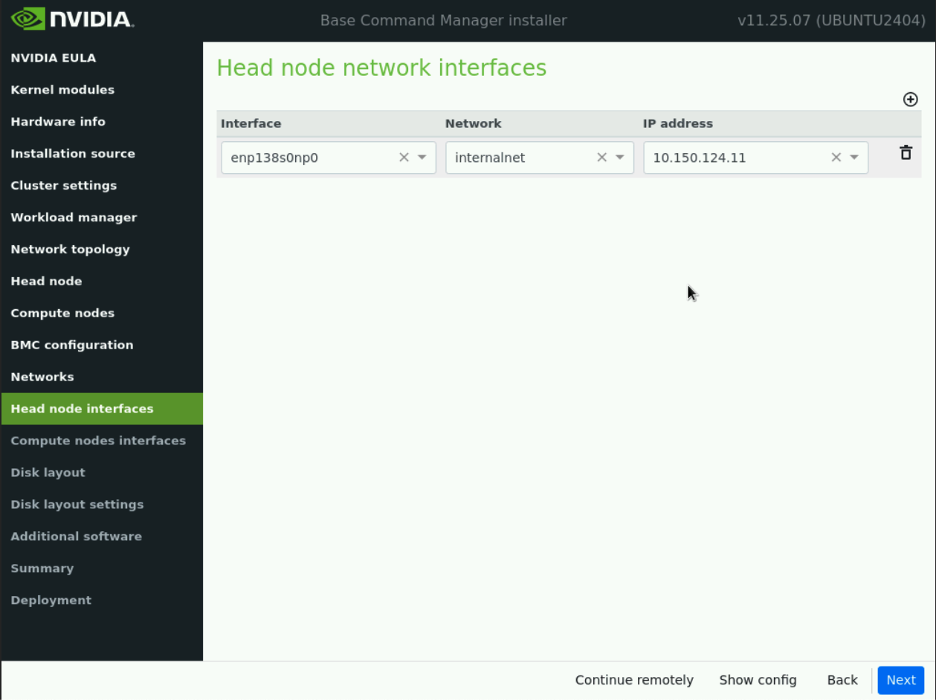

Next populate the headnode interface IP’s.

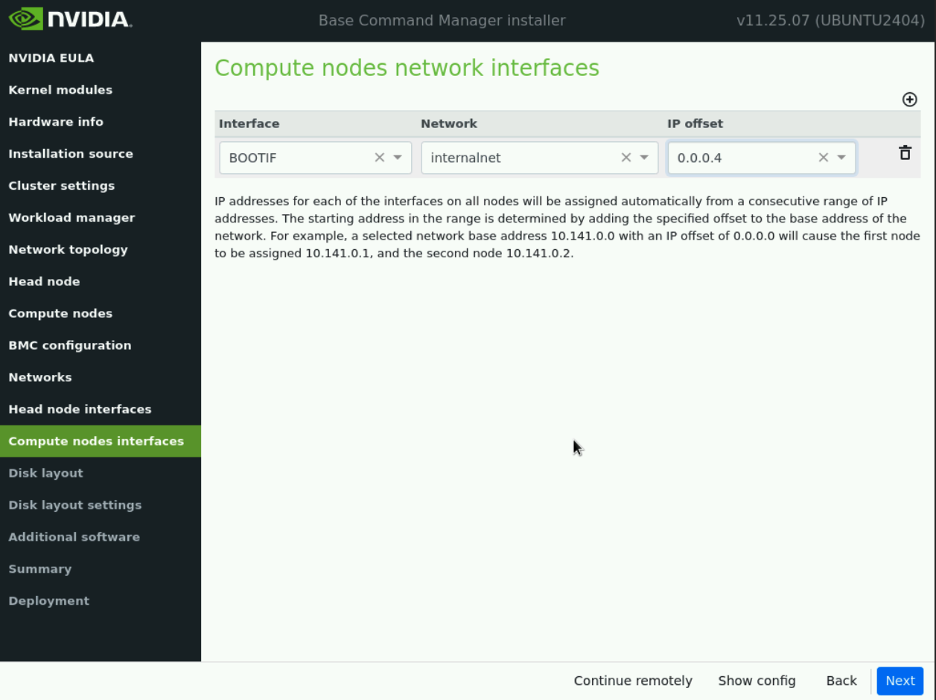

Set network offsets as 0.0.0.4 and select “Next”.

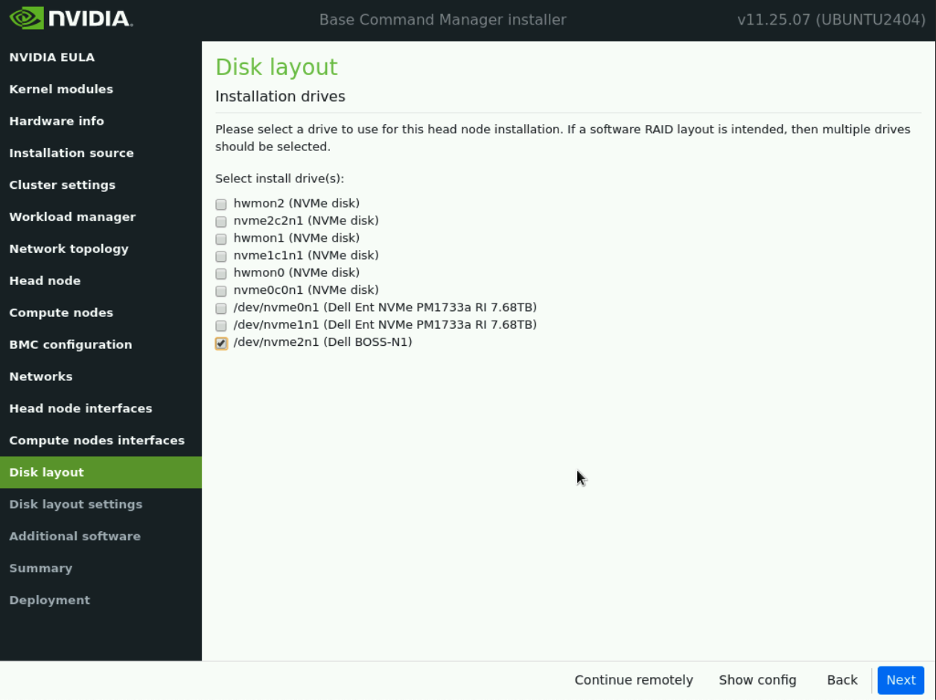

Choose the installation drive. It is recommended to install BCM on a RAID1 compliant drive. For Dell appliances, select the “Dell BOSS-N1” drive. In other cases where only software RAID is available, select a minimum of two drives, then click “Next”.
RAID controllers can be configured using the appliance’s BMC or vendor-provided software.

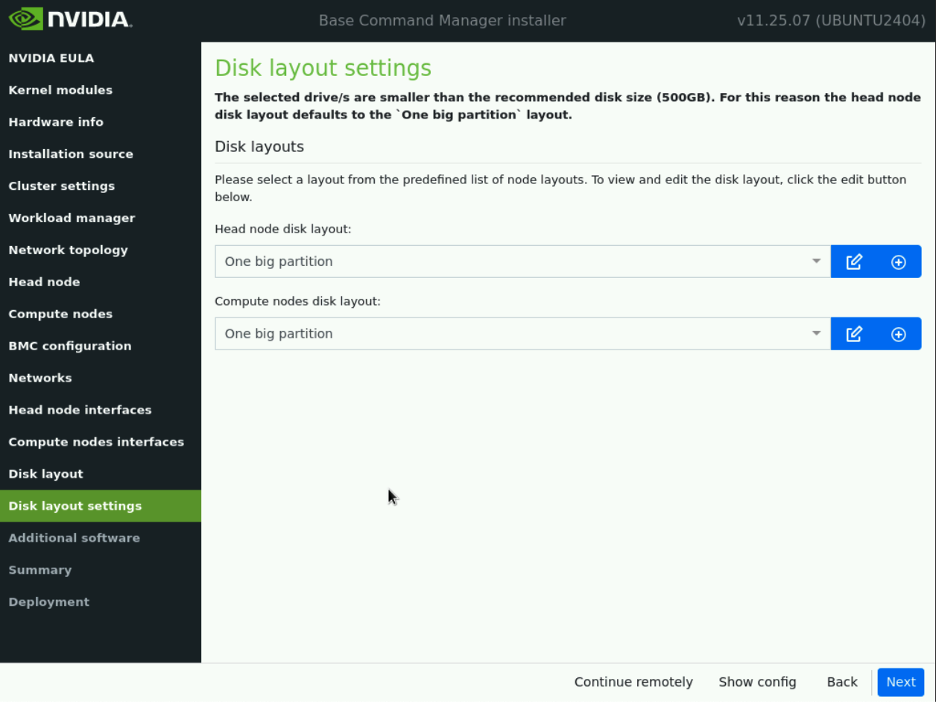

On the Disk layout settings page we’ll select “One Big Partition” for the Head node and Compute nodes disk layout.

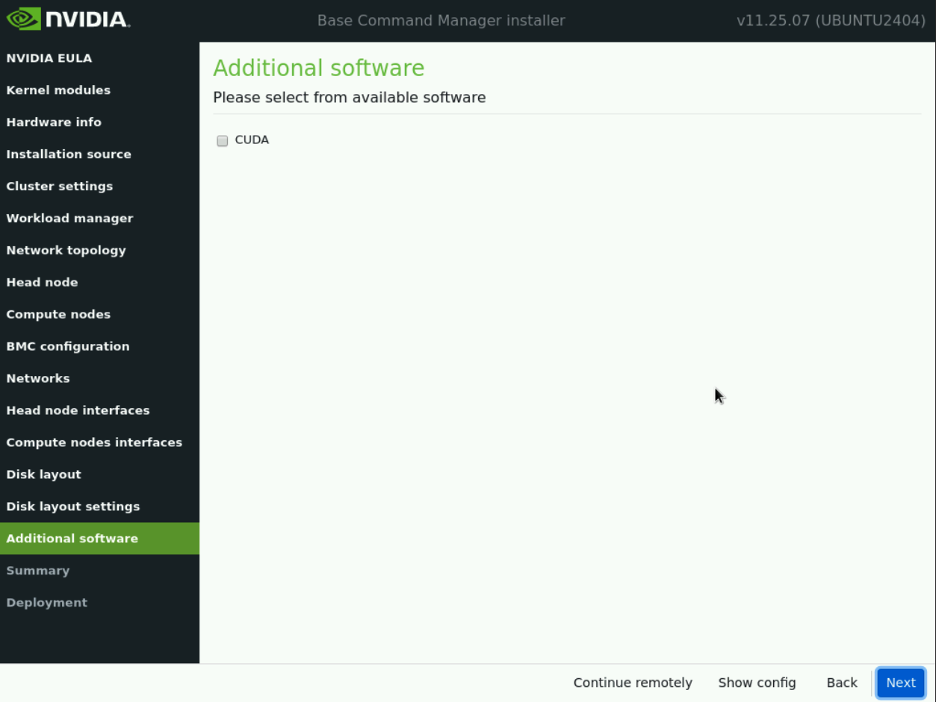

Leave CUDA unchecked.
Do not select the CUDA option; we will be using the CUDA from the DGX OS image.. Once you have reviewed the configuration, you can either select “Back” to make corrections on the association configuration page or click “Start” to proceed with the installation.

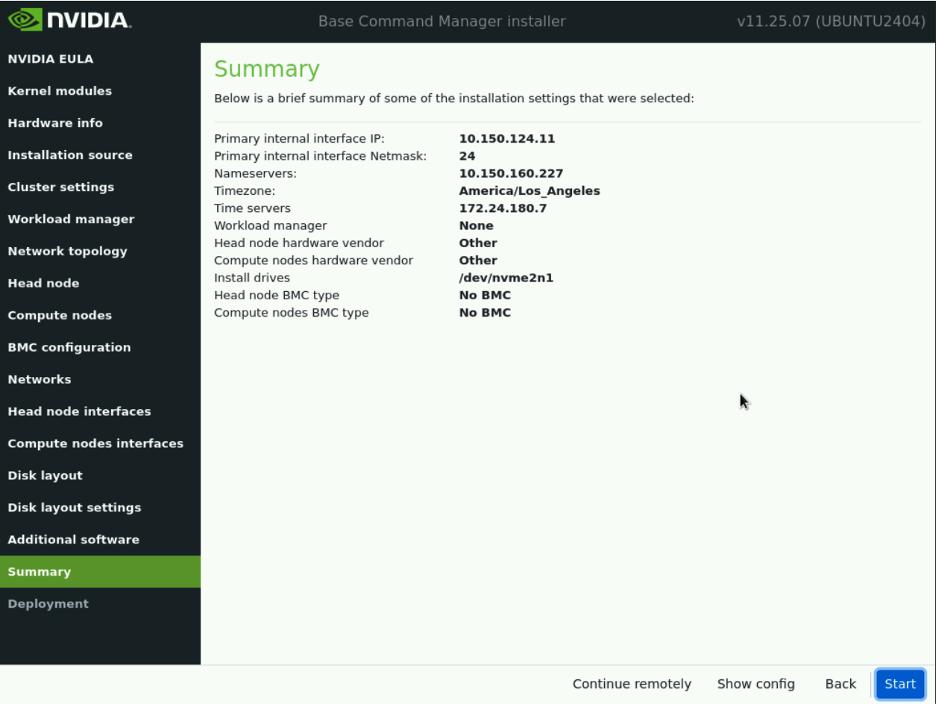

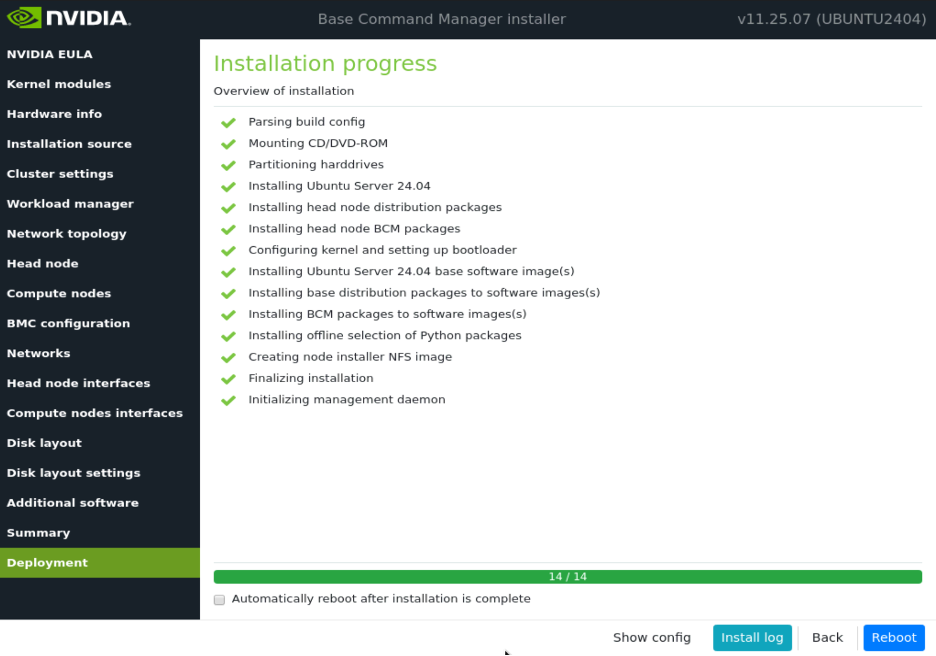

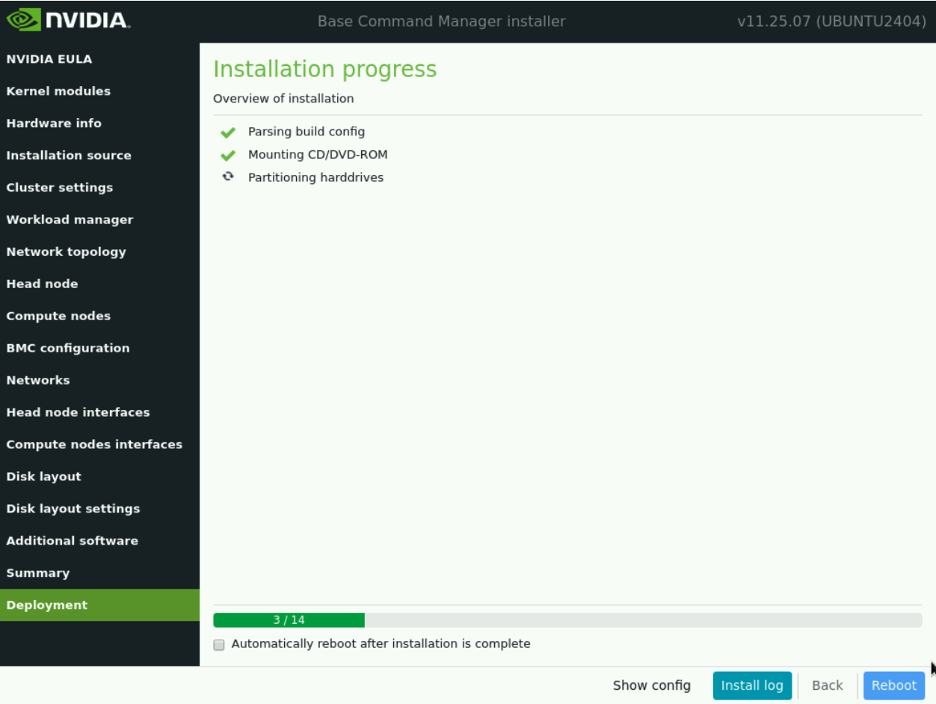

Monitor the progress of the install – Typically installs take ~15-30 minutes.
On successful installation the node will briefly show the below screen before automatically rebooting (if selected)
First time booting into BCM#
After the headnode finishes rebooting from the installation environment SSH to the head-node. Proceed to update the headnode to the newest available packages.
root@clio-headnode-01:~# apt update && apt upgrade -y

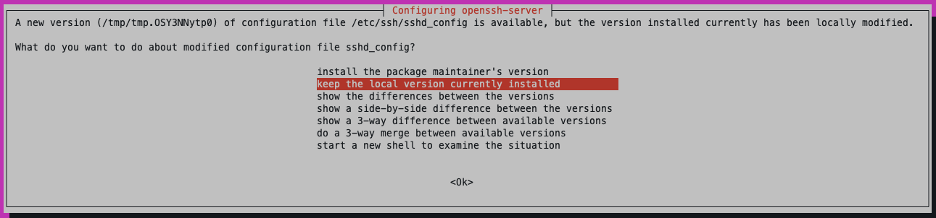

Select keep the local version for the below dialog box.
On successful update, reboot the head-node.
Activate the BCM Cluster License - Online#
SSH to headnode and activate the Cluster License with the request-license command
root@clio-headnode-01:~# request-license
Product Key (XXXXXX-XXXXXX-XXXXXX-XXXXXX-XXXXXX):000000-...-000000
Country Name (2 letter code): US
State or Province Name (full name): California
Locality Name (e.g. city): Santa Clara
Organization Name (e.g. company): NVIDIA
Organizational Unit Name (e.g. department): DGX Technical Marketing
Cluster Name: Clio
Private key data saved to /cm/local/apps/cmd/etc/cluster.key.new
Warning: Permanently added 'clio-headnode-01' (ED25519) to the list of known hosts.
MAC Address of primary head node (clio-headnode-01) for ens3f1np1 [08:C0:00:00:00:00]: 00:00:00:00:00:0F
Will this cluster use a high-availability setup with 2 head nodes? [y/N] y
MAC Address of secondary head node for eth0 [XX:XX:XX:XX:XX:XX]: 00:00:00:00:00:FF
Certificate request data saved to /cm/local/apps/cmd/etc/cluster.csr.new
Submit certificate request to http://licensing.brightcomputing.com/licensing/index.cgi ? [Y/n] Y
Contacting http://licensing.brightcomputing.com/licensing/index.cgi...
License granted.
License data was saved to /cm/local/apps/cmd/etc/cluster.pem.new
Install license? [Y/n] Y
========= Certificate Information ========
Version: 10
Edition: Advanced
OEM: NVIDIA
Common name: CLIO Cluster
Organization: NVIDIA
Organizational unit: DGX Technical Marketing
Locality: Santa Clara
State: California
Country: US
Serial: 2981953
Starting date: 07/Apr/2024
Expiration date: 31/Mar/2030
MAC address / Cloud ID: 16:49:F4:74:C0:54|0E:54:0A:9F:3A:10
Licensed tokens: 512
Accounting & Reporting: Yes
Allow edge sites: Yes
License type: Commercial
==========================================
Is the license information correct ? [Y/n] Y
Backup directory of old license: /var/spool/cmd/backup/certificates/2025-03-31_15.31.58
Installed new license
Revoke all existing cmd certificates
Waiting for CMDaemon to stop: OK
Installing admin certificates
Waiting for CMDaemon to start: OK
mysql: [Warning] Using a password on the command line interface can be insecure.
Copy cluster certificate to 3 images / node-installers
Copy cluster certificate to /cm/images/default-image//cm/local/apps/cmd/etc/cluster.pem
Copy cluster certificate to /cm/node-installer//cm/local/apps/cmd/etc/cluster.pem
Regenerating certificates for users
New license was installed. In order to allow compute nodes to obtain a new
node certificate, all compute nodes must be rebooted.
Please issue the following command to reboot all compute nodes:
pdsh -g computenode reboot
Activate the BCM Cluster License - Offline/Airgapped installations#
Install the license using the following steps for air-gapped environments.
root@clio-headnode-01:~# request-license Product Key (XXXXXX-XXXXXX-XXXXXX-XXXXXX-XXXXXX):000000-...-000000 Country Name (2 letter code): US State or Province Name (full name): CA Locality Name (e.g. city): Santa Clara Organization Name (e.g. company): NVIDIA Organizational Unit Name (e.g. department): NSV Mission Control Cluster Name: Viking Private key data saved to /cm/local/apps/cmd/etc/cluster.key.new MAC Address of primary head node (clio-headnode-01) for ens1np0 [<MAC:MAC>]: <MAC:MAC> Will this cluster use a high-availability setup with 2 head nodes? [y/N] y MAC Address of secondary head node for eth0 [XX:XX:XX:XX:XX:XX]: <MAC:MAC> Certificate request data saved to /cm/local/apps/cmd/etc/cluster.csr.new Submit certificate request to http://licensing.brightcomputing.com/licensing/index.cgi ? [Y/n] N Please use: http://licensing.brightcomputing.com/licensing/index.cgi to obtain a license, or submit a support request through the Bright Computing website. Contents of /cm/local/apps/cmd/etc/cluster.csr.new: -----BEGIN CERTIFICATE REQUEST----- … … … -----END CERTIFICATE REQUEST-----

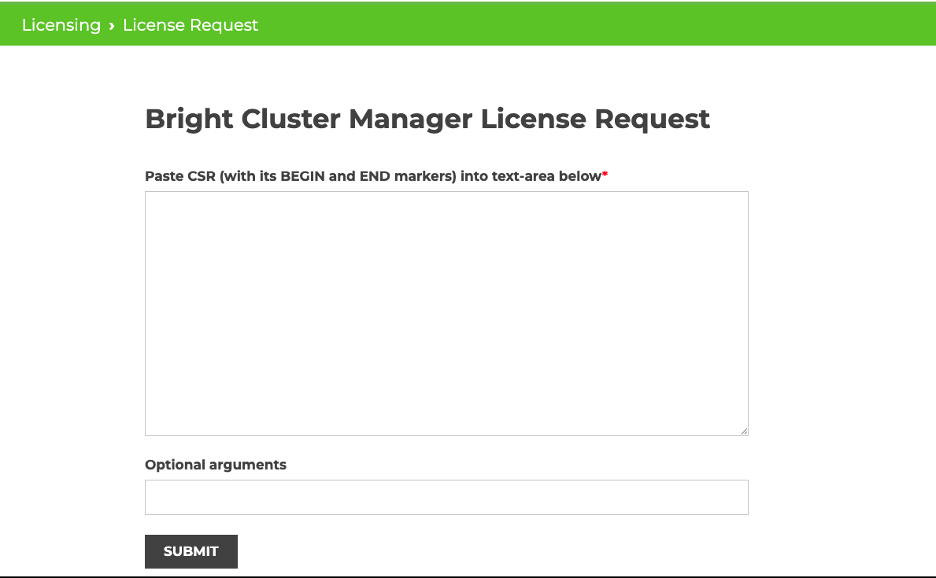

Go to licensing portal to generate the license file using CSR generate above.
Install the license file by copying the contents of the generated license to a file and install it using install-license <file name> command
root@clio-headnode-01:~# vi license-file # Paste the generated license contents # root@clio-headnode-01:~# install-license license-file mysql: [Warning] Using a password on the command line interface can be insecure. ========= Certificate Information ======== Version: 10 Edition: NVIDIA Mission Control OEM: NVIDIA Common name: Viking Organization: NVIDIA Organizational unit: NSV Mission Control Locality: Santa Clara State: CA Country: US Serial: <> Starting date: 08/Feb/2025 Expiration date: 23/Oct/2025 MAC address / Cloud ID: 88:E9:A4:20:18:9C|88:E9:A4:20:18:1C Licensed tokens: 8192 Accounting & Reporting: Yes Allow edge sites: Yes License type: Free ========================================== Is the license information correct ? [Y/n] Y Backup directory of old license: /var/spool/cmd/backup/certificates/2025-07-23_15.34.30 Installed new license Revoke all existing cmd certificates Waiting for CMDaemon to stop: OK Installing admin certificates Waiting for CMDaemon to start: OK mysql: [Warning] Using a password on the command line interface can be insecure. Copy cluster certificate to 3 images / node-installers Copy cluster certificate to /cm/node-installer//cm/local/apps/cmd/etc/cluster.pem Copy cluster certificate to /cm/images/dgx-image//cm/local/apps/cmd/etc/cluster.pem Copy cluster certificate to /cm/images/default-image//cm/local/apps/cmd/etc/cluster.pem mysql: [Warning] Using a password on the command line interface can be insecure. Regenerating certificates for users New license was installed. In order to allow compute nodes to obtain a new node certificate, all compute nodes must be rebooted. Please issue the following command to reboot all compute nodes: pdsh -g computenode reboot
Enable DeviceResolveAnyMAC#
The following section enables provisioning of the bonded interfaces on downstream appliances/nodes. This process enables failover PXE booting for bonded interfaces.
Edit /cm/local/apps/cmd/etc/cmd.conf and add the following line
AdvancedConfig = { "DeviceResolveAnyMAC=1" } # modified value
Example:
nano /cm/local/apps/cmd/etc/cmd.conf
GNU nano 6.2
# Set one or more advanced config parameters, only do this when needed
# AdvancedConfig = { "param=value", "param=value" }
AdvancedConfig = { "DeviceResolveAnyMAC=1" } # modified value
Once the above parameter has been saved restart the CMDaemon
root@bcm10-headnode:~# systemctl restart cmd
BCM Networking Configuration#
BCM networking configuration can be fully automated or manually configured. Refer to the following sections for more information.
Define Cluster Networks - Automated#
BCM can automatically create the networks, and categories nodes using bcm-netautogen.
Define Cluster Networks - Manual#
Nodes and networks can be manually defined within the BCM cluster using the steps outlined below.
Login to cmsh and define additional networks.
root@clio-headnode-01:~# cmsh [clio-headnode-01]% network [clio-headnode-01->network]% ls Name (key) Type Netmask bits Base address Domain name IPv6 ------------------ -------------- -------------- ---------------- -------------------- ---- globalnet Global 0 0.0.0.0 cm.cluster internalnet Internal 24 10.150.124.0 eth.cluster
Add ipminet. This is the Out Of Band (OOB) Management network.
[clio-headnode-01->network]% add ipminet [clio-headnode-01->network*[ipminet*]]% set netmaskbits 24 [clio-headnode-01->network*[ipminet*]]% set baseaddress 10.150.123.0 [clio-headnode-01->network*[ipminet*]]% set excludefromsearchdomain yes [clio-headnode-01->network*[ipminet*]]% set disableautomaticexports yes [clio-headnode-01->network*[ipminet*]]% set gateway 10.150.123.1 [clio-headnode-01->network*[ipminet*]]% commit
Check that all the network settings are correct by running the show command for each network configured.
[clio-headnode-01->network[ipminet]]% show Parameter Value -------------------------------- ------------------------------------------------ Name ipminet Private Cloud Revision Domain Name Type Internal MTU 1500 Allow autosign Automatic Write DNS zone both Node booting no Lock down dhcpd yes Management allowed yes Search domain index 0 Exclude from search domain yes Disable automatic exports yes Base address 10.150.123.0 Broadcast address 10.150.123.255 Dynamic range start 0.0.0.0 Dynamic range end 0.0.0.0 Netmask bits 24 Gateway 10.150.123.1 Cloud Subnet ID EC2AvailabilityZone Notes <0B>
Optional: create dgxnet(s), by cloning internalnet. For scaled deployments, multiple dgxnets can be utilized to isolate DGX nodes from the control nodes’ default management network. For small scale deployments, DGXes can be provisioned in the internalnet.
Note
Ensure the network is configured to forward DHCP requests from dgxnet to the BCM headnode IP.
[clio-headnode-01->network[ipminet]]% clone internalnet dgxnet [clio-headnode-01->network*[dgxnet*]]% set domainname cm.dgx [clio-headnode-01->network*[dgxnet*]]% set baseaddress 10.150.125.0 [clio-headnode-01->network*[dgxnet*]]% set gateway 10.150.125.1 [clio-headnode-01->network*[dgxnet*]]% commit [clio-headnode-01->network[dgxnet]]% show Parameter Value -------------------------------- ------------------------------------------------ Name dgxnet Private Cloud Revision Domain Name cm.dgx Type Internal MTU 1500 Allow autosign Automatic Write DNS zone both Node booting yes Lock down dhcpd no Management allowed yes Search domain index 0 Exclude from search domain no Disable automatic exports no Base address 10.150.125.0 Broadcast address 10.150.125.255 Dynamic range start 10.150.125.160 Dynamic range end 10.150.125.223 Netmask bits 24 Gateway 10.150.125.1 Cloud Subnet ID EC2AvailabilityZone Notes <0B>
Add computenet
[clio-headnode-01->network[dgxnet]]% add computenet [clio-headnode-01->network*[computenet*]]% set domainname ib.compute [clio-headnode-01->network*[computenet*]]% set baseaddress 100.126.0.0 [clio-headnode-01->network*[computenet*]]% set mtu 4000 [clio-headnode-01->network*[computenet*]]% commit [clio-headnode-01->network[computenet]]% show Parameter Value -------------------------------- ------------------------------------------------ Name computenet Private Cloud Revision Domain Name ib.compute Type Internal MTU 4000 Allow autosign Automatic Write DNS zone both Node booting no Lock down dhcpd no Management allowed no Search domain index 0 Exclude from search domain no Disable automatic exports no Base address 100.126.0.0 Broadcast address 100.126.255.255 Dynamic range start 0.0.0.0 Dynamic range end 0.0.0.0 Netmask bits 16 Gateway 0.0.0.0 Cloud Subnet ID EC2AvailabilityZone Notes <0B>
Add storagenet
[clio-headnode-01->network[computenet]]% clone computenet storagenet [clio-headnode-01->network*[storagenet*]]% set domainname ib.storage [clio-headnode-01->network*[storagenet*]]% set baseaddress 100.127.0.0 [clio-headnode-01->network*[storagenet*]]% commit [clio-headnode-01->network[storagenet]]% show Parameter Value -------------------------------- ------------------------------------------------ Name storagenet Private Cloud Revision Domain Name ib.storage Type Internal MTU 4000 Allow autosign Automatic Write DNS zone both Node booting no Lock down dhcpd no Management allowed no Search domain index 0 Exclude from search domain no Disable automatic exports no Base address 100.127.0.0 Broadcast address 100.127.255.255 Dynamic range start 0.0.0.0 Dynamic range end 0.0.0.0 Netmask bits 16 Gateway 0.0.0.0 Cloud Subnet ID EC2AvailabilityZone Notes <0B>
Before moving forward be sure to verify the defined networks.
[clio-headnode-01->network[storagenet]]% .. [clio-headnode-01->network]% ls Name (key) Type Netmask bits Base address Domain name IPv6 ------------------ -------------- -------------- ---------------- -------------------- ---- computenet Internal 16 100.126.0.0 ib.compute dgxnet Internal 24 10.150.125.0 cm.dgx globalnet Global 0 0.0.0.0 cm.cluster internalnet Internal 24 10.150.124.0 eth.cluster ipminet Internal 24 10.150.123.0 storagenet Internal 16 100.127.0.0 ib.storage
Enable Bonding on the Headnode#
Note
Always use a remote or physical KVM for this action, not SSH. Before you begin, confirm that the headnode’s out-of-band management, BMC interface, or remote/physical KVM is reachable and working.
In this step, we’ll clear the interface IP which was assigned to the primary interface during the installation and assign it to the newly created bond interface with the network interfaces. Refer to site survey for the network interface names/MAC addresses.
Login to headnode and run Cluster Manager Shell (cmsh).
root@clio-headnode-01:~# cmsh [clio-headnode-01]% device [clio-headnode-01->device]% use clio-headnode-01 [clio-headnode-01->device[clio-headnode-01]]% interfaces [clio-headnode-01->device[clio-headnode-01]->interfaces]% ls Type Network device name IP Network Start if ------------ -------------------- ---------------- ---------------- -------- physical enp138s0np0 [prov] 10.150.124.12 internalnet always [clio-headnode-01->device[clio-headnode-01]->interfaces]% add bmc ipmi0 10.150.123.11 ipminet [clio-headnode-01->device*[clio-headnode-01*]->interfaces*[enpenp138s0np0*]]% add physical enp47s0np0 [clio-headnode-01->device*[clio-headnode-01*]->interfaces*[enp47s0np0*]]% add bond bond0 10.150.124.12 internalnet [clio-headnode-01->device*[clio-headnode-01*]->interfaces*[bond0*]]% set mode 4 [clio-headnode-01->device*[clio-headnode-01*]->interfaces*[bond0*]]% set interfaces enp138s0np0 enp47s0np0 [clio-headnode-01->device*[clio-headnode-01*]->interfaces*[bond0*]]% use enp138s0np0 [clio-headnode-01->device*[clio-headnode-01*]->interfaces*[enp138s0np0]]% clear network [clio-headnode-01->device*[clio-headnode-01*]->interfaces*[enp138s0np0*]]% clear ip [clio-headnode-01->device*[clio-headnode-01*]->interfaces*[enp138s0np0*]]% .. [clio-headnode-01->device*[clio-headnode-01*]->interfaces*]% .. [clio-headnode-01->device*[clio-headnode-01*]]% set provisioninginterface bond0 [clio-headnode-01->device*[clio-headnode-01*]]% commit [clio-headnode-01->device[clio-headnode-01]->interfaces]% ls Type Network device name IP Network Start if ------------ -------------------- ---------------- ---------------- -------- bmc ipmi0 10.150.123.12 ipminet always bond bond0 [prov] 10.150.124.12 internalnet always physical enp138s0np0 (bond0) 0.0.0.0 always physical enp47s0np0 (bond0) 0.0.0.0 always [clio-headnode-01->device[clio-headnode-01]->interfaces]% use bond0 [clio-headnode-01->device[clio-headnode-01]->interfaces[bond0]]% show Parameter Value -------------------------------- ------------------------------------------------ Revision Type bond Network device name bond0 [prov] Network internalnet IP 10.150.124.12 DHCP no Alternative Hostname Additional Hostnames Switch ports Start if always BringUpDuringInstall no On network priority 70 Mode 4 (802.3ad) Options Interfaces enp138s0np0,enp47s0np0
Verify the IP connectivity to the BCM headnode using ping/ssh before proceeding.
Should the head node’s network connection fail to update after committing changes, access the appliance console via BMC or physical KVM and restart the networking service to apply the changes.
[clio-headnode-01->device[clio-headnode-01]->interfaces]% !systemctl restart networking.service or root@clio-headnode-01:~# systemctl restart networking.service
Add fsexports for Additional networks (e.g dgxnet) in BCM#
This step applies only if DGX nodes use a separate network; otherwise, it is not applicable. If multiple DGXnets are in use, repeat these steps for each network where nodes are provisioned.
Enable shared filesystem access from additional networks to facilitate appliance provisioning.
root@clio-headnode-01:~# cmsh [clio-headnode-01]% device [clio-headnode-01->device]% use clio-headnode-01 [clio-headnode-01->device[clio-headnode-01]]% fsexports [clio-headnode-01->device[clio-headnode-01]->fsexports]% ls Name (key) Path Network Hosts Write Disabled -------------------------------------------- -------------------------------- ------------------------ ------------ ------ -------- /cm/node-installer@internalnet /cm/node-installer internalnet no no /cm/node-installer/certificates@internalnet /cm/node-installer/certificates internalnet yes no /var/spool/burn@internalnet /var/spool/burn internalnet yes no /home@internalnet /home internalnet yes no /cm/shared@internalnet /cm/shared internalnet yes no [clio-headnode-01->device[clio-headnode-01]->fsexports]% add /cm/node-installer dgxnet [clio-headnode-01->device*[clio-headnode-01*]->fsexports*[/cm/node-installer@dgxnet*]]% .. [clio-headnode-01->device*[clio-headnode-01*]->fsexports*]% add /cm/node-installer/certificates dgxnet [clio-headnode-01->device*[clio-headnode-01*]->fsexports*[/cm/node-installer/certificates@dgxnet*]]% set write yes [clio-headnode-01->device*[clio-headnode-01*]->fsexports*[/cm/node-installer/certificates@dgxnet*]]% .. [clio-headnode-01->device*[clio-headnode-01*]->fsexports*]% add /var/spool/burn dgxnet [clio-headnode-01->device*[clio-headnode-01*]->fsexports*[/var/spool/burn@dgxnet*]]% set write yes [clio-headnode-01->device*[clio-headnode-01*]->fsexports*[/var/spool/burn@dgxnet*]]% .. [clio-headnode-01->device*[clio-headnode-01*]->fsexports*]% add /home dgxnet [clio-headnode-01->device*[clio-headnode-01*]->fsexports*[/home@dgxnet*]]% set write yes [clio-headnode-01->device*[clio-headnode-01*]->fsexports*[/home@dgxnet*]]% .. [clio-headnode-01->device*[clio-headnode-01*]->fsexports*]% add /cm/shared dgxnet [clio-headnode-01->device*[clio-headnode-01*]->fsexports*[/cm/shared@dgxnet*]]% set write yes [clio-headnode-01->device*[clio-headnode-01*]->fsexports*[/cm/shared@dgxnet*]]% .. [clio-headnode-01->device*[clio-headnode-01*]->fsexports*]% ls Name (key) Path Network Hosts Write Disabled -------------------------------------------- -------------------------------- ------------------------ ------------ ------ -------- /cm/node-installer@internalnet /cm/node-installer internalnet no no /cm/node-installer/certificates@internalnet /cm/node-installer/certificates internalnet yes no /var/spool/burn@internalnet /var/spool/burn internalnet yes no /home@internalnet /home internalnet yes no /cm/shared@internalnet /cm/shared internalnet yes no /cm/node-installer@dgxnet /cm/node-installer dgxnet no no /cm/node-installer/certificates@dgxnet /cm/node-installer/certificates dgxnet yes no /var/spool/burn@dgxnet /var/spool/burn dgxnet yes no /home@dgxnet /home dgxnet yes no /cm/shared@dgxnet /cm/shared dgxnet yes no [clio-headnode-01->device*[clio-headnode-01*]->fsexports*]% commit [clio-headnode-01->device[clio-headnode-01]->fsexports]% Fri Jan 17 18:05:16 2025 [notice] clio-headnode-01: Service nfs was reloaded [clio-headnode-01->device[clio-headnode-01]->fsexports]%
Node Provisioning#
The configuration of the control and DGX nodes can be performed either manually or automatically, depending on the deployment’s scale.
The below sections outline the steps for manual provisioning of the nodes.
Manual Provisioning - Create Control Node Definitions#
Note
In this example, we are defining Slurm Node, slogin-01. Repeat the same procedure for other control nodes like kubernetes/Run:AI
Clone the default image.
[clio-headnode-01->softwareimage]% clone default-image slogin-image [clio-headnode-01->softwareimage*[slogin-image*]]% commit
Clone default category to create the slogin category and set the software image to slogin-image.
[clio-headnode-01->category]% clone default slogin [clio-headnode-01->category*[slogin*]]% set softwareimage slogin-image [clio-headnode-01->category*[slogin*]]% commit
Add a new physical node for the slogin-01 node and set its IP address.
[clio-headnode-01]% device [clio-headnode-01->device]% add physicalnode slogin-01 10.150.124.17 bond0 [clio-headnode-01->device*[slogin*]]% set category slogin
Set the interfaces and MAC addresses for the specified SLOGIN node.
[clio-headnode-01->device*[SLOGIN-01*]% interfaces [clio-headnode-01->device*[SLOGIN-01*]->interfaces]% remove bootif [clio-headnode-01->device*[SLOGIN-01*]->interfaces*]% add bmc ipmi0 10.150.123.17 ipminet [clio-headnode-01->device*[SLOGIN-01*]->interfaces*]% set bond0 ip 10.150.124.17 [clio-headnode-01->device*[SLOGIN-01*]->interfaces*]% add physical enp138s0np0 [clio-headnode-01->device*[SLOGIN-01*]->interfaces*]% set enp138s0np0 mac A0:88:C2:34:44:DC [clio-headnode-01->device*[SLOGIN-01*]->interfaces*]% add physical enp47s0np0 [clio-headnode-01->device*[SLOGIN-01*]->interfaces*]% set enp47s0np0 mac A0:88:C2:34:44:D8 [clio-headnode-01->device*[SLOGIN-01*]->interfaces*]% set bond0 interfaces enp138s0np0 enp47s0np0 [clio-headnode-01->device*[SLOGIN-01*]->interfaces*]% .. [clio-headnode-01->device*[SLOGIN-01*]]% set provisioninginterface bond0 [clio-headnode-01->device*[SLOGIN-01*]]% set mac A0:88:C2:34:44:DC [clio-headnode-01->device*[SLOGIN-01*]]% interfaces [clio-headnode-01->device*[SLOGIN-01*]->interfaces*]% commit [clio-headnode-01->device*[SLOGIN-01*]->interfaces*]% .. [clio-headnode-01->device*[SLOGIN-01*]]% commit
Repeat the same steps for other control nodes.
Set BMC settings in cmsh
[clio-headnode-01->device]% category [clio-headnode-01->category]% use slogin [clio-headnode-01->category[slogin]]% bmcsettings [clio-headnode-01->category[slogin]->bmcsettings]% set username <BMC User> [clio-headnode-01->category*[slogin*]->bmcsettings*]% set password <BMC Pass> [clio-headnode-01->category*[slogin*]->bmcsettings*]% commit
Provision Nodes into the Cluster#
Power on all the nodes. They should boot into their assigned roles automatically.
[clio-headnode-01->device]% power on -c slogin ipmi0 .................... [ ON ] slogin-01
Manual Provisioning - Create DGX Node Definitions#
Create boot image and category#
Using cmsh, verify that the built-in DGX OS image is present.
root@clio-headnode-01:~# cmsh [clio-headnode-01]% softwareimage [clio-headnode-01->softwareimage]% ls Name (key) Path (key) Kernel version Nodes -------------------- ---------------------------------------- ----------------- -------- default-image /cm/images/default-image 6.8.0-51-generic 1 dgx-image /cm/images/dgx-image 6.8.0-60-generic 0
Clone the built-in image with a suitable name, e.g. for slum nodes, use dgx-b200-slurm-image.
[clio-headnode-01->softwareimage]% clone dgx-image dgx-b200-slurm-image [clio-headnode-01->softwareimage*[dgx-b200-slurm-image*]]% commit Thu Aug 7 09:14:33 2025 [notice] clio-headnode-01: Started to copy: [clio-headnode-01->softwareimage[dgx-b200-slurm-image]]% ls Name (key) Path (key) Kernel version Nodes -------------------- ---------------------------------------- ----------------- -------- default-image /cm/images/default-image 6.8.0-51-generic 1 dgx-b200-slrum-img /cm/images/dgx-b200-slurm-image 6.8.0-60-generic 0 dgx-image /cm/images/dgx-image 6.8.0-60-generic 0
Create a category for dgx nodes, and assign the newly created image to the category. In this example, we are creating a category for B200 slurm nodes.
[clio-headnode-01->category]% [clio-headnode-01->category]% ls Name (key) Software image Nodes ------------------------ ------------------------ -------- default default-image 1 dgx dgx-image 0 [clio-headnode-01->category]% clone dgx dgx-b200-slurm [clio-headnode-01->category*[dgx-b200-slurm*]]% commit [clio-headnode-01->category]% use dgx-b200-slurm [clio-headnode-01->category[dgx-b200-slurm]]% set softwareimage dgx-b200-slurm-image [clio-headnode-01->category*[dgx-b200-slurm*]]% commit
If deploying Run:AI, you might need to create additional node categories or images. Consult the Run:AI Deployment guide for suggested category names.
Configure DGX B200 node#
Quit cmsh and from run bcm-pod-setup from the bcm shell.
- Command syntax:
module load bcm-post-install bcm-pod-setup --dgx-type b200 --dgx-category <category name> --dgx-image <image name>
Repeat the same for all categories of DGXB200 Nodes.
root@clio-headnode-01:~# module load bcm-post-install root@clio-headnode-01:~# bcm-pod-setup --dgx-type b200 --dgx-category dgx-b200-slurm --dgx-image dgx-b200-slurm-image =================== Starting POD setup. =================== Running BasePOD configuration Cleaning up unused A100 software image and category - Category dgx-a100 has already been removed - dgx-os-7.1-a100-image image has already been removed Updating sysctl config in dgx-b200-slurm-image Updating distribution kernel parameters for dgx-b200-slurm-image Updating additional kernel parameters for dgx-b200-slurm-image Updating kernel modules in default-image Updating image sshd configuration and removing machine-id file - /cm/images/default-image - /cm/images/dgx-b200-slurm-image Adding DGX node disk layout - Updating category configuration Adding UDEV persistent rules Cleaning up environment. =============== Deploy Complete ===============
Define the DGX B200 node identity and assign it to the category created above. Refer to site survey for the node identity details.
Note
In this example, the DGX nodes are created in the dgxnet network. They can be added to internalnet for small scale deployments.
[clio-headnode-01->device]% add physicalnode dgx-01 10.150.125.25 bond0 [clio-headnode-01->device*[dgx-01*]]% set category dgx-b200-slurm [clio-headnode-01->device*[dgx-01*]]% set mac 58:A2:E1:E7:1D:7F
Set the interfaces and MAC addresses of the inband management interfaces for the specified DGX.
[clio-headnode-01->device*[dgx-01*]]% interfaces [clio-headnode-01->device*[dgx-01*]->interfaces]% remove bootif [clio-headnode-01->device*[dgx-01*]->interfaces*]% add bmc ipmi0 10.150.123.25 Switched power control for this node to: ipmi0 [clio-headnode-01->device*[dgx-01*]->interfaces*[ipmi0*]]% add physical enp170s0f1np1 [clio-headnode-01->device*[dgx-01*]->interfaces*[enp170s0f1np1*]]% set mac 58:A2:E1:E7:1D:7F [clio-headnode-01->device*[dgx-01*]->interfaces*[enp170s0f1np1*]]% .. [clio-headnode-01->device*[dgx-01*]->interfaces*]% add physical enp41s0f1np1 [clio-headnode-01->device*[dgx-01*]->interfaces*[enp41s0f1np1*]]% set mac C4:70:BD:D2:05:D5 [clio-headnode-01->device*[dgx-01*]->interfaces*[enp41s0f1np1*]]% .. [clio-headnode-01->device*[dgx-01*]->interfaces*]% use bond0 [clio-headnode-01->device*[dgx-01*]->interfaces*[bond0]]% set mode 4 [clio-headnode-01->device*[dgx-01*]->interfaces*[bond0*]]% set interfaces enp170s0f1np1 enp41s0f1np1 [clio-headnode-01->device*[dgx-01*]->interfaces*[bond0*]]% commit [clio-headnode-01->device[dgx-01]->interfaces*[bond0]]% .. [clio-headnode-01->device[dgx-01]->interfaces*]% commit
Define the IB interfaces for the DGX B200.
[clio-headnode-01->device[dgx-01]->interfaces]% add physical ibp154s0 100.126.1.1 computenet [clio-headnode-01->device*[dgx-01*]->interfaces*[ibp154s0*]]% [clio-headnode-01->device*[dgx-01*]->interfaces*[ibp154s0*]]% [clio-headnode-01->device*[dgx-01*]->interfaces*[ibp154s0*]]% add physical ibp192s0 100.126.2.1 computenet [clio-headnode-01->device*[dgx-01*]->interfaces*[ibp192s0*]]% add physical ibp206s0 100.126.3.1 computenet [clio-headnode-01->device*[dgx-01*]->interfaces*[ibp206s0*]]% add physical ibp220s0 100.126.4.1 computenet [clio-headnode-01->device*[dgx-01*]->interfaces*[ibp220s0*]]% add physical ibp24s0 100.126.5.1 computenet [clio-headnode-01->device*[dgx-01*]->interfaces*[ibp24s0*]]% add physical ibp64s0 100.126.6.1 computenet [clio-headnode-01->device*[dgx-01*]->interfaces*[ibp64s0*]]% add physical ibp79s0 100.126.7.1 computenet [clio-headnode-01->device*[dgx-01*]->interfaces*[ibp79s0*]]% add physical ibp94s0 100.126.8.1 computenet [clio-headnode-01->device*[dgx-01*]->interfaces*[ibp94s0*]]% commit [clio-headnode-01->device*[DGX-01*]->interfaces*[ibp41s0f0*]]% commit
Verify the interfaces mac/IPs and networks.
[clio-headnode-01->device[dgx-01]->interfaces]% ls Type Network device name IP Network Start if ------------ ---------------------- ---------------- ---------------- -------- bmc ipmi0 10.150.123.25 ipminet always bond bond0 [prov] 10.150.125.25 dgxnet always physical enp170s0f1np1 (bond0) 0.0.0.0 always physical enp41s0f1np1 (bond0) 0.0.0.0 always physical ibp154s0 100.126.1.1 computenet always physical ibp192s0 100.126.2.1 computenet always physical ibp206s0 100.126.3.1 computenet always physical ibp220s0 100.126.4.1 computenet always physical ibp24s0 100.126.5.1 computenet always physical ibp64s0 100.126.6.1 computenet always physical ibp79s0 100.126.7.1 computenet always physical ibp94s0 100.126.8.1 computenet always
To simplify computenet IP routing, all computenet/RDMA interfaces are configured under the same IP subnet (100.126.0.0/16). This setup does not affect the performance of training/interface workloads because NCCL/GPUDirect RDMA operates over InfiniBand, not IP transport.
Clone DGX-01 to create the rest of the DGX nodes.
[clio-headnode-01->device]%foreach -o dgx-01 -n dgx-02..dgx-04() --next-ip [clio-headnode-01->device*]% commit Successfully committed 3 Devices
Adjust the management interface mac addresses for each of the new nodes. Refer to site survey for the details.
home;device use dgx-02 set mac C4:70:BD:D2:0B:79 interfaces use enp170s0f1np1 set mac C4:70:BD:D2:0B:79 .. use enp41s0f1np1 set mac C4:70:BD:D2:11:B5 commit
Repeat the same step for all the remaining nodes.
Set BMC settings in cmsh for the dgx-b200-slurm category.
[clio-headnode-01->device]% category [clio-headnode-01->category]% use dgx-b200-slurm [clio-headnode-01->category[slogin]]% bmcsettings [clio-headnode-01->category[slogin]->bmcsettings]% set username <BMC User> [clio-headnode-01->category*[slogin*]->bmcsettings*]% set password <BMC Pass> [clio-headnode-01->category*[slogin*]->bmcsettings*]% commit
Provision Nodes into the Cluster#
Power on all the nodes. They should boot into their assigned roles automatically.
[clio-headnode-01->device]% power on -c dgx-b200-slurm ipmi0 .................... [ ON ] DGX-01 ipmi0 .................... [ ON ] DGX-02 ipmi0 .................... [ ON ] DGX-03 ipmi0 .................... [ ON ] DGX-04
After the nodes are booted, verify the node status
[clio-headnode-01->device]% ls Type Hostname (key) MAC Category IP Network Status ---------------- ----------------- ------------------ ---------------- ---------------- ---------------- -------------------------------- HeadNode clio-headnode-01 00:00:00:73:FE:80+ 10.150.124.11 internalnet [ UP ] HeadNode clio-headnode-02 C2:50:D9:5D:72:DB 10.150.124.12 internalnet [ UP ] PhysicalNode dgx-01 3E:F7:55:83:3C:66 dgx-b200-slurm 10.150.125.25 dgxnet [ UP ], health check failed PhysicalNode dgx-02 DA:1D:45:16:E2:0B dgx-b200-slurm 10.150.125.26 dgxnet [ UP ], health check failed+ PhysicalNode dgx-03 FA:AD:15:EF:CB:64 dgx-b200-slurm 10.150.125.27 dgxnet [ UP ], health check failed+ PhysicalNode dgx-04 2E:72:CE:3B:C6:1A dgx-b200-slurm PhysicalNode slogin-01 C2:1E:70:7B:39:98 slogin 10.150.124.17 internalnet [ UP ] PhysicalNode slogin-02 B2:B0:5A:5C:3F:41 slogin 10.150.124.18 internalnet [ UP
Example node/category configuration:
[clio-headnode-01->category]% ls Name (key) Software image Nodes ------------------------ ------------------------ -------- default default-image 1 dgx dgx-image 0 dgx-b200-k8s dgx-b200-k8s-image 0 dgx-b200-slurm dgx-b200-slurm-image 4 k8s-system dgx-b200-k8s-image 0 slogin slogin-image 2 [clio-headnode-01->category]% device;ls Type Hostname (key) MAC Category IP Network Status ---------------- ----------------- ------------------ ---------------- ---------------- ---------------- -------------------------------- HeadNode clio-headnode-01 00:00:00:73:FE:80+ 10.150.124.11 internalnet [ UP ] HeadNode clio-headnode-02 C2:50:D9:5D:72:DB 10.150.124.12 internalnet [ UP ] PhysicalNode dgx-01 3E:F7:55:83:3C:66 dgx-b200-slurm 10.150.125.25 dgxnet [ UP ] PhysicalNode dgx-02 DA:1D:45:16:E2:0B dgx-b200-slurm 10.150.125.26 dgxnet [ UP ] PhysicalNode dgx-03 FA:AD:15:EF:CB:64 dgx-b200-slurm 10.150.125.27 dgxnet [ UP ] PhysicalNode dgx-04 2E:72:CE:3B:C6:1A dgx-b200-slurm 10.150.125.28 dgxnet [ UP ] PhysicalNode slogin-01 C2:1E:70:7B:39:98 slogin 10.150.124.17 internalnet [ UP ] PhysicalNode slogin-02 B2:B0:5A:5C:3F:41 slogin 10.150.124.18 internalnet [ UP ]
Note
Due to a known software defect, some versions of built-in DGX-OS image may have the nvidia-fabricmanager service failing to start. To check, SSH into one of the DGX nodes and verify the status of the following services.
root@dgx-b200-01~]#systemctl status openibd.service
root@dgx-b200-01~]#systemctl status nvidia-fabricmanager.service
If they are not enabled or running, manually start them and confirm they are starting up.
systemctl start openibd.service
systemctl start nvidia-fabricmanager.service
Modify the DGX-OS image in BCM with the following steps to enable the required services for all nodes.
cm-chroot-sw-img /cm/images/<DGX IMAGE>
systemctl enable openibd.service
systemctl enable nvidia-fabricmanager.service
Example below for modifying image all nodes using dgx-b300-slurm-image
root@clio-headnode-01:~#cm-chroot-sw-img /cm/images/dgx-b300-slurm-image/
root@dgx-b200-slurm-image:/#systemctl enable openibd.service
root@dgx-b200-slurm-image:/#systemctl status nvidia-fabricmanager.service
Reboot the nodes and verify the service status.
BCM High Availability Configuration#
BCM HA Configuration ensures BCM head node redundancy. This two-step procedure involves configuring BCM HA first, then adding NFS for BCM shared folders to achieve full redundancy.
BCM HA Configuration#
Power off all the provisioned compute and workload manager control nodes (kubernetes/slurm) before configuring HA.
clio-headnode-01:~# cmsh [clio-headnode-01]% device [clio-headnode-01->device]% shutdown -c dgx-b200,slogin
Run the cmha-setup script.

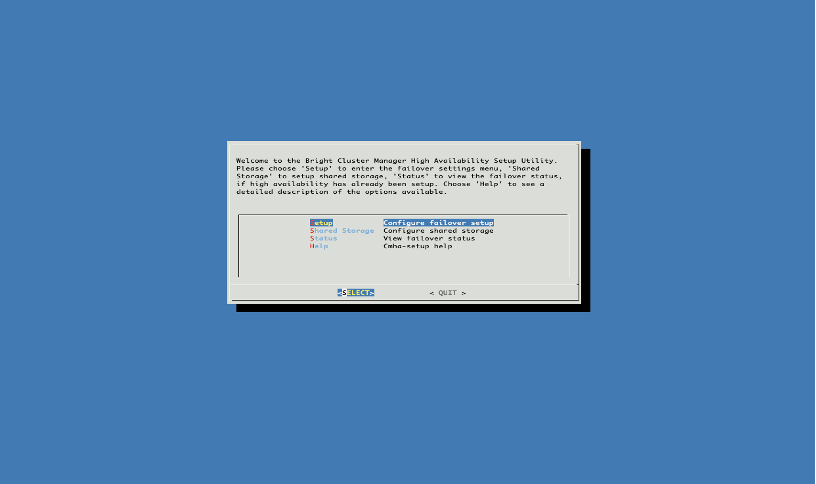

clio-headnode-01:~# cmha-setup

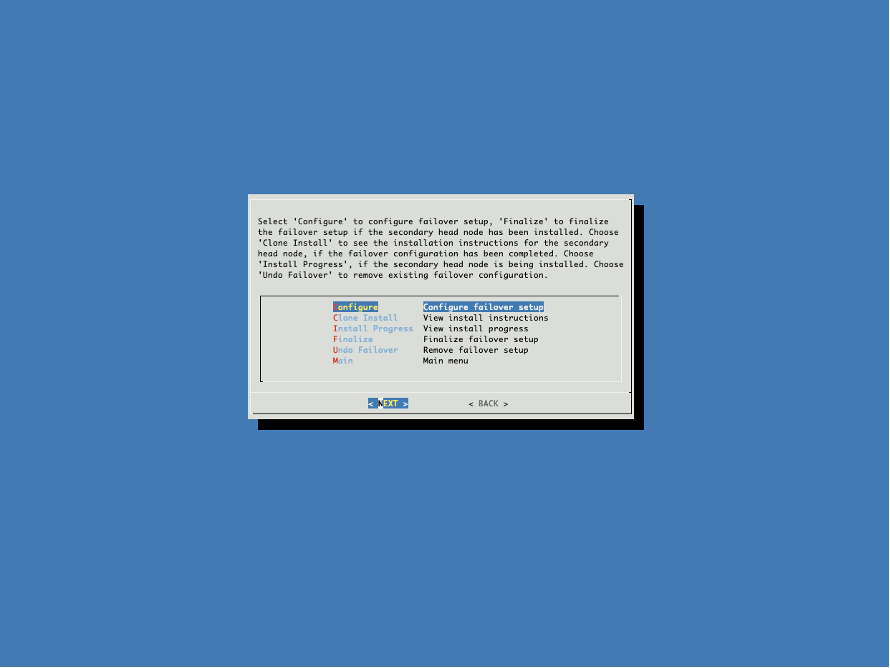

Choose Setup.
Choose Configure.

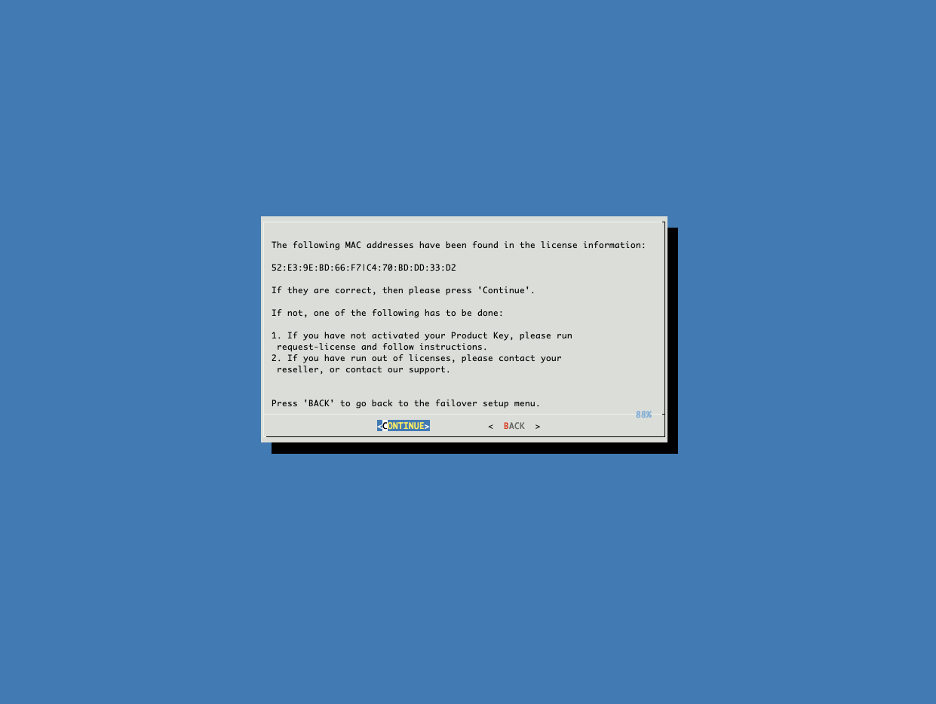

Verify the primary and stand-by BCM head-node MAC addresses and select CONTINUE.
Should the MAC addresses be incorrect, exit the script. Then, rerun the request-license command and select the option to keep the current license in the submenu. This action will allow you to modify only the MAC addresses for the headnodes.
Note
To prevent license issues due to a NIC failure/replacement, it is advisable to use the MAC address of the MLOM interface, if available.

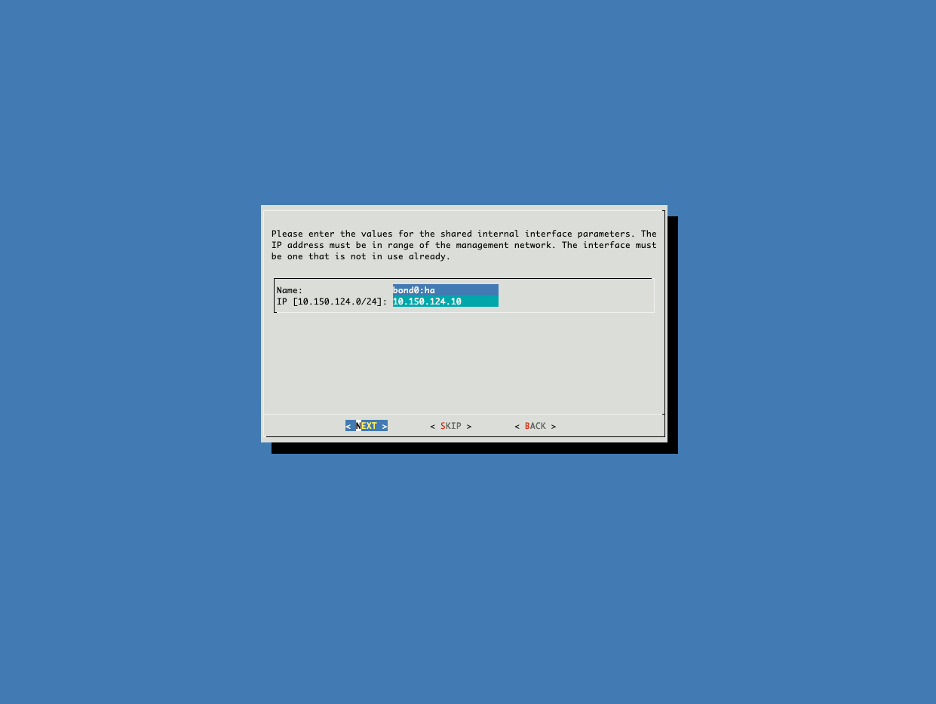

Populate the ha interface IP for bond0:ha and select NEXT.
This is the virtual IP address (VIP) for the BCM head-node HA Pair.

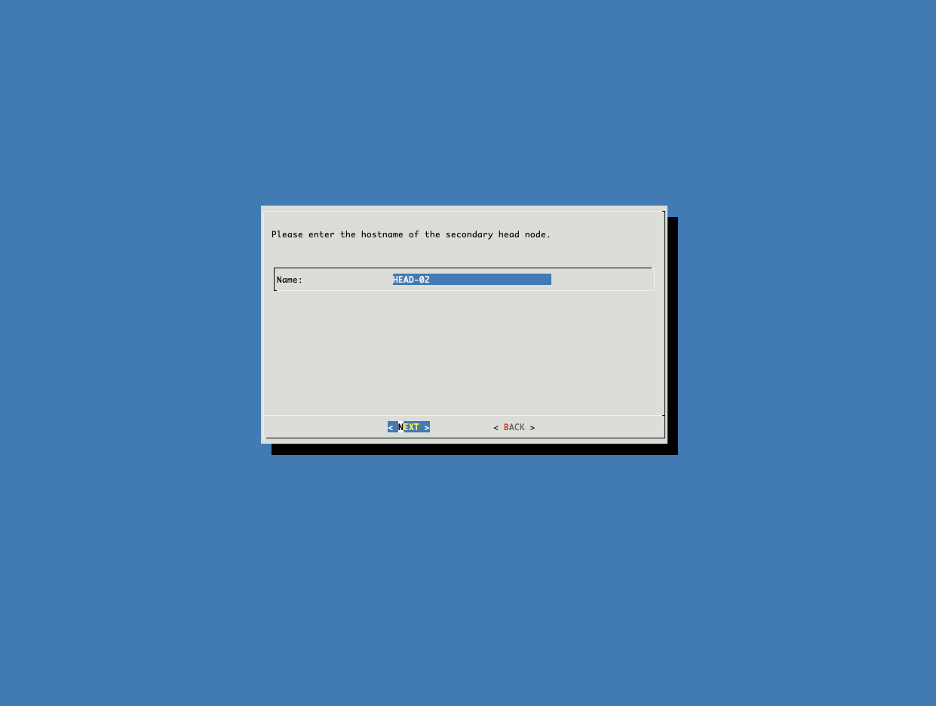

Set the name of the second headnode to as per site survey.

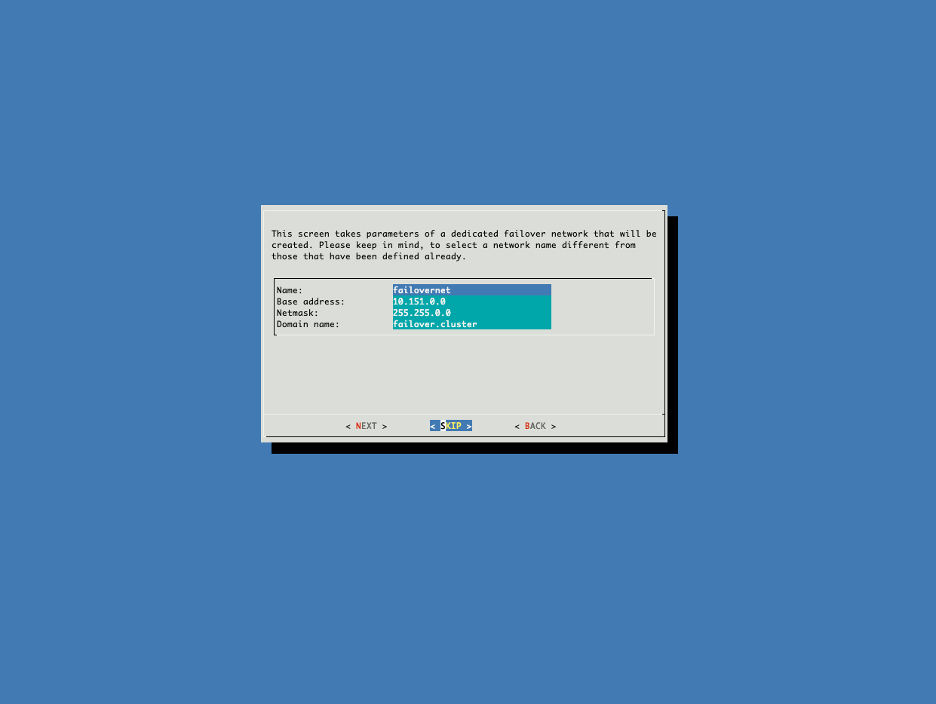

Choose SKIP to skip the creation of the failovernet. We are going to use existing management for HA keepalives.
Refer to BCM11 Administrator Manual for more details on HA configuration options.

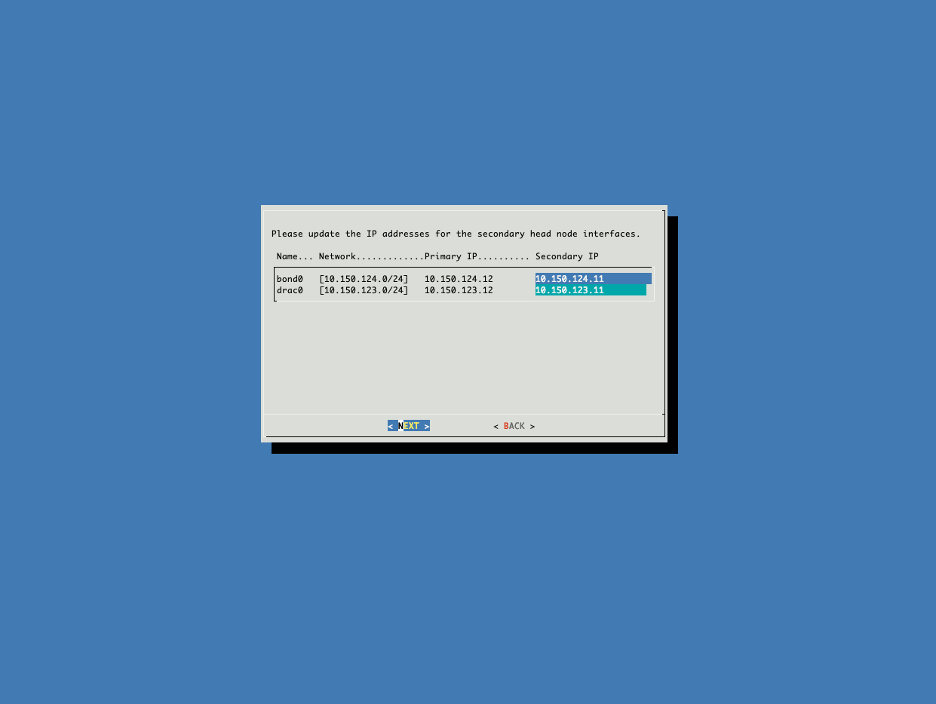

Set the IP inband management and BMC addresses for the secondary headnode.

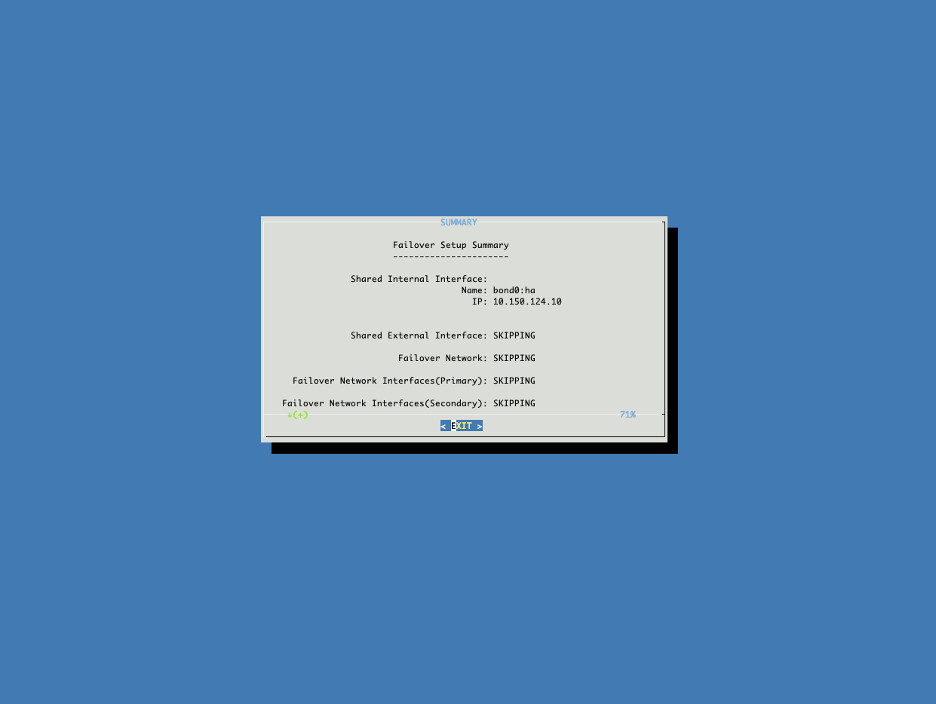

Check that all settings in the summary are correct and select EXIT.

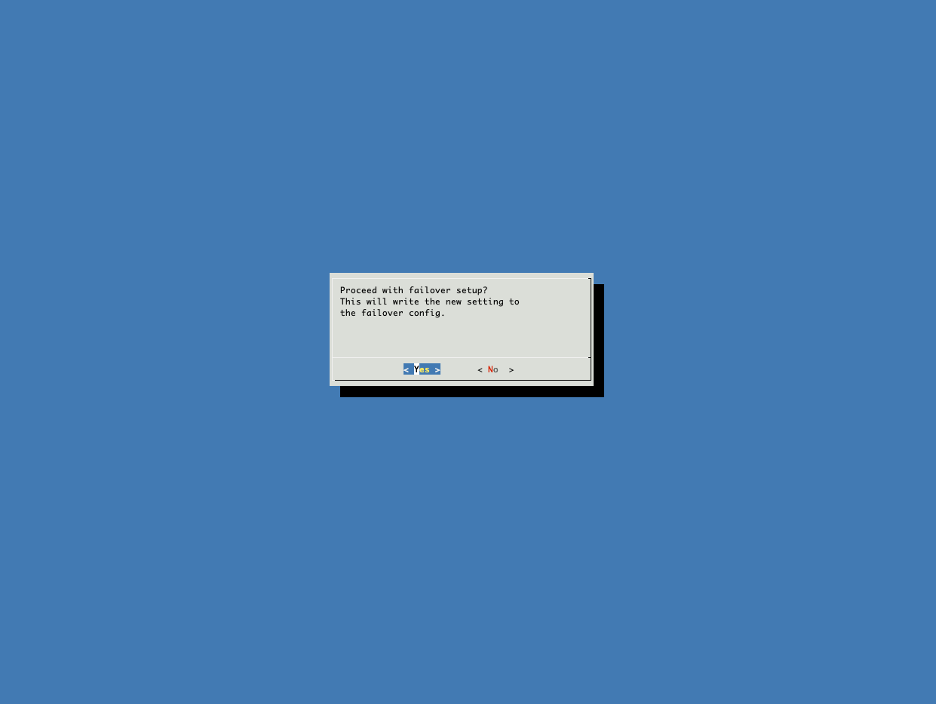

Select Yes to proceed with the failover config.

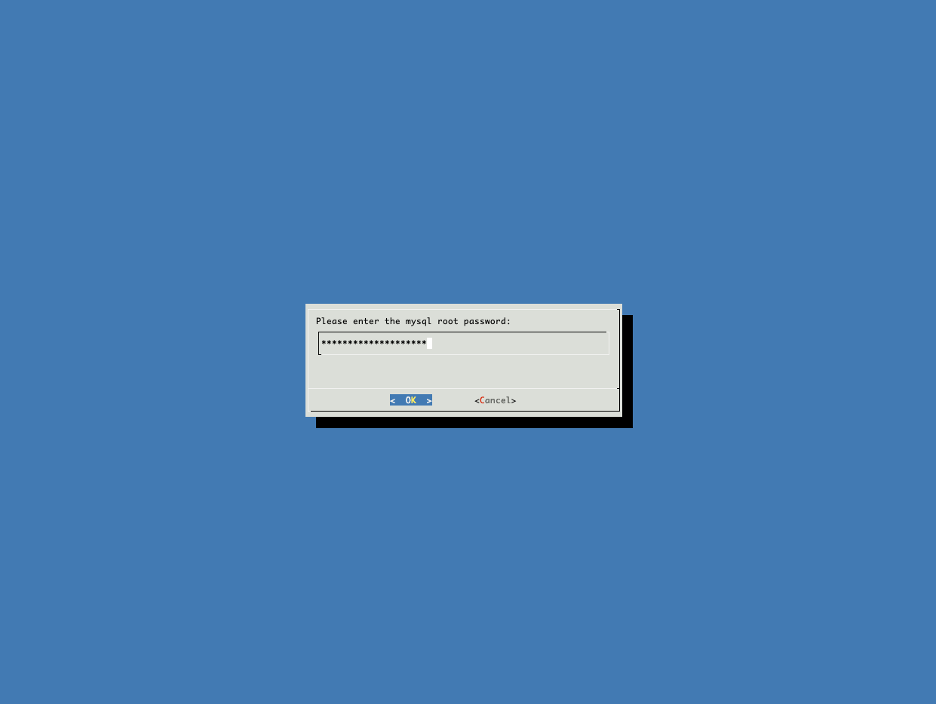

Enter the MYSQL password - which is the same as the BCM head-node root password - to continue.
Once the below steps finish, press ENTER to continue.
Initializing failover setup on master.............. [ OK ] Updating shared internal interface................. [ OK ] Updating extra shared internal interfaces.......... [ OK ] Cloning head node.................................. [ OK ] Updating secondary master interfaces............... [ OK ] Updating Failover Object........................... [ OK ] Restarting cmdaemon................................ [ OK ] Press ENTER to continue

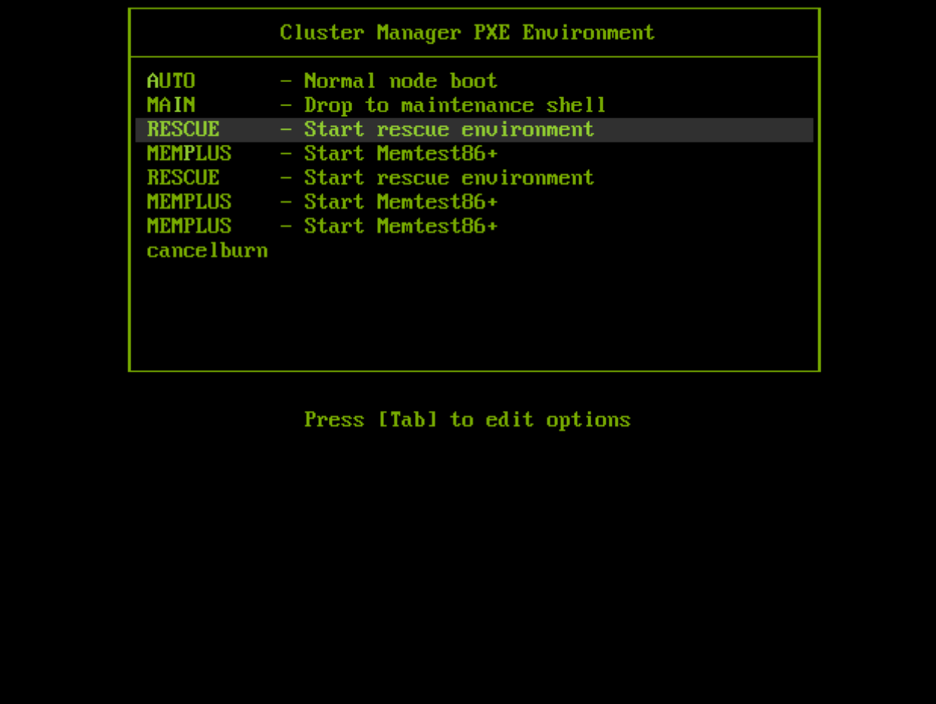

Boot the secondary BCM head-node and use its BMC KVM to select a one-time PXE boot from one of the inband interfaces. The primary BCM head-node will then start PXE booting the secondary node. During the boot process, interrupt at the screen below and choose the RESCUE environment.

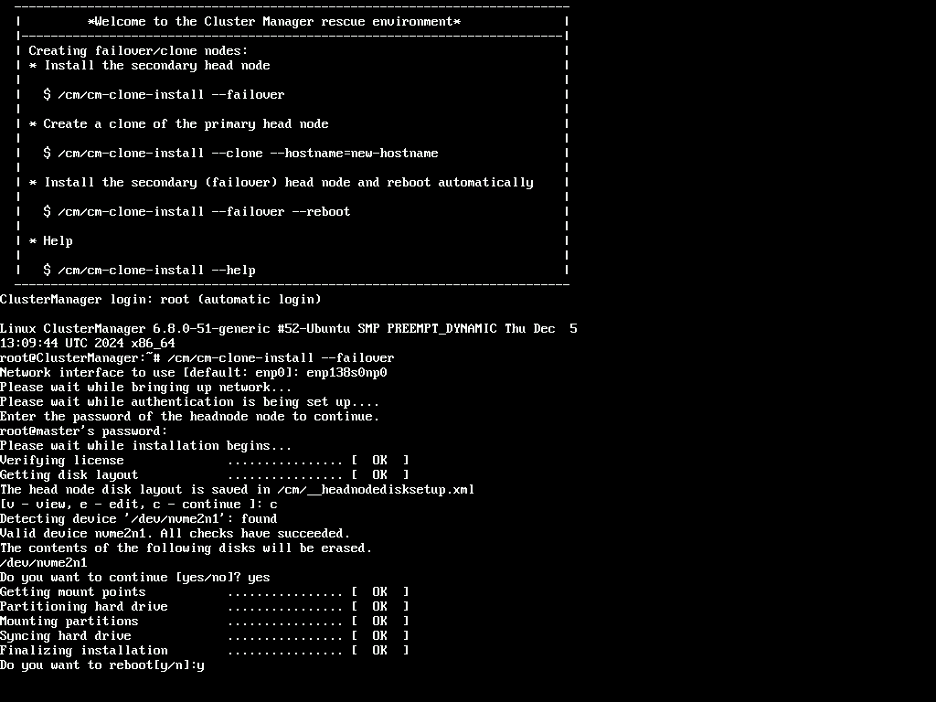

Once in the rescue environment, enter the /cm/cm-clone-install —failover command.
Then, provide the interface name of the primary in-band network, which will be used for the rest of the headnode installation prompts.
Note
If you are unsure of the interface name, check the primary headnode’s interface, as it will be the same for the secondary headnode. If the headnode interfaces are bonded, use the name of one of the child interfaces
root@ClusterManager:~# /cm/cm-clone-install --failover Network interface to use [default: enp0]: enp138s0np0 . . . root@master's password: <Root Cluster Password> . . . [v - view, e - edit, c - continue]: c . . . Do you want to continue [yes/no]? yes . . . Do you want to reboot [y/n]: y

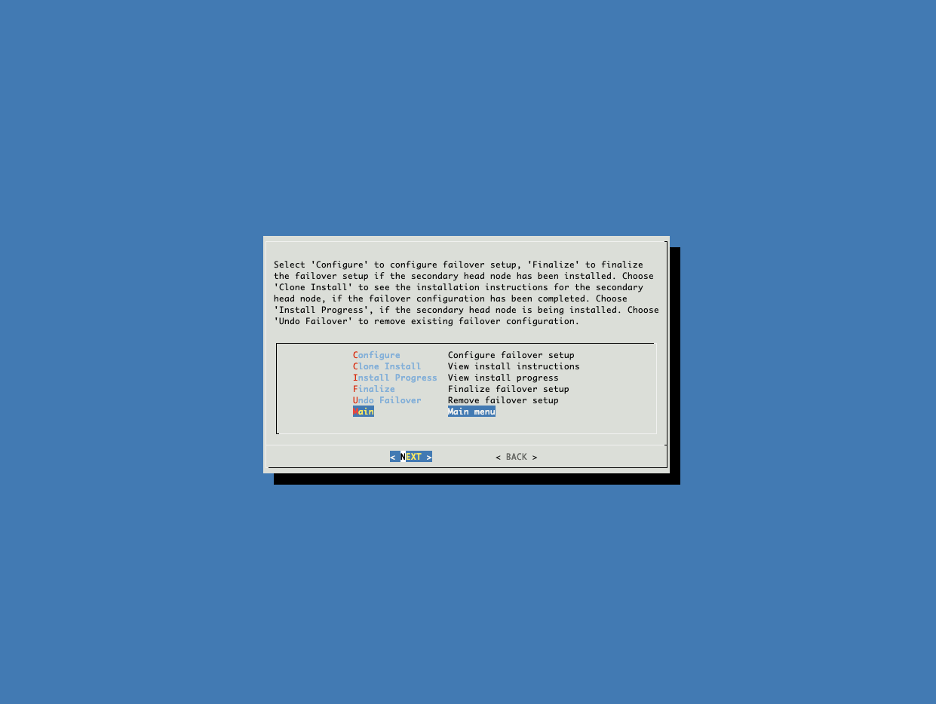

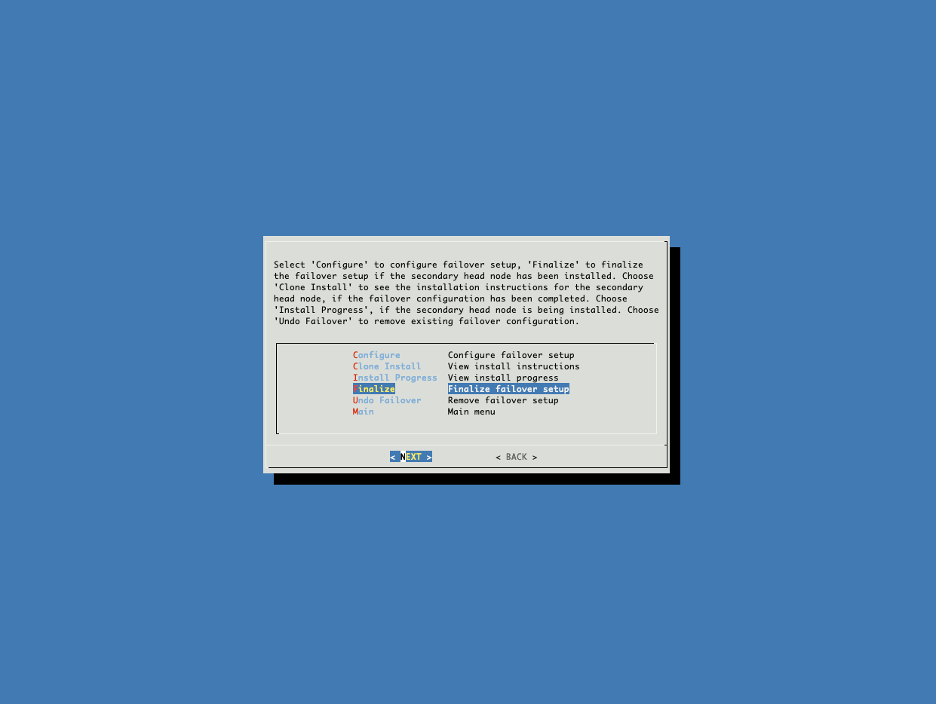

Wait until the secondary node completes the reboot. Then on the primary headnode, go back to the previous screen and select Finalize.

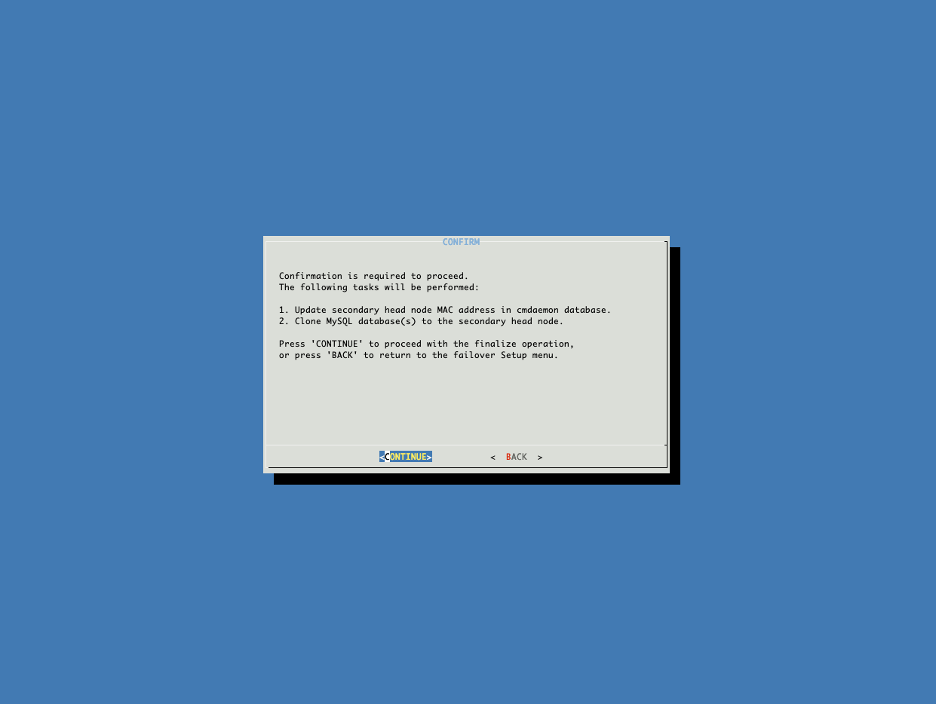

Select CONTINUE.
Enter the MYSQL password - which is the same as the BCM head-node root password - to continue.
Once the below steps are complete, press ENTER.
Updating secondary master mac address.............. [ OK ] Initializing failover setup on HEAD-02............. [ OK ] Stopping cmdaemon.................................. [ OK ] Cloning cmdaemon database.......................... [ OK ] Checking database consistency...................... [ OK ] Starting cmdaemon, chkconfig services.............. [ OK ] Cloning workload manager databases................. [ OK ] Cloning additional databases....................... [ OK ] Update DB permissions.............................. [ OK ] Checking for dedicated failover network............ [ OK ] Press ENTER to continue

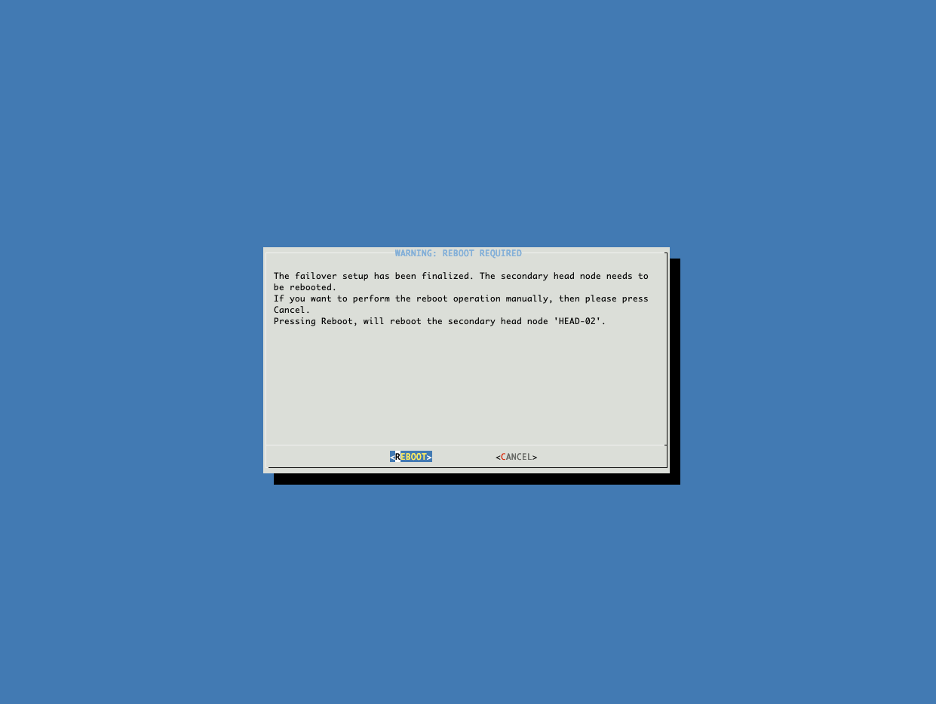

Choose to reboot the secondary headnode. Wait for the secondary headnode to come back up before continuing.
After reboot, you can verify the secondary node’s status from the primary head node using cmsh
[clio-headnode-01]% device list -f hostname:20,category:12,ip:20,status:15 hostname (key) category ip status -------------------- ------------ -------------------- --------------- clio-headnode-01 10.150.124.11 [ UP ] clio-headnode-02 10.150.124.12 [ UP ] [clio-headnode-01]%
Configuring NFS Shared storage#
On the primary headnode, continue in the HA setup screen (or start HA setup by running cmha-setup) , select Shared Storage option from the cmha-setup menu and then select SELECT. In this final HA configuration step, cmha-setup will copy the /cm/shared and /home directories to the shared storage and configure both head nodes and all cluster nodes to mount it.

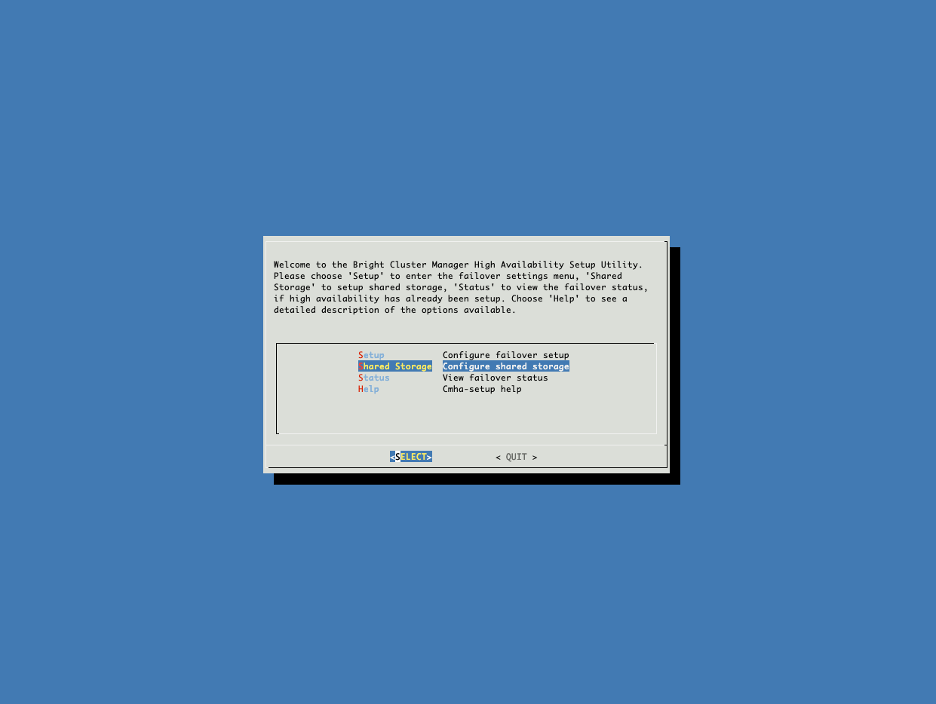

Select Shared Storage.
Select NAS

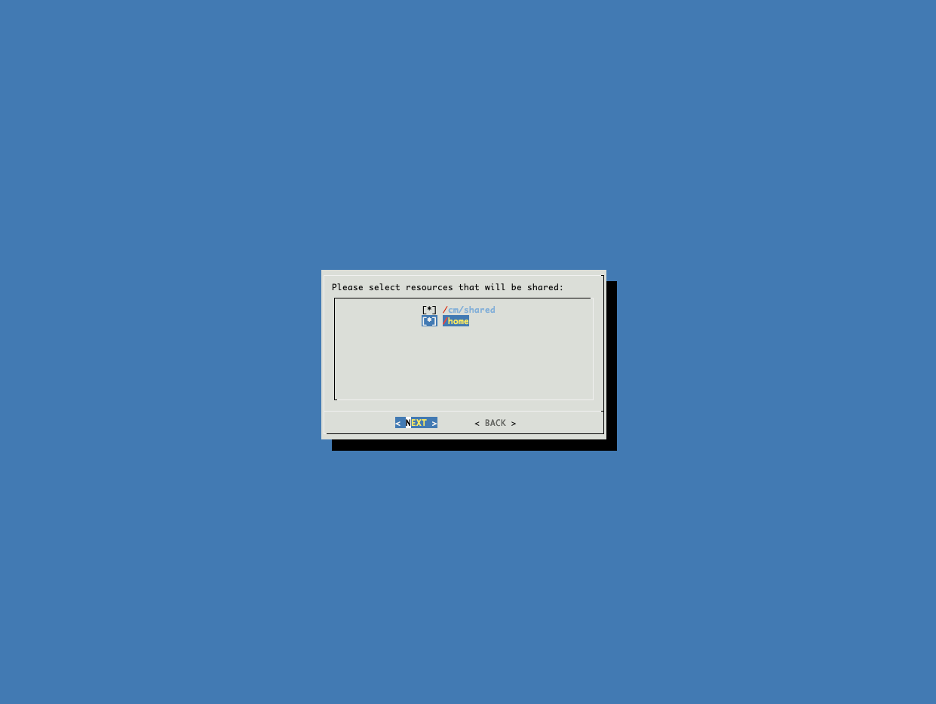

Select both /cm/shared and /home to be shared via NAS.

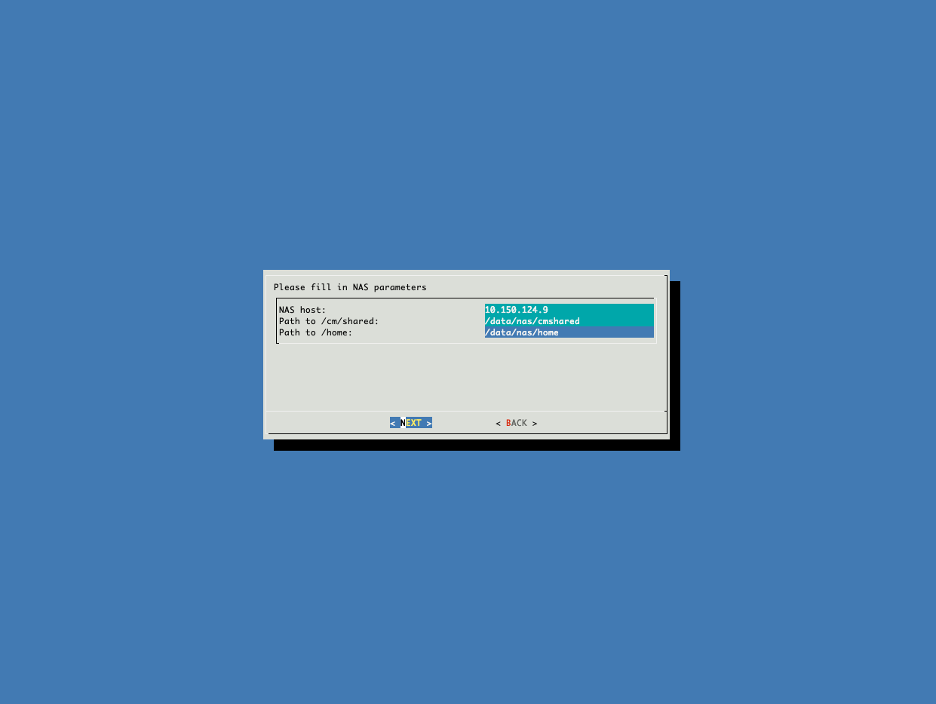

Set the NAS parameters.
Note
Ensure the full mount path (e.g. /data/nas/cmshared) exists in the NFS server

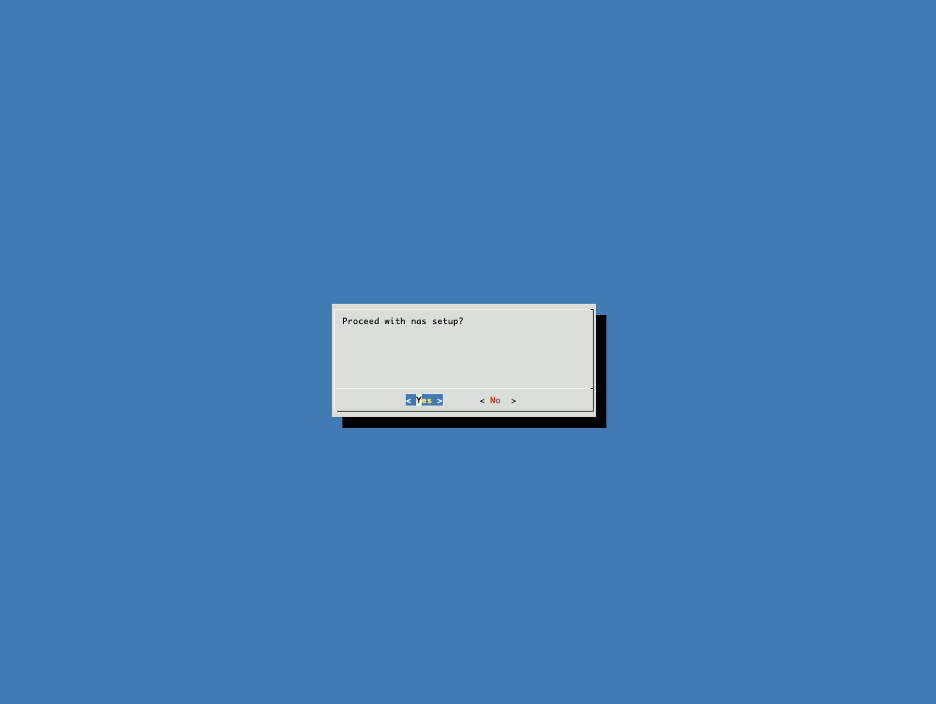

Proceed with the setup.
Once the below steps are complete, press ENTER.
Copying NAS data................................... [ OK ] Mount NAS storage.................................. [ OK ] Remove old fsmounts................................ [ OK ] Add new fsmounts................................... [ OK ] Disable old automatic fsexports.................... [ OK ] Press ENTER to continue
Exit the cmha-setup script.
Run the cmha status to ensure HA is working.
clio-headnode-01:~# cmha status Node Status: running in active mode clio-headnode-01* -> Hclio-headnode-02 mysql [ OK ] ping [ OK ] status [ OK ] clio-headnode-02 -> clio-headnode-01* mysql [ OK ] ping [ OK ] status [ OK ]
Check the NFS mounts for the /cm/shared and /cm/home on the head-node and confirm it’s pointing to the NFS shared volume
Head-node Primary
root@clio-headnode-01:~# mount | grep nfs nfsd on /proc/fs/nfsd type nfsd (rw,relatime) 10.150.124.9:/data/nas/cmshared on /cm/shared type nfs (rw,relatime,vers=3,rsize=32768,wsize=32768,namlen=255,hard,proto=tcp,timeo=600,retrans=2,sec=sys,mountaddr=10.150.124.9,mountvers=3,mountport=44516,mountproto=udp,local_lock=none,addr=10.150.124.9) 10.150.124.9:/data/nas/home on /home type nfs (rw,relatime,vers=3,rsize=32768,wsize=32768,namlen=255,hard,proto=tcp,timeo=600,retrans=2,sec=sys,mountaddr=10.150.124.9,mountvers=3,mountport=44516,mountproto=udp,local_lock=none,addr=10.150.124.9) root@clio-headnode-01:~#
Head-node Secondary
root@clio-headnode-02:~# mount | grep nfs nfsd on /proc/fs/nfsd type nfsd (rw,relatime) 10.150.124.9:/data/nas/cmshared on /cm/shared type nfs (rw,relatime,vers=3,rsize=32768,wsize=32768,namlen=255,hard,proto=tcp,timeo=600,retrans=2,sec=sys,mountaddr=10.150.124.9,mountvers=3,mountport=44516,mountproto=udp,local_lock=none,addr=10.150.124.9) 10.150.124.9:/data/nas/home on /home type nfs (rw,relatime,vers=3,rsize=32768,wsize=32768,namlen=255,hard,proto=tcp,timeo=600,retrans=2,sec=sys,mountaddr=10.150.124.9,mountvers=3,mountport=44516,mountproto=udp,local_lock=none,addr=10.150.124.9) root@clio-headnode-02:~#
Deploying Slurm#
Run the wlm install command from the root shell on the headnode
root@clio-headnode-01:~# cm-wlm-setup

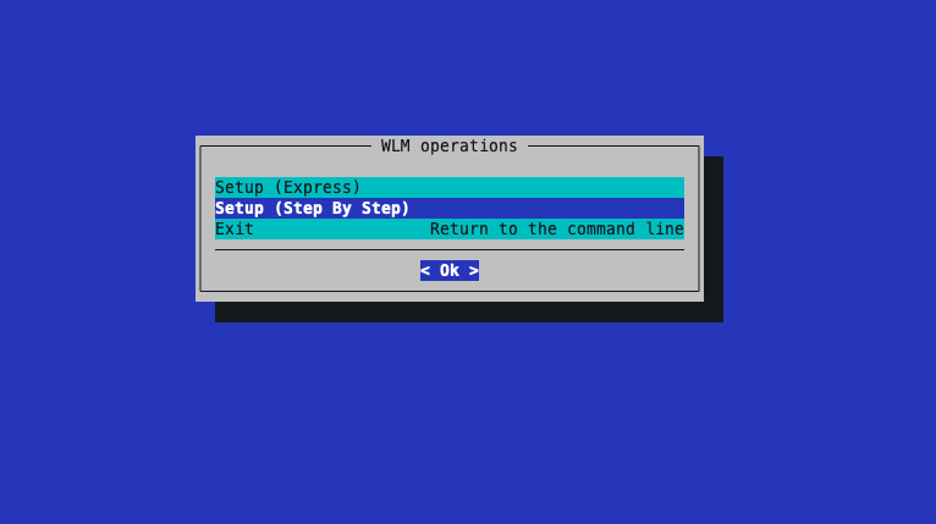

Select Setup (Step By Step)

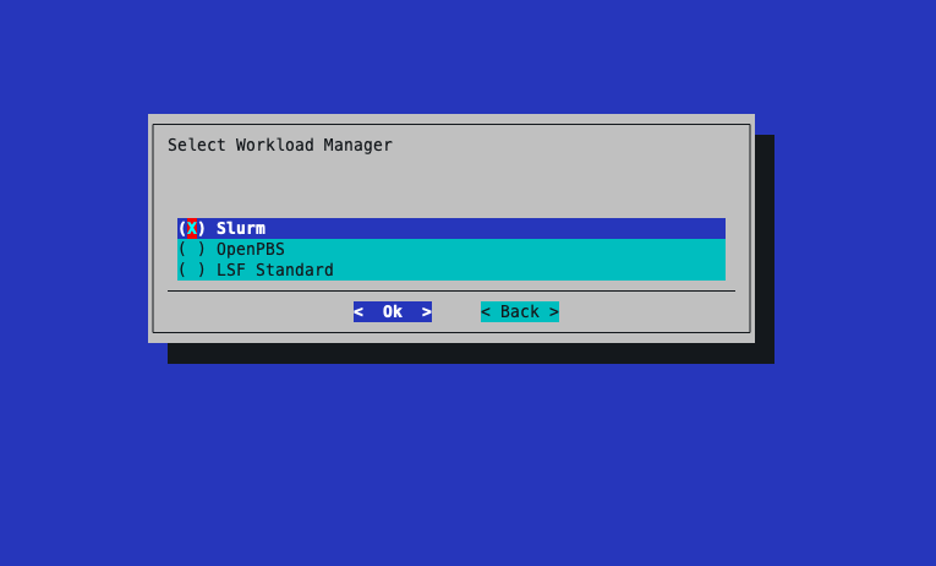

Select Slurm for the workload manager.

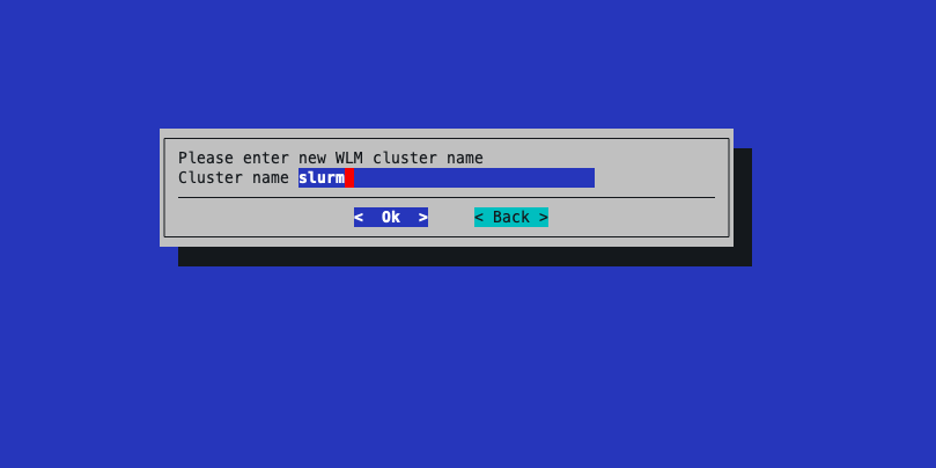

Leave the cluster name as the default.

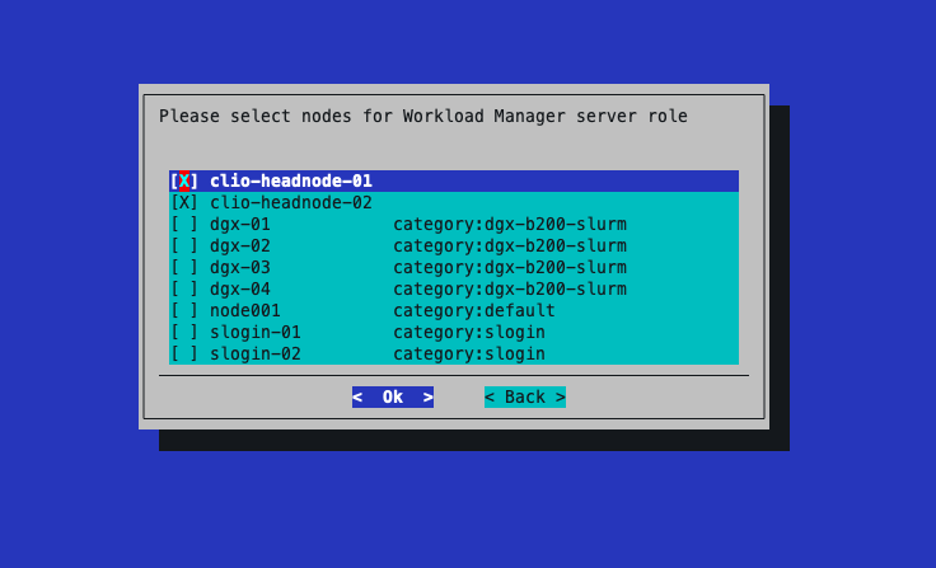

Select the 2 BCM head-nodes nodes for the server role.

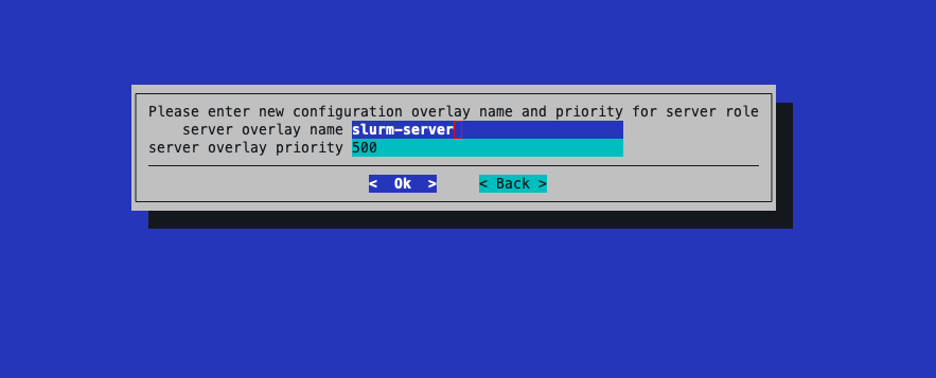

Leave the name and priority for the server overlay as defaults.

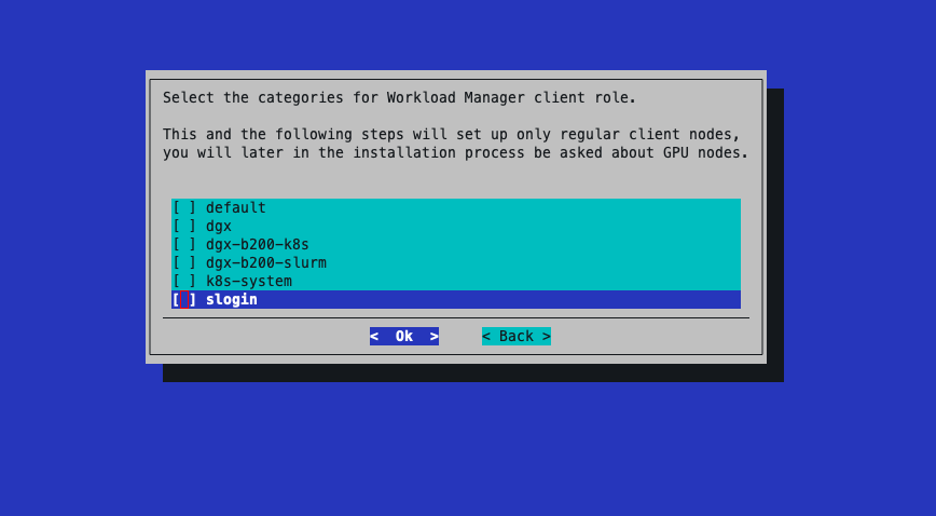

Do not select any categories for the client role.

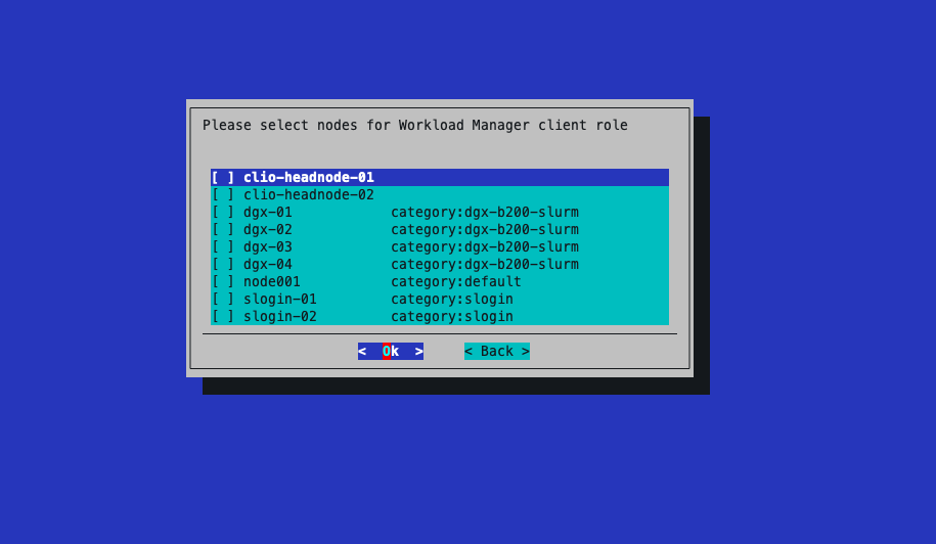

Do not select any nodes for the client role.

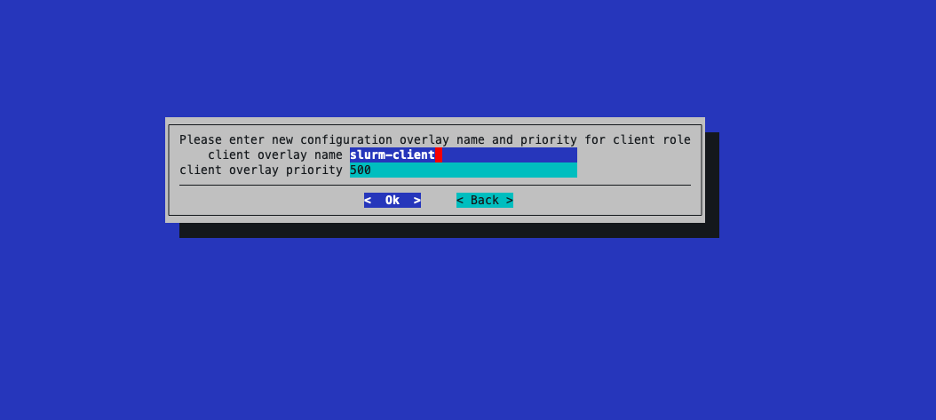

Leave the name and priority for the client overlay as defaults.

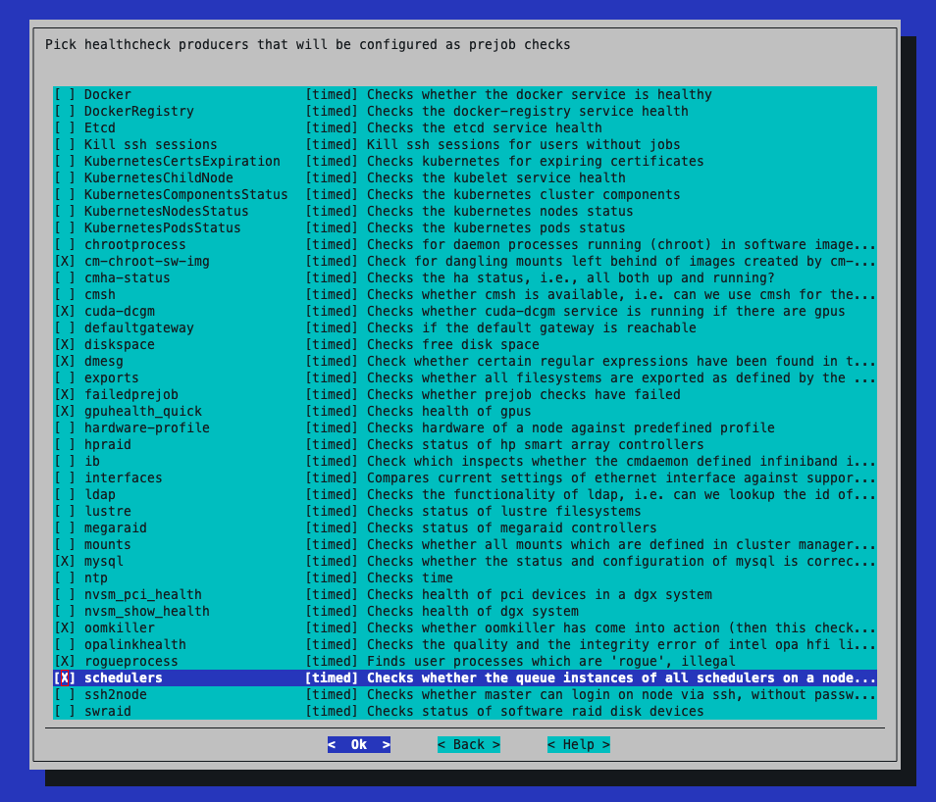

Select the following healthcheck producers to be run as prejob checks.
cm-chroot-sw-img
cuda-dcgm
diskspace
dmesg
failedprejob
gpuhealth_quick
mysql
oomkiller
rogueprocess
Schedulers

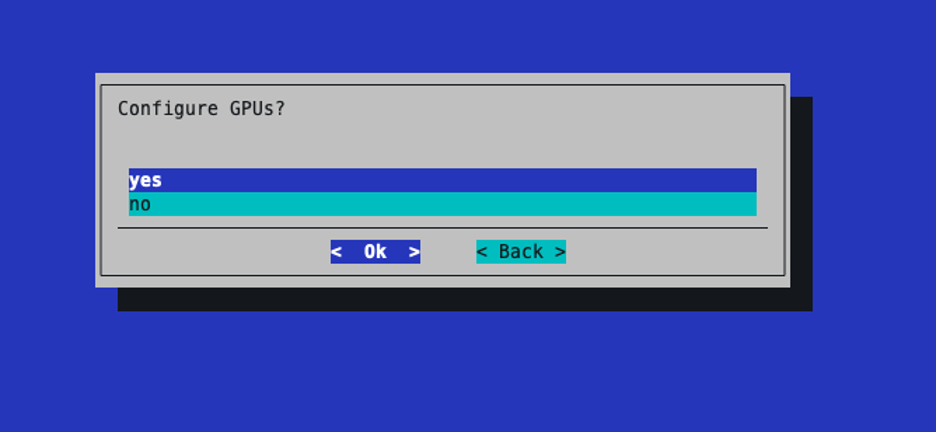

Select yes to configure GPUs.

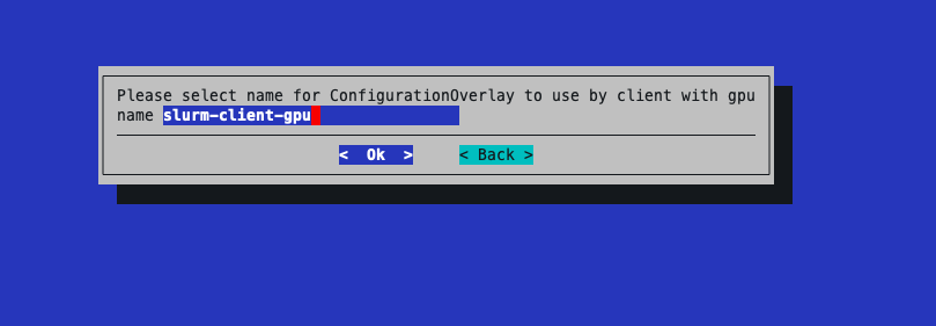

Leave the name of the GPU overlay as the default.

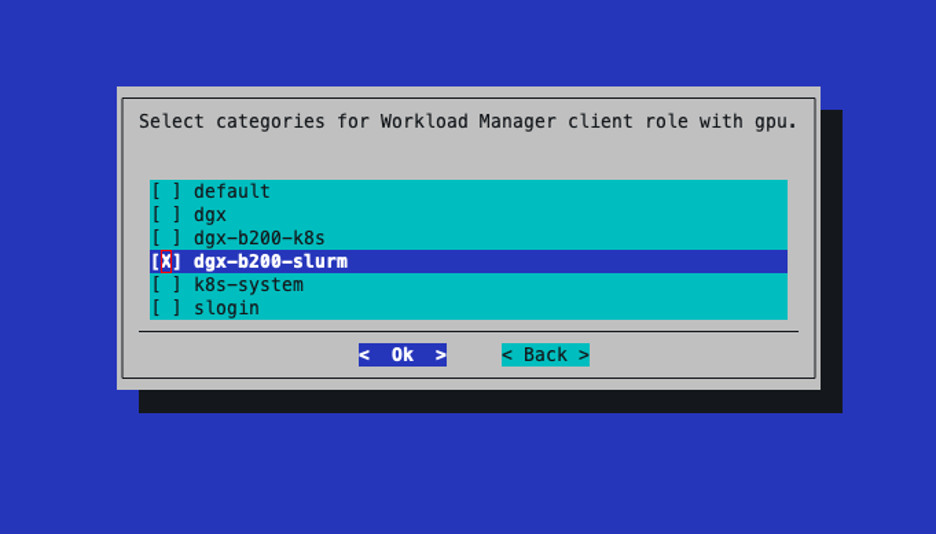

Select the dgx-b200-slurm category for Workload Manager client role with gpu.

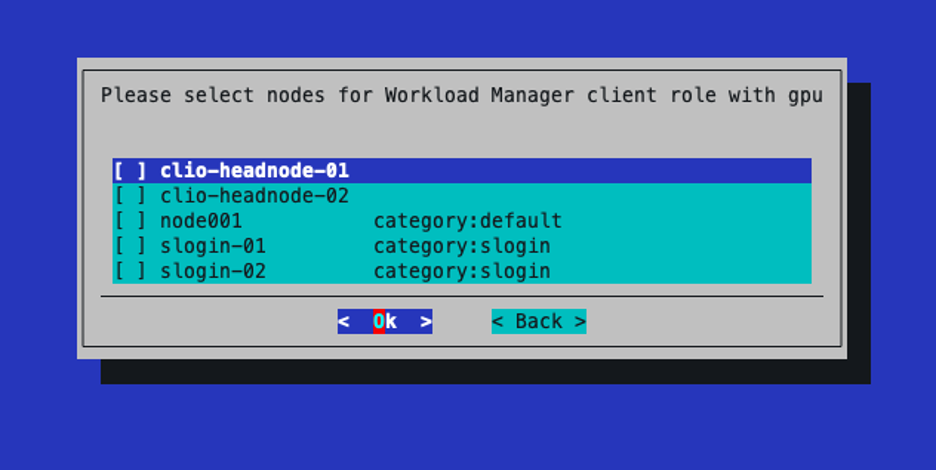

Do not select any nodes here.

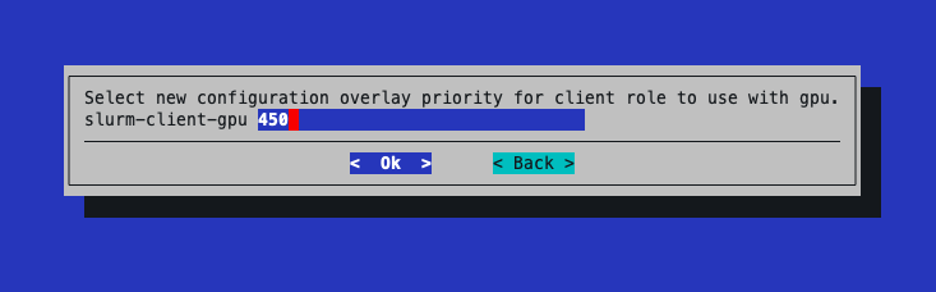

Leave the priority of the gpu client role as the default.

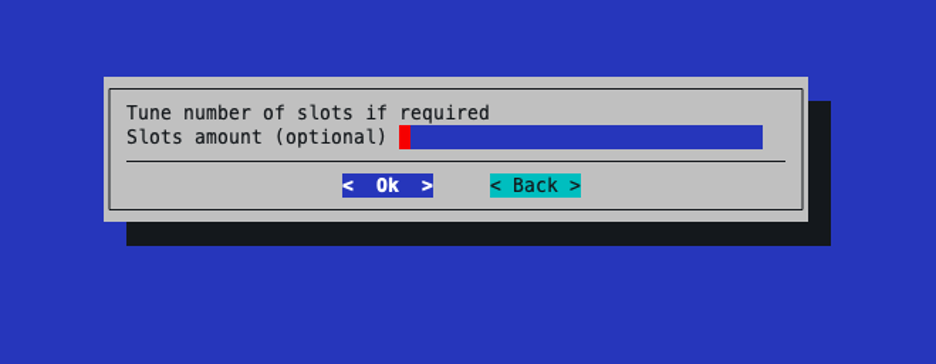

Leave the number of slots empty.

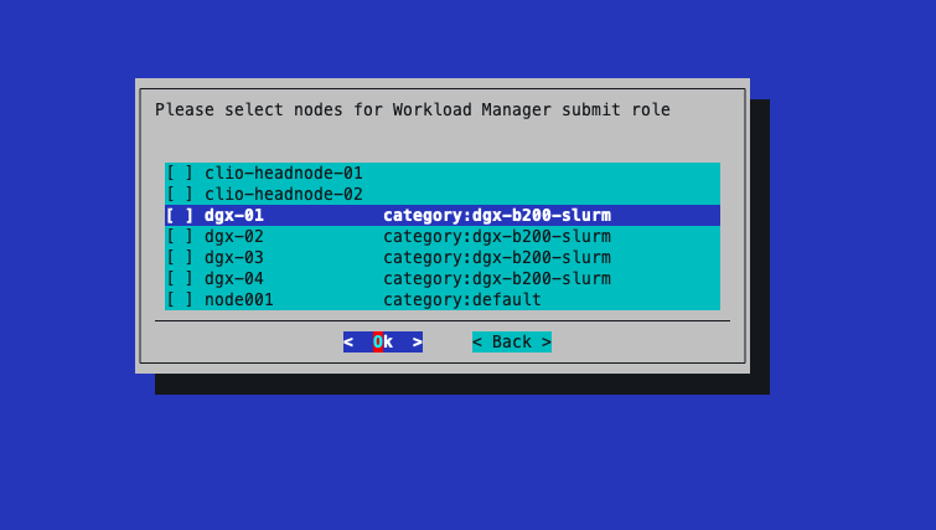

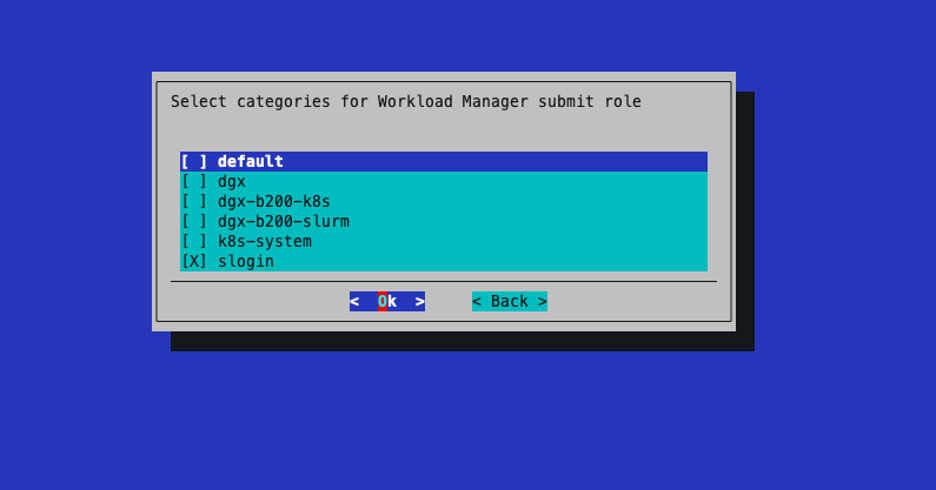

Select the slogin category for the submit role.
Do not select any additional nodes for the submit role.

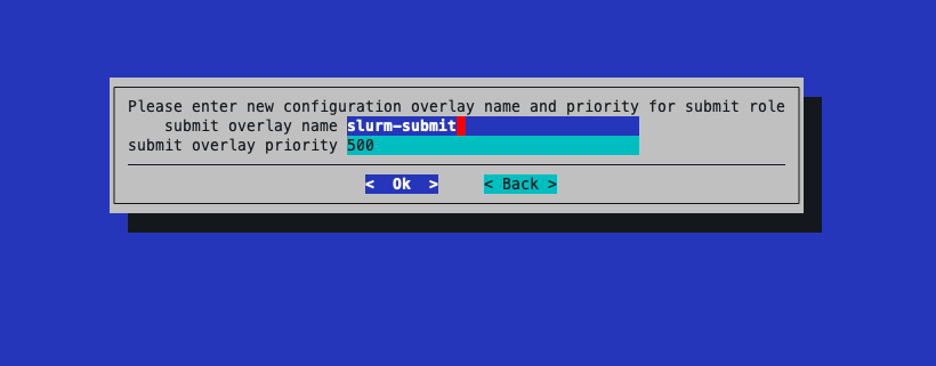

Leave the name and priority for the submit overlay as defaults.

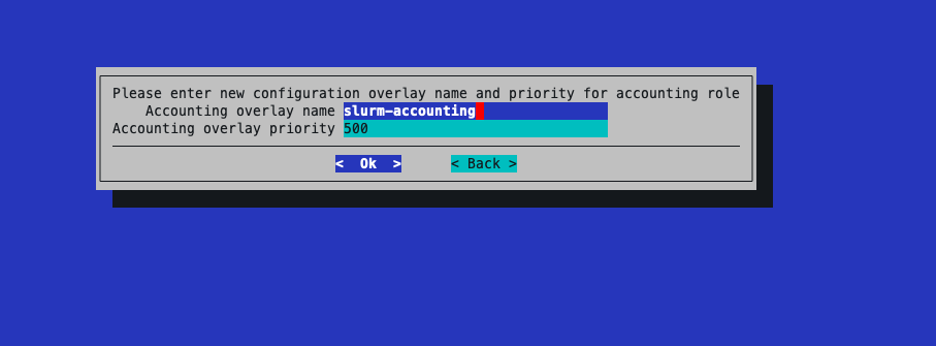

Leave the name and priority for the accounting overlay as defaults.

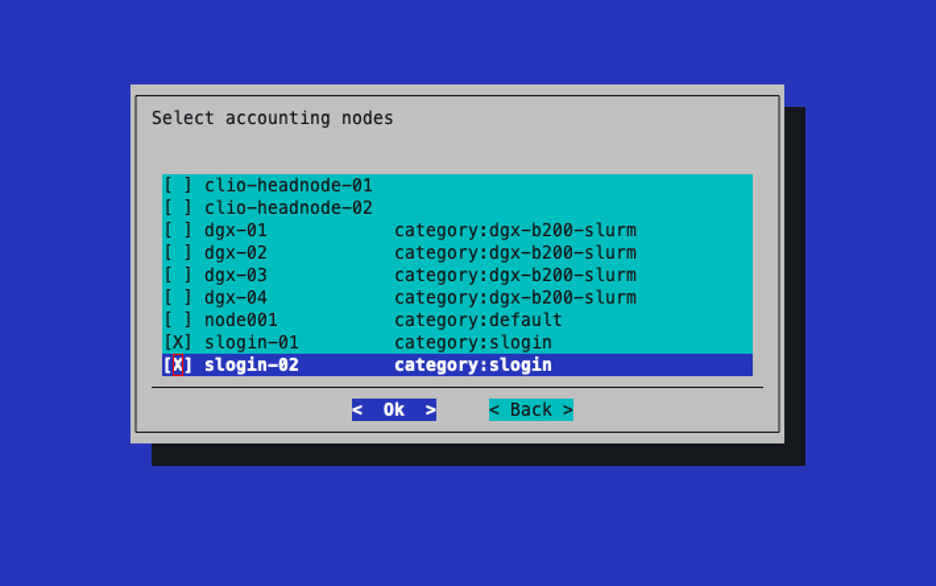

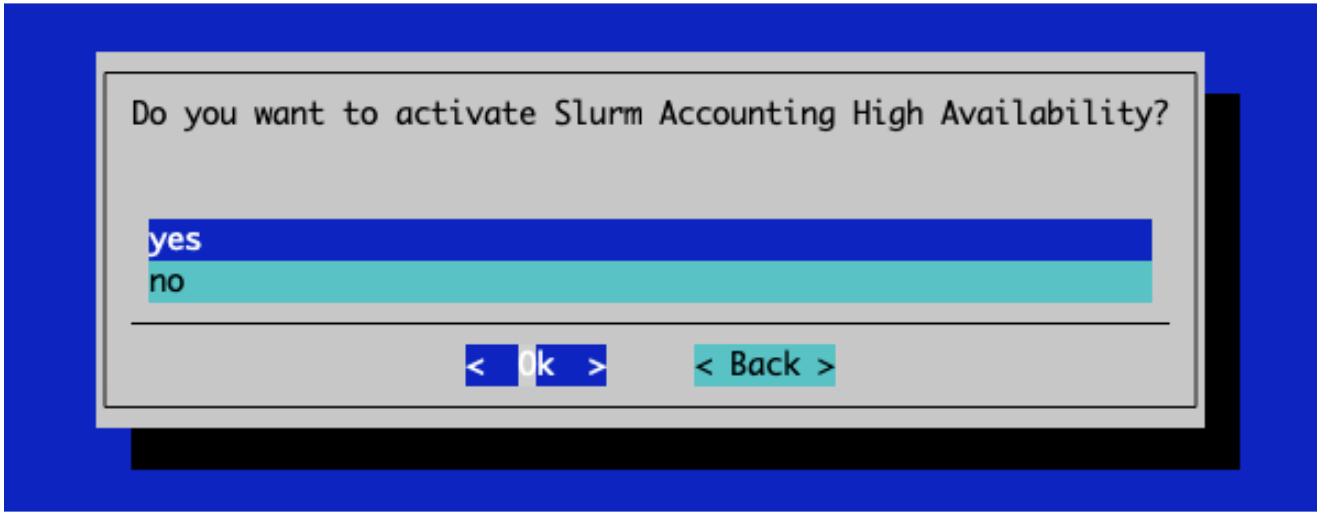

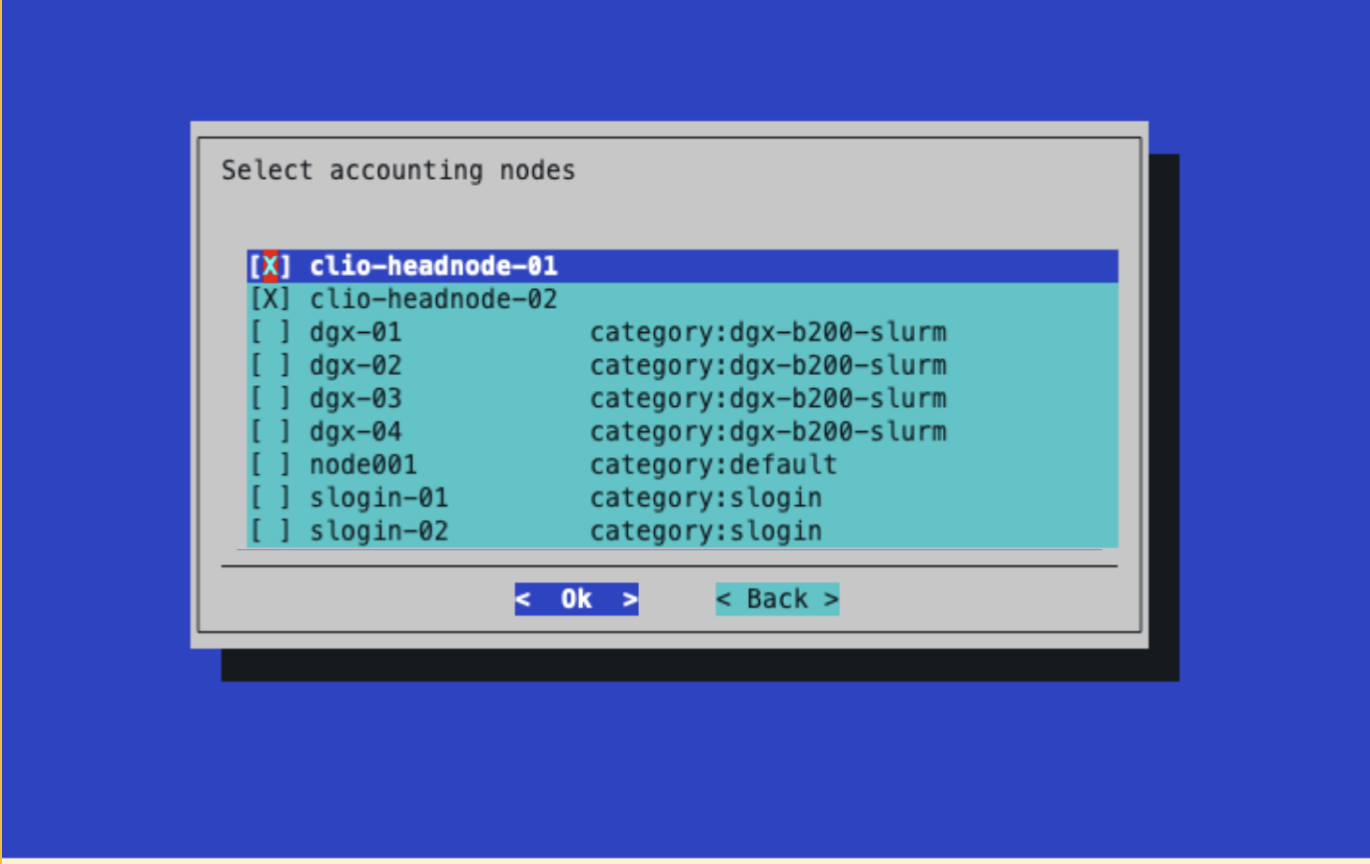

Select the 2 slogin nodes for the accounting role.

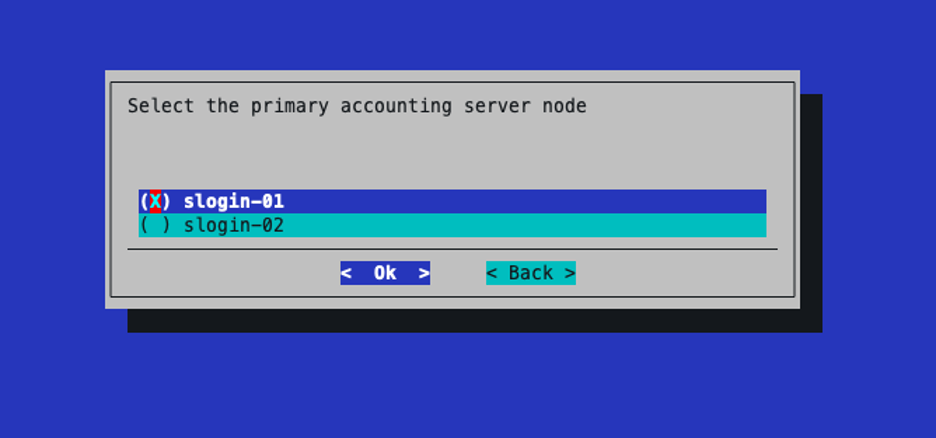

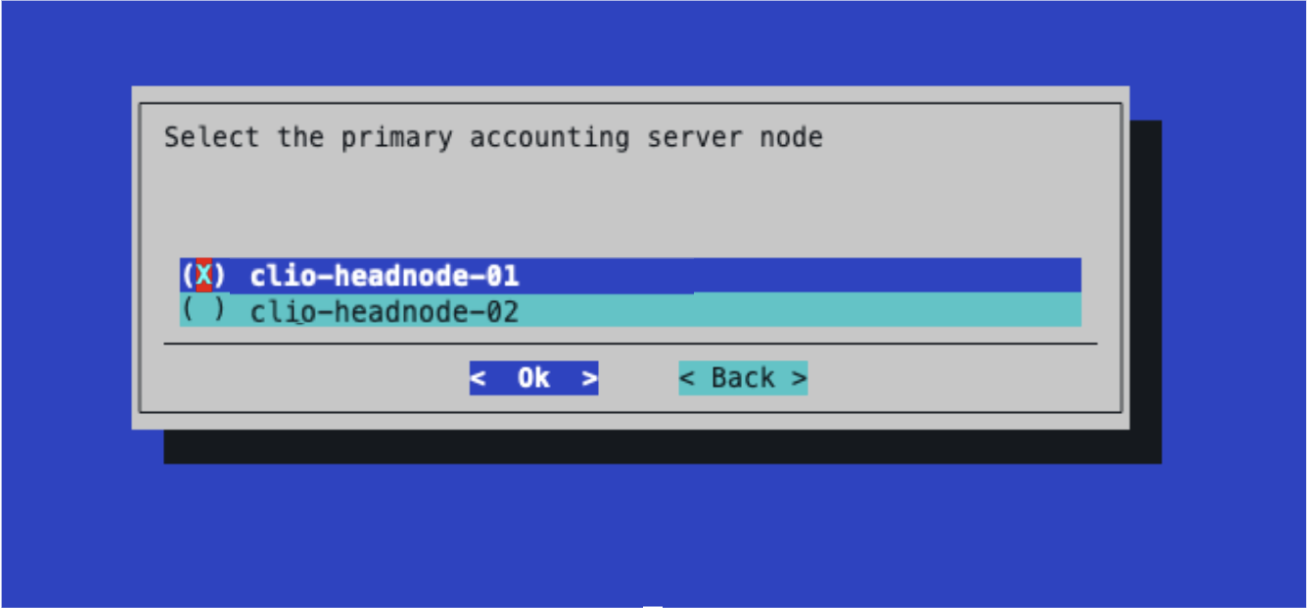

Select SLOGIN-01 as the primary accounting node.

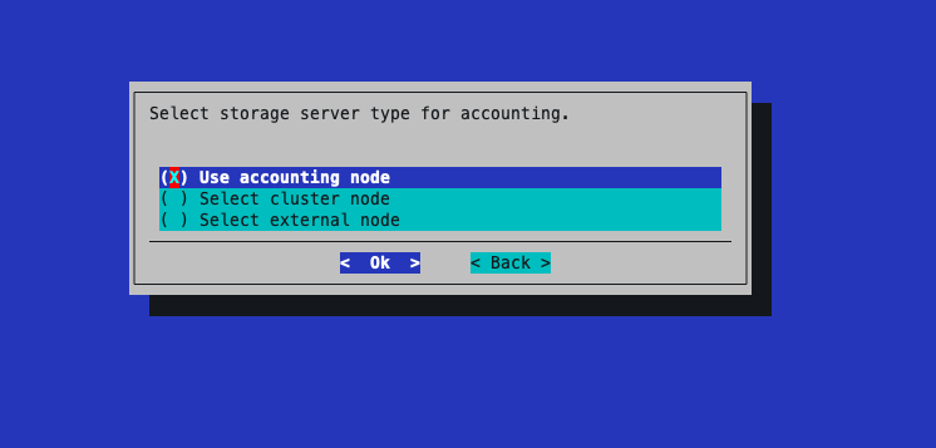

Select Use accounting node for the storage server type.

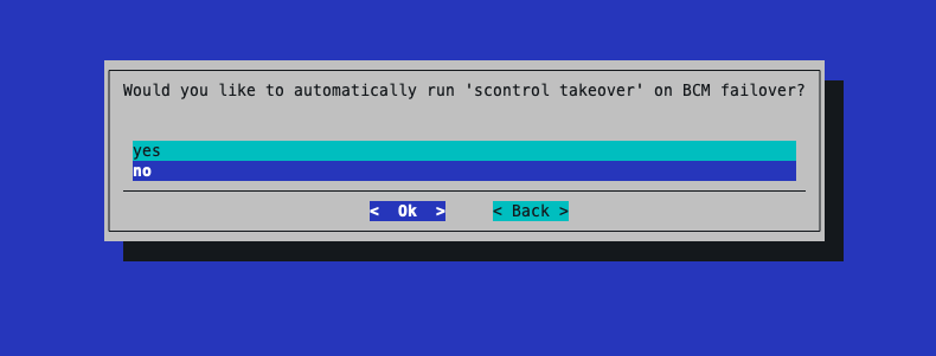

Select No on scontrol takeover on BCM failover

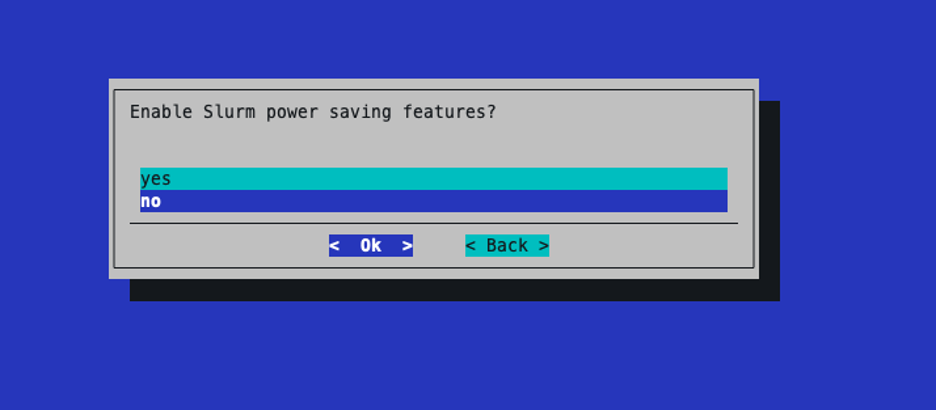

Select no for the Slurm power saving features.

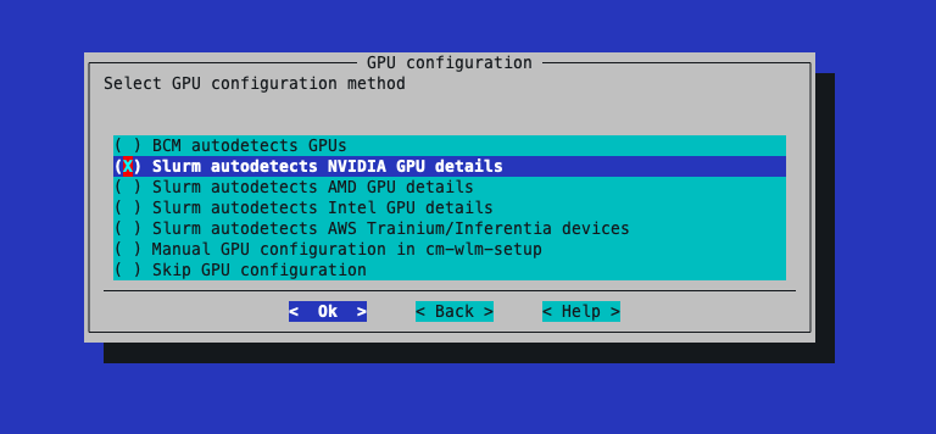

Select Slurm auto-detects NVIDIA GPU details.

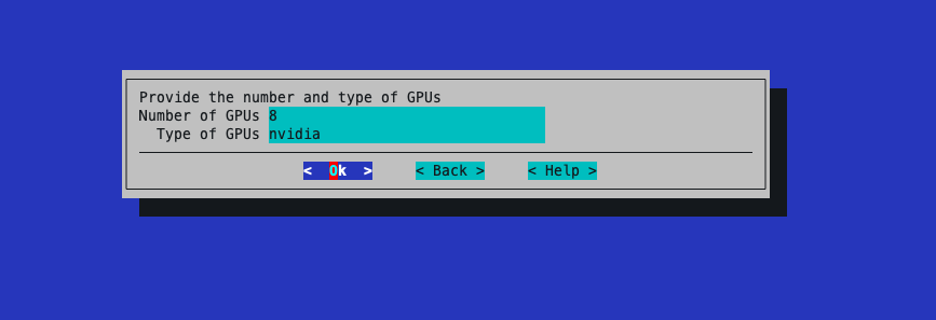

Set the number of GPUs to 8 and type to nvidia.

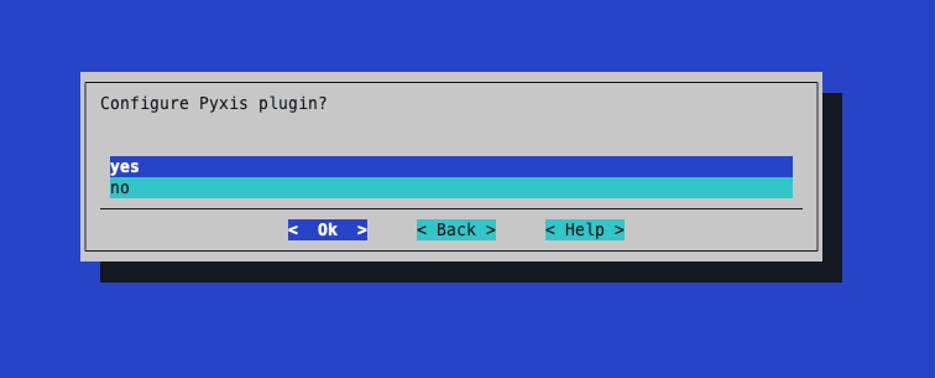

Select yes to configure the Pyxis plugin.

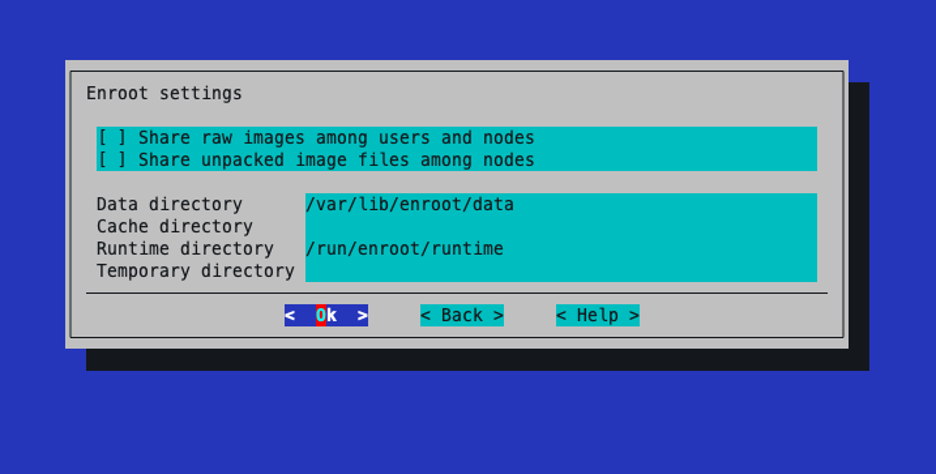

For Enroot settings, maintain the defaults, do not share data among the nodes or change the paths.

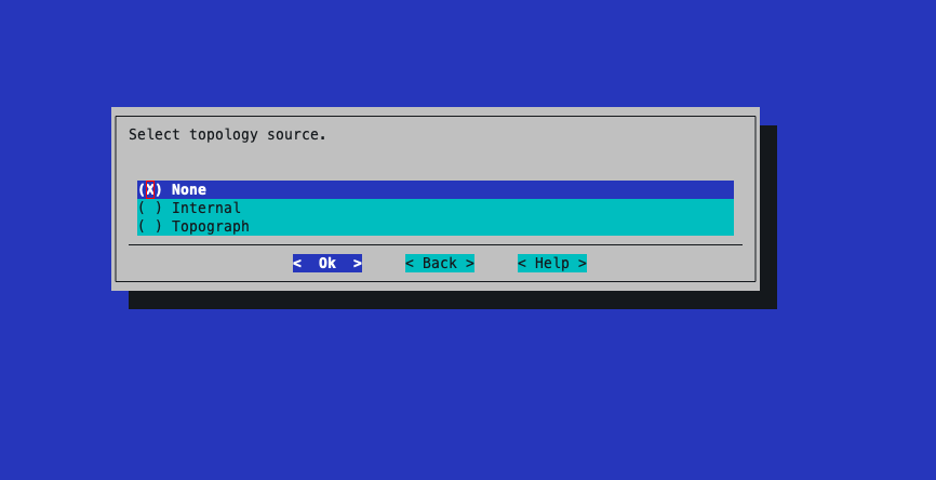

Select topology source as None

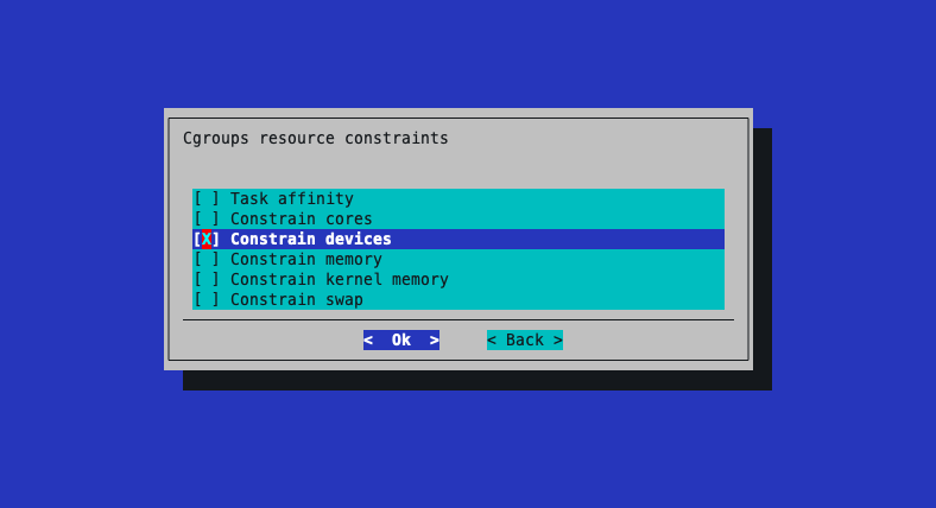

Select Constrain Devices for Cgroups resource constraints.

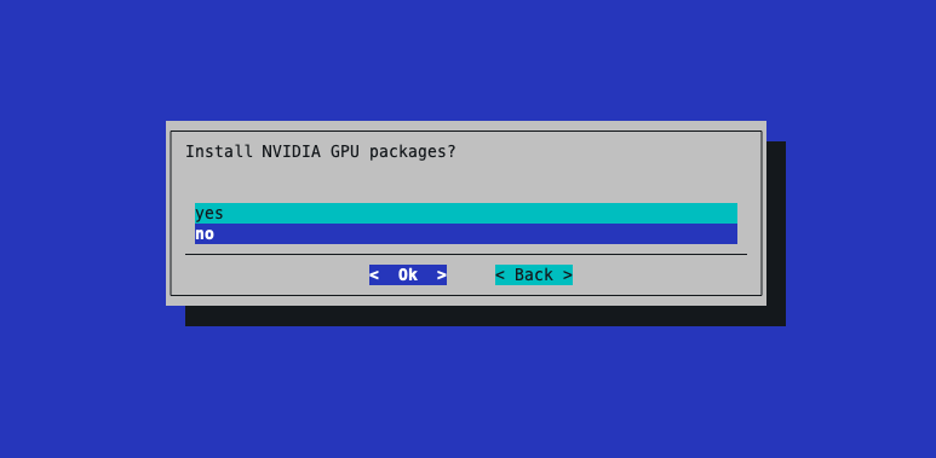

Select “no” on Install NVIDIA GPU packages.

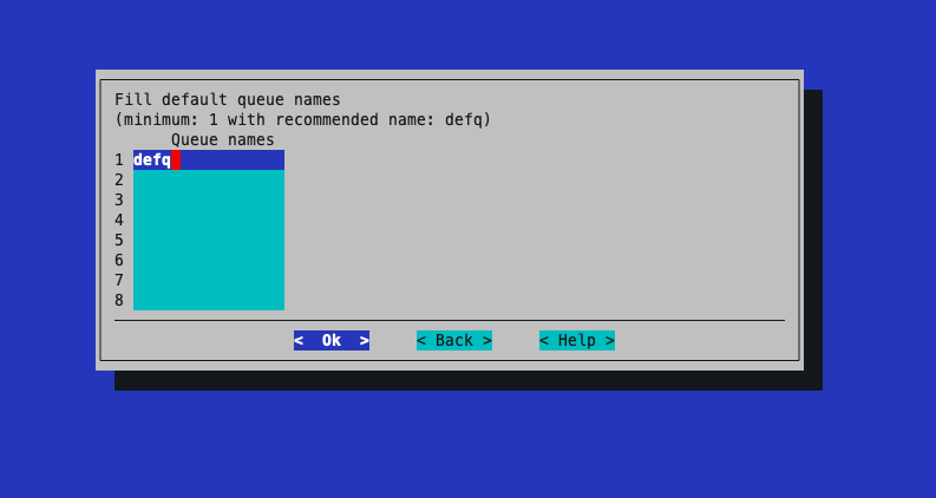

Leave the queue names as the default.

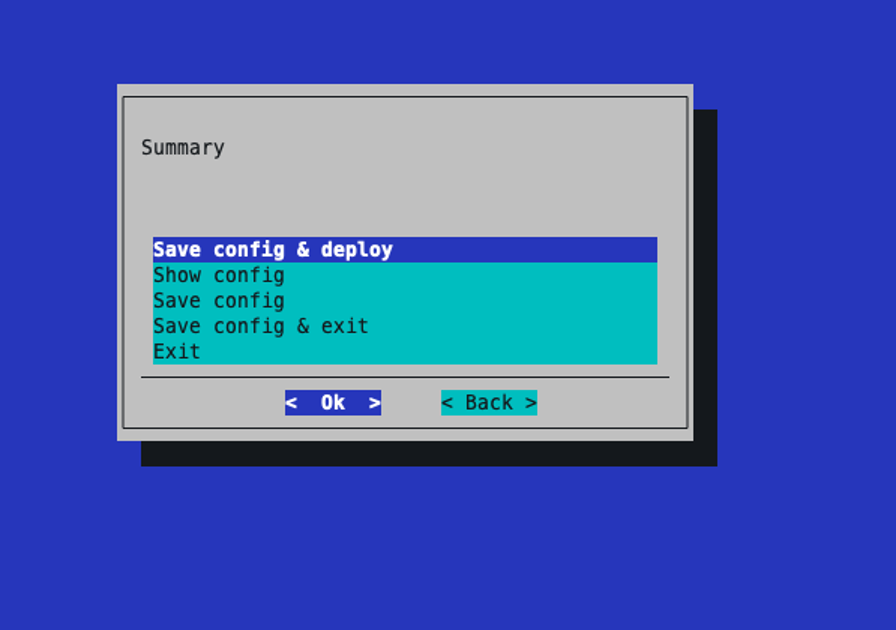

Choose Save config & deploy.

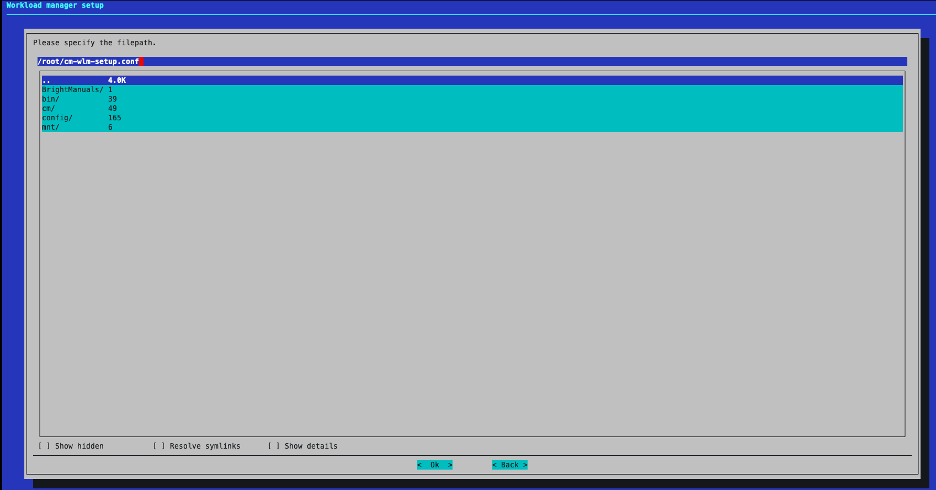

On the save screen you can proceed with the default values which places a cm-wlm-setup.conf file in the /root directory of the primary headnode, or you can specify a custom file name/directory. This file can be used in the future for redeploying Slurm using the same configuration values.
Wait for the installation to complete.
----- output omitted for brevity -------- ## Progress: 73 #### stage: wlm_slurm: Create Job Queues ## Progress: 76 #### stage: wlm_slurm: Assign Server Role Assigning SlurmServerRole role ## Progress: 77 #### stage: wlm: Set Primary Server ## Progress: 89 #### stage: wlm_slurm: Assign Client Role Assigning SlurmClientRole role ## Progress: 90 #### stage: wlm_slurm: Assign SlurmClientRole to configuration overlays with gpu GPU devices will automatically be added to gres.conf. Please configure consumable resource allocation and GPU accounting tracking plugins in slurm.conf manually if needed. More details can be found in the Bright Computing administrator manual, section "GPU Configuration For HPC Workload Managers". ## Progress: 91 #### stage: wlm_slurm: Assign Submit Role Assigning SlurmSubmitRole role #### stage: wlm_slurm: Assign Headnode Submit Role Assigning SlurmSubmitRole role ## Progress: 92 #### stage: wlm_slurm: Render SlurmSubmit role intersection with other installations ## Progress: 93 #### stage: wlm_slurm: Assign Accounting Role Assigning SlurmAccountingRole role ## Progress: 94 #### stage: wlm: Update Prejob Healthchecks ## Progress: 100 Took: 01:13 min. Progress: 100/100 ################### Finished execution for 'Workload manager setup', status: completed Workload manager setup finished!
Remove the slurm-client overlay since there will not be any slurm cpu workers.
root@clio-headnode-01:~# cmsh [root@clio-headnode-01]% configurationoverlay [root@clio-headnode-01->configurationoverlay]% remove slurm-client [root@clio-headnode-01->configurationoverlay*]% commit Successfully removed 1 ConfigurationOverlays Successfully committed 0 ConfigurationOverlays
Rename the slurm-gpu-client overlay
[clio-headnode-01->configurationoverlay]% set slurm-client-gpu name slurm-client [clio-headnode-01->configurationoverlay*]% commit Successfully committed 1 ConfigurationOverlays
Validate Slurm#
Login to SLOGIN-01 and run sinfo to verify that all the nodes are up and ready.
root@slogin-01:~# module load slurm root@slogin-01:~# sinfo PARTITION AVAIL TIMELIMIT NODES STATE NODELIST defq* up infinite 4 idle dgx-[01-04]
Basic slum job/GPU test
root@slogin-01:~# srun --gres=gpu:1 -n1 nvidia-smi Wed Aug 13 13:55:33 2025 +-----------------------------------------------------------------------------------------+ | NVIDIA-SMI 570.172.08 Driver Version: 570.172.08 CUDA Version: 12.8 | |-----------------------------------------+------------------------+----------------------+ | GPU Name Persistence-M | Bus-Id Disp.A | Volatile Uncorr. ECC | | Fan Temp Perf Pwr:Usage/Cap | Memory-Usage | GPU-Util Compute M. | | | | MIG M. | |=========================================+========================+======================| | 0 NVIDIA B200 On | 00000000:1B:00.0 Off | 0 | | N/A 33C P0 168W / 1000W | 0MiB / 183359MiB | 0% Default | | | | Disabled | +-----------------------------------------+------------------------+----------------------+ +-----------------------------------------------------------------------------------------+ | Processes: | | GPU GI CI PID Type Process name GPU Memory | | ID ID Usage | |=========================================================================================| | No running processes found | +-----------------------------------------------------------------------------------------+ root@slogin-01:~# srun --gres=gpu:8 -n1 nvidia-smi Wed Aug 13 13:56:14 2025 +-----------------------------------------------------------------------------------------+ | NVIDIA-SMI 570.172.08 Driver Version: 570.172.08 CUDA Version: 12.8 | |-----------------------------------------+------------------------+----------------------+ | GPU Name Persistence-M | Bus-Id Disp.A | Volatile Uncorr. ECC | | Fan Temp Perf Pwr:Usage/Cap | Memory-Usage | GPU-Util Compute M. | | | | MIG M. | |=========================================+========================+======================| | 0 NVIDIA B200 On | 00000000:1B:00.0 Off | 0 | | N/A 32C P0 168W / 1000W | 0MiB / 183359MiB | 0% Default | | | | Disabled | +-----------------------------------------+------------------------+----------------------+ | 1 NVIDIA B200 On | 00000000:43:00.0 Off | 0 | | N/A 34C P0 164W / 1000W | 0MiB / 183359MiB | 0% Default | | | | Disabled | +-----------------------------------------+------------------------+----------------------+ | 2 NVIDIA B200 On | 00000000:52:00.0 Off | 0 | | N/A 37C P0 166W / 1000W | 0MiB / 183359MiB | 0% Default | | | | Disabled | +-----------------------------------------+------------------------+----------------------+ | 3 NVIDIA B200 On | 00000000:61:00.0 Off | 0 | | N/A 36C P0 166W / 1000W | 0MiB / 183359MiB | 0% Default | | | | Disabled | +-----------------------------------------+------------------------+----------------------+ | 4 NVIDIA B200 On | 00000000:9D:00.0 Off | 0 | | N/A 31C P0 164W / 1000W | 0MiB / 183359MiB | 0% Default | | | | Disabled | +-----------------------------------------+------------------------+----------------------+ | 5 NVIDIA B200 On | 00000000:C3:00.0 Off | 0 | | N/A 31C P0 165W / 1000W | 0MiB / 183359MiB | 0% Default | | | | Disabled | +-----------------------------------------+------------------------+----------------------+ | 6 NVIDIA B200 On | 00000000:D1:00.0 Off | 0 | | N/A 34C P0 163W / 1000W | 0MiB / 183359MiB | 0% Default | | | | Disabled | +-----------------------------------------+------------------------+----------------------+ | 7 NVIDIA B200 On | 00000000:DF:00.0 Off | 0 | | N/A 35C P0 168W / 1000W | 0MiB / 183359MiB | 0% Default | | | | Disabled | +-----------------------------------------+------------------------+----------------------+ +-----------------------------------------------------------------------------------------+ | Processes: | | GPU GI CI PID Type Process name GPU Memory | | ID ID Usage | |=========================================================================================| | No running processes found | +-----------------------------------------------------------------------------------------+
Container validation test#
root@slogin-01:~# srun --container-image=ubuntu grep PRETTY /etc/os-release pyxis: importing docker image: ubuntu pyxis: imported docker image: ubuntu PRETTY_NAME="Ubuntu 24.04.2 LTS"
Single-node NCCL test#
root@slogin-01:~# srun --export="NCCL_SOCKET_IFNAME=bond0" -N1 --exclusive --gpus-per-node=8 --mpi=pmix --container-name=nccl-test --container-image="docker://brightcomputing/nccl-test:25.02-py3-x86" all_reduce_perf_mpi -b 1G -e 16G -f 2 -g 8 # nThread 1 nGpus 8 minBytes 1073741824 maxBytes 17179869184 step: 2(factor) warmup iters: 5 iters: 20 agg iters: 1 validation: 1 graph: 0 # # Using devices # Rank 0 Group 0 Pid 67104 on dgx-02 device 0 [0x1b] NVIDIA B200 # Rank 1 Group 0 Pid 67104 on dgx-02 device 1 [0x43] NVIDIA B200 # Rank 2 Group 0 Pid 67104 on dgx-02 device 2 [0x52] NVIDIA B200 # Rank 3 Group 0 Pid 67104 on dgx-02 device 3 [0x61] NVIDIA B200 # Rank 4 Group 0 Pid 67104 on dgx-02 device 4 [0x9d] NVIDIA B200 # Rank 5 Group 0 Pid 67104 on dgx-02 device 5 [0xc3] NVIDIA B200 # Rank 6 Group 0 Pid 67104 on dgx-02 device 6 [0xd1] NVIDIA B200 # Rank 7 Group 0 Pid 67104 on dgx-02 device 7 [0xdf] NVIDIA B200 # # out-of-place in-place # size count type redop root time algbw busbw #wrong time algbw busbw #wrong # (B) (elements) (us) (GB/s) (GB/s) (us) (GB/s) (GB/s) 1073741824 268435456 float sum -1 2587.7 414.94 726.15 0 2582.9 415.71 727.50 0 2147483648 536870912 float sum -1 4628.4 463.98 811.96 0 4634.3 463.39 810.93 0 4294967296 1073741824 float sum -1 9114.2 471.24 824.67 0 9114.2 471.24 824.67 0 8589934592 2147483648 float sum -1 18081 475.07 831.38 0 18092 474.80 830.90 0 17179869184 4294967296 float sum -1 36048 476.58 834.02 0 36024 476.91 834.58 0 # Out of bounds values : 0 OK # Avg bus bandwidth : 805.674 #
Multinode NCCL Test 2 and 3 nodes#
root@slogin-01:~# srun --export="UCX_NET_DEVICES=bond0,OMPI_MCA_pml=ucx,HCOLL_ENABLE_MCAST_ALL=0,OMPI_MCA_coll=^hcoll,NCCL_SOCKET_IFNAME=bond0,UCX_TLS=tcp,UCX_NET_DEVICES=bond0,MELLANOX_VISIBLE_DEVICES=all,OMPI_MCA_coll_hcoll_enable=0,OMPI_MCA_coll_ucc_enable=0" -N2 --exclusive --gpus-per-node=8 --mpi=pmix --container-name=nccl-test --container-image="docker://brightcomputing/nccl-test:25.02-py3-x86" all_reduce_perf_mpi -b 1G -e 16G -f 2 -g 8 [dgx-04:74971] PMIX ERROR: ERROR in file gds_ds12_lock_pthread.c at line 168 [dgx-02:75241] PMIX ERROR: ERROR in file gds_ds12_lock_pthread.c at line 168 # nThread 1 nGpus 8 minBytes 1073741824 maxBytes 17179869184 step: 2(factor) warmup iters: 5 iters: 20 agg iters: 1 validation: 1 graph: 0 # # Using devices # Rank 0 Group 0 Pid 75241 on dgx-02 device 0 [0x1b] NVIDIA B200 # Rank 1 Group 0 Pid 75241 on dgx-02 device 1 [0x43] NVIDIA B200 # Rank 2 Group 0 Pid 75241 on dgx-02 device 2 [0x52] NVIDIA B200 # Rank 3 Group 0 Pid 75241 on dgx-02 device 3 [0x61] NVIDIA B200 # Rank 4 Group 0 Pid 75241 on dgx-02 device 4 [0x9d] NVIDIA B200 # Rank 5 Group 0 Pid 75241 on dgx-02 device 5 [0xc3] NVIDIA B200 # Rank 6 Group 0 Pid 75241 on dgx-02 device 6 [0xd1] NVIDIA B200 # Rank 7 Group 0 Pid 75241 on dgx-02 device 7 [0xdf] NVIDIA B200 # Rank 8 Group 0 Pid 74971 on dgx-04 device 0 [0x1b] NVIDIA B200 # Rank 9 Group 0 Pid 74971 on dgx-04 device 1 [0x43] NVIDIA B200 # Rank 10 Group 0 Pid 74971 on dgx-04 device 2 [0x52] NVIDIA B200 # Rank 11 Group 0 Pid 74971 on dgx-04 device 3 [0x61] NVIDIA B200 # Rank 12 Group 0 Pid 74971 on dgx-04 device 4 [0x9d] NVIDIA B200 # Rank 13 Group 0 Pid 74971 on dgx-04 device 5 [0xc3] NVIDIA B200 # Rank 14 Group 0 Pid 74971 on dgx-04 device 6 [0xd1] NVIDIA B200 # Rank 15 Group 0 Pid 74971 on dgx-04 device 7 [0xdf] NVIDIA B200 # # out-of-place in-place # size count type redop root time algbw busbw #wrong time algbw busbw #wrong # (B) (elements) (us) (GB/s) (GB/s) (us) (GB/s) (GB/s) 1073741824 268435456 float sum -1 2972.6 361.22 677.28 0 2975.6 360.84 676.58 0 2147483648 536870912 float sum -1 5710.7 376.04 705.08 0 5712.2 375.95 704.90 0 4294967296 1073741824 float sum -1 11185 384.00 720.00 0 11186 383.96 719.93 0 8589934592 2147483648 float sum -1 22124 388.26 727.98 0 22123 388.28 728.02 0 17179869184 4294967296 float sum -1 44009 390.37 731.95 0 44000 390.45 732.09 0 # Out of bounds values : 0 OK # Avg bus bandwidth : 712.381 # ## ---- 3 node NCCL test ----## root@slogin-01:~# srun --export="UCX_NET_DEVICES=bond0,OMPI_MCA_pml=ucx,HCOLL_ENABLE_MCAST_ALL=0,OMPI_MCA_coll=^hcoll,NCCL_SOCKET_IFNAME=bond0,UCX_TLS=tcp,UCX_NET_DEVICES=bond0,MELLANOX_VISIBLE_DEVICES=all,OMPI_MCA_coll_hcoll_enable=0,OMPI_MCA_coll_ucc_enable=0" -N3 --exclusive --gpus-per-node=8 --mpi=pmix --container-name=nccl-test --container-image="docker://brightcomputing/nccl-test:25.02-py3-x86" all_reduce_perf_mpi -b 1G -e 16G -f 2 -g 8 [dgx-04:90178] PMIX ERROR: ERROR in file gds_ds12_lock_pthread.c at line 168 [dgx-02:90762] PMIX ERROR: ERROR in file gds_ds12_lock_pthread.c at line 168 pyxis: imported docker image: docker://brightcomputing/nccl-test:25.02-py3-x86 [dgx-01:80425] PMIX ERROR: ERROR in file gds_ds12_lock_pthread.c at line 168 # nThread 1 nGpus 8 minBytes 1073741824 maxBytes 17179869184 step: 2(factor) warmup iters: 5 iters: 20 agg iters: 1 validation: 1 graph: 0 # # Using devices # Rank 0 Group 0 Pid 80425 on dgx-01 device 0 [0x1b] NVIDIA B200 # Rank 1 Group 0 Pid 80425 on dgx-01 device 1 [0x43] NVIDIA B200 # Rank 2 Group 0 Pid 80425 on dgx-01 device 2 [0x52] NVIDIA B200 # Rank 3 Group 0 Pid 80425 on dgx-01 device 3 [0x61] NVIDIA B200 # Rank 4 Group 0 Pid 80425 on dgx-01 device 4 [0x9d] NVIDIA B200 # Rank 5 Group 0 Pid 80425 on dgx-01 device 5 [0xc3] NVIDIA B200 # Rank 6 Group 0 Pid 80425 on dgx-01 device 6 [0xd1] NVIDIA B200 # Rank 7 Group 0 Pid 80425 on dgx-01 device 7 [0xdf] NVIDIA B200 # Rank 8 Group 0 Pid 90762 on dgx-02 device 0 [0x1b] NVIDIA B200 # Rank 9 Group 0 Pid 90762 on dgx-02 device 1 [0x43] NVIDIA B200 # Rank 10 Group 0 Pid 90762 on dgx-02 device 2 [0x52] NVIDIA B200 # Rank 11 Group 0 Pid 90762 on dgx-02 device 3 [0x61] NVIDIA B200 # Rank 12 Group 0 Pid 90762 on dgx-02 device 4 [0x9d] NVIDIA B200 # Rank 13 Group 0 Pid 90762 on dgx-02 device 5 [0xc3] NVIDIA B200 # Rank 14 Group 0 Pid 90762 on dgx-02 device 6 [0xd1] NVIDIA B200 # Rank 15 Group 0 Pid 90762 on dgx-02 device 7 [0xdf] NVIDIA B200 # Rank 16 Group 0 Pid 90178 on dgx-04 device 0 [0x1b] NVIDIA B200 # Rank 17 Group 0 Pid 90178 on dgx-04 device 1 [0x43] NVIDIA B200 # Rank 18 Group 0 Pid 90178 on dgx-04 device 2 [0x52] NVIDIA B200 # Rank 19 Group 0 Pid 90178 on dgx-04 device 3 [0x61] NVIDIA B200 # Rank 20 Group 0 Pid 90178 on dgx-04 device 4 [0x9d] NVIDIA B200 # Rank 21 Group 0 Pid 90178 on dgx-04 device 5 [0xc3] NVIDIA B200 # Rank 22 Group 0 Pid 90178 on dgx-04 device 6 [0xd1] NVIDIA B200 # Rank 23 Group 0 Pid 90178 on dgx-04 device 7 [0xdf] NVIDIA B200 # # out-of-place in-place # size count type redop root time algbw busbw #wrong time algbw busbw #wrong # (B) (elements) (us) (GB/s) (GB/s) (us) (GB/s) (GB/s) 1073741824 268435456 float sum -1 5322.5 201.74 386.66 0 5326.0 201.60 386.41 0 2147483648 536870912 float sum -1 10562 203.31 389.68 0 10560 203.36 389.77 0 4294967296 1073741824 float sum -1 20999 204.53 392.02 0 21009 204.44 391.84 0 8589934592 2147483648 float sum -1 42028 204.38 391.74 0 42038 204.34 391.65 0 17179869184 4294967296 float sum -1 83647 205.39 393.66 0 83650 205.38 393.64 0 # Out of bounds values : 0 OK # Avg bus bandwidth : 390.707
Deploy Run:ai#
Refer to the official Run:ai on BCM installation documentation for step-by-step deployment guides based on the BCM K8s deployment wizard.
Cluster Name#
To help distinguish the Run:ai cluster from other K8s clusters that may be deployed onto the SuperPOD, set the cluster name to k8s-user in the Kubernetes Wizard.
Node Categories#
In the NVIDIA Base Command Manager (BCM), a node category is a way to group nodes that share the same hardware profile and intended role. Defining node categories allows the system to assign the appropriate software image and configurations to each group during provisioning
Before installing NVIDIA Run:ai, make sure BCM node categories are created for:
Kubernetes system nodes ( k8s-system-user)
NVIDIA Run:ai GPU worker nodes (dgx-b200-k8s)
These will be employed when setting up Run:ai for the first time via the BCM setup assistant. More details and full instructions are available in the Run:ai BCM Install Getting Started Guide .
Validate Run:AI#
To validate Run:AI please refer to the Run:ai usage guides for deploying single-GPU training jobs, multi-node training jobs, single-GPU inference jobs, and multi-GPU inference jobs.
Appendix A - Site survey#

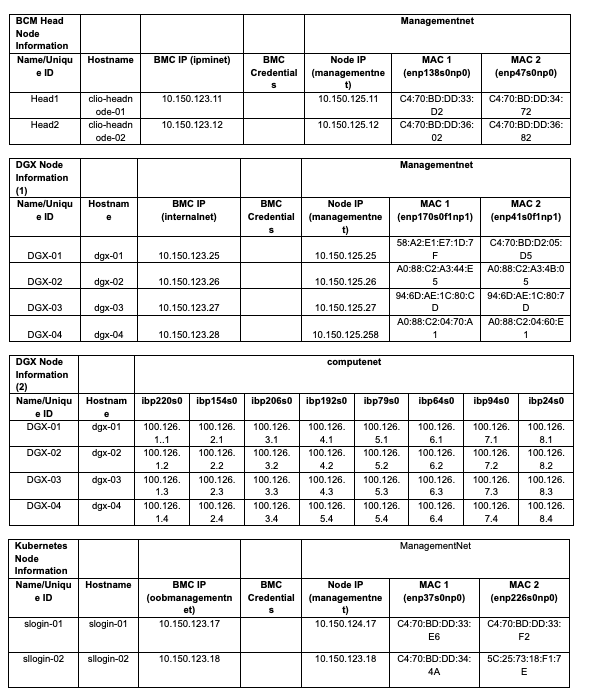

Sample Site Survey#
Appendix B - Switch Configuration#
SN4600C-1/TOR1 Configuration#
nv set bridge domain br_default vlan 100-103 nv set interface bond1 bond member swp1 nv set interface bond1 bond mlag id 1 nv set interface bond1-11,13-48,51 bond lacp-bypass on nv set interface bond1-32 bridge domain br_default access 102 nv set interface bond33-48 bridge domain br_default access 103 nv set interface bond1-48,51 bond mlag enable on nv set interface bond1-48,51 type bond nv set interface bond2 bond member swp2 nv set interface bond2 bond mlag id 2 nv set interface bond3 bond member swp3 nv set interface bond3 bond mlag id 3 nv set interface bond4 bond member swp4 nv set interface bond4 bond mlag id 4 nv set interface bond5 bond member swp5 nv set interface bond5 bond mlag id 5 nv set interface bond6 bond member swp6 nv set interface bond6 bond mlag id 6 nv set interface bond7 bond member swp7 nv set interface bond7 bond mlag id 7 nv set interface bond8 bond member swp8 nv set interface bond8 bond mlag id 8 nv set interface bond9 bond member swp9 nv set interface bond9 bond mlag id 9 nv set interface bond10 bond member swp10 nv set interface bond10 bond mlag id 10 nv set interface bond11 bond member swp11 nv set interface bond11 bond mlag id 11 nv set interface bond12 bond member swp12 nv set interface bond12 bond mlag id 12 nv set interface bond13 bond member swp13 nv set interface bond13 bond mlag id 13 nv set interface bond14 bond member swp14 nv set interface bond14 bond mlag id 14 nv set interface bond15 bond member swp15 nv set interface bond15 bond mlag id 15 nv set interface bond16 bond member swp16 nv set interface bond16 bond mlag id 16 nv set interface bond17 bond member swp17 nv set interface bond17 bond mlag id 17 nv set interface bond18 bond member swp18 nv set interface bond18 bond mlag id 18 nv set interface bond19 bond member swp19 nv set interface bond19 bond mlag id 19 nv set interface bond20 bond member swp20 nv set interface bond20 bond mlag id 20 nv set interface bond21 bond member swp21 nv set interface bond21 bond mlag id 21 nv set interface bond22 bond member swp22 nv set interface bond22 bond mlag id 22 nv set interface bond23 bond member swp23 nv set interface bond23 bond mlag id 23 nv set interface bond24 bond member swp24 nv set interface bond24 bond mlag id 24 nv set interface bond25 bond member swp25 nv set interface bond25 bond mlag id 25 nv set interface bond26 bond member swp26 nv set interface bond26 bond mlag id 26 nv set interface bond27 bond member swp27 nv set interface bond27 bond mlag id 27 nv set interface bond28 bond member swp28 nv set interface bond28 bond mlag id 28 nv set interface bond29 bond member swp29 nv set interface bond29 bond mlag id 29 nv set interface bond30 bond member swp30 nv set interface bond30 bond mlag id 30 nv set interface bond31 bond member swp31 nv set interface bond31 bond mlag id 31 nv set interface bond32 bond member swp32 nv set interface bond32 bond mlag id 32 nv set interface bond33 bond member swp33 nv set interface bond33 bond mlag id 33 nv set interface bond34 bond member swp34 nv set interface bond34 bond mlag id 34 nv set interface bond35 bond member swp35 nv set interface bond35 bond mlag id 35 nv set interface bond36 bond member swp36 nv set interface bond36 bond mlag id 36 nv set interface bond37 bond member swp37 nv set interface bond37 bond mlag id 37 nv set interface bond38 bond member swp38 nv set interface bond38 bond mlag id 38 nv set interface bond39 bond member swp39 nv set interface bond39 bond mlag id 39 nv set interface bond40 bond member swp40 nv set interface bond40 bond mlag id 40 nv set interface bond41 bond member swp41 nv set interface bond41 bond mlag id 41 nv set interface bond42 bond member swp42 nv set interface bond42 bond mlag id 42 nv set interface bond43 bond member swp43 nv set interface bond43 bond mlag id 43 nv set interface bond44 bond member swp44 nv set interface bond44 bond mlag id 44 nv set interface bond45 bond member swp45 nv set interface bond45 bond mlag id 45 nv set interface bond46 bond member swp46 nv set interface bond46 bond mlag id 46 nv set interface bond47 bond member swp47 nv set interface bond47 bond mlag id 47 nv set interface bond48 bond member swp48 nv set interface bond48 bond mlag id 48 nv set interface bond51 bond member swp51 nv set interface bond51 bond mlag id 51 nv set interface bond51 bridge domain br_default untagged 1 nv set interface bond51 bridge domain br_default vlan all nv set interface eth0 ip address dhcp nv set interface eth0 ip vrf mgmt nv set interface eth0 type eth nv set interface lo ip address 10.160.254.22/32 nv set interface lo type loopback nv set interface peerlink bond member swp63 nv set interface peerlink bond member swp64 nv set interface peerlink type peerlink nv set interface peerlink.4094 base-interface peerlink nv set interface peerlink.4094 type sub nv set interface peerlink.4094 vlan 4094 nv set interface swp49-50 type swp nv set interface vlan101-103 ip vrr enable on nv set interface vlan101-103 ip vrr mac-address 00:1c:73:aa:bb:04 nv set interface vlan101-103 ip vrr state up nv set interface vlan101-103 type svi nv set interface vlan101 ip address 10.150.123.2/24 nv set interface vlan101 ip vrr address 10.150.123.1/24 nv set interface vlan101 vlan 101 nv set interface vlan102 ip address 10.150.124.2/24 nv set interface vlan102 ip vrr address 10.150.124.1/24 nv set interface vlan102 vlan 102 nv set interface vlan103 ip address 10.150.125.2/24 nv set interface vlan103 ip vrr address 10.150.125.1/24 nv set interface vlan103 vlan 103 nv set service dhcp-relay default interface vlan102 nv set service dhcp-relay default interface vlan103 nv set service dhcp-relay default server 10.150.124.11 nv set service dhcp-relay default server 10.150.124.12 nv set mlag backup 10.160.254.23 nv set mlag enable on nv set mlag mac-address 44:38:39:FF:0A:00 nv set mlag peer-ip linklocal nv set mlag priority 2048 nv set router bgp autonomous-system 4200120327 nv set router bgp enable on nv set router bgp router-id 10.160.254.22 nv set router vrr enable on nv set service ntp mgmt server 0.cumulusnetworks.pool.ntp.org nv set service ntp mgmt server 1.cumulusnetworks.pool.ntp.org nv set service ntp mgmt server 2.cumulusnetworks.pool.ntp.org nv set service ntp mgmt server 3.cumulusnetworks.pool.ntp.org nv set system aaa class nvapply action allow nv set system aaa class nvapply command-path / permission all nv set system aaa class nvshow action allow nv set system aaa class nvshow command-path / permission ro nv set system aaa class sudo action allow nv set system aaa class sudo command-path / permission all nv set system aaa role nvue-admin class nvapply nv set system aaa role nvue-monitor class nvshow nv set system aaa role system-admin class nvapply nv set system aaa role system-admin class sudo nv set system aaa user cumulus full-name cumulus,,, nv set system aaa user cumulus hashed-password '*' nv set system aaa user cumulus role system-admin nv set system api state enabled nv set system config auto-save state enabled nv set system control-plane acl acl-default-dos inbound nv set system control-plane acl acl-default-whitelist inbound nv set system hostname SN4600C-1 nv set system reboot mode cold nv set system ssh-server permit-root-login enabled nv set system ssh-server state enabled nv set system ssh-server vrf mgmt nv set system timezone America/Los_Angeles nv set system wjh channel forwarding trigger l2 nv set system wjh channel forwarding trigger l3 nv set system wjh channel forwarding trigger tunnel nv set system wjh enable on nv set vrf default router bgp address-family ipv4-unicast enable on nv set vrf default router bgp address-family ipv4-unicast redistribute connected enable on nv set vrf default router bgp enable on nv set vrf default router bgp neighbor peerlink.4094 remote-as internal nv set vrf default router bgp neighbor peerlink.4094 timers connection-retry 10 nv set vrf default router bgp neighbor peerlink.4094 timers hold 10 nv set vrf default router bgp neighbor peerlink.4094 timers keepalive 3 nv set vrf default router bgp neighbor peerlink.4094 timers route-advertisement auto nv set vrf default router bgp neighbor peerlink.4094 type unnumbered nv set vrf default router bgp neighbor swp49 remote-as external nv set vrf default router bgp neighbor swp49 timers connection-retry 10 nv set vrf default router bgp neighbor swp49 timers hold 10 nv set vrf default router bgp neighbor swp49 timers keepalive 3 nv set vrf default router bgp neighbor swp49 timers route-advertisement auto nv set vrf default router bgp neighbor swp49 type unnumbered nv set vrf default router bgp neighbor swp50 remote-as external nv set vrf default router bgp neighbor swp50 timers connection-retry 10 nv set vrf default router bgp neighbor swp50 timers hold 10 nv set vrf default router bgp neighbor swp50 timers keepalive 3 nv set vrf default router bgp neighbor swp50 timers route-advertisement auto nv set vrf default router bgp neighbor swp50 type unnumbered
SN4600C-2/TOR2 Configuration#
nv set bridge domain br_default vlan 100-103 nv set interface bond1 bond member swp1 nv set interface bond1 bond mlag id 1 nv set interface bond1-11,13-48,51 bond lacp-bypass on nv set interface bond1-32 bridge domain br_default access 102 nv set interface bond33-48 bridge domain br_default access 103 nv set interface bond1-48,51 bond mlag enable on nv set interface bond1-48,51 type bond nv set interface bond2 bond member swp2 nv set interface bond2 bond mlag id 2 nv set interface bond3 bond member swp3 nv set interface bond3 bond mlag id 3 nv set interface bond4 bond member swp4 nv set interface bond4 bond mlag id 4 nv set interface bond5 bond member swp5 nv set interface bond5 bond mlag id 5 nv set interface bond6 bond member swp6 nv set interface bond6 bond mlag id 6 nv set interface bond7 bond member swp7 nv set interface bond7 bond mlag id 7 nv set interface bond8 bond member swp8 nv set interface bond8 bond mlag id 8 nv set interface bond9 bond member swp9 nv set interface bond9 bond mlag id 9 nv set interface bond10 bond member swp10 nv set interface bond10 bond mlag id 10 nv set interface bond11 bond member swp11 nv set interface bond11 bond mlag id 11 nv set interface bond12 bond member swp12 nv set interface bond12 bond mlag id 12 nv set interface bond13 bond member swp13 nv set interface bond13 bond mlag id 13 nv set interface bond14 bond member swp14 nv set interface bond14 bond mlag id 14 nv set interface bond15 bond member swp15 nv set interface bond15 bond mlag id 15 nv set interface bond16 bond member swp16 nv set interface bond16 bond mlag id 16 nv set interface bond17 bond member swp17 nv set interface bond17 bond mlag id 17 nv set interface bond18 bond member swp18 nv set interface bond18 bond mlag id 18 nv set interface bond19 bond member swp19 nv set interface bond19 bond mlag id 19 nv set interface bond20 bond member swp20 nv set interface bond20 bond mlag id 20 nv set interface bond21 bond member swp21 nv set interface bond21 bond mlag id 21 nv set interface bond22 bond member swp22 nv set interface bond22 bond mlag id 22 nv set interface bond23 bond member swp23 nv set interface bond23 bond mlag id 23 nv set interface bond24 bond member swp24 nv set interface bond24 bond mlag id 24 nv set interface bond25 bond member swp25 nv set interface bond25 bond mlag id 25 nv set interface bond26 bond member swp26 nv set interface bond26 bond mlag id 26 nv set interface bond27 bond member swp27 nv set interface bond27 bond mlag id 27 nv set interface bond28 bond member swp28 nv set interface bond28 bond mlag id 28 nv set interface bond29 bond member swp29 nv set interface bond29 bond mlag id 29 nv set interface bond30 bond member swp30 nv set interface bond30 bond mlag id 30 nv set interface bond31 bond member swp31 nv set interface bond31 bond mlag id 31 nv set interface bond32 bond member swp32 nv set interface bond32 bond mlag id 32 nv set interface bond33 bond member swp33 nv set interface bond33 bond mlag id 33 nv set interface bond34 bond member swp34 nv set interface bond34 bond mlag id 34 nv set interface bond35 bond member swp35 nv set interface bond35 bond mlag id 35 nv set interface bond36 bond member swp36 nv set interface bond36 bond mlag id 36 nv set interface bond37 bond member swp37 nv set interface bond37 bond mlag id 37 nv set interface bond38 bond member swp38 nv set interface bond38 bond mlag id 38 nv set interface bond39 bond member swp39 nv set interface bond39 bond mlag id 39 nv set interface bond40 bond member swp40 nv set interface bond40 bond mlag id 40 nv set interface bond41 bond member swp41 nv set interface bond41 bond mlag id 41 nv set interface bond42 bond member swp42 nv set interface bond42 bond mlag id 42 nv set interface bond43 bond member swp43 nv set interface bond43 bond mlag id 43 nv set interface bond44 bond member swp44 nv set interface bond44 bond mlag id 44 nv set interface bond45 bond member swp45 nv set interface bond45 bond mlag id 45 nv set interface bond46 bond member swp46 nv set interface bond46 bond mlag id 46 nv set interface bond47 bond member swp47 nv set interface bond47 bond mlag id 47 nv set interface bond48 bond member swp48 nv set interface bond48 bond mlag id 48 nv set interface bond51 bond member swp51 nv set interface bond51 bond mlag id 51 nv set interface bond51 bridge domain br_default untagged 1 nv set interface bond51 bridge domain br_default vlan all nv set interface eth0 ip address dhcp nv set interface eth0 ip vrf mgmt nv set interface eth0 type eth nv set interface lo ip address 10.160.254.22/32 nv set interface lo type loopback nv set interface peerlink bond member swp63 nv set interface peerlink bond member swp64 nv set interface peerlink type peerlink nv set interface peerlink.4094 base-interface peerlink nv set interface peerlink.4094 type sub nv set interface peerlink.4094 vlan 4094 nv set interface swp49-50 type swp nv set interface vlan101-103 ip vrr enable on nv set interface vlan101-103 ip vrr mac-address 00:1c:73:aa:bb:04 nv set interface vlan101-103 ip vrr state up nv set interface vlan101-103 type svi nv set interface vlan101 ip address 10.150.123.3/24 nv set interface vlan101 ip vrr address 10.150.123.1/24 nv set interface vlan101 vlan 101 nv set interface vlan102 ip address 10.150.124.3/24 nv set interface vlan102 ip vrr address 10.150.124.1/24 nv set interface vlan102 vlan 102 nv set interface vlan103 ip address 10.150.125.3/24 nv set interface vlan103 ip vrr address 10.150.125.1/24 nv set interface vlan103 vlan 103 nv set service dhcp-relay default interface vlan102 nv set service dhcp-relay default interface vlan103 nv set service dhcp-relay default server 10.150.124.11 nv set service dhcp-relay default server 10.150.124.12 nv set mlag backup 10.160.254.22 nv set mlag enable on nv set mlag mac-address 44:38:39:FF:0A:00 nv set mlag peer-ip linklocal nv set mlag priority 2048 nv set router bgp autonomous-system 4200120327 nv set router bgp enable on nv set router bgp router-id 10.160.254.22 nv set router vrr enable on nv set service ntp mgmt server 0.cumulusnetworks.pool.ntp.org nv set service ntp mgmt server 1.cumulusnetworks.pool.ntp.org nv set service ntp mgmt server 2.cumulusnetworks.pool.ntp.org nv set service ntp mgmt server 3.cumulusnetworks.pool.ntp.org nv set system aaa class nvapply action allow nv set system aaa class nvapply command-path / permission all nv set system aaa class nvshow action allow nv set system aaa class nvshow command-path / permission ro nv set system aaa class sudo action allow nv set system aaa class sudo command-path / permission all nv set system aaa role nvue-admin class nvapply nv set system aaa role nvue-monitor class nvshow nv set system aaa role system-admin class nvapply nv set system aaa role system-admin class sudo nv set system aaa user cumulus full-name cumulus,,, nv set system aaa user cumulus hashed-password '*' nv set system aaa user cumulus role system-admin nv set system api state enabled nv set system config auto-save state enabled nv set system control-plane acl acl-default-dos inbound nv set system control-plane acl acl-default-whitelist inbound nv set system hostname SN4600C-2 nv set system reboot mode cold nv set system ssh-server permit-root-login enabled nv set system ssh-server state enabled nv set system ssh-server vrf mgmt nv set system timezone America/Los_Angeles nv set system wjh channel forwarding trigger l2 nv set system wjh channel forwarding trigger l3 nv set system wjh channel forwarding trigger tunnel nv set system wjh enable on nv set vrf default router bgp address-family ipv4-unicast enable on nv set vrf default router bgp address-family ipv4-unicast redistribute connected enable on nv set vrf default router bgp enable on nv set vrf default router bgp neighbor peerlink.4094 remote-as internal nv set vrf default router bgp neighbor peerlink.4094 timers connection-retry 10 nv set vrf default router bgp neighbor peerlink.4094 timers hold 10 nv set vrf default router bgp neighbor peerlink.4094 timers keepalive 3 nv set vrf default router bgp neighbor peerlink.4094 timers route-advertisement auto nv set vrf default router bgp neighbor peerlink.4094 type unnumbered nv set vrf default router bgp neighbor swp49 remote-as external nv set vrf default router bgp neighbor swp49 timers connection-retry 10 nv set vrf default router bgp neighbor swp49 timers hold 10 nv set vrf default router bgp neighbor swp49 timers keepalive 3 nv set vrf default router bgp neighbor swp49 timers route-advertisement auto nv set vrf default router bgp neighbor swp49 type unnumbered nv set vrf default router bgp neighbor swp50 remote-as external nv set vrf default router bgp neighbor swp50 timers connection-retry 10 nv set vrf default router bgp neighbor swp50 timers hold 10 nv set vrf default router bgp neighbor swp50 timers keepalive 3 nv set vrf default router bgp neighbor swp50 timers route-advertisement auto nv set vrf default router bgp neighbor swp50 type unnumbered
SN2201 Switch Configuration-IPMI#
nv set bridge domain br_default vlan 101 nv set interface bond1 bond member swp49 nv set interface bond1 bond member swp50 nv set interface bond1 bridge domain br_default untagged 1 nv set interface bond1 bridge domain br_default vlan all nv set interface bond1 type bond nv set interface eth0 ip address dhcp nv set interface eth0 ip vrf mgmt nv set interface eth0 type eth nv set interface swp1-48 bridge domain br_default access 101 nv set interface swp1-48 description 'BMC Ports' nv set interface swp1-50 link state up nv set interface swp1-50 type swp nv set service ntp mgmt server 0.cumulusnetworks.pool.ntp.org nv set service ntp mgmt server 1.cumulusnetworks.pool.ntp.org nv set service ntp mgmt server 2.cumulusnetworks.pool.ntp.org nv set service ntp mgmt server 3.cumulusnetworks.pool.ntp.org nv set system aaa class nvapply action allow nv set system aaa class nvapply command-path / permission all nv set system aaa class nvshow action allow nv set system aaa class nvshow command-path / permission ro nv set system aaa class sudo action allow nv set system aaa class sudo command-path / permission all nv set system aaa role nvue-admin class nvapply nv set system aaa role nvue-monitor class nvshow nv set system aaa role system-admin class nvapply nv set system aaa role system-admin class sudo nv set system aaa user cumulus full-name cumulus,,, nv set system aaa user cumulus hashed-password '*' nv set system aaa user cumulus role system-admin nv set system api state enabled nv set system config auto-save state enabled nv set system control-plane acl acl-default-dos inbound nv set system control-plane acl acl-default-whitelist inbound nv set system hostname IPMI-Basepod-01 nv set system reboot mode cold nv set system ssh-server permit-root-login enabled nv set system ssh-server state enabled nv set system ssh-server vrf mgmt nv set system timezone America/Los_Angeles nv set system wjh channel forwarding trigger l2 nv set system wjh channel forwarding trigger l3 nv set system wjh channel forwarding trigger tunnel nv set system wjh enable on
QM9700-1 Full Configuration#
# # Running database "initial" # Generated at 2025/02/15 06:42:32 +0000 # Hostname: QM9700-1 # Product release: 3.12.1002 # # # Running-config temporary prefix mode setting # # # IB Partition configuration # # # Subnet Manager configuration # # # IB ports configuration # # # Network interface configuration # # # Other IP configuration # # # Other IPv6 configuration # # # Local user account configuration # # # AAA remote server configuration # ldap bind-password ******** radius-server key ******** tacacs-server key ******** # # Password restriction configuration # # # Network management configuration # web proxy auth basic password ******** # # X.509 certificates configuration # Certificate name system-self-signed, ID 9f639fcad62931e3996712b59066cdda047fb176 (public-cert config omitted since private-key config is hidden) # # IB nodename to GUID mapping # # # Persistent prefix mode setting #
QM9700-2 Full Configuration#
# # Running database "initial" # Generated at 2025/02/15 06:41:54 +0000 # Hostname: QM9700-2 # Product release: 3.12.1002 # # # Running-config temporary prefix mode setting # # # IB Partition configuration # # # Subnet Manager configuration # # # Other IP configuration # # # Local user account configuration # # # AAA remote server configuration # ldap bind-password ******** radius-server key ******** tacacs-server key ******** # # Password restriction configuration # # # Network management configuration # web proxy auth basic password ******** # # X.509 certificates configuration # Certificate name system-self-signed, ID 146da5394146409cf2e60c4b7debbedd1e2e6ac4 (public-cert config omitted since private-key config is hidden) # # IB nodename to GUID mapping # # # Persistent prefix mode setting #
