Redfish APIs Support#

The DGX System firmware supports Redfish APIs. Redfish is DMTF’s standard set of APIs for managing and monitoring a platform. Redfish support is enabled by default in the DGX B200 BMC and the BIOS. Using the Redfish interface, administrator-privileged users can browse physical resources at the chassis and system level through the REST API interface. Redfish provides information that is categorized under a specific resource endpoint and Redfish clients can use the endpoints by using the following HTTP methods:

  • GET

  • POST

  • PATCH

  • PUT

  • DELETE

Not all endpoints support all these operations. Refer to the Redfish JSON Schema for more information about the operations. The Redfish server follows the DSP0266 1.7.0 Specification and Redfish Schema 2019.1 documentation. Redfish URIs are accessed using basic authentication and implementation so that IPMI users with required privileges can access the Redfish URIs.

Supported Redfish Features#

Here is some information about the Redfish features supported in DGX B200.

The following features are supported:

  • Manage user accounts, privileges, and roles

  • Manager Sessions

  • BMC configuration

  • BIOS configuration

  • BIOS boot order management

  • Get PCIe device and functions inventory

  • Get storage Inventory

  • Get system component information and health (PSU, FAN, CPU, DIMM, and so on)

  • Get sensor information (Thermal/Power/Cooling)

  • BMC configuration change/BMC reset

  • System/Chassis power operations

  • Get health event log/advanced system event log

  • Logging Service, which provides critical/informational severity events

  • Event Services (SSE)

  • Querying GPU power limit

  • Power capping

Refer to the following documentation for more information:

Connectivity Between the Host and BMC#

You can configure internal network connectivity between the host and the BMC rather than using external network connectivity and routing traffic outside the host.

To configure internal network connectivity, you must configure an interface on the 169.254.0.0/255.255.0.0 network. The interface can then send and receive Redfish API traffic between the host and the BMC. The BMC is preconfigured to use the 169.254.0.17 IP address.

Run an ifconfig command like the following example to configure connectivity:

sudo ifconfig enx9638a3b292ec 169.254.0.18 netmask 255.255.0.0

Replace the network interface name and IP address in the preceding example according to your needs.

After you configure the network interface, you can use commands such as curl and nvfwupd with the 169.254.0.17 IP address to connect to the BMC and use the Redfish API.

The following example command shows the firmware versions:

nvfwupd -t ip=169.254.0.17 username=<bmc-user> password=<password> show_version

Redfish Examples#

BMC Manager#

  • Accounts

    The following curl command changes the password for the admin user.

    curl -k -u <bmc-user>:<password> --request PATCH 'https://<bmc-ip-address>/redfish/v1/AccountService/Accounts/1' --header 'If-Match: *'  --header 'Content-Type: application/json' --data-raw '{"Enabled" : true, "Password" : "DGXuser12345678!" , "UserName" : "admin" , "RoleId" : "Administrator" , "Locked" : false}'

  • Reset BMC

    The following curl command forces a reset of the DGX B200 BMC.

    curl -k -u <bmc-user>:<password> --request POST --location 'https://<bmc-ip-address>/redfish/v1/Managers/BMC/Actions/Manager.Reset'  --header 'Content-Type: application/json'  --data '{"ResetType":  "ForceRestart"}'

  • Reset BMC to factory defaults

    The following curl command resets the BMC to factory defaults.

    curl -k -u <bmc-user>:<password>  --request POST --location 'https://<bmc-ip-address>/redfish/v1/Managers/BMC/Actions/Manager.ResetToDefaults'  --header 'Content-Type: application/json'  --data '{"ResetType":"ResetAll"}'

Firmware Update#

  • Firmware inventory

    curl -k -u <bmc-user>:<password> --request GET  'https://<bmc-ip-address>/redfish/v1/UpdateService/FirmwareInventory'

    Example response:

    {
    "@odata.context": "/redfish/v1/$metadata#SoftwareInventoryCollection.SoftwareInventoryCollection",
    "@odata.etag": "\"1683226281\"",
    "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory",
    "@odata.type": "#SoftwareInventoryCollection.SoftwareInventoryCollection",
    "Description": "Collection of Firmware Inventory resources available to the UpdateService",
    "Members": [
        {
            "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory/CPLDMB_0"
        },
        {
            "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory/CPLDMID_0"
        },
        // ...
    ],
    "Members@odata.count": 66,
    "Name": "Firmware Inventory Collection",
    "Oem": {
        "Ami": {
            "FirmwareInventory": [
                {
                    "DataSourceUri": "/redfish/v1/UpdateService/FirmwareInventory/CPLDMB_0",
                    "Name": "CPLDMB_0",
                    "Version": "0.2.1.6"
                },
                {
                    "DataSourceUri": "/redfish/v1/UpdateService/FirmwareInventory/CPLDMID_0",
                    "Name": "CPLDMID_0",
                    "Version": "0.2.0.7"
                },
                // ...
            ]
        }
    }
}

  • Update GPU tray components

    To update the GPU tray components in your DGX B200 system, specify HGX_0 as the target regardless of the GPU tray component that you want to update.

    echo "{\"Targets\":[\"/redfish/v1/UpdateService/FirmwareInventory/HGX_0\"]}" > parameters.json
curl -k -u <bmc-user>:<password> -H 'Expect:' --location --request POST https://<bmc-ip-address>/redfish/v1/UpdateService/upload -F 'UpdateParameters=@parameters.json;type=application/json' -F UpdateFile=@<fw_bundle>

    For example, specify the nvfw_DGX-HGX-B100-B200x8_0009_xxxxxx.x.x_prod-signed.fwpkg firmware file.

  • Update motherboard tray components

    To update the motherboard tray components, you need to specify the component name as a target in a JSON file. The following example updates the host BMC:

    echo "{\"Targets\":[\"/redfish/v1/UpdateService/FirmwareInventory/HostBMC_0\"]}" > parameters.json
curl -k -u <bmc-user>:<password> -H 'Expect:' --location --request POST https://<bmc-ip-address>/redfish/v1/UpdateService/upload -F 'UpdateParameters=@parameters.json;type=application/json' -F UpdateFile=@<fw_bundle>

    The following targets are available:

    • HostBMC_0 — This is the DGX B200 BMC.

    • HostBIOS_0 — This is the DGX B200 BIOS.

    • EROT_BMC_0 — This is the external root of trust for the host BMC.

    • EROT_BIOS_0 — This is the external root of trust for the host BIOS.

    • CPLDMID_0 — This is the midplane CPLD.

    • CPLDMB_0 — This is the CPU tray CPLD.

    • PSU_0 to PSU_5 — These are the PSUs.

    • PCIeSwitch_0 and PCIeSwitch_1 — These are the Gen5 PCIe switches on the CPU tray.

    • PCIeRetimer_0 and PCIeRetimer_1 — These are the PCIe retimers on the CPU tray.

    To update a target, change the path /redfish/v1/UpdateService/FirmwareInventory/HostBMC_0 in the preceding example. For example, for CPU tray CPLD, specify /redfish/v1/UpdateService/FirmwareInventory/CPLDMB_0.

    Make sure to specify the nvfw_DGX_0005_xxxxxx.x.x.fwpkg firmware file.

  • Forced Update

    The DGX B200 system component firmware is only updated if the incoming firmware version is newer than the existing version. To override this behavior and flash the component, specify the ForceUpdate field and set it to true.

    curl -k -u <bmc-user>:<password> --request PATCH 'https://<bmc-ip-address>/redfish/v1/UpdateService' --header 'If-Match: *'  --header 'Content-Type: application/json' --data-raw '{"HttpPushUriOptions" : {"ForceUpdate": true}}'

    On success, the command returns a 204 HTTP status code. If you attempt to set the flag to the currently set value, the command returns a 400 HTTP status code.

    To get the value of the ForceUpdate parameter:

    curl -k -u <bmc-user>:<password> --request GET 'https://<bmc-ip-address>/redfish/v1/UpdateService'

  • Firmware Update Activation

    To activate the firmware update, refer to Firmware Update Activation in the NVIDIA DGX B200 Firmware Update Guide for more information.

  • Background Copy

    After the firmware image is successfully booted, use the background copy API to synchronize firmware images between partitions.

    curl -k -u <bmc-user>:<password> --request POST --location 'https://<bmc-ip-address>/redfish/v1/UpdateService/Actions/Oem/NvidiaUpdateService.CommitImage' \
     --header 'Content-Type: application/json' \
     --data '{
              "Targets": ["/redfish/v1/UpdateService/FirmwareInventory/HostBIOS_0"]
             }'

BIOS Settings#

  • Supported BIOS attributes

    • Get a list of all the attributes that your BIOS supports:

      curl -k -u <bmc-user>:<password> --location --request GET 'https://<bmc-ip-address>/redfish/v1/Registries'

      One of the Registries in the list is your BIOS attribute registry. The format is BiosAttributeRegistry<version><version>. For example, for BIOS 0.1.6, the registry is BiosAttributeRegistry106.1.0.6.

    • Get the URI of the BIOS registry:

      curl -k -u <bmc-user>:<password> --location --request GET 'https://<bmc-ip-address>/redfish/v1/Registries/BiosAttributeRegistry016.0.1.6/'

      The response includes the location of the JSON file that describes all the BIOS attributes. Under Location, the Uri is specified. For example, Uri":"/redfish/v1/Registries/BiosAttributeRegistry106.1.0.6.

    • Get the JSON file with the registry of all your BIOS attributes:

      curl -k -u <bmc-user>:<password> --location --request GET 'https://<bmc-ip-address>/redfish/v1/Registries/BiosAttributeRegistry106.en-US.1.0.6.json' --output BiosAttributeRegistry106.en-US.1.0.6.json

      Each attribute name has a default value, display name, help text, a read-only indicator, and an indicator of whether a reset is required to take effect.

  • To get the current BIOS settings:

    curl -k -u <bmc-user>:<password> --location --request GET 'https://<bmc-ip-address>/redfish/v1/Systems/DGX/Bios'

    Match the attribute name with the value in the registry for a description.

    Example response:

    "Description": "Current BIOS Settings",
"Id": "Bios",
"Name": "Current BIOS Settings"
...

  • To change an attribute in the future BIOS settings, PATCH the SD URI and specify the attribute name with the new value. You can change more than one attribute at a time.

    For example, the following PATCH request specifies how the system responds when the SEL log is full:

    curl -k -u <bmc-user>:<password> --location --request PATCH 'https://<bmc-ip-address>/redfish/v1/Systems/DGX/Bios/SD' -H 'Content-Type: application/json' -H 'If-Match:*' --data-raw '{"Attributes" : {"IPMI002":"IPMI002DoNothing", "IPMI201":"IPMI201Donotloganymore"}}'

    Example response:

    "Description": "Future BIOS Settings",
"Id": "SD",
"Name": "Future BIOS Settings"
...

Note

All attribute changes to the BIOS require a power cycle to take effect. When changing the attributes is followed by a BIOS update, an additional power cycle is needed to apply the changes.

Modifying the Boot Order Using Redfish#

To modify the boot order on DGX B200 systems using Redfish APIs, follow the steps described in this procedure.

  1. Read the current boot order.

    From any system in the same network as the BMC, run the following curl command to get the current boot order:

    $ curl -k -u <BMC username>:<BMC password> https://<BMC_IP_address>/redfish/v1/Systems/DGX/SD -H "content-type:application/json" -X GET -s | jq .Boot.BootOrder

    [
  "Boot0000",
  "Boot000F",
  "Boot0004",
  "Boot0005",
  "Boot0006",
  "Boot0007",
  "Boot0008",
  "Boot0009",
  "Boot000A",
  "Boot0010"
 ]

  2. Identify the available boot devices.

    To show more information about the boot devices in step 1, such as Boot0000, Boot000F, and Boot0004, run the following command:

    $ curl -k -u <BMC username>:<BMC password> https://<BMC_IP_address>/redfish/v1/Systems/DGX/BootOptions/00{0,1}{0,4,5,6,7,8,9,A,F} -H "content-type:application/json" -X GET -s  | jq |grep -e "UefiDevicePath\|Name"

    "@odata.etag": "\"1696896625\"",
"DisplayName": "DGX OS",
"Name": "Boot0000",
"UefiDevicePath": "HD(1,GPT,159C2E52-2329-40AC-9103-6C28DC1528B8,0x800,0x100000)/\\EFI\\UBUNTU\\SHIMX64.EFI"
"@odata.etag": "\"1696896625\"",
"DisplayName": "UEFI: PXE IPv4 Intel(R) Ethernet Controller X550",
"Name": "Boot0004",
"UefiDevicePath": "PciRoot(0x0)/Pci(0x10,0x0)/Pci(0x0,0x0)/MAC(5CFF35FBDA09,0x1)/IPv4(0.0.0.0,0x0,DHCP,0.0.0.0,0.0.0.0,0.0.0.0)"
"@odata.etag": "\"1696896625\"",
"DisplayName": "UEFI: PXE IPv4 Nvidia Network Adapter - B8:3F:D2:E7:B1:6C",
"Name": "Boot0005",
"UefiDevicePath": "PciRoot(0x20)/Pci(0x1,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0)/MAC(B83FD2E7B16C,0x1)/IPv4(0.0.0.0,0x0,DHCP,0.0.0.0,0.0.0.0,0.0.0.0)"
"@odata.etag": "\"1696896625\"",
"DisplayName": "UEFI: PXE IPv4 Nvidia Network Adapter - B8:3F:D2:E7:B1:6D",
"Name": "Boot0006",
"UefiDevicePath": "PciRoot(0x20)/Pci(0x1,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x1)/MAC(B83FD2E7B16D,0x1)/IPv4(0.0.0.0,0x0,DHCP,0.0.0.0,0.0.0.0,0.0.0.0)"
"@odata.etag": "\"1696896625\"",
"DisplayName": "UEFI: PXE IPv4 Nvidia Network Adapter - B8:3F:D2:E7:B0:9C",
"Name": "Boot0007",
"UefiDevicePath": "PciRoot(0x120)/Pci(0x1,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0)/MAC(B83FD2E7B09C,0x1)/IPv4(0.0.0.0,0x0,DHCP,0.0.0.0,0.0.0.0,0.0.0.0)"
"@odata.etag": "\"1696896625\"",
"DisplayName": "UEFI: PXE IPv4 Nvidia Network Adapter - B8:3F:D2:E7:B0:9D",
"Name": "Boot0008",
"UefiDevicePath": "PciRoot(0x120)/Pci(0x1,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x1)/MAC(B83FD2E7B09D,0x1)/IPv4(0.0.0.0,0x0,DHCP,0.0.0.0,0.0.0.0,0.0.0.0)"
"@odata.etag": "\"1696896625\"",
"DisplayName": "UEFI: PXE IPv4 Intel(R) Ethernet Network Adapter E810-C-Q2",
"Name": "Boot0009",
"UefiDevicePath": "PciRoot(0x160)/Pci(0x5,0x0)/Pci(0x0,0x0)/MAC(6CFE543D8F48,0x1)/IPv4(0.0.0.0,0x0,DHCP,0.0.0.0,0.0.0.0,0.0.0.0)"
"@odata.etag": "\"1696896625\"",
"DisplayName": "UEFI: PXE IPv4 Intel(R) Ethernet Network Adapter E810-C-Q2",
"Name": "Boot000A",
"UefiDevicePath": "PciRoot(0x160)/Pci(0x5,0x0)/Pci(0x0,0x1)/MAC(6CFE543D8F49,0x1)/IPv4(0.0.0.0,0x0,DHCP,0.0.0.0,0.0.0.0,0.0.0.0)"
"@odata.etag": "\"1696896625\"",
"DisplayName": "ubuntu",
"Name": "Boot000F",
"UefiDevicePath": "HD(1,GPT,1E0EFF2A-2BF3-4DC6-8757-4075B1E5343D,0x800,0x100000)/\\EFI\\UBUNTU\\SHIMX64.EFI"
"@odata.etag": "\"1696896625\"",
"DisplayName": "UEFI: PXE IPv4 American Megatrends Inc.",
"Name": "Boot0010",
"UefiDevicePath": "PciRoot(0x0)/Pci(0x14,0x0)/USB(0xA,0x0)/USB(0x2,0x1)/MAC(4E2A712C2451,0x0)/IPv4(0.0.0.0,0x0,DHCP,0.0.0.0,0.0.0.0,0.0.0.0)"

    Where

    • The DisplayName string is the name of the drive or network adapter.

    • The Name string is the boot device name.

    • The MAC(<address>,0x1) value for the UefiDevicePath string is the corresponding MAC address.

    • The @odata.etag string is the etag number.

    Identify the following information from the JSON output for the next step:

    • The name of the device to be the boot device.

    • The etag number to compose the header.

  3. Update the boot order.

    The following command uses the PATCH method to modify the BootOrder settings, specifying the etag number and boot device names from step 2. The command generates a new order list for BootOrder, which affects the next boot of the system.

    $ curl -k -u <BMC username>:<BMC password> https://<BMC_IP_address>/redfish/v1/Systems/DGX/SD -H "content-type:application/json" -H 'if-None-Match: "@odata.etag": "1697483651"' --data '{"Boot":{"BootOrder": ["Boot0004", "Boot0000", "Boot0005", "Boot0006", "Boot0007", "Boot0008", "Boot0009", "Boot000A", "Boot000F", "Boot0010"]}}' -X PATCH

  4. Confirm the boot order.

    Repeat the command in step 1 to ensure the BootOrder settings are as expected. Note that the Boot0004 boot device is now at the top and the system will boot from the on-board RJ-45 network interface.

    $ curl -k -u <BMC username>:<BMC password> https://<BMC_IP_address>/redfish/v1/Systems/DGX/SD -H "content-type:application/json" -X GET -s | jq .Boot.BootOrder

    [
  "Boot0004",
  "Boot0000",
  "Boot0005",
  "Boot0006",
  "Boot0007",
  "Boot0008",
  "Boot0009",
  "Boot000A",
  "Boot000F",
  "Boot0010"
]

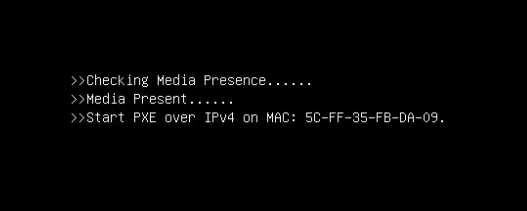

    Upon reboot, the system should attempt to boot from the network using the correct network interface:

    _images/dgx-h100-boot-order.png

This boot order change will remain until the next boot order update, which can be done by resetting the SBIOS or running this procedure again.

Telemetry#

  • GPU tray sensors

    curl -k -u <bmc-user>:<password> --location --request GET 'https://<bmc-ip-address>/redfish/v1/TelemetryService/MetricReportDefinitions/HGX_PlatformEnvironmentMetrics_0'

  • DGX platform sensors

    curl -k -u <bmc-user>:<password> --location --request GET 'https://<bmc-ip-address>/redfish/v1/Chassis/DGX/Sensors'

    The endpoint returns 75 members at a time. To page through the results, use the URI in the Members@odata.nextLink field. For example, /redfish/v1/Chassis/DGX/Sensors?$skip=75.

Chassis#

  • Chassis Restart (IPMI chassis power cycle)

    curl -k -u <bmc-user>:<password> --request POST --location 'https://<bmc-ip-address>/redfish/v1/Systems/DGX/Actions/ComputerSystem.Reset' --header 'Content-Type: application/json'  --data '{"ResetType":  "ForceRestart"}'

  • Chassis Start (IPMI chassis power on)

    curl -k -u <bmc-user>:<password> --request POST --location 'https://<bmc-ip-address>/redfish/v1/Systems/DGX/Actions/ComputerSystem.Reset' --header 'Content-Type: application/json' --data '{"ResetType":  "On"}'

  • Chassis Graceful Restart (IPMI chassis soft off, IPMI chassis power on)

    curl -k -u <bmc-user>:<password> --request POST --location 'https://<bmc-ip-address>/redfish/v1/Systems/DGX/Actions/ComputerSystem.Reset' --header 'Content-Type: application/json' --data '{"ResetType":  "GracefulRestart"}'

  • Chassis Off (IPMI chassis power off)

    curl -k -u <bmc-user>:<password> --request POST --location 'https://<bmc-ip-address>/redfish/v1/Systems/DGX/Actions/ComputerSystem.Reset' --header 'Content-Type: application/json' --data '{"ResetType":  "ForceOff"}'

  • Chassis Off Gracefully (IPMI chassis soft off)

    curl -k -u <bmc-user>:<password> --request POST --location 'https://<bmc-ip-address>/redfish/v1/Systems/DGX/Actions/ComputerSystem.Reset' --header 'Content-Type: application/json' --data '{"ResetType":  "GracefulShutdown"}'

  • Chassis Power Cycle (IPMI chassis power off, IPMI chassis power on)

    curl -k -u <bmc-user>:<password> --request POST --location 'https://<bmc-ip-address>/redfish/v1/Systems/DGX/Actions/ComputerSystem.Reset' --header 'Content-Type: application/json' --data '{"ResetType":  "PowerCycle"}'

Note

The ForceRestart, GracefulRestart, and GracefulShutdown reset actions on HMC are not supported for security reasons.

SEL Logs#

To view all the SEL entries using Redfish:

curl -k -u <bmc-user>:<password> --location --request GET 'https://<bmc-ip-address>/redfish/v1/Managers/BMC/LogServices/SEL/Entries'

The endpoint returns 75 members at a time. To page through the results, use the URI in the Members@odata.nextLink field. For example, /redfish/v1/Managers/BMC/LogServices/SEL/Entries?$skip=75.

Virtual Image#

  1. Make sure Virtual Media is enabled:

    curl -k -u <bmc-user>:<password> --request POST --location 'https://<bmc-ip-address>/redfish/v1/Managers/BMC/Actions/Oem/AMIVirtualMedia.EnableRMedia' --data-raw '{"RMediaState": "Enable"}'

  2. Mount the media:

    curl -k -u <bmc-user>:<password> --request POST --location 'https://{{bmc-ip-address}}/redfish/v1/Managers/Self/VirtualMedia/CD_1/Actions/VirtualMedia.InsertMedia' --data-raw '{"Image" : "//<serverip>/home/nvidia/images/ubuntu-20.04.2-live-server-amd64.iso","TransferProtocolType" : "NFS"}'

Backing Up and Restoring BMC Configurations#

In addition to using the Web UI to back up and restore the BMC configuration, you can use Redfish API with the following approach:

  1. Install a security AES key in the BMC.

  2. Back up the BMC configuration.

  3. Restore the BMC configuration using a backup file.

    The BMC automatically reboots when you perform a configuration restore.

Backing Up the BMC Configuration#

  1. Generate an AES key and save it to a .bin file.

    openssl rand -out aes_key.bin 32

  2. Upload the AES key.

    curl -s -k -u <username>:<password> --location --request POST 'https://<bmcip>/redfish/v1/Managers/BMC/Actions/Oem/NvidiaManager.UploadAESKey' --form 'AESKey=@aes_key.bin' | jq

    A successful command returns a 204 HTTP status code.

  3. Back up the BMC configuration by creating a backup file, for example, bmc-config.bak.

    curl -s -k -u <username>:<password> POST 'https://<bmcip>/redfish/v1/Managers/BMC/Actions/Oem/NvidiaManager.BackupConfig' -H 'Content-Type: application/json' --data-raw '{ "BackupFeatures" : ["NTP","Network and Services","Syslog","Authentication","SNMP","IPMI","KVM"] }' > bmc-config.bak

Restoring the BMC Configuration#

Note

You must perform a factory reset to restore the default settings before restoring the BMC configuration.

  1. Upload the AES key generated previously.

    curl -s -k -u <username>:<password> --location --request POST 'https://<bmcip>/redfish/v1/Managers/BMC/Actions/Oem/NvidiaManager.UploadAESKey' --form 'AESKey=@aes_key.bin' | jq

    A successful command returns a 204 HTTP status code.

  2. Restore the BMC configuration from a backup file, for example, bmc-config.bak.

    curl -s -k -u <username>:<password> --location --request POST 'https://<bmcip>/redfish/v1/Managers/BMC/Actions/Oem/NvidiaManager.RestoreConfig' --form 'conf_file=@"bmc-config.bak"' | jq

Collecting BMC Debug Data#

  1. Create a request for BMC to start collecting debug data:

    curl -k -u <bmc-user>:<password> --request POST --location 'https://<bmc-ip-address>/redfish/v1/Managers/BMC/LogServices/DiagnosticLog/Actions/LogService.CollectDiagnosticData' -H 'Content-Type: application/json' --data-raw '{"DiagnosticDataType" : "OEM", "OEMDiagnosticDataType": "ALL"}' | jq

    Example response:

    {
  "@odata.context": "/redfish/v1/$metadata#Task.Task",
  "@odata.id": "/redfish/v1/TaskService/Tasks/2",
  "@odata.type": "#Task.v1_4_2.Task",
  "Description": "Task for Manager CollectDiagnosticData",
  "Id": "2",
  "Name": "Manager CollectDiagnosticData",
  "TaskState": "New"
}

  2. Change the task number to the appropriate task Id returned from step 1, and monitor the task for completion until PercentComplete reaches 100.

    curl -k -u <bmc-user>:<password> --request GET 'https://<bmc-ip-address>/redfish/v1/TaskService/Tasks/2' | jq

    Example response:

        {
      "@odata.context": "/redfish/v1/$metadata#Task.Task",
      "@odata.etag": "\"1723565599\"",
      "@odata.id": "/redfish/v1/TaskService/Tasks/2",
      "@odata.type": "#Task.v1_4_2.Task",
      "Description": "Task for Manager CollectDiagnosticData",
      "EndTime": "2024-08-13T16:28:15+00:00",
      "Id": "2",
      "Messages": [
        {
          "@odata.type": "#Message.v1_0_8.Message",
          "Message": "Indicates that a DiagnosticDump of was created at /redfish/v1/Managers/BMC/LogServices/DiagnosticLog/Attachment/nvidiadiag-HT9buy.tar.gz",
          "MessageArgs": [
            "/redfish/v1/Managers/BMC/LogServices/DiagnosticLog/Attachment/nvidiadiag-HT9buy.tar.gz"
          ],
          "MessageId": "Ami.1.0.0.DiagnosticDumpCreated",
          "Resolution": "None",
          "Severity": "Warning"
        },
        {
          "@odata.type": "#Message.v1_0_8.Message",
          "Message": "Task /redfish/v1/Managers/BMC/LogServices/DiagnosticLog/Actions/LogService.CollectDiagnosticData has completed.",
          "MessageArgs": [
            "/redfish/v1/Managers/BMC/LogServices/DiagnosticLog/Actions/LogService.CollectDiagnosticData"
          ],
          "MessageId": "Task.1.0.Completed",
          "Resolution": "None",
          "Severity": "OK"
        }
      ],
      "Name": "Manager CollectDiagnosticData",
      "PercentComplete": 100,
      "StartTime": "2024-08-13T16:13:20+00:00",
      "TaskState": "Completed",
      "TaskStatus": "OK"
    }

  3. After the TaskState field reports Completed, use the path provided by MessageArgs to download the attachment:

    curl -k -u <bmc-user>:<password> --request GET 'https://<bmc-ip-address>/redfish/v1/Managers/BMC/LogServices/DiagnosticLog/Attachment/nvidiadiag-HT9buy.tar.gz' --output nvidiadiag-HT9buy.tar.gz

Clear BIOS and Reset to Factory Defaults#

To clear the BIOS and reset the system to factory defaults:

curl -k -u <username>:<password> --request POST --location 'https://<bmcip>/redfish/v1/UpdateService/Actions/Oem/NvidiaUpdateService.ClearNVRAM' --header 'Content-Type: application/json' \
--data '{"Targets": ["/redfish/v1/UpdateService/FirmwareInventory/HostBIOS_0"]}'

Querying GPU Power Limit#

  • To query the current GPU power limit:

    curl  -k -u <username>:<password> https://<bmc>/redfish/v1/Systems/HGX_Baseboard_0/Processors/GPU_SXM_<id>/EnvironmentMetrics

    Where

    • <bmc> is the BMC IP address.

    • <id> is the GPU instance number of 1 to 8.

    As shown in the following example output, the Reading field indicates the current power usage, and the SetPoint field indicates the current GPU power limit.

    ...

"PowerLimitWatts": {
        "AllowableMax": 1000,
        "AllowableMin": 200,
        "ControlMode": "Automatic",
        "DefaultSetPoint": 700,
        "Reading": 64.388,
        "SetPoint": 700
}
...

Power Capping#

Services#

To discover the available services:

curl  -k -u <bmc-user>:<password> https://<bmcip>/redfish/v1/Managers/BMC/NodeManager

Example response:

{
    "@odata.context": "/redfish/v1/$Metadata#NvidiaNodeManager.NvidiaNodeManager",
    "@odata.id": "/redfish/v1/Managers/BMC/NodeManager",
    "@odata.type": "#NvidiaNodeManager.v1_0_0.NvidiaNodeManager",
    "ActiveDomain": {
        "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/12"
    },
    "Id": "NvidiaNodeManager",
    "Name": "NvidiaNodeManager",
    "NvidiaNmDomains": {
        "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains"
    },
    "NvidiaPSUPolicies": {
        "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/PSUPolicies"
    }
}

Domains#

There are several predefined domains. If no domains are set, the default domains are shown.

  • To get a list of domains:

    The domain list contains a set of fixed domains (for example, 0-5) followed by custom domains starting at 10.

    Request:

    curl  -k -u <bmc-user>:<password> https://<bmcip>/redfish/v1/Managers/BMC/NodeManager/Domains

    Example response:

    {
    "@odata.context": "/redfish/v1/$Metadata#NvidiaNmDomainCollection.NvidiaNmDomainCollection",
    "@odata.id": "/redfish/v1/Managers/BMC/NvidiaNmDomainCollection",
    "@odata.type": "#NvidiaNmDomainCollection.NvidiaNmDomainCollection",
    "Members": [
        {
            "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/0"
        },
        {
            "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/1"
        },
        {
            "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/4"
        },
        {
            "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/2"
        },
        {
            "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/3"
        },
        {
            "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/5"
        },
                    {
            "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/10"
        },
        {
            "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/11"
        },
        {
            "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/12"
        },
        {
            "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/13"
        }
    ],
    "Members@odata.count": 10,
    "Name": "NvidiaNmDomainCollection"
}

  • To view domain policies:

    A domain policy describes the limits for the domain and the associated policies

    The most important fields are:

    • Min and Max: Power Limits, defined under Capabilities. The values reflected are system-specific.

    • Status: Indicates if domain policy is enabled.

    • Policy State: Indicates whether this policy is currently in effect.

    curl  -k -u <bmc-user>:<password> https://<bmcip>/redfish/v1/Managers/BMC/NodeManager/Domains/<DomainID>

    For example, to view policies in domain 0:

    curl  -k -u <bmc-user>:<password> https://<bmcip>/redfish/v1/Managers/BMC/NodeManager/Domains/0

    Example response:

    {
    "@odata.context": "/redfish/v1/$Metadata#NvidiaNmDomain.NvidiaNmDomain",
    "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/0",
    "@odata.type": "#NvidiaNmDomain.v1_4_0.NvidiaNmDomain",
    "Capabilities": {
        "Max": 16500,
        "MaxCorrectionTimeInMs": 2000,
        "MaxStatisticsReportingPeriod": "2000",
        "Min": 5000,
        "MinCorrectionTimeInMs": 1000,
        "MinStatisticsReportingPeriod": "1000"
    },
    "Id": "0",
    "Name": "protection",
    "Policies": {
        "@odata.context": "/redfish/v1/$Metadata#NvidiaNmPolicyCollection.NvidiaNmPolicyCollection",
        "@odata.type": "#NvidiaNmPolicyCollection.NvidiaNmPolicyCollection",
        "Members": [
            {
                "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/0/Policies/0"
            },
            {
                "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/0/Policies/1"
            },
            {
                "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/0/Policies/2"
            }
        ],
        "Name": "NvidiaNmPolicyCollection"
    },
    "Status": {
        "State": "Enabled"
    }
}

  • To view a policy within a domain:

    Each domain has a set of policies that define how to manage each component. Power is divided based on a percentage with a component not allowed to exceed a specific budget.

    Currently, three policies are possible. The number of policies varies for different systems depending on whether the entity supports power management.

    The most important fields are:

    • Limit: Indicates the max power that can be allocated to this device.

    • PercentageofDomainBudget: How much of the budget can be allocated.

    • Status: Whether the policy is in effect. This determined by the Domain Policy State

    In general, the algorithm always uses PercentageofDomainBudget.

    curl  -k -u <bmc-user>:<password> https://<bmcip>/redfish/v1/Managers/BMC/NodeManager/Domains/0/Policies/<PolicyID>

    For example, to view policy 0 in domain 0:

    curl  -k -u <bmc-user>:<password> https://<bmcip>/redfish/v1/Managers/BMC/NodeManager/Domains/0/Policies/0

    Example response:

    {
   "@odata.context": "/redfish/v1/$Metadata#NvidiaNmPolicy.NvidiaNmPolicy",
   "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/0/Policies/0",
   "@odata.type": "#NvidiaNmPolicy.v1_2_0.NvidiaNmPolicy",
   "AssociatedDomainID": {
       "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/0"
   },
   "ComponentId": "COMP_MEMORY",
   "Id": "0",
   "Limit": 800,
   "Name": "0",
   "PercentageOfDomainBudget": 15,
   "Status": {
       "State": "Disabled"
   }
}

    In this example, policy 0 defines the percentage of the budget for domain 0. The CPU budget for both sockets is 800 W, which is equally divided. The PercentageOfDomainBudget field, which indicates how much of the overall budget will be allocated to the CPUs, shows 15 percent for this example.

Custom Policies#

To add a custom policy, use the following template and specify values for the highlighted fields. Custom domain ID starts from 10.

The engine will add the percentage values and the power values in the provided configuration fields. Error messages are issued for the following conditions:

  • Power exceeds the Max value or falls below the Min value of the domain power.

  • The PercentageOfDomainBudget values add up to over 100 percent.

Template:

{
    "@odata.context": "/redfish/v1/$Metadata#NvidiaNmDomain.NvidiaNmDomain",
    "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/0",
    "@odata.type": "#NvidiaNmDomain.v1_4_0.NvidiaNmDomain",
    "Capabilities": {
      "Max": 6000.0000,
      "Min": 4000.0000
    },
    "Id": "0",
    "Name": "custom4",
    "Status": {
      "State": "Enabled"
    },
    "Policies": {
      "@odata.context": "/redfish/v1/$Metadata#NvidiaNmPolicyCollection.NvidiaNmPolicyCollection",
      "@odata.type": "#NvidiaNmPolicyCollection.NvidiaNmPolicyCollection",
      "Members": [
        {
          "@odata.context": "/redfish/v1/$Metadata#NvidiaNmPolicy.NvidiaNmPolicy",
          "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/0/Policies/0",
          "@odata.type": "#NvidiaNmPolicy.v1_2_0.NvidiaNmPolicy",
          "AssociatedDomainID": {
            "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/0"
          },
          "ComponentId": "COMP_CPU",
          "Id": "0",
          "Limit": 500.0000,
          "PercentageOfDomainBudget": 15.0000,
          "Name": "0"
        },
        {
          "@odata.context": "/redfish/v1/$Metadata#NvidiaNmPolicy.NvidiaNmPolicy",
          "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/0/Policies/1",
          "@odata.type": "#NvidiaNmPolicy.v1_2_0.NvidiaNmPolicy",
          "ComponentId": "COMP_MEMORY",
          "Id": "0",
          "Limit": 500.0000,
          "PercentageOfDomainBudget": 15.0000,
          "Name": "0"
        },
        {
          "@odata.context": "/redfish/v1/$Metadata#NvidiaNmPolicy.NvidiaNmPolicy",
          "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/0/Policies/2",
          "@odata.type": "#NvidiaNmPolicy.v1_2_0.NvidiaNmPolicy",
          "AssociatedDomainID": {
            "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/0"
          },
          "ComponentId": "COMP_GPU",
          "Id": "0",
          "Limit": 5000.0000,
          "PercentageOfDomainBudget": 70.0000,
          "Name": "0"
        }
      ],
      "Members@odata.count": 3,
      "Name": "NvidiaNmPolicyCollection"
    }
}

  • To create a new domain policy:

    curl -k -u <bmc-user>:<password> -X POST https://<BMC>/redfish/v1/Managers/BMC/NodeManager/Domains --data @<pathtojsonfile>

    Example response:

    {
    "@odata.context": "/redfish/v1/$Metadata#NvidiaNmDomain.NvidiaNmDomain",
    "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/14",
    "@odata.type": "#NvidiaNmDomain.v1_4_0.NvidiaNmDomain",
    "Capabilities": {
        "Max": 9000,
        "MaxCorrectionTimeInMs": 0,
        "MaxStatisticsReportingPeriod": "0",
        "Min": 6000,
        "MinCorrectionTimeInMs": 0,
        "MinStatisticsReportingPeriod": "0"
    },
    "Id": "14",
    "Name": "custom4",
    "Policies": {
        "@odata.context": "/redfish/v1/$Metadata#NvidiaNmPolicyCollection.NvidiaNmPolicyCollection",
        "@odata.type": "#NvidiaNmPolicyCollection.NvidiaNmPolicyCollection",
        "Members": [
            {
                "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/14/Policies/0"
            },
            {
                "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/14/Policies/1"
            },
            {
                "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/Domains/14/Policies/2"
            }
        ],
        "Name": "NvidiaNmPolicyCollection"
    },
    "PolicyState": "Disabled",
    "Status": {
        "State": "Enabled"
    }
}

  • To patch custom domain policies, provide only the configuration changes you want.

  • Status codes for error responses:

    • 500: Indicates an error in the formatting of a particular field was incorrectly defined.

    • 400: Indicates that one or more fields were incorrect. In general, this will be for limits being out of bounds.

PSU Policies#

Power supply unit (PSU) policies are read-only. PSU Policies set the overall available power budget for the system based on the number of active power supplies. The PSU Policy in effect enforces how the Domain Policies are selected.

  • To view a list of PSU policies:

    curl -k -u <bmc-user>:<password> https://<bmcip>/redfish/v1/Managers/BMC/NodeManager/PSUPolicies

    Example response:

    {
    "@odata.context": "/redfish/v1/$Metadata#NvidiaNmPSUPolicyCollection.NvidiaNmPSUPolicyCollection",
    "@odata.id": "/redfish/v1/Managers/BMC/NvidiaNmPSUPolicyCollection",
    "@odata.type": "#NvidiaNmPSUPolicyCollection.NvidiaNmPSUPolicyCollection",
    "Members": [
        {
            "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/PSUPolicies/0"
        },
        {
            "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/PSUPolicies/1"
        },
        {
            "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/PSUPolicies/2"
        },
                    {
            "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/PSUPolicies/3"
        },
        {
            "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/PSUPolicies/4"
        }
    ],
    "Members@odata.count": 5,
    "Name": "NvidiaNmPSUPolicyCollection"
}

  • To view a PSU policy:

    curl -k -u <bmc-user>:<password> https://<bmcip>/Managers/BMC/NodeManager/PSUPolicies/<PSUPolicyID>

    For example, to view PSU policy 0:

    curl -k -u <bmc-user>:<password> https://<bmcip>/Managers/BMC/NodeManager/PSUPolicies/0

    Example response:

    {
    "@odata.context": "/redfish/v1/$Metadata#NvidiaNmPSUPolicy.NvidiaNmPSUPolicy",
    "@odata.id": "/redfish/v1/Managers/BMC/NodeManager/PSUPolicies/0",
    "@odata.type": "#NvidiaNmPSUPolicy.v1_2_0.NvidiaNmPSUPolicy",
    "Id": "0",
    "LimitMax": 6000,
    "MaxPSU": 2,
    "MinPSU": 2,
    "Name": "Limp",
    "Status": {
        "State": "Disabled"
    }
}

    PSU policy 0 defines the number of PSUs and the power that will be allocated to the system with a maximum of two PSUs.

  • To view a metrics report:

    A metrics report captures all critical values related to the power behavior of the system.

    Example request:

    curl -k -u <bmc-user>:<password>  https://<bmcip>/redfish/v1/TelemetryService/MetricReports/NvidiaNMMetrics_0

    Example response:

    {
    "@odata.id": "/redfish/v1/TelemetryService/MetricReports/NvidiaNMMetrics_0",
    "@odata.type": "#MetricReport.v1_4_2.MetricReport",
    "Id": "NvidiaNMMetrics_0",
    "MetricReportDefinition": {
        "@odata.id": "/redfish/v1/TelemetryService/MetricReportDefinitions/NvidiaNMMetrics_0",
        "MetricProperties": []
    },
    "MetricValues": [
        {
            "MetricId": "Domain_Policy_Active",
            "MetricValue": "12",
            "Timestamp": "2024-10-25T16:05:23+00:00"
        },
        {
            "MetricId": "PSU_Active_Policy",
            "MetricValue": "4",
            "Timestamp": "2024-10-25T16:05:23+00:00"
        },
        {
            "MetricId": "PSU_Redundancy_Policy",
            "MetricValue": "0",
            "Timestamp": "2024-10-25T16:05:23+00:00"
        },
        {
            "MetricId": "dcPlatformPower_avg",
            "MetricValue": "2549.00",
            "Timestamp": "2024-10-25T16:05:23+00:00"
        },

                ...

        {
            "MetricId": "gpuPowerCapabilitiesMax_7",
            "MetricValue": "1000.00",
            "Timestamp": "2024-10-25T16:05:23+00:00"
        }
    ],
    "Name": "NvidiaNMMetrics_0"
}
    Definitions of Metrics#

    MetricId

    Definition

    Example Metric Value

    PSU_Active_Policy

    The current active PSU policy correponding to /redfish/v1Managers/BMC/NodeManager/PSUPolicies/<PSU_Active_Policy>

    0-N

    Domain_Policy_Active

    The current active domain policy corresponding to /redfish/v1/Managers/BMC/NodeManager/Domains/<Domain_Policy_Active>

    0-N

    dcPlatformPower_avg

    Total DC Power for the Platform

    2181.00

    dcPlatformPowerDGX_avg

    Total DC Power for the non gpu base board components

    1444.00

    dcPlatformPowerHGX_avg

    Total DC Power for the GPU Base Board

    736.00

    dcPlatformEnergy

    Total Platform Energy (need to review)

    2181.00

    dcPlatformPowerLimit1

    0.00

    dcPlatformPowerLimit2

    0.00

    PSU_Redundancy_Policy

    Current Policy Active PSU Policy

    0

    FixPwrDGXAvg

    Power for fixed components on non gpu base board (e.g. FANs, NVMe, etc). Excludes CPU and Memory

    1005.00

    FixPwrHGXAvg

    Power for fixed components on GPU Base Board. Excludes GPU

    222.00

    FixPwrAverage

    Total Fixed Value for Platform

    1228.00

    AvblNoCPU

    Number of CPU

    2

    AvblNoGPU

    Number of GPU

    8

    PSU_WORKING_CNT

    Total Number of PSU

    6

    DIMM_Count_Total

    Total Number of DIMMS

    32

    GPU_PWR_BRAKE

    State of Power Break

    0

    GPU_PWR_PRSNT

    Indicates GPU Based Board is powered on

    1

    CPU_PWR_UNIT

    Intel PWR Unit for CPU Power

    3

    CPU_TIM_UNIT

    Intel Time Unit for CPU Energy

    10

    CPU_ENERGY_UNIT

    Intel Energy Unit for CPU

    14

    cpuPackagePower_avg_0

    Average Power for CPU0

    193

    cpuEnergy_0

    Energy for CPU 0

    196.00

    coreEfficiency_0

    Core Efficiency for CPU 0

    61671.00

    cpuPackagePowerCapabilitiesMin_0

    Power Capabilities MIN CPU 0

    209

    cpuPackagePowerCapabilitiesMax_0

    Power Capabilities MAX CPU 0

    350

    cpuPackagePowerLimit1_0

    CPU Power Limit 1

    400.00

    cpuPackagePowerLimit2_0

    CPU Power Limit 2

    400.00

    prochotRatioCapabilitiesMin_0

    PROC Hot Ratio Min Capabilities CPU 0 (Min Frequency)

    500

    prochotRatioCapabilitiesMax_0

    PROC Hot Ratio Max Capabilities CPU 0 (Max Frequency allowed when PROC Hot Asserted)

    2000

    turboRatioCapabilitiesMin_0

    Turbo Ratio Min Capabilities CPU 0 (Min Frequency)

    500

    turboRatioCapabilitiesMax_0

    Turbo Ratio Max Capabilities CPU 0 (Max Frequency)

    3800

    CPU_PWR_UNIT

    Intel PWR Unit for CPU Power

    3

    CPU_TIM_UNIT

    Intel Time Unit for CPU Energy

    10

    CPU_ENERGY_UNIT

    Intel Energy Unit for CPU

    14

    cpuPackagePower_avg_1

    Average Power for CPU1

    182

    cpuEnergy_1

    Energy for CPU 1

    185.00

    coreEfficiency_1

    Core Efficiency for CPU 1

    62203.00

    cpuPackagePowerCapabilitiesMin_1

    Power Capabilities MIN CPU 1

    209

    cpuPackagePowerCapabilitiesMax_1

    Power Capabilities MAX CPU 1

    350

    cpuPackagePowerLimit1_1

    CPU Power Limit 1

    400.00

    cpuPackagePowerLimit2_1

    CPU Power Limit 2

    400.00

    prochotRatioCapabilitiesMin_1

    PROC Hot Ratio Min Capabilities CPU 1 (Min Frequency)

    500

    prochotRatioCapabilitiesMax_1

    PROC Hot Ratio Max Capabilities CPU 1 (Max Frequency allowed when PROC Hot Asserted)

    2000

    turboRatioCapabilitiesMin_1

    Turbo Ratio Min Capabilities CPU 1 (Min Frequency)

    500

    turboRatioCapabilitiesMax_1

    Turbo Ratio Max Capabilities CPU 1 (Max Frequency)

    3800

    DIMM_Count_Socket_0

    Number of DIMMS Socket 0

    16.00

    dramPackagePowerCapabilitiesMax_0

    DRAM Power Capabilities MIN Socket 0

    35.00

    dramPackagePowerCapabilitiesMin_0

    DRAM Power Capabilities MAX Socket 0

    0.00

    dramEnergy_0

    DRAM Energy Socket 0

    30.00

    dramPowerLimit_0

    DRAM Power Limit Socket 0

    300.00

    dramPower_avg_0

    DRAM Average Power Socket 0

    30.00

    DIMM_Count_Socket_1

    Number of DIMMS Socket 1

    16.00

    dramPackagePowerCapabilitiesMax_1

    DRAM Power Capabilities MIN Socket 1

    35.00

    dramPackagePowerCapabilitiesMin_1

    DRAM Power Capabilities MAX Socket 1

    0.00

    dramEnergy_1

    DRAM Energy Socket 1

    34.00

    dramPowerLimit_1

    DRAM Power Limit Socket 1

    300.00

    dramPower_avg_1

    DRAM Average Power Socket 1

    36.00

    gpuPower_avg_0

    GPU 0 Average Power

    63.00

    gpuPowerLimit_0

    GPU 0 Power Limit

    700.00

    gpuPowerCapabilitiesMin_0

    GPU 0 Min Power Limit

    200.00

    gpuPowerCapabilitiesMax_0

    GPU 0 Max Power Limit

    700.00

    gpuPower_avg_1

    GPU 1 Average Power

    65.00

    gpuPowerLimit_1

    GPU 1 Power Limit

    700.00

    gpuPowerCapabilitiesMin_1

    GPU 1 Min Power Limit

    200.00

    gpuPowerCapabilitiesMax_1

    GPU 1 Max Power Limit

    700.00

    gpuPower_avg_2

    GPU 2 Average Power

    65.00

    gpuPowerLimit_2

    GPU 2 Power Limit

    700.00

    gpuPowerCapabilitiesMin_2

    GPU 2 Min Power Limit

    200.00

    gpuPowerCapabilitiesMax_2

    GPU 2 Max Power Limit

    700.00

    gpuPower_avg_3

    GPU 3 Average Power

    63.00

    gpuPowerLimit_3

    GPU 3 Power Limit

    700.00

    gpuPowerCapabilitiesMin_3

    GPU 3 Min Power Limit

    200.00

    gpuPowerCapabilitiesMax_3

    GPU 3 Max Power Limit

    700.00

    gpuPower_avg_4

    GPU 4 Average Power

    63.00

    gpuPowerLimit_4

    GPU 4 Power Limit

    700.00

    gpuPowerCapabilitiesMin_4

    GPU 4 Min Power Limit

    200.00

    gpuPowerCapabilitiesMax_4

    GPU 4 Max Power Limit

    700.00

    gpuPower_avg_5

    GPU 5 Average Power

    64.00

    gpuPowerLimit_5

    GPU 5 Power Limit

    700.00

    gpuPowerCapabilitiesMin_5

    GPU 5 Min Power Limit

    200.00

    gpuPowerCapabilitiesMax_5

    GPU 5 Max Power Limit

    700.00

    gpuPower_avg_6

    GPU 6 Average Power

    66.00

    gpuPowerLimit_6

    GPU 6 Power Limit

    700.00

    gpuPowerCapabilitiesMin_6

    GPU 6 Min Power Limit

    200.00

    gpuPowerCapabilitiesMax_6

    GPU 6 Max Power Limit

    700.00

    gpuPower_avg_7

    GPU 7 Average Power

    64.00

    gpuPowerLimit_7

    GPU 7 Power Limit

    700.00

    gpuPowerCapabilitiesMin_7

    GPU 7 Min Power Limit

    200.00

    gpuPowerCapabilitiesMax_7

    GPU 7 Max Power Limit

    700.00
