NVIDIA DOCA PCC Application Guide

This document provides a DOCA PCC implementation on top of NVIDIA® BlueField® DPU.

Introduction

Programmable Congestion Control (PCC) allows users to design and implement their own congestion control (CC) algorithm, giving them the flexibility to work out an optimal solution to handle congestion in their clusters. On BlueField-3, PCC is provided as a component of DOCA.

The application leverages the DOCA PCC API to provide users the flexibility to manage allocation of DPA resources according to their requirements.

Typical DOCA application includes App running on host/Arm and App running on DPA. Developers are advised to use the host/Arm application with minimal changes and focus on developing their algorithm and integrating it into the DPA application.

System Design

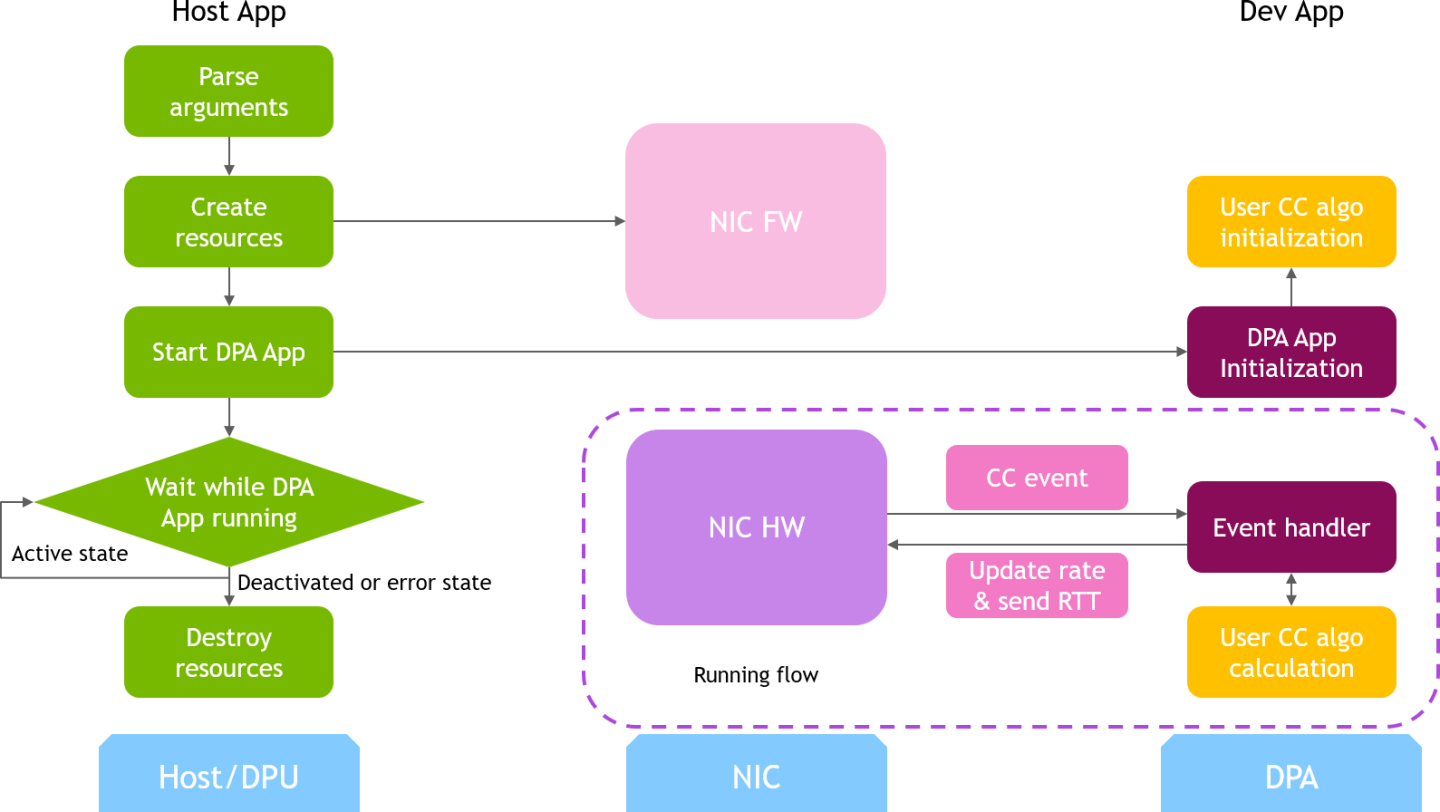

DOCA PCC application consists of two parts:

Host/Arm app is the control plane. It is responsible for allocating all resources and handover to the DPA app initially, then destroying everything when the DPA app finishes its operation. The host app must always be alive to stay in control while the device app is working.

Device/DPA app is the data plane. It is mainly for CC event handler. When the first thread is activated, DPA App initialization is done in the DOCA PCC library by calling the algorithm initialization function implemented by the user in the app. Moreover, the user algorithm execution function is called when a CC event arrives. The user algorithm takes event data as input and performs a calculation using per-flow context and replies with updated rate value and a flag to sent RTT request.

The host/Arm application sends command to NIC firmware when allocating or destroying resources. CC events are generated by NIC hardware automatically when sending data or receiving ACK/NACK/CNP/RTT packets, then the device application handles these events by calling the user algorithm. After the DPA application replies to hardware, handling of current event is done and the next event can arrive.

Application Architecture

Copy
Copied!


            /opt/mellanox/doca/applications/pcc/src
├── host
│    ├── pcc.c
│    ├── pcc_core.c
│    └── pcc_core.h
└── device
     ├── algo
     │    ├── rtt_template.h
     │    ├── rtt_template_algo_params.h
     │    ├── rtt_template_ctxt.h
     │    └── rtt_template.c
     └── pcc_dev_main.c

The main content of the reference DOCA PCC application files are the following:

host/pcc.c – entry point to entire application
host/pcc_core.c – host functions to initialize and destroy the PCC application resources, parsers for PCC command line parameters
device/pcc_dev_main.c – callbacks for user CC algorithm initialization, user CC algorithm calculation, algorithm parameter change notification
device/algo/* – user CC algorithm reference template. Put user algorithm code here.

DOCA Libraries

This application leverages the following DOCA library:

DOCA PCC

Refer to its respective programming guide for more information.

Dependencies

NVIDIA BlueField-3 DPU is required
Firmware 32.38.1000 and higher
MFT 4.25 and higher

Running the Application

Installation

Refer to the NVIDIA DOCA Installation Guide for Linux for details on how to install BlueField-related software.

Prerequisites

Enable USER_PROGRAMMABLE_CC in mlxconfig:

Copy
Copied!


            mlxconfig -y -d /dev/mst/mt41692_pciconf0 set USER_PROGRAMMABLE_CC=1

R eset firmware or power cycle the host to apply the configuration change.

Note

Make sure to perform graceful shutdown before power cycling the host.

Application Execution

The PCC application is provided in both source and binary forms. The binary is located under /opt/mellanox/doca/applications/pcc/bin/doca_pcc.

Application usage instructions:

Copy
Copied!


            Usage: doca_pcc [DOCA Flags] [Program Flags]

DOCA Flags:
  -h, --help                 Print a help synopsis
  -v, --version              Print program version information
  -l, --log-level            Set the (numeric) log level for the program <10=DISABLE, 20=CRITICAL, 30=ERROR, 40=WARNING, 50=INFO, 60=DEBUG, 70=TRACE>
  --sdk-log-level            Set the SDK (numeric) log level for the program <10=DISABLE, 20=CRITICAL, 30=ERROR, 40=WARNING, 50=INFO, 60=DEBUG, 70=TRACE>
  -j, --json <path>          Parse all command flags from an input json file

Program Flags:
  -d, --device <IB device names>       IB device name that supports PCC (mandatory).
  -w, --wait-time <PCC wait time>      The duration of the DOCA PCC wait (optional), can provide negative values which means infinity. If not provided then -1 will be chosen.
  -p, --pcc-threads <pcc-threads-list> A list of the PCC threads numbers to be chosen for the DOCA PCC context to run on (optional). Must be provided as a string, such that the number are separated by a space.

Info

This usage printout can be printed to the command line using the -h (or --help) options:

Copy
Copied!


            /opt/mellanox/doca/applications/pcc/bin/doca_pcc -h

Info

For additional information, refer to section "Command Line Flags".

CLI example for running the application on the BlueField or the host:
Copy

Copied!
```

            /opt/mellanox/doca/applications/pcc/bin/doca_pcc -d mlx5_0

```
Note

The IB device identifier (mlx5_0) should match the identifier of the desired IB device.
The application also supports a JSON-based deployment mode, in which all command-line arguments are provided through a JSON file:
Copy

Copied!
```

            doca_pcc --json [json_file]

```
For example:
Copy

Copied!
```

            cd /opt/mellanox/doca/applications/pcc/bin
./doca_pcc --json ./pcc_params.json

```
Note

Before execution, ensure that the used JSON file contains the correct configuration parameters, and especially the PCIe addresses necessary for the deployment.

Command Line Flags

Flag Type	Short Flag	Long Flag/JSON Key	Description	JSON Content
General flags	`h`	`help`	Prints a help synopsis	N/A
	`v`	`version`	Prints program version information	N/A
	`l`	`log-level`	Sets the log level for the program: DISABLE=10 CRITICAL=20 ERROR=30 WARNING=40 INFO=50 DEBUG=60 TRACE=70 Info The application uses a unique logging implementation that makes use of DOCA's logging levels.	N/A
	N/A	`sdk-log-level`	Sets the log level for the program: DISABLE=10 CRITICAL=20 ERROR=30 WARNING=40 INFO=50 DEBUG=60 TRACE=70	N/A
	`j`	`json`	Parse all command flags from an input JSON file	N/A
Program flags	`d`	`device`	IB device name that supports PCC	Copy Copied! `"device": ""`
	`w`	`wait-time`	(Optional) In seconds, the duration of the DOCA PCC wait. Negative values mean infinity.	Copy Copied! `"wait-time": -1`
	`p`	`pcc-threads`	(Optional) A list of the PCC EU indexes to be chosen for the DOCA PCC event handler threads to run on. Must be provided as a string, such that the numbers are separated by a space. The placement of the PCC threads per core can be controlled using the EU indexes. Utilizing a large number of EUs, while limiting the number of threads per core, gives the best event handling rate and lowest event latency. The last EU is used for communication with the NIC while all others are for data path CC event handling.	Copy Copied! `"pcc-threads": "176 177 178 179 180 181 182 183 184 185 186 187 192 193 194 195 196 197 198 199 200 201 202 203 208 209 210 211 212 213 214 215 216 217 218 219 224 225 226 227 228 229 230 231 232 233 234 235 240"`

Info

Refer to DOCA Arg Parser for more information regarding the supported flags and execution modes.

Troubleshooting

Refer to the NVIDIA DOCA Troubleshooting Guide for any issue encountered with the installation or execution of the DOCA applications.

Recompiling the Application

In addition to providing the application in binary form, the installation also includes all of the application sources and compilation instructions so as to allow modifying the sources and recompiling the application. For more information about the applications, as well as development and compilation tips, refer to the DOCA Applications page.

The sources of the application can be found under the /opt/mellanox/doca/applications/pcc/src directory.

Recompiling All Applications

The applications are all defined under a single meson project, so the default compilation recompiles all the DOCA applications.

To build all the applications together, run:

Copy
Copied!


            cd /opt/mellanox/doca/applications/
meson /tmp/build
ninja -C /tmp/build

Info

doca_pcc is created under /tmp/build/pcc/src/.

Recompiling PCC Application Only

To directly build only the PCC application:

Copy
Copied!


            cd /opt/mellanox/doca/applications/
meson /tmp/build -Denable_all_applications=false -Denable_pcc=true
ninja -C /tmp/build

Info

doca_pcc is created under /tmp/build/pcc/src/.

Alternatively, one can set the desired flags in the meson_options.txt file instead of providing them in the compilation command line:

Edit the following flags in /opt/mellanox/doca/applications/meson_options.txt:
- Set enable_all_applications to false
- Set enable_pcc to true

Run the following compilation commands :

Copy
Copied!


            cd /opt/mellanox/doca/applications/
meson /tmp/build
ninja -C /tmp/build

Info

doca_pcc is created under /tmp/build/pcc/src/.

Troubleshooting

Refer to the NVIDIA DOCA Troubleshooting Guide for any issue encountered with the compilation of the application.

Application Code Flow

This section lists the application's configuration flow, explaining the different DOCA function calls and wrappers.

Parse application argument.

Initialize arg parser resources and register DOCA general parameters.

Copy
Copied!


            doca_argp_init();

Register PCC application parameters.

Copy
Copied!


            register_pcc_params();

Parse the arguments.

Copy
Copied!


            doca_argp_start();

Parse DOCA flags.
Parse DOCA PCC parameters.

PCC initialization.
Copy

Copied!
```

            pcc_init();

```
1. Open DOCA device that supports PCC.
2. Create DOCA PCC context.
3. Configure affinity of threads handling CC events.
Start DOCA PCC.
Copy

Copied!
```

            doca_pcc_start();

```
1. Create PCC process and other resources.
2. Trigger initialization of PCC on device.
3. Register the PCC in the NIC hardware so CC events can be generated and an event handler can be triggered.

Process state monitor loop.

Copy
Copied!


            doca_pcc_get_process_state();
doca_pcc_wait();

Get the state of the process:

State	Description
`DOCA_PCC_PS_ACTIVE = 0`	The process handles CC events (only one process is active at a given time)
`DOCA_PCC_PS_STANDBY = 1`	The process is in standby mode (another process is already `ACTIVE`)
`DOCA_PCC_PS_DEACTIVATED = 2`	The process has been deactivated by NIC firmware and should be destroyed
`DOCA_PCC_PS_ERROR = 3`	The process is in error state and should be destroyed

Wait on process events from the device.

PCC destroy.
Copy

Copied!
```

            doca_pcc_destroy();

```
1. Destroy PCC resources. The process stops handling PCC events.
2. Close DOCA device.

Arg parser destroy.

Copy
Copied!


            doca_argp_destroy()

Port Programmable Congestion Control Register

The Port Programmable Congestion Control (PPCC) register allows the user to configure and read PCC algorithms and their parameters/counters.

It supports the following functionalities:

Enabling different algorithms on different ports
Querying information of both algorithms and tunable parameters/counters
Changing algorithm parameters without compiling and reburning user image
Querying or clearing programmable counters

Usage

The PPCC register can be accessed using a string similar to the following:

Copy
Copied!


            sudo mlxreg -d /dev/mst/mt41692_pciconf0 -y --get --op "cmd_type=0" --reg_name PPCC --indexes "local_port=1,pnat=0,lp_msb=0,algo_slot=0,algo_param_index=0"
sudo mlxreg -d /dev/mst/mt41692_pciconf0 -y --set "cmd_type=1" --reg_name PPCC --indexes "local_port=1,pnat=0,lp_msb=0,algo_slot=0,algo_param_index=0"

Where you must:

Set the cmd_type and the indexes
Give values for algo_slot, algo_param_index
Keep local_port=1, pnat=0, lp_msb=0
Keep doca_pcc application running

cmd_type	Description	Method	Index	Input (in --set)	Output
`0x0`	Get algorithm info	Get	`algo_slot`	N/A	Value – 32-bit `algo_num` or 0 if no algo is available at this index Text – algorithm description `sl_bitmask_support` – indicates whether the device supports `sl_bitmask` logic
`0x1`	Enable algorithm	Set		`sl_bitmask` `trace_en` `counter_en`	N/A
`0x2`	Disable algorithm	Set		N/A	N/A
`0x3`	Get algorithm enabling status	Get		N/A	Value: 0 – disabled 1 – enabled `sl_bitmask` – this field allows to apply to specific SLs based on the bitmask `sl_bitmask_support` – indicates whether the device supports `sl_bitmask` logic
`0x4`	Get number of parameters	Get		N/A	Value – num of params of algo
`0x5`	Get parameter information	Get	`algo_slot` `algo_param_index`	N/A	`param_value1` – default value of param `param_value2` – min value of param `param_value3` – max value of param prm – 0: read-only 1: read-write 2: read-only but may be cleared using the "get and clear" command
`0x6`	Get parameter value	Get		N/A	Value – param value
`0x7`	Get and clear parameter	Get		N/A	Value – param value
`0x8`	Set parameter value	Set		Parameter value	N/A
`0xA`	Bulk get parameters	Get	`algo_slot`	N/A	`text_length` – param num x 4 bytes `text[0]…text[n]` – param values
`0xB`	Bulk set parameters	Set		`text_length` - param num x 4 `text[0]…text[n]` - param values	N/A
`0xC`	Bulk get counters	Get		N/A	`text_length` – counter num x 4 bytes `text[0]…text[n]` – counter values
`0xD`	Bulk get and clear counters	Get		N/A	`text_length` – counter num x 4 bytes `text[0]…text[n]` – counter values
`0xE`	Get number of counters	Get		N/A	Value – num of counters of algo
`0xF`	Get counter information	Get	`algo_slot` `algo_param_index`	N/A	`param_value3` – max value of parameter prm – 0: read-only 1: read-write 2: read-only but may be cleared via "get & clear" command
`0x10`	Get algorithm info array	Get	N/A	N/A	`text_length` – algo slot initialized x 4 bytes `text[0]…text[n]` – 32-bit `algo_num` or 0 if no algorithm is available at this slot index

Internal Default Algorithm

The internal default algorithm is used when enhanced connection establishment (ECE) negotiation fails. It is mainly used for backward compatibility and can be disabled using "force mode". Otherwise, users may change doca_pcc_dev_user_algo() in the device app to run a specific algorithm without considering the algorithm negotiation.

The force mode command is per port:

Copy
Copied!


            sudo mlxreg -d /dev/mst/mt41692_pciconf0 -y --get --op "cmd_type=2" --reg_name PPCC --indexes "local_port=1,pnat=0,lp_msb=0,algo_slot=15,algo_param_index=0"
sudo mlxreg -d /dev/mst/mt41692_pciconf0.1 -y --get --op "cmd_type=2" --reg_name PPCC --indexes "local_port=1,pnat=0,lp_msb=0,algo_slot=15,algo_param_index=0"

Counters

Counters are shared on the port and are only enabled on one algo_slot per port. The following command enables the counters while enabling the algorithm according to the algo_slot:

Copy
Copied!


            sudo mlxreg -d /dev/mst/mt41692_pciconf0 -y --set "cmd_type=1,counter_en=1" --reg_name PPCC --indexes "local_port=1,pnat=0,lp_msb=0,algo_slot=0,algo_param_index=0"

After counters are enabled on the algo_slot, they can be queried using cmd_type 0xC or 0xD.

Copy
Copied!


            sudo mlxreg -d /dev/mst/mt41692_pciconf0 -y --get --op "cmd_type=12" --reg_name PPCC --indexes "local_port=1,pnat=0,lp_msb=0,algo_slot=0,algo_param_index=0"
sudo mlxreg -d /dev/mst/mt41692_pciconf0 -y --get --op "cmd_type=13" --reg_name PPCC --indexes "local_port=1,pnat=0,lp_msb=0,algo_slot=0,algo_param_index=0"

References

/opt/mellanox/doca/applications/pcc/src
/opt/mellanox/doca/applications/pcc/bin/pcc_params.json
