DOCA Argus Service Guide

NVIDIA® BlueField® DPUs introduce a cutting-edge security technology for live machine introspection at the hardware level, known as DOCA Argus. Argus enables real-time analysis of selected volatile memory regions, providing attested insights into the runtime behavior of workloads—whether running on bare metal, in virtual machines, or in containers. Because it inspects volatile memory, Argus delivers a ground-truth view of workload execution. Privacy is a foundational design principle: Argus does not access or expose user data.

Available as part of the DOCA software framework (both as an SDK and as a service), DOCA Argus Service for Workload Threat Detection provides a novel approach for detecting threats in AI workloads and microservices. Leveraging the BlueField DPU, it inspects system memory to expose container behavior at the network, host, and application layers in real time.

The service continuously monitors the container node image state for deviations from secure and compliant baselines to detect and prevent runtime attacks, including those targeting network-facing services.

The Argus service operates transparently without requiring host-side configuration. It passively inspects the system to report OS-level objects such as:

• Newly spawned processes (PID, name, attributes, status)

• Reverse shells, including process and network metadata (source/destination IPs, data transfer size)

• SHA256 hashes of running executables and loaded libraries

• Hardware – NVIDIA BlueField-2 or later

• Operating mode – DPU must be in DPU mode (see BlueField Modes of Operation)

• Firmware version – 24.35.0388 or later

• Supported BlueField image – Version 4.11.0 or later

• Container mode – The Argus service container must run in privileged mode to enable DMA reads across the host system

• Only tested with KVM hypervisors

• Linux-only support (for bare-metal and VMs); Windows support is planned

• Kata containers supported only when NVIDIA-DPU support is enabled

• Only x86_64 architecture is currently supported; AArch64 support is planned

• Currently supports 4-level paging only (refer to section "Disable 5-Level Paging" for instructions)

Configure BlueField Firmware

Configure PF BAR settings and features on the DPU:




[dpu] mlxconfig -d /dev/mst/<mst_device> s PF_BAR2_SIZE=2 PF_BAR2_ENABLE=1


Replace <mst_device> with:

• mt41686_pciconf0 for BlueField-2

• mt41692_pciconf0 for BlueField-3

If using VFs:




[dpu] mlxconfig -d /dev/mst/<mst_device> s NVME_EMULATION_ENABLE=1 SRIOV_EN=1 NUM_OF_VFS=<vf-number>


Perform a cold reboot and verify:




[dpu] mlxconfig -d /dev/mst/<mst_device> s NVME_EMULATION_ENABLE=1 SRIOV_EN=1 NUM_OF_VFS=<vf-number>


Enable IOMMU Passthrough (Optional)

This step is necessary if DMA fails and the host is using an AMD CPU. Example error:




[dmesg] mlx5_core 0000:81:00.0: AMD-Vi: Event logged [IO_PAGE_FAULT domain=0x0047 address=0x2a0aff8 flags=0x0000]


Steps:

1. Edit GRUB configuration:

   Copy

   Copied!




   [host] vim /etc/default/grub


2. Set IOMMU flags for your CPU:

   • For Intel:

     Copy

     Copied!




     GRUB_CMDLINE_LINUX_DEFAULT="iommu=pt intel_iommu=on"


   • For AMD:

     Copy

     Copied!




     GRUB_CMDLINE_LINUX_DEFAULT="iommu=pt amd_iommu=on"


3. Update GRUB:

   • Ubuntu:

     Copy

     Copied!




     [host] sudo update-grub


   • CentOS/RHEL:

     Copy

     Copied!




     [host] grub2-mkconfig -o /boot/grub2/grub.cfg


4. Reboot the host.

Disable 5-Level Paging

Check whether the target system uses 5-level paging:




[host] grep la57 /proc/cpuinfo


If la57 is present, disable it:

1. Edit GRUB:

   Copy

   Copied!




   GRUB_CMDLINE_LINUX_DEFAULT="no5lvl"


2. Update GRUB:

   • Ubuntu:

     Copy

     Copied!




     [host] sudo update-grub


   • CentOS/RHEL:

     Copy

     Copied!




     [host] grub2-mkconfig -o /boot/grub2/grub.cfg


3. Reboot the host.

Prepare the Target System

1. Download kernel symbols:

   1. Ubuntu:

      Copy

      Copied!




      sudo tee /etc/apt/sources.list.d/ddebs.list <<EOF
      deb http://ddebs.ubuntu.com/ $(lsb_release -cs) main restricted universe multiverse
      deb http://ddebs.ubuntu.com/ $(lsb_release -cs)-updates main restricted universe multiverse
      deb http://ddebs.ubuntu.com/ $(lsb_release -cs)-proposed main restricted universe multiverse
      EOF

      sudo apt install ubuntu-dbgsym-keyring
      sudo apt-get update
      sudo apt-get install linux-image-$(uname -r)-dbgsym


   2. CentOS/RHEL:

      Copy

      Copied!




      yum install --enablerepo=base-debuginfo \
          kernel-devel-$(uname -r) \
          kernel-debuginfo-$(uname -r) \
          kernel-debuginfo-common-$(uname -m)-$(uname -r)


2. Install DOCA or copy helper script (doca_apsh_config.py).

3. Generate JSON files.

   Copy

   Copied!




   [target] cd /opt/mellanox/doca/tools/
   [target] pip3 install psutil pdbparse
   [target] python3 doca_apsh_config.py --files memregions symbols --os <windows/linux> --path <path-to-dwarf2json>


4. Copy the output to the DPU:

   Copy

   Copied!




   [dpu] scp <generated-files> <dpu-path>


   Note

   dwarf2json is required but not included in DOCA. Download the latest release from GitHub. Re-run this step if the kernel is updated.

• For general instructions, see the DOCA Container Deployment Guide.

• Service-specific deployment details can be found on the Argus service container page.

• Air-gapped deployment is supported. See the "Offline Deployment" section in the DOCA Container Deployment Guide.

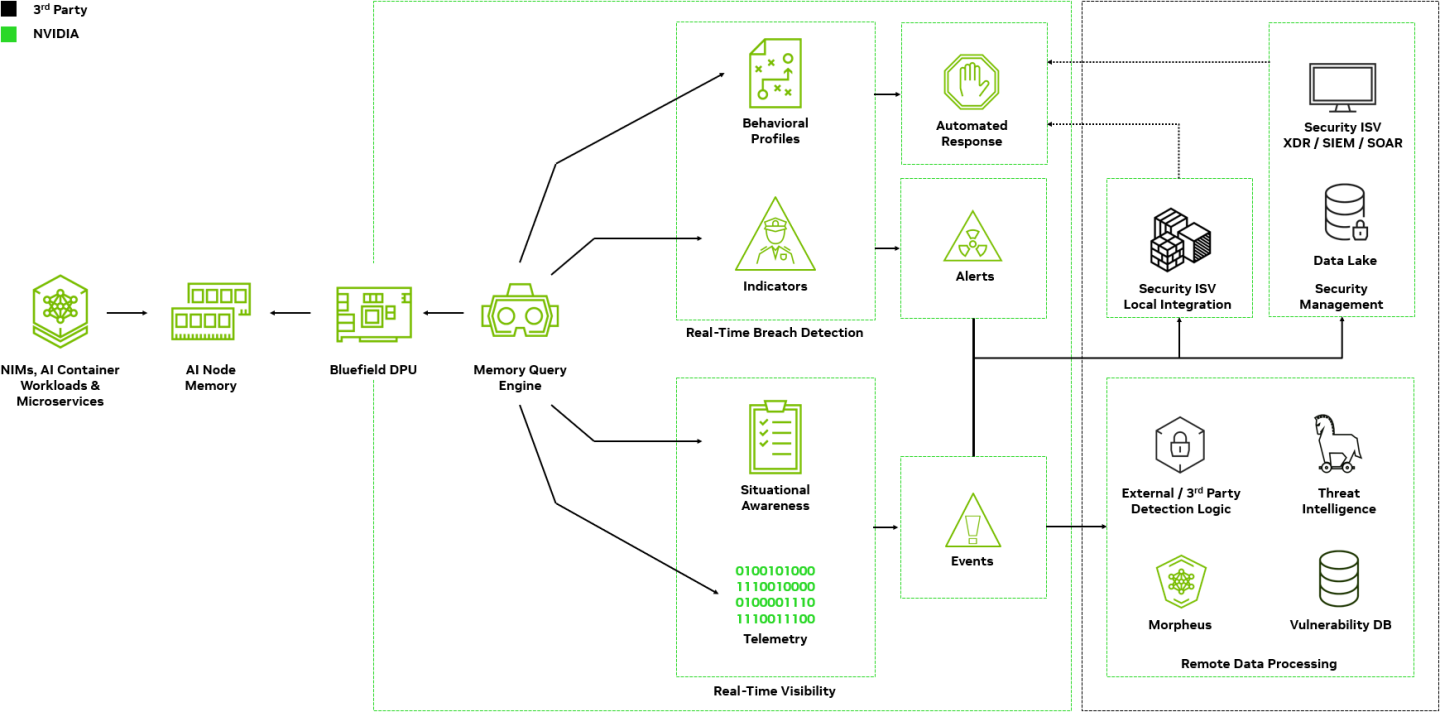

The Argus service inspects host memory from within the DPU using DOCA DMA. This memory may belong to:

• Bare-metal operating systems

• Virtual machines

• AI containers and microservices

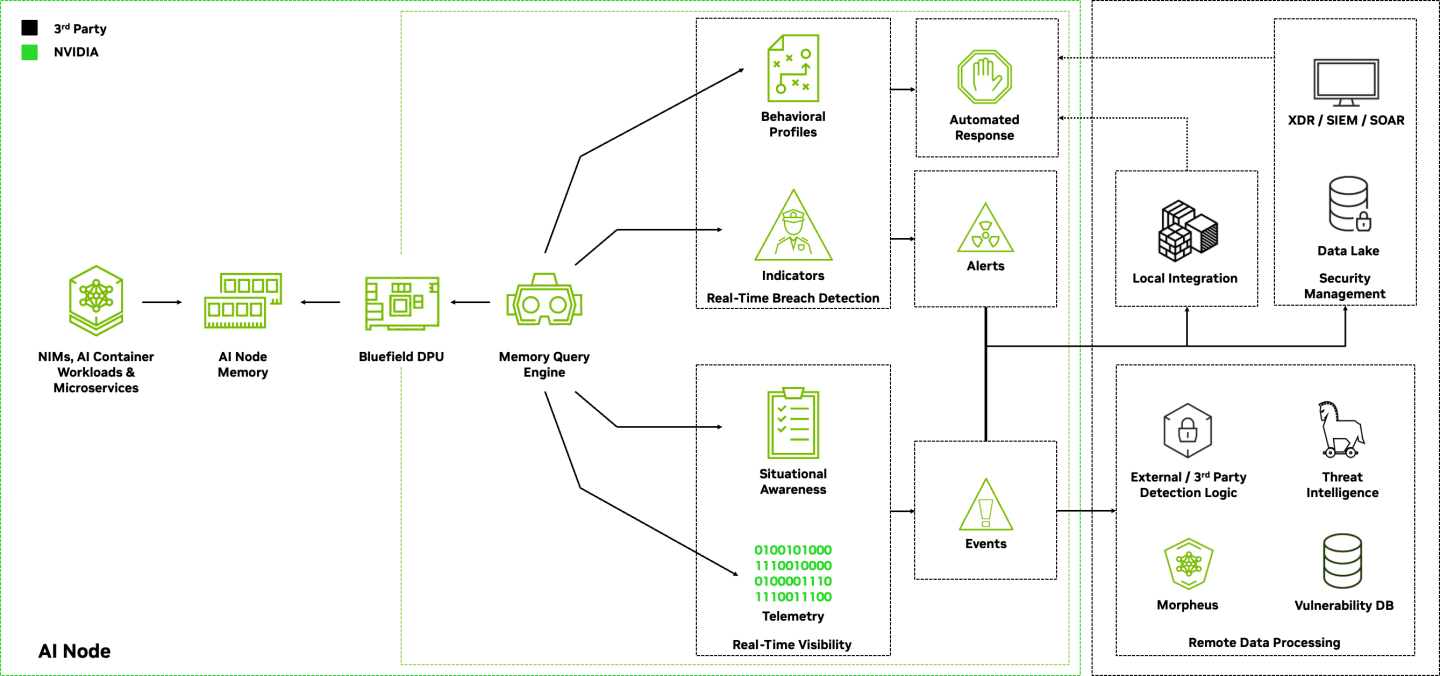

Argus uses the Memory Query Engine and DOCA Argus libraries to decode memory into OS objects (e.g., processes, threads, files).

The decoded data is processed using:

• Behavioral Profiles and Indicators – to detect known attack patterns.

• Situational Awareness – to identify significant runtime changes.

Events are generated and exported using FluentBit in JSON format and can be sent to a security management system or data lake for correlation and automated response.

The service can also integrate with external threat intelligence and telemetry pipelines (NVIDIA or third-party) for enhanced analysis.

The DOCA Argus service is configurable via the SERVICE_CONFIG_FILE section of the container's YAML file. Adjust the configuration according to your deployment requirements.

Service Settings

Immediate Shutdown

If enabled, the service shuts down immediately upon receiving a SIGINT or SIGTERM signal, without waiting for a graceful termination.

Service Log Level

Controls the verbosity of the Argus service logs. The default level is 50 (INFO). Available values:

• 10=DISABLE

• 20=CRITICAL

• 30=ERROR

• 40=WARNING

• 50=INFO (default)

• 60=DEBUG

• 70=TRACE

System Scanner Sleep Time

Sets the sleep interval between consecutive system scans. Units supported: s (seconds), m (minutes), ms (milliseconds).

DOCA Argus Configuration

Auto Scan

Enables automatic scanning of all detectable systems. These systems will be scanned using the default configuration. If the systems section is empty, Auto Scan mode is enabled by default.

Default

Defines the default system configuration, used unless overridden in the systems section. See section "Per-System Configuration" for available parameters.

Systems

Defines a list of explicitly configured systems (host/VM) that should be scanned with custom settings. The following parameters must be overridden:

• Representor ID

• DMA Device Name

Per-System Configuration

Each system defined under systems supports the following parameters:

Representor ID

Specifies the ID of the VF/PF to be monitored. Only VU (Virtual Unique) format is supported.

• For PFs:

  Copy

  Copied!




  [host] lspci -vv -s <pf_pci_address> | grep VU | cut -d " " -f 4


• To list PF PCIe addresses:

  Copy

  Copied!




  [host] lspci | grep "Ethernet controller: Mellanox Technologies"


  Note

  Always run lspci on the host, not the BlueField. The VU ID on BlueField will appear with “EC” inserted (e.g., MT2333XZ06YAECMLNXS0D0F0), which is invalid.

• For VFs: Append VF<x> to the PF's VU ID. For example:

  • PF VU ID: MT2333XZ06YAMLNXS0D0F0

  • VF #1 VU ID: MT2333XZ06YAMLNXS0D0F0VF1

Memory Regions Path

Path to a JSON file containing memory region definitions (excluding device regions) for the monitored OS. Refer to doca_apsh_system in the DOCA App Shield Programming Guide.

OS Symbol Path

Path to the OS symbol manifest (single file or directory). Refer to doca_apsh_system for details.

OS Type

Specifies the OS type: linux or windows.

DMA Device Name

Name of the DMA (Direct Memory Access) device to be used. To list available devices:




[dpu] ibv_devinfo | grep 'hca_id' | awk '{print $2}'


Service Log Level

Overrides service logging verbosity (same options as above).

SDK Log Level

Controls logging verbosity for the DOCA SDK.

• 10=DISABLE

• 20=CRITICAL

• 30=ERROR

• 40=WARNING

• 50=INFO (default)

• 60=DEBUG

• 70=TRACE

System Scanner Sleep Time

Sets the sleep interval between consecutive system scans. Units supported: s (seconds), m (minutes), ms (milliseconds).

DOCA Argus Configuration

Auto Scan

Enables automatic scanning of all detectable systems. These systems will be scanned using the default configuration. If the systems section is empty, Auto Scan mode is enabled by default.

Default

Defines the default system configuration, used unless overridden in the systems section. See section "Per-System Configuration" for available parameters.

Systems

Defines a list of explicitly configured systems (host/VM) that should be scanned with custom settings. The following parameters must be overridden:

• Representor ID

• DMA Device Name

Per-System Configuration

Each system defined under systems supports the following parameters:

Representor ID

Specifies the ID of the VF/PF to be monitored. Only VU (Virtual Unique) format is supported.

• For PFs:

  Copy

  Copied!




  [host] lspci -vv -s <pf_pci_address> | grep VU | cut -d " " -f 4


• To list PF PCIe address:

  Copy

  Copied!




  [host] lspci | grep "Ethernet controller: Mellanox Technologies"


• For VFs, append VF<x> to the PF's VU ID. For example:

  • PF VU ID: MT2333XZ06YAMLNXS0D0F0

  • VF #1 VU ID: MT2333XZ06YAMLNXS0D0F0VF1

Memory Regions Path

Path to a JSON file containing memory region definitions (excluding device regions) for the monitored OS. Refer to doca_apsh_system in the DOCA App Shield Programming Guide.

OS Symbol Path

Path to the OS symbol manifest (single file or directory). Refer to doca_apsh_system for details.

OS Type

Specifies the OS type: linux or windows.

DMA Device Name

Name of the DMA (Direct Memory Access) device to be used. To list available devices:




[dpu] ibv_devinfo | grep 'hca_id' | awk '{print $2}'


Service Log Level

Overrides service logging verbosity (same options as above).

SDK Log Level

Controls logging verbosity for the DOCA SDK.

• 10=DISABLE

• 20=CRITICAL

• 30=ERROR

• 40=WARNING

• 50=INFO (default)

• 60=DEBUG

• 70=TRACE

Limits

These settings prevent resource exhaustion or excessive scanning overhead.

• String length – Maximum length of strings (e.g., command names) to track.

• Process – Maximum number of processes to track.

• File handles – Maximum number of file descriptors (e.g., open files, sockets) to track.

• Threads – Maximum number of threads to track per process.

• Process memory – Maximum number of VMAs (Virtual Memory Areas) to track per process.

Events

• Container filter – Enables filtering of activities originating from within containers. Non-containerized processes are not filtered.

• SBOM – Specifies authorized SHA256 hashes of executables and libraries. Format: <SHA256>[, <size>].

  • Containers: Defines SBOM entries for containerized processes.

  • Non-containers: Defines SBOM entries for non-containerized processes.

Collection

• Events – Toggle to enable/disable event collection.

Output

Logging

• Log events to stdout – Enables or disables console logging.

• Log folder path – Directory for saving log files. Set to false to disable.

• Log threshold size – Maximum size of a single log file before rotation.

• Log max files count – Number of rotated log files to retain.

Telemetry

• Telemetry address – Destination address for sending telemetry records. Set to false to disable.

• Telemetry tag – Tag added to each telemetry record (used by Fluent Bit for filtering).

• Telemetry format – Format for telemetry data: json or syslog.

• Telemetry user data – Optional user-defined metadata appended to each telemetry record.

The DOCA Argus service provides several logging outputs for monitoring service behavior, debugging, and event collection.

Standard Output

The standard output stream displays only essential service messages, including:

• Version information

• Successful startup confirmations

• Failure messages and critical errors

This output is intended for general runtime visibility.

Debug Log Output

A complete debug log is available at /var/log/doca_argus/.

This log includes detailed information such as:

• Event metadata (partial data)

• Trace-level service logs

• Collection and processing failures

• System-level diagnostics

These logs are useful for in-depth troubleshooting and should be enabled in non-production or debug deployments.

Event Log Output

Event logs are written in JSON format to the log folder specified in the service configuration file. These logs contain complete records of all Argus-detected events and are suitable for local analysis or archival.

• Logs are automatically rotated using the system's logrotate utility.

• To customize rotation policies, edit the following configuration files:

  • /etc/cron.d/logrotate

  • /etc/logrotate.d/argus

Telemetry Output

Telemetry data can be exported in JSON or syslog formats. The Argus service is designed to integrate with Fluent Bit for real-time forwarding of telemetry records to analytics or monitoring systems.

Fluent Bit Integration

To collect and forward telemetry data from the Argus service using Fluent Bit, configure the following input block:




[INPUT]
    Name                  tcp
    Tag                   <your prefered tag>
    Listen                0.0.0.0
    Port                  24224
    Format                json


The value of Tag should match the telemetry_tag field in the Argus service configuration file.

Optional: Splunk Compatibility

If integrating with Splunk, add the following filter to the Fluent Bit configuration to encapsulate all telemetry data under a single event field:




[FILTER]
    Name                  nest
    Match                 *
    Operation             nest
    Wildcard              *
    Nest_under            event


Example: Fluent Bit with Elasticsearch

The following is a basic Fluent Bit configuration example that forwards Argus telemetry logs to an Elasticsearch cluster:




[INPUT]
    Name                  tcp
    Tag                   elastic_forward_input
    Listen                0.0.0.0
    Port                  24224
    Format                json

[SERVICE]
    Log_Level    info

[OUTPUT]
    Name                   es
    Match                  *
    Host                   <elastic search IP>
    Port                   <elastic search port>
    Index                  argus
    Suppress_Type_Name     On
    Log_Level    info


To run Fluent Bit in a container with this configuration:




docker run --rm --net=host \
  -v <path_to_fluentbit_conf_file>:/fluent-bit/etc/fluent-bit.conf \
  --name fluent_bit -it fluent/fluent-bit


For additional integrations and advanced features, refer to the Fluent Bit manual.

The DOCA Argus service generates structured telemetry messages for each event, alert, or system activity it detects. Each message includes a standardized header, system metadata, and activity-specific details.

The following is a sample JSON message illustrating a typical event or alert generated by DOCA Argus:




{
    "vendor_name": "NVIDIA",
    "product_name": "DOCA_ARGUS",
    "product_version": "<version>",
    "message_type": "<EVENT | ALERT | SYSTEM_ACTIVITY>",
    "severity": "<INFO | ERROR | WARNING | MEDIUM | HIGH | CRITICAL>",
    "schema_version": "1.0",
    "message_id": "<unique_message_id>",
    "occurred_message_timestamp_utc_ms": "14367294690321",
    "occurred_message_display_time_local_rfc3339": "2025-04-10T16:50:03.836+00:00",
    "occurred_message_display_time_utc_rfc3339": "2025-04-10T16:50:03.836Z",
    "user_data": "NONE",
    "bluefield_system_information": {
        "bluefield_networking_interfaces": {
            "0": {
                "bluefield_network_interface_name": "<>",
            	"bluefield_network_interface_mac_address": "<>",
            	"bluefield_network_interface_ip_address": "<>"
            },
			"..."
        }
    },
    "workload_information": {
        "unique_identifier": "<>",
        "os_version": "<>",
        "workload_networking_interfaces": {
            "0": {
                "network_interface_name": "<>",
                "network_interface_ip_address": "<>",
                "network_interface_mac_address": "<>"
            },
            "..."
        }
    },
    "activity_data": {
        "name": "<the name of the event | alert | system_activity>",
        "<activity>_details": {
            "..."
        },
        "<parent_activity>_details": {
            "..."
        }
    }
}


The DOCA Argus service extracts and reports a wide range of system-level attributes related to processes, memory, file handles, networking, and executable files. The following sections describe the attributes supported by Argus for each monitored object type.

Processes

Threads

File Handles

Network Connections

Process Memory

Loaded Executables and Libraries (Attestation)

The DOCA Argus service supports a wide range of runtime event detections across containers, processes, memory, threads, file handles, network connections, and executable files. These events are reported in real time to aid in security monitoring, threat detection, and forensic analysis.

Container Events

Process Events

File Handle Events

Network Connection Events

Process Memory (VMA) Events

Loaded Executables and Libraries (Attestation) Events

Thread Events

System activity events are emitted by the DOCA Argus service to indicate the internal operational status of the service on a per-system basis. These events help monitor service health, initialization outcomes, and OS profile matching.
