NVIDIA DOCA East-West Overlay Encryption Application
This guide describes IPsec-based strongSwan solution on top of NVIDIA® BlueField® DPU.
If your target application utilizes 100Gb/s or higher bandwidth, where a substantial part of the bandwidth is allocated for IPsec traffic, please refer to the NVIDIA BlueField-2 DPUs Product Release Notes to learn about a potential bandwidth limitation. To access the relevant product release notes, please contact your NVIDIA sales representative.
IPsec is used to set up encrypted connections between different devices. It helps keep data sent over public networks secure. IPsec is often used to set up VPNs, and it works by encrypting IP packets as well as authenticating the packets' originator.
IPsec contains the following main modules:
Key exchange – a key is a string of random bytes that can be used for encryption and decryption of messages. IPsec sets up keys with a key exchange between the connected devices, so that each device can decrypt the other device's messages.
Authentication – IPsec provides authentication for each packet which ensures that they come from a trusted source.
Encryption – IPsec encrypts the payloads within each packet and possibly, based on the transport mode, the packet's IP header.
Decryption – at the other end of the communication, packets are decrypted by the IPsec supported node.
IPsec supports two types of headers:
Authentication header (AH) – AH protocol ensures that packets are from a trusted source. AH does not provide any encryption.
Encapsulating security protocol (ESP) – ESP encrypts the payload for each packet as well as the IP header depending on the transport mode. ESP adds its own header and a trailer to each data packet.
IPsec support two types of transport mode:
IPsec tunnel mode – used between two network nodes, each acting as tunnel initiator/terminator on a public network. In this mode, the original IP header and payload are both encrypted. Since the IP header is encrypted, an IP tunnel is added for network forwarding. At each end of the tunnel, the routers decrypt the IP headers to route the packets to their destinations.
Transport mode – the payload of each packet is encrypted, but the original IP header is not. Intermediary network nodes are therefore able to view the destination of each packet and route the packet, unless a separate tunneling protocol is used.
strongSwan is an open-source IPsec-based VPN solution. For more information, refer to strongSwan documentation.
IPsec packet offload offloads both IPsec crypto (encrypt/decrypt) and IPsec encapsulation to the hardware.
The deployment model allows the IPsec offload to be transparent to the host with the benefits of securing legacy workloads (no dependency on host SW stack) and to zero CPU utilization on host.
IPsec packet offload configuration works with and is transparent to OVS offload. This means all packets from OVS offload are encrypted by IPsec rules.

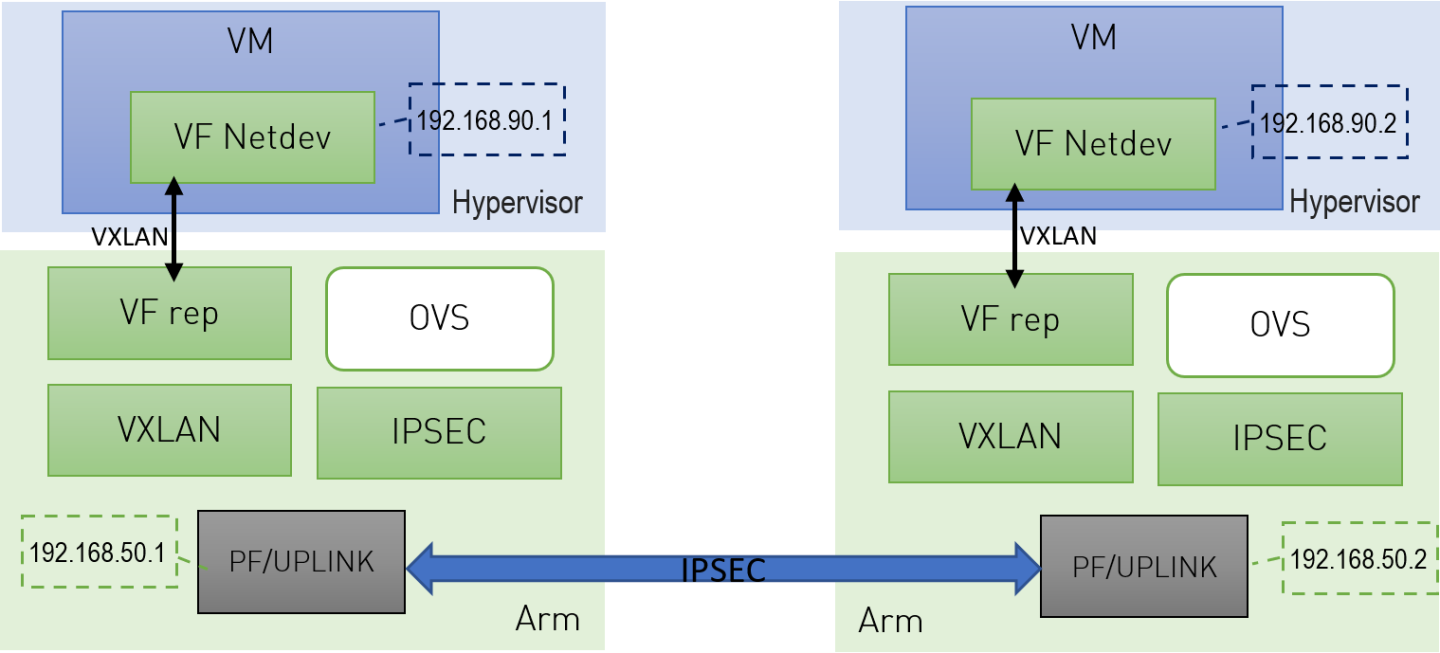

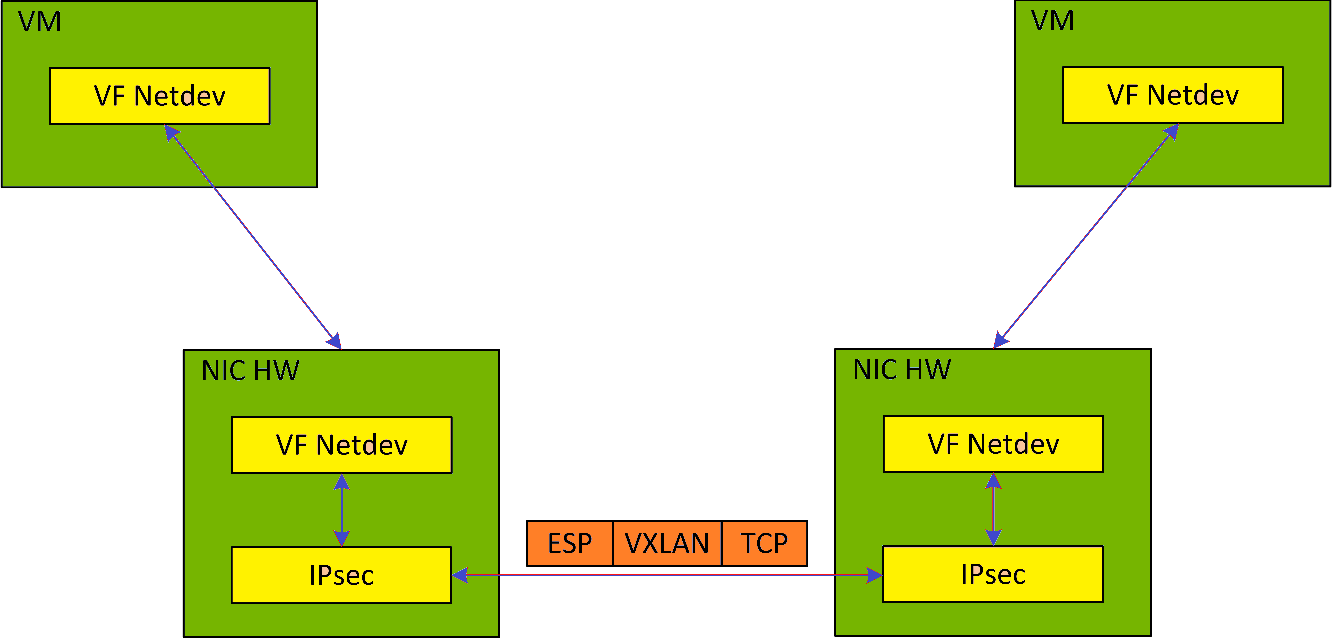

The following figure illustrates the interaction between IPsec packet offload and OVS VXLAN offload.
IPsec packet offload is only supported on Ubuntu Bluefield kernel 5.15
OVS offload and IPsec IPv6 do not work together.
Configure strongSwan IPsec offload using swanctl.conf configuration file.
Traffic is sent from the host through BlueField.
Using OVS, the packets are encapsulated on ingress using tunnel protocols (VXLAN for example) to match IPsec configuration by strongSwan.
Set by strongSwan configuration file, traffic will be encrypted using the hardware offload.
Egress flow is decryption first, decapsulation of the tunnel header and forward to the relevant physical function.
N/A
The following section provides information on manually configuring IPsec packet offload in general and on using OVS IPsec with strongSwan specifically.
There is a script, east_west_overlay_encryption.sh, which is elaborated on in section Running Application which performs the steps in this section automatically.
If you are working directly with the ip xfrm tool, use /opt/mellanox/iproute2/sbin/ip to benefit from IPsec packet offload support.
There are two parts in the configuration flow
Enabling IPsec packet offload mode.
Configuring the IPsec OVS bridge using one of three modes of authentication.
An alternative for step two is configuring swanctl.conf files (configuration files for strongSwan) manually and using strongSwan directly instead of using IPsec OVS (which automatically generates swanctl.conf files) as explained in section "Configuring OVS IPsec Using strongSwan Manually".
Enabling IPsec Packet Offload
This section explicitly enables IPsec packet offload on the Arm cores before setting up offload-aware IPsec tunnels.
If an OVS VXLAN tunnel configuration already exists, stop openvswitch service prior to performing the steps below and restart the service afterwards.
Explicitly enable IPsec full offload on the Arm cores.
Set IPSEC_FULL_OFFLOAD="yes" in /etc/mellanox/mlnx-bf.conf .
WarningIf IPSEC_FULL_OFFLOAD does not appear in /etc/mellanox/mlnx-bf.conf then you are probably using an old version of the BlueField image. Check the way of enabling IPsec full offload in a previous DOCA versions in the NVIDIA DOCA Documentation Archives.
Restart IB driver (rebooting also works). Run:
/etc/init.d/openibd restart
WarningIf mlx-regex is running:
Disable mlx-regex prior to running restarting the IB driver:
systemctl stop mlx-regex
Restart IB driver according to the command above.
Re-enable mlx-regex after the restart has finished:
systemctl restart mlx-regex
To revert IPsec full offload mode, redo the procedure from step 1, only difference is to set IPSEC_FULL_OFFLOAD="no" in /etc/mellanox/mlnx-bf.conf.
Configuring OVS IPsec
Before proceeding with this section, make sure to follow the procedure in section "Enabling IPsec Packet Offload" for both DPUs.
This section configures OVS IPsec VXLAN tunnel which automatically generates the swanctl.conf files and runs strongSwan (the IPsec daemon). The following figure illustrates an example with two BlueField DPUs, Left and Right, operating with a secured VXLAN channel.
Two BlueField DPUs are required to build an OVS IPsec tunnel between the two hosts, Right and Left.
The OVS IPsec tunnel configures an unaware IPsec connection between the two hosts' InfiniBand devices. For the sake of this example, the host's InfiniBand network device is HOST_PF, and the DPU's host representor is PF_REP and the DPU's physical function PF.
This example sets up the following variables on both Arms:
# host_ip1=1.1.1.1
# host_ip2=1.1.1.2
# HOST_PF=ens7np0
# ip1=192.168.50.1
# ip2=192.168.50.2
# PF=p0
# PF_REP=pf0hpf
The name of the HOST_PF could be different in your machine. You may verify this by running:
host# ibdev2netdev
mlx5_0 port 1
==> ens7np0 (Down)
mlx5_1 port 1
==> ens8np1 (Down)
This example uses the first InfiniBand's (mlx5_0) network device which is ens7np0.
Configure IP addresses for the HOST_PFs of both hosts (x86):
On host_1:
# ifconfig $HOST_PF $host_ip1/24 up
On host_2:
# ifconfig $HOST_PF $host_ip2/24 up
WarningStep 1 is the only command that is performed on the host, the rest of the commands are performed on the Arm (DPU) side.
Configure IP addresses for the PFs of both Arms:
On Arm_1:
# ifconfig $PF $ip1/24 up
On Arm_2:
# ifconfig $PF $ip2/24 up
Start Open vSwitch. If your operating system is Ubuntu, run the following on both Arm_1 and Arm_2:
# service openvswitch-
switch
startIf your operating system is CentOS, run the following on both Arm_1 and Arm_2:
# service openvswitch restart
Start OVS IPsec service. Run on both Arm_1 and Arm_2:
# systemctl start openvswitch-ipsec.service
Set up OVS bridges in both DPUs. Run on both Arm_1 and Arm_2:
# ovs-vsctl add-br vxlan-br # ovs-vsctl add-port ovs-br $PF_REP # ovs-vsctl set Open_vSwitch . other_config:hw-offload=true
WarningConfiguring other_config:hw-offload=true sets IPsec Packet offload. Setting it to false sets software IPsec.
WarningThe MTU of the MTU of the tunnel interface (PF) should be at least 50 bytes larger than the MTU of the endpoints of the tunnels above (PF_REP) to account for the size of the VXLAN tunnel header. For example, if the MTU of PF_REP is 1500 then the MTU of PF should be at least 1550.
To configure the MTU of the PF:
# ifconfig $PF mtu $PF_MTU up
Set up IPsec tunnel on the OVS bridge. Three authentication methods are possible, choose your preferred authentication method and follow the steps relevant to it. Note that the last two authentication methods requires you to create certificates (self-signed certificates or certificate authority certificates).
After the IPsec tunnel is set up using one of the three methods of authentication, strongSwan configuration is done automatically and the swanctl.conf files will be generated and strongSwan will run automatically.
Authentication Methods
The following subsections detail the possible authentication methods for setting up the IPsec tunnel on the OVS bridge.
Pre-shared Key
This method configures OVS IPsec using a pre-shared key. You must select a pre-shared key, for example:
psk=swordfish
Set up the VXLAN tunnel:
On Arm_1, run:
# ovs-vsctl add-port vxlan-br tun -- \ set interface tun type=vxlan \ options:local_ip=$ip1 \ options:remote_ip=$ip2 \ options:key=100 \ options:dst_port=4789 \ options:psk=$psk
On Arm_2, run:
# ovs-vsctl add-port vxlan-br tun -- \ set interface tun type=vxlan \ options:local_ip=$ip2 \ options:remote_ip=$ip1 \ options:key=100 \ options:dst_port=4789\ options:psk=$psk
Self-signed Certificate
This method configures OVS IPsec using self-signed certificates. You must generate self-signed certificates and keys. This example demonstrates how to generate self-signed certificates using ovs-pki but you may generate them in any other way while skipping step 1.
Generate self-signed certificates using ovs-pki:
On Arm_1, run:
# ovs-pki req -u host_1 # ovs-pki self-sign host_1
After running this code you should have host_1-cert.pem and host_1-privkey.pem.
On Arm_2, run:
# ovs-pki req -u host_2 # ovs-pki self-sign host_2
After running this code you should have host_2-cert.pem and host_2-privkey.pem.
Configure the certificates and private keys:
Copy the certificate of Arm_1 to Arm_2, and the certificate of Arm_2 to Arm_1.
On each machine, move both host_1-privkey.pem and host_2-cert.pem to /etc/swanctl/x509/ if on Ubuntu, or /etc/strongswan/swanctl/x509/ if on CentOS.
On each machine, move the local private key (host_1-privkey.pem on Arm_1 and host_2-privkey.pem on Arm_2) to /etc/swanctl/private if on Ubuntu, or /etc/strongswan/swanctl/private if on CentOS.
Set up OVS other_config on both sides.
On Arm_1:
# ovs-vsctl set Open_vSwitch . other_config:certificate=/etc/swanctl/x509/host_1-cert.pem \ other_config:private_key=/etc/swanctl/private/host_1-privkey.pem
On Arm_2:
# ovs-vsctl set Open_vSwitch . other_config:certificate=/etc/swanctl/x509/host_2-cert.pem \ other_config:private_key=/etc/swanctl/private/host_2-privkey.pem
Set up the VXLAN tunnel:
On Arm_1:
# ovs-vsctl add-port vxlan-br vxlanp0 -- set interface vxlanp0 type=vxlan options:local_ip=$ip1 \ options:remote_ip=$ip2 options:key=100 options:dst_port=4789 \ options:remote_cert=/etc/swanctl/x509/host_2-cert.pem # service openvswitch-switch restart
On Arm_2:
# ovs-vsctl add-port vxlan-br vxlanp0 -- set interface vxlanp0 type=vxlan options:local_ip=$ip2 \ options:remote_ip=$ip1 options:key=100 options:dst_port=4789 \ options:remote_cert=/etc/swanctl/x509/host_1-cert.pem # service openvswitch-switch restart
In steps 3 and 4, if you are in CentOS you must change the path of the certificates to /etc/strongswan/swanctl/x509/ and the path of the private keys to /etc/strongswan/swanctl/private.
CA-signed Certificate
This method configures OVS IPsec using certificate authority (CA)-signed certificates. You must generate CA-signed certificates and keys. The example demonstrates how to generate CA-signed certificates using ovs-pki but you may generate them in any other way while skipping step 1.
Generate CA-signed certificates using ovs-pki. For this method, all the certificates and the requests must be in the same directory during the certificate generating and signing. This example refers to this directory as certsworkspace.
On Arm_1, run:
# ovs-pki init --force # cp /var/lib/openvswitch/pki/controllerca/cacert.pem <path_to>/certsworkspace # cd <path_to>/certsworkspace # ovs-pki req -u host_1 # ovs-pki sign host1
switch
After running this code, you should have host_1-cert.pem, host_1-privkey.pem, and cacert.pm in the certsworkspace folder.
On Arm_2, run:
# ovs-pki init --force # cp /var/lib/openvswitch/pki/controllerca/cacert.pem <path_to>/certsworkspace # cd <path_to>/certsworkspace # ovs-pki req -u host_2 # ovs-pki sign host_2
switch
After running this code, you should have host_2-cert.pem, host_2-privkey.pem, and cacert.pm in the certsworkspace folder.
Configure the certificates and private keys:
Copy the certificate of Arm_1 to Arm_2 and the certificate of Arm_2 to Arm_1.
On each machine, move both host_1-privkey.pem and host_2-cert.pem to /etc/swanctl/x509/ if on Ubuntu, or /etc/strongswan/swanctl/x509/ if on CentOS.
On each machine, move the local private key (host_1-privkey.pem if on Arm_1 and host_2-privkey.pem if on Arm_2) to /etc/swanctl/private if on Ubuntu, or /etc/strongswan/swanctl/private if on CentOS.
On each machine, copy cacert.pem to the x509ca directory under /etc/swanctl/x509ca/ if on Ubuntu, or /etc/strongswan/swanctl/x509ca/ if on CentOS.
Set up OVS other_config on both sides.
On Arm_1:
# ovs-vsctl set Open_vSwitch . \ other_config:certificate=/etc/strongswan/swanctl/x509/host_1.pem \ other_config:private_key=/etc/strongswan/swanctl/private/host_1-privkey.pem \ other_config:ca_cert=/etc/strongswan/swanctl/x509ca/cacert.pem
On Arm_2:
# ovs-vsctl set Open_vSwitch . \ other_config:certificate=/etc/strongswan/swanctl/x509/host_2.pem \ other_config:private_key=/etc/strongswan/swanctl/private/host_2-privkey.pem \ other_config:ca_cert=/etc/strongswan/swanctl/x509ca/cacert.pem
Set up the tunnel:
On Arm_1:
# ovs-vsctl add-port vxlan-br vxlanp0 -- set interface vxlanp0 type=vxlan options:local_ip=$ip1 \ options:remote_ip=$ip2 options:key=100 options:dst_port=4789 \ options:remote_name=host_2 # service openvswitch-switch restart
On Arm_2:
# ovs-vsctl add-port vxlan-br vxlanp0 -- set interface vxlanp0 type=vxlan options:local_ip=$ip2 \ options:remote_ip=$ip1 options:key=100 options:dst_port=4789 \ options:remote_name=host_1 # service openvswitch-switch restart
In steps 3 and 4, if you are in CenOS you must change the path of the certificates to /etc/strongswan/swanctl/x509/, the path of the CA certificate to /etc/strongswan/swanctl/x509ca/, and the path of the private keys to /etc/strongswan/swanctl/private/.
Ensuring IPsec is Configured
Using /opt/mellanox/iproute2/sbin/ip xfrm state show, you should be able to see 4 IPsec states for the IPsec connection you configured with the keyword in mode packet meaning which means that you are in IPsec packet HW offload mode.
For example, after configuring IPsec using pre-shared key method, you would get something similar to the following on Arm_1:
# /opt/mellanox/iproute2/sbin/ip xfrm state show
src 192.168
.50.1
dst 192.168
.50.2
proto esp spi 0xcc8bf8ad
reqid 1
mode transport
replay-window 0
flag esn
aead rfc4106(gcm(aes)) 0x9f45cc4577e70c4e077bcc0c1473a782143e7ad199f58566519639d03b593b8996383f11
128
anti-replay esn context:
seq-hi 0x0
, seq 0x0
, oseq-hi 0x0
, oseq 0x0
replay_window 1
, bitmap-length 1
00000000
crypto offload parameters: dev p0 dir out mode packet
sel src 192.168
.50.1
/32
dst 192.168
.50.2
/32
proto udp sport 4789
src 192.168
.50.2
dst 192.168
.50.1
proto esp spi 0xce8bf4b6
reqid 1
mode transport
replay-window 0
flag esn
aead rfc4106(gcm(aes)) 0xf2d0e335d9a64ef6e385a630a32b0e43bb52f581290cd34bbb8f7592d54f11657ed0258e
128
anti-replay esn context:
seq-hi 0x0
, seq 0x0
, oseq-hi 0x0
, oseq 0x0
replay_window 32
, bitmap-length 1
00000000
crypto offload parameters: dev p0 dir in mode packet
sel src 192.168
.50.2
/32
dst 192.168
.50.1
/32
proto udp dport 4789
src 192.168
.50.1
dst 192.168
.50.2
proto esp spi 0xcb600a84
reqid 2
mode transport
replay-window 0
flag esn
aead rfc4106(gcm(aes)) 0x7fb26035299bcc9b973abea5d581acfbcf87cbf0bd053b745c4d95c62311f934010973f6
128
anti-replay esn context:
seq-hi 0x0
, seq 0x0
, oseq-hi 0x0
, oseq 0x0
replay_window 1
, bitmap-length 1
00000000
crypto offload parameters: dev p0 dir out mode packet
sel src 192.168
.50.1
/32
dst 192.168
.50.2
/32
proto udp dport 4789
src 192.168
.50.2
dst 192.168
.50.1
proto esp spi 0xc137d5a0
reqid 2
mode transport
replay-window 0
flag esn
aead rfc4106(gcm(aes)) 0x28e3d12ad4e24aa9d9de9459de8ef8bb4379e8e12faac0054c5b629b6aa50fdeda8e4574
128
anti-replay esn context:
seq-hi 0x0
, seq 0x0
, oseq-hi 0x0
, oseq 0x0
replay_window 32
, bitmap-length 1
00000000
crypto offload parameters: dev p0 dir in mode packet
sel src 192.168
.50.2
/32
dst 192.168
.50.1
/32
proto udp sport 4789
After insuring that the IPsec connection is configured, you can send encrypted traffic between host_1 and host_2 using the HOST_PFs IP addresses.
Configuring OVS IPsec Using strongSwan Manually
This section configures an OVS VXLAN tunnel which then uses swanctl.conf files and runs strongSwan (the IPsec daemon) manually.
Before proceeding with this section, make sure to follow the procedure in section "Enabling IPsec Packet Offload" for both DPUs.
Build a VXLAN tunnel over OVS and connect the PF representor to the same OVS bridge.
On Arm_1:
# ovs-vsctl add-br vxlan-br # ovs-vsctl add-port vxlan-br PF_REP # ovs-vsctl add-port vxlan-br vxlan11 -- set interface vxlan11 type=vxlan options:local_ip=$ip1 \ options:remote_ip=$ip2 options:key=100 options:dst_port=4789 \ # ovs-vsctl set Open_vSwitch . other_config:hw-offload=true
On Arm_2:
# ovs-vsctl add-br vxlan-br # ovs-vsctl add-port vxlan-br PF_REP # ovs-vsctl add-port vxlan-br vxlan11 -- set interface vxlan11 type=vxlan options:local_ip=$ip2 \ options:remote_ip=$ip1 options:key=100 options:dst_port=4789 \ # ovs-vsctl set Open_vSwitch . other_config:hw-offload=true
If your operating system is Ubuntu, run on both Arm_1 and Arm_2:
service openvswitch-
switch
startIf your operating system is CentOS, run:
service openvswitch restart
Enable TC offloading for the PF. Run on both Arm_1 and Arm_2:
# ethtool -K $PF hw-tc-offload on
Disable host PF as the port owner from Arm. Run on both Arm_1 and Arm_2:
# mlxprivhost -d /dev/mst/mt${pciconf} --disable_port_owner r
WarningTo get ${pciconf}, run the following on the DPU:
# ls --color=never /dev/mst/ | grep --color=never
'^m.*f0$'
| cut -c3
-For example:
# mlxprivhost -d /dev/mst/mt41686_pciconf0 --disable_port_owner r
Configure the swanctl.conf files for each machine. See section swanctl.conf Files.
WarningEach machine should have exactly one .swanctl.conf file in /etc/swanctl/conf.d/.
Load the swanctl.conf files and initialize strongSwan. Run:
On the Arm_2, run:
systemctl restart strongswan.service swanctl --load-all
On the Arm_1, run:
systemctl restart strongswan.service swanctl --load-all swanctl -i --child bf
Now the IPsec connection should be established.
swanctl.conf Files
strongSwan configures IPSec packet HW offload using a new value added to its configuration file swanctl.conf. The file should be placed under sysconfdir which by default can be found at /etc/swanctl/swanctl.conf.
The terms Left (BFL) and Right (BFR), in reference to the illustration under Application Architecture, are used to identify the two nodes (or machines) that communicate.
Either side (BFL or BFR) can fulfill either role (initiator or receiver).
In this example, 192.168.50.1 is used for the left PF uplink and 192.168.50.2 for the right PF uplink.
connections {
BFL-BFR {
local_addrs = 192.168
.50.1
remote_addrs = 192.168
.50.2
local {
auth = psk
id = host1
}
remote {
auth = psk
id = host2
}
children {
bf-out {
local_ts = 192.168
.50.1
/24
[udp]
remote_ts = 192.168
.50.2
/24
[udp/4789
]
esp_proposals = aes128gcm128-x25519-esn
mode = transport
policies_fwd_out = yes
hw_offload = packet
}
bf-in {
local_ts = 192.168
.50.1
/24
[udp/4789
]
remote_ts = 192.168
.50.2
/24
[udp]
esp_proposals = aes128gcm128-x25519-esn
mode = transport
policies_fwd_out = yes
hw_offload = packet
}
}
version = 2
mobike = no
reauth_time = 0
proposals = aes128-sha256-x25519
}
}
secrets {
ike-BF {
id-host1 = host1
id-host2 = host2
secret = 0sv+NkxY9LLZvwj4qCC2o/gGrWDF2d21jL
}
}
The BFB installation will place two example swanctl.conf files for BFL and BFR (BFL.swanctl.conf and BFR.swanctl.conf respectively) in the strongSwan conf.d directory. Each node should have only one swanctl.conf file in its strongSwan conf.d directory.
Note that:
"hw_offload = packet" is responsible for configuring IPsec packet offload
Packet offload support has been added to the existing hw_offload field and preserves backward compatibility.
For your reference:
Value
Description
no
Do not configure HW offload.
crypto
Configure crypto HW offload if supported by the kernel and hardware, fail if not supported.
yes
Same as crypto (considered legacy).
packet
Configure packet HW offload if supported by the kernel and hardware, fail if not supported.
auto
Configure packet HW offload if supported by the kernel and hardware, do not fail (perform fallback to crypto or no as necessary).
Whenever the value of hw_offload is changed, strongSwan configuration must be reloaded.
Switching to crypto HW offload requires setting up devlink/ipsec_mode to none beforehand.
Switching to packet HW offload requires setting up
[udp/4789] is crucial for instructing strongSwan to IPSec only VXLAN communication.
Packet HW offload can only be done on what is streamed over VXLAN.
Mind the following limitations:
Fields |
Limitation |
reauth_time |
Ignored if set |
rekey_time |
Do not use. Ignored if set. |
rekey_bytes |
Do not use. Not supported and will fail if it is set. |
rekey_packets |
Use for rekeying |
/opt/mellanox/doca/applications/east_west_overlay_encryption/bin/east_west_overlay_encryption.sh
/opt/mellanox/doca/applications/east_west_overlay_encryption/bin/east_west_overlay_encryption_params.json
