NVIDIA DOCA HBN Service Guide

This guide provides instructions on how to use the DOCA HBN Service container on top of NVIDIA® BlueField® DPU.

For the release notes of HBN 2.0.0, please refer to "HBN Service Release Notes".

Host-based networking (HBN) is a DOCA service that enables the network architect to design a network purely on L3 protocols, enabling routing to run on the server-side of the network by using the DPU as a BGP router. The EVPN extension of BGP, supported by HBN, extends the L3 underlay network to multi-tenant environments with overlay L2 and L3 isolated networks.

The HBN solution packages a set of network functions inside a container which, itself, is packaged as a service pod to be run on the DPU. At the core of HBN is the Linux networking DPU acceleration driver. Netlink to DOCA daemon, or nl2docad, implements the DPU acceleration driver. nl2docad seamlessly accelerates Linux networking using DPU hardware programming APIs.

The driver mirrors the Linux kernel routing and bridging tables into the DPU hardware by discovering the configured Linux networking objects using the Linux Netlink API. Dynamic network flows, as learned by the Linux kernel networking stack, are also programmed by the driver into DPU hardware by listening to Linux kernel networking events.

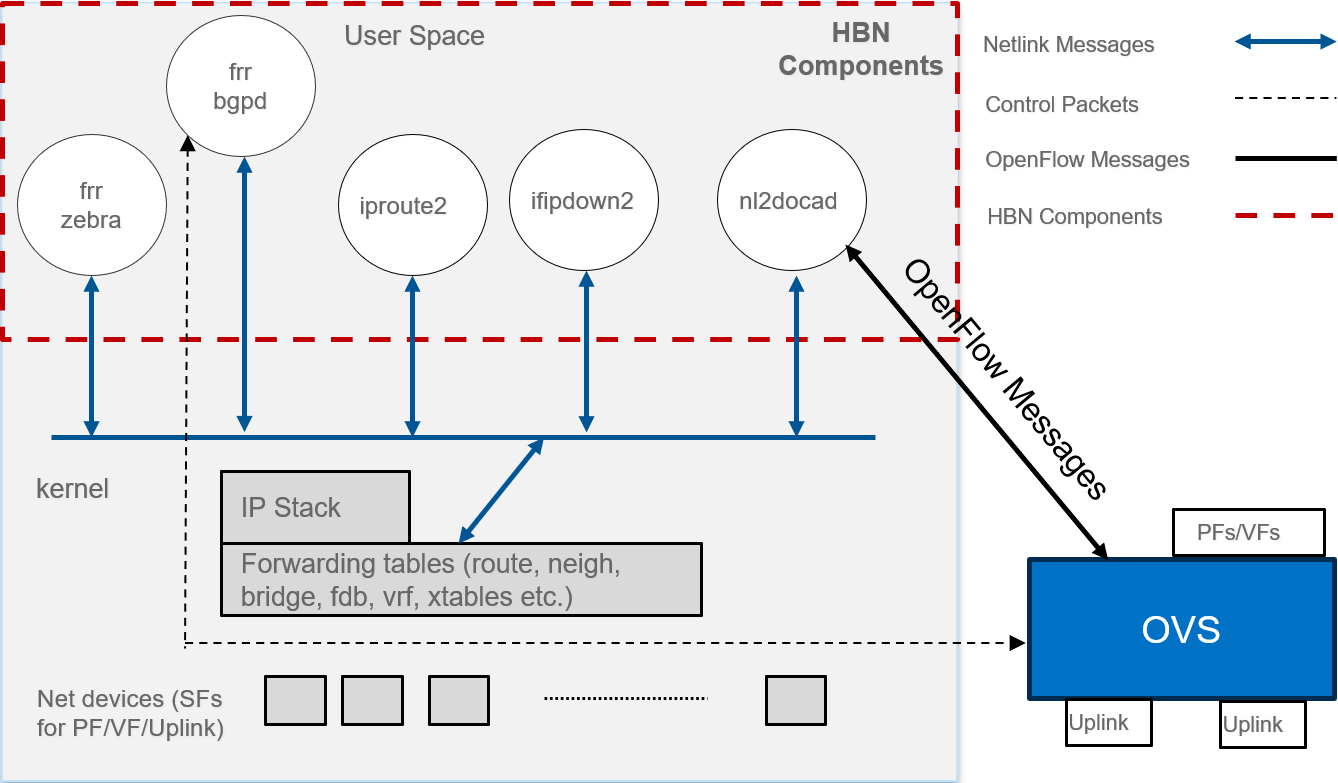

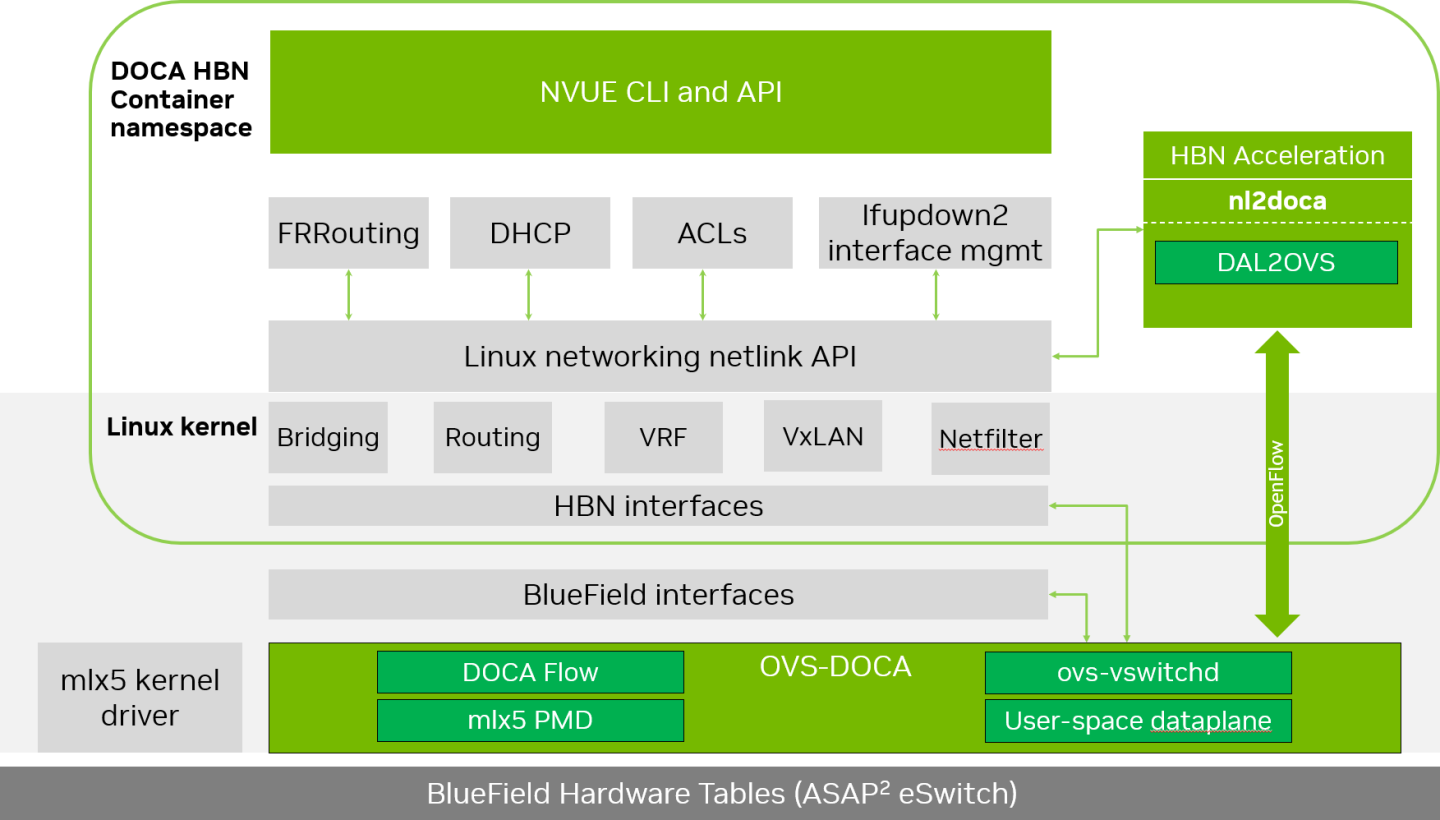

The following diagram captures an overview of HBN and the interactions between various components of HBN.


  • ifupdown2 is the interface manager which pushes all the interface related states to kernel

  • The routing stack is implemented in FRR and pushes all the control states (EVPN MACs and routes) to kernel via netlink

  • Kernel maintains the whole network state and relays the information using netlink. The kernel is also involved in the punt path and handling traffic that does not match any rules in the eSwitch.

  • nl2docad listens for the network state via netlink and invokes the DOCA interface to accelerate the flows in the DPU hardware tables. nl2docad also offloads these flows to eSwitch.

Preparing DPU for HBN Deployment

HBN requires service function chaining (SFC) to be activated on the DPU before running the HBN service container. SFC allows for additional services/containers to be chained to HBN and provides additional data manipulation capabilities.

The following subsections provide additional information about SFC and instructions on enabling it during DPU BFB installation.

Service Function Chaining

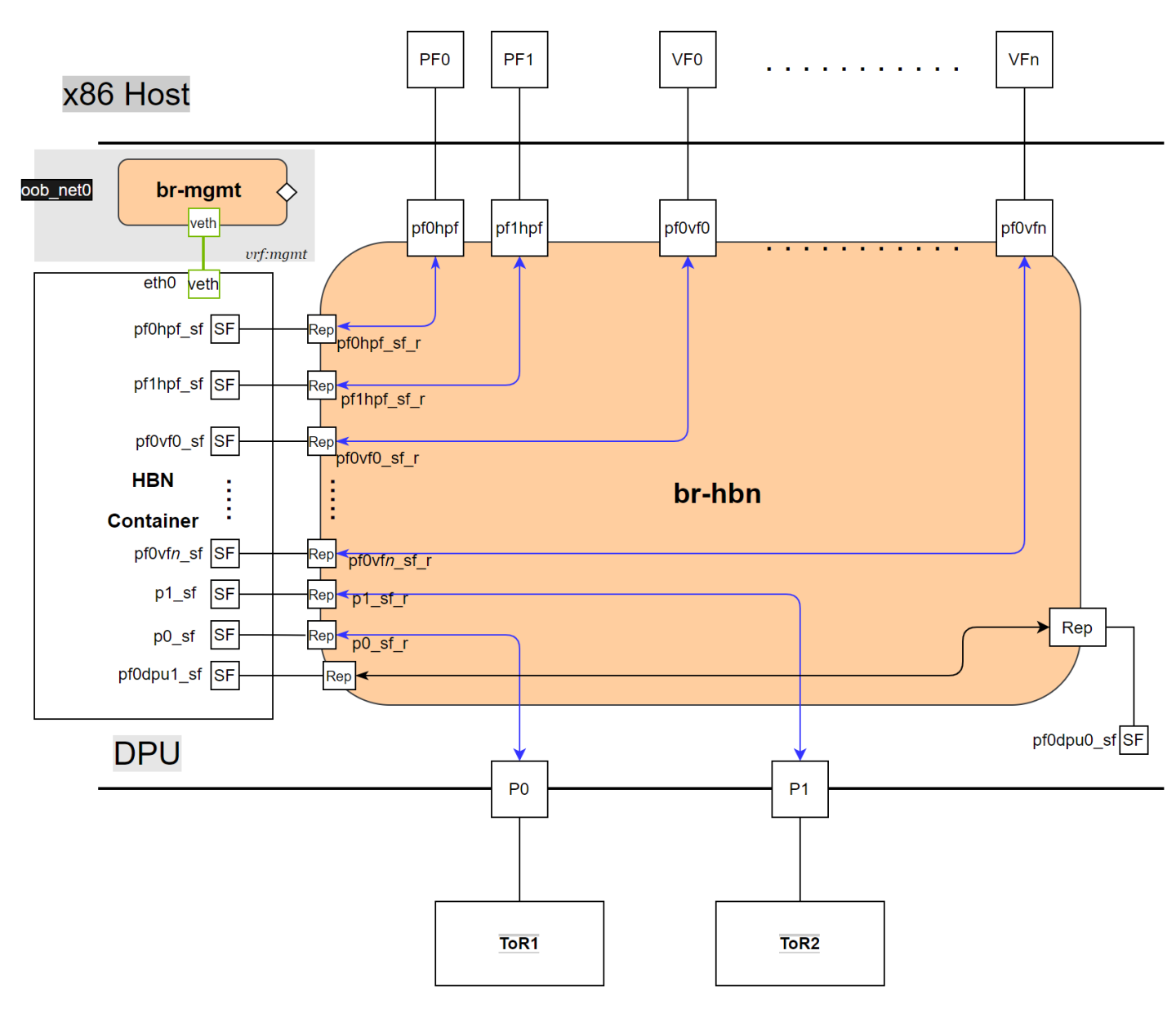

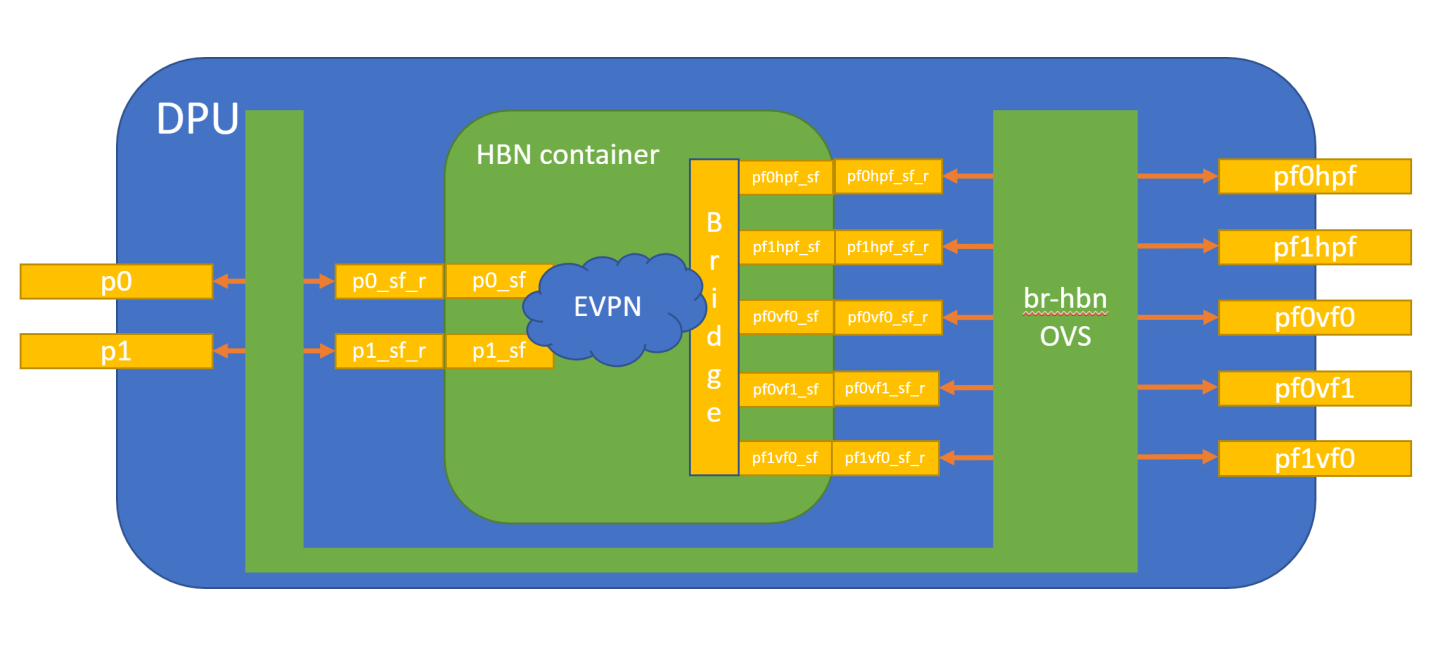

The diagram below shows the fully detailed default configuration for HBN with Service Function Chaining (SFC).

In this setup, the HBN container is configured to use sub-function ports (SFs) instead of the actual uplinks, PFs and VFs. To illustrate, for example:

  • Uplinks – use p0_sf instead of p0

  • PF – use pf0hpf_sf instead of pf0hpf

  • VF – use pf0vf0_sf instead of pf0vf0

The indirection layer between the SF and the actual ports is managed via a br-hbn OVS bridge automatically configured when the BFB image is installed on the DPU with HBN enabled. This indirection layer allows other services to be chained to existing SFs and provide additional functionality to transit traffic.



Enabling SFC for HBN Deployment

Deployment from BFB

DPU installation should follow the NVIDIA DOCA Installation Guide for Linux.

  1. Make sure link type is set to ETH in step 5 of the "Installing Software on Host" section in the NVIDIA DOCA Installation Guide for Linux.

  2. Add the following parameters to the bf.cfg configuration file:

    Copy
    Copied!


    ENABLE_SFC_HBN=yes NUM_VFs_PHYS_PORT0=12 # <num VFs supported by HBN on Physical Port 0> (valid range: 0-127) Default 14 NUM_VFs_PHYS_PORT1=2 # <num VFs supported by HBN on Physical Port 1> (valid range: 0-127) Default 0

  3. Then run:

    Copy
    Copied!


    # bfb-install -c bf.cfg -r rshim0 -b <BFB-image>

Deployment from PXE Boot

To enable HBN SFC using a PXE installation environment with BFB content, use the following configuration for PXE:

Copy
Copied!


bfnet=<IFNAME>:<IPADDR>:<NETMASK> or <IFNAME>:dhcp bfks=<URL of the kickstart script>

The kickstart script (bash) should include the following lines:

Copy
Copied!


cat >> /etc/bf.cfg << EOF ENABLE_SFC_HBN=yes NUM_VFs_PHYS_PORT0=12 # <num VFs supported by HBN on Physical Port 0> (valid range: 0-127) Default 14 NUM_VFs_PHYS_PORT1=2 # <num VFs supported by HBN on Physical Port 1> (valid range: 0-127) Default 0 EOF

/etc/bf.cfg is sourced by the BFB install.sh script.

Warning

It is recommended to verify the accuracy of the DPU's clock post-installation. This can be done using the following command:

Copy
Copied!


$ date

Please refer to the known issues listed in the "NVIDIA DOCA Release Notes" for more information.

HBN Service Container Deployment

HBN service is available on NGC, NVIDIA's container catalog. Service-specific configuration steps and deployment instructions can be found under the service's container page. Make sure to follow the instructions in the NGC page to verify that the container is running properly.

For information about the deployment of DOCA containers on top of the BlueField DPU, refer to NVIDIA DOCA Container Deployment Guide.

HBN Default Deployment Configuration

The HBN service comes with four types of configurable interfaces:

  • Two uplinks (p0_sf, p1_sf)

  • Two PF port representors (pf0hpf_sf, pf1hpf_sf)

  • User-defined number of VFs (i.e., pf0vf0_sf, pf0vf1_sf, …, pf1vf0_sf, pf1vf1_sf, …)

  • One interface to connect to services running on the DPU, outside of the HBN container (pf0dpu1_sf)

The *_sf suffix indicates that these are sub-functions and are different from the physical uplinks (i.e., PFs, VFs). They can be viewed as virtual interfaces from a virtualized DPU.

Each of these interfaces is connected outside the HBN container to the corresponding physical interface, see section "Service Function Chaining" (SFC) for more details.

The HBN container runs as an isolated namespace and does not see any interfaces outside the container (oob_net0, real uplinks and PFs, *_sf_r representors).


pf0dpu1_sf is a special interface for HBN to connect to services running on the DPU. Its counterpart pf0dpu0_sf is located outside the HBN container. See section "Connecting to Services on DPU" for deployment considerations when using the dpu1_sf interface in HBN.

eth0 is equivalent to the oob_net0 interface in the HBN container. It is part of the management VRF of the container. It is not configurable via NVUE and does not need any configuration from the user. See section "MGMT VRF in HBN Container" for more details on this interface and the management VRF.

HBN Deployment Considerations

SF Interface State Tracking

When HBN is deployed with SFC, the interface state of the following network devices is propagated to their corresponding SFs:

  • Uplinks – p0, p1

  • PFs – pf0hpf, pf1hpf

  • VFs – pf0vfX, pf1vfX where X is the VF number

For example, if the p0 uplink cable gets disconnected:

  • p0 transitions to DOWN state with NO-CARRIER (default behavior on Linux); and

  • p0 state is propagated to p0_sf whose state also becomes DOWN with NO-CARRIER

After p0 connection is reestablished:

  • p0 transitions to UP state; and

  • p0 state is propagated to p0_sf whose state becomes UP

Interface state propagation only happens in the uplink/PF/VF-to-SF direction.

A daemon called sfc-state-propagation runs on the DPU, outside of the HBN container, to sync the state. The daemon listens to netlink notifications for interfaces and transfers the state to SFs.

SF Interface MTU

In the HBN container, all the interfaces MTU are set to 9216 by default. MTU of specific interfaces can be overwritten using flat-files configuration or NVUE.

On the DPU side (i.e., outside of the HBN container), the MTU of the uplinks, PFs and VFs interfaces are also set to 9216. This can be changed by modifying /etc/systemd/network/30-hbn-mtu.network or by adding a new configuration file in the /etc/systemd/network for specific directories.

To reload this configuration, execute systemctl restart systemd-networkd.

Connecting to Services on DPU

pf0dpu1_sf can be used by HBN to connect to services running on the DPU. Its counterpart, pf0dpu0_sf, is located outside the HBN container.

Traffic between the DPU and the outside world is not hardware-accelerated in the HBN container when using a native L3 connection over pf0dpu0_sf/pf0dpu1_sf. To get hardware-acceleration, configure pf0dpu1_sf in the HBN container with bridge-access over an SVI.

The uplink ports must be always kept administratively up for proper operation of HBN. Otherwise, the NVIDIA® ConnectX® firmware would bring down the corresponding representor port which would cause data forwarding to stop.

Warning

Change in operational status of uplink (e.g., carrier down) would result in traffic being switched to the other uplink.

When using ECMP failover on the two uplink SFs, locally disabling one uplink does not result in traffic switching to the second uplink. Disabling local link in this case means to set one uplink admin DOWN directly on the DPU.

To test ECMP failover scenarios correctly, the uplink must be disabled from its remote counterpart (i.e., execute admin DOWN on the remote system's link which is connected to the uplink).

General Network Configuration

Flat Files Configuration

Add network interfaces and FRR configuration files to the DPU to achieve the desired configuration:

NVUE Configuration

This section assumes familiarity with NVIDIA user experience (NVUE) Cumulus Linux documentation. The following subsections, only expand on DPU-specific aspects of NVUE.

NVUE Service

HBN installs NVUE by default and enables NVUE service at boot.

NVUE REST API

HBN enables REST API by default.

Users may run the cURL commands from the command line. Use the default HBN username nvidia and password nvidia.

To change the default password of the nvidia user or add additional users for NVUE access, refer to section "NVUE User Credentials".

REST API example:

Copy
Copied!


curl -u 'nvidia:nvidia' --insecure https://10.188.108.58:8765/nvue_v1/interface/p0 { "ip": { "address": { "30.0.0.1/24": {} } }, "link": { "auto-negotiate": "on", "duplex": "full", "fec": "auto", "mac": "b8:ce:f6:a8:83:9a", "mtu": 9216, "speed": "100G", "state": { "up": {} }, "stats": { "carrier-transitions": 13, "in-bytes": 0, "in-drops": 0, "in-errors": 0, "in-pkts": 0, "out-bytes": 14111, "out-drops": 0, "out-errors": 0, "out-pkts": 161 } }, "pluggable": { "identifier": "QSFP28", "vendor-name": "Mellanox", "vendor-pn": "MCP1600-C00AE30N", "vendor-rev": "A4", "vendor-sn": "MT2105VB02844" }, "type": "swp" }

Warning

For information about using the NVUE REST API, refer to the NVUE API documentation .


NVUE CLI

For information about using the NVUE CLI, refer to the NVUE CLI documentation

NVUE Startup Configuration File

When the network configuration is saved using NVUE, HBN writes the configuration to the /etc/nvue.d/startup.yaml file.

Startup configuration is applied by following the supervisor daemon at boot time. nvued-startup will appear in EXITED state after applying the startup configuration.

Copy
Copied!


# supervisorctl status nvued-startup nvued-startup EXITED Apr 17 10:04 AM

Warning

nv config apply startup applies the yaml configuration saved at /etc/nvue.d/.

Warning

nv config save saves the running configuration to /etc/nvue.d/startup.yaml.


NVUE User Credentials

The preconfigured default user credentials are as follows:

Username

nvidia

Password

nvidia

NVUE user credentials can be added post installation. This functionality is enabled by the HBN startup script by using the –-username and –-password script switches. For example:

Copy
Copied!


./hbn-dpu-setup.sh -u newuser -p newpassword

After executing this script, respawn the container or start the decrypt-user-add script:

Copy
Copied!


supervisorctl start decrypt-user-add decrypt-user-add: started

The script creates a user on the HBN container:

Copy
Copied!


cat /etc/passwd | grep newuser newuser:x:1001:1001::/home/newuser:/bin/bash


NVUE Interface Classification

Interface

Interface Type

NVUE Type

p0_sf

Uplink representor

swp

p1_sf

Uplink representor

swp

lo

Loopback

loopback

pf0hpf_sf

Host representor

swp

pf1hpf_sf

Host representor

swp

pf0vfx_sf (where x is 0-255)

VF representor

swp

pf1vfx_sf (where x is 0-255)

VF representor

swp

Configuration Persistence

The following directories are mounted from the host DPU to the HBN container and are persistent across HBN restarts and DPU reboots:

Host DPU Mount Point

HBN Container Mount Point

Configuration Files Mount Pints

/var/lib/hbn/etc/network/

/etc/network/

/var/lib/hbn/etc/frr/

/etc/frr/

/var/lib/hbn/etc/nvue.d/

/etc/nvue.d/

/var/lib/hbn/etc/supervisor/conf.d/

/etc/supervisor/conf.d/

/var/lib/hbn/var/lib/nvue/

/var/lib/nvue/

Support and Log Files Mount Points

/var/lib/hbn/var/support/

/var/support/

/var/log/doca/hbn/

/var/log/hbn/


SR-IOV Support

Creating VFs on Host Server

The first step to use SR-IOV is to create VFs on the host server. VFs can be created using the following command:

Copy
Copied!


echo N > /sys/class/net/<host-rep>/device/sriov_numvfs

Where:

  • <host-rep> is one of the two host representors (e.g., ens1f0 or ens1f1)

  • 0≤N≤16 is the desired total number of VFs

    • Set N=0 to delete all the VFs on 0≤N≤16

    • N=16 is the maximum number of VFs supported on HBN across all representors

Automatic Creation of VF Representors on DPU

VFs created on the host must have corresponding SF representors on the DPU side. For example:

  • ens1f0vf0 is the first VF from the first host representor; this interface is created on the host server

  • pf0vf0 is the corresponding VF representor to ens1f0vf0; this interface is on the DPU and automatically created at the same time as ens1f0vf0 is created

  • pf0vf0_sf is the corresponding SF for pf0vf0 which is used by HBN

The creation of the SF representor for VFs is done ahead of time when installing the BFB, see section "Enabling SFC for HBN Deployment" to see how to select how many SFs to create ahead of time.

The SF representors for VFs (i.e., pfXvfY) are pre-mapped to work with the corresponding VF representors when these are created with the command from section "Creating VFs on Host Server".

Management VRF

Two management VRFs are setup for HBN with SFC:

  • The first management VRF is outside the HBN container on the DPU. This VRF provides separation between out-of-band (OOB) traffic (via oob_net0 or tmfifo_net0) and data-plane traffic via uplinks and PFs.

  • The second management VRF is inside the HBN container and provides similar separation. The OOB traffic (via eth0) is isolated from the traffic via the *_sf interfaces.

MGMT VRF on Host DPU

The management (mgmt) VRF is enabled by default when the DPU is deployed with SFC (see section "Enabling SFC for HBN Deployment"). The mgmt VRF provides separation between the OOB management network and the in-band data plane network.

The uplinks and PFs/VFs use the default routing table while the oob_net0 (OOB Ethernet port) and the tmifo_net0 netdevices use the mgmt VRF to route their packets.

When logging in either via SSH or the console, the shell is by default in mgmt VRF context. This is indicated by a mgmt added to the shell prompt:

Copy
Copied!


root@bf2:mgmt:/home/ubuntu# root@bf2:mgmt:/home/ubuntu# ip vrf identify mgmt.

When logging into the HBN container with crictl, the HBN shell will be in the default VRF. Users must switch to MGMT VRF manually if OOB access is required. Use ip vrf exec to do so.

Copy
Copied!


root@bf2:mgmt:/home/ubuntu# ip vrf exec mgmt bash

The user must run ip vrf exec mgmt to perform operations requiring OOB access (e.g., apt-get update).

Network devices belonging to the mgmt VRF can be listed with the vrf utility:

Copy
Copied!


root@bf2:mgmt:/home/ubuntu# vrf link list   VRF: mgmt -------------------- tmfifo_net0 UP 00:1a:ca:ff:ff:03 <BROADCAST,MULTICAST,UP,LOWER_UP> oob_net0 UP 08:c0:eb:c0:5a:32 <BROADCAST,MULTICAST,UP,LOWER_UP>   root@bf2:mgmt:/home/ubuntu# vrf help vrf <OPTS>   VRF domains: vrf list   Links associated with VRF domains: vrf link list [<vrf-name>]   Tasks and VRF domain asociation: vrf task exec <vrf-name> <command> vrf task list [<vrf-name>] vrf task identify <pid>   NOTE: This command affects only AF_INET and AF_INET6 sockets opened by the command that gets exec'ed. Specifically, it has *no* impact on netlink sockets (e.g., ip command).

To show the routing table for the default VRF, run:

Copy
Copied!


root@bf2:mgmt:/home/ubuntu# ip route show

To show the routing table for the mgmt VRF, run:

Copy
Copied!


root@bf2:mgmt:/home/ubuntu# ip route show vrf mgmt


MGMT VRF in HBN Container

Inside the HBN container, a separate mgmt VRF is present. Similar commands as those listed under section "MGMT VRF on Host DPU" can be used to query management routes.

The *_sf interfaces use the default routing table while the eth0 (OOB) uses the mgmt VRF to route out-of-band packets out of the container. The OOB traffic gets NATed through the DPU oob_net0 interface, ultimately using the DPU OOB's IP address.

When logging into the HBN container via crictl, the shell enters the default VRF context by default. Switching to the mgmt VRF can be done using the command ip vrf exec mgmt <cmd>.

Existing Services in MGMT VRF on Host DPU

On the host DPU, outside the HBN container, a set of existing services run in the mgmt VRF context as they need OOB network access:

  • containerd

  • kubelet

  • ssh

  • docker

These services can be restarted and queried for their status using the command systemctl while adding @mgmt to the original service name. For example:

  • To restart containerd:

    Copy
    Copied!


    root@bf2:mgmt:/home/ubuntu# systemctl restart containerd@mgmt

  • To query containerd status:

    Copy
    Copied!


    root@bf2:mgmt:/home/ubuntu# systemctl status containerd@mgmt

Warning

The original version of these services (without @mgmt) are not used and must not be started.


Running New Service in MGMT VRF

If a service needs OOB access to run, it can be added to the set of services running in mgmt VRF context. Adding such a service is only possible on the host DPU (i.e., outside the HBN container).

To add a service to the set of mgmt VRF services:

  1. Add it to /etc/vrf/systemd.conf (if it is not present already). For example, NTP is already listed in this file.

  2. Run the following:

    Copy
    Copied!


    root@bf2:mgmt:/home/ubuntu# systemctl daemon-reload

  3. Stop and disable to the non-VRF version of the service to be able to start the mgmt VRF one:

    Copy
    Copied!


    root@bf2:mgmt:/home/ubuntu# systemctl stop ntp root@bf2:mgmt:/home/ubuntu# systemctl disable ntp root@bf2:mgmt:/home/ubuntu# systemctl enable ntp@mgmt root@bf2:mgmt:/home/ubuntu# systemctl start ntp@mgmt

HBN Configuration Examples

HBN Default Configuration

After a fresh HBN installation, the default /etc/network/interfaces file would contain only the declaration of the two uplink SFs and a loopback interface.

Copy
Copied!


source /etc/network/interfaces.d/*.intf   auto lo iface lo inet loopback   auto p0_sf iface p0_sf   auto p1_sf iface p1_sf

FRR configuration files would also be present under /etc/frr/ but no configuration would be enabled.

Native Routing with BGP and ECMP

HBN supports unicast routing with BGP and ECMP for IPv4 and IPv6 traffic. ECMP is achieved by distributing traffic using hash calculation based on the source IP , destination IP, and protocol type of the IP header.

Note

For TCP and UDP packets, it also includes source port and destination port.

ECMP Configuration

ECMP is implemented any time routes have multiple paths over uplinks or host ports. For example, 20.20.20.0/24 has 2 paths using both uplinks, so a path is selected based on a hash of the IP headers.

Copy
Copied!


20.20.20.0/24 proto bgp metric 20 nexthop via 169.254.0.1 dev p0_sf weight 1 onlink <<<<< via uplink p0_sf nexthop via 169.254.0.1 dev p1_sf weight 1 onlink <<<<< via uplink p1_sf

Note

HBN supports up to 16 paths for ECMP.

Sample NVUE Configuration

Copy
Copied!


nv set interface lo ip address 10.10.10.1/32 nv set interface lo ip address 2010:10:10::1/128 nv set interface vlan100 type svi nv set interface vlan100 vlan 100 nv set interface vlan100 base-interface br_default nv set interface vlan100 ip address 2030:30:30::1/64 nv set interface vlan100 ip address 30.30.30.1/24 nv set bridge domain br_default vlan 100 nv set interface pf0hpf_sf,pf1hpf_sf bridge domain br_default access 100 nv set vrf default router bgp router-id 10.10.10.1 nv set vrf default router bgp autonomous-system 65501 nv set vrf default router bgp path-selection multipath aspath-ignore on nv set vrf default router bgp address-family ipv4-unicast enable on nv set vrf default router bgp address-family ipv4-unicast redistribute connected enable on nv set vrf default router bgp address-family ipv6-unicast enable on nv set vrf default router bgp address-family ipv6-unicast redistribute connected enable on nv set vrf default router bgp neighbor p0_sf remote-as external nv set vrf default router bgp neighbor p0_sf type unnumbered nv set vrf default router bgp neighbor p0_sf address-family ipv4-unicast enable on nv set vrf default router bgp neighbor p0_sf address-family ipv6-unicast enable on nv set vrf default router bgp neighbor p1_sf remote-as external nv set vrf default router bgp neighbor p1_sf type unnumbered nv set vrf default router bgp neighbor p1_sf address-family ipv4-unicast enable on nv set vrf default router bgp neighbor p1_sf address-family ipv6-unicast enable on


Sample Flat Files Configuration

Example /etc/network/interfaces configuration:

Copy
Copied!


auto lo iface lo inet loopback address 10.10.10.1/32 address 2010:10:10::1/128   auto p0_sf iface p0_sf   auto p1_sf iface p1_sf   auto pf0hpf_sf iface pf0hpf_sf bridge-access 100   auto pf1hpf_sf iface pf1hpf_sf bridge-access 100   auto vlan100 iface vlan100 address 2030:30:30::1/64 address 30.30.30.1/24 vlan-raw-device br_default vlan-id 100   auto br_default iface br_default bridge-ports pf0hpf_sf pf1hpf_sf bridge-vlan-aware yes bridge-vids 100 bridge-pvid 1

Example /etc/frr/daemons configuration:

Copy
Copied!


bgpd=yes vtysh_enable=yes     FRR Config file @ /etc/frr/frr.conf - ! frr version 7.5+cl5.3.0u0 frr defaults datacenter hostname BLUEFIELD2 log syslog informational no zebra nexthop kernel enable ! router bgp 65501 bgp router-id 10.10.10.1 bgp bestpath as-path multipath-relax neighbor p0_sf interface remote-as external neighbor p0_sf advertisement-interval 0 neighbor p0_sf timers 3 9 neighbor p0_sf timers connect 10 neighbor p1_sf interface remote-as external neighbor p1_sf advertisement-interval 0 neighbor p1_sf timers 3 9 neighbor p1_sf timers connect 10 ! address-family ipv4 unicast redistribute connected maximum-paths 64 maximum-paths ibgp 64 exit-address-family ! address-family ipv6 unicast redistribute connected neighbor p0_sf activate neighbor p1_sf activate maximum-paths 64 maximum-paths ibgp 64 exit-address-family ! line vty ! end

BGP Peering with Host

HBN supports the ability to establish a BGP session between the host and DPU and allow the host to announce arbitrary route prefixes through the DPU into the underlay fabric. The host can use any standard BGP protocol stack implementation to establish BGP peering with HBN.

Traffic to and from endpoints on the host gets offloaded.

Warning

Both IPv4 and IPv6 unicast AFI/SAFI are supported.

It is possible to apply route filtering for these prefixes to limit the potential security impact in this configuration.

Sample NVUE Configuration

The following code block shows configuration to peer to host at 45.3.0.4 and 2001:cafe:1ead::4. The BGP session can be established using IPv4 or IPv6 address.

Warning

Either of these sessions can support IPv4 unicast and IPv6 unicast AFI/SAFI.

NVUE configuration for peering with host:

Copy
Copied!


nv set vrf default router bgp autonomous-system 63642 nv set vrf default router bgp enable on nv set vrf default router bgp neighbor 45.3.0.4 nexthop-connected-check off nv set vrf default router bgp neighbor 45.3.0.4 peer-group dpu_host nv set vrf default router bgp neighbor 45.3.0.4 type numbered nv set vrf default router bgp neighbor 2001:cafe:1ead::4 nexthop-connected-check off nv set vrf default router bgp neighbor 2001:cafe:1ead::4 peer-group dpu_host nv set vrf default router bgp neighbor 2001:cafe:1ead::4 type numbered nv set vrf default router bgp peer-group dpu_host address-family ipv4-unicast enable on nv set vrf default router bgp peer-group dpu_host address-family ipv6-unicast enable on nv set vrf default router bgp peer-group dpu_host remote-as external


Sample Flat Files Configuration

The following block shows configuration to peer to host at 45.3.0.4 and 2001:cafe:1ead::4. The BGP session can be established using IPv4 or IPv6 address.

frr.conf file:

Copy
Copied!


router bgp 63642 bgp router-id 27.0.0.4 bgp bestpath as-path multipath-relax neighbor dpu_host peer-group neighbor dpu_host remote-as external neighbor dpu_host bfd 3 1000 1000 neighbor dpu_host advertisement-interval 0 neighbor dpu_host timers 3 9 neighbor dpu_host timers connect 10 neighbor dpu_host disable-connected-check neighbor fabric peer-group neighbor fabric remote-as external neighbor fabric advertisement-interval 0 neighbor fabric timers 3 9 neighbor fabric timers connect 10 neighbor 45.3.0.4 peer-group dpu_host neighbor 2001:cafe:1ead::4 peer-group dpu_host neighbor p0_sf interface peer-group fabric neighbor p1_sf interface peer-group fabric ! address-family ipv4 unicast neighbor dpu_host activate ! address-family ipv6 unicast neighbor dpu_host activate


Sample Configuration on Host Running FRR

Any BGP implementation can be used on the host to peer to HBN and advertise endpoints. The following is an example using FRR BGP:

  • Sample FRR configuration on the host:

    Copy
    Copied!


    bf2-s12# sh run Building configuration...   Current configuration: ! frr version 7.2.1 frr defaults traditional hostname bf2-s12 no ip forwarding no ipv6 forwarding ! router bgp 1000008 ! router bgp 1000008 vrf v_200_2000 neighbor 45.3.0.2 remote-as external neighbor 2001:cafe:1ead::2 remote-as external ! address-family ipv4 unicast redistribute connected exit-address-family ! address-family ipv6 unicast redistribute connected neighbor 45.3.0.2 activate neighbor 2001:cafe:1ead::2 activate exit-address-family ! line vty ! end

  • Sample interface configuration on the host:

    Copy
    Copied!


    root@bf2-s12:/home/cumulus# ifquery -a auto lo iface lo inet loopback address 27.0.0.7/32 address 2001:c15c:d06:f00d::7/128   auto v_200_2000 iface v_200_2000 address 60.1.0.1 address 60.1.0.2 address 60.1.0.3 address 2001:60:1::1 address 2001:60:1::2 address 2001:60:1::3 vrf-table auto auto ens1f0np0 iface ens1f0np0 address 45.3.0.4/24 address 2001:cafe:1ead::4/64 gateway 45.3.0.1 gateway 2001:cafe:1ead::1 vrf v_200_2000 hwaddress 00:03:00:08:00:12 mtu 9162

L2 EVPN with BGP and ECMP

HBN supports VXLAN with EVPN control plane for intra-subnet bridging (L2) services for IPv4 and IPv6 traffic in the overlay.

For the underlay, only IPv4 or BGP unnumbered configuration is supported.

Single VXLAN Device

With a single VXLAN device, a set of VNIs represents a single device model. The single VXLAN device has a set of attributes that belong to the VXLAN construct. Individual VNIs include VLAN-to-VNI mapping which allows users to specify which VLANs are associated with which VNIs. A single VXLAN device simplifies the configuration and reduces the overhead by replacing multiple traditional VXLAN devices with a single VXLAN device.

Users may configure a single VXLAN device automatically with NVUE, or manually by editing the /etc/network/interfaces file. When users configure a single VXLAN device with NVUE, NVUE creates a unique name for the device in the following format using the bridge name as the hash key: vxlan<id>.
This example configuration performs the following steps:

  1. Creates a single VXLAN device (vxlan21).

  2. Maps VLAN 10 to VNI 10 and VLAN 20 to VNI 20.

  3. Adds the VXLAN device to the default bridge.

Copy
Copied!


cumulus@leaf01:~$ nv set bridge domain bridge vlan 10 vni 10 cumulus@leaf01:~$ nv set bridge domain bridge vlan 20 vni 20 cumulus@leaf01:~$ nv set nve vxlan source address 10.10.10.1 cumulus@leaf01:~$ nv config apply

Alternately, users may edit the file /etc/network/interfaces as follows, then run the ifreload -a command to apply the SVD configuration.

Copy
Copied!


auto lo iface lo inet loopback vxlan-local-tunnelip 10.10.10.1   auto vxlan21 iface vxlan21 bridge-vlan-vni-map 10=10 20=20 bridge-learning off   auto bridge iface bridge bridge-vlan-aware yes bridge-ports vxlan21 pf0hpf_sf pf1hpf_sf bridge-vids 10 20 bridge-pvid 1

Warning

Users may not use a combination of single and traditional VXLAN devices.

Sample NVUE Configuration on DPU

The following is a sample NVUE configuration which has L2-VNIs (2000, 2001) for EVPN bridging on DPU.

Copy
Copied!


nv set bridge domain br_default encap 802.1Q nv set bridge domain br_default type vlan-aware nv set bridge domain br_default vlan 200 vni 2000 flooding enable auto nv set bridge domain br_default vlan 200 vni 2000 mac-learning off nv set bridge domain br_default vlan 201 vni 2001 flooding enable auto nv set bridge domain br_default vlan 201 vni 2001 mac-learning off   nv set evpn enable on nv set nve vxlan arp-nd-suppress on nv set nve vxlan enable on nv set nve vxlan mac-learning off nv set nve vxlan source address 27.0.0.4 nv set router bgp enable on nv set system global anycast-mac 44:38:39:42:42:07 nv set vrf default router bgp address-family ipv4-unicast enable on nv set vrf default router bgp address-family ipv4-unicast redistribute connected enable on   nv set vrf default router bgp address-family l2vpn-evpn enable on nv set vrf default router bgp autonomous-system 63642 nv set vrf default router bgp enable on nv set vrf default router bgp neighbor p0_sf peer-group fabric nv set vrf default router bgp neighbor p0_sf type unnumbered nv set vrf default router bgp neighbor p1_sf peer-group fabric nv set vrf default router bgp neighbor p1_sf type unnumbered nv set vrf default router bgp path-selection multipath aspath-ignore on nv set vrf default router bgp peer-group fabric address-family ipv4-unicast enable on nv set vrf default router bgp peer-group fabric address-family ipv4-unicast policy outbound route-map MY_ORIGIN_ASPATH_ONLY nv set vrf default router bgp peer-group fabric address-family ipv6-unicast enable on nv set vrf default router bgp peer-group fabric address-family ipv6-unicast policy outbound route-map MY_ORIGIN_ASPATH_ONLY nv set vrf default router bgp peer-group fabric address-family l2vpn-evpn add-path-tx off nv set vrf default router bgp peer-group fabric address-family l2vpn-evpn enable on nv set vrf default router bgp peer-group fabric remote-as external nv set vrf default router bgp router-id 27.0.0.4   nv set interface lo ip address 2001:c15c:d06:f00d::4/128 nv set interface lo ip address 27.0.0.4/32 nv set interface lo type loopback nv set interface p0_sf,p1_sf,pf0hpf_sf,pf1hpf_sf type swp nv set interface pf0hpf_sf bridge domain br_default access 200 nv set interface pf1hpf_sf bridge domain br_default access 201   nv set interface vlan200-201 base-interface br_default nv set interface vlan200-201 ip ipv4 forward on nv set interface vlan200-201 ip ipv6 forward on nv set interface vlan200-201 ip vrr enable on nv set interface vlan200-201 ip vrr state up nv set interface vlan200-201 link mtu 9050 nv set interface vlan200-201 type svi nv set interface vlan200 ip address 2001:cafe:1ead::3/64 nv set interface vlan200 ip address 45.3.0.2/24 nv set interface vlan200 ip vrr address 2001:cafe:1ead::1/64 nv set interface vlan200 ip vrr address 45.3.0.1/24 nv set interface vlan200 vlan 200 nv set interface vlan201 ip address 2001:cafe:1ead:1::3/64 nv set interface vlan201 ip address 45.3.1.2/24 nv set interface vlan201 ip vrr address 2001:cafe:1ead:1::1/64 nv set interface vlan201 ip vrr address 45.3.1.1/24 nv set interface vlan201 vlan 201


Sample Flat Files Configuration on HBN

The following is a sample flat files configuration which has L2-VNIs (vx-2000, vx-2001) for EVPN bridging on DPU.

This file is located at /etc/network/interfaces:

Copy
Copied!


auto lo iface lo inet loopback address 2001:c15c:d06:f00d::4/128 address 27.0.0.4/32 vxlan-local-tunnelip 27.0.0.4   auto p0_sf iface p0_sf   auto p1_sf iface p1_sf   auto pf0hpf_sf iface pf0hpf_sf bridge-access 200   auto pf1hpf_sf iface pf1hpf_sf bridge-access 201   auto vlan200 iface vlan200 address 2001:cafe:1ead::3/64 address 45.3.0.2/24 mtu 9050 address-virtual 00:00:5e:00:01:01 2001:cafe:1ead::1/64 45.3.0.1/24 vlan-raw-device br_default vlan-id 200   auto vlan201 iface vlan201 address 2001:cafe:1ead:1::3/64 address 45.3.1.2/24 mtu 9050 address-virtual 00:00:5e:00:01:01 2001:cafe:1ead:1::1/64 45.3.1.1/24 vlan-raw-device br_default vlan-id 201   auto vxlan48 iface vxlan48 bridge-vlan-vni-map 200=2000 201=2001 217=2017 bridge-learning off   auto br_default iface br_default bridge-ports pf0hpf_sf pf1hpf_sf vxlan48 bridge-vlan-aware yes bridge-vids 200 201 bridge-pvid 1

This file tells the frr package which daemon to start and is located at /etc/frr/daemons:

Copy
Copied!


bgpd=yes ospfd=no ospf6d=no isisd=no pimd=no ldpd=no pbrd=no vrrpd=no fabricd=no nhrpd=no eigrpd=no babeld=no sharpd=no fabricd=no ripngd=no ripd=no   vtysh_enable=yes zebra_options=" -M cumulus_mlag -M snmp -A 127.0.0.1 -s 90000000" bgpd_options=" -M snmp -A 127.0.0.1" ospfd_options=" -M snmp -A 127.0.0.1" ospf6d_options=" -M snmp -A ::1" ripd_options=" -A 127.0.0.1" ripngd_options=" -A ::1" isisd_options=" -A 127.0.0.1" pimd_options=" -A 127.0.0.1" ldpd_options=" -A 127.0.0.1" nhrpd_options=" -A 127.0.0.1" eigrpd_options=" -A 127.0.0.1" babeld_options=" -A 127.0.0.1" sharpd_options=" -A 127.0.0.1" pbrd_options=" -A 127.0.0.1" staticd_options="-A 127.0.0.1" fabricd_options="-A 127.0.0.1" vrrpd_options=" -A 127.0.0.1"   frr_profile="datacenter"

This file is located at /etc/frr/frr.conf:

Copy
Copied!


!---- Cumulus Defaults ---- frr defaults datacenter log syslog informational no zebra nexthop kernel enable vrf default outer bgp 63642 vrf default bgp router-id 27.0.0.4 bgp bestpath as-path multipath-relax timers bgp 3 9 bgp deterministic-med ! Neighbors neighbor fabric peer-group neighbor fabric remote-as external neighbor fabric timers 3 9 neighbor fabric timers connect 10 neighbor fabric advertisement-interval 0 neighbor p0_sf interface peer-group fabric neighbor p1_sf interface peer-group fabric address-family ipv4 unicast maximum-paths ibgp 64 maximum-paths 64 distance bgp 20 200 200 neighbor fabric activate exit-address-family address-family ipv6 unicast maximum-paths ibgp 64 maximum-paths 64 distance bgp 20 200 200 neighbor fabric activate exit-address-family address-family l2vpn evpn advertise-all-vni neighbor fabric activate exit-address-family


Sample Switch Configuration for EVPN

The following is a sample NVUE config for underlay switches (NVIDIA® Spectrum® with Cumulus Linux) for EVPN use case.

It assumes that the uplinks on DPUs are connected to ports swp1-4 on the switch.

Copy
Copied!


nv set evpn enable on nv set router bgp enable on   nv set vrf default router bgp address-family ipv4-unicast enable on nv set vrf default router bgp address-family ipv4-unicast redistribute connected enable on   nv set vrf default router bgp address-family l2vpn-evpn enable on nv set vrf default router bgp autonomous-system 63640 nv set vrf default router bgp enable on nv set vrf default router bgp neighbor swp1 peer-group fabric nv set vrf default router bgp neighbor swp1 type unnumbered nv set vrf default router bgp neighbor swp2 peer-group fabric nv set vrf default router bgp neighbor swp2 type unnumbered nv set vrf default router bgp neighbor swp3 peer-group fabric nv set vrf default router bgp neighbor swp3 type unnumbered nv set vrf default router bgp neighbor swp4 peer-group fabric nv set vrf default router bgp neighbor swp4 type unnumbered nv set vrf default router bgp path-selection multipath aspath-ignore on nv set vrf default router bgp peer-group fabric address-family ipv4-unicast enable on nv set vrf default router bgp peer-group fabric address-family ipv6-unicast enable on nv set vrf default router bgp peer-group fabric address-family l2vpn-evpn add-path-tx off nv set vrf default router bgp peer-group fabric address-family l2vpn-evpn enable on nv set vrf default router bgp peer-group fabric remote-as external nv set vrf default router bgp router-id 27.0.0.10   nv set interface lo ip address 2001:c15c:d06:f00d::10/128 nv set interface lo ip address 27.0.0.10/32 nv set interface lo type loopback nv set interface swp1,swp2,swp3,swp4 type swp

Access Control Lists

Access Control Lists (ACLs) are a set of rules that are used to filter network traffic. These rules are used to specify the traffic flows that must be permitted or blocked at networking device interfaces. There are two types of ACLs:

  • Stateless ACLs – rules that are applied to individual packets. They inspect each packet individually and permit/block the packets based on the packet header information and the match criteria specified by the rule.

  • Stateful ACLs – rules that are applied to traffic sessions/connections. They inspect each packet with respect to the state of the session/connection to which the packet belongs to determine whether to permit/block the packet.

ACL Ordering

ACL ordering ensures that the order in which ACLs are executed in DPU hardware is the same as the order in which the ACLs are configured. In general, IPv4 ACLs should be configured before IPv6 ACLs which in turn should be configured before L2 ACLs. ACLs should be configured in the following order:

  1. IPv4 header match fields + UDP header match fields

  2. IPv4 header match fields + TCP header match fields

  3. IPv4 header match fields + ICMP header match fields

  4. IPv4 header match fields

  5. IPv6 header match fields + UDP header match fields

  6. IPv6 header match fields + TCP header match fields

  7. IPv6 header match fields + ICMP header match fields

  8. IPv6 header match fields

  9. Ethernet header match fields

Stateless ACLs

HBN supports configuration of stateless ACLs for IPv4 packets, IPv6 packets, and Ethernet frames. The following examples depict how stateless ACLs are configured for each case, with NVUE and with flat files (cl-acltool).

NVUE Examples for Stateless ACLs

NVUE IPv4 ACLs Example

The following is an example of an ingress IPv4 ACL that permits DHCP request packets ingressing on the pf0hpf_sf port towards the DHCP server:

Copy
Copied!


root@hbn01-host01:~# nv set acl acl1_ingress type ipv4 root@hbn01-host01:~# nv set acl acl1_ingress rule 100 match ip protocol udp root@hbn01-host01:~# nv set acl acl1_ingress rule 100 match ip dest-port 67 root@hbn01-host01:~# nv set acl acl1_ingress rule 100 match ip source-port 68 root@hbn01-host01:~# nv set acl acl1_ingress rule 100 action permit

Bind the ingress IPv4 ACL to host representor port pf0hpf_sf of the DPU in the inbound direction:

Copy
Copied!


root@hbn01-host01:~# nv set interface pf0hpf_sf acl acl1_ingress inbound root@hbn01-host01:~# nv config apply

The following is an example of an egress IPv4 ACL that permits DHCP reply packets egressing out of the pf0hpf_sf port towards the DHCP client:

Copy
Copied!


root@hbn01-host01:~# nv set acl acl2_egress type ipv4 root@hbn01-host01:~# nv set acl acl2_egress rule 200 match ip protocol udp root@hbn01-host01:~# nv set acl acl2_egress rule 200 match ip dest-port 68 root@hbn01-host01:~# nv set acl acl2_egress rule 200 match ip source-port 67 root@hbn01-host01:~# nv set acl acl2_egress rule 200 action permit

Bind the egress IPv4 ACL to host representor port pf0hpf_sf of the DPU in the outbound direction:

Copy
Copied!


root@hbn01-host01:~# nv set interface pf0hpf_sf acl acl2_egress outbound root@hbn01-host01:~# nv config apply

NVUE IPv6 ACLs Example

The following is an example of an ingress IPv6 ACL that permits traffic with matching dest-ip and protocol tcp ingress on port pf0hpf_sf:

Copy
Copied!


root@hbn01-host01:~# nv set acl acl5_ingress type ipv6 root@hbn01-host01:~# nv set acl acl5_ingress rule 100 match ip protocol tcp root@hbn01-host01:~# nv set acl acl5_ingress rule 100 match ip dest-ip 48:2034::80:9 root@hbn01-host01:~# nv set acl acl5_ingress rule 100 action permit

Bind the ingress IPv6 ACL to host representor port pf0hpf_sf of the DPU in the inbound direction:

Copy
Copied!


root@hbn01-host01:~# nv set interface pf0hpf_sf acl acl5_ingress inbound root@hbn01-host01:~# nv config apply

The following is an example of an egress IPv6 ACL that permits traffic with matching source-ip and protocol tcp egressing out of port pf0hpf_sf:

Copy
Copied!


root@hbn01-host01:~# nv set acl acl6_egress type ipv6 root@hbn01-host01:~# nv set acl acl6_egress rule 101 match ip protocol tcp root@hbn01-host01:~# nv set acl acl6_egress rule 101 match ip source-ip 48:2034::80:9 root@hbn01-host01:~# nv set acl acl6_egress rule 101 action permit

Bind the egress IPv6 ACL to host representor port pf0hpf_sf of the DPU in the outbound direction:

Copy
Copied!


root@hbn01-host01:~# nv set interface pf0hpf_sf acl acl6_egress outbound root@hbn01-host01:~# nv config apply

NVUE L2 ACLs Example

The following is an example of an ingress MAC ACL that permits traffic with matching source-mac and dest-mac ingressing to port pf0hpf_sf:

Copy
Copied!


root@hbn01-host01:~# nv set acl acl3_ingress type mac root@hbn01-host01:~# nv set acl acl3_ingress rule 1 match mac source-mac 00:00:00:00:00:0a root@hbn01-host01:~# nv set acl acl3_ingress rule 1 match mac dest-mac 00:00:00:00:00:0b root@hbn01-host01:~# nv set interface pf0hpf_sf acl acl3_ingress inbound

Bind the ingress MAC ACL to host representor port pf0hpf_sf of the DPU in the inbound direction:

Copy
Copied!


root@hbn01-host01:~# nv set interface pf0hpf_sf acl acl3_ingress inbound root@hbn01-host01:~# nv config apply

The following is an example of an egress MAC ACL that permits traffic with matching source-mac and dest-mac egressing out of port pf0hpf_sf:

Copy
Copied!


root@hbn01-host01:~# nv set acl acl4_egress type mac root@hbn01-host01:~# nv set acl acl4_egress rule 2 match mac source-mac 00:00:00:00:00:0b root@hbn01-host01:~# nv set acl acl4_egress rule 2 match mac dest-mac 00:00:00:00:00:0a root@hbn01-host01:~# nv set acl acl4_egress rule 2 action permit

Bind the egress MAC ACL to host representor port pf0hpf_sf of the DPU in the outbound direction:

Copy
Copied!


root@hbn01-host01:~# nv set interface pf0hpf_sf acl acl4_egress outbound root@hbn01-host01:~# nv config apply


Flat Files (cl-acltool) Examples for Stateless ACLs

For the same examples cited above, the following are the corresponding ACL rules which must be configured under /etc/cumulus/acl/policy.d/<rule_name.rules> followed by invoking cl-acltool -i. The rules in /etc/cumulus/acl/policy.d/<rule_name.rules> are configured using Linux iptables/ip6tables/ebtables.

Flat Files IPv4 ACLs Example

The following example configures an ingress IPv4 ACL rule matching with DHCP request under /etc/cumulus/acl/policy.d/<rule_name.rules> with the ingress interface as the host representor of the DPU followed by invoking cl-acltool -i:

Copy
Copied!


[iptables] ## ACL acl1_ingress in dir inbound on interface pf0hpf_sf ## -t filter -A FORWARD -i pf1vf1_sf -p udp --sport 68 --dport 67 -j ACCEPT

The following example configures an egress IPv4 ACL rule matching with DHCP reply under /etc/cumulus/acl/policy.d/<rule_name.rules> with the egress interface as the host representor of the DPU followed by invoking cl-acltool -i:

Copy
Copied!


[iptables] ## ACL acl2_egress in dir outbound on interface pf0hpf_sf ## -t filter -A FORWARD -o pf0hpf_sf -p udp --sport 67 --dport 68 -j ACCEPT

Flat File IPv6 ACLs Example

The following example configures an ingress IPv6 ACL rule matching with dest-ip and tcp protocol under /etc/cumulus/acl/policy.d/<rule_name.rules> with the ingress interface as the host representor of the DPU followed by invoking cl-acltool -i:

Copy
Copied!


[ip6tables] ## ACL acl5_ingress in dir inbound on interface pf0hpf_sf ## -t filter -A FORWARD -i pf0hpf_sf -d 48:2034::80:9 -p tcp -j ACCEPT

The following example configures an egress IPv6 ACL rule matching with source-ip and tcp protocol under /etc/cumulus/acl/policy.d/<rule_name.rules> with the egress interface as the host representor of the DPU followed by invoking cl-acltool -i:

Copy
Copied!


[ip6tables] ## ACL acl6_egress in dir outbound on interface pf0hpf_sf ## -t filter -A FORWARD -o pf0hpf_sf -s 48:2034::80:9 -p tcp -j ACCEPT

Flat Files L2 ACLs Example

The following example configures an ingress MAC ACL rule matching with source-mac and dest-mac under /etc/cumulus/acl/policy.d/<rule_name.rules> with the ingress interface as the host representor of the DPU followed by invoking cl-acltool -i:

Copy
Copied!


[ebtables] ## ACL acl3_ingress in dir inbound on interface pf0hpf_sf ## -t filter -A FORWARD -i pf0hpf_sf -s 00:00:00:00:00:0a/ff:ff:ff:ff:ff:ff -d 00:00:00:00:00:0b/ff:ff:ff:ff:ff:ff -j ACCEPT

The following example configures an egress MAC ACL rule matching with source-mac and dest-mac under /etc/cumulus/acl/policy.d/<rule_name.rules> with egress interface as host representor of DPU followed by invoking cl-acltool -i:

Copy
Copied!


[ebtables] ## ACL acl4_egress in dir outbound on interface pf0hpf_sf ## -t filter -A FORWARD -o pf0hpf_sf -s 00:00:00:00:00:0b/ff:ff:ff:ff:ff:ff -d 00:00:00:00:00:0a/ff:ff:ff:ff:ff:ff -j ACCEPT

Stateful ACLs

Stateful ACLs facilitate monitoring and tracking traffic flows to enforce per-flow traffic filtering (unlike stateless ACLs which filter traffic on a per-packet basis). HBN supports stateful ACLs using reflexive ACL mechanism. Reflexive ACL mechanism is used to permit initiation of connections from within the network to outside the network and allow only replies to the initiated connections from outside the network.

HBN supports stateful ACL configuration for IPv4 traffic.

Stateful ACLs can be applied for routed traffic (north-south traffic) or bridged traffic (east-west traffic). Stateful ACLs applied for routed traffic are called "L3 stateful ACLs" and for bridged traffic are called "L2 stateful ACLs". Currently, NVUE-based configuration is supported only for L3 stateful ACLs (L2 stateful ACLs must be configured using flat-file configuration).

Stateful ACLs in HBN are disabled by default. To enable stateful ACL functionality, use the following NVUE commands:

Copy
Copied!


root@hbn03-host00:~# nv set system reflexive-acl enable root@hbn03-host00:~# nv config apply

If using flat-file configuration (and not NVUE), edit the file /etc/cumulus/nl2docad.d/acl.conf and set the knob rflx.reflexive_acl_enable to TRUE. To apply this change, execute:

Copy
Copied!


root@hbn03-host00:~# supervisorctl start nl2doca-reload

NVUE Examples for L3 Stateful ACLs

The following is an example of allowing HTTP (TCP) connection originated by the host where the DPU is hosted to an HTTP server (with the IP address 11.11.11.11) on an external network. Two sets of ACLs matching with CONNTRACK state must be configured for a CONNTRACK entry to be established in the kernel which would be offloaded to hardware:

  • Configure an ACL rule matching TCP/HTTP connection/flow details with CONNTRACK state of NEW, ESTABLISHED and bind it to the host representor of the DPU and the associated VLAN's SVI in the inbound direction.

  • Configure an ACL rule matching TCP/HTTP connection/flow details with CONNTRACK state of ESTABLISHED and bind it to the host representor of the DPU and the associated VLAN's SVI in the outbound direction.

In this example, the host representor on the DPU is pf0hpf_sf and it is part of VLAN 101 (SVI interface is vlan101).

  1. Configure the ingress ACL rule:

    Copy
    Copied!


    root@hbn03-host00:~# nv set acl allow_tcp_conn_from_host rule 11 action permit root@hbn03-host00:~# nv set acl allow_tcp_conn_from_host rule 11 match conntrack new root@hbn03-host00:~# nv set acl allow_tcp_conn_from_host rule 11 match conntrack established root@hbn03-host00:~# nv set acl allow_tcp_conn_from_host rule 11 match ip dest-ip 11.11.11.11/32 root@hbn03-host00:~# nv set acl allow_tcp_conn_from_host rule 11 match ip dest-port 80 root@hbn03-host00:~# nv set acl allow_tcp_conn_from_host rule 11 match ip protocol tcp root@hbn03-host00:~# nv set acl allow_tcp_conn_from_host type ipv4

  2. Bind this ACL to the host representor of the DPU and the associated VLAN's SVI interface in the inbound direction:

    Copy
    Copied!


    root@hbn03-host00:~# nv set interface pf0hpf_sf,vlan101 acl allow_tcp_conn_from_host inbound root@hbn03-host00:~# nv config apply

  3. Configure the egress ACL rule:

    Copy
    Copied!


    root@hbn03-host00:~# nv set acl allow_tcp_resp_from_server rule 21 action permit root@hbn03-host00:~# nv set acl allow_tcp_resp_from_server rule 21 match conntrack established root@hbn03-host00:~# nv set acl allow_tcp_resp_from_server rule 21 match ip protocol tcp root@hbn03-host00:~# nv set acl allow_tcp_resp_from_server type ipv4 root@hbn03-host00:~# nv config apply

  4. Bind this ACL to the host representor of the DPU and the associated VLAN's SVI interface in the outbound direction:

    Copy
    Copied!


    root@hbn03-host00:~# nv set interface pf0hpf_sf,vlan101 acl allow_tcp_resp_from_server outbound root@hbn03-host00:~# nv config apply

    Warning

    If virtual router redundancy (VRR) is set, L3 stateful ACLs must be bound to all the related SVI interfaces. For example, if VRR is configured on SVI vlan101 as follows in the /etc/network/interfaces file:

    Copy
    Copied!


    auto vlan101 iface vlan101     address 45.3.1.2/24     address-virtual 00:00:5e:00:01:01 45.3.1.1/24     vlan-raw-device br_default vlan-id 101

    With this configuration, two SVI interfaces, vlan101 and vlan101-v0 would be created in the system:

    Copy
    Copied!


    root@hbn03-host00:~# ip -br addr show | grep vlan101 vlan101@br_default UP             45.3.1.2/24 fe80::204:4bff:fe8a:f100/64 vlan101-v0@vlan101 UP             45.3.1.1/24 metric 1024 fe80::200:5eff:fe00:101/64

    In this case, stateful ACLs must be bound to both SVI interfaces (vlan101 and vlan101-v0). In the stateful ACL described in the current section, the binding would be:

    Copy
    Copied!


    root@hbn03-host00:~# nv set interface pf0hpf_sf,vlan101,vlan101-v0 acl allow_tcp_conn_from_host inbound root@hbn03-host00:~# nv set interface pf0hpf_sf,vlan101,vlan101-v0 acl allow_tcp_resp_from_server outbound root@hbn03-host00:~# nv config apply

Flat Files (cl-acltool) Examples for L3 Stateful ACLs

For the example described under section "NVUE Examples for L3 Stateful ACLs", the following are the corresponding ACL rules which must be configured under /etc/cumulus/acl/policy.d/<rule_name.rules> followed by invoking cl-acltool -i to install the rules in DPU hardware.

  1. Configure an ingress ACL rule matching with TCP flow details and CONNTRACK state of NEW, ESTABLISHED under /etc/cumulus/acl/policy.d/stateful_acl.rules with the ingress interface as the host representor of the DPU and the associated VLAN's SVI followed by invoking cl-acltool -i:

    Copy
    Copied!


    [iptables] ## ACL allow_tcp_conn_from_host in dir inbound on interface pf1vf7_sf ## -t mangle -A PREROUTING -p tcp -d 11.11.11.11/32 --dport 80 -m conntrack --ctstate EST,NEW -m connmark ! --mark 9998 -j CONNMARK --set-mark 9999 -t filter -A FORWARD -i pf1vf7_sf -p tcp -d 11.11.11.11/32 --dport 80 -m conntrack --ctstate EST,NEW -j ACCEPT   ## ACL allow_tcp_conn_from_host in dir inbound on interface vlan118 ## -t filter -A FORWARD -i vlan118 -p tcp –d 11.11.11.11/32--dport 80 -m conntrack --ctstate EST,NEW -j ACCEPT

    Warning

    A mangle table rule must be configured with CONNMARK action. The CONNMARK values (-j CONNMARK --set-mark <value>) for ingress ACL rules are protocol dependent: 9999 for TCP, 9997 for UDP, and 9995 for ICMP.

  2. Configure an egress ACL rule matching with TCP and CONNTRACK state of ESTABLISHED, RELATED under /etc/cumulus/acl/policy.d/stateful_acl.rules file with the egress interface as the host representor of the DPU and the associated VLAN's SVI followed by invoking cl-acltool -i:

    Copy
    Copied!


    [iptables] ## ACL allow_tcp_resp_from_server in dir outbound on interface pf1vf7_sf ## -t mangle -A PREROUTING -p tcp -s 11.11.11.11/32 --sport 80 -m conntrack --ctstate EST -j CONNMARK --set-mark 9998 -t filter -A FORWARD -o pf1vf7_sf -p tcp -m conntrack --ctstate EST,REL -j ACCEPT   ## ACL allow_tcp_resp_from_server in dir outbound on interface vlan118 ## -t filter -A FORWARD -o vlan118 -p tcp -m conntrack --ctstate EST,REL -j ACCEPT

    Warning

    A mangle table rule must be configured with CONNMARK action. The CONNMARK values (-j CONNMARK --set-mark <value>) for egress ACL rules are protocol dependent: 9998 for TCP, 9996 for UDP, and 9994 for ICMP.

Flat Files (cl-acltool) Examples for L2 Stateful ACLs

For the same example cited above (HTTP server at IP address 192.168.5.5 accessible over bridged network), the following are the corresponding ACL rules which must be configured under /etc/cumulus/acl/policy.d/<rule_name.rules> followed by invoking cl-acltool -i.

  1. Configure an ingress ACL rule matching with TCP flow details and CONNTRACK state of NEW, ESTABLISHED under /etc/cumulus/acl/policy.d/stateful_acl.rules with the ingress interface as the host representor of the DPU and the associated VLAN's SVI followed by invoking cl-acltool -i:

    Copy
    Copied!


    [iptables] ## ACL allow_tcp_conn_from_host in dir inbound on interface pf1vf7_sf -t mangle -A PREROUTING -p tcp -d 192.168.5.5/32 --dport 80 -m conntrack --ctstate EST,NEW -m connmark ! --mark 9998 -j CONNMARK --set-mark 9999 -t filter -A FORWARD -m physdev --physdev-in pf1vf7_sf -p tcp -d 192.168.5.5/32 --dport 80 -m conntrack --ctstate EST,NEW -j ACCEPT   ## ACL allow_tcp_conn_from_host in dir inbound on interface vlan118 ## -t filter -A FORWARD -i vlan118 -p tcp –d 192.168.5.5/32--dport 80 -m conntrack --ctstate EST,NEW -j ACCEPT

    Warning

    A mangle table rule must be configured with CONNMARK action. The CONNMARK values (-j CONNMARK --set-mark <value>) for ingress ACL rules are protocol dependent: 9999 for TCP, 9997 for UDP, and 9995 for ICMP.

  2. Configure an egress ACL rule matching with TCP and CONNTRACK state of ESTABLISHED, RELATED under /etc/cumulus/acl/policy.d/stateful_acl.rules file with the egress interface as the host representor of the DPU and the associated VLAN's SVI followed by invoking cl-acltool -i:

    Copy
    Copied!


    [iptables] ## ACL allow_tcp_resp_from_server in dir outbound on interface pf1vf7_sf ## -t mangle -A PREROUTING -p tcp -s 192.168.5.5/32 --sport 80 -m conntrack --ctstate EST -j CONNMARK --set-mark 9998 -t filter -A FORWARD -m physdev --physdev-out pf1vf7_sf -p tcp -m conntrack --ctstate EST,REL -j ACCEPT   ## ACL allow_tcp_resp_from_server in dir outbound on interface vlan118 ## -t filter -A FORWARD -o vlan118 -p tcp -m conntrack --ctstate EST,REL -j ACCEPT

    Warning

    A mangle table rule must be configured with CONNMARK action. The CONNMARK values (-j CONNMARK --set-mark <value>) for egress ACL rules are protocol dependent: 9998 for TCP, 9996 for UDP, and 9994 for ICMP.

DHCP Relay on HBN

DHCP is a client server protocol that automatically provides IP hosts with IP addresses and other related configuration information. A DHCP relay (agent) is a host that forwards DHCP packets between clients and servers. DHCP relays forward requests and replies between clients and servers that are not on the same physical subnet.

DHCP relay can be configured using either flat file (supervisord configuration) or through NVUE.

Configuration

HBN is a non-systemd based container. Therefore, the DHCP relay must be configured as explained in the following subsections.

Flat File Configuration (Supervisord)

The HBN initialization script installs default configuration files on the DPU in /var/lib/hbn/etc/supervisor/conf.d/. The DPU directory is mounted to /etc/supervisor/conf.d which achieves configuration persistence.

By default, DHCP relay is disabled. Default configuration applies to one instance of DHCPv4 relay and DHCPv6 relay in the default VRF.

NVUE Configuration

The user can use NVUE to configure and maintain DHCPv4 and DHCPv6 relays with CLI and REST API. NVUE generates all the required configurations and maintains the relay service.

DHCPv4 Relay Configuration

NVUE Example

The following configuration starts a relay service which listens for the DHCP messages on p0_sf, p1_sf, and vlan482 and relays the requests to DHCP server 10.89.0.1 with gateway-interface as lo.

Copy
Copied!


nv set service dhcp-relay default gateway-interface lo nv set service dhcp-relay default interface p0_sf nv set service dhcp-relay default interface p1_sf nv set service dhcp-relay default interface vlan482 downstream nv set service dhcp-relay default server 10.89.0.1

Flat Files Example

Copy
Copied!


[program: isc-dhcp-relay-default] command = /usr/sbin/dhcrelay --nl -d -i p0_sf -i p1_sf -id vlan482 -U lo 10.89.0.1 autostart = true autorestart = unexpected startsecs = 3 startretries = 3 exitcodes = 0 stopsignal = TERM stopwaitsecs = 3

Where:

Option

Description

-i

Network interface to listen on for requests and replies

-iu

Upstream network interface

-id

Downstream network interface

-U [address]%%ifname

Gateway IP address interface. Use %% for IP%%ifname. % is used as an escape character.

--loglevel-debug

Debug logging. Location: /var/log/syslog.

-a

Append an agent option field to each request before forwarding it to the server with default values for circuit-id and remote-id

-r remote-id

Set a custom remote ID string (max of 255 chars). To use this option, you must also enable the -a option.

--use-pif-circuit-id

Set the underlying physical interface which receives the packet as the circuit-id. To use this option you must also enable the -a option.


DHCPv4 Relay Option 82

NVUE Example

The following NVUE command is used to enable option 82 insertion in DHCP packets with default values:

Copy
Copied!


nv set service dhcp-relay default agent enable on

To provide a custom remote-id (e.g., host10) using NVUE:

Copy
Copied!


nv set service dhcp-relay default agent remote-id host10

To use the underlying physical interface on which the request is received as circuit-id using NVUE:

Copy
Copied!


nv set service dhcp-relay default agent use-pif-circuit-id enable on

Flat Files Example

Copy
Copied!


[program: isc-dhcp-relay-default] command = /usr/sbin/dhcrelay --nl -d -i p0_sf -i p1_sf -id vlan482 -U lo -a --use-pif-circuit-id -r host10 10.89.0.1 autostart = true autorestart = unexpected startsecs = 3 startretries = 3 exitcodes = 0 stopsignal = TERM stopwaitsecs = 3


DHCPv6 Relay Configuration

NVUE Example

The following NVUE command starts the DHCPv6 Relay service which listens for DHCPv6 requests on vlan482 and sends relayed DHCPv6 requests towards p0_sf and p1_sf.

Copy
Copied!


nv set service dhcp-relay6 default interface downstream vlan482 nv set service dhcp-relay6 default interface upstream p0_sf nv set service dhcp-relay6 default interface upstream p1_sf

Flat Files Example

Copy
Copied!


[program: isc-dhcp-relay6-default] command = /usr/sbin/dhcrelay --nl -6 -d -l vlan482 -u p0_sf -u p1_sf autostart = true autorestart = unexpected startsecs = 3 startretries = 3 exitcodes = 0 stopsignal = TERM stopwaitsecs = 3

Where:

Option

Description

-l [address]%%ifname[#index]

Downstream interface. Use %% for IP%%ifname. % is used as escape character.

-u [address]%%ifname

Upstream interface. Use %% for IP%%ifname. % is used as escape character.

-6

IPv6

--loglevel-debug

Debug logging located at /var/log/syslog

DHCP Relay and VRF Considerations

DHCP relay can be spawned inside a VRF context to handle the DHCP requests in that VRF. There can only be 1 instance each of DHCPv4 relay and DHCPv6 relay per VRF. To achieve that, the user can follow these guidelines:

  • DHCPv4 on default VRF:

    Copy
    Copied!


    /usr/sbin/dhcrelay --nl -i <interface> -U [address]%%<interface> <server_ip>

  • DHCPv4 on VRF:

    Copy
    Copied!


    /usr/sbin/ip vrf exec <vrf> /usr/sbin/dhcrelay –-nl -i <interface> -U [address]%%<interface> <server_ip>

  • DHCPv6 on default VRF:

    Copy
    Copied!


    /usr/sbin/dhcrelay --nl -6 -l <interface> -u <interface>

  • DHCPv6 on VRF:

    Copy
    Copied!


    /usr/sbin/ip vrf exec <vrf> /usr/sbin/dhcrelay --nl -6 -l <interface> -u <interface>

HBN Container Stuck in init-sfs

The HBN container starts as init-sfs and should transition to doca-hbn within 2 minutes as can be seen using crictl ps. But sometimes it may remain as init-sfs.

This can happen if interface p0_sf is missing. Run the command ip -br link show dev p0_sf in the DPU and inside the container to check if p0_sf is present or not. If its missing, make sure the firmware is upgraded to the latest version. Gracefully shutdown and power cycle the host for the new firmware to take effect.

BGP Session not Establishing

One of the main causes of a BGP session not getting established is a mismatch in MTU configuration. Make sure the MTU on all interfaces is the same. For example, if BGP is failing on p0, check and verify that there is a matching MTU value for p0, p0_sf_r, p0_sf, and the remote peer of p0.

Generating Support Dump

HBN support dump can be generated using the cl-support command, inside the HBN container:

Copy
Copied!


root@bf2:/tmp# cl-support Please send /var/support/cl_support_bf2-s02-1-ipmi_20221025_180508.txz to Cumulus support

The generated dump would be available in /var/support in the HBN container and would contain any process core dump as well as log files.

The /var/support directory is also mounted on the host DPU at /var/lib/hbn/var/support.

SFC Troubleshooting

To troubleshoot flows going through SFC interfaces, the first step is to disable the nl2doca service in the HBN container:

Copy
Copied!


root@bf2:/tmp# supervisorctl stop nl2doca nl2doca: stopped

Stopping nl2doca effectively stops hardware offloading and switches to software forwarding. All packets would appear on tcpdump capture on the DPU interfaces.

tcpdump can be performed on SF interfaces as well as VLAN, VXLAN, and uplinks to determine where a packet gets dropped or which flow a packet is taking.

General nl2doca Troubleshooting

The following steps can be used to make sure the nl2doca daemon is up and running:

  1. Make sure there are no errors in the nl2doca log file at /var/log/hbn/nl2docad.log.

  2. To check the status of the nl2doca daemon under supervisor, run:

    Copy
    Copied!


    supervisorctl status nl2doca

  3. Use ps to check that the actual nl2doca process is running:

    Copy
    Copied!


    ps -eaf | grep nl2doca root 18 1 0 06:31 ? 00:00:00 /bin/bash /usr/bin/nl2doca-docker-start root 1437 18 0 06:31 ? 00:05:49 /usr/sbin/nl2docad

  4. The core file should be in /var/support/core/.

  5. Check if the /cumulus/nl2docad/run/stats/punt​ is accessible. Otherwise, nl2doca may be stuck and should be restarted:

    Copy
    Copied!


    supervisorctl restart nl2doca

nl2doca Offload Troubleshooting

If a certain traffic flow does not work as expected, disable nl2doca (i.e., disable hardware offloading):

Copy
Copied!


supervisorctl stop nl2doca​

​With hardware offloading disabled, you can confirm it is an offloading issue if the traffic starts working. If it is not an offloading issue, use tcpdump on various interfaces to see where the packet gets dropped.

Offloaded entries can be checked in following files, which contain the programming status of every IP prefix and MAC address known to system.

  • Bridge entries are available in the file /cumulus/nl2docad/run/software-tables/17​. It includes all the MAC addresses in the system including local and remote MAC addresses.

    Example format:

    Copy
    Copied!


    - flow-entry: 0xaaab0cef4190​ flow-pattern:​ fid: 112​ dst mac: 00:00:5e:00:01:01​ flow-actions:​ SET VRF: 2​         OUTPUT-PD-PORT: 20(TO_RTR_INTF)         STATS:​ pkts: 1719​ bytes: 191286​

  • Router entries are available in the file /cumulus/nl2docad/run/software-tables/18​. It includes all the IP prefixes known to the system.

    Example format for Entry with ECMP:

    Copy
    Copied!


    Entry with ECMP: - flow-entry: 0xaaaada723700 flow-pattern: IPV6: LPM VRF: 0 destination-ip: ::/0 flow-actions : ECMP: 2 STATS: pkts: 0 bytes: 0​   Entry without ECMP: - flow-entry: 0xaaaada7e1400     flow-pattern:        IPV4: LPM        VRF: 0        destination-ip: 60.1.0.93/32     flow-actions :         SET FID: 200         SMAC: 00:04:4b:a7:88:00         DMAC: 00:03:00:08:00:12         OUTPUT-PD-PORT: 19(TO_BR_INTF)    STATS:        pkts: 0        bytes: 0

  • ECMP entries are available in the file /cumulus/nl2docad/run/software-tables/19​. It includes all the next hops in the system.

    Example format:

    Copy
    Copied!


    - ECMP: 2 ref-count: 2 num-next-hops: 2 entries: - { index: 0, fid: 4100, src mac: 'b8:ce:f6:99:49:6a', dst mac: '00:02:00:00:00:0a' } - { index: 1, fid: 4101, src mac: 'b8:ce:f6:99:49:6b', dst mac: '00:02:00:00:00:0e' }

To check counters for packets going to the kernel, run:

Copy
Copied!


cat /cumulus/nl2docad/run/stats/punt ​PUNT miss pkts:3154 bytes:312326 PUNT miss drop pkts:0 bytes:0 PUNT control pkts:31493 bytes:2853186 PUNT control drop pkts:0 bytes:0 ACL PUNT pkts:68 bytes:7364 ACL drop pkts:0 bytes:0

For a specific type of packet flow, programming can be referenced in block specific files. The typical flow is as follows:

For example, to check L2 EVPN ENCAP flows for remote MAC 8a:88:d0:b1:92:b1 on port pf0vf0_sf, the basic offload flow should look as follows: RxPort (pf0vf0_sf) -> BR (Overlay) -> RTR (Underlay) -> BR (Underlay) -> TxPort​ (one of the uplink p0_sf or p1_sf based on ECMP hash).

Step-by-step procedure:

  1. Navigate to the interface file /cumulus/nl2docad/run/software-tables/20.

  2. Check for the RxPort (pf0vf0_sf):

    Copy
    Copied!


    Interface: pf0vf0_sf​ PD PORT: 6​ HW PORT: 16 NETDEV PORT: 11 Bridge-id: 61​ Untagged FID: 112​

    FID 112 is given to the receive port​.

  3. Check the bridge table file /cumulus/nl2docad/run/software-tables/17 with destination MAC 8a:88:d0:b1:92:b1 and FID 112:

    Copy
    Copied!


    flow-pattern:​ fid: 112​ dst mac: 8a:88:d0:b1:92:b1​ flow-actions:​ VXLAN ENCAP:​ ENCAP dst ip: 6.0.0.26​ ENCAP vni id: 1000112​ SET VRF: 0​ OUTPUT-PD-PORT: 20(TO_RTR_INTF)​ STATS:​ pkts: 100​ bytes: 10200​

  4. Check the router table file /cumulus/nl2docad/run/software-tables/18 with destination IP 6.0.0.26 and VRF 0:

    Copy
    Copied!


    flow-pattern:​ IPV4: LPM​ VRF: 0​ ip dst: 6.0.0.26/32​ flow-actions :​ ECMP: 1​ OUTPUT PD PORT: 2(TO_BR_INTF)​ STATS:​ pkts: 300​ bytes: 44400​

  5. Check the ECMP table file /cumulus/nl2docad/run/software-tables/19 with ECMP 1:

    Copy
    Copied!


    - ECMP: 1​ ref-count: 7​      num-next-hops: 2      entries:​ - { index: 0, fid: 4100, src mac: 'b8:ce:f6:99:49:6a', dst mac: '00:02:00:00:00:2f' }​ - { index: 1, fid: 4115, src mac: 'b8:ce:f6:99:49:6b', dst mac: '00:02:00:00:00:33' }​

  6. The ECMP hash calculation picks one of these paths for next-hop rewrite. Check bridge table file for them (fid=4100, dst mac: 00:02:00:00:00:2f or fid=4115, dst mac: 00:02:00:00:00:33):

    Copy
    Copied!


    flow-pattern:​ fid: 4100​ dst mac: 00:02:00:00:00:2f​ flow-actions:​ OUTPUT-PD-PORT: 36(p0_sf)​ STATS:​ pkts: 1099​ bytes: 162652​

    This will show the packet going out on the uplink.

NVUE Troubleshooting

To check the status of the NVUE daemon, run:

Copy
Copied!


supervisorctl status nvued

To restart the NVUE daemon, run:

Copy
Copied!


supervisorctl restart nvued


© Copyright 2023, NVIDIA. Last updated on Mar 5, 2024.
