Transport and Networking requirements

Non-Conflicting IP Space Allocation for the DGXC Cluster

Purpose:
Ensure DGXC GPU clusters deployed in NCP can access the NVIDIA DGXC/CorpIT network directly via routing exchange. DGXC Cluster IP address must be non-conflicting with existing NVIDIA private IP space.

Req IDTest Details (Legend)Requirement AreaDescription
NET03addNon-Conflicting IP Space Allocation for the DGXC ClusterBring Your Own IP (BYOIP): NCP shall support the ability for NVIDIA to bring and allocate its own IP private address space for DGXC GPU clusters. Stable IP: NCP shall provide a possibility to create static IP allocations that persist across instance restarts and re-creations. That includes floating IP allocations. DoD space: NCP shall support allocation and use of the 7.0.0.0/8 IPv4 address space for DGXC GPU cluster deployments. This IP space shall be considered equivalent to RFC1918 addresses Routing Support: NCP must support advertising and routing of BYOIP prefixes within the NCP environment and across interconnects (Private Cloud Interconnect, IPSec, etc.)

Connection to NVIDIA CorpIT Network

Purpose:
Provide connection from DGXC GPU clusters within NCP to NVIDIA CorpIT for internal Command & Control and admin access.

Req IDTest Details (Legend)Requirement AreaDescription
NET04INFOConnection to NVIDIA CorpIT NetworkBandwidth: Low bandwidth (Up to 10Gbps). Transport: Private Cloud interconnect + VIF + BGP (preferred for better performance/security). DGXC will establish connectivity to NCP through a mutually agreed Point of Presence (POP) using Private Cloud Interconnect, functionally equivalent to AWS Direct Connect, GCP Dedicated Interconnect, Azure ExpressRoute, and OCI FastConnect. Connectivity will be provisioned with a Virtual Interface (VIF) and routing established via BGP. The interconnect will be used to exchange private IP space (RFC1918, as well as 7.0.0.0/8) between DGXC and NCP.

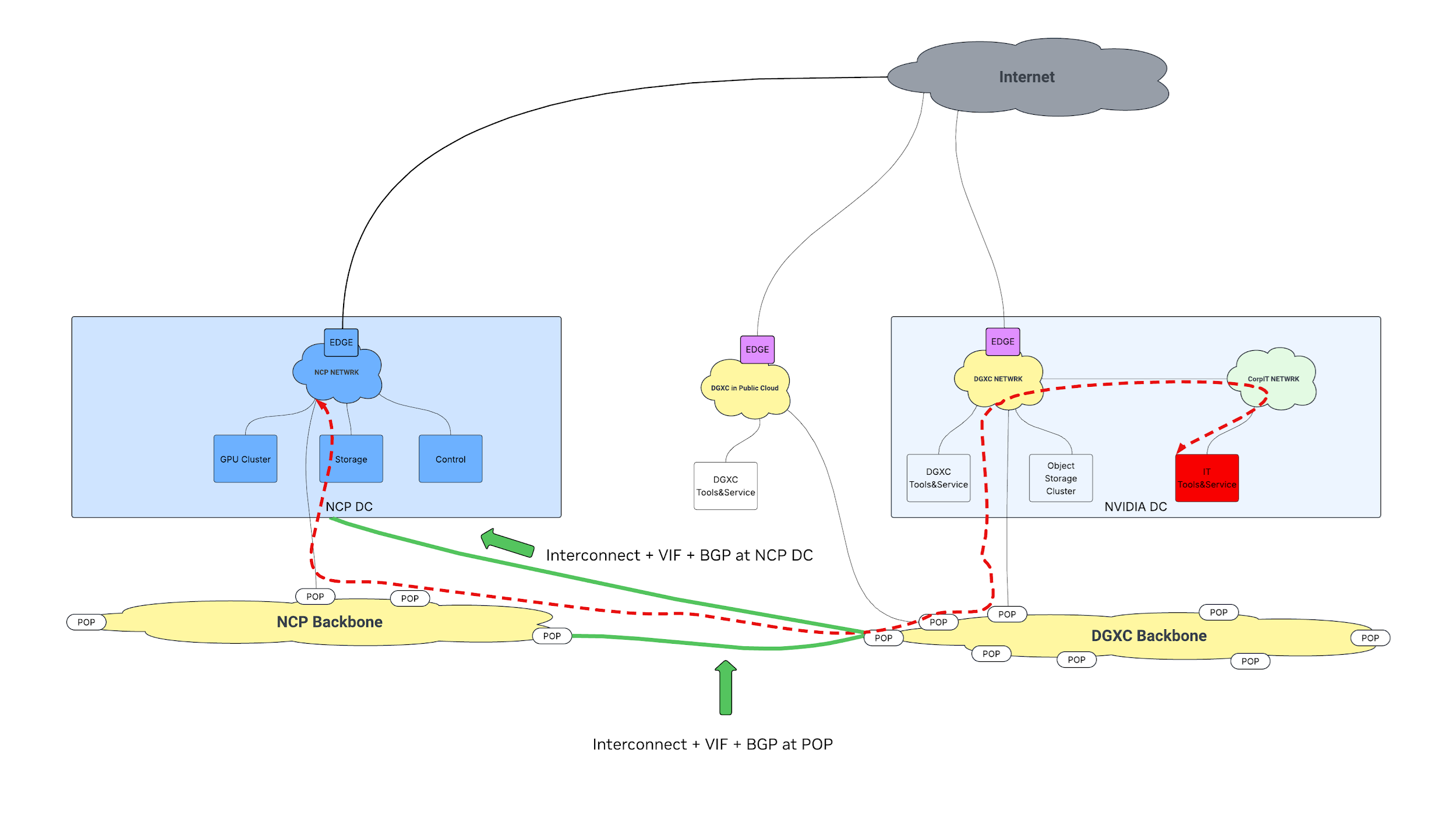

Corporate network connectivity diagram

Figure: Private Cloud interconnect + VIF + BGP for CorpIT access

Connection to DGXC Storage

Purpose:
Enable high-bandwidth, end to end MACsec-encrypted (fail-closed) access between the DGXC GPU clusters within NCP and NVIDIA DGXC on-premises object storage for large-scale data movement.

Req IDTest Details (Legend)Requirement AreaDescription
NET05INFOConnection to DGXC StorageTransport: Private Cloud interconnect + VIF + BGP (preferred for better performance/security). DGXC will establish connectivity to NCP through a mutually agreed Point of Presence (POP) using Private Cloud Interconnect, functionally equivalent to AWS Direct Connect, GCP Dedicated Interconnect, Azure ExpressRoute, and OCI FastConnect. Connectivity will be provisioned with a Virtual Interface (VIF) and routing established via BGP. The interconnect will be used to exchange private IP space (RFC1918, as well as 7.0.0.0/8) between DGXC and NCP.

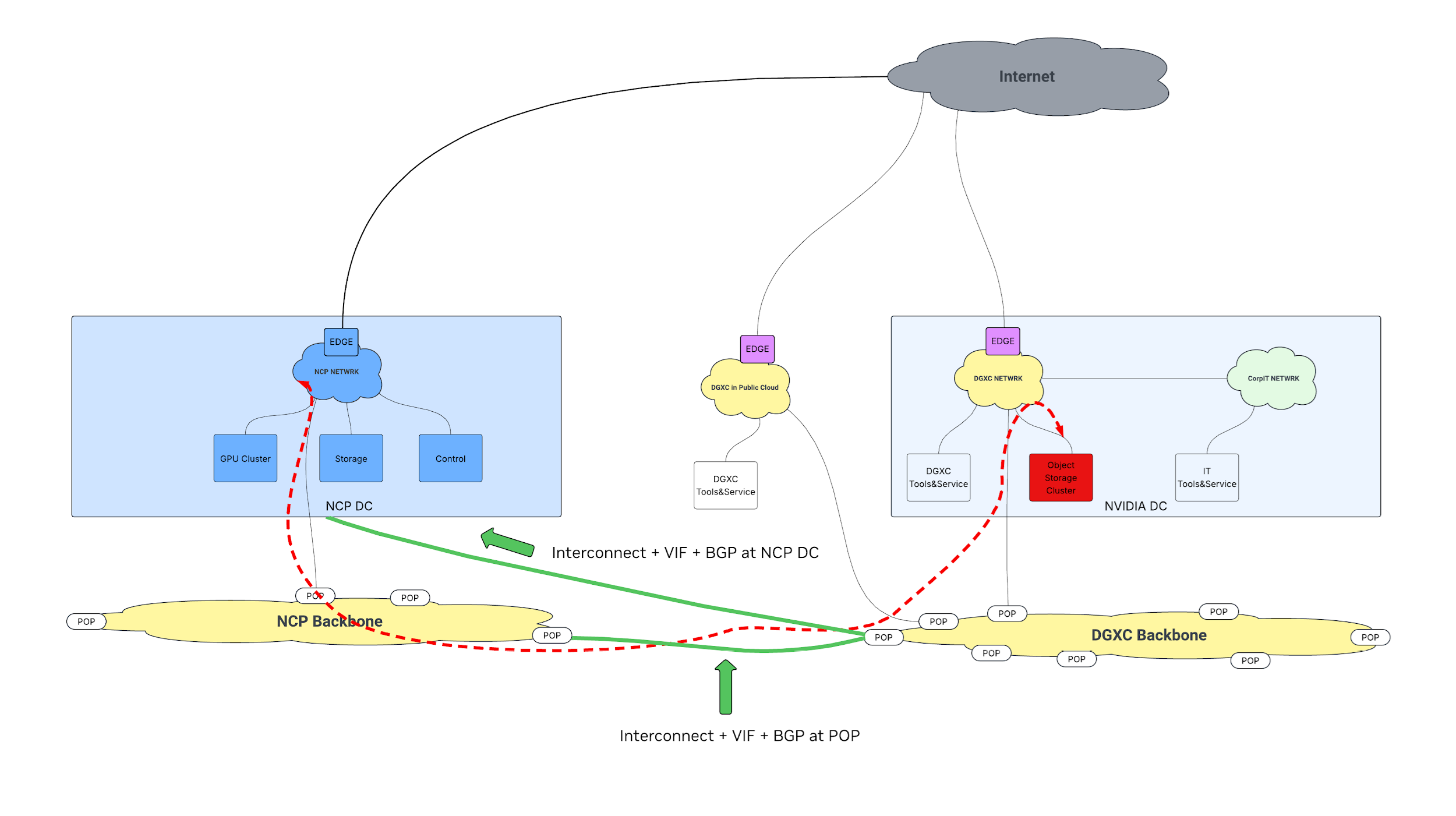

Storage connectivity diagram

Cluster Local Internet Access

Purpose:
Provide general Internet access from DGXC GPU clusters within NCP to Internet, including NVIDIA DGXC hosted services on third-party public cloud services.

Req IDTest Details (Legend)Requirement AreaDescription
NET06INFOCluster Local Internet AccessCluster Internet access: Egress NAT IPs should be a static pool dedicated to only Nvidia Cluster/Tenancy/VPC. These persistent IP addresses must be used exclusively for DGXC traffic and shall not be shared with or carry traffic from other NCP tenants. Availability: Must support redundant upstream paths to ensure connectivity under failure.

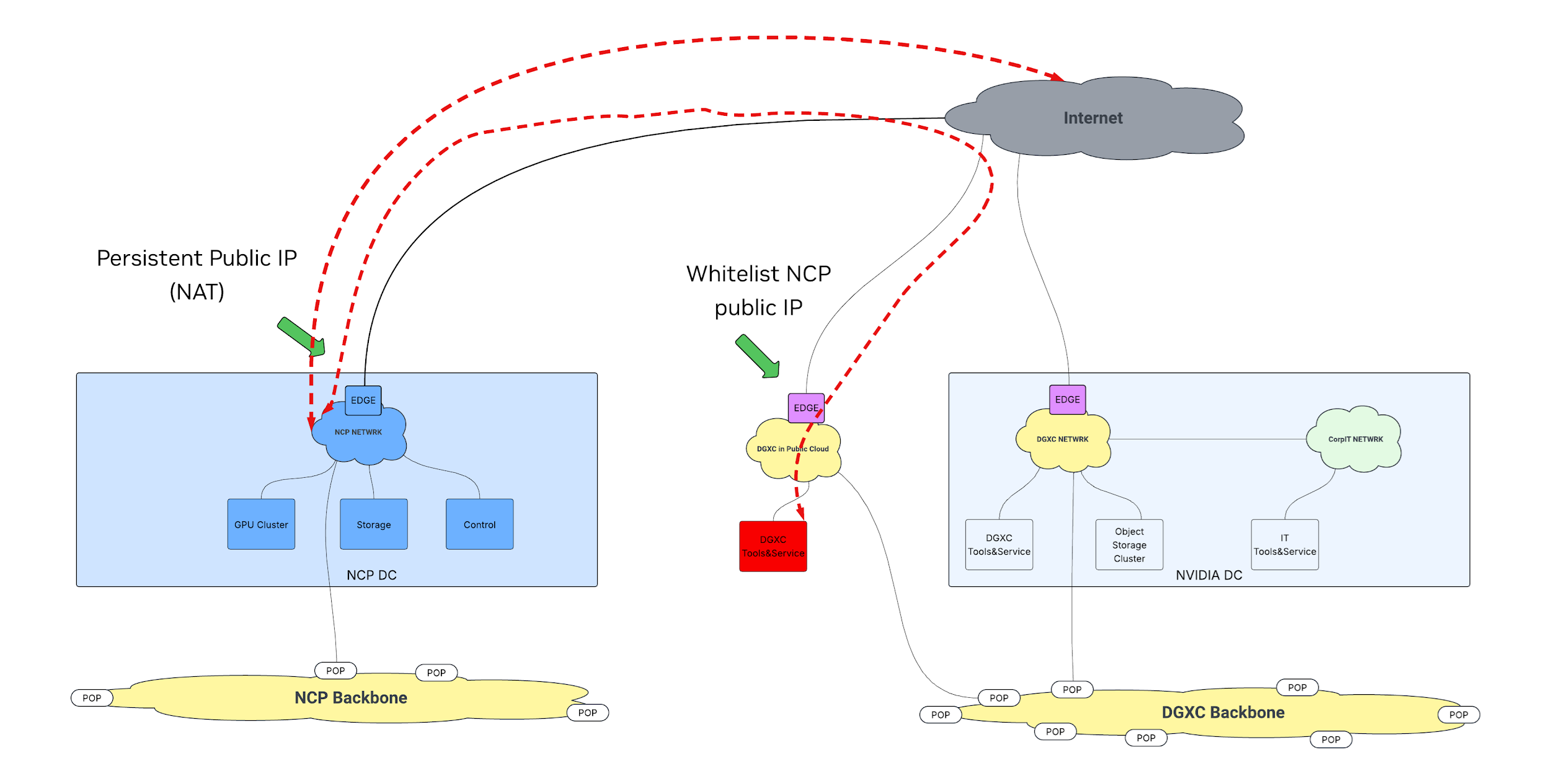

Internet access diagram
Figure: Public internet for DGXC hosted Services access
