The CUDA Information tool window shows information on the current state of CUDA within the process that is being debugged.

To view the CUDA Information Tool Window:

1. Launch the CUDA Debugger.
   1. Open a CUDA-based project.
   2. Make sure that the Nsight Monitor is running on the target machine.
   3. From the Nsight menu, select Start CUDA Debugging.
      As an alternate option, you can also right-click on the project in Solution Explorer and choose Start CUDA Debugging.

   4. The CUDA Debugger starts and launches the target application.

2. From the Nsight menu, choose Windows > CUDA Info. Select the CUDA Info page that you wish to open.



CUDA Info Tool Window Pages

There are several pages within this tool window that allow you to view different aspects of your CUDA application that is being debugged.

The CUDA Information tool window pages include the following:

Blocks

The Blocks page shows all active blocks in the current kernel running on the GPU. The hyperlink in the # Warps column will jump to the Warps page, filtered to the specific block.

Contexts

The Contexts page shows information about all contexts on all GPUs in the process that is currently being debugged. Information on this page is always available, even when the process has not been stopped.

Note that the SW Preemption column is used to show if the application is using software preemption (on a single GPU) or non-preemption (either classic or hardware).

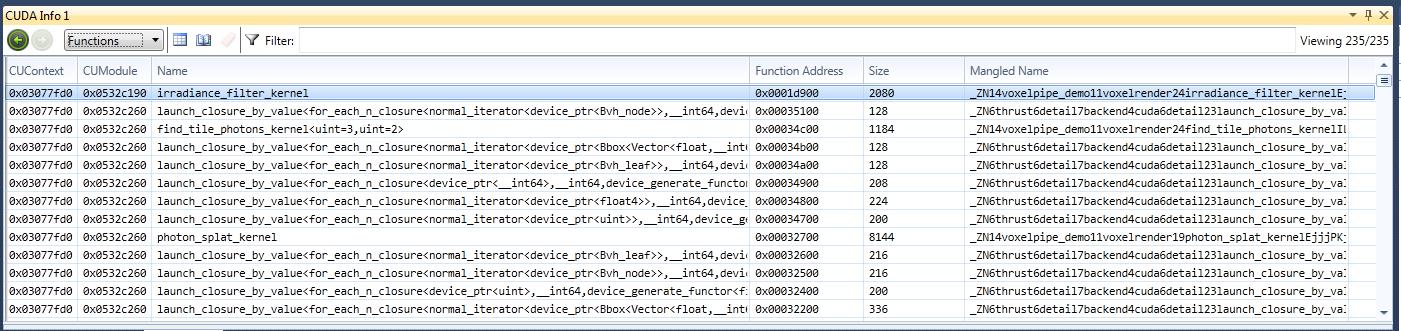

Functions

The Functions page shows information about all functions in all loaded modules. Information on this page is always available, even when the process has not been stopped.

Tips for filtering the results on this page:

• Name.StartsWith("bar") can be used to find all functions that start with a certain string.
• Name.Contains("bar") can be used to find all functions that contain a certain string.

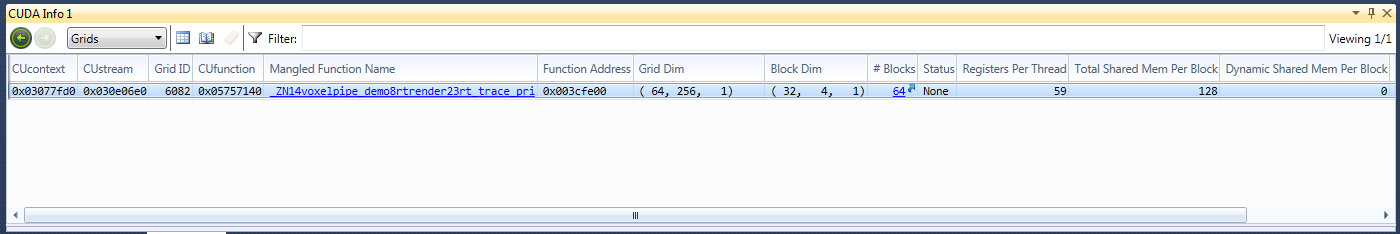

Grids

The Grids page shows all active and queued kernels on the GPU. The current kernel will have a # Blocks greater than 0. Other kernels will show # Blocks set to 0.

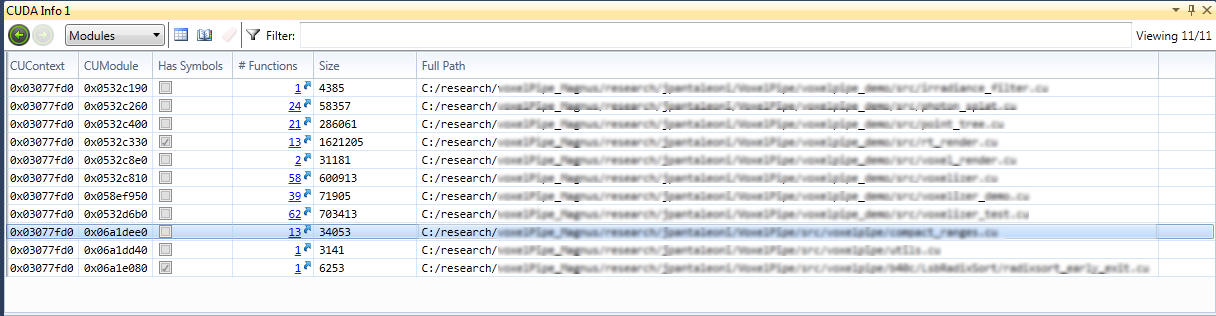

Modules

The Modules page displays information about all modules in all contexts. The information shown here matches the modules that are seen in the Visual Studio Modules view. Information on this page is always available, even when the process has not been stopped.

Tips for using the Modules page:

• Filtering results: Use HasSymbols to see only the loaded modules that have symbols.
• Any module without symbols will not be able to hit a breakpoint in a kernel.

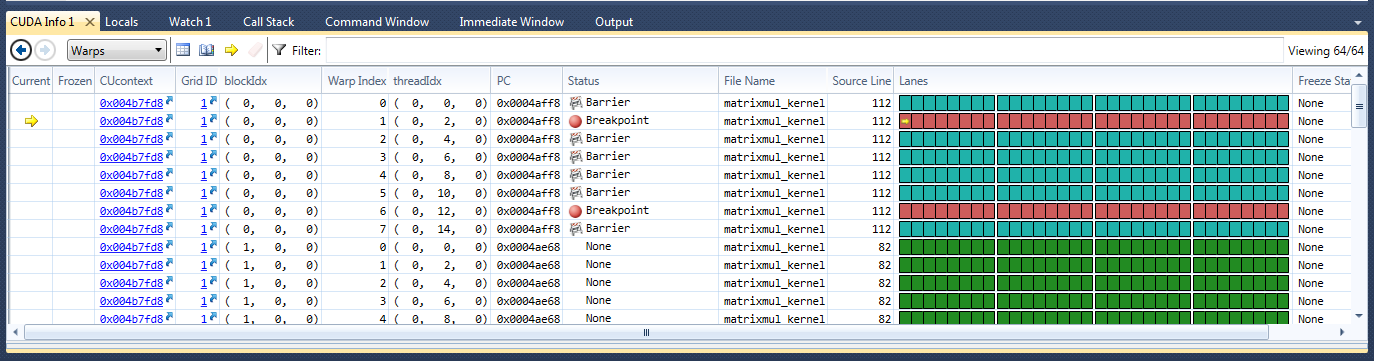

Warps

The Warps page displays all active warps on the GPU. Each row represents one warp, and the Lanes column displays information about all lanes for each of the warps in the view. A lane is a single thread in one warp. The Lanes column gives per-lane details about any warp exceptions; the current state is shown in the Lanes column.

Focus

• The current focus is denoted by a yellow arrow.
• Using right-click > Set Focus on the lane index number, or double-clicking a thread in the Lanes column, will change the view to that specific thread.
• Using right-click > Set Focus or double-clicking elsewhere in the same row will go to the first active thread in the selected warp.
• The user can switch to either active or inactive lanes; however, the focus cannot be changed to Not Started lanes.

• The user can freeze specific warps within the warps page itself. This set of frozen warps is managed separately from the global freeze control. Freezing warps 1, 2, and 3, and then toggling the global freeze state will leave those warps frozen. (See How To: Use the Global Freeze Page for more details.)

Filtering results:

• Use the Warp Exceptions bookmark to filter to only the warps currently in an exception state.
• Use the Warps @ Breakpoint bookmark to filter to only the warps that have hit a breakpoint.

The color legend for the Lanes column is as follows:

Note that if you hover your cursor over a row in the lanes column, a tool tip will appear that shows the state of the lane.

For more information on the Warps page, see the Example Scenarios of the CUDA Warp Watch section.

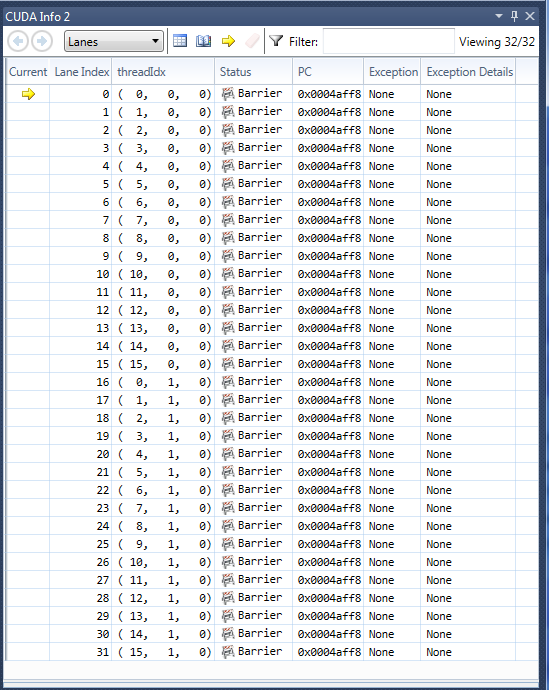

Lanes

The Lanes page displays information about all lanes in the current focus warp. A lane is a single thread in one warp.

The current state of the lane is shown as a barrier in the Status column.

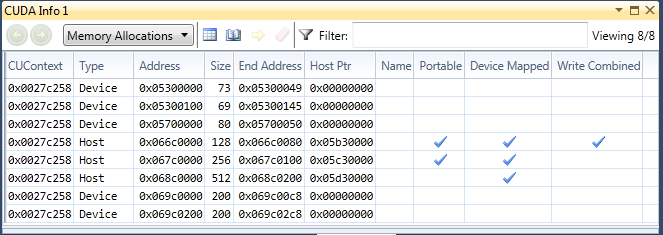

Memory Allocations

This page shows information for all CUDA global memory allocations, in all CUcontexts in the application. This page automatically updates when suspended in a kernel.

Like other pages, the results can be filtered. For example:

CUcontext==0x02c8c258
MemoryAllocationType == "Host" && Size > 100

A few columns to note on this page include the following:

• CUContext – the context that contains this memory allocation.
• Type - Device or Host. Device is used when the user includes any device side allocation call (e.g. cudaMalloc). Host is used for any memory allocated from the host mapped on the device (e.g., cudaHostAlloc, cudaHostRegister, or other CUDA API calls).
• Address - is the device side address. For an allocation where the type is "Host," this device side address may be retrieved from the HostPtr address via cudaHostGetDevicePointer.
  The Host Ptr is as follows:
  • For Device allocations, this is 0x00000000.
  • For Host allocations, this will have the address returned from the cudaHostAlloc, cudaHostRegister, or other host mapping function.
• End Address is simply the address plus size (exclusive end range).
• The Name column may be used in the future for named memory allocations.
• Portable, Device Mapped, and Write Combined flags will be filled in where used with the associated cudaHostAlloc or cudaHostRegister call.


When stopped in a kernel, the command Set Memory View Expression can be used to open the memory view, and set the address to view that memory.

General Features of the CUDA Information Tool Window

Viewing Rows

This displays the number of rows in the current view. If the view is filtered, the number shown may be less than the number of total rows.

Hyperlinks

A hyperlink will use a specific filter to jump the current tool window to another page.

Filter

Use $(“Column Name”) to specify by the exact name of the column, including spaces. The column name must be quoted.

• For example, in the Warps Page: $(“Active Mask”) == 0xffffffff

The results in each page can be filtered by an expression. This leads to shorter expressions.

• For example, in the Warps Page: Status=="Breakpoint" && FlatBlockIdx > 30

Other tips for filtering results:

• To see an auto-completion window, type the first letter of the column. Use Reset Filter to clear the current filter for the page.
• Filters that have been created by hyperlinks are not persisted between debug sessions. This is because these often have specific identifiers, such as context or module IDs, which would not make sense in the next debug session. However, any filter that is created by a user will persist with the page, whether it contains unique IDs or not.

Bookmarks

Bookmarks are a quick way to jump to a specific page, with a preset filter.

Persistence

When debugging, each page will persist the last state that it was displaying. Any filters that have been created by clicking on a hyperlink will not be persisted in the next debug session.

Focus

To update the current focus in the Warps and Lanes pages, you can use any of the following methods:

• CUDA Focus Picker
• Next Warp or Previous Warp commands
• Using Set Focus in the Warp page
• Using Set Focus in the Lanes page
