Rolling Shutter Performance

IMX274 | 1920x1080 @ 60fps

HSB Native results (Holoscan pipeline with CPU scheduler):

MetricHSB Native
Average Latency (ms)16.20
Min Latency (ms)14.00
Max Latency (ms)18.80
Std Dev (ms)1.20
Coefficient of Variation (%)7.40
Max Jitter (ms)4.80
Jitter % (wrt avg)34.50%

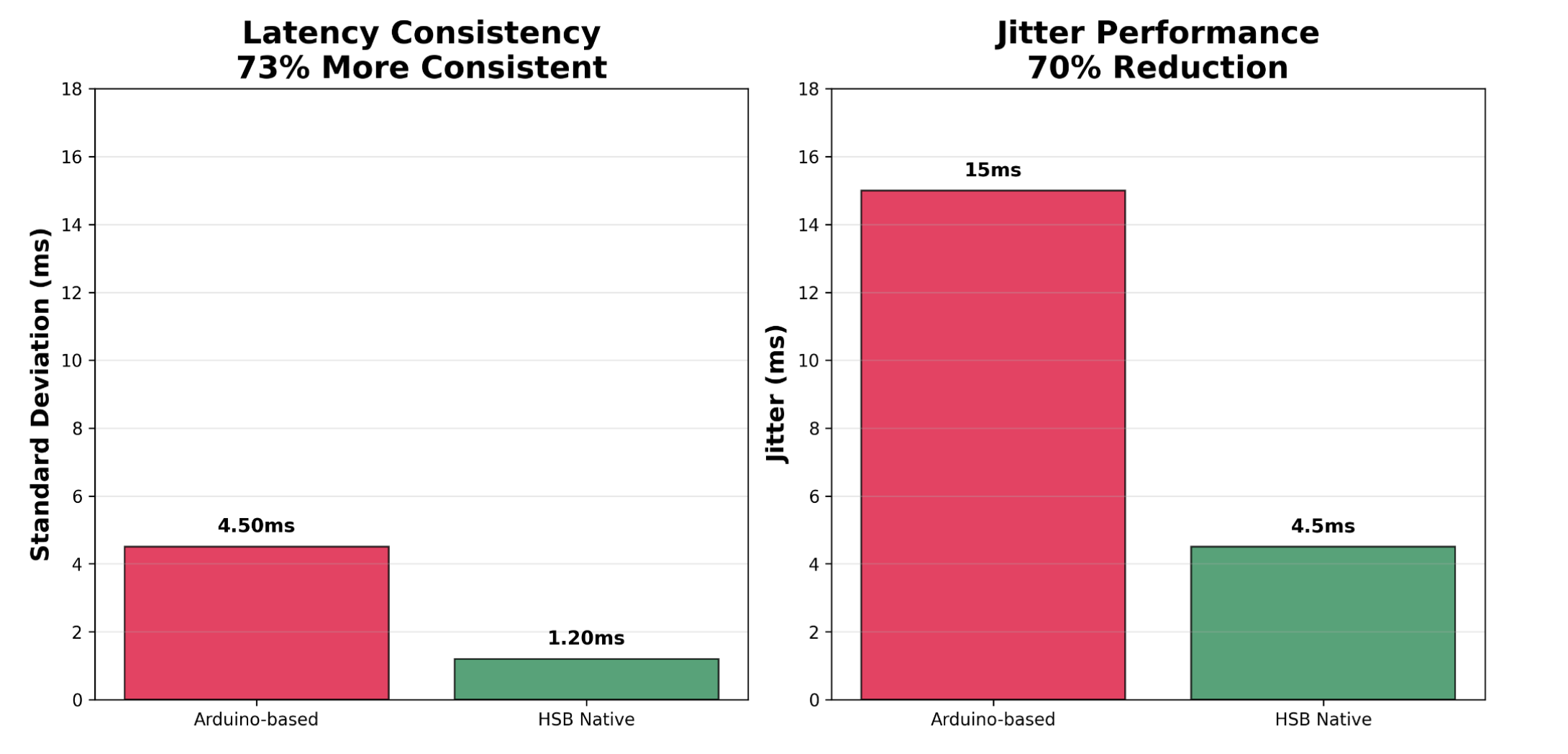

Rolling shutter performance

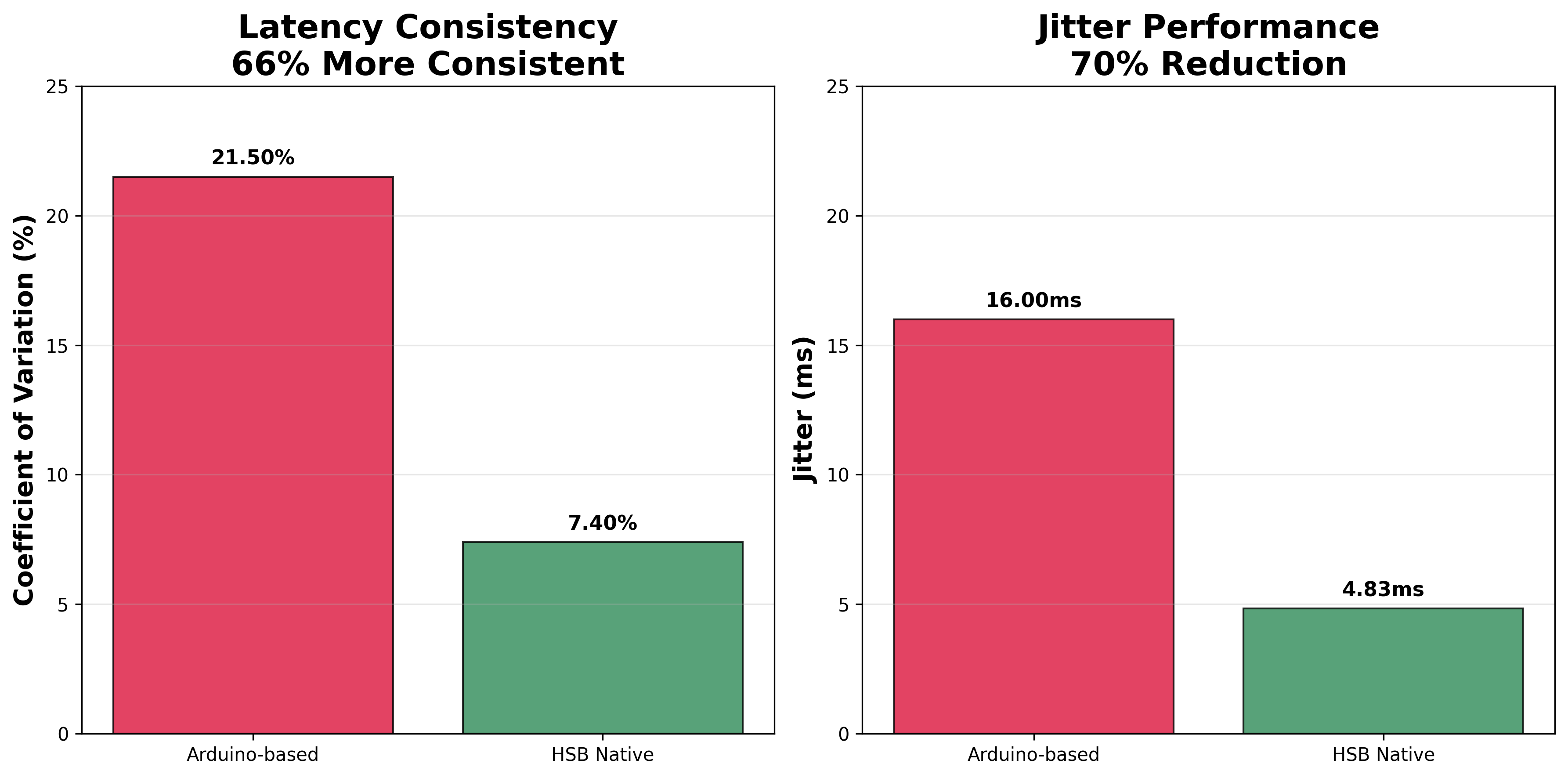

Rolling shutter performance with CPU scheduler

Global Shutter Performance

VB1940 | 2560x1984 @ 30fps

HSB Native results (Holoscan pipeline with CPU scheduler):

MetricHSB Native
Average Latency (ms)42.72
Min Latency (ms)41.02
Max Latency (ms)47.82
Std Dev (ms)0.87
Coefficient of Variation (%)2.00
Max Jitter (ms)6.80
Jitter % (wrt avg)15.92%

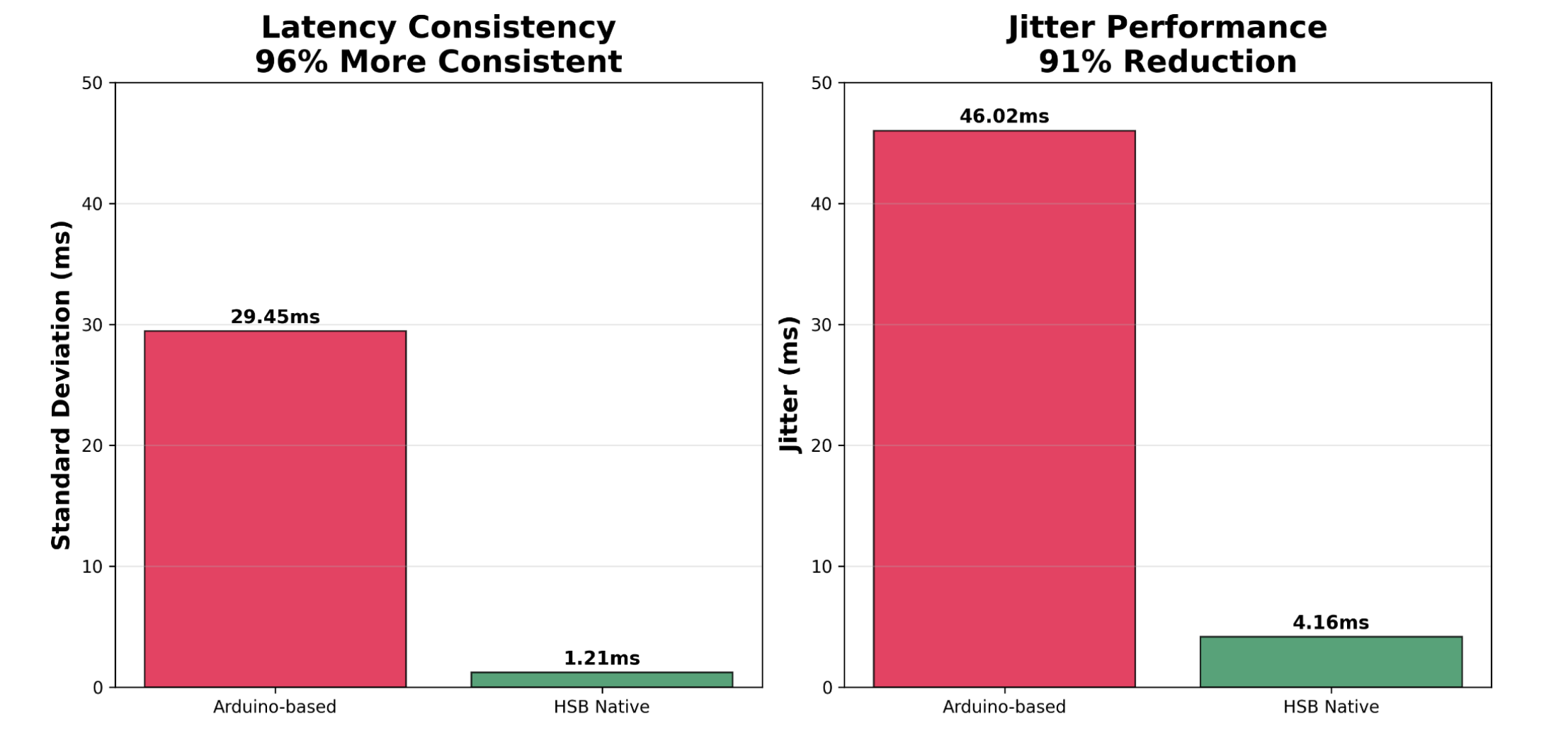

Global shutter performance

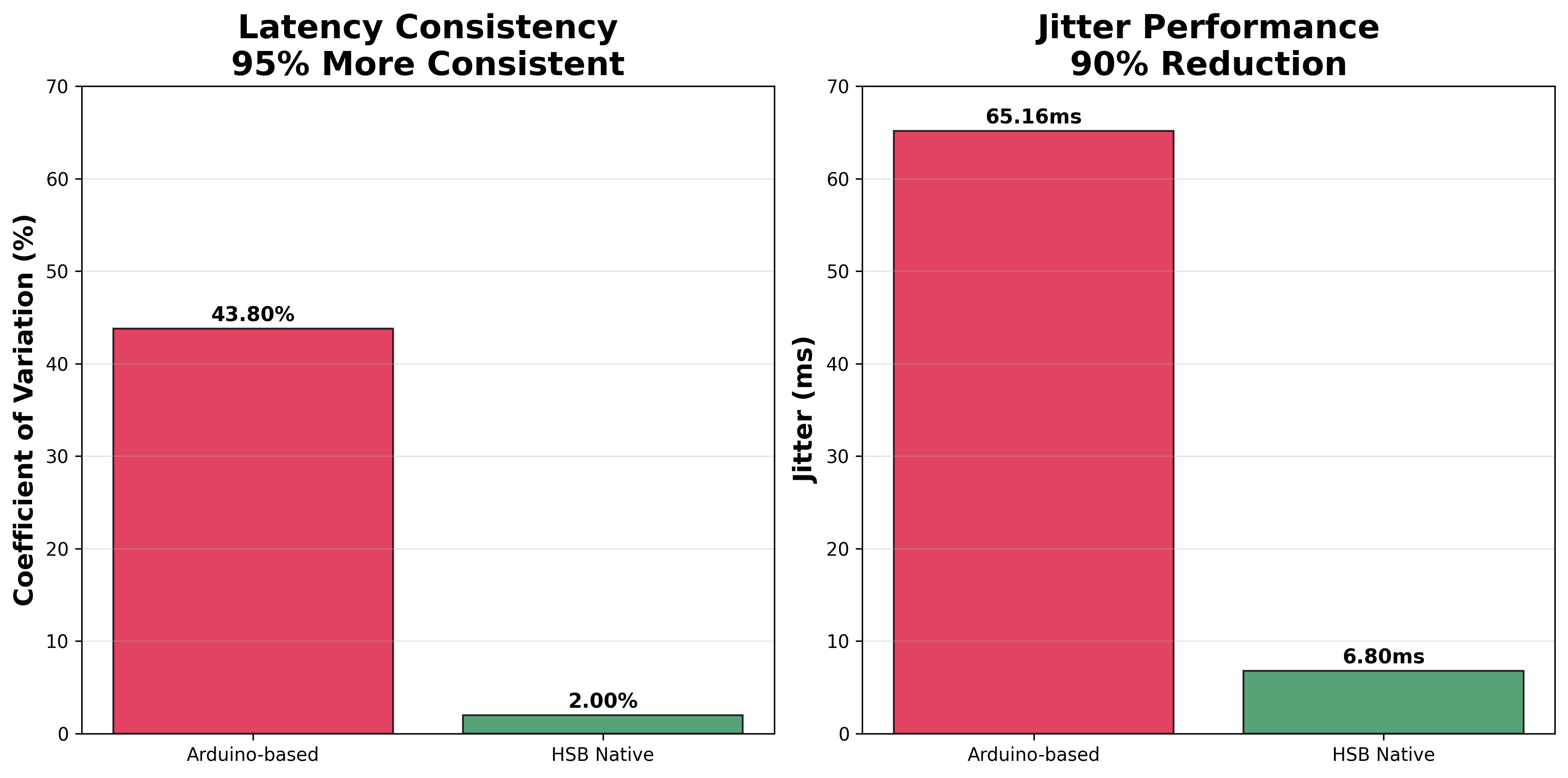

Global shutter performance with CPU scheduler

Performance Analysis

Measurement Notes

  1. Hardware-Synchronized Timing: Direct FPGA event detection eliminates software scheduling jitter
  2. Sub-millisecond Precision: ~10us resolution
  3. Frame-Accurate Triggering: LED triggers synchronized to exact camera frame events
  4. Reduced System Interference: Dedicated timing hardware independent of OS scheduling

Key Metrics Explained

  • Average Latency: End-to-end time from camera trigger to display detection
  • Standard Deviation: Measurement consistency (lower indicates more predictable timing)
  • Max Jitter: Peak-to-peak variation in timing measurements
  • Std Dev %: Standard deviation as percentage of average latency
  • Jitter %: Maximum jitter as percentage of average latency
