Pick and Place Example Application

This package provides an application scaffold for pick-and-place scenarios. It features the high-level steps required for performing pick-and-place tasks and interfaces with two types of robotic manipulator: the UR10 arm and the Franka Emika arm. Features used in this example application include actuator control, object detection, and grasping.

Two different scenarios are included in this example application:

• A UR10 arm picking and placing boxes from one pallet to another, using a suction cup grasping mechanism.
• A Franka Emika arm picking up colored cubes and placing them on a stack, then unstacking them again, using a two finger gripper.

To control both tasks, a central Isaac SDK app driven by a behavior tree is used. The behavior tree defines two tasks that work in tandem: a pick task to detect and grasp objects, and a place task to position them at their destination poses.

The high level steps performed in the pick part of the tasks are as follows:

1. Go to a pose from which objects can be seen.
2. Detect objects in the field of view.
3. Go to a pre-grasp pose to grasp an object (e.g., slightly above it).
4. Open the arm’s gripper.
5. Close in on the object to grasp it.
6. Close the arm’s gripper.
7. Lift the object from the surface.

After performing these steps, the object should be in the robot arm’s grasping mechanism, ready for a subsequent placing task.

For the place part, the required steps are as follows:

1. Go to a pre-drop-off pose (e.g., slightly above the drop-off point).
2. Go to the drop-off pose to place the grasped object.
3. Open the arm’s gripper.
4. Lift the arm away from the object.

Independent from the robotic manipulator used (and apart from the actual controller modules loaded), the scaffolding of the application stays the same and serves the purpose of showing how to build such an application using the Isaac SDK.

The pick-and-place example uses NVIDIA Omniverse Kit™, which simulates the UR10 and Franka Emika arm. To set up and start Omniverse, refer to the respective documentation:

• https://docs.omniverse.nvidia.com/app_isaacsim/app_isaacsim/overview.html
• https://docs.omniverse.nvidia.com/app_isaacsim/app_isaacsim/ext_omni_isaac_robot_engine_bridge.html

Once Omniverse is running, from the Content panel on the lower part of the Omniverse Kit window, select the address field and enter this URL to load the UR10 robot assets from the Omniverse server:




omni:/Isaac/Samples/Isaac_SDK/Scenario/sortbot_sim.usd


To load the assets for the Franka Emika arm, use this URL:




omni:/Isaac/Samples/Isaac_SDK/Scenario/franka_table.usd

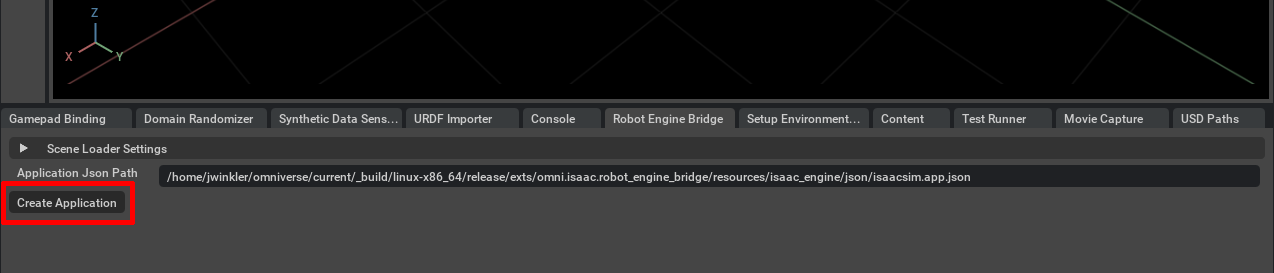

Confirm with Return. Afterwards, on the Robot Engine Bridge panel, click Create Application. This starts the Isaac SDK backend.

Once the backend is running, start the simulation by clicking the Play button in the Omniverse window.

To run the application with a connection to Omniverse, execute one of the following commands:

• UR10 box pick-and-place scenario, using Pose CNN with RGB image for object pose estimation:

  Copy

  Copied!




  bazel run //apps/samples/pick_and_place -- --arm ur10


• Franka cube stacking/unstacking scenario, using superpixel-based block pose estimation with RGB-D image:

  Copy

  Copied!




  bazel run //apps/samples/pick_and_place -- --arm franka


This starts the respective example application and moves the simulated robot arm in Omniverse according to the selected scenario.

You may launch both scenarios with additional command line argument --groundtruth to use groundtruth 3d poses from simulation instead of camera-based pose estimation for detecting and picking target objects. In this case, you can switch the Omniverse viewport to Perspective to view the whole process from third-person view.

For a full list of command line options, run:




bazel run //apps/samples/pick_and_place -- --help
