Detailed Description

A batch is an array of frames.

This structure holds the output for all the frames in the batch and related buffers information.

Definition at line 446 of file nvdsinfer_context.h.

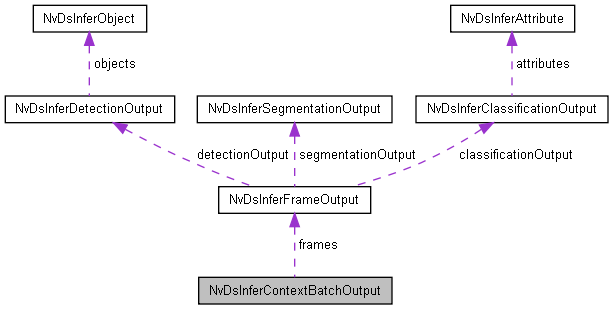

Collaboration diagram for NvDsInferContextBatchOutput:

[legend]

Data Fields
NvDsInferFrameOutput *	frames
	Array of outputs for each frame in the batch. More...

unsigned int	numFrames

void **	outputDeviceBuffers
	Array of pointers to set of output device buffers for this batch. More...

unsigned int	numOutputDeviceBuffers

void **	hostBuffers
	Array of pointers to set of host buffers for this batch. More...

unsigned int	numHostBuffers

unsigned int	outputBatchID
	ID for the set of output buffers. More...

Field Documentation

NvDsInferFrameOutput* NvDsInferContextBatchOutput::frames

Array of outputs for each frame in the batch.

Definition at line 449 of file nvdsinfer_context.h.

void** NvDsInferContextBatchOutput::hostBuffers

Array of pointers to set of host buffers for this batch.

Definition at line 457 of file nvdsinfer_context.h.

unsigned int NvDsInferContextBatchOutput::numFrames

Definition at line 450 of file nvdsinfer_context.h.

unsigned int NvDsInferContextBatchOutput::numHostBuffers

Definition at line 458 of file nvdsinfer_context.h.

unsigned int NvDsInferContextBatchOutput::numOutputDeviceBuffers

Definition at line 454 of file nvdsinfer_context.h.

unsigned int NvDsInferContextBatchOutput::outputBatchID

ID for the set of output buffers.

Definition at line 461 of file nvdsinfer_context.h.

void** NvDsInferContextBatchOutput::outputDeviceBuffers

Array of pointers to set of output device buffers for this batch.

Definition at line 453 of file nvdsinfer_context.h.

The documentation for this struct was generated from the following file:
