Detailed Description

Frame containing the image and objects to be tracked.

Note: numBuffers in NvMOTFrame is supposed to be smaller or equal to numTransforms in NvMOTConfig; the metadata in NvBufSurfaceParams of each bufferList in NvMOTFrame should be checked with the params specified in perTransformBatchConfig in NvMOTConfig

Definition at line 169 of file nvdstracker.h.

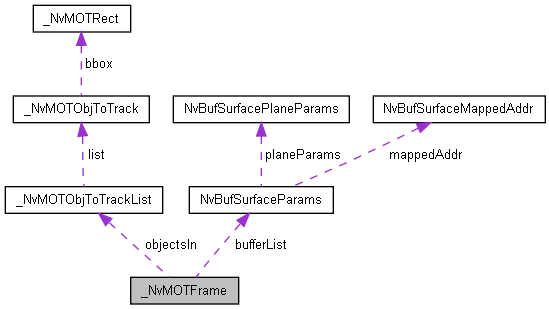

Collaboration diagram for _NvMOTFrame:

[legend]

Data Fields
NvMOTStreamId	streamID
	The stream source for this frame. More...

uint32_t	frameNum
	Frame number sequentially identifying the frame within a stream. More...

time_t	timeStamp
	Timestamp of the frame at the time of capture. More...

bool	timeStampValid
	The timestamp value is properly populated. More...

bool	doTracking
	True: track objects in this frame; False: do not track this frame. More...

bool	reset
	True: reset tracking for the stream. More...

uint8_t	numBuffers
	Number of entries in bufferList. More...

NvBufSurfaceParams **	bufferList
	Array of pointers to buffer params. More...

NvMOTObjToTrackList	objectsIn
	List of objects to be tracked in this frame. More...

Field Documentation

NvBufSurfaceParams** _NvMOTFrame::bufferList

Array of pointers to buffer params.

Definition at line 178 of file nvdstracker.h.

bool _NvMOTFrame::doTracking

True: track objects in this frame; False: do not track this frame.

Definition at line 175 of file nvdstracker.h.

uint32_t _NvMOTFrame::frameNum

Frame number sequentially identifying the frame within a stream.

Definition at line 172 of file nvdstracker.h.

uint8_t _NvMOTFrame::numBuffers

Number of entries in bufferList.

Definition at line 177 of file nvdstracker.h.

NvMOTObjToTrackList _NvMOTFrame::objectsIn

List of objects to be tracked in this frame.

BBoxes are scaled for the first buffer config

Definition at line 179 of file nvdstracker.h.

bool _NvMOTFrame::reset

True: reset tracking for the stream.

Definition at line 176 of file nvdstracker.h.

NvMOTStreamId _NvMOTFrame::streamID

The stream source for this frame.

Definition at line 171 of file nvdstracker.h.

time_t _NvMOTFrame::timeStamp

Timestamp of the frame at the time of capture.

Definition at line 173 of file nvdstracker.h.

bool _NvMOTFrame::timeStampValid

The timestamp value is properly populated.

Definition at line 174 of file nvdstracker.h.

The documentation for this struct was generated from the following file:
