Detailed Description

MqttCommunicator class is responsible for handling the communication between camera streams running in the same or across different DS instances.

Definition at line 106 of file sources/libs/nvmultiobjecttracker/include/modules/MultiViewAssociator/MqttCommunicator.hpp.

Inheritance diagram for MqttCommunicator:

[legend]

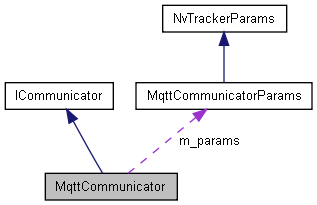

Collaboration diagram for MqttCommunicator:

[legend]

Public Member Functions
	MqttCommunicator ()
	Construct an uninitialized MQTT communicator. More...

	MqttCommunicator (const std::string &configFilePath)
	Construct an MQTT communicator from configuration. More...

	~MqttCommunicator () override
	Stop and destroy the MQTT communicator. More...

bool	isInitialized () override
	Check if the communicator is initialized. More...

void	initialize (const StreamId streamId, system_clock::time_point start, std::map< StreamId, std::shared_ptr< ICommunicator >> localInstanceCommunicators, const std::string &sensorName="") override
	Initialize the communicator and start its processing loop. More...

MessageType	available () override
	Return the type of the next buffered message, or NONE when the buffer is empty. More...

void	requestToSend (Payload payload) override
	Request to send a message. More...

void	requestToSend (const std::vector< Payload > &payloads) override
	Request to send a message. More...

void	get (Payload &payload) override
	Get the message from buffer. More...

void	processMessage (Payload payload) override
	Process an incoming message. More...

void	broadcast (Payload payload) override
	Broadcast message. More...

void	broadcast (std::vector< Payload > payloads)
	Broadcast multiple messages through local and MQTT transports. More...

void	commLog (std::string event, Payload payload)
	Log a communication event. More...

void	commLatencyLog (TimeStamp sendTime, TimeStamp recvTime)
	Log communication latency. More...

COMMUNICATOR_TYPES	getCommunicatorType () override
	Return the communicator implementation type. More...

StreamId	getStreamId ()
	Return the stream identifier for this communicator. More...

void	initializePubSubInfo ()
	Initialize publish and subscribe topics from configuration. More...

CamId	getEgoCamId () override
	Return the ego camera ID from the broker topic or camera configuration. More...

std::vector< CamId >	getPeerCamIds () override
	Return peer camera IDs from broker topics or camera configuration. More...

void	waitForConnectionCompletion ()
	Wait until all configured MQTT connections complete or time out. More...

	MqttCommunicator ()
	Construct an uninitialized MQTT communicator. More...

	MqttCommunicator (const std::string &configFilePath)
	Construct an MQTT communicator from configuration. More...

	~MqttCommunicator () override
	Stop and destroy the MQTT communicator. More...

bool	isInitialized () override
	Check if the communicator is initialized. More...

void	initialize (const StreamId streamId, system_clock::time_point start, std::map< StreamId, std::shared_ptr< ICommunicator >> localInstanceCommunicators, const std::string &sensorName="") override
	Initialize the communicator and start its processing loop. More...

MessageType	available () override
	Return the type of the next buffered message, or NONE when the buffer is empty. More...

void	requestToSend (Payload payload) override
	Request to send a message. More...

void	requestToSend (const std::vector< Payload > &payloads) override
	Request to send a message. More...

void	get (Payload &payload) override
	Get the message from buffer. More...

void	processMessage (Payload payload) override
	Process an incoming message. More...

void	broadcast (Payload payload) override
	Broadcast message. More...

void	broadcast (std::vector< Payload > payloads)
	Broadcast multiple messages through local and MQTT transports. More...

void	commLog (std::string event, Payload payload)
	Log a communication event. More...

void	commLatencyLog (TimeStamp sendTime, TimeStamp recvTime)
	Log communication latency. More...

COMMUNICATOR_TYPES	getCommunicatorType () override
	Return the communicator implementation type. More...

StreamId	getStreamId ()
	Return the stream identifier for this communicator. More...

void	initializePubSubInfo ()
	Initialize publish and subscribe topics from configuration. More...

CamId	getEgoCamId () override
	Return the ego camera ID from the broker topic or camera configuration. More...

std::vector< CamId >	getPeerCamIds () override
	Return peer camera IDs from broker topics or camera configuration. More...

void	waitForConnectionCompletion ()
	Wait until all configured MQTT connections complete or time out. More...

Data Fields
MqttCommunicatorParams	m_params
	Stores MQTT communicator configuration parameters. More...

std::map< std::string, bool >	m_connStatusMap
	Tracks connection completion by broker topic. More...

Constructor & Destructor Documentation

◆ MqttCommunicator() [1/4]

MqttCommunicator::MqttCommunicator ( )

Construct an uninitialized MQTT communicator.

◆ MqttCommunicator() [2/4]

MqttCommunicator::MqttCommunicator ( const std::string & configFilePath )

Construct an MQTT communicator from configuration.

Parameters

[in] configFilePath Path to the configuration file.

◆ ~MqttCommunicator() [1/2]

MqttCommunicator::~MqttCommunicator ( )

override

Stop and destroy the MQTT communicator.

◆ MqttCommunicator() [3/4]

MqttCommunicator::MqttCommunicator ( )

Construct an uninitialized MQTT communicator.

◆ MqttCommunicator() [4/4]

MqttCommunicator::MqttCommunicator ( const std::string & configFilePath )

Construct an MQTT communicator from configuration.

Parameters

[in] configFilePath Path to the configuration file.

◆ ~MqttCommunicator() [2/2]

MqttCommunicator::~MqttCommunicator ( )

override

Stop and destroy the MQTT communicator.

Member Function Documentation

◆ available() [1/2]

MessageType MqttCommunicator::available ( )

overridevirtual

Return the type of the next buffered message, or NONE when the buffer is empty.

Implements ICommunicator.

◆ available() [2/2]

MessageType MqttCommunicator::available ( )

overridevirtual

Return the type of the next buffered message, or NONE when the buffer is empty.

Implements ICommunicator.

◆ broadcast() [1/4]

void MqttCommunicator::broadcast ( Payload payload )

overridevirtual

Broadcast message.

Parameters

[in] payload Message to broadcast.

Implements ICommunicator.

◆ broadcast() [2/4]

void MqttCommunicator::broadcast ( Payload payload )

overridevirtual

Broadcast message.

Parameters

[in] payload Message to broadcast.

Implements ICommunicator.

◆ broadcast() [3/4]

void MqttCommunicator::broadcast ( std::vector< Payload > payloads )

Broadcast multiple messages through local and MQTT transports.

Parameters

[in] payloads Messages to broadcast.

◆ broadcast() [4/4]

void MqttCommunicator::broadcast ( std::vector< Payload > payloads )

Broadcast multiple messages through local and MQTT transports.

Parameters

[in] payloads Messages to broadcast.

◆ commLatencyLog() [1/2]

void MqttCommunicator::commLatencyLog	(	TimeStamp	sendTime,
		TimeStamp	recvTime
	)

Log communication latency.

Parameters

[in]	sendTime	Timestamp when the message was sent.
[in]	recvTime	Timestamp when the message was received.

◆ commLatencyLog() [2/2]

void MqttCommunicator::commLatencyLog	(	TimeStamp	sendTime,
		TimeStamp	recvTime
	)

Log communication latency.

Parameters

[in]	sendTime	Timestamp when the message was sent.
[in]	recvTime	Timestamp when the message was received.

◆ commLog() [1/2]

void MqttCommunicator::commLog	(	std::string	event,
		Payload	payload
	)

Log a communication event.

Parameters

[in]	event	Event name.
[in]	payload	Payload to log.

◆ commLog() [2/2]

void MqttCommunicator::commLog	(	std::string	event,
		Payload	payload
	)

Log a communication event.

Parameters

[in]	event	Event name.
[in]	payload	Payload to log.

◆ get() [1/2]

void MqttCommunicator::get ( Payload & payload )

overridevirtual

Get the message from buffer.

Parameters

[out] payload Message removed from the input buffer.

Implements ICommunicator.

◆ get() [2/2]

void MqttCommunicator::get ( Payload & payload )

overridevirtual

Get the message from buffer.

Parameters

[out] payload Message removed from the input buffer.

Implements ICommunicator.

◆ getCommunicatorType() [1/2]

COMMUNICATOR_TYPES MqttCommunicator::getCommunicatorType ( )

inlineoverridevirtual

Return the communicator implementation type.

Implements ICommunicator.

Definition at line 194 of file sources/libs/nvmultiobjecttracker/include/modules/MultiViewAssociator/MqttCommunicator.hpp.

References MQTT_COMMUNICATOR.

◆ getCommunicatorType() [2/2]

COMMUNICATOR_TYPES MqttCommunicator::getCommunicatorType ( )

inlineoverridevirtual

Return the communicator implementation type.

Implements ICommunicator.

Definition at line 194 of file 9.2/sources/libs/nvmultiobjecttracker/include/modules/MultiViewAssociator/MqttCommunicator.hpp.

References MQTT_COMMUNICATOR.

◆ getEgoCamId() [1/2]

CamId MqttCommunicator::getEgoCamId ( )

inlineoverridevirtual

Return the ego camera ID from the broker topic or camera configuration.

Reimplemented from ICommunicator.

Definition at line 203 of file 9.2/sources/libs/nvmultiobjecttracker/include/modules/MultiViewAssociator/MqttCommunicator.hpp.

◆ getEgoCamId() [2/2]

CamId MqttCommunicator::getEgoCamId ( )

inlineoverridevirtual

Return the ego camera ID from the broker topic or camera configuration.

Reimplemented from ICommunicator.

Definition at line 203 of file sources/libs/nvmultiobjecttracker/include/modules/MultiViewAssociator/MqttCommunicator.hpp.

◆ getPeerCamIds() [1/2]

std::vector<CamId> MqttCommunicator::getPeerCamIds ( )

inlineoverridevirtual

Return peer camera IDs from broker topics or camera configuration.

Reimplemented from ICommunicator.

Definition at line 209 of file 9.2/sources/libs/nvmultiobjecttracker/include/modules/MultiViewAssociator/MqttCommunicator.hpp.

◆ getPeerCamIds() [2/2]

std::vector<CamId> MqttCommunicator::getPeerCamIds ( )

inlineoverridevirtual

Return peer camera IDs from broker topics or camera configuration.

Reimplemented from ICommunicator.

Definition at line 209 of file sources/libs/nvmultiobjecttracker/include/modules/MultiViewAssociator/MqttCommunicator.hpp.

◆ getStreamId() [1/2]

StreamId MqttCommunicator::getStreamId ( )

inline

Return the stream identifier for this communicator.

Definition at line 197 of file sources/libs/nvmultiobjecttracker/include/modules/MultiViewAssociator/MqttCommunicator.hpp.

◆ getStreamId() [2/2]

StreamId MqttCommunicator::getStreamId ( )

inline

Return the stream identifier for this communicator.

Definition at line 197 of file 9.2/sources/libs/nvmultiobjecttracker/include/modules/MultiViewAssociator/MqttCommunicator.hpp.

◆ initialize() [1/2]

void MqttCommunicator::initialize	(	const StreamId	streamId,
		system_clock::time_point	start,
		std::map< StreamId, std::shared_ptr< ICommunicator >>	localInstanceCommunicators,
		const std::string &	sensorName = `""`
	)

overridevirtual

Initialize the communicator and start its processing loop.

Parameters

[in]	streamId	Stream identifier for this communicator.
[in]	start	Reference start time for timestamp conversion.
[in]	localInstanceCommunicators	Communicators for local streams.
[in]	sensorName	Sensor name used by external transports.

Implements ICommunicator.

◆ initialize() [2/2]

void MqttCommunicator::initialize	(	const StreamId	streamId,
		system_clock::time_point	start,
		std::map< StreamId, std::shared_ptr< ICommunicator >>	localInstanceCommunicators,
		const std::string &	sensorName = `""`
	)

overridevirtual

Initialize the communicator and start its processing loop.

Parameters

[in]	streamId	Stream identifier for this communicator.
[in]	start	Reference start time for timestamp conversion.
[in]	localInstanceCommunicators	Communicators for local streams.
[in]	sensorName	Sensor name used by external transports.

Implements ICommunicator.

◆ initializePubSubInfo() [1/2]

void MqttCommunicator::initializePubSubInfo ( )

Initialize publish and subscribe topics from configuration.

◆ initializePubSubInfo() [2/2]

void MqttCommunicator::initializePubSubInfo ( )

Initialize publish and subscribe topics from configuration.

◆ isInitialized() [1/2]

bool MqttCommunicator::isInitialized ( )

overridevirtual

Check if the communicator is initialized.

Returns: True if the communicator is initialized.

Implements ICommunicator.

◆ isInitialized() [2/2]

bool MqttCommunicator::isInitialized ( )

overridevirtual

Check if the communicator is initialized.

Returns: True if the communicator is initialized.

Implements ICommunicator.

◆ processMessage() [1/2]

void MqttCommunicator::processMessage ( Payload payload )

overridevirtual

Process an incoming message.

Parameters

[in] payload Incoming message to place in the input buffers.

Implements ICommunicator.

◆ processMessage() [2/2]

void MqttCommunicator::processMessage ( Payload payload )

overridevirtual

Process an incoming message.

Parameters

[in] payload Incoming message to place in the input buffers.

Implements ICommunicator.

◆ requestToSend() [1/4]

void MqttCommunicator::requestToSend ( const std::vector< Payload > & payloads )

overridevirtual

Request to send a message.

Parameters

[in] payloads Messages to send.

Implements ICommunicator.

◆ requestToSend() [2/4]

void MqttCommunicator::requestToSend ( const std::vector< Payload > & payloads )

overridevirtual

Request to send a message.

Parameters

[in] payloads Messages to send.

Implements ICommunicator.

◆ requestToSend() [3/4]

void MqttCommunicator::requestToSend ( Payload payload )

overridevirtual

Request to send a message.

Parameters

[in] payload Message to send.

Implements ICommunicator.

◆ requestToSend() [4/4]

void MqttCommunicator::requestToSend ( Payload payload )

overridevirtual

Request to send a message.

Parameters

[in] payload Message to send.

Implements ICommunicator.

◆ waitForConnectionCompletion() [1/2]

void MqttCommunicator::waitForConnectionCompletion ( )

Wait until all configured MQTT connections complete or time out.

◆ waitForConnectionCompletion() [2/2]

void MqttCommunicator::waitForConnectionCompletion ( )

Wait until all configured MQTT connections complete or time out.

Field Documentation

◆ m_connStatusMap

std::map< std::string, bool > MqttCommunicator::m_connStatusMap

Tracks connection completion by broker topic.

Definition at line 218 of file sources/libs/nvmultiobjecttracker/include/modules/MultiViewAssociator/MqttCommunicator.hpp.

◆ m_params

MqttCommunicatorParams MqttCommunicator::m_params

Stores MQTT communicator configuration parameters.

Definition at line 217 of file sources/libs/nvmultiobjecttracker/include/modules/MultiViewAssociator/MqttCommunicator.hpp.

The documentation for this class was generated from the following file:

sources/libs/nvmultiobjecttracker/include/modules/MultiViewAssociator/MqttCommunicator.hpp


NVIDIA DeepStream SDK API Reference	9.2 Release

NVIDIA DeepStream SDK API Reference

9.2 Release

Detailed Description

Public Member Functions

Data Fields

Constructor & Destructor Documentation

◆ MqttCommunicator() [1/4]

◆ MqttCommunicator() [2/4]

◆ ~MqttCommunicator() [1/2]

◆ MqttCommunicator() [3/4]

◆ MqttCommunicator() [4/4]

◆ ~MqttCommunicator() [2/2]

Member Function Documentation

◆ available() [1/2]

◆ available() [2/2]

◆ broadcast() [1/4]

◆ broadcast() [2/4]

◆ broadcast() [3/4]

◆ broadcast() [4/4]

◆ commLatencyLog() [1/2]

◆ commLatencyLog() [2/2]

◆ commLog() [1/2]

◆ commLog() [2/2]

◆ get() [1/2]

◆ get() [2/2]

◆ getCommunicatorType() [1/2]

◆ getCommunicatorType() [2/2]

◆ getEgoCamId() [1/2]

◆ getEgoCamId() [2/2]

◆ getPeerCamIds() [1/2]

◆ getPeerCamIds() [2/2]

◆ getStreamId() [1/2]

◆ getStreamId() [2/2]

◆ initialize() [1/2]

◆ initialize() [2/2]

◆ initializePubSubInfo() [1/2]

◆ initializePubSubInfo() [2/2]

◆ isInitialized() [1/2]

◆ isInitialized() [2/2]

◆ processMessage() [1/2]

◆ processMessage() [2/2]

◆ requestToSend() [1/4]

◆ requestToSend() [2/4]

◆ requestToSend() [3/4]

◆ requestToSend() [4/4]

◆ waitForConnectionCompletion() [1/2]

◆ waitForConnectionCompletion() [2/2]

Field Documentation

◆ m_connStatusMap

◆ m_params
