Detailed Description

ReID module to extract deep ReID features from input frames and detected bounding boxes and save them in GPU memory.

Definition at line 95 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

Inheritance diagram for ReID:

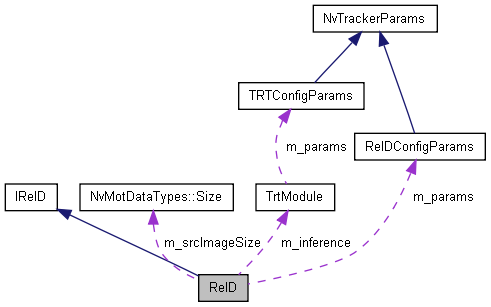

Collaboration diagram for ReID:

[legend]

Public Member Functions
	ReID (const std::string &configFilePath)
	Construct a ReID instance from configuration. More...

	ReID (const std::string &configFilePath, const std::string &modelName, const bool calDisMaha=true)
	Construct a ReID instance from configuration. More...

virtual	~ReID ()
	Release resources owned by the ReID instance. More...

void	initializeRuntime (const SourceFrameInfo &frameInfo, const uint maxTargetsPerStream, const std::shared_ptr< NvTrackedObjectManager > &targetManager) override
	Initialize variables and allocate memories. More...

void	initializeModel () override
	Create TensorRT inference engine; if engine does not exist, serialize from model file. More...

void	queryParams (NvMOTQuery &paramsQuery)
	Populate the capabilities reported to the tracker. More...

void	doInference (const std::map< NvMOTStreamId, NvMOTFrame * > &inputMeta, std::map< NvMOTStreamId, std::deque< DetectedObjInfo >> &detectedObjects, const bool isForReAssoc) override
	Extract ReID features from input images and save them in m_reidFeaturesDet_d. More...

void	update () override
	Update ReID feature gallery after data association. More...

void	removeStream (const NvMOTStreamId videoStreamId) override
	Remove a stream's reid features. More...

void	outputReIDTensor (NvDsReidTensorBatch &reidTensorBatch) override
	Output the ReID tensor of a batch. More...

int	outputTargetReIDInd (NvMOTStreamId streamId, uint targetInd) override
	Output a target's ReID vector index in the batch tensor. More...

void	outputTargetReIDObj (NvMOTStreamId streamId, uint targetInd, NvDsReidTensorBatch &reidTensorBatch, NvDsObjReid &reidObj) override
	Output a target's ReID vector information. More...

void	getFeatures2Host ()
	Copy ReID features from device memory to host memory. More...

bool	isModelInitialized () override
	Report whether the inference model is initialized. More...

bool	isRuntimeInitialized () override
	Report whether runtime resources are initialized. More...

const REID_TYPES	getReIDType () override
	Get the configured ReID implementation type. More...

	ReID (const std::string &configFilePath)
	Construct a ReID instance from configuration. More...

	ReID (const std::string &configFilePath, const std::string &modelName, const bool calDisMaha=true)
	Construct a ReID instance from configuration. More...

virtual	~ReID ()
	Release resources owned by the ReID instance. More...

void	initializeRuntime (const SourceFrameInfo &frameInfo, const uint maxTargetsPerStream, const std::shared_ptr< NvTrackedObjectManager > &targetManager) override
	Initialize variables and allocate memories. More...

void	initializeModel () override
	Create TensorRT inference engine; if engine does not exist, serialize from model file. More...

void	queryParams (NvMOTQuery &paramsQuery)
	Populate the capabilities reported to the tracker. More...

void	doInference (const std::map< NvMOTStreamId, NvMOTFrame * > &inputMeta, std::map< NvMOTStreamId, std::deque< DetectedObjInfo >> &detectedObjects, const bool isForReAssoc) override
	Extract ReID features from input images and save them in m_reidFeaturesDet_d. More...

void	update () override
	Update ReID feature gallery after data association. More...

void	removeStream (const NvMOTStreamId videoStreamId) override
	Remove a stream's reid features. More...

void	outputReIDTensor (NvDsReidTensorBatch &reidTensorBatch) override
	Output the ReID tensor of a batch. More...

int	outputTargetReIDInd (NvMOTStreamId streamId, uint targetInd) override
	Output a target's ReID vector index in the batch tensor. More...

void	outputTargetReIDObj (NvMOTStreamId streamId, uint targetInd, NvDsReidTensorBatch &reidTensorBatch, NvDsObjReid &reidObj) override
	Output a target's ReID vector information. More...

void	getFeatures2Host ()
	Copy ReID features from device memory to host memory. More...

bool	isModelInitialized () override
	Report whether the inference model is initialized. More...

bool	isRuntimeInitialized () override
	Report whether runtime resources are initialized. More...

const REID_TYPES	getReIDType () override
	Get the configured ReID implementation type. More...

Protected Member Functions
void	extractImagePatchesBatch (const std::map< NvMOTStreamId, NvMOTFrame * > &inputMeta, std::map< NvMOTStreamId, std::deque< DetectedObjInfo >> &detectedObjects)
	Crop input frames using detected bboxes and rescale them as ReID network input size. More...

void	generateImagePatchesWithSegmentationMask (std::map< NvMOTStreamId, std::deque< DetectedObjInfo >> &detectedObjects)
	Multiply segmentation mask with image patches for ReID input. More...

void	removeTrackerReIDFeature (const NvMOTStreamId videoStreamId, const std::shared_ptr< NvTrackedObject > target)
	Removed a target's all reid features. More...

void	computeReIDFeatureDist (const std::map< NvMOTStreamId, NvMOTFrame * > &inputMeta)
	Compute reid feature distance between detection and trackers. More...

void	multiplyReIDFeatures (const int streamInd, const NvMOTStreamId videoStreamId)
	Compute dot products between detection and gallery ReID features. More...

void	normalizaReIDFeatures ()
	Normalize ReID network output to ensure l2 norm equals to 1. More...

void	computeMahalanobisDist (DisMahalanobisIn in)
	Compute Mahalanobis distance for NvDeepSORT tracker. More...

void	extractImagePatchesBatch (const std::map< NvMOTStreamId, NvMOTFrame * > &inputMeta, std::map< NvMOTStreamId, std::deque< DetectedObjInfo >> &detectedObjects)
	Crop input frames using detected bboxes and rescale them as ReID network input size. More...

void	generateImagePatchesWithSegmentationMask (std::map< NvMOTStreamId, std::deque< DetectedObjInfo >> &detectedObjects)
	Multiply segmentation mask with image patches for ReID input. More...

void	removeTrackerReIDFeature (const NvMOTStreamId videoStreamId, const std::shared_ptr< NvTrackedObject > target)
	Removed a target's all reid features. More...

void	computeReIDFeatureDist (const std::map< NvMOTStreamId, NvMOTFrame * > &inputMeta)
	Compute reid feature distance between detection and trackers. More...

void	multiplyReIDFeatures (const int streamInd, const NvMOTStreamId videoStreamId)
	Compute dot products between detection and gallery ReID features. More...

void	normalizaReIDFeatures ()
	Normalize ReID network output to ensure l2 norm equals to 1. More...

void	computeMahalanobisDist (DisMahalanobisIn in)
	Compute Mahalanobis distance for NvDeepSORT tracker. More...

Protected Attributes
bool	m_isModelInit
	Reid status if reid model initialized. More...

bool	m_isRuntimeInit
	Reid status if runtime variables initialized. More...

ReIDConfigParams	m_params
	Config params for reid module. More...

TrtModule	m_inference
	TensorRT module that runs the reid network. More...

std::shared_ptr< ReIDFeatureGallery >	m_reidFeatureGallery
	ReID feature gallery for target management. More...

std::shared_ptr< NvTrackedObjectManager >	m_targetManager
	Target manager providing target status to update feature gallery. More...

bool	m_calDisMaha
	If the module needs to compute Mahalanobis distance. More...

int	m_maxTargetsToTrack
	Max number of targets to keep for all streams. More...

int	m_maxTargetsPerStream
	Max number of targets to keep per stream. More...

int	m_maxStreams
	Max number of streams. More...

int	m_numBboxes
	Number of detected boxes in the current batch tracker recieved. More...

NvMotDataTypes::Size	m_srcImageSize
	Tracker library frame size. More...

std::map< NvMOTStreamId, std::vector< std::pair< uint, NvMotDataTypes::Rect2f > > >	m_inputRoisInBatch
	Reid input rois to crop. More...

std::shared_ptr< ReIDFrameTransformTexture >	m_subImageCropper2
	Image cropper, may share with visual tracker in the future. More...

std::shared_ptr< ReIDCropScaler >	m_subImageCropScaler
	Image crop scaler. Uses VPI crop scaler. More...

std::map< NvMOTStreamId, std::pair< float *, std::map< int, int > > >	m_detObjReidFeatures
	Mapping each detected object to its reid features : {streamId, <each stream's reid features beginning address, {detInd : pointer to each detection}> }. More...

std::map< NvMOTStreamId, std::map< int, int > >	m_featureIndFrameNumMap
	Frame number of each gallery reid feature, keyed by stream and global feature index. More...

int	m_inputInd
	The index of pointer to input tensor. More...

int	m_outputInd
	The index of pointer to output tensor. More...

float *	m_reidFeaturesDet_d

float *	m_reidFeaturesDet_h
	Output features in a batch from reid network. More...

float *	m_inputBuf_d

float *	m_inputBuf_h
	Input patches to reid network. More...

std::vector< void * >	m_bindings
	Pointers to TensorRT tensors. More...

cudaStream_t	m_cuStream
	Cuda stream to run all GPU tasks. More...

int	m_maxReidProductSizePerStream
	Max reid CUDA mat size for each stream. More...

float *	m_reidProduct_d

float *	m_reidProduct_h
	Dot products between detection and gallery reid features of each stream. More...

int *	m_targetReidFeatureInds_d

int *	m_targetReidFeatureInds_h
	Tracked objects' list of re-id feature gallery inds, size: m_maxTargetsToTrack x m_reidHistorySize. More...

int2 *	m_reidProductSize_d

int2 *	m_reidProductSize_h
	Actual number of re-id products in each stream; x: NumOfFeaturesInGalleryThisStream, y: numOfDetThisStream. More...

int *	m_targetWork_1_d

int *	m_targetWork_1_h
	Work space storing each target's info, size: m_maxTargetsToTrack. More...

int *	m_targetWork_2_d

int *	m_targetWork_2_h
	Work space storing each target's info, size: m_maxTargetsToTrack. More...

int *	m_targetWork_3_d

int *	m_targetWork_3_h
	Work space storing each target's info, size: m_maxTargetsToTrack. More...

float *	m_confidenceReidDetTargets_d

float *	m_confidenceReidDetTargets_h
	Re-id similarity between each target and detection after taking nearest neighbors, size: m_maxTargetsToTrack x maxDetsPerStream. More...

float4 *	m_inputRoisInBatch_d

float4 *	m_inputRoisInBatch_h
	Reid input rois to crop stored in a continuous array. More...

int *	m_targetInds4Rois_d

int *	m_targetInds4Rois_h
	Target ind for each roi input. More...

int *	m_nearestIndReidDetTargets_d

int *	m_nearestIndReidDetTargets_h
	Targets' nearest neighbor index in reid features. More...

int	m_normFeatureCudaBlockSize
	Cuda block size for reid feature normalization. More...

cublasHandle_t	m_cublasHandle
	Cublas handle. More...

std::shared_ptr< NvTrackerMultiThreadWorker< DisMahalanobisIn > >	m_disMahaThreadWorker
	Mahalanobis distance thread. More...

Constructor & Destructor Documentation

◆ ReID() [1/4]

ReID::ReID ( const std::string & configFilePath )

Construct a ReID instance from configuration.

Parameters

[in] configFilePath Path to the tracker configuration file.

◆ ReID() [2/4]

ReID::ReID	(	const std::string &	configFilePath,
		const std::string &	modelName,
		const bool	calDisMaha = `true`
	)

Construct a ReID instance from configuration.

Parameters

[in]	configFilePath	Path to the tracker configuration file.
[in]	modelName	Configured model name.
[in]	calDisMaha	If Mahalanobis distance needs to be computed.

◆ ~ReID() [1/2]

virtual ReID::~ReID ( )

virtual

Release resources owned by the ReID instance.

◆ ReID() [3/4]

ReID::ReID ( const std::string & configFilePath )

Construct a ReID instance from configuration.

Parameters

[in] configFilePath Path to the tracker configuration file.

◆ ReID() [4/4]

ReID::ReID	(	const std::string &	configFilePath,
		const std::string &	modelName,
		const bool	calDisMaha = `true`
	)

Construct a ReID instance from configuration.

Parameters

[in]	configFilePath	Path to the tracker configuration file.
[in]	modelName	Configured model name.
[in]	calDisMaha	If Mahalanobis distance needs to be computed.

◆ ~ReID() [2/2]

virtual ReID::~ReID ( )

virtual

Release resources owned by the ReID instance.

Member Function Documentation

◆ computeMahalanobisDist() [1/2]

void ReID::computeMahalanobisDist ( DisMahalanobisIn in )

protected

Compute Mahalanobis distance for NvDeepSORT tracker.

Parameters

[in] in Input to compute Mahalanobis distance.

◆ computeMahalanobisDist() [2/2]

void ReID::computeMahalanobisDist ( DisMahalanobisIn in )

protected

Compute Mahalanobis distance for NvDeepSORT tracker.

Parameters

[in] in Input to compute Mahalanobis distance.

◆ computeReIDFeatureDist() [1/2]

void ReID::computeReIDFeatureDist ( const std::map< NvMOTStreamId, NvMOTFrame * > & inputMeta )

protected

Compute reid feature distance between detection and trackers.

Parameters

[in] inputMeta Input frames keyed by stream ID.

◆ computeReIDFeatureDist() [2/2]

void ReID::computeReIDFeatureDist ( const std::map< NvMOTStreamId, NvMOTFrame * > & inputMeta )

protected

Compute reid feature distance between detection and trackers.

Parameters

[in] inputMeta Input frames keyed by stream ID.

◆ doInference() [1/2]

void ReID::doInference	(	const std::map< NvMOTStreamId, NvMOTFrame * > &	inputMeta,
		std::map< NvMOTStreamId, std::deque< DetectedObjInfo >> &	detectedObjects,
		const bool	isForReAssoc
	)

overridevirtual

Extract ReID features from input images and save them in m_reidFeaturesDet_d.

Parameters

[in]	inputMeta	A batch of input frames.
[in,out]	detectedObjects	Newly detected objects in each stream.
[in]	isForReAssoc	Whether this inference is for reassociation.

Implements IReID.

◆ doInference() [2/2]

void ReID::doInference	(	const std::map< NvMOTStreamId, NvMOTFrame * > &	inputMeta,
		std::map< NvMOTStreamId, std::deque< DetectedObjInfo >> &	detectedObjects,
		const bool	isForReAssoc
	)

overridevirtual

Extract ReID features from input images and save them in m_reidFeaturesDet_d.

Parameters

[in]	inputMeta	A batch of input frames.
[in,out]	detectedObjects	Newly detected objects in each stream.
[in]	isForReAssoc	Whether this inference is for reassociation.

Implements IReID.

◆ extractImagePatchesBatch() [1/2]

void ReID::extractImagePatchesBatch	(	const std::map< NvMOTStreamId, NvMOTFrame * > &	inputMeta,
		std::map< NvMOTStreamId, std::deque< DetectedObjInfo >> &	detectedObjects
	)

protected

Crop input frames using detected bboxes and rescale them as ReID network input size.

Parameters

[in]	inputMeta	Input frames keyed by stream ID.
[in]	detectedObjects	Newly detected objects in each stream.

◆ extractImagePatchesBatch() [2/2]

void ReID::extractImagePatchesBatch	(	const std::map< NvMOTStreamId, NvMOTFrame * > &	inputMeta,
		std::map< NvMOTStreamId, std::deque< DetectedObjInfo >> &	detectedObjects
	)

protected

Crop input frames using detected bboxes and rescale them as ReID network input size.

Parameters

[in]	inputMeta	Input frames keyed by stream ID.
[in]	detectedObjects	Newly detected objects in each stream.

◆ generateImagePatchesWithSegmentationMask() [1/2]

void ReID::generateImagePatchesWithSegmentationMask ( std::map< NvMOTStreamId, std::deque< DetectedObjInfo >> & detectedObjects )

protected

Multiply segmentation mask with image patches for ReID input.

Parameters

[in,out] detectedObjects Newly detected objects in each stream.

◆ generateImagePatchesWithSegmentationMask() [2/2]

void ReID::generateImagePatchesWithSegmentationMask ( std::map< NvMOTStreamId, std::deque< DetectedObjInfo >> & detectedObjects )

protected

Multiply segmentation mask with image patches for ReID input.

Parameters

[in,out] detectedObjects Newly detected objects in each stream.

◆ getFeatures2Host() [1/2]

void ReID::getFeatures2Host ( )

Copy ReID features from device memory to host memory.

◆ getFeatures2Host() [2/2]

void ReID::getFeatures2Host ( )

Copy ReID features from device memory to host memory.

◆ getReIDType() [1/2]

const REID_TYPES ReID::getReIDType ( )

inlineoverridevirtual

Get the configured ReID implementation type.

Implements IReID.

Definition at line 206 of file 9.2/sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

References m_params, and ReIDConfigParams::m_reidType.

◆ getReIDType() [2/2]

const REID_TYPES ReID::getReIDType ( )

inlineoverridevirtual

Get the configured ReID implementation type.

Implements IReID.

Definition at line 206 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

References m_params, and ReIDConfigParams::m_reidType.

◆ initializeModel() [1/2]

void ReID::initializeModel ( )

overridevirtual

Create TensorRT inference engine; if engine does not exist, serialize from model file.

Implements IReID.

◆ initializeModel() [2/2]

void ReID::initializeModel ( )

overridevirtual

Create TensorRT inference engine; if engine does not exist, serialize from model file.

Implements IReID.

◆ initializeRuntime() [1/2]

void ReID::initializeRuntime	(	const SourceFrameInfo &	frameInfo,
		const uint	maxTargetsPerStream,
		const std::shared_ptr< NvTrackedObjectManager > &	targetManager
	)

overridevirtual

Initialize variables and allocate memories.

Parameters

[in]	frameInfo	Metadata about the source image, such as size and color.
[in]	maxTargetsPerStream	Maximum number of targets to track in each stream.
[in]	targetManager	Target manager of the tracked objects.

Implements IReID.

◆ initializeRuntime() [2/2]

void ReID::initializeRuntime	(	const SourceFrameInfo &	frameInfo,
		const uint	maxTargetsPerStream,
		const std::shared_ptr< NvTrackedObjectManager > &	targetManager
	)

overridevirtual

Initialize variables and allocate memories.

Parameters

[in]	frameInfo	Metadata about the source image, such as size and color.
[in]	maxTargetsPerStream	Maximum number of targets to track in each stream.
[in]	targetManager	Target manager of the tracked objects.

Implements IReID.

◆ isModelInitialized() [1/2]

bool ReID::isModelInitialized ( )

inlineoverridevirtual

Report whether the inference model is initialized.

Implements IReID.

Definition at line 200 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

References m_isModelInit.

◆ isModelInitialized() [2/2]

bool ReID::isModelInitialized ( )

inlineoverridevirtual

Report whether the inference model is initialized.

Implements IReID.

Definition at line 200 of file 9.2/sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

References m_isModelInit.

◆ isRuntimeInitialized() [1/2]

bool ReID::isRuntimeInitialized ( )

inlineoverridevirtual

Report whether runtime resources are initialized.

Implements IReID.

Definition at line 203 of file 9.2/sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

References m_isRuntimeInit.

◆ isRuntimeInitialized() [2/2]

bool ReID::isRuntimeInitialized ( )

inlineoverridevirtual

Report whether runtime resources are initialized.

Implements IReID.

Definition at line 203 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

References m_isRuntimeInit.

◆ multiplyReIDFeatures() [1/2]

void ReID::multiplyReIDFeatures	(	const int	streamInd,
		const NvMOTStreamId	videoStreamId
	)

protected

Compute dot products between detection and gallery ReID features.

Parameters

[in]	streamInd	Index of this stream in the current input batch.
[in]	videoStreamId	Video stream identifier.

◆ multiplyReIDFeatures() [2/2]

void ReID::multiplyReIDFeatures	(	const int	streamInd,
		const NvMOTStreamId	videoStreamId
	)

protected

Compute dot products between detection and gallery ReID features.

Parameters

[in]	streamInd	Index of this stream in the current input batch.
[in]	videoStreamId	Video stream identifier.

◆ normalizaReIDFeatures() [1/2]

void ReID::normalizaReIDFeatures ( )

protected

Normalize ReID network output to ensure l2 norm equals to 1.

◆ normalizaReIDFeatures() [2/2]

void ReID::normalizaReIDFeatures ( )

protected

Normalize ReID network output to ensure l2 norm equals to 1.

◆ outputReIDTensor() [1/2]

void ReID::outputReIDTensor ( NvDsReidTensorBatch & reidTensorBatch )

overridevirtual

Output the ReID tensor of a batch.

Parameters

[out] reidTensorBatch Batch reid tensor output to be filled.

Implements IReID.

◆ outputReIDTensor() [2/2]

void ReID::outputReIDTensor ( NvDsReidTensorBatch & reidTensorBatch )

overridevirtual

Output the ReID tensor of a batch.

Parameters

[out] reidTensorBatch Batch reid tensor output to be filled.

Implements IReID.

◆ outputTargetReIDInd() [1/2]

int ReID::outputTargetReIDInd	(	NvMOTStreamId	streamId,
		uint	targetInd
	)

overridevirtual

Output a target's ReID vector index in the batch tensor.

Parameters

[in]	streamId	Stream index.
[in]	targetInd	The target index.

Returns: The target's ReID vector index in the batch tensor, -1 means no reid feature.

Implements IReID.

◆ outputTargetReIDInd() [2/2]

int ReID::outputTargetReIDInd	(	NvMOTStreamId	streamId,
		uint	targetInd
	)

overridevirtual

Output a target's ReID vector index in the batch tensor.

Parameters

[in]	streamId	Stream index.
[in]	targetInd	The target index.

Returns: The target's ReID vector index in the batch tensor, -1 means no reid feature.

Implements IReID.

◆ outputTargetReIDObj() [1/2]

void ReID::outputTargetReIDObj	(	NvMOTStreamId	streamId,
		uint	targetInd,
		NvDsReidTensorBatch &	reidTensorBatch,
		NvDsObjReid &	reidObj
	)

overridevirtual

Output a target's ReID vector information.

Parameters

[in]	streamId	Stream index.
[in]	targetInd	The target index.
[in]	reidTensorBatch	Batch reid tensor to get the memory pointers.
[out]	reidObj	The target's ReID vector memory pointers and feature size.

Implements IReID.

◆ outputTargetReIDObj() [2/2]

void ReID::outputTargetReIDObj	(	NvMOTStreamId	streamId,
		uint	targetInd,
		NvDsReidTensorBatch &	reidTensorBatch,
		NvDsObjReid &	reidObj
	)

overridevirtual

Output a target's ReID vector information.

Parameters

[in]	streamId	Stream index.
[in]	targetInd	The target index.
[in]	reidTensorBatch	Batch reid tensor to get the memory pointers.
[out]	reidObj	The target's ReID vector memory pointers and feature size.

Implements IReID.

◆ queryParams() [1/2]

void ReID::queryParams ( NvMOTQuery & paramsQuery )

virtual

Populate the capabilities reported to the tracker.

Parameters

[out] paramsQuery The output query parameters.

Implements IReID.

◆ queryParams() [2/2]

void ReID::queryParams ( NvMOTQuery & paramsQuery )

virtual

Populate the capabilities reported to the tracker.

Parameters

[out] paramsQuery The output query parameters.

Implements IReID.

◆ removeStream() [1/2]

void ReID::removeStream ( const NvMOTStreamId videoStreamId )

overridevirtual

Remove a stream's reid features.

Parameters

[in] videoStreamId Video stream id.

Implements IReID.

◆ removeStream() [2/2]

void ReID::removeStream ( const NvMOTStreamId videoStreamId )

overridevirtual

Remove a stream's reid features.

Parameters

[in] videoStreamId Video stream id.

Implements IReID.

◆ removeTrackerReIDFeature() [1/2]

void ReID::removeTrackerReIDFeature	(	const NvMOTStreamId	videoStreamId,
		const std::shared_ptr< NvTrackedObject >	target
	)

protected

Removed a target's all reid features.

Parameters

[in]	videoStreamId	Video stream id.
[in]	target	Tracker associated with the detection.

◆ removeTrackerReIDFeature() [2/2]

void ReID::removeTrackerReIDFeature	(	const NvMOTStreamId	videoStreamId,
		const std::shared_ptr< NvTrackedObject >	target
	)

protected

Removed a target's all reid features.

Parameters

[in]	videoStreamId	Video stream id.
[in]	target	Tracker associated with the detection.

◆ update() [1/2]

void ReID::update ( )

overridevirtual

Update ReID feature gallery after data association.

Implements IReID.

◆ update() [2/2]

void ReID::update ( )

overridevirtual

Update ReID feature gallery after data association.

Implements IReID.

Field Documentation

◆ m_bindings

std::vector< void * > ReID::m_bindings

protected

Pointers to TensorRT tensors.

Definition at line 238 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_calDisMaha

bool ReID::m_calDisMaha

protected

If the module needs to compute Mahalanobis distance.

Definition at line 221 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_confidenceReidDetTargets_d

float * ReID::m_confidenceReidDetTargets_d

protected

Definition at line 249 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_confidenceReidDetTargets_h

float * ReID::m_confidenceReidDetTargets_h

protected

Re-id similarity between each target and detection after taking nearest neighbors, size: m_maxTargetsToTrack x maxDetsPerStream.

Definition at line 249 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_cublasHandle

cublasHandle_t ReID::m_cublasHandle

protected

Cublas handle.

Definition at line 254 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_cuStream

cudaStream_t ReID::m_cuStream

protected

Cuda stream to run all GPU tasks.

Definition at line 239 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_detObjReidFeatures

std::map< NvMOTStreamId, std::pair< float *, std::map< int, int > > > ReID::m_detObjReidFeatures

protected

Mapping each detected object to its reid features : {streamId, <each stream's reid features beginning address, {detInd : pointer to each detection}> }.

Definition at line 230 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_disMahaThreadWorker

std::shared_ptr< NvTrackerMultiThreadWorker< DisMahalanobisIn > > ReID::m_disMahaThreadWorker

protected

Mahalanobis distance thread.

Definition at line 257 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_featureIndFrameNumMap

std::map< NvMOTStreamId, std::map< int, int > > ReID::m_featureIndFrameNumMap

protected

Frame number of each gallery reid feature, keyed by stream and global feature index.

Definition at line 231 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_inference

TrtModule ReID::m_inference

protected

TensorRT module that runs the reid network.

Definition at line 212 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_inputBuf_d

float * ReID::m_inputBuf_d

protected

Definition at line 237 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_inputBuf_h

float * ReID::m_inputBuf_h

protected

Input patches to reid network.

Definition at line 237 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_inputInd

int ReID::m_inputInd

protected

The index of pointer to input tensor.

Definition at line 234 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_inputRoisInBatch

std::map< NvMOTStreamId, std::vector< std::pair< uint, NvMotDataTypes::Rect2f > > > ReID::m_inputRoisInBatch

protected

Reid input rois to crop.

Definition at line 227 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_inputRoisInBatch_d

float4 * ReID::m_inputRoisInBatch_d

protected

Definition at line 250 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_inputRoisInBatch_h

float4 * ReID::m_inputRoisInBatch_h

protected

Reid input rois to crop stored in a continuous array.

Definition at line 250 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_isModelInit

bool ReID::m_isModelInit

protected

Reid status if reid model initialized.

Definition at line 209 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

Referenced by isModelInitialized().

◆ m_isRuntimeInit

bool ReID::m_isRuntimeInit

protected

Reid status if runtime variables initialized.

Definition at line 210 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

Referenced by isRuntimeInitialized().

◆ m_maxReidProductSizePerStream

int ReID::m_maxReidProductSizePerStream

protected

Max reid CUDA mat size for each stream.

Definition at line 242 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_maxStreams

int ReID::m_maxStreams

protected

Max number of streams.

Definition at line 224 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_maxTargetsPerStream

int ReID::m_maxTargetsPerStream

protected

Max number of targets to keep per stream.

Definition at line 223 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_maxTargetsToTrack

int ReID::m_maxTargetsToTrack

protected

Max number of targets to keep for all streams.

Definition at line 222 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_nearestIndReidDetTargets_d

int * ReID::m_nearestIndReidDetTargets_d

protected

Definition at line 252 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_nearestIndReidDetTargets_h

int * ReID::m_nearestIndReidDetTargets_h

protected

Targets' nearest neighbor index in reid features.

Definition at line 252 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_normFeatureCudaBlockSize

int ReID::m_normFeatureCudaBlockSize

protected

Cuda block size for reid feature normalization.

Definition at line 253 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_numBboxes

int ReID::m_numBboxes

protected

Number of detected boxes in the current batch tracker recieved.

Definition at line 225 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_outputInd

int ReID::m_outputInd

protected

The index of pointer to output tensor.

Definition at line 235 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_params

ReIDConfigParams ReID::m_params

protected

Config params for reid module.

Definition at line 211 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

Referenced by getReIDType().

◆ m_reidFeatureGallery

std::shared_ptr< ReIDFeatureGallery > ReID::m_reidFeatureGallery

protected

ReID feature gallery for target management.

Definition at line 213 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_reidFeaturesDet_d

float * ReID::m_reidFeaturesDet_d

protected

Definition at line 236 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_reidFeaturesDet_h

float * ReID::m_reidFeaturesDet_h

protected

Output features in a batch from reid network.

Definition at line 236 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_reidProduct_d

float * ReID::m_reidProduct_d

protected

Definition at line 243 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_reidProduct_h

float * ReID::m_reidProduct_h

protected

Dot products between detection and gallery reid features of each stream.

Definition at line 243 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_reidProductSize_d

int2 * ReID::m_reidProductSize_d

protected

Definition at line 245 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_reidProductSize_h

int2 * ReID::m_reidProductSize_h

protected

Actual number of re-id products in each stream; x: NumOfFeaturesInGalleryThisStream, y: numOfDetThisStream.

Definition at line 245 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_srcImageSize

NvMotDataTypes::Size ReID::m_srcImageSize

protected

Tracker library frame size.

Definition at line 226 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_subImageCropper2

std::shared_ptr< ReIDFrameTransformTexture > ReID::m_subImageCropper2

protected

Image cropper, may share with visual tracker in the future.

Definition at line 228 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_subImageCropScaler

std::shared_ptr< ReIDCropScaler > ReID::m_subImageCropScaler

protected

Image crop scaler. Uses VPI crop scaler.

Definition at line 229 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_targetInds4Rois_d

int * ReID::m_targetInds4Rois_d

protected

Definition at line 251 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_targetInds4Rois_h

int * ReID::m_targetInds4Rois_h

protected

Target ind for each roi input.

Definition at line 251 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_targetManager

std::shared_ptr< NvTrackedObjectManager > ReID::m_targetManager

protected

Target manager providing target status to update feature gallery.

Definition at line 214 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_targetReidFeatureInds_d

int * ReID::m_targetReidFeatureInds_d

protected

Definition at line 244 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_targetReidFeatureInds_h

int * ReID::m_targetReidFeatureInds_h

protected

Tracked objects' list of re-id feature gallery inds, size: m_maxTargetsToTrack x m_reidHistorySize.

Definition at line 244 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_targetWork_1_d

int * ReID::m_targetWork_1_d

protected

Definition at line 246 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_targetWork_1_h

int * ReID::m_targetWork_1_h

protected

Work space storing each target's info, size: m_maxTargetsToTrack.

Definition at line 246 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_targetWork_2_d

int * ReID::m_targetWork_2_d

protected

Definition at line 247 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_targetWork_2_h

int * ReID::m_targetWork_2_h

protected

Work space storing each target's info, size: m_maxTargetsToTrack.

Definition at line 247 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_targetWork_3_d

int * ReID::m_targetWork_3_d

protected

Definition at line 248 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

◆ m_targetWork_3_h

int * ReID::m_targetWork_3_h

protected

Work space storing each target's info, size: m_maxTargetsToTrack.

Definition at line 248 of file sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp.

The documentation for this class was generated from the following file:

sources/libs/nvmultiobjecttracker/include/modules/ReID/ReID.hpp


NVIDIA DeepStream SDK API Reference	9.2 Release

NVIDIA DeepStream SDK API Reference

9.2 Release

Detailed Description

Public Member Functions

Protected Member Functions

Protected Attributes

Constructor & Destructor Documentation

◆ ReID() [1/4]

◆ ReID() [2/4]

◆ ~ReID() [1/2]

◆ ReID() [3/4]

◆ ReID() [4/4]

◆ ~ReID() [2/2]

Member Function Documentation

◆ computeMahalanobisDist() [1/2]

◆ computeMahalanobisDist() [2/2]

◆ computeReIDFeatureDist() [1/2]

◆ computeReIDFeatureDist() [2/2]

◆ doInference() [1/2]

◆ doInference() [2/2]

◆ extractImagePatchesBatch() [1/2]

◆ extractImagePatchesBatch() [2/2]

◆ generateImagePatchesWithSegmentationMask() [1/2]

◆ generateImagePatchesWithSegmentationMask() [2/2]

◆ getFeatures2Host() [1/2]

◆ getFeatures2Host() [2/2]

◆ getReIDType() [1/2]

◆ getReIDType() [2/2]

◆ initializeModel() [1/2]

◆ initializeModel() [2/2]

◆ initializeRuntime() [1/2]

◆ initializeRuntime() [2/2]

◆ isModelInitialized() [1/2]

◆ isModelInitialized() [2/2]

◆ isRuntimeInitialized() [1/2]

◆ isRuntimeInitialized() [2/2]

◆ multiplyReIDFeatures() [1/2]

◆ multiplyReIDFeatures() [2/2]

◆ normalizaReIDFeatures() [1/2]

◆ normalizaReIDFeatures() [2/2]

◆ outputReIDTensor() [1/2]

◆ outputReIDTensor() [2/2]

◆ outputTargetReIDInd() [1/2]

◆ outputTargetReIDInd() [2/2]

◆ outputTargetReIDObj() [1/2]

◆ outputTargetReIDObj() [2/2]

◆ queryParams() [1/2]

◆ queryParams() [2/2]

◆ removeStream() [1/2]

◆ removeStream() [2/2]

◆ removeTrackerReIDFeature() [1/2]

◆ removeTrackerReIDFeature() [2/2]

◆ update() [1/2]

◆ update() [2/2]

Field Documentation

◆ m_bindings

◆ m_calDisMaha

◆ m_confidenceReidDetTargets_d

◆ m_confidenceReidDetTargets_h

◆ m_cublasHandle

◆ m_cuStream

◆ m_detObjReidFeatures

◆ m_disMahaThreadWorker

◆ m_featureIndFrameNumMap

◆ m_inference

◆ m_inputBuf_d

◆ m_inputBuf_h

◆ m_inputInd

◆ m_inputRoisInBatch

◆ m_inputRoisInBatch_d

◆ m_inputRoisInBatch_h

◆ m_isModelInit

◆ m_isRuntimeInit

◆ m_maxReidProductSizePerStream

◆ m_maxStreams

◆ m_maxTargetsPerStream

◆ m_maxTargetsToTrack

◆ m_nearestIndReidDetTargets_d

◆ m_nearestIndReidDetTargets_h

◆ m_normFeatureCudaBlockSize
