NVIDIA DGX SuperPOD - Slurm Overview#

System Design#

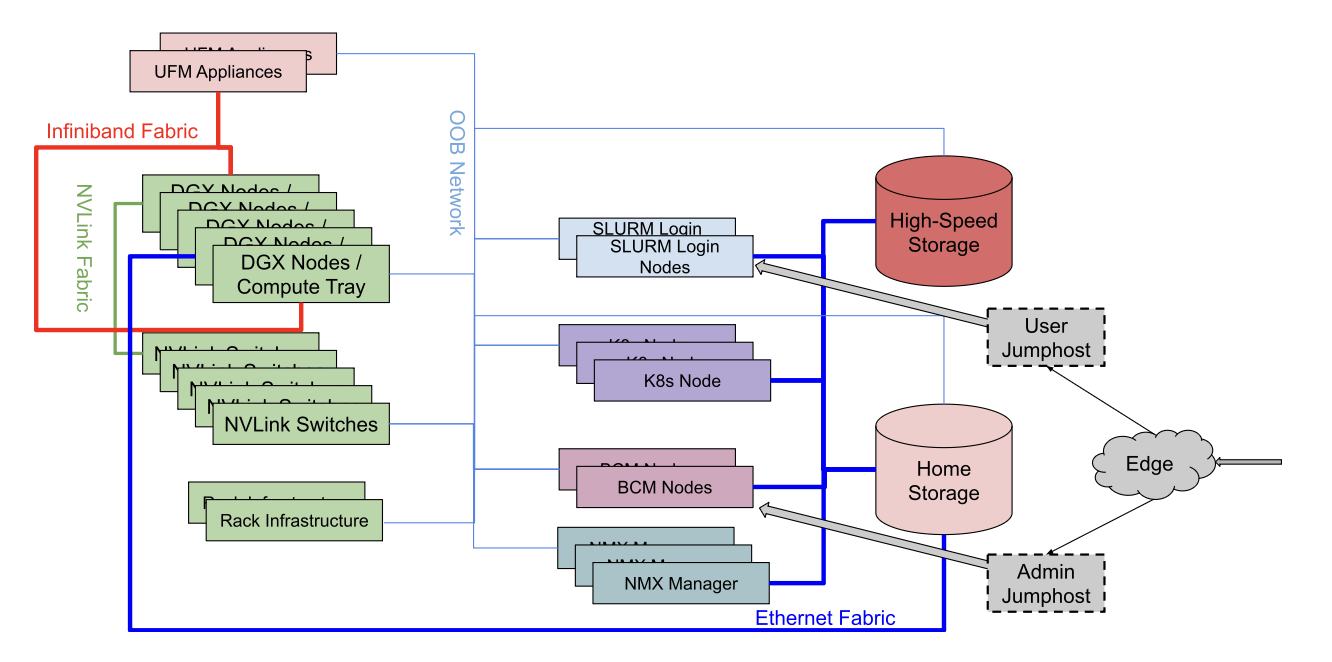

A logical depiction of the DGX SuperPOD running Slurm is shown below.

DGX SuperPOD with Slurm logical design

The following table describes the components shown in the image above.

DGX SuperPOD Component	Description
User Jumphost	The User Jumphost is the gateway into the DGX SuperPOD intended to provide a single entry-point into the cluster and additional security when required. It is not actually a part of the DGX SuperPOD, but of the corporate IT environment. This function is defined and provided by local IT requirements.
DGX Nodes / Compute Trays	The compute trays are where the user work gets done on the system. Each compute tray is considered an individual DGX node.
Management nodes	The management nodes provide the services necessary to support operation and monitoring of the DGX SuperPOD. Services, configured in high availability (HA) mode where needed, provide the highest system availability. See the management servers section below for details of each node and its function.
High-speed storage	High-speed storage provides shared storage to all nodes in the DGX SuperPOD. This is where datasets, checkpoints, and other large files should be stored. High-speed storage typically holds large datasets that are being actively operated on by the DGX SuperPOD jobs. Data on the high-speed storage is a subset of all data housed in a data lake outside of the DGX SuperPOD.
Home & High Speed Storage	Shared storage on a network file system (NFS) is allocated for user home directories as well for cluster services.
InfiniBand fabric compute	The Compute InfiniBand Fabric is the high-speed network fabric connecting all compute nodes together to allow high-bandwidth and low-latency communication between GB200 racks.
InfiniBand fabric storage	The Storage InfiniBand Fabric is the high-speed network fabric dedicated for storage traffic. Storage traffic is dedicated to its own fabric to remove interference with the node-to-node application traffic that can degrade overall performance.
In-band network fabric	The In-band Network Fabric provides fast Ethernet connectivity between all nodes in the DGX SuperPOD. The In-band fabric is used for TCP/IP-based communication and services for provisioning and inband management.
Out-of-band network fabric	The out-of-band Ethernet network is used for system management using the BMC and provides connectivity to manage all networking equipment.
NVLink	NVIDIA NVLink is a high-speed interconnect that allows multiple GPUs to communicate directly. Multi-Node NVLink is a capability enabled over an NVLink Switch network where multiple systems are interconnected to form a large GPU memory fabric also known as an NVLink Domain.

Management Servers#

The following table details the function and services running on the management servers.

Server Function	Services
Head Node	Head nodes serve various functions: Provisioning: centrally store and deploy OS images of the compute, control and management nodes and other various services. This ensures that there is a single authoritative source defining what should be on each node, and a way to re-provision if the node needs to be reimaged. Workload management: resource management and orchestration services that organize the resources and coordinate the scheduling of user jobs across the cluster. Metrics: system monitoring and reporting that gather all telemetry from each of the nodes. The data can be explored and analyzed through web services so better insight to the system can be studied and reported.
Login Node	Entry point to the DGX SuperPOD for users. CPU only node that is a Slurm client and has filesystems mounted to support development, job submission, job monitoring, and file management. Multiple nodes are included for redundancy and supporting user workloads. These hosts can also be used for container caching.
UFM Appliance	NVIDIA Unified Fabric Manager (UFM) for both storage and compute InfiniBand fabric.
NVLink Management Software	NVLink Management Software (NMX) is an integrated platform for management and monitoring of NVLink connections.

Navigating the DGX SuperPOD#

When a user first logs into the DGX SuperPOD, it will look like any other Linux system. They will be placed into their home directory and standard Linux commands will work.

For example:

# pwd
/home/dgxuser

# ls -al
./bashrc

In addition, the high-speed file system will be available on the login nodes and all the compute nodes:

# ls /lustre/fs1/
projects

The DGX SuperPOD is a collection of nodes and access is managed through the workload management system. The default workload management system is Slurm. Slurm enables submitting and managing jobs. See Workload Management for more details.
