Digital Fingerprinting (DFP)

(Latest Version)

Every account, user, service, and machine has a digital fingerprint that represents the typical actions performed and not performed over a given period of time. Understanding every entity’s day-to-day, moment-by-moment work helps us identify anomalous behavior and uncover potential threats in the environment​.

To construct this digital fingerprint, we will be training unsupervised behavioral models at various granularities, including a generic model for all users in the organization along with fine-grained models for each user to monitor their behavior. These models are continuously updated and retrained over time​, and alerts are triggered when deviations from normality occur for any user​.

The data we will want to use for the training and inference will be any sensitive system that the user interacts with, such as VPN, authentication and cloud services. The digital fingerprinting example included in Morpheus ingests logs from AWS CloudTrail, Azure Active Directory, and Duo Authentication.

The location of these logs could be either local to the machine running Morpheus, a shared file system like NFS, or on a remote store such as Amazon S3.

Defining a New Data Source

Additional data sources and remote stores can easily be added using the Morpheus API. The key to applying DFP to a new data source is through the process of feature selection. Any data source can be fed into DFP after some preprocessing to get a feature vector per log/data point. In order to build a targeted model for each entity (user/service/machine… and so on), the chosen data source needs a field that uniquely identifies the entity we’re trying to model.

Adding a new source for the DFP pipeline requires defining five critical pieces:

  1. The user_id column in the Morpheus config attribute ae.userid_column_name. This can be any column which uniquely identifies the user, account or service being fingerprinted. Examples of possible user_ids could be:

    • A username or fullname (for example, “johndoe” or “Jane Doe”)

    • User’s LDAP ID number

    • A user group (for example, “sales” or “engineering”)

    • Hostname of a machine on the network

    • IP address of a client

    • Name of a service (for example, “DNS”, “Customer DB”, or “SMTP”)

  2. The timestamp column in the Morpheus config attribute ae.timestamp_column_name and ensure it is converted to a datetime column refer to DateTimeColumn.

  3. The model’s features as a list of strings in the Morpheus config attribute ae.feature_columns which should all be available to the pipeline after the DFPPreprocessingStage.

  4. A DataFrameInputSchema for the DFPFileToDataFrameStage stage.

  5. A DataFrameInputSchema for the DFPPreprocessingStage.

The DFP workflow is provided as two separate examples: a simple, “starter” pipeline for new users and a complex, “production” pipeline for full scale deployments. While these two examples both perform the same general tasks, they do so in very different ways. The following is a breakdown of the differences between the two examples.

The “Starter” Example

This example is designed to simplify the number of stages and components and provide a fully contained workflow in a single pipeline.

Key Differences:

  • A single pipeline which performs both training and inference

  • Requires no external services

  • Can be run from the Morpheus CLI

This example is described in more detail in examples/digital_fingerprinting/starter/README.md

The “Production” Example

This example is designed to illustrate a full-scale, production-ready, DFP deployment in Morpheus. It contains all of the necessary components (such as a model store), to allow multiple Morpheus pipelines to communicate at a scale that can handle the workload of an entire company.

Key Differences:

  • Multiple pipelines are specialized to perform either training or inference

  • Requires setting up a model store to allow the training and inference pipelines to communicate

  • Organized into a docker-compose deployment for easy startup

  • Contains a Jupyter notebook service to ease development and debugging

  • Can be deployed to Kubernetes using provided Helm charts

  • Uses many customized stages to maximize performance.

This example is described in examples/digital_fingerprinting/production/README.md as well as the rest of this document.

DFP Features

AWS CloudTrail

Feature

Description

userIdentityaccessKeyId

for example, ACPOSBUM5JG5BOW7B2TR, ABTHWOIIC0L5POZJM2FF, AYI2CM8JC3NCFM4VMMB4

userAgent

for example, Mozilla/5.0 (compatible; MSIE 9.0; Windows NT 10.0; Trident/5.1), Mozilla/5.0 (Linux; Android 4.3.1) AppleWebKit/536.1 (KHTML, like Gecko) Chrome/62.0.822.0 Safari/536.1, Mozilla/5.0 (Macintosh; U; PPC Mac OS X 10 7_0; rv:1.9.4.20) Gecko/2012-06-10 12:09:43 Firefox/3.8

userIdentitysessionContextsessionIssueruserName

for example, role-g

sourceIPAddress

for example, 208.49.113.40, 123.79.131.26, 128.170.173.123

userIdentityaccountId

for example, Account-123456789

errorMessage

for example, The input fails to satisfy the constraints specified by an AWS service., The specified subnet cannot be found in the VPN with which the Client VPN endpoint is associated., Your account is currently blocked. Contact aws-verification@amazon.com if you have questions.

userIdentitytype

for example, FederatedUser

eventName

for example, GetSendQuota, ListTagsForResource, DescribeManagedPrefixLists

userIdentityprincipalId

for example, 39c71b3a-ad54-4c28-916b-3da010b92564, 0baf594e-28c1-46cf-b261-f60b4c4790d1, 7f8a985f-df3b-4c5c-92c0-e8bffd68abbf

errorCode

for example, success, MissingAction, ValidationError

eventSource

for example, lopez-byrd.info, robinson.com, lin.com

userIdentityarn

for example, arn:aws:4a40df8e-c56a-4e6c-acff-f24eebbc4512, arn:aws:573fd2d9-4345-487a-9673-87de888e4e10, arn:aws:c8c23266-13bb-4d89-bce9-a6eef8989214

apiVersion

for example, 1984-11-26, 1990-05-27, 2001-06-09

Azure Active Directory

Feature

Description

appDisplayName

for example, Windows sign in, MS Teams, Office 365​

clientAppUsed

for example, IMAP4, Browser​

deviceDetail.displayName

for example, username-LT​

deviceDetail.browser

for example, EDGE 98.0.xyz, Chrome 98.0.xyz​

deviceDetail.operatingSystem

for example, Linux, IOS 15, Windows 10​

statusfailureReason

for example, external security challenge not satisfied, error validating credentials​

riskEventTypesv2

AzureADThreatIntel, unfamiliarFeatures​

location.countryOrRegion

country or region name​

location.city

city name

Derived Features

Feature

Description

logcount

tracks the number of logs generated by a user within that day (increments with every log)​

locincrement

increments every time we observe a new city (location.city) in a user’s logs within that day​

appincrement

increments every time we observe a new app (appDisplayName) in a user’s logs within that day​

Duo Authentication

Feature

Description

auth_device.name

phone number​

access_device.browser

for example, Edge, Chrome, Chrome Mobile​

access_device.os

for example, Android, Windows​

result

SUCCESS or FAILURE ​

reason

reason for the results, for example, User Cancelled, User Approved, User Mistake, No Response​

access_device.location.city

city name

Derived Features

Feature

Description

logcount

tracks the number of logs generated by a user within that day (increments with every log)​

locincrement

increments every time we observe a new city (location.city) in a user’s logs within that day​

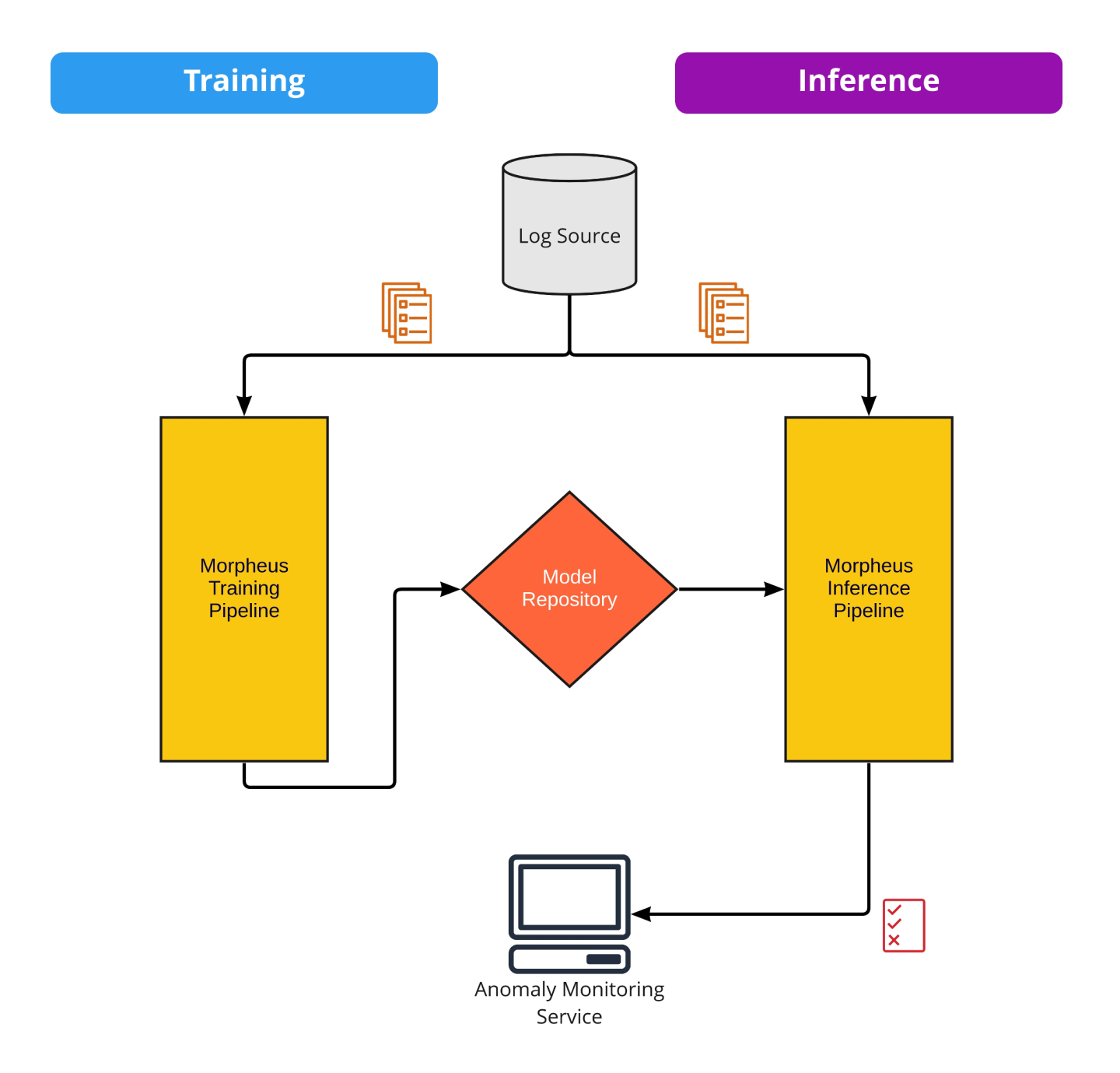

DFP in Morpheus is accomplished via two independent pipelines: training and inference​. The pipelines communicate via a shared model store (MLflow), and both share many common components​, as Morpheus is composed of reusable stages that can be easily mixed and matched.


Training Pipeline

  • Trains user models and uploads to the model store​

  • Capable of training individual user models or a fallback generic model for all users​

Inference Pipeline

  • Downloads user models from the model store​

  • Generates anomaly scores per log​

  • Sends detected anomalies to monitoring services

Monitoring

  • Detected anomalies are published to an S3 bucket, directory or a Kafka topic.

  • Output can be integrated with a monitoring tool.


DFP in Morpheus is built as an application of containerized services​ and can be run in two ways:

  1. Using docker-compose for testing and development​

  2. Using helm charts for production Kubernetes deployment​

Services

The reference architecture is composed of the following services:​

Service

Description

mlflow

MLflow provides a versioned model store​

jupyter

Jupyter Server​ necessary for testing and development of the pipelines​

morpheus_pipeline

Used for executing both training and inference pipelines

Running via docker-compose

System requirements

Note: For GPU Requirements refer to README.md

Building the services

From the root of the Morpheus repo, run:

Copy
Copied!


cd examples/digital_fingerprinting/production docker-compose build

Downloading the example datasets

First, we will need to install s3fs and then run the examples/digital_fingerprinting/fetch_example_data.py script. This will download the example data into the examples/data/dfp dir.

From the Morpheus repo, run:

Copy
Copied!


pip install s3fs python examples/digital_fingerprinting/fetch_example_data.py all

Running the services

Jupyter Server

From the examples/digital_fingerprinting/production dir run:

Copy
Copied!


docker-compose up jupyter

Once the build is complete and the service has started, a message similar to the following should display:

Copy
Copied!


jupyter | To access the server, open this file in a browser: jupyter | file:///root/.local/share/jupyter/runtime/jpserver-7-open.html jupyter | Or copy and paste one of these URLs: jupyter | http://localhost:8888/lab?token=<token> jupyter | or http://127.0.0.1:8888/lab?token=<token>

Copy and paste the URL into a web browser. There are four notebooks included with the DFP example:

  • dfp_azure_training.ipynb - Training pipeline for Azure Active Directory data

  • dfp_azure_inference.ipynb - Inference pipeline for Azure Active Directory data

  • dfp_duo_training.ipynb - Training pipeline for Duo Authentication

  • dfp_duo_inference.ipynb - Inference pipeline for Duo Authentication

Note: The token in the URL is a one-time use token and a new one is generated with each invocation.

Morpheus Pipeline

By default, the morpheus_pipeline will run the training pipeline for Duo data from the examples/digital_fingerprinting/production dir run:

Copy
Copied!


docker-compose up morpheus_pipeline

If instead you want to run a different pipeline from the examples/digital_fingerprinting/production dir, run:

Copy
Copied!


docker-compose run morpheus_pipeline bash

From the prompt within the morpheus_pipeline container, you can run either the dfp_azure_pipeline.py or dfp_duo_pipeline.py pipeline scripts.

Copy
Copied!


python dfp_azure_pipeline.py --help python dfp_duo_pipeline.py --help

Both scripts are capable of running either a training or inference pipeline for their respective data sources. The command-line options for both are the same:

Flag

Type

Description

--train_users

One of: all, generic, individual, none

Indicates whether or not to train per user or a generic model for all users. Selecting none runs the inference pipeline.

--skip_user

TEXT

User IDs to skip. Mutually exclusive with only_user

--only_user

TEXT

Only users specified by this option will be included. Mutually exclusive with skip_user

--start_time

TEXT

The start of the time window, if undefined start_date will be now()-duration

--duration

TEXT

The duration to run starting from start_time [default: 60d]

--cache_dir

TEXT

The location to cache data such as S3 downloads and pre-processed data [env var: DFP_CACHE_DIR; default: ./.cache/dfp]

--log_level

One of: CRITICAL, FATAL, ERROR, WARN, WARNING, INFO, DEBUG

Specify the logging level to use. [default: WARNING]

--sample_rate_s

INTEGER

Minimum time step, in milliseconds, between object logs. [env var: DFP_SAMPLE_RATE_S; default: 0]

-f, --input_file

TEXT

List of files to process. Can specify multiple arguments for multiple files. Also accepts glob (*) wildcards and schema prefixes such as s3://. For example, to make a local cache of an s3 bucket, use filecache::s3://mybucket/*. Refer to fsspec documentation for list of possible options.

--tracking_uri

TEXT

The MLflow tracking URI to connect to the tracking backend. [default: http://localhost:5000]

--help

Show this message and exit.

To run the DFP pipelines with the example datasets within the container, run:

  • Duo Training Pipeline

    Copy
    Copied!


    python dfp_duo_pipeline.py --train_users=all --start_time="2022-08-01" --input_file="/workspace/examples/data/dfp/duo-training-data/*.json"

  • Duo Inference Pipeline

    Copy
    Copied!


    python dfp_duo_pipeline.py --train_users=none --start_time="2022-08-30" --input_file="/workspace/examples/data/dfp/duo-inference-data/*.json"

  • Azure Training Pipeline

    Copy
    Copied!


    python dfp_azure_pipeline.py --train_users=all --start_time="2022-08-01" --input_file="/workspace/examples/data/dfp/azure-training-data/*.json"

  • Azure Inference Pipeline

    Copy
    Copied!


    python dfp_azure_pipeline.py --train_users=none --start_time="2022-08-30" --input_file="/workspace/examples/data/dfp/azure-inference-data/*.json"

Output Fields

The output files will contain those logs from the input dataset for which an anomaly was detected; this is determined by the Z-Score in the mean_abs_z field. By default, any logs with a Z-Score of 2.0 or higher are considered anomalous. Refer to DFPPostprocessingStage.

Most of the fields in the output files generated by running the above examples are input fields or derived from input fields. The additional output fields are:

Field

Type

Description

event_time

TEXT

ISO 8601 formatted date string, the time the anomaly was detected by Morpheus

model_version

TEXT

Name and version of the model used to performed the inference, in the form of <model name>:<version>

max_abs_z

FLOAT

Max Z-Score across all features

mean_abs_z

FLOAT

Average Z-Score across all features

In addition to this, for each input feature the following output fields will exist:

Field

Type

Description

<feature name>_loss

FLOAT

The loss

<feature name>_z_loss

FLOAT

The loss z-score

<feature name>_pred

FLOAT

The predicted value

Refer to DFPInferenceStage for more on these fields.

Optional MLflow Service

Starting either the morpheus_pipeline or the jupyter service, will start the mlflow service in the background. For debugging purposes, it can be helpful to view the logs of the running MLflow service.

From the examples/digital_fingerprinting/production dir, run:

Copy
Copied!


docker-compose up mlflow

Running via Kubernetes​

System requirements

Note: For GPU Requirements refer to README.md

For details on customizing the DFP pipeline refer to Digital Fingerprinting (DFP) Reference.
