MMS4X00-NS 800Gbps Twin-port OSFP 2x400Gb/s Single Mode 2xDR4 100m
MMS4X00-NS 800Gbps Twin-port OSFP 2x400Gb_s Single Mode 2xDR4 100m

Recommended NVIDIA Supplied Crossover Fiber Cables Part Numbers

Single-mode, Straight Crossover Fibers

OPN

4-channel MPO/APC to 4-channel MPO/APC

MFP7E30-N001

1m

MFP7E30-N002

2m

MFP7E30-N003

3m

MFP7E30-N005

5m

MFP7E30-N007

7m

MFP7E30-N010

10m

MFP7E30-N015

15m

MFP7E30-N020

20m

MFP7E30-N030

30m

MFP7E30-N050

50m

MFP7E30-N060

60m

MFP7E30-N070

70m

MFP7E30-N100

100m

Note

Lengths beyond 100-meters is not offered but available from third-party suppliers

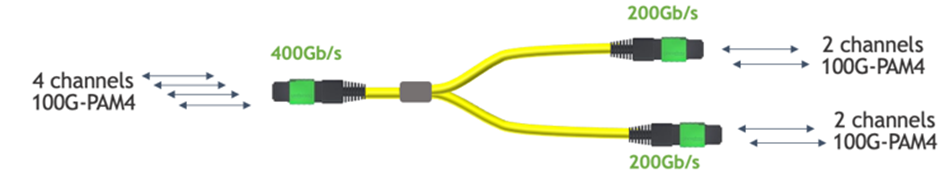

Single-mode, 1:2 Splitter Crossover Fibers

OPN

4-channel MPO/APC to Two 2-channel MPO/APC

MFP7E40-N003

3m

MFP7E40-N005

5m

MFP7E40-N007

7m

MFP7E40-N010

10m

MFP7E40-N015

15m

MFP7E40-N020

20m

MFP7E40-N030

30m

MFP7E40-N050

50m
