Introduction
NVIDIA Networking is a leading supplier of end-to-end Ethernet and InfiniBand intelligent interconnect solutions and services for servers, storage, and hyper-converged infrastructure. NVIDIA intelligent interconnect solutions increase data center efficiency by providing the highest throughput and lowest latency, delivering data faster to applications and unlocking system performance. NVIDIA offers a choice of high-performance solutions: network and multicore processors, network adapters, switches, cables, software and silicon, that accelerate application runtime and maximize business results for a wide range of markets including high performance computing, enterprise data centers, Web 2.0, cloud, storage, network security, telecom and financial services. More information is available at: https://www.nvidia.com/en-us/networking/.
This reference guide lists available joint solutions by Lenovo and NVIDIA.
Switches, Switch Accessories and Flex Systems Products
|
Product |
Description |
RelatedNVIDIA PN |
Lenovo MTM/OPN |
FC |
Reference |
|

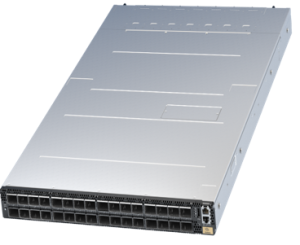

Top of Rack IB Switches (NDR)
|
NVIDIA QM9700 64-Port Managed Quantum NDR InfiniBand Switch (oPSE) |
MQM9700-NS2R |
0724HEB |
BP62 |
|
|
NVIDIA QM9700 64-Port Managed Quantum NDR InfiniBand Switch (PSE) |
MQM9700-NS2F |
0724HEC |
BP63 |
||
|
NVIDIA QM9790 64-Port Unmanaged Quantum NDR InfiniBand Switch (oPSE) |
MQM9790-NS2R |
0724HED |
BP64 |
||
|
NVIDIA QM9790 64-Port Unmanaged Quantum NDR InfiniBand Switch (PSE) |
MQM9790-NS2F |
0724HEE |
BP65 |
||
|
NVIDIA QM97xx Enterprise RMK for Recessed Mounting |
MTEF-KIT-I-TL |
4XF7A81998 |
BP66 |
||
|
NVIDIA QM97xx Enterprise RMK w/Air Duct |
N/A * |
4XF7A83342 |
BRET |
||
|
Top of Rack IB Switches (HDR)
|
NVIDIA QM8700 HDR IB Managed Switch (PSE) (Order AirDuct Separately) |
MQM8700-HS2F |
0724HD7 |
B4RH |
|
|
NVIDIA QM8700 HDR IB Managed Switch (oPSE) (Order RMK Separately) |
MQM8700-HS2R |
0724HD8 |
B4RJ |
||
|
NVIDIA QM8790 HDR IB Unmanaged Switch (PSE) (Order AirDuct Separately) |
MQM8790-HS2F |
0724HD9 |
B4RK |
||
|
NVIDIA QM8790 HDR IB Unmanaged Switch (oPSE) (Order RMK Separately) |
MQM8790-HS2R |
0724HEA |
B4RL |
||
|
NVIDIA QM87xx Enterprise RMK w/Air Duct (Required for PSE HDR Switches) |
N/A * |
4M27A16331 |
B5RV |
||
|
NVIDIA QM87xx Enterprise RMK (Required for oPSE HDR Switches) |
MTEF-KIT-F |
4M27A16332 |
B5RW |
||
|
Top of Rack IB Switches (EDR)
|
NVIDIA SB7800 EDR Switch-IB2 Managed Switch (PSE) |
MSB7800-ES2F |
0724HD3 |
AUPK |
|
|
NVIDIA SB7800 EDR Switch-IB2 Managed Switch (oPSE) |
MSB7800-ES2R |
0724HD4 |
AUPL |
||
|
NVIDIA SB7890 EDR Switch-IB2 Unmanaged Switch (PSE) |
MSB7890-ES2F |
0724HD5 |
AUPM |
||
|
NVIDIA SB7890 EDR Switch-IB2 Unmanaged Switch (oPSE) |
MSB7890-ES2R |
0724HD6 |
AUPN |
||
|
Top of Rack EN Switches (1GbT)
|
NVIDIA SN2201 1GbE Managed Switch with Cumulus (PSE) |
MSN2201-CB2FC |
7D5FCTOFWW |
BPC7 |
|
|
NVIDIA SN2201 Enterprise RMK w/Air Duct (PSE) |
MTEF-KIT-ADCT-A |
4XF7A85363 |
BSNB |
||
|
NVIDIA SN2201 1GbE Managed Switch with Cumulus (oPSE) |
MSN2201-CB2RC |
7D5FCTOGWW |
BPC8 |
||
|
NVIDIA SN2201 RMK (oPSE) |
MTEF-KIT-M-TL |
4XF7A85362 |
BSNA |
||
|
NVIDIA AS4610-54T 1GbE Managed Switch with Cumulus (PSE) |
4610-54T-O-AC-B |
7D5FCTO1WW |
BE2J |
||
|
NVIDIA AS46xx Enterprise RMK w/Air Duct |
N/A * |
4M27A68444 |
BEGG |
||
|
NVIDIA AS4610-54T 1GbE Managed Switch with Cumulus (oPSE) |
4610-54T-O-AC-F-V1 |
7D5FCTO2WW |
BE2K |
||
|
NVIDIA AS46xx Enterprise RMK |
RKIT-85-4610 |
4M27A68443 |
BEGF |
||
|
Top of Rack EN Switches (SN2010)
|
NVIDIA SN2010 25GbE Managed Switch with Cumulus (PSE) |
MSN2010-CB2FC |
7D5FCTO3WW |
BE2L |
|
|
NVIDIA SN2010 25GbE Managed Switch with Cumulus (oPSE) |
MSN2010-CB2RC |
7D5FCTO4WW |
BE2M |
||
|
NVIDIA SN2xxx Enterprise Dual RMK |
MTEF-KIT-D |
4M27A68445 |
BEGH |
||
|
Top of Rack EN Switches (SN2410)
|
NVIDIA SN2410B 10GbE Managed Switch with Cumulus (PSE) |
MSN2410-BB2FC |
7D5FCTO5WW |
BE2N |
|
|
NVIDIA SN2410 25GbE Managed Switch with Cumulus (PSE) |
MSN2410-CB2FC |
7D5FCTO7WW |
BE2Q |
||
|
NVIDIA SN24xx 1U Enterprise RMK w/Air Duct |
N/A * |
4M27A68447 |
BEGK |
||
|
NVIDIA SN24xx 2U Enterprise RMK w/Air Duct |
N/A * |
4M27A68448 |
BEGL |
||
|
NVIDIA SN2410B 10GbE Managed Switch with Cumulus (oPSE) |
MSN2410-BB2RC |
7D5FCTO6WW |
BE2P |
||
|
NVIDIA SN2410 25GbE Managed Switch with Cumulus (oPSE) |
MSN2410-CB2RC |
7D5FCTO8WW |
BE2R |
||
|
NVIDIA SN24xx Enterprise RMK |
MTEF-KIT-SP |
4M27A68446 |
BEGJ |
||
|
Top of Rack EN Switches (SN3420)
|
NVIDIA SN3420 25GbE Managed Switch with Cumulus (PSE) |
MSN3420-CB2FC |
7D5FCTOKWW |
||
|
NVIDIA SN24xx 1U Enterprise RMK w/Air Duct |
N/A * |
4M27A68447 |
BEGK |
||
|
NVIDIA SN3420 25GbE Managed Switch with Cumulus (oPSE) |
MSN3420-CB2RC |
7D5FCTOLWW |
|||
|
NVIDIA SN24xx Enterprise RMK |
MTEF-KIT-SP |
4M27A68446 |
BEGJ |
||
|
Top of Rack EN Switches (SN3700)
|
NVIDIA SN3700C 100GbE Managed Switch with Cumulus (PSE) |
MSN3700-CS2FC |
7D5FCTO9WW |
BE2S |
|
|
NVIDIA SN3700 200GbE Managed Switch with Cumulus (PSE) |
MSN3700-VS2FC |
7D5FCTOBWW |
BJ5T |
||
|
NVIDIA QM87xx Enterprise RMK w/Air Duct (PSE) |
N/A * |
4M27A16331 |
B5RV |
||
|
NVIDIA SN3700C 100GbE Managed Switch with Cumulus (oPSE) |
MSN3700-CS2RC |
7D5FCTOAWW |
BE2T |
||
|
NVIDIA SN3700 200GbE Managed Switch with Cumulus (oPSE) |
MSN3700-VS2RC |
7D5FCTOCWW |
BJ5U |
||
|
NVIDIA QM87xx Enterprise RMK (oPSE) |
MTEF-KIT-F |
4M27A16332 |
B5RW |
||
|
Top of Rack EN Switches (SN4600) |
NVIDIA SN4600 200GbE Managed Switch with Cumulus (PSE) |
MSN4600-VS2FC |
7D5FCTOHWW |
BRAY |
|
|
NVIDIA 2U Enterprise RMK w/Air Duct |
N/A * |
4XF7A85050 |
BS2K |
||
|
NVIDIA SN4600 200GbE Managed Switch with Cumulus (oPSE) |
MSN4600-VS2RC |
7D5FCTOJWW |
BRAZ |
||
|
NVIDIA QM87xx Enterprise RMK (oPSE) |
MTEF-KIT-J |
4XF7A85361 |
BSN9 |
||
|
Notes: |
|||||

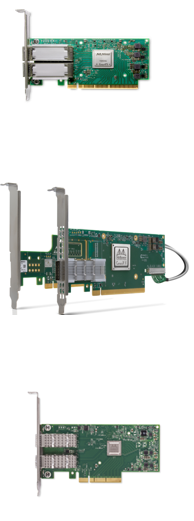

Adapters
|
Product |
Description |
RelatedNVIDIA PN |
Lenovo MTM/OPN |
FC |
Reference |
|
OCP Adapters
|
ThinkSystem NVIDIA ConnectX-6 Lx 10/25GbE SFP28 2-port Internal Lock OCP Ethernet Adapter |
MCX631432AS-ADAI |
4XC7A79796 |
BMHD |
|
|
ThinkSystem NVIDIA ConnectX-6 Lx 10/25GbE SFP28 2-Port OCP Ethernet Adapter |
MCX631432AS-ADAB |
4XC7A62582 |
BE4T |
||
|
ThinkSystem NVIDIA ConnectX-4 Lx 10/25GbE SFP28 2-port OCP Ethernet Adapter |
MCX4621A-ACAB |
4XC7A08246 |
B5T2 |
||
|
Standard PCIe Adapters
|
ThinkSystem NVIDIA BlueField-3 VPI QSFP112 2P 200G PCIe Gen5 x16 |
900-9D3B6-00CV-AA0 |
BVBG |
||
|
ThinkSystem NVIDIA BlueField-2 25GbE SFP56 2-Port PCIe Ethernet DPU w/BMC & Crypto |
MBF2H532C-AECOT |
CTO Only |
BRPK |
||
|
ThinkSystem Nvidia ConnectX-7 NDR OSFP400 1-port PCIe Gen5 x16 InfiniBand Adapter |
MCX75510AAS-NEAT |
4XC7A80289 |
BQ1N |
||
|
ThinkSystem Nvidia ConnectX-7 NDR200/HDR QSFP112 2-port PCIe Gen5 x16 InfiniBand Adapter |
MCX755106AS-HEAT |
4XC7A81883 |
BQBN |
||
|
ThinkSystem NVIDIA ConnectX-6 Dx 100GbE QSFP56 2-port PCIe 4 Ethernet Adapter |
MCX623106AN-CDAT |
4XC7A08248 |
B8PP |
||
|
ThinkSystem NVIDIA ConnectX-6 Lx 10/25GbE SFP28 2-Port PCIe Ethernet Adapter |
MCX631102AS-ADAT |
4XC7A62580 |
BE4U |
||
|
ThinkSystem NVIDIA ConnectX-6 HDR100/100GbE QSFP56 1-port PCIe VPI Adapter |
MCX653105A-ECAT |
4C57A14177 |
B4R9 |
||
|
ThinkSystem NVIDIA ConnectX-6 HDR100/100GbE QSFP56 2-port PCIe VPI Adapter |
MCX653106A-ECAT |
4C57A14178 |
B4RA |
||
|
ThinkSystem NVIDIA ConnectX-6 HDR/200GbE QSFP56 1-port PCIe 4 VPI Adapter |
MCX653105A-HDAT |
4C57A15326 |
B4RC |
||
|
MTMK0012 |
4C57A14179 |
B4RB |
|||
|
ThinkSystem NVIDIA ConnectX-5 EN 10/25GbE SFP28 2-port PCIe Ethernet Adapter |
MCX512A-ACAT |
4XC7A62574 |
BEAP |
||
|
ThinkSystem NVIDIA ConnectX-5 Ex 25/40GbE 2-port Low-Latency Adapter |
MCX516A-BDAT |
4XC7A08229 |
B31C |
||
|
ThinkSystem NVIDIA Innova-2 ConnectX-5 FPGA 25GbE 2-port PCIe Adapter |
MNV303212A-ADLT |
4XC7A16683 |
B5XZ |
||
|
ThinkSystem NVIDIA ConnectX-4 Lx 10/25GbE SFP28 2-port PCIe Ethernet Adapter |
MCX4121A-ACAT |
4XC7A08249 |
B653 |
||
|
Lenovo ConnectX-4 PCIe 100GbE / EDR IB 2 Port QSFP28 VPI Adapter by NVIDIA |
MCX456A-ECAT |
00MM960 |
ATRP |
||
|
Lenovo ThinkSystem ConnectX-4 PCIe FDR 2-Port QSFP VPI Adapter by NVIDIA |
MCX454A-FCAT |
7ZT7A00500 |
AUVG |
||
|
NVIDIA ConnectX-4 Lx 2x25GbE SFP28 Adapter |
MCX4121A-ACAT |
01GR250 |
AUAJ |
||
|
NVIDIA ConnectX-4 Lx 1x40GbE QSFP+ Adapter |
MCX4131A-BCAT |
00MM950 |
ATRN |
||
|

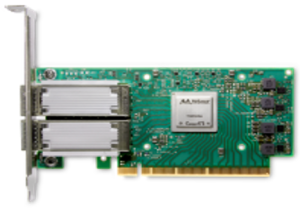

Scalable Infrastructure Adapters
|
ThinkSystem NVIDIA ConnectX-6 DX 200GbE QSFP56 1-port PCIe Ethernet Adapter |
MCX623105AN-VDAT |
4XC7A83773 |
BQX9 |
|
|
NVIDIA ConnectX-5 EDR IB/100GbE VPI Single-port x16 PCIe 3.0 HCA |
MCX555A-ECAT |
4C57A08979 |
B0RL |
||
|
NVIDIA ConnectX-5 EDR IB/100GbE VPI Dual-port x16 PCIe 3.0 HCA |
MCX556A-ECAT |
4C57A08980 |
B0RM |
||
|
Lenovo ThinkSystem SharedIO ConnectX-5 adapter (2-port) |
MCX556M-ECAT-S25 |
SBB7A09823 |
B3RZ |
||
|
Water-Cooled Adapters
|
ThinkSystem Nvidia ConnectX-7 NDR OSFP400 1-port PCIe Gen5 x16 InfiniBand Adapter (SharedIO) DWC |
MCX75510AAS-NEAT * |
CTO Only |
BKSP |
|
|
ThinkSystem Nvidia ConnectX-7 NDR OSFP400 1-port PCIe Gen5 x16 InfiniBand Adapter DWC (Socket-Direct) |
MCX75510AAS-NEAT * |
CTO Only |
BKSN |
||
|
ThinkSystem Nvidia ConnectX-7 NDR200/HDR QSFP112 2-port PCIe Gen5 x16 InfiniBand Adapter (SharedIO) DWC |
MCX755106AS-HEAT * |
CTO Only |
BKSL |
||
|
ThinkSystem NVIDIA ConnectX-6 HDR/200GbE QSFP56 1-port PCIe 4 VPI Adapter (SharedIO) DWC |
MCX654105A-HCAT * |
CTO Only |
B951 |
||
|
ThinkSystem NVIDIA ConnectX-6 HDR/200GbE QSFP56 1-port PCIe 4 VPI Adapter DWC |
MCX653105A-HDAT * |
CTO Only |
B952 |
||
|
ThinkSystem NVIDIA ConnectX-6 HDR/200GbE QSFP56 1-port PCIe VPI Adapter SharedIO SD650 |
MCX654105A-HCAT * |
CTO Only |
B4RG |
||
|
NVIDIA ConnectX-5 EDR Single port PCIe Adapter WCT TLA |
MCX555A-ECAT * |
SBB7A07155 |
B1C2 |
||
|
Flex System
|
ThinkSystem NVIDIA ConnectX-4 Lx 25Gb 2-port Mezz adapter |
ConnectX-4 Lx Flex Mezz * |
4XC7A08315 |
BHBX |
|
|
Adapter Accessories |
ThinkSystem Nvidia NDR PCIe Gen4 x16 InfiniBand Passive Aux Kit |
MTMK9100-T25 |
4C57A80293 |
BNDQ |
|
|
NVIDIA HDR Auxiliary x16 PCIe 3.0 Connection Card Kit GBM |
MTMK0012 |
4C57A14179 |
B4RB |
||
|
NVIDIA Low-profile dual-port QSFP PCIe bracket (ConnectX-6Dx) |
MEC016919 |
BDYY |
|||
|
NVIDIA Low-profile dual-port SFP PCIe bracket (ConnectX-6Lx) |
MEC017962 |
||||
|
NVIDIA Low-profile Single-port HDR100 PCIe Bracket (ConnectX-6) |
MEC017512 |
B4QN |
|||
|
NVIDIA Low-profile dual-port HDR100 PCIe Bracket (ConnectX-6) |
MEC017175 |
B4QP |
|||
|
NVIDIA Low-profile Single-port HDR PCIe Bracket (ConnectX-6) |
MTM016921 |
B6YZ |
|||
|
NVIDIA Low-profile Dual-port SFP28 PCIe Bracket (Innova-2) |
MEC016038 |
B5KC |
|||
|
NVIDIA Low-profile Single-port QSFP28 PCIe Bracket (ConnectX-4/5) |
MTM010192 |
ATRQ |
|||
|
NVIDIA Low-profile dual-port QSFP28 PCIe Bracket (ConnectX-4/5) |
MTM010153 |
ATRR |
|||
|
NVIDIA Low-profile dual-port SFP28 PCIe Bracket (ConnectX-4 Lx) |
MTM010642 |
AUAK |
|||
|
Notes: * Custom product for Lenovo, closest NVIDIA equivalent PN shown. |
|||||
InfiniBand Interconnect Products
|
Product |
Description |
RelatedNVIDIA PN |
Lenovo MTM/OPN |
FC |
Reference |
|
NDR MM Optical Transceivers
|
ThinkSystem NDR400 QSFP112 IB Multi Mode Solo-Transceiver |
MMA1Z00-NS400 |
4TC7A81831 |
BQJZ |
|
|
ThinkSystem NDRx2 OSFP800 IB Multi Mode Twin-Transceiver |
MMA4Z00-NS |
4TC7A81740 |
BQJD |
||
|
ThinkSystem NDR OSFP400 IB Multi Mode Solo-Transceiver |
MMA4Z00-NS400 |
4TC7A81826 |
BQJT |
||
|
ThinkSystem NDRx2 OSFP800 IB Multi Mode Twin-Transceiver Flat Top |
MMA4Z00-NS-FLT |
4TC7A83365 |
BQMJ |
||
|
NDR MM Optical Fiber |
Lenovo 3M NVIDIA NDR Multi Mode MPO12 APC Optical Cable |
MFP7E10-N003 |
4X97A81748 |
BQJN |
|
|
Lenovo 5M NVIDIA NDR Multi Mode MPO12 APC Optical Cable |
MFP7E10-N005 |
4X97A81749 |
BQJP |
||
|
Lenovo 7M NVIDIA NDR Multi Mode MPO12 APC Optical Cable |
MFP7E10-N007 |
4X97A81750 |
BQJQ |
||
|
Lenovo 10M NVIDIA NDR Multi Mode MPO12 APC Optical Cable |
MFP7E10-N010 |
4X97A81751 |
BQJR |
||
|
Lenovo 20M NVIDIA NDR Multi Mode MPO12 APC Optical Cable |
MFP7E10-N020 |
4X97A81752 |
BQJS |
||
|
Lenovo 30M NVIDIA NDR Multi Mode MPO12 APC Optical Cable |
MFP7E10-N040 |
4X97A85349 |
BSN6 |
||
|
Lenovo 3M NVIDIA NDR to 2x NDR200 Multi Mode MPO12 APC Optical Cable |
MFP7E20-N003 |
4X97A81836 |
BQK4 |
||
|
Lenovo 5M NVIDIA NDR to 2x NDR200 Multi Mode MPO12 APC Optical Cable |
MFP7E20-N005 |
4X97A81837 |
BQK5 |
||
|
Lenovo 7M NVIDIA NDR to 2x NDR200 Multi Mode MPO12 APC Optical Cable |
MFP7E20-N007 |
4X97A81838 |
BQK6 |
||
|
Lenovo 10M NVIDIA NDR to 2x NDR200 Multi Mode MPO12 APC Optical Cable |
MFP7E20-N010 |
4X97A81839 |
BQK7 |
||
|
Lenovo 20M NVIDIA NDR to 2x NDR200 Multi Mode MPO12 APC Optical Cable |
MFP7E20-N020 |
4X97A81840 |
BQK8 |
||
|
NDRx2 Active Copper Cables (ACC)
|
Lenovo 3M NVIDIA NDRx2 OSFP800 to NDRx2 OSFP800 Active Copper Cable |
MCA4J80-N003 |
4X97A81747 |
BQJK |
|
|
Lenovo 5M NVIDIA NDRx2 OSFP800 to NDRx2 OSFP800 Active Copper Cable |
MCA4J80-N005 |
4X97A82960 |
BQJL |
||
|
NDRx2 Passive Copper Cables (DAC)
|
Lenovo 0.5M NVIDIA NDRx2 OSFP800 to NDRx2 OSFP800 Passive Copper Cable |
MCP4Y10-N00A |
4X97A81744 |
BQJF |
|
|
Lenovo 1M NVIDIA NDRx2 OSFP800 to NDRx2 OSFP800 Passive Copper Cable |
MCP4Y10-N001 |
4X97A82957 |
BQJG |
||
|
Lenovo 1.5M NVIDIA NDRx2 OSFP800 to NDRx2 OSFP800 Passive Copper Cable |
MCP4Y10-N01A |
4X97A82958 |
BQJH |
||
|
Lenovo 2M NVIDIA NDRx2 OSFP800 to NDRx2 OSFP800 Passive Copper Cable |
MCP4Y10-N002 |
4X97A82959 |
BQJJ |
||
|
NDRx2 to 2xNDR Passive Copper Splitter
|
Lenovo 1M NVIDIA NDRx2 OSFP800 to 2x NDR OSFP400 Passive Copper Splitter Cable |
MCP7Y00-N001 |
4X97A81827 |
BQJV |
|
|
Lenovo 2M NVIDIA NDRx2 OSFP800 to 2x NDR OSFP400 Passive Copper Splitter Cable |
MCP7Y00-N002 |
4X97A81829 |
BQJX |
||
|
Lenovo 3M NVIDIA NDRx2 OSFP800 to 2x NDR OSFP400 Passive Copper Splitter Cable |
MCP7Y00-N003 |
4X97A81830 |
BQJY |
||
|
Lenovo 1.5M NVIDIA NDRx2 OSFP800 to 2x NDR OSFP400 Passive Copper Splitter Cable |
MCP7Y00-N01A |
4X97A81828 |
BQJW |
||
|
NDRx2 to 4xNDR200 Passive |
Lenovo 1M NVIDIA NDRx2 OSFP800 to 4x NDR200 QSFP112 Passive Copper Splitter Cable |
MCP7Y40-N001 |
4X97A81832 |
BQK0 |
|
|
Lenovo 1.5M NVIDIA NDRx2 OSFP800 to 4x NDR200 QSFP112 Passive Copper Splitter Cable |
MCP7Y40-N01A |
4X97A81833 |
BQK1 |
||
|
Lenovo 2M NVIDIA NDRx2 OSFP800 to 4x NDR200 QSFP112 Passive Copper Splitter Cable |
MCP7Y40-N002 |
4X97A81834 |
BQK2 |
||
|
Lenovo 3M NVIDIA NDRx2 OSFP800 to 4x NDR200 QSFP112 Passive Copper Splitter Cable |
MCP7Y40-N003 |
4X97A81835 |
BQK3 |
||
|
NDRx2 to 2xHDR
|
Lenovo 1M NVIDIA NDRx2 OSFP800 to 2x HDR QSFP56 Passive Copper Splitter Cable |
MCP7Y60-H001 |
4X97A81841 |
BQK9 |
|
|
Lenovo 2M NVIDIA NDRx2 OSFP800 to 2x HDR QSFP56 Passive Copper Splitter Cable |
MCP7Y60-H002 |
4X97A81843 |
BQKB |
||
|
Lenovo 1.5M NVIDIA NDRx2 OSFP800 to 2x HDR QSFP56 Passive Copper Splitter Cable |
MCP7Y60-H01A |
4X97A81842 |
BQKA |
||
|
NDRx2 to 4xHDR100
|
Lenovo 1M NVIDIA NDRx2 OSFP800 to 4x HDR100 QSFP56 Passive Copper Splitter Cable |
MCP7Y70-H001 |
4X97A81846 |
BQKE |
|
|
Lenovo 1.5M NVIDIA NDRx2 OSFP800 to 4x HDR100 QSFP56 Passive Copper Splitter Cable |
MCP7Y70-H01A |
4X97A81847 |
BQKF |
||
|
Lenovo 2M NVIDIA NDRx2 OSFP800 to 4x HDR100 QSFP56 Passive Copper Splitter Cable |
MCP7Y70-H002 |
4X97A81848 |
BQKG |
||
|
NDRx2 to 2xHDR
|
Lenovo 5M NVIDIA NDRx2 OSFP800 to 2x HDR QSFP56 Active Optical Splitter Cable |
MFA7U10-H005 |
4X97A81844 |
BQKC |
|
|
Lenovo 10M NVIDIA NDRx2 OSFP800 to 2x HDR QSFP56 Active Optical Splitter Cable |
MFA7U10-H010 |
4X97A81845 |
BQKD |
||
|
Passive HDR Cables (DAC)
|
0.5m NVIDIA HDR IB Passive Copper QSFP56 Cable |
MCP1650-H00AE30 |
4Z57A14182 |
B4QQ |
|
|
1m NVIDIA HDR IB Passive Copper QSFP56 Cable |
MCP1650-H001E30 |
4Z57A14183 |
B4QR |
||
|
1.5m NVIDIA HDR IB Passive Copper QSFP56 Cable |
MCP1650-H01AE30 |
4Z57A14184 |
B4QS |
||
|
2m NVIDIA HDR IB Passive Copper QSFP56 Cable |
MCP1650-H002E26 |
4Z57A14185 |
B4QT |
||
|
Active HDR Copper Cables |
NVIDIA active copper cable, IB HDR, up to 200Gb/s, QSFP56, 3m, yellow pulltab |
MCA1J00-H003E |
4X97A12610 |
BCQW |
|
|
NVIDIA active copper cable, IB HDR, up to 200Gb/s, QSFP56, 4m, yellow pulltab |
MCA1J00-H004E |
4X97A12611 |
BCQX |
||
|
Optical HDR Cables (AOC) Rev2 Lower Latency
|
3m NVIDIA HDR IB Active Optical QSFP56 Low Latency Cable |
MFS1S00-H003-LL |
4Z57A72553 |
BFXR |
|
|
5m NVIDIA HDR IB Active Optical QSFP56 Low Latency Cable |
MFS1S00-H005-LL |
4Z57A72554 |
BFXS |
||
|
10m NVIDIA HDR IB Active Optical QSFP56 Low Latency Cable |
MFS1S00-H010-LL |
4Z57A72555 |
BFXT |
||
|
15m NVIDIA HDR IB Active Optical QSFP56 Low Latency Cable |
MFS1S00-H015-LL |
4Z57A72556 |
BFXU |
||
|
20m NVIDIA HDR IB Active Optical QSFP56 Low Latency Cable |
MFS1S00-H020-LL |
4Z57A72557 |
BFXV |
||
|
30m NVIDIA HDR IB Active Optical QSFP56 Low Latency Cable |
MFS1S00-H030-LL |
4Z57A72558 |
BFXW |
||
|
Optical HDR Cables (AOC)
|
3m NVIDIA HDR IB Active Optical QSFP56 Cable |
MFS1S00-H003E |
4Z57A14188 |
B4QW |
|
|
5m NVIDIA HDR IB Active Optical QSFP56 Cable |
MFS1S00-H005E |
4Z57A14189 |
B4QX |
||
|
10m NVIDIA HDR IB Active Optical QSFP56 Cable |
MFS1S00-H010E |
4Z57A14190 |
B4QY |
||
|
15m NVIDIA HDR IB Active Optical QSFP56 Cable |
MFS1S00-H015E |
4Z57A14191 |
B4QZ |
||
|
20m NVIDIA HDR IB Active Optical QSFP56 Cable |
MFS1S00-H020E |
4Z57A14192 |
B4R0 |
||
|
30m NVIDIA HDR IB Active Optical QSFP56 Cable |
MFS1S00-H030E |
4Z57A16016 |
B68P |
||
|
50m NVIDIA HDR IB Active Optical QSFP56 Cable |
MFS1S00-H050E |
4Z57A16017 |
B68N |
||
|
100m NVIDIA HDR IB Active Optical QSFP56 Cable |
MFS1S00-H100E |
4Z57A16018 |
B68M |
||
|
Passive HDR to 2x HDR100 Splitter Cables (DAC) |
1m NVIDIA HDR IB Passive Copper Splitter QSFP56 Cable |
MCP7H50-H001R30 |
4Z57A14193 |
B4R1 |
|
|
1.5m NVIDIA HDR IB Passive Copper Splitter QSFP56 Cable |
MCP7H50-H01AR30 |
4Z57A14194 |
B4R2 |
||
|
2m NVIDIA HDR IB Passive Copper Splitter QSFP56 Cable |
MCP7H50-H002R26 |
4Z57A11477 |
B68L |
||
|
Optical HDR to 2x HDR100 Splitter Cables (AOC) Rev2
|
3m NVIDIA HDR IB Active Optical Splitter QSFP56 Low Latency Cable |
MFS1S50-H003E-LL |
4Z57A72561 |
BFXZ |
|
|
5m NVIDIA HDR IB Active Optical Splitter QSFP56 Low Latency Cable |
MFS1S50-H005E-LL |
4Z57A72562 |
BFY0 |
||
|
10m NVIDIA HDR IB Active Optical Splitter QSFP56 Low Latency Cable |
MFS1S50-H010E-LL |
4Z57A72563 |
BFY1 |
||
|
15m NVIDIA HDR IB Active Optical Splitter QSFP56 Low Latency Cable |
MFS1S50-H015E-LL |
4Z57A72564 |
BFY2 |
||
|
20m NVIDIA HDR IB Active Optical Splitter QSFP56 Low Latency Cable |
MFS1S50-H020E-LL |
4Z57A72565 |
BFY3 |
||
|
30m NVIDIA HDR IB Active Optical Splitter QSFP56 Low Latency Cable |
MFS1S50-H030E-LL |
4Z57A72566 |
BFY4 |
||
|
Optical HDR to 2x HDR100 Splitter Cables (AOC)
|
3m NVIDIA HDR IB Active Optical Splitter QSFP56 Cable |
MFS1S50-H003E |
4Z57A14196 |
B4R4 |
|
|
5m NVIDIA HDR IB Active Optical Splitter QSFP56 Cable |
MFS1S50-H005E |
4Z57A14197 |
B4R5 |
||
|
10m NVIDIA HDR IB Active Optical Splitter QSFP56 Cable |
MFS1S50-H010E |
4Z57A14198 |
B4R6 |
||
|
15m NVIDIA HDR IB Active Optical Splitter QSFP56 Cable |
MFS1S50-H015E |
4Z57A14199 |
B4R7 |
||
|
20m NVIDIA HDR IB Active Optical Splitter QSFP56 Cable |
MFS1S50-H020E |
4Z57A14214 |
B4R8 |
||
|
30m NVIDIA HDR IB Active Optical Splitter QSFP56 Cable |
MFS1S50-H030E |
4Z57A11490 |
B68K |
||
|
Passive EDR Cables (DAC)
|
0.5m NVIDIA EDR IB Passive Copper QSFP28 Cable * |
MCP1600-E00A |
00MP516 |
ASQT |
|
|
0.75m NVIDIA EDR IB Passive Copper QSFP28 Cable * |
MCP1600-Exxx * |
00MP520 |
ASQU |
||
|
1m NVIDIA EDR IB Passive Copper QSFP28 Cable * |
MCP1600-E001 |
00MP524 |
ASQV |
||
|
1.25m NVIDIA EDR IB Passive Copper QSFP28 Cable * |
MCP1600-Exxx * |
00MP528 |
ASQW |
||
|
1.5m NVIDIA EDR IB Passive Copper QSFP28 Cable * |
MCP1600-E0A1 |
00MP532 |
ASQX |
||
|
2m NVIDIA EDR IB Passive Copper QSFP28 Cable * |
MCP1600-E002 |
00MP536 |
ASQY |
||
|
3m NVIDIA EDR IB Passive Copper QSFP28 Cable * |
MCP1600-E003 |
00MP560 |
ASRM |
||
|
Optical EDR Cables (AOC)
|
3m NVIDIA EDR IB Optical QSFP28 Cable * |
MFA1A00-E003 |
00MP563 |
ASRN |
|
|
5m NVIDIA EDR IB Optical QSFP28 Cable * |
MFA1A00-E005 |
00MP540 |
ASQZ |
||
|
10m NVIDIA EDR IB Optical QSFP28 Cable * |
MFA1A00-E010 |
00MP544 |
ASR0 |
||
|
15m NVIDIA EDR IB Optical QSFP28 Cable * |
MFA1A00-E015 |
00MP548 |
ASR1 |
||
|
20m NVIDIA EDR IB Optical QSFP28 Cable * |
MFA1A00-E020 |
00MP552 |
ASR2 |
||
|
30m NVIDIA EDR IB Optical QSFP28 Cable * |
MFA1A00-E030 |
00MP556 |
ASR3 |
||
|
50m NVIDIA EDR IB Optical QSFP28 Cable * |
MFA1A00-E050 |
00MP566 |
ASRP |
||
|
Notes: * Custom product for Lenovo, closest NVIDIA equivalent PN shown. |
|||||
Ethernet Interconnect Products
|
Product |
Description |
RelatedNVIDIA PN |
Lenovo MTM/OPN |
FC |
Reference |
|
EN Optical Transceivers
|
Lenovo 25GBase-SR SFP28 Transceiver (LC-LC, 850nm, upto 100m) |
MMA2P00-AS |
7G17A03537 |
AV1B |
|
|
Lenovo 25GBase-LR SFP28 Transceiver (LC-LC, 1310nm, upto 10km) |
MMA2L20-AR |
7G17A03538 |
AV1C |
||
|
100GBase-SR4 QSFP28 transceiver (MPO, 850nm, upto 100m) |
MMA1B00-C100D |
7G17A03539 |
AV1D |
||
|
100GBase-LR4 QSFP28 transceiver (LC-LC, 1310nm, upto 10km) |
MMA1L10-CR |
7G17A03540 |
AV1E |
||
|
Optical 25GbE Cables (AOC)
|
Lenovo 3m 25G SFP28 Active Optical Cable |
MFA2P10-A003 |
7Z57A03541 |
AV1F |
|
|
Lenovo 5m 25G SFP28 Active Optical Cable |
MFA2P10-A005 |
7Z57A03542 |
AV1G |
||
|
Lenovo 10m 25G SFP28 Active Optical Cable |
MFA2P10-A010 |
7Z57A03543 |
AV1H |
||
|
Lenovo 15m 25G SFP28 Active Optical Cable |
MFA2P10-A015 |
7Z57A03544 |
AV1J |
||
|
Lenovo 20m 25G SFP28 Active Optical Cable |
MFA2P10-A020 |
7Z57A03545 |
AV1K |
||
|
Optical 100GbE Cables (AOC)
|
Lenovo 1m 100G SFP28 Active Optical Cable |
MFA1A00-C001 |
4Z57A10844 |
B2UZ |
|
|
Lenovo 3m 100G SFP28 Active Optical Cable |
MFA1A00-C003 |
7Z57A03546 |
AV1L |
||
|
Lenovo 5m 100G QSFP28 Active Optical Cable |
MFA1A00-C005 |
7Z57A03547 |
AV1M |
||
|
Lenovo 10m 100G QSFP28 Active Optical Cable |
MFA1A00-C010 |
7Z57A03548 |
AV1N |
||
|
Lenovo 15m 100G QSFP28 Active Optical Cable |
MFA1A00-C015 |
7Z57A03549 |
AV1P |
||
|
Lenovo 20m 100G QSFP28 Active Optical Cable |
MFA1A00-C020 |
7Z57A03550 |
AV1Q |
||
|
Active Optical Splitter Cables
|
Lenovo 3m 100G to 4x25G Breakout Active Optical Cable |
MFA7A50-C003 |
7Z57A03551 |
AV1R |
|
|
Lenovo 5m 100G to 4x25G Breakout Active Optical Cable |
MFA7A50-C005 |
7Z57A03552 |
AV1S |
||
|
Lenovo 10m 100G to 4x25G Breakout Active Optical Cable |
MFA7A50-C010 |
7Z57A03553 |
AV1T |
||
|
Lenovo 15m 100G to 4x25G Breakout Active Optical Cable |
MFA7A50-C015 |
7Z57A03554 |
AV1U |
||
|
Lenovo 20m 100G to 4x25G Breakout Active Optical Cable |
MFA7A50-C020 |
7Z57A03555 |
AV1V |
||
|
Hybrid / Conversion |
NVIDIA 100G QSFP28 to 25G SFP28 Cable Adapter |
MAM1Q00A-QSA28 |
4G17A10853 |
B306 |
|
|
NVIDIA QSFP to SFP+ adapter |
MAM1Q00A-QSA |
00D9676 |
ARZH |
||
|
Passive 200GbE Cables (DAC)
|
1m Passive 200GbE QSFP56 DAC Cable |
MCP1650-V001E30 |
4X97A11113 |
BF6W |
|
|
3m Passive 200GbE QSFP56 DAC Cable |
MCP1650-V003E26 |
4X97A12613 |
BF92 |
||
|
Notes: * Custom product for Lenovo, closest NVIDIA equivalent PN shown. |
|||||
Lenovo References
Refer to the following direct links for information regarding server and operating system compatibility, as referenced in the above tables.
|
Reference# |
Direct Link |
|
Reference 1 |
Lenovo EveryScale (formerly Lenovo Scalable Infrastructure or LeSI) |
|
Reference 2 |
ThinkSystem NVIDIA ConnectX-6 Lx 10/25GbE SFP28 Ethernet Adapters |
|
Reference 3 |
ThinkSystem NVIDIA ConnectX-6 Dx 100GbE QSFP56 Ethernet Adapter |
|
Reference 4 |
|
|
Reference 5 |
|
|
Reference 6 |
ThinkSystem NVIDIA ConnectX-5 EN 10/25GbE SFP28 Ethernet Adapter |
|
Reference 7 |
ThinkSystem NVIDIA ConnectX-5 Ex 25/40GbE 2-port Low-Latency Adapter |
|
Reference 8 |
ThinkSystem NVIDIA Innova-2 ConnectX-5 FPGA 25GbE 2-port Adapter |
|
Reference 9 |
|
|
Reference 10 |
|
|
Reference 11 |
ThinkSystem NVIDIA ConnectX-7 NDR InfiniBand OSFP400 Adapters |
|
Reference 12 |
ThinkSystem NVIDIA ConnectX-7 NDR200 InfiniBand QSFP112 Adapters |
NVIDIA Email Contact Information for Lenovo Sales and Technical Assistance
